July update: VTX (V2) changed to Mini VTX V3 (the parameters are the same)
USB Cable needs to be purchased separately
Specification |
|
VTX | |
Model | VTX For Walksnail Avatar HD Mini 1s And Mini 1s Lite |
Communication Frequency | 5.725-5.850GHz |
Transmitter Power (EIRP) | FCC:<27dBm;CE:<14dBm;SRRC:<20dBm; MIC:<25dBm |
I/O Interface | JST1.0*4(Power in)JST0.8*4(USB) |

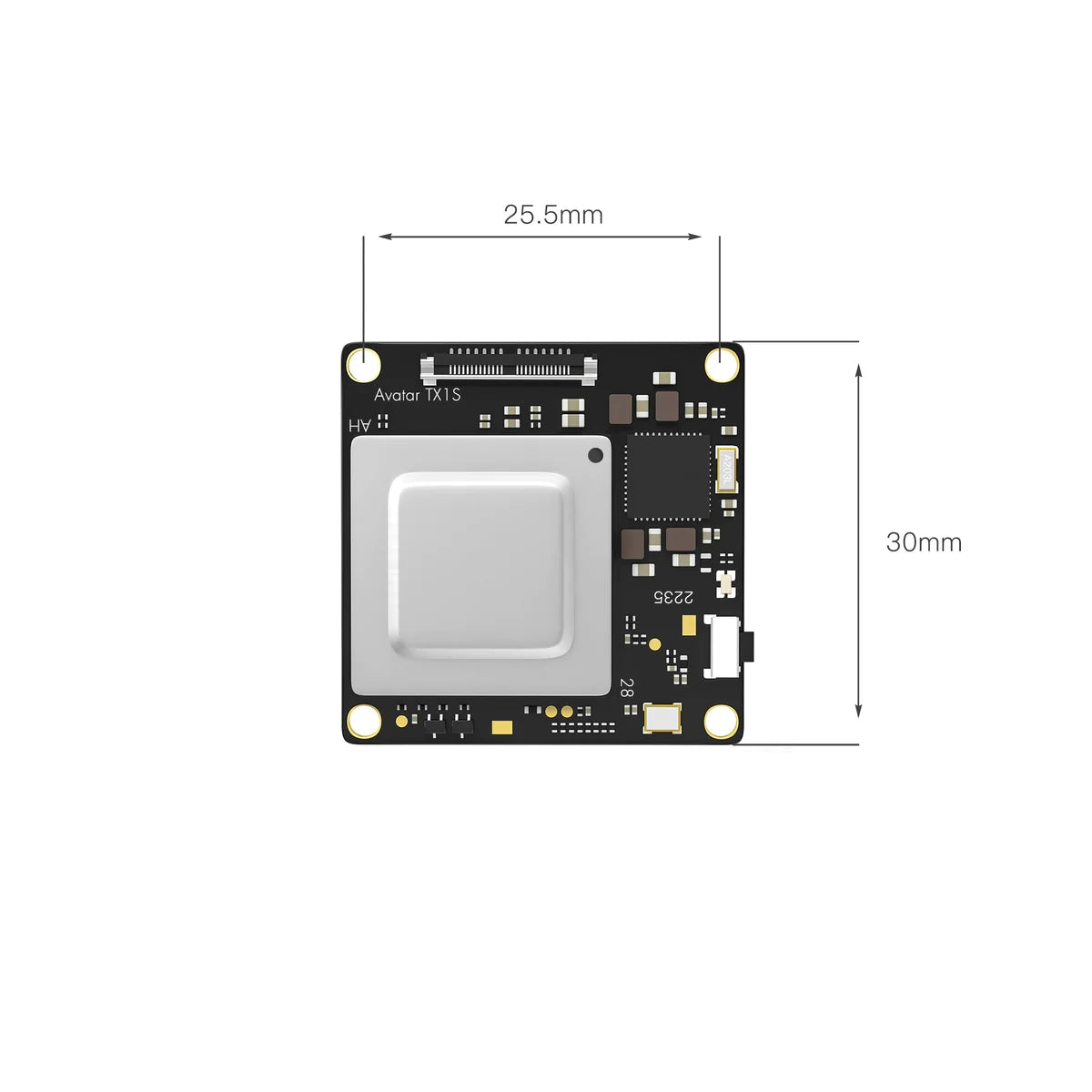

Mounting Holes | 25.5*25.5mm(M2 hole);20*20mm(M3 hole) |
Dimensions | 31.5*31.5*9.4mm |
Storage | 32G |
Recording | 1080p/720p |
Weight | 6.8g |
Operating Temperature | -20-40℃ |
Channels | 8 |
Wide Power Input | 3.1V-13V |
Supported FC System | Betaflight; Inav; Fettec; Kiss; ArduPliot |
OSD | Canvas mode |
Latency | Average latency 22ms |
Antenna | 1(IPEX) |
