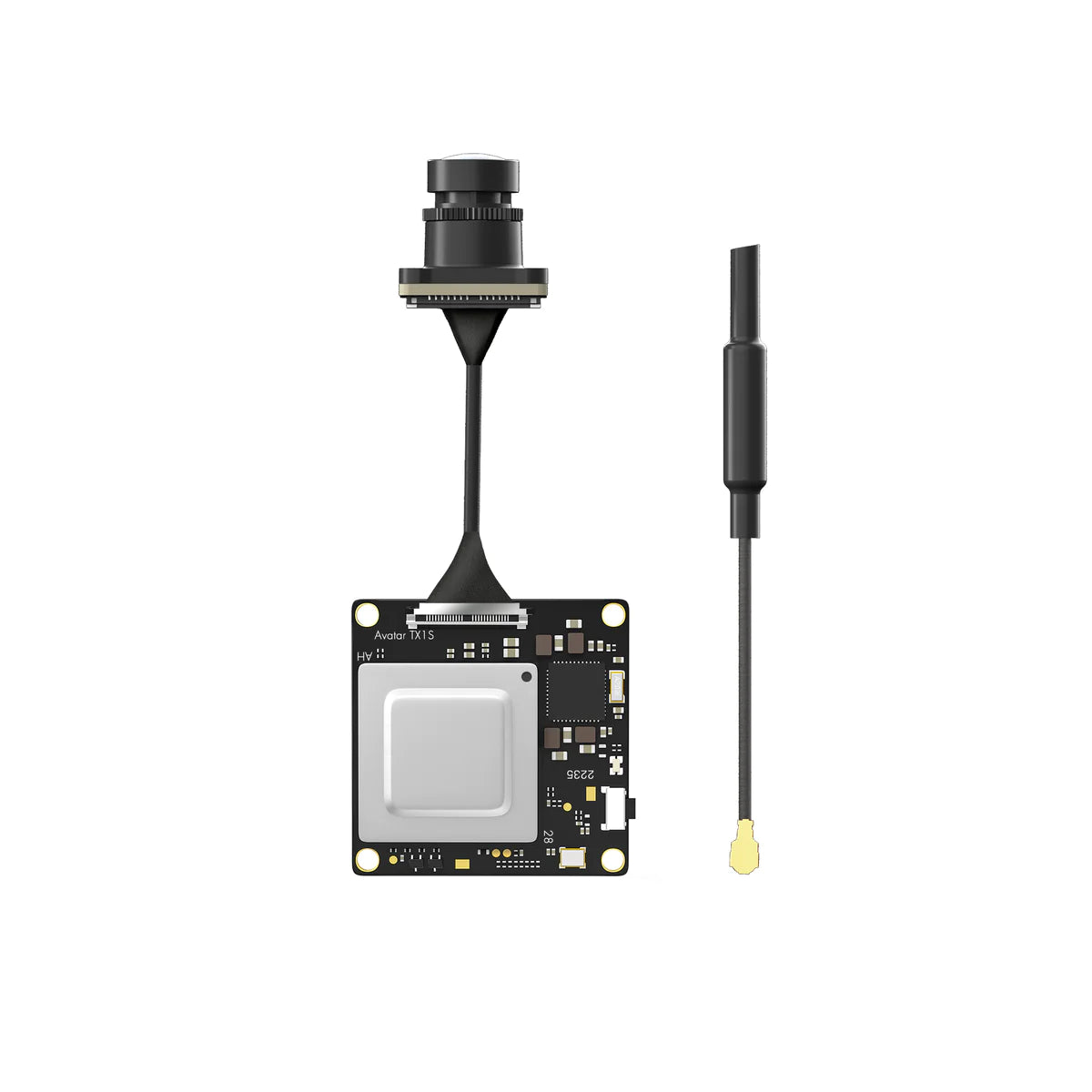

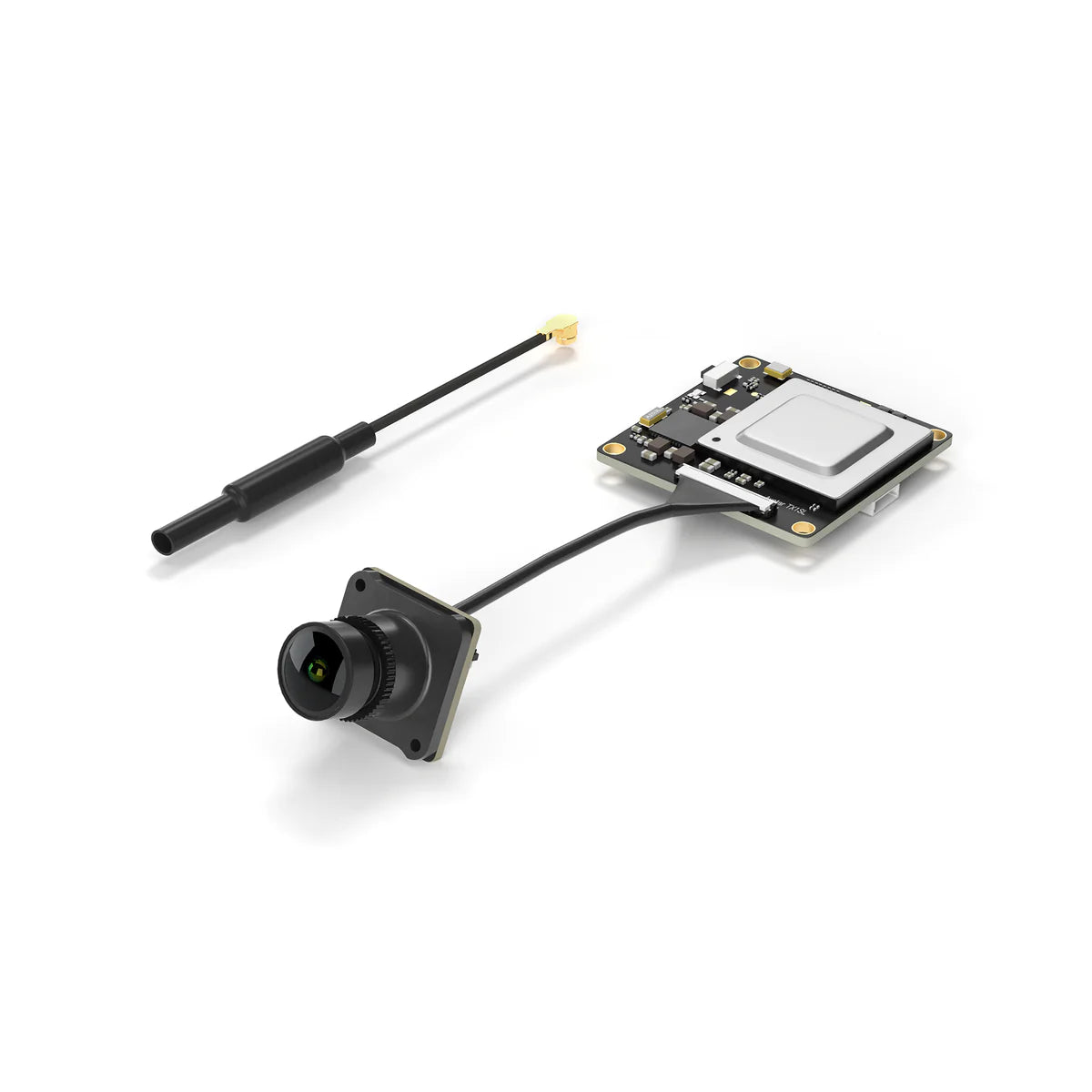

Product features:
1080P/60fps、22ms low latency、7.8g light weight、Canvas mode、Built-in 32g storage、HDMI out、3.1-13V、500mW、Small antenna
This product features a high-definition camera that captures video at 1080P resolution with 60 frames per second, offering low latency of just 22 milliseconds. Additionally, it boasts a lightweight design, weighing only 7.8 grams. The system includes a built-in 32GB storage capacity, HDMI output, and supports Canvas mode. It also features a small size that operates within the range of 3.1-13V DC power and has a transmission power of 500mW.

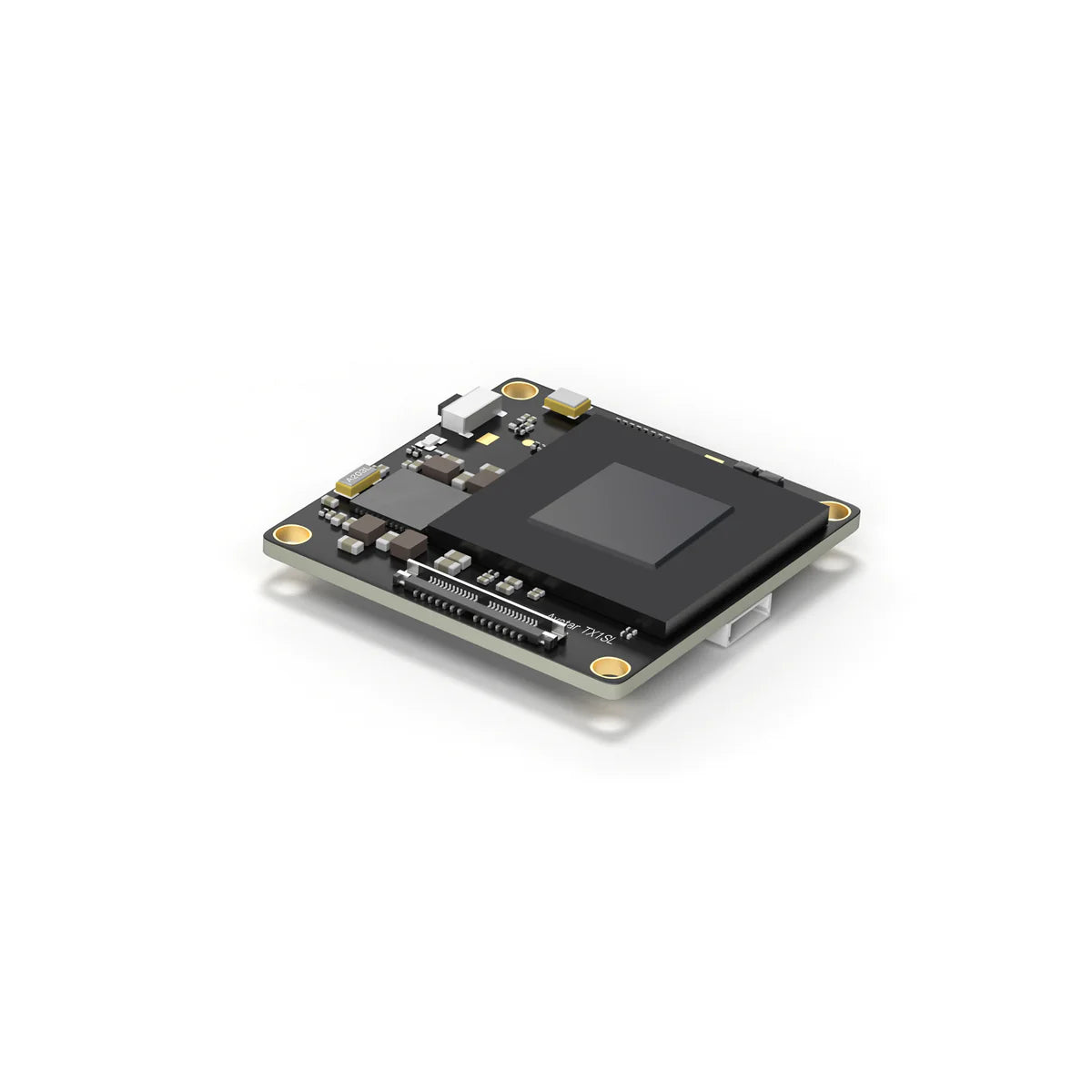

New version of VTX
Avatar HD mini 1S lite kit comes with the smaller, lighter and stronger new version VTX board, 30*30mm size, 5.1g, which can be installed in smaller drones.

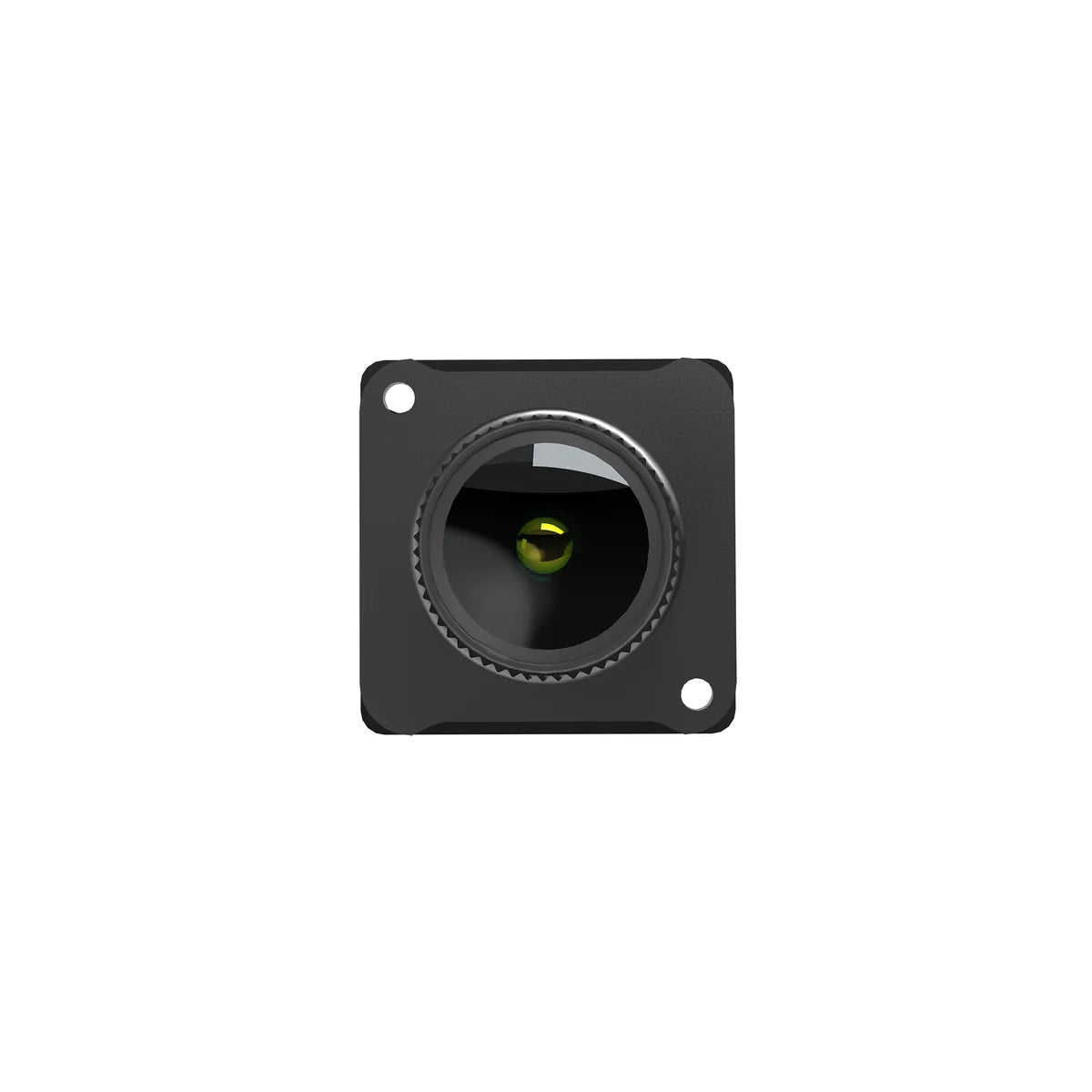

Brand new camera
Avatar HD lite camera weighs only 1.8g, but with 2.1mm lens and 170°FOV, which can bring you a clearer, more realistic image quality.
High quality, low latency
Weighing only 7.8g, but avatar mini 1s lite kit supports 1080P/60fps, 720P/100fps high definition FPV image quality with a average 22ms ultral-low latency, bring you a beautiful clear 1080P digital FPV video and an unforgettable flying experience.
32G Built-in Storage
The Avatar vtx comes with 32g built-in storage, it can record 1080p or 720p HD and interference-free flight footages without adding an extra SD card and an action camera, reducing the overall weight of the drones and extending the flight time, allowing you to experience a more comfortable flight while recording 1080 HD videos.
Canvas Mode
Supporting Betaflight, kiss, Inav, Ardu full OSD display and customization, you'll be able to customize various OSD fonts, colors and patterns you like and easily adjust the parameters you want via remote control.
3.1-13V input, max 500ms output
The avatar mini 1S lite kit is suitable for more types of drones, with 3.1-13V voltage input and 500mw power output, you'll be able to fly all kinds of tinywhoops in a amazing video quality and range.

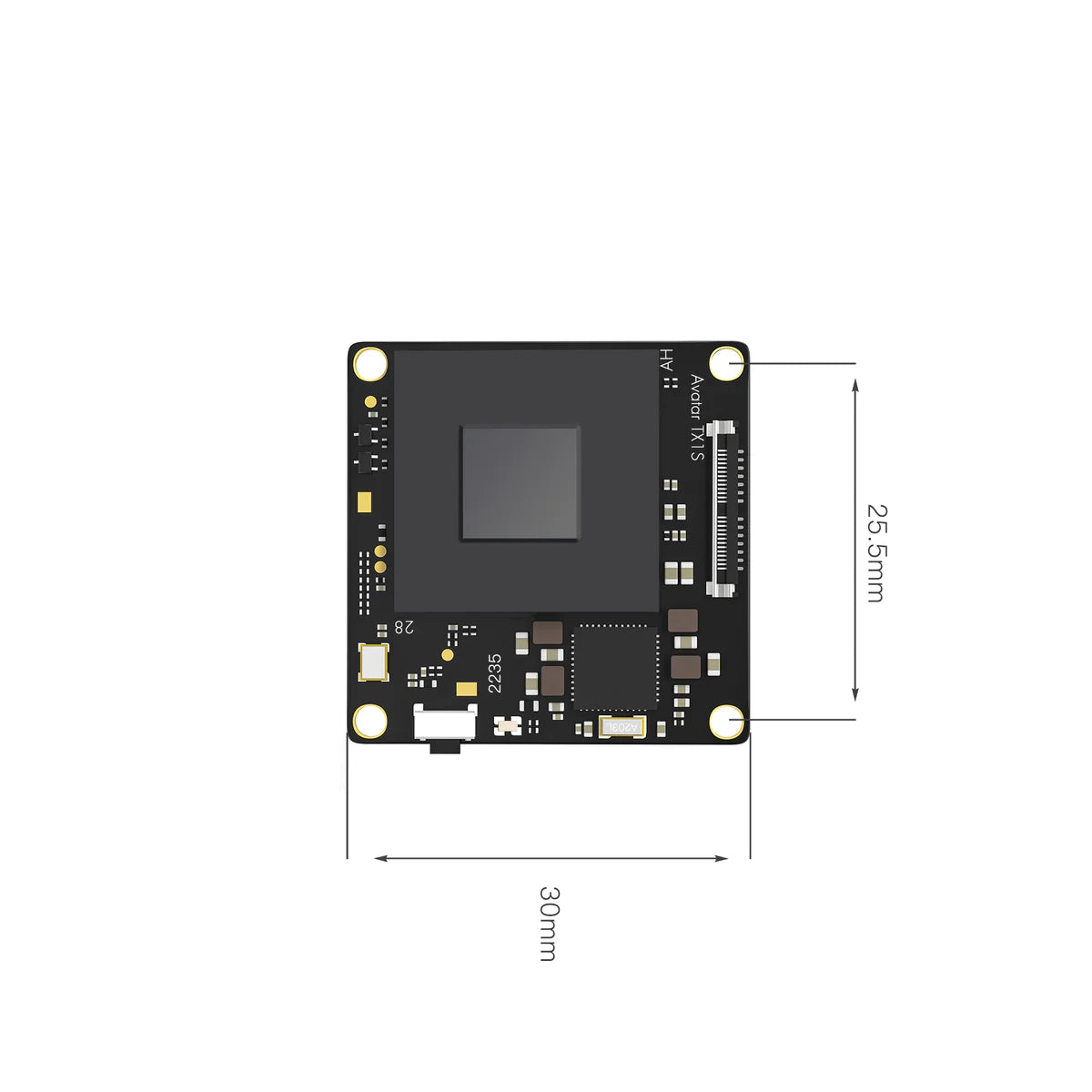

Product Size:
July update: VTX (V2) changed to Mini VTX V3 (the parameters are the same)
Specification |
|
Camera | |
Model | Avatar lite camera |
Image Sensor | 1/2.7”1nch |
Resolution | 1080P/60fps,720P/120fps,720P/60fps |
Ratio | 16/9 4/3 |
Lens | 2.1mm |
FOV | 170° |
Aperture | F2.0 |
Shutter Rolling | Rolling shutter |
Min.Illumination | 0.001Lux |
Weight | 1.8g |
Dimensions | 14*14*16mm |
VTX | |
Model | Avatar mini 1s module |
Communication Frequency | 5.725-5.850GHz |
Transmitter Power (EIRP) |
FCC:<25.5dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm |
I/O Interface | JST1.0*6(Power in)JST0.8*4(USB) |
Mounting Holes | 25.5*25.5mm |
Dimensions | 30*30*6.5mm |
Storage | 8G (V2) / 32G(V3) |
Recording | 1080p/720p |
Weight | 6.8g |
Operating Temperature | -20-40℃ |
Channels | 8 |
Wide Power Input | 3.1V-5V(V2) / 3.1-13V(V3) |
Supported FC System | Betaflight; Inav; Fettec; Kiss; ArduPliot |
OSD | Canvas mode |
Bitrate | 25mbps 50mbps |
Latency | Average delay 22ms |
Antenna | IPEX |
1s lite antenna | |
Polarization | Linear |
Frequency range | 5600-5900MHz |
Gain | 1.6 dbi |
VSWR | ≤1.5 |
Input Impedance | 50Ω |
Interface | IPEX-1 |
Size | R 5mm,L 70mm |
Weight | 0.5g |
Packing List | |
Avatar Mini 1S lite KIT | X1 |
4 Pin USB Cable | X1 |
4 Pin Power Cable | X1 |
1.4×8mm Screws | X4 |
1.4×10mm Screws | X2 |
M2 Anti-vibration Rubber Dampers *6mm | X4 |
