Walksnail Avatar VRX 1080P/60FPS 4KM Distance with Avatar 1S Kit / Avatar HD Micro Kit for FPV Freestyle Drone RC Model

Walksnail Avatar VRX 1080P/60FPS 4KM Distance with Avatar 1S Kit / Avatar HD Micro Kit for FPV Freestyle Drone RC Model

RCDrone

$375.02 USD
$525.03 USD $375.02 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

13 orders in last 90 days

Color
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

Walksnail Avatar VRX SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Adapter

Tool Supplies: Assembly Category

Remote Control Peripherals/Devices: Starter

Recommend Age: 12+y

RC Parts & Accs: Receivers

Origin: Mainland China

Model Number: Avatar VRX

Material: Composite Material

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Brand Name: uuustore

The Walksnail Avatar VRX transmits 1080P/60fps with industry-leading H.265 encoding technology, which can provide a minimum delay of 22ms and a maximum resolution of 1080p. Enjoy clear HD video to take your FPV experience to the next level!

Choose just the VRX or one of the combo kits which include the VTX and camera.

Remark:Ship within 24hours

Features

  • Lightweight Design - 83g
  • Max transmission distance of more than 4km
  • Supports 1080P 60FPS or 720P 100FPS
  • Supports Betaflight Canvas Mode
  • Compatible with Analog Goggles
  • HDMI Out

Specifications

AVATAR Camera

  • Image Sensor: 1/2.7”
  • Resolution: 1080P/60fps,720P/120fps,720P/60fps
  • Ratio: 16/9 - 4/3
  • Lens: 2.1mm
  • FOV: 170°
  • Aperture: F2.0
  • Shutter Rolling shutter
  • Min.Illumination: 0.001Lux
  • Weight: 3.5g/6g
  • Dimensions: 14*14*17mm/19*19*22mm
  • Coaxial Cable: 90mm/140mm

VTX

  • Communication Frequency: 5.725-5.850GHz
  • Transmitter Power: (EIRP) FCC: <30dBm;CE:<14dBm;SRRC:<20dBm; MIC: <25dBm
  • 1/O Interface: JST1.0*6(Power in)JST1.0*4(USB)
  • Mounting Holes: 25.5*25.5mm
  • Dimensions: 33*33*9.5mm
  • Storage: 8G
  • Recording: 1080p/720p
  • Weight: 16g
  • Operating Temperature: -20-40℃
  • Channels: 8
  • Wide Power Input: 6V-25.2V
  • Supported FC System: Betaflight
  • OSD: Canvas mode
  • Latency: Average delay 22ms
  • Antenna: 2(IPEX)

Googles Antenna

  • Model: Red bird
  • Polarization: LHCP
  • Bandwidth: 5.6GHz-6.0GHZ
  • Average Gain: 1.9dBi
  • Radiation Efficiency: ≥97%
  • VSWR: ≤1.3
  • Cross-Polar Rejection: -15to-30dB
  • Connector: RP-SMA
  • Dimension: H24.8mm*R15.3mm
  • Weight: 4.2g

Avatar HD VRX

  • Communication Frequency: 5.725-5.850GHz
  • TransmitterPower(EIRP): FCC:<30dBm;CE:<14dBm;SRRC:<20dBm;MIC:<25dBm

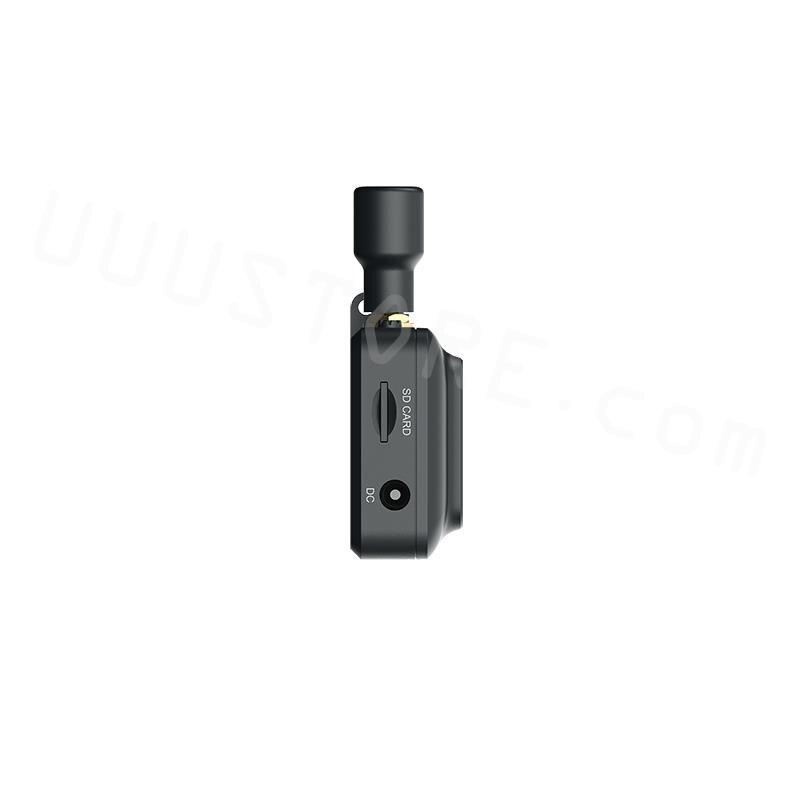

  • I/O Interface: HDMI,microSD card slot, DC5.5*2.1mm
  • HDMI output: 1080p60fps,720p100fps,720p60fps
  • Power Input: 7-21V(2S-5S)
  • SDCard: Support256G
  • System: AvatarHDsystem

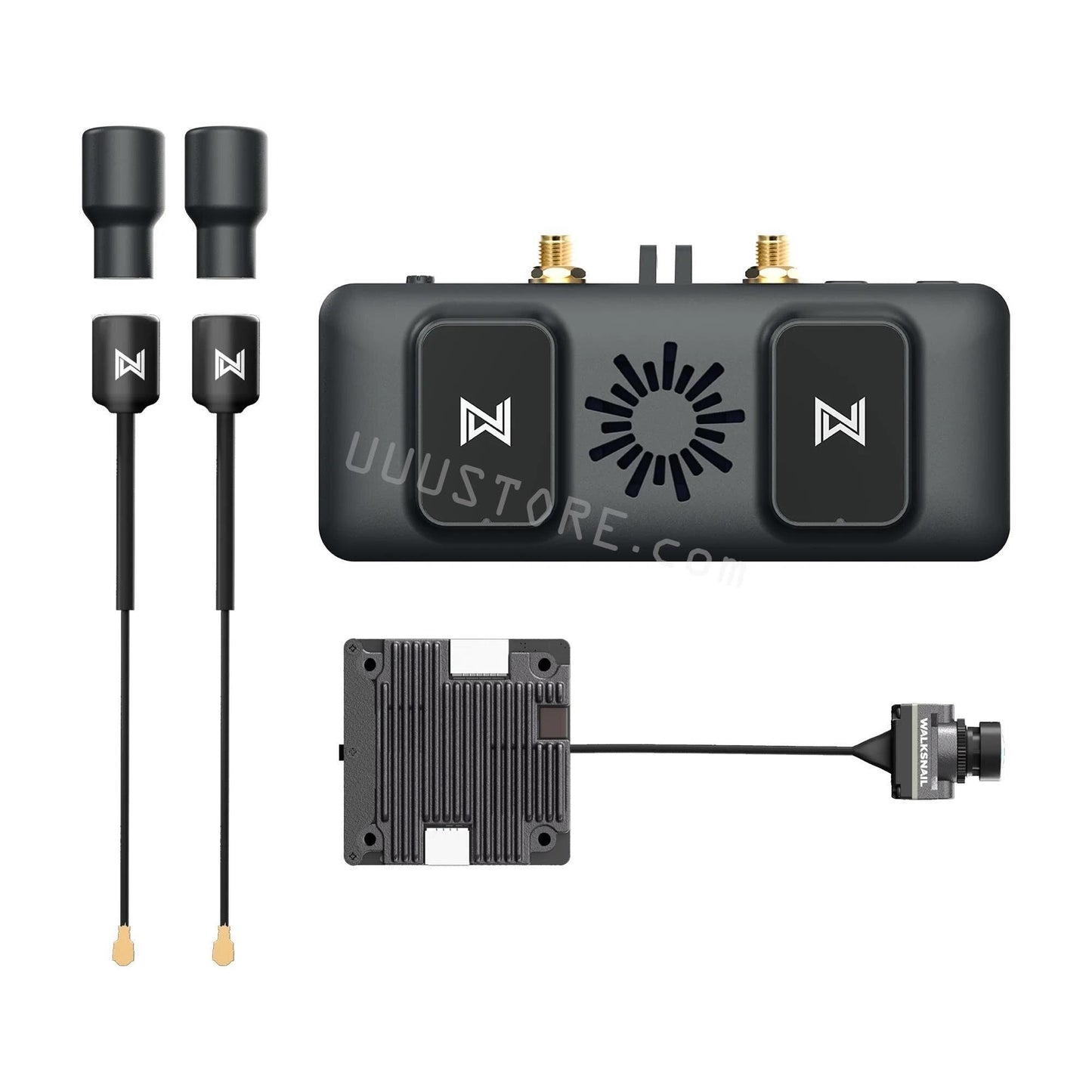

Includes

Avatar VRX

  • Avatar VRX X1
  • RedBird Antenna X2
  • HDMI Cable X1
  • 2in1DCPowerCable X1

Avatar HD Micro KIT

  • Avatar HD Micro X1
  • 4 Pin USB Cable X1
  • 6 Pin Power Cable X1
  • M2x3/4/5mm Screws X4
  • M1.2x1.5mm Screws X2

Avatar HD Nano KIT

  • Avatar HD Nano X1
  • 4 Pin USB Cable X1
  • 6 Pin Power Cable X1
  • M2x3/4/5mm Screws X2
  • M1.2x1.5mm Screws X2
  • 14-19mm Bracket X1

Avatar Mini 1S KIT

  • Avatar Mini 1S X1
  • 4 Pin USB Cable X1
  • 6 Pin Power Cable X1
  • M2x3/4mm Screws X2
  • M2x16mm Screws X4
  • M2 Screw nut X4
  • 2.1x3.4x1mm Gasket X5

Note:

  1. VRX is expected to be shipped on December 10th
  2. You can get a refund within 7 days without any reason
  3. This product does not apply any discounts

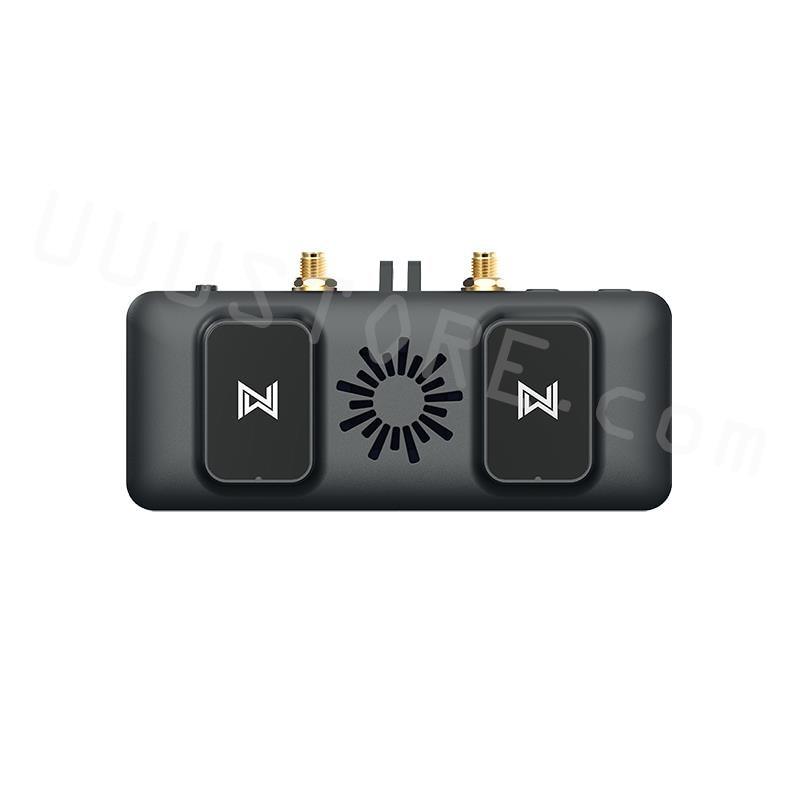

Lightweight design, ultra-thin experience
Walksnail VRX only 83g and comes with 114*55*22mm size, easy to carry.

Walksnail VRX is expected to be shipped on December 10th . it

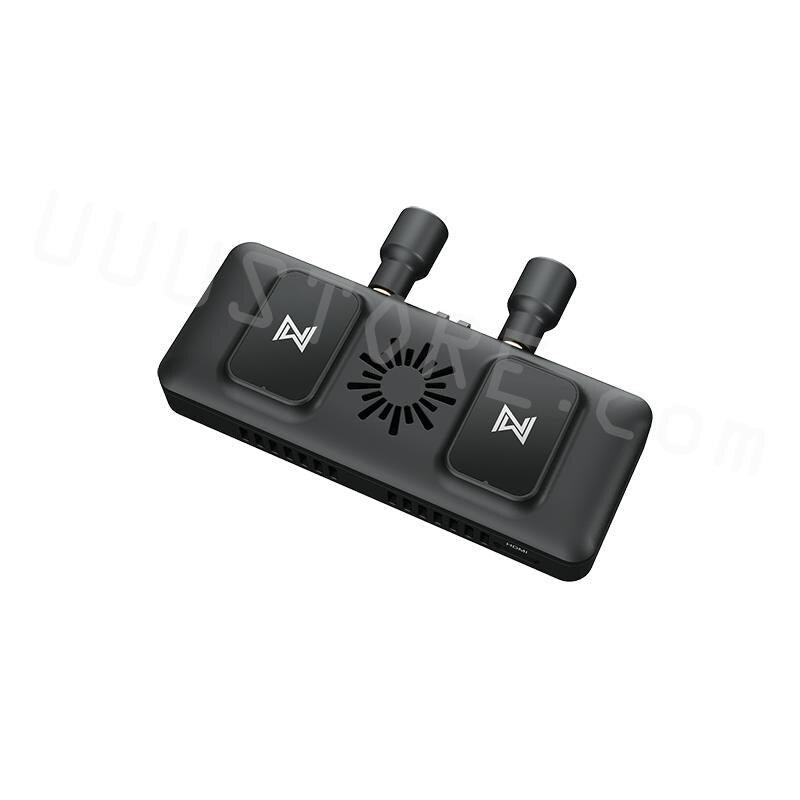

Walksnail VRX adopts a 4pcs antenna design, with 2pcs directional antennas with a maximum transmission distance of more than 4km

Enjoy clear HD video to take your FPV experience to the next level

1080P/60FPS
Walksnail VRX adopts industry-leading H.265 encoding technology,
which can provide a minimum delay of 22ms and a maximum resolution of 1080p.
The HD picture quality takes you to experience the fun of flying a drone.

Walksnail VRX is expected to be shipped on December 10th . it

HDMI output ensure you to enjoy uncompressed audio and video signals from the Walksnail HD system

Compatible With Analog Goggles, HDMI Out HDMI W

Canvas Mode
Supports betaflight full OSD display,supports betaflight, inav, kiss full osd display
you can easily adjust the parameters you want by remote control.

Canvas Mode 1236 5,913 PROFILE-= PID PROF PID MI

Canvas Mode: 1236 x 5913 pixels, Profile Settings, PID Profiling, MISC Parameters, PP Filter, PP Rate, Global Copy, Save, Exit. Transmission Rate: 25 Mbps, Response Time: 22 ms, Distance Measurement: 259 meters, CHII (or IIlI) - possibly a camera or sensor model.
