features:
●4k/60FPS | ●Startlight Camera |
●Built-in EIS | ●Support Gyroflow |
●Sd card | ●FOV 160° |
●Dual Antennas | ●7.4V-25.2V |
Bullet Points:
- Supports 4K/60fps, ensuring that FPV embraces true 4K. Shooting stable and HD videos without unnecessary latency, bring pilots a smoother FPV experience.
- Feature starlight sensor, to improve image quality and performance in low-light scene shooting, ensuring night vision shooting and eliminating frequent camera switching.
- Built-in EIS and supports Gyroflow technology, taking you a smooth and stable video quality, to facilitate and enjoy freestyle fly.
- Comes with silicone pads for mounting the camera, ensuring stability and minimizing camera shake for perfect captures.
- Supports manual shutter and manual ISO settings, take perfect photos regardless of any lighting limits.
123G 5.96 Channel Share Settings Playback Settings Camera Scence Day EV EV-0 Saturation 5 * Sharpness WB AWB Rotate Ratio 16.9 3D DNR Auto Shutter Auto ISO Auto ISO Mode Max ISO 2d DNR auto 25.4V 7.4V 25Mbps 22ms 259m CHI I
- The moonlight camera has a 160° FOV, providing you with a more natural and real picture for the ultimate flying experience.

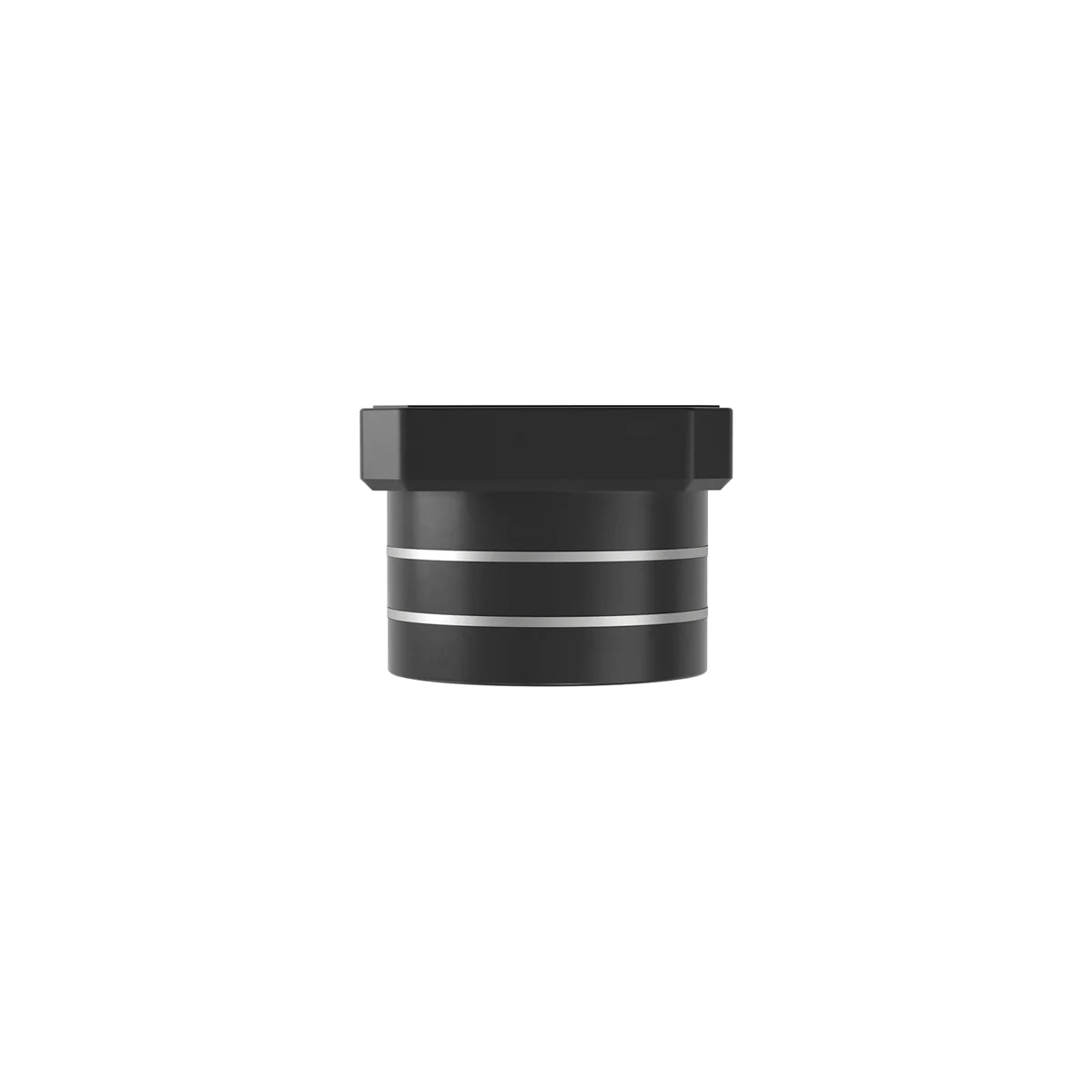

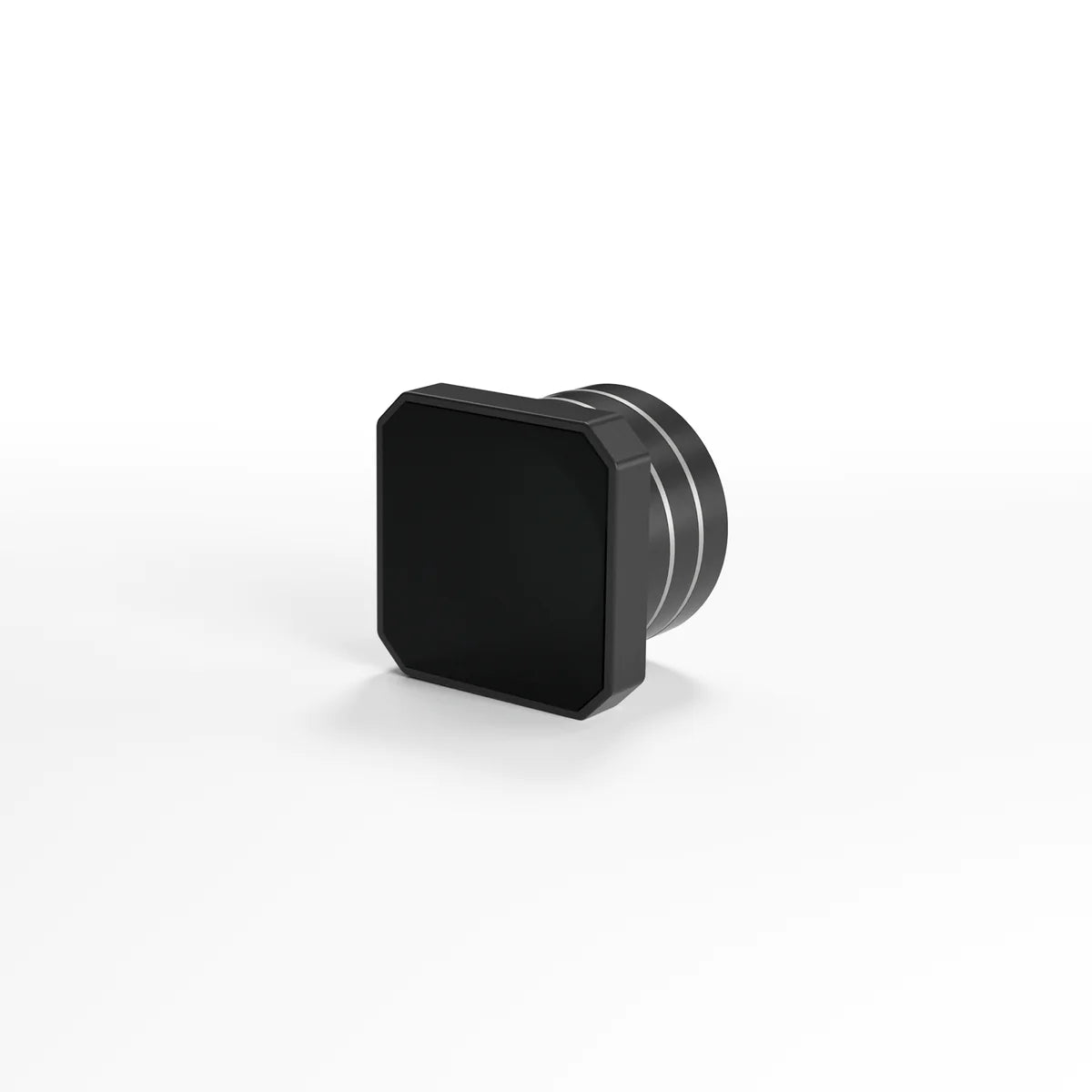

- Come with ND8 filters to meet the needs of more different shooting scenes, to bring different effects to the shooting.
Specification | |
Model | Moonlight kit |
Firmware name | AvatarMoonlight_Sky_X.X.X |
Communication Frequency | 5.725-5.850GHz |
Transmitter Power (EIRP) | FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm |
1/O Interface | JST1.0*4(Power in)JST0.8*6(USB),Micro SD card Slot;IPEX-1 |
Sensor | Starlight sensor |
FOV | Max 160° |
Aperture | F2.1 |
Shutter | Rolling shutter |
ISO | 100-25600 |
Recording resolution | 4K@30/60fps,2.7K@30/60fps,1080p@100/60fps,720p@60fps |
Max Mbps | 150Mbps |
Video format | MP4 (H.264) |
3D DNR | Support |
Gyroflow | Support |
Built-in EIS | Support |
Wide Power Input |
7.4V-25.2V |
Power consumption | 12V@1.4A, 8V@2.2A |
Memory card type | U3 MicroSD, Max 256G |

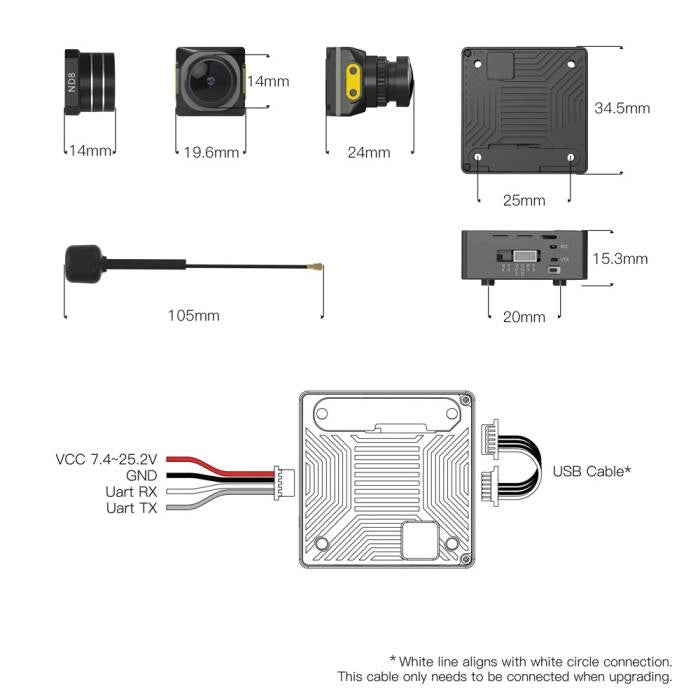

Camera size | 19.6mm*19mm*24mm |
VTX size | 15.3mm*34.5mm*34.5mm |
VTX Installation hole distance | 20*20mm/25*25mm (M2) |
Weight |
38.5g(Antenna not included) |
OSD | Canvas mode |
Latency | Average delay 22ms |
Antenna | 2 (IPEX) |
VTX Antenna | |
model | avatar V2 antenna |
Polarization | LHCP |
Frequency range | 5600MHz-6000MHz |
Average Gain | 1.9dBi |
VSWR | <1.5 |
Input Impedance | 50Ω |
Interface | IPEX-1 |
Dimension | R15 X 45mm (without cable) |
Weight | 2g |

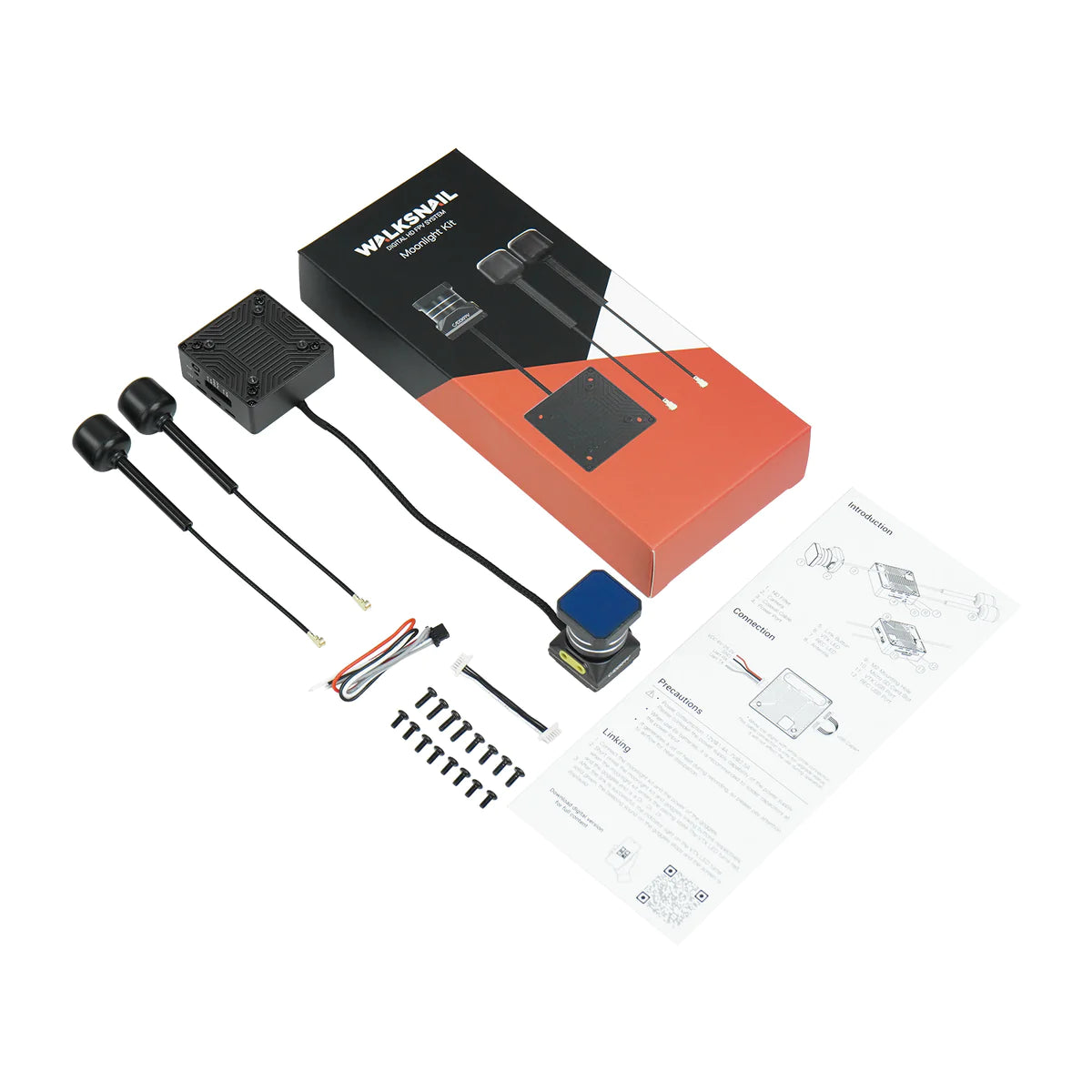

Packing List:
WD Digita Hotevsystem Moonlight Kit 0n80 LKSNEIL Linking Dennlou Mladlou WD Introduction Connection W[ Precautions TttTttt Linking Denn
