WFLY ET16S SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Remote Control Peripherals/Devices: Remote Controller
Recommend Age: 14+y
RC Parts & Accs: Radio Systems
Origin: Mainland China
Material: Composite Material
For Vehicle Type: Airplanes
Transmitter
Type: ET16S
Channel: 16
Voltage: 3.5V-13V(1S-3SLithium battery)
Current: 260-400mA
Resolution: Full Channel 4096
Application: Helicopter, Airplane, Multi-rotors,
Vehicle, Ship.
Band: 2.4GHz (Bidirectional)
Programming: 5 Groups Mixed Control
Voice: Support voice broadcast
Upgrading:USB online upgrade
Relay light: Available
External RF modules:Support
Storage: 30 models
Language: Chinese, English
Display: 3.5inch touch, 480*320, color display
180/270°Servo: Available
Wireless signal copy: model data
Hall sensor rocker assembly.
Receiver
Type:RF209S(Support ET series transmitter)
Band:2.4GHz
Voltage:3.5V-13V
Current:95mA
Application: Helicopter, Airplane,
multicopter, Vehicle, Ship, Robot.
Resolution:4096
PWM:9channels
W.BUS: Compatible
W.BUS2: Remote sensor input
Two-way transmission: Support
Fail save: Support
Online upgrading: Support
Relay flight: Support
180/270°servo:Support
Receiver port setting: Support
External voltage detection: DC 0~96V
Dimension:47x14x25mm
Weight:12g
WFLY standard packing :
*ET16S Radio
*RF209S Receiver(Optional)

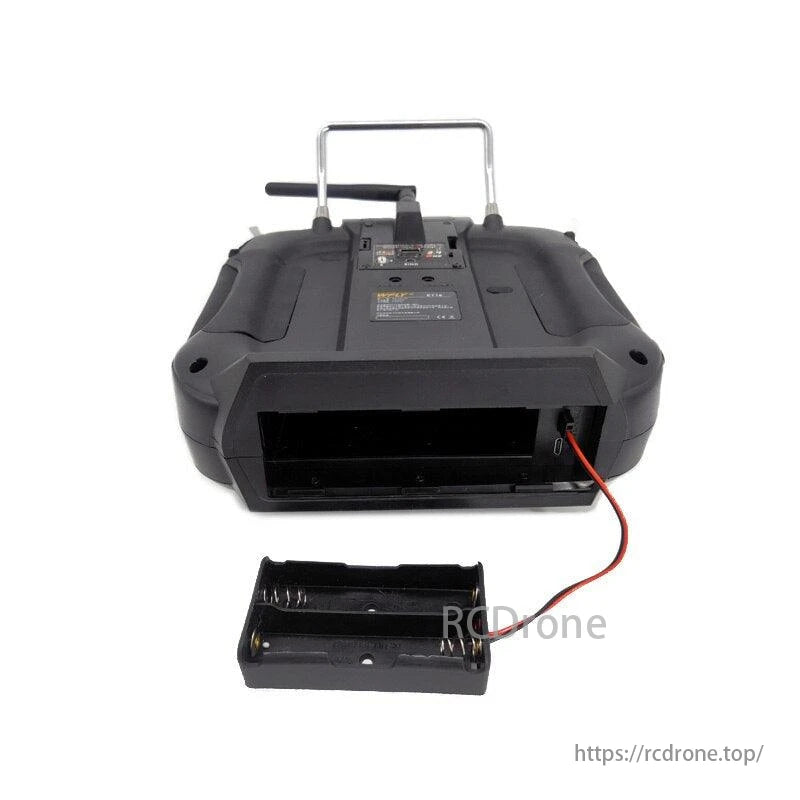

*18650 battery tray
*WFLY neck strap
*Voltage inspection wire
*Rocker accessories
The Hall sensor gimbals provide a superior tactile experience with no finger fatigue or discomfort, resulting in smoother and more precise control. Additionally, this design features zero mechanical contact, ensuring prolonged component lifespan and reduced wear.
This wireless transmitter/receiver supports full-channel 16-bit resolution, providing excellent operating experience. It sends data at 90% capacity per channel, with each channel supporting the same high-resolution mode.
Features an English interface with intuitive touch operation, two-way transmission for seamless communication, and supports up to 64 points of operation experience with strong resistance to signal interference.
Real-time Voice Broadcast System with Dynamic Upgrade - Enjoy free online upgrades from the factory, plus value-added services. Receiver Voltage, Battery Voltage, and Transmitter Voltage are monitored in real-time. The Timer Trim feature allows for location-based adjustments. This system is compatible with Windows only.
WFLY ET16S: A two-way transmission radio transmitter with 16 linear channels, featuring reverse insertion protection, 64-point frequency hopping, and three sets of programmable mixes. It boasts a fast response time of 3.6ms, with a color screen display offering 4096 resolution. The device features USB online upgrade capabilities and a touch screen interface for easy customization. Additionally, it has a W.BUS system for seamless updates and a bus slot for expansion. Notably, the device does not require fingerprint scanning.

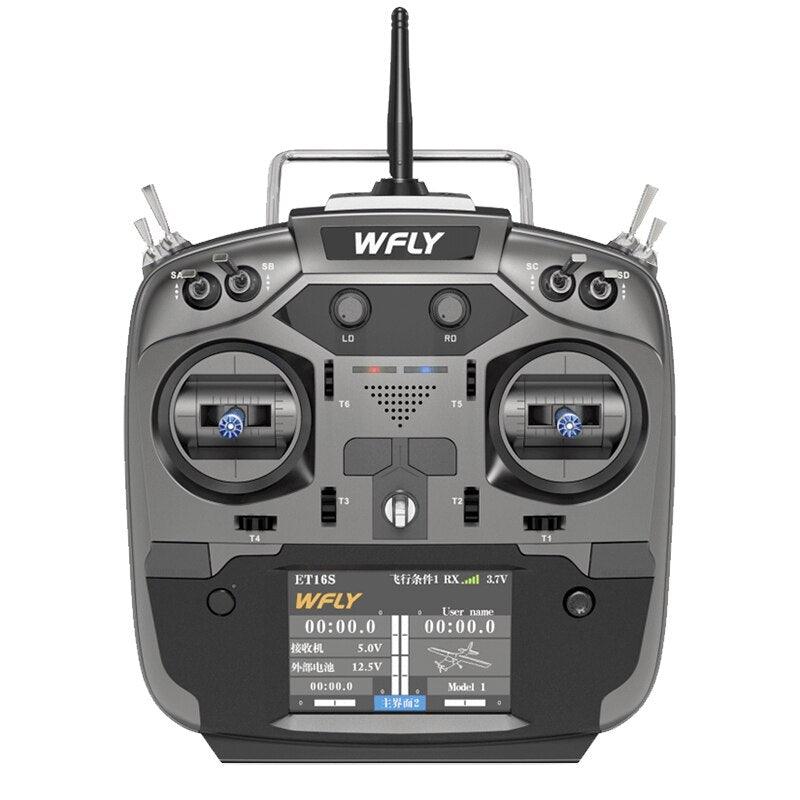

The product image shows various features, including an RF LED indicator, six trim dials (Trim1-6), a J3 speaker, a stick with a power key, a home/mono button, an exit/lock function, a 5-way toggle button, a status LED light, a hook for attaching accessories, a color LCD display, a JR Bay adapter, a headphone port, a trainer port, a battery cover, a battery interface, and a USB port.
