X-uav Mini Talon RC Kit SPECIFICATIONS

Warning: as description show

Video Capture Resolution: Other

Type: Airplane

State of Assembly: Almost Ready

Remote Distance: 200 meters

Remote Control: Yes

Recommend Age: 12+y

Power Source: Electric

Plugs Type: as description show

Package Includes: Original Box

Origin: Mainland China

Operator Skill Level: Expert

Model Number: X-uav Mini Talon EPO

Material: Foam

Indoor/Outdoor Use: Outdoor

Flight Time: 25min

Features: Other

Dimensions: 51cm-99cm

Controller Mode: MODE1,MODE2

Controller Battery: 7.4V 300mAh (included)

Control Channels: 4 Channels

Charging Voltage: as description show

Charging Time: as description show

Camera Mount Type: Other

Brand Name: uuustore

Aerial Photography: No

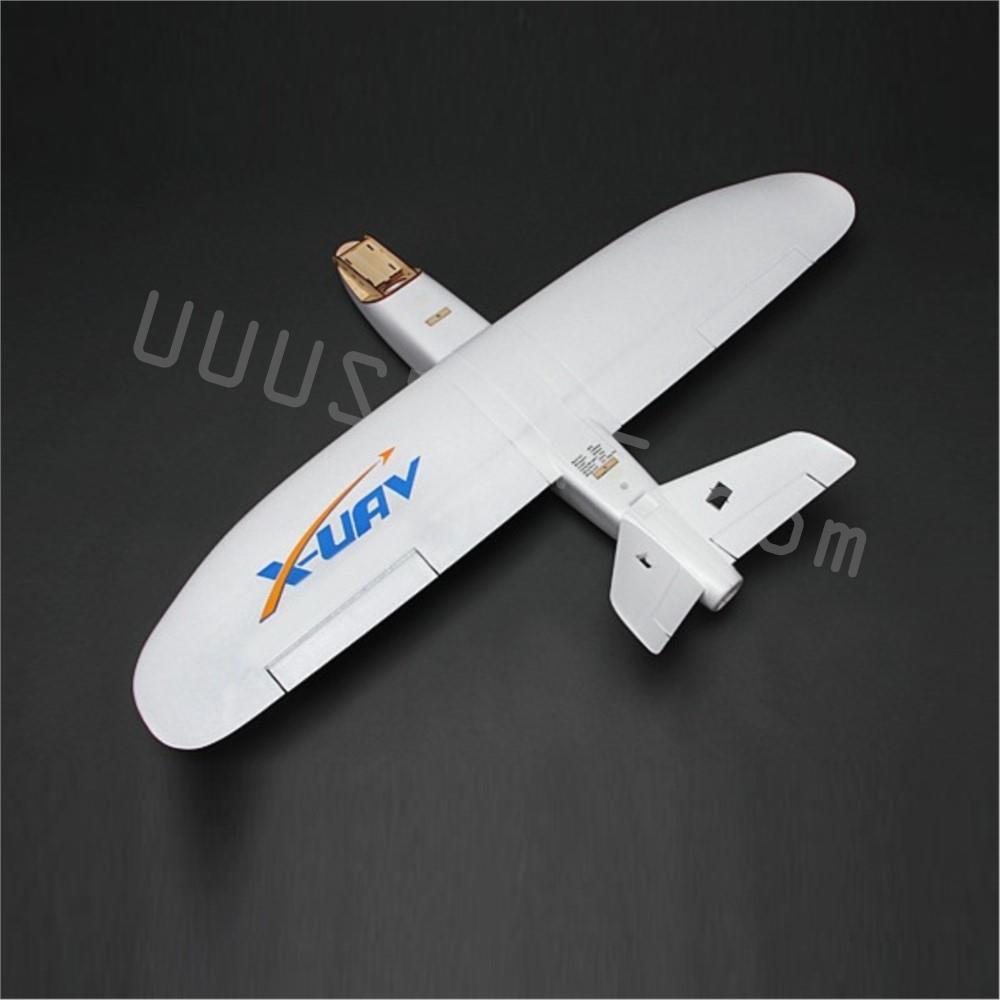

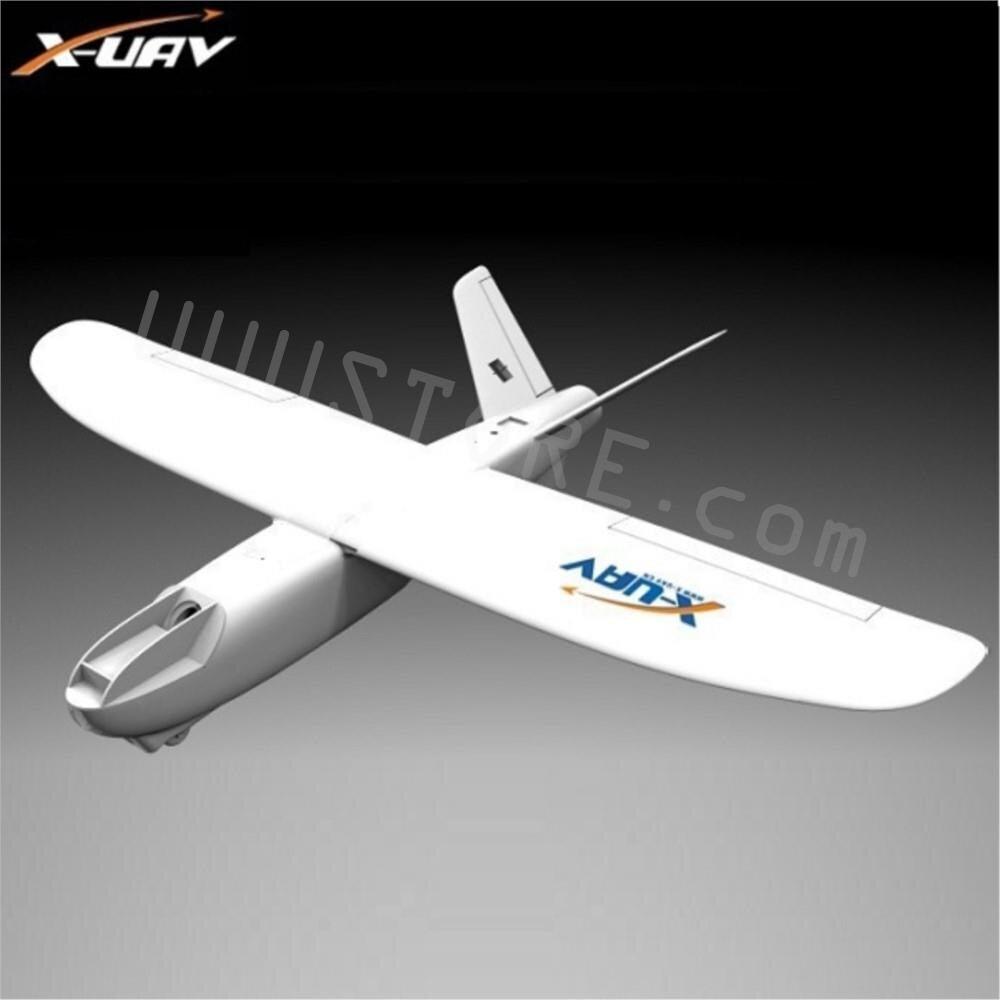

The Mini Talon V-tail plane is the smaller version of the popular Talon Kit. The kit comes un-assembled with EPO and laser cut plywood parts.Runs 4S 14.8V 10,000mAh LIPO battery, flight times are long, and wing loading still low thanks to the generous wing area of the Talon. A generous fuselage compartment with large top hatch allows you to access your equipment and flight battery in any configuration you choose. It is a great plane for anything you want to throw at it.you can use these for site surveying, aerial mapping and FPV fun.

Description:
Brand:X-uav
Item:Mini Talon Kit
Wingspan: 1300mm
Length: 830mm
Flying Weight: 1000g-2000g
Note:Electronics Kit Supplied

Recommend Parts (Not Included) :
6 CH FlySky Transmitter and Receiver
4S 5000mAh LiPoly Battery
4 x TowerPro 9g Servos
3536(2814) 1000KV Brushless Motor
40A Brushless Speed Control
9x4.5 propeller

Recommend FPV System (Not Included) :
APM Flight Controller Set 2.8
Eachine 700TVL 1/3 Cmos 110 Degree Lens Camera
Skyzone FPV 5.8G 32CH 7 Inch Monitor DVR
Eachine TS832 FPV 5.8G 32CH 600mW Wireless AV Transmitter
Eachine FPV 5.8G 32CH Wireless AV Receiver RC832
5.8G Gain Petals Clover Mushrooms

Features:
- The Mini Talon FPV V-tail Drone is the new little FOR brother of the popular Talon FPV plane.
- Its smaller size is great for packing with you on your favorite FPV safari.
- Runs on 4S 14.8V 10,000mAh LiPoly battery, long flight times.
- Low wing loading.
- Generous fuselage compartment with large top hatch allows you to access your FPV equipment and flight battery in any configuration you choose. It is an open canvas for your FPV needs.
- Kit - All assembly and equipment installation required
- Moulded EPO airframe
- Laser cut plywood motor mount and wing saddle frame
- Mono-wheel landing gear protects bottom of fuselage
- Large fuselage compartment accommodates many battery and equipment configurations.
- Two Piece plug in wings with carbon wing tube

Note: Kit only, does not include motor/ESC/Servos
The LY-T08-11 Carbon Rod Fastener is installed on the wing,the LY-T08-12 Wire Line is not included.


Package Included:
1 x X-uav Mini Talon RC Kit
