XXD A2212 2212 1400KV Brushless Motor 30A ESC Mount 8060 Propellers for RC Fixed Wing Plane Helicopter

XXD A2212 2212 1400KV Brushless Motor 30A ESC Mount 8060 Propellers for RC Fixed Wing Plane Helicopter

XXD

Regular price $14.17 USD
Regular price $28.35 USD Sale price $14.17 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

80 orders in last 90 days

Color

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

XXD A2212 2212 1400KV Brushless Motor SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Adapter

Tool Supplies: Grinded

Technical parameters: Value 9

Remote Control Peripherals/Devices: ESC

Recommend Age: 18+

RC Parts & Accs: Motor Components

Origin: Mainland China

Model Number: KV1400+ESC 30A

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

Brand Name: Skyquist

XXD A2212 2212 1400KV Brushless Motor, Packet content: 100% Brand New 1 * A2212 1400KV Brushless


Features:
Safety arming feature: regardless the throttle stick position, the motor will not spin after battery connected.
Throttle calibration: throttle range can be configured to provide best throttle linearity, fully compatible with all market available transmitters.
Programmable items:
Brake setting: brake enabled / brake disabled.
Battery type: Li-xx(Li-ion or LiPo) / Ni-xx(NiMh or NiCd).
Low voltage protection mode (cutoff mode): gradually reduce the output power / cutoff the output power.
Low voltage cutoff protection threshold (cutoff threshold): low / medium / high.
Start mode: normal / soft / very soft.
Timing: low / medium / high.
Reset: reset all the programmable items to their default settings.
Full protection features: low voltage cutoff protection / over-heat protection / throttle signal lost protection.

Specifications:

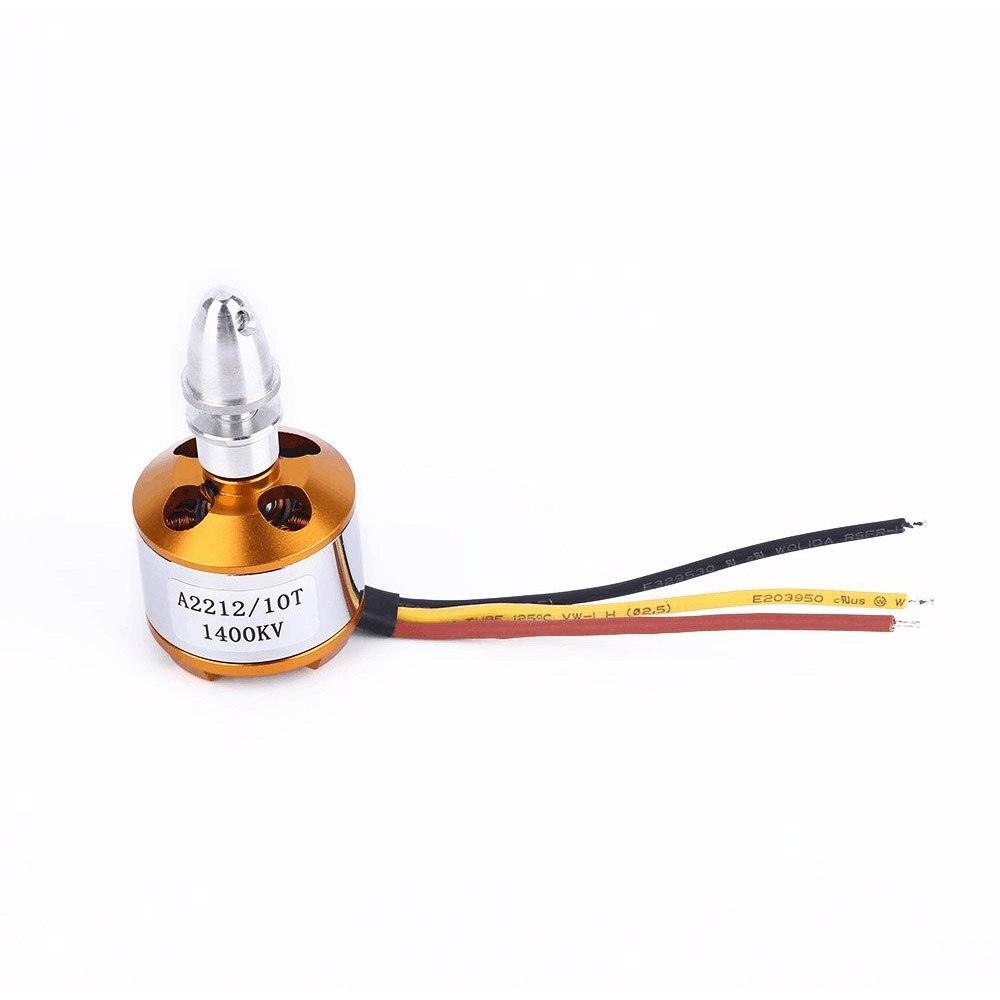

XXD A2212 1400KV brushless outrunner motor:
KV: 1400
Max. efficiency: 80%
Max. efficiency current: 4-10A (>75%)
Current capacity: 12A/60s
No Load current @ 10V: 0.5A
No. of cells: 2-3 Li-Poly
Motor size: 27.5 * 27mm / 1.1 * 1.1in
Shaft diameter: 3.17mm / 0.1in
Weight: 48g / 1.7oz

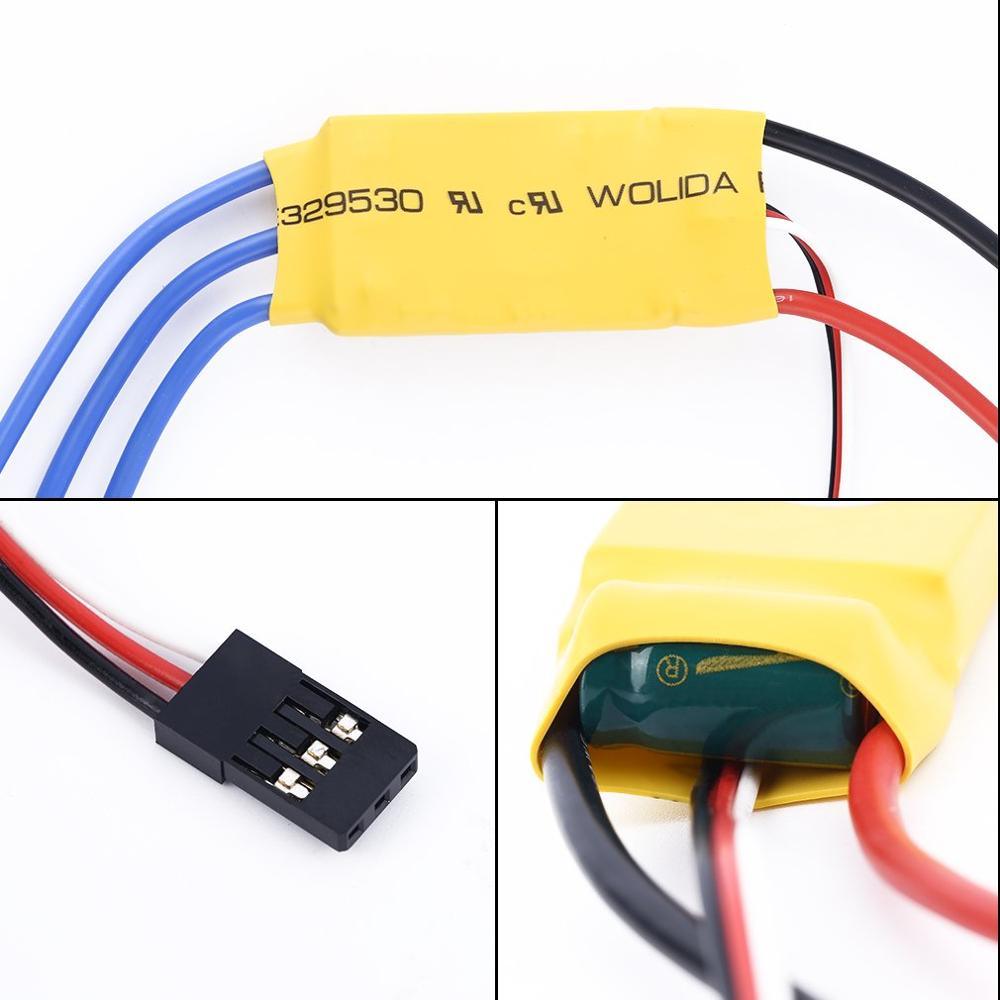

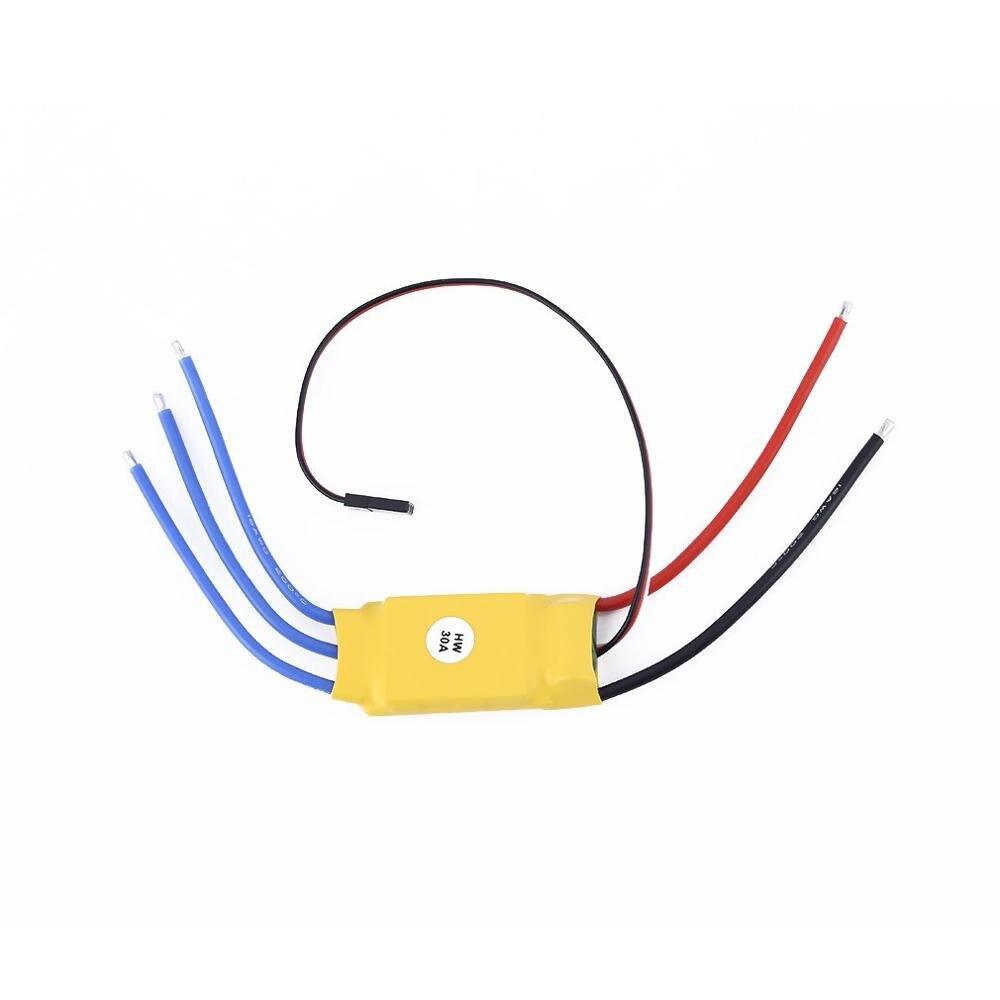

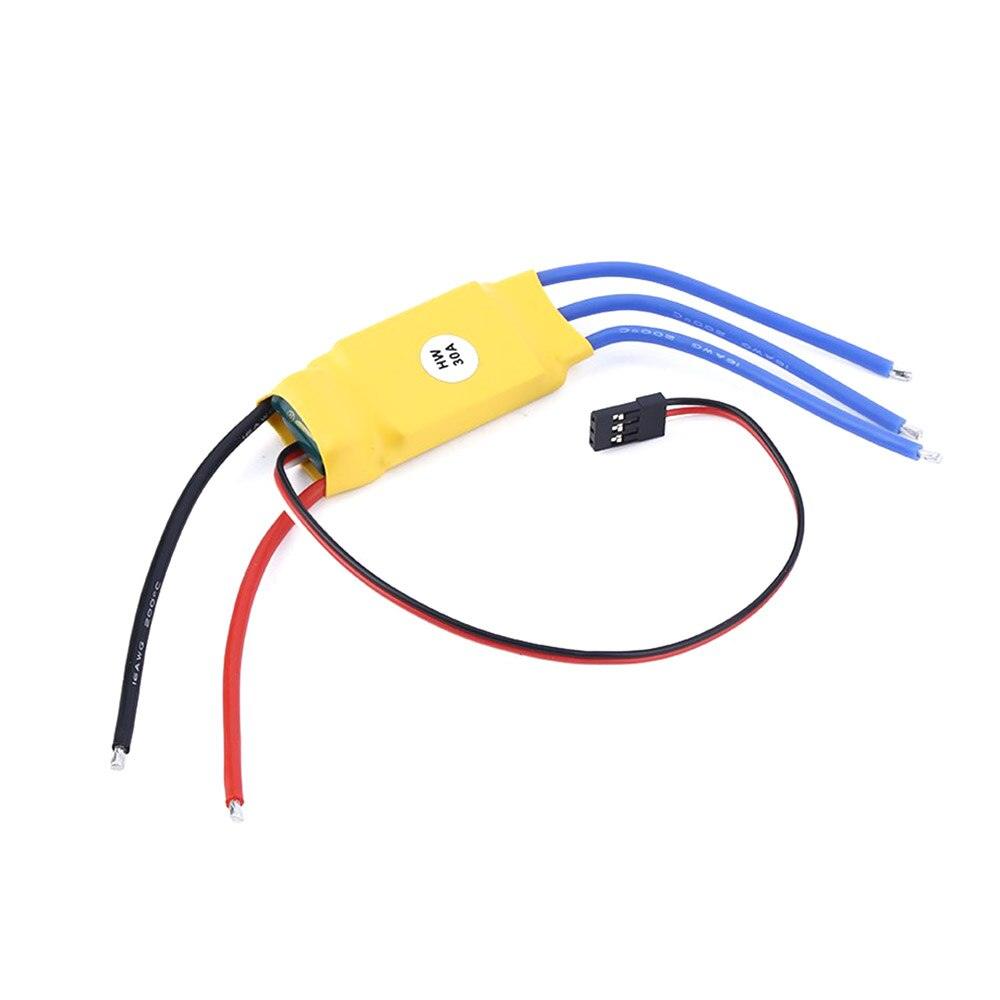

30A Brushless ESC:
Output: Continuous 30A, burst 40A up to 10 Secs.
Input voltage: 2-4 cells lithium battery or 5-12 cells NiCd/NIMh battery
BEC: 2A / 5V (Linear mode).
Max speed: 210,000rpm for 2 poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.
(BLM: Brushless Motor)
Size: 45 * 24 * 11mm / 1.8 * 0.9 * 0.4in
Weight: 25g / 0.9oz

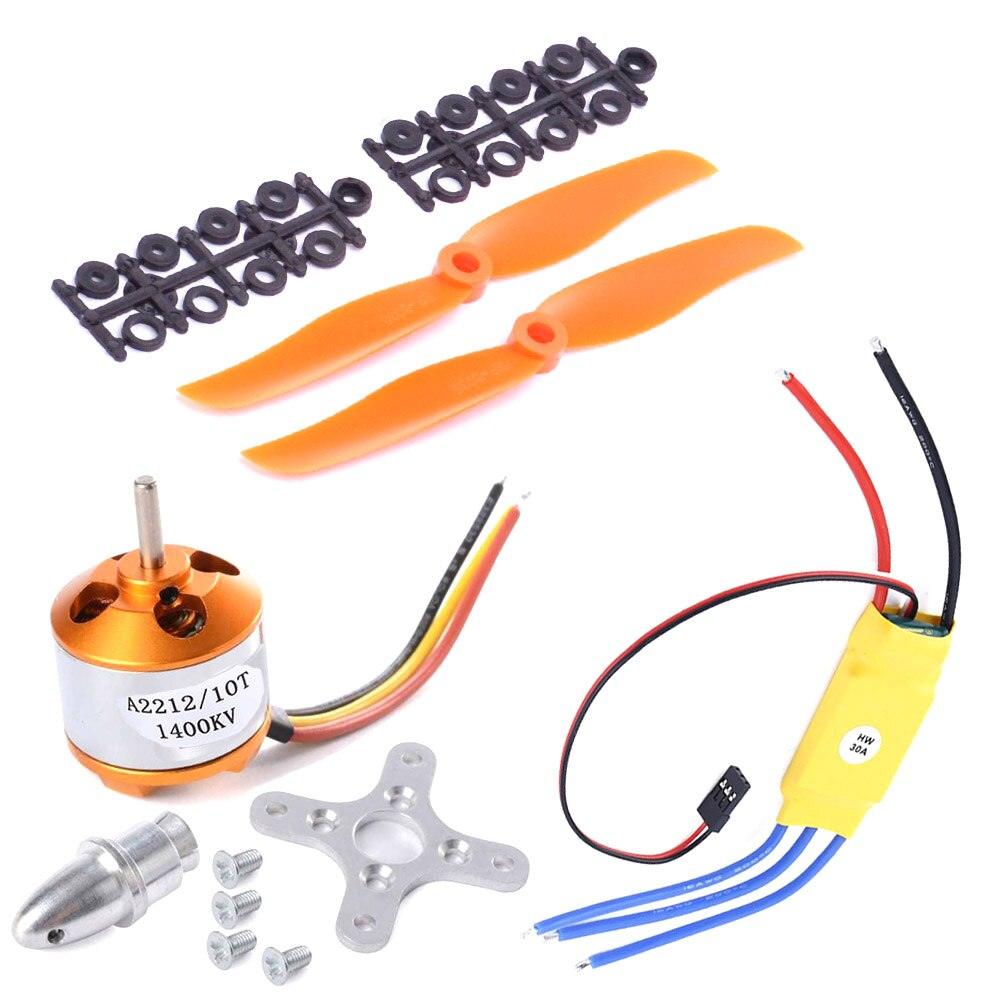

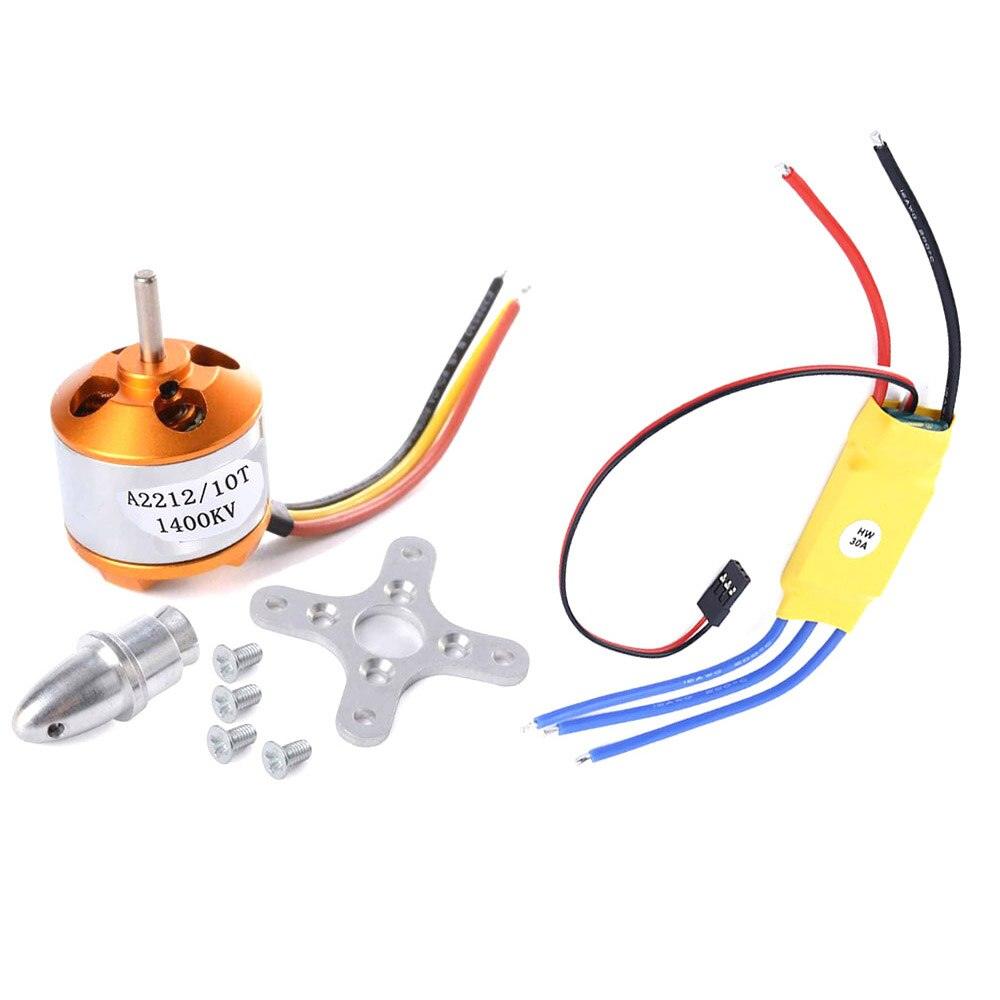

Packet content:

100% Brand New
1 * A2212 1400KV Brushless Outrunner Motor with Mounts
1 * 30A Build-in BEC 2A Brushless ESC
1 * Pairs of 8060 Propellers
XXD A2212 1400KV brushless outrunner motor: KV

motor size: 27.5 * 27mm / 1.1 * 1.1in Shaft diametermotor size: 27.5 * 27mm / 1.1 * 1.1in Shaft diameterBrake setting: brake enabled / brake disabled.motor size: 27.5 * 27mm / 1.1 * 1.1in Shaft diameterfull protection features: low voltage cutoff protection / over-heat protection .Reset: reset all the programmable items to their default settings
