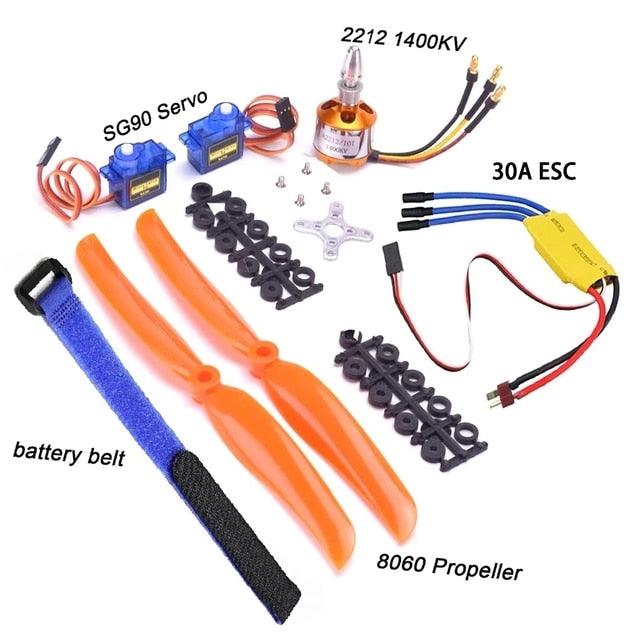

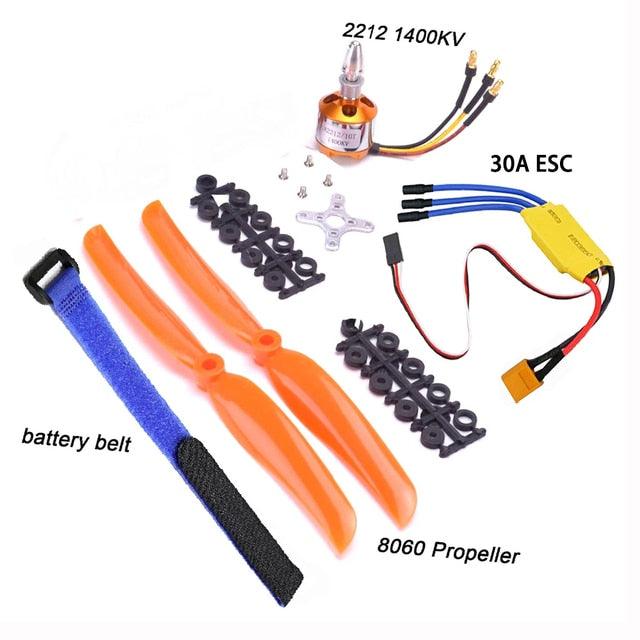

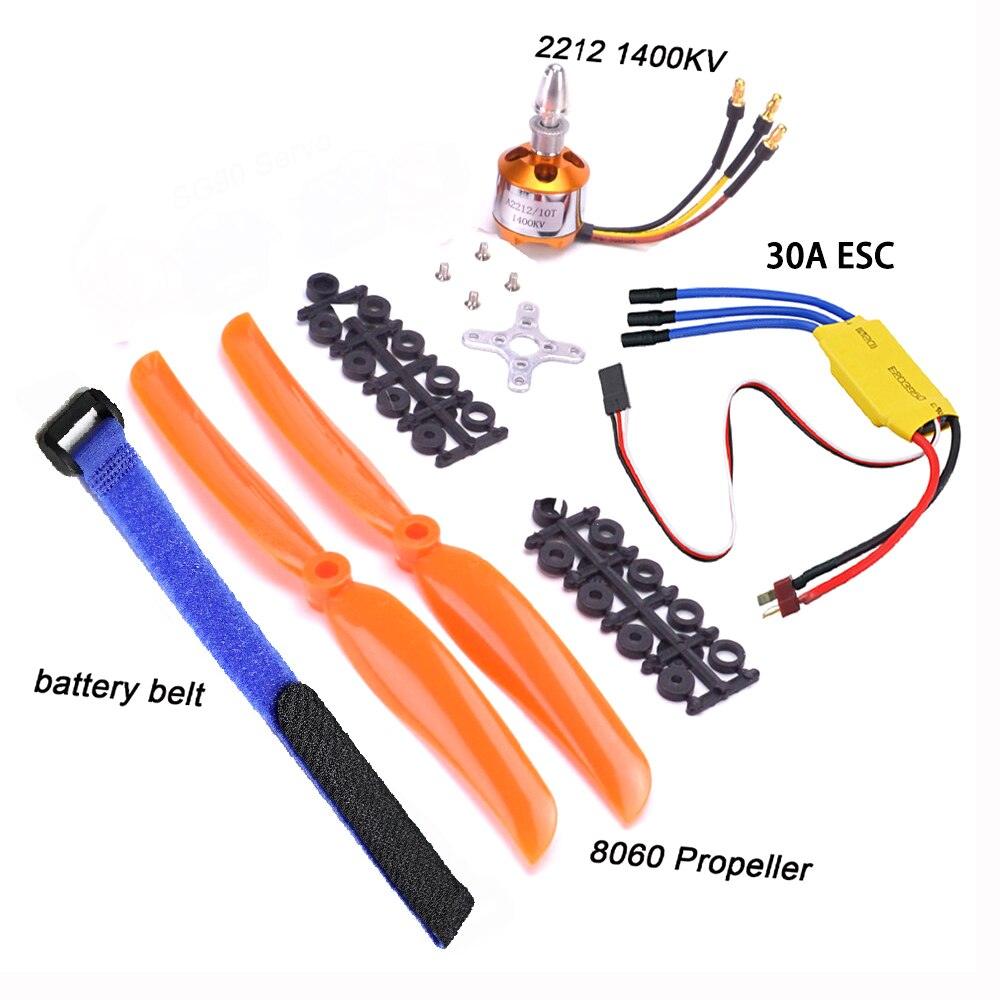

XXD A2212 2212 1400KV Brushless Motor 30A ESC Motor SG90 9G Micro Servo 8060 Propeller Set for RC Fixed Wing Plane

XXD A2212 2212 1400KV Brushless Motor 30A ESC Motor SG90 9G Micro Servo 8060 Propeller Set for RC Fixed Wing Plane

XXD

Regular price $14.37 USD
Regular price $28.74 USD Sale price $14.37 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

142 orders in last 90 days

Color

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

XXD A2212 2212 1400KV Brushless Motor SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: ESC

Tool Supplies: Grinded

Technical parameters: Value 7

Size: mm

Remote Control Peripherals/Devices: ESC

Recommend Age: 12+y

RC Parts & Accs: Motors

Quantity: 1 pcs

Origin: Mainland China

Model Number: KV2200+30A ESC+6035

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

Brand Name: Skyquist

BLM: BrushLess Motor) With T plug and 3.5mm banana connectors


SG90A 9G Micro Servo

This is the most popular mini servo. Only weighs 9 gram and gives you a 1.5 kg/cm torque. Pretty strong regarding its size. Suitable for beam type robots.

Key features:

• Translucent body
• Lightweight
• Less noise


TS90A 9G servo parameters:

Size: 21.5mmX11.8mmX22.7mm
Weight: 9 grams
No load speed: 0.12 sec / 60 deg (4.8 V)
Locked-rotor torque: 1.5-1.7kg/cm (4.8V-6V)
Operating temperature: -30~~+60 degrees Celsius
Dead zone setting: 5 microseconds
Working voltage: 4.8V-6V

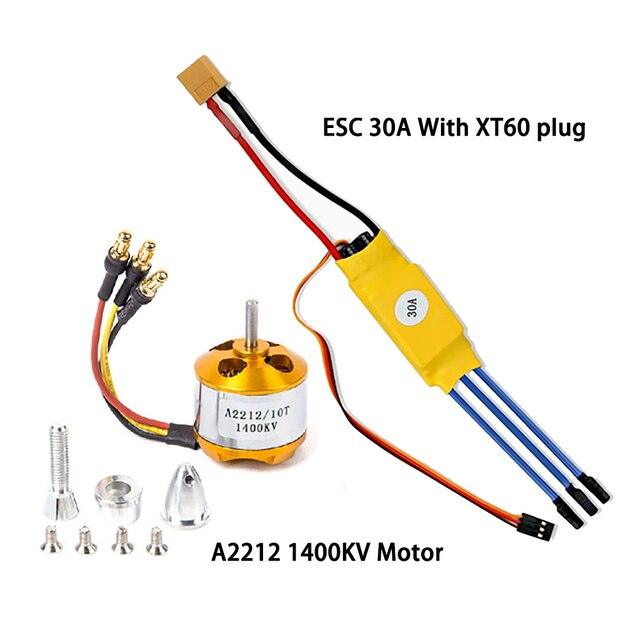

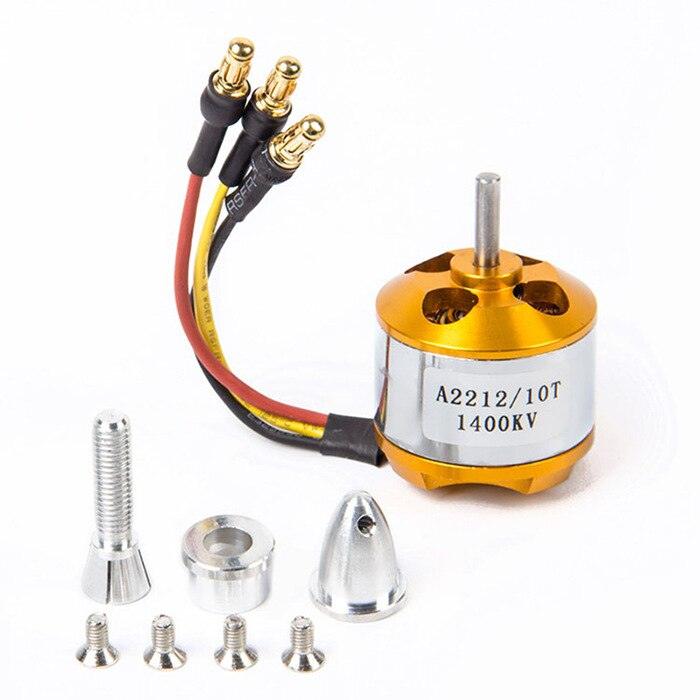

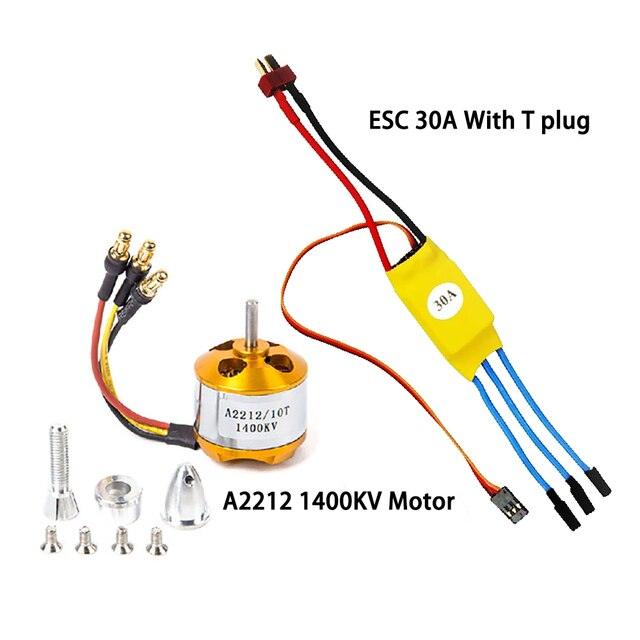

A2212 1400kv Motor Specification:

KV: 1400
Max Efficiency: 80%

Max Efficiency Current: 4-10A (>75%)

Current Capacity: 12A/60s

No Load Current @ 10V: 0.5A

No. Of Cells: 2-3 Li-Poly

Motor Dimensions: Φ27.5 x 30mm

Shaft Diameter: Φ3.17mm

Weight: 60.1g

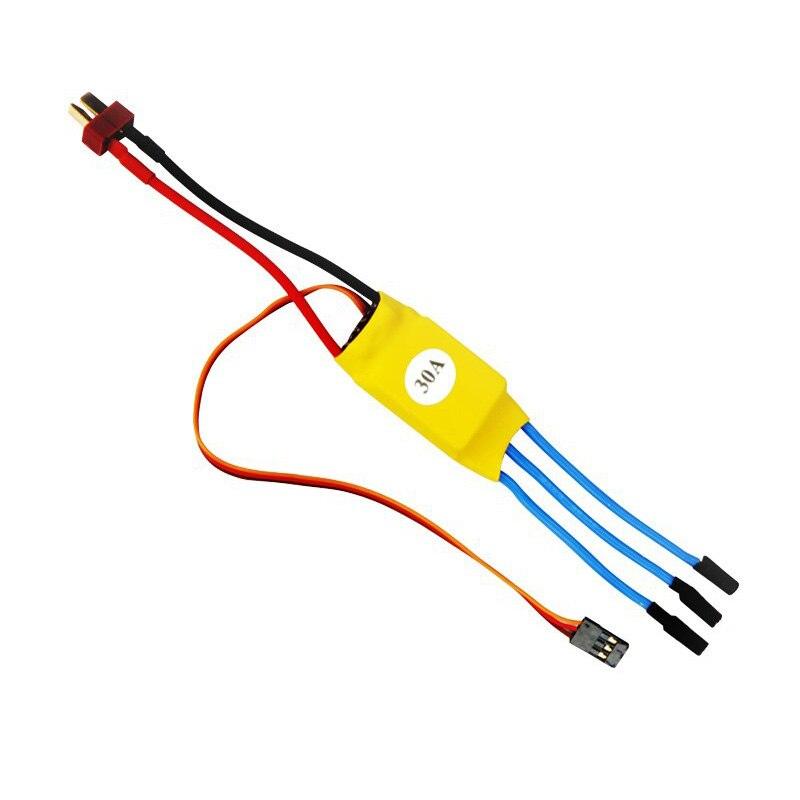

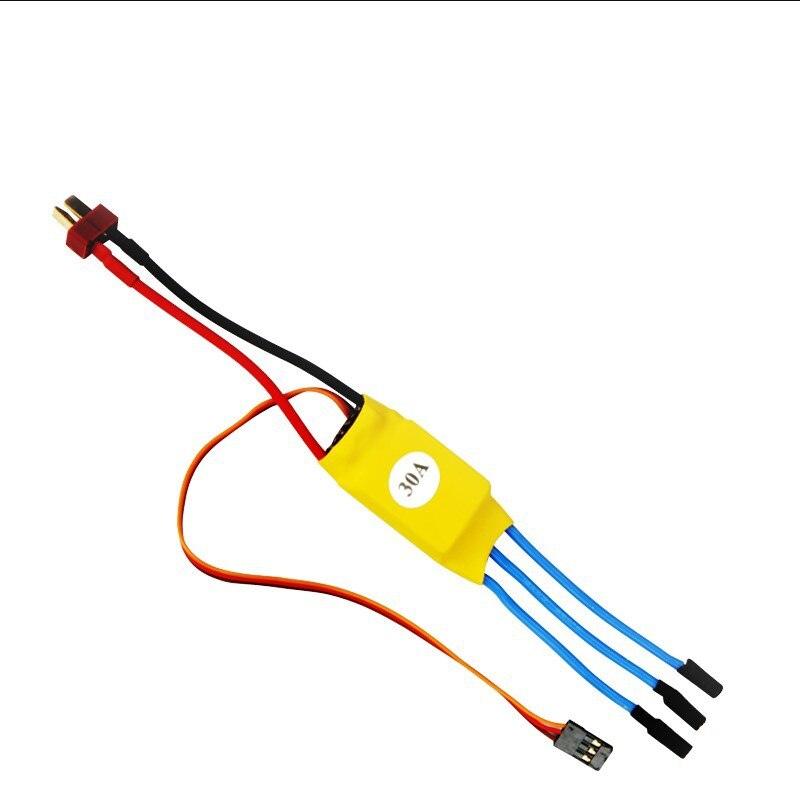

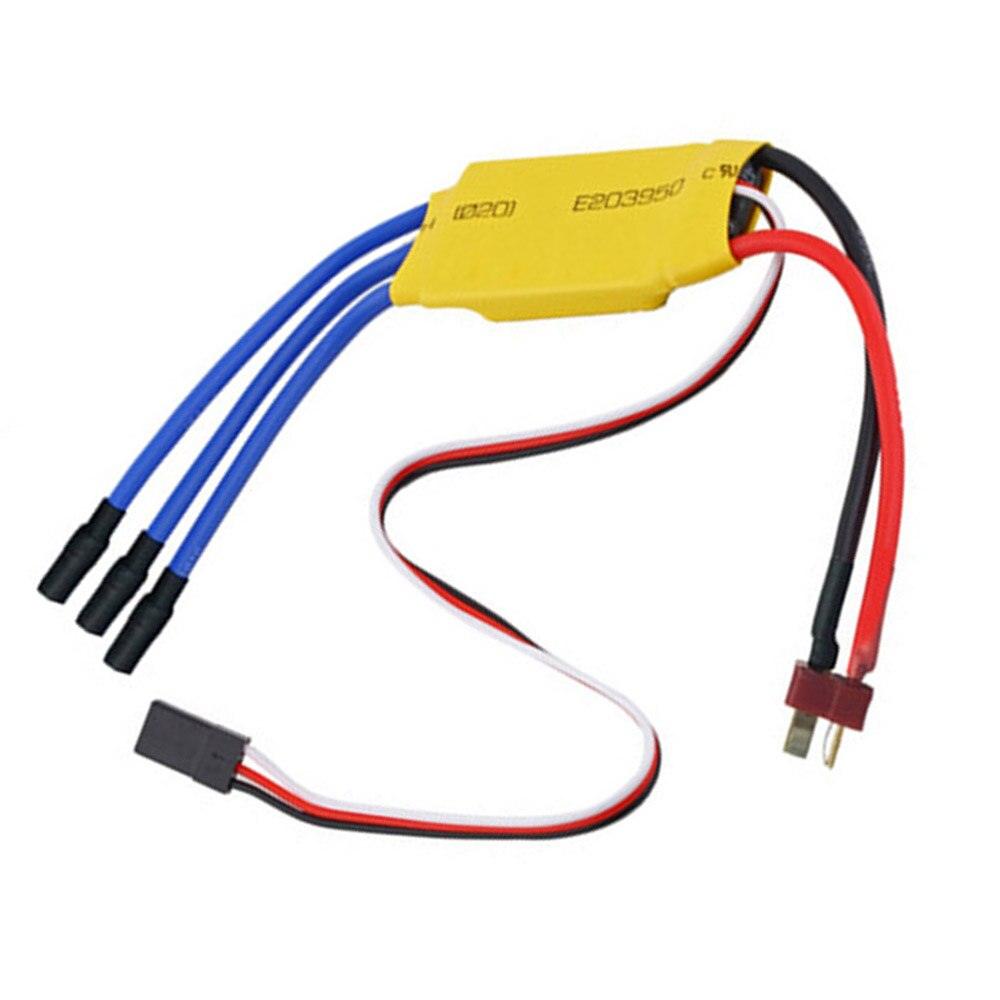

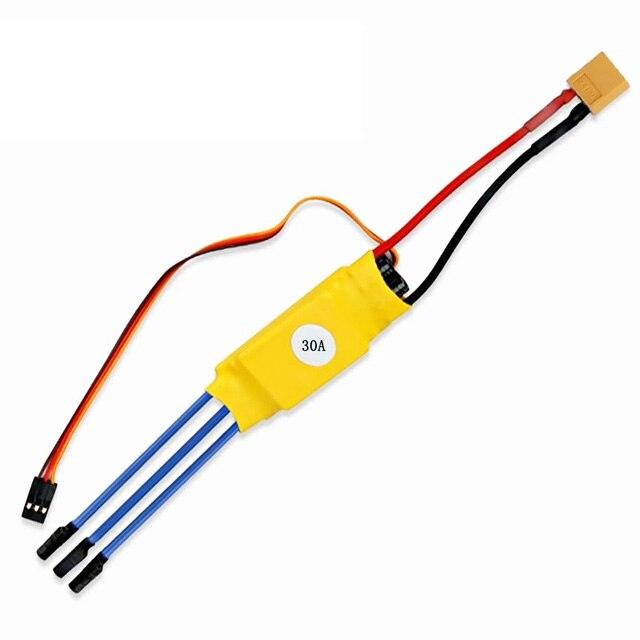

 30A Brushless speed controller ESC MultiCopter Quad-rotor X-copter

Specification:

Compatible with: 400-450 helicopters / Aircraft or Quad-Rotor Multi RC Helicopter
-Output: Continuous 30A, Burst 40A up to 10 Secs.
-Input Voltage: 2-3cells lithium battery or 5-9 cells NiCd/NIMh battery.
-BEC: 2A / 5V (Linear mode).
-Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.
(BLM: BrushLess Motor)
With T plug and 3.5mm banana connectors


ESC MultiCopter Quad-rotor X-copter Specification: Compatible withESC belt Propeller Servo SG9O 1Zi2/10T Mionly weighs 9 gram and gives you a 1.5 kg/cm torqueXXD A2212 2212 1400KV Brushless Motor 30A XXD A2212 2212 1400KV Brushless Motor 30A -Max Speed: 210,000rpm for 2 Poles BLM, 70,000r

No load speed: 0.12 sec / 60 deg (4.8 V) Locked-Input Voltage: 2-3cells lithium battery or 5-9 cells NiCd
