Overview
The ZeroErr eCoder/eRob to PC Connector is available in two versions for robot-joint use: ECoder to PC Connector (RS485) and ERob to PC Connector (CAN).
Features
ECoder to PC Connector (RS485)

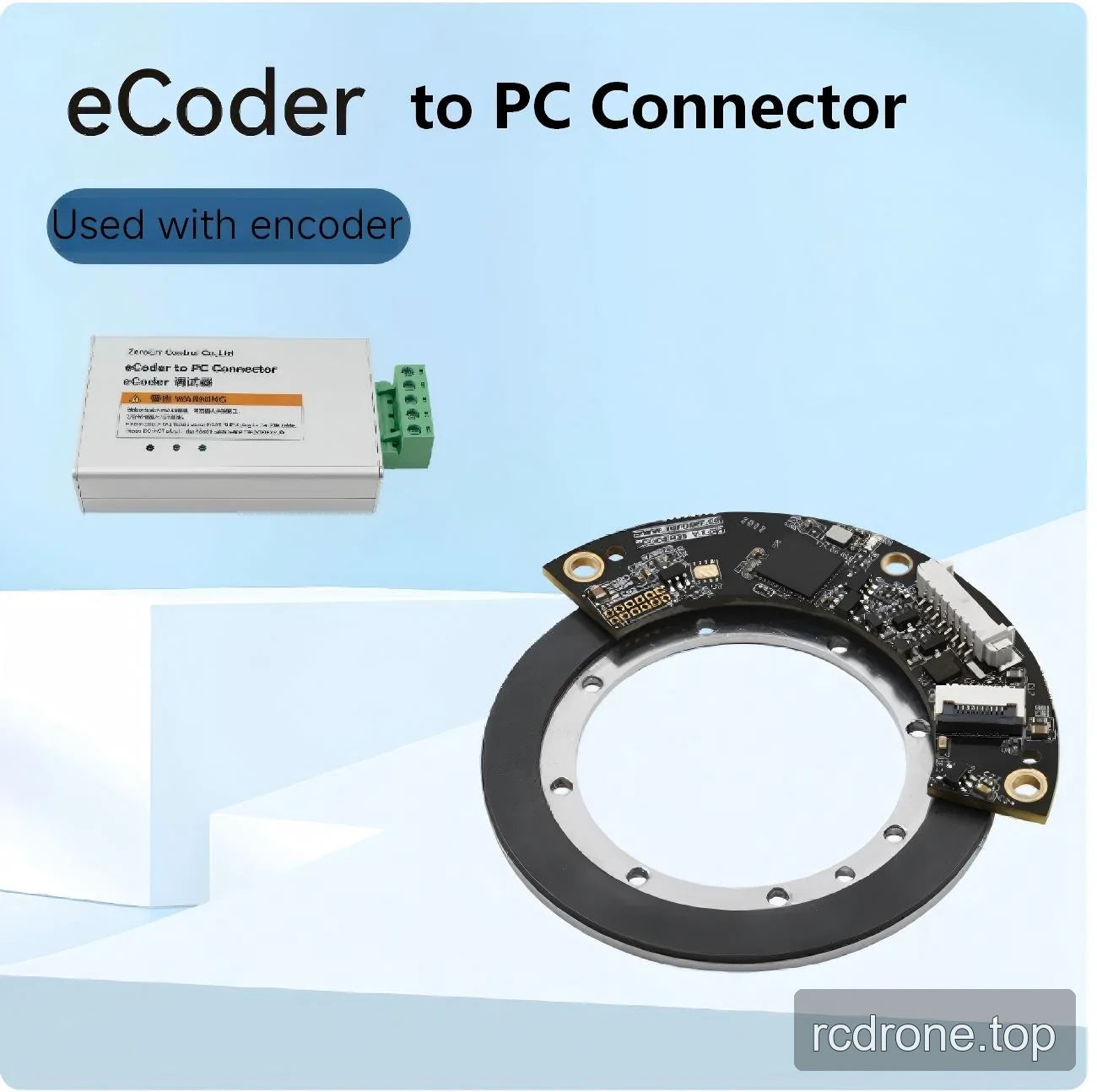

This option is labeled eCoder to PC Connector and is for use with an encoder. Its terminal connections are +5V, DATA+, NC, DATA-, and GND.
ERob to PC Connector (CAN)

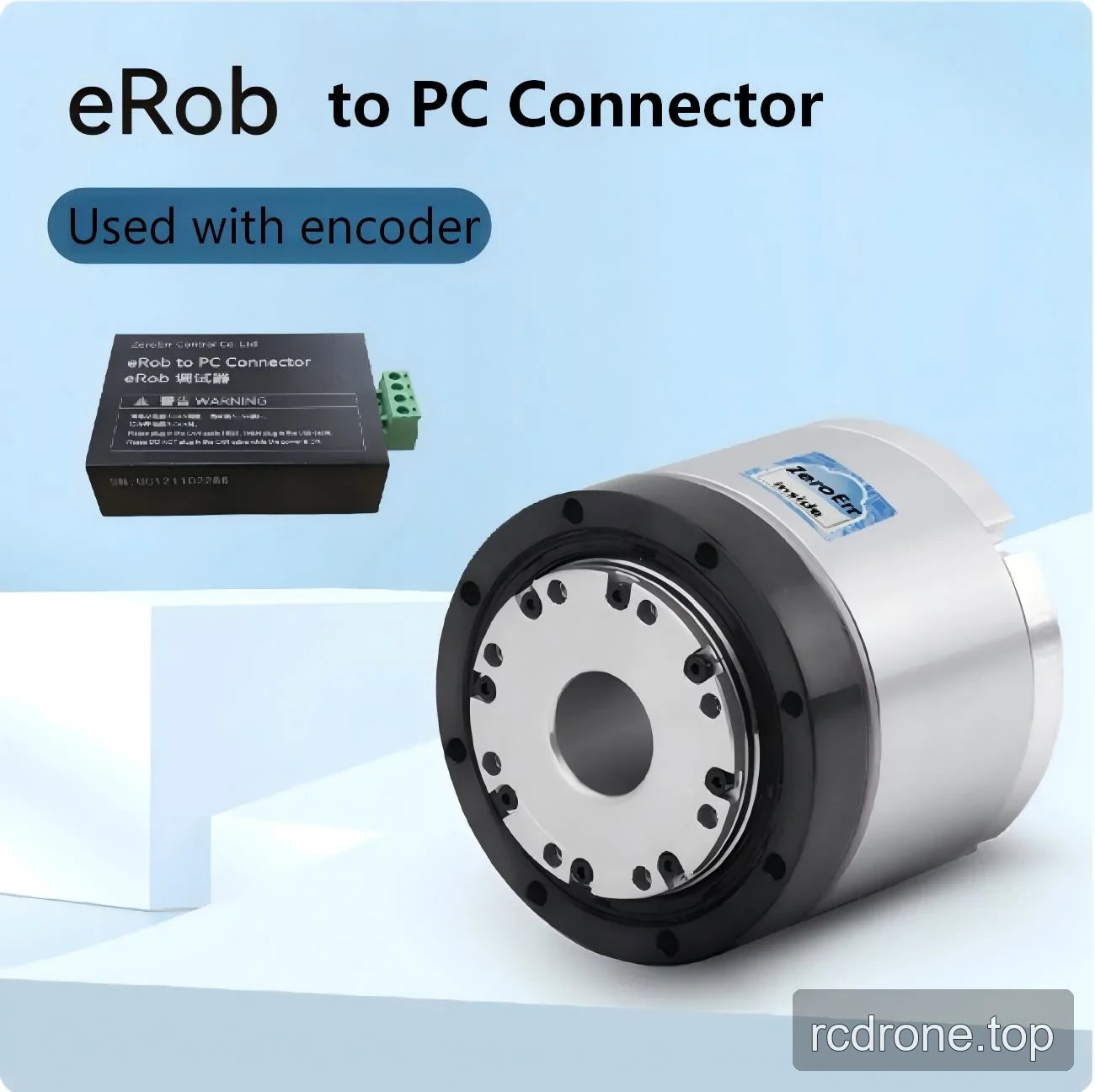

This option is labeled eRob to PC Connector and is for use with an encoder. Its CAN connections include PE, L, G, H, and a 120 Ω termination resistor enabled by a DIP switch.

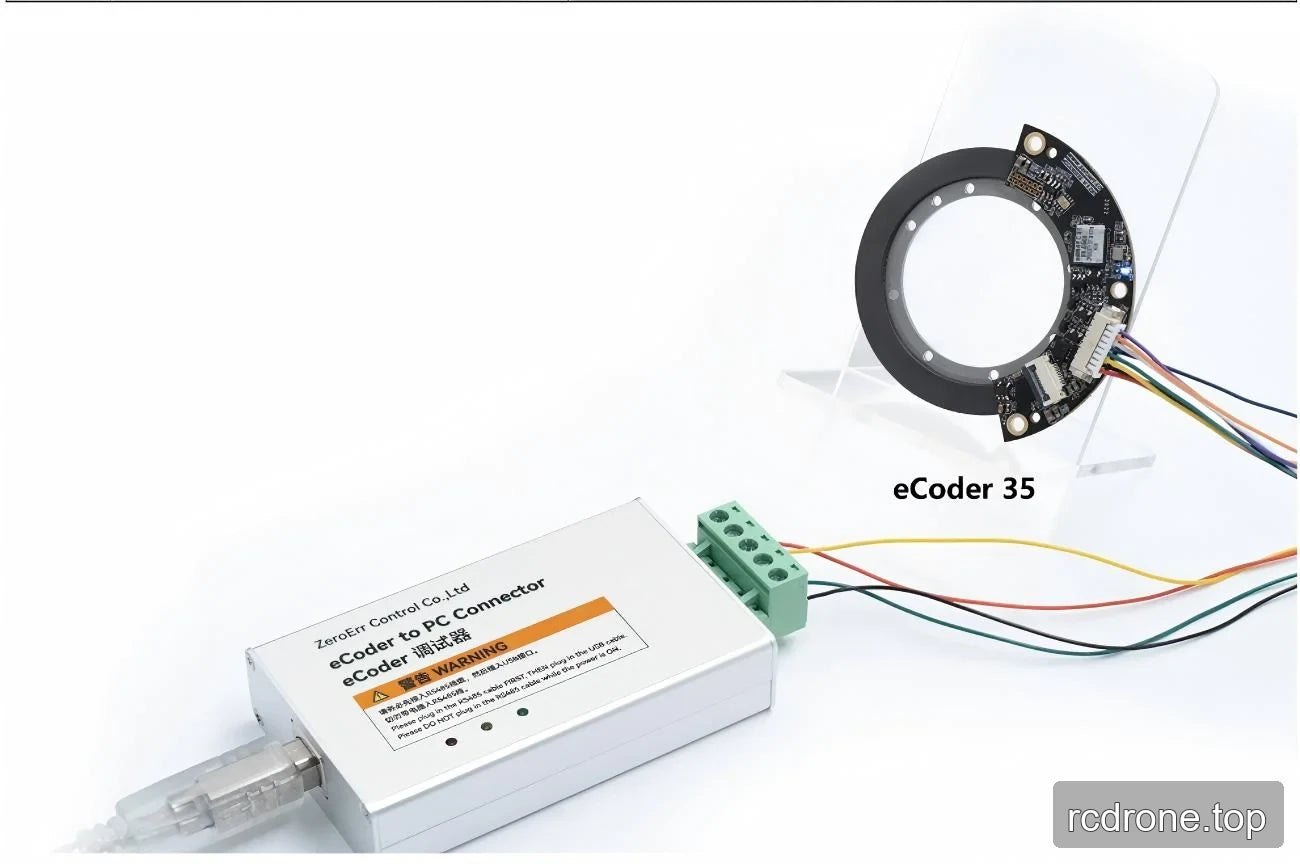

eCoder 35 Connection
An eCoder 35 connection reference is provided for the ECoder to PC Connector option.
Specifications
| Parameter | ECoder to PC Connector | ERob to PC Connector |
|---|---|---|
| Weight | 100 g | 100 g |
| Application | Used with robot joints | Used with robot joints |
| Dimensions (L × W × H) | 96 × 58 × 24 mm | — |
| Temperature | -20 °C to -70 °C | — |
| Humidity | 15% to 90% RH | — |
— = not stated.
ECoder to PC Connector Terminal Assignment
| Pin | Terminal sign | Signal description |
|---|---|---|
| 1 | +5V | Connect to the positive pole of the encoder 5V power supply. |
| 2 | DATA+ | Connect to DATA+ of encoder. |
| 3 | NC | No effect; do not connect. |
| 4 | DATA- | Connect to DATA- of encoder. |
| 5 | GND | Connect to the negative pole of the encoder 5V power supply. |
ERob to PC Connector CAN Terminal Assignment
| Port | Terminal mark | Function |
|---|---|---|
| CAN | PE | Shield connected to housing. |
| CAN | L | CAN_L signal line (CAN Low). |
| CAN | G | CAN_GND ground. |
| CAN | H | CAN_H signal line (CAN High). |
| CAN Termination Resistor | R | CAN termination resistor value: 120 Ω, enabled via DIP switch. |
