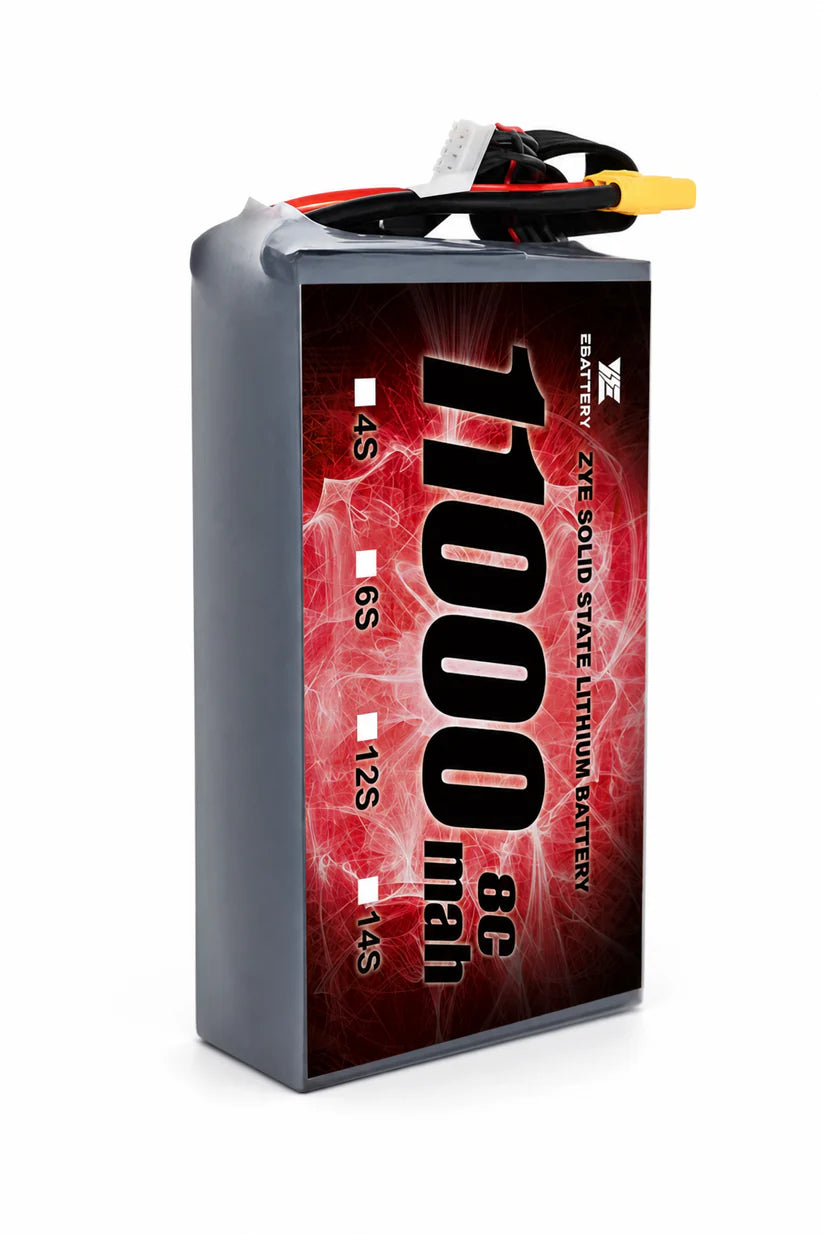

ZYE 12S HV 47.4V 11000mAh 8C Solid State LiPo Battery – 521.4Wh, 271Wh/kg

Overview

The ZYE 12S HV 11000mAh Solid State LiPo Battery is a high-energy-density power solution designed for long-endurance UAVs, industrial drones, VTOL aircraft, robotics, and other high-voltage electric systems.

Built with high-voltage solid-state lithium battery technology, this pack provides a 47.4V nominal voltage, 11000mAh capacity, and 521.4Wh nominal energy. With a specific energy of approximately 271Wh/kg, it offers an excellent balance between capacity, weight, and installation size.

The battery supports a 5C continuous discharge rate of up to 55A and an 8C peak discharge rate of up to 88A for no more than 2 seconds, making it suitable for propulsion systems that require stable current output with short bursts of higher power.

Key Features

High Energy Density

With a specific energy of approximately 271Wh/kg, the battery delivers substantial energy while keeping the total pack weight at approximately 1800g.

12S High-Voltage Configuration

The battery uses a 12S HV configuration with:

• Nominal voltage: 47.4V
• Maximum charge voltage: 53.4V
• Nominal energy: 521.4Wh
• Recommended return voltage: 42V

High-Current Discharge Capability

The pack supports:

• 5C continuous discharge
• 55A maximum continuous current
• 8C peak discharge
• 88A peak current for up to 2 seconds

This makes it suitable for takeoff, acceleration, maneuvering, and temporary high-load conditions.

Compact Power Solution

Despite its 11000mAh capacity, the battery measures only 125 × 98 × 73mm, making it suitable for compact aircraft and equipment with limited battery-compartment space.

Multiple Charging Rates

The battery supports several charging-current options:

• Standard charging current: 5.5A
• Fast charging current: 11A
• Maximum charging current: 22A

The charger and charging environment must support 12S HV lithium batteries and the selected charging current.

Wide Discharge Temperature Range

The specified discharge operating temperature range is -20°C to 65°C, supporting use in a wide variety of operating environments.

Specifications

What’s Included

• 1 × ZYE 12S HV 11000mAh Solid State LiPo Battery
• 1 × Installed main power cable and connector
• 1 × Installed balance connector

Applications

The battery is suitable for:

• Long-endurance multirotor drones
• Industrial inspection UAVs
• Mapping and surveying drones
• VTOL aircraft
• Fixed-wing UAVs
• Agricultural drone platforms
• Delivery and logistics drones
• Unmanned ground vehicles
• Mobile robots
• High-voltage custom electric systems

Charging and Safety Notes

• Use only a charger specifically compatible with 12S HV lithium batteries.
• The maximum charging voltage is 53.4V. Do not use a charger that cannot accurately support this voltage.
• Confirm that the ESC, motor, power distribution board, wiring, connector, and other electronics can tolerate a fully charged voltage of 53.4V.
• The recommended standard charging current is 5.5A.
• Use 11A fast charging or 22A maximum charging only when the charger, cables, connectors, and operating environment are suitable.
• Do not exceed 55A continuous current.
• The 88A peak current is limited to no more than 2 seconds.
• The recommended return voltage is 42V. Avoid excessive discharge below the manufacturer’s recommended limit.
• Charge the battery only within the specified 10°C to 45°C charging-temperature range.
• Do not charge or use a swollen, punctured, damaged, leaking, or overheated battery.
• Always monitor the battery during charging and store it in a cool, dry, fire-resistant location.

Important: Although the product is commonly described as an 8C battery, the image specifies 5C continuous discharge and 8C peak discharge for up to 2 seconds.
