Hobbywing QUICRUN Outer 1621SL 3500KV Motor for 1/24 Crawler, 2-3S, PH2.0 3P Connector

Overview

The Hobbywing QUICRUN Outer 1621SL 3500KV motor is designed for 1/24 crawler applications and pairs well with the QuicRun WP Mini24 (WP-MINI24) ESC for plug-and-play functionality.

Key Features

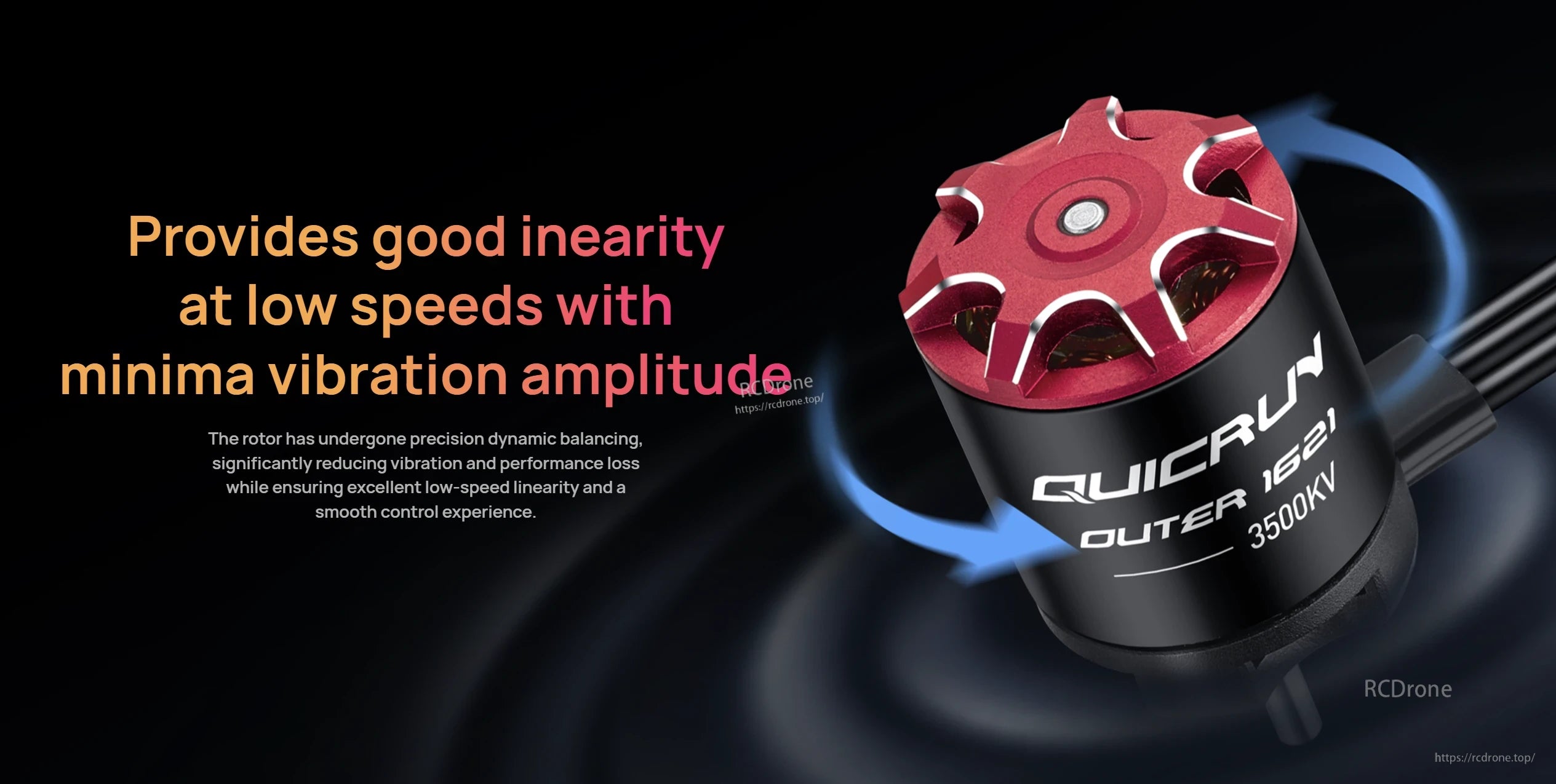

• Good linearity at low speeds with minimal vibration amplitude; precision dynamic balancing reduces vibration and performance loss.
• Silicone wire outlet for easier and cleaner wiring versus traditional high-hardness enameled wire outlets.
• High installation compatibility: 3 sets of M2 screw holes with hole pitches 9mm/10mm/12.5mm.
• Low cogging effect and minimal torque pulsation for smoother low-speed operation and precise control.
• Modular design for easier disassembly, maintenance, and daily cleaning; helps extend service life and maintain working efficiency.
• Durable construction: 220°C high-temperature resistant enameled wire, high-precision bearings, and a high-performance iron core.
• Standard PH2.0-3PIN male connector (PH2.0 3P).
• Rotation marking: C.C.W.

For pre-sales and after-sales support, contact support@rcdrone.top or visit https://rcdrone.top/.

Specifications

Applications

• 1/24 crawler builds and upgrades

Manuals

Manual_QUICRUN 1621 Outer Motor.pdf

Details

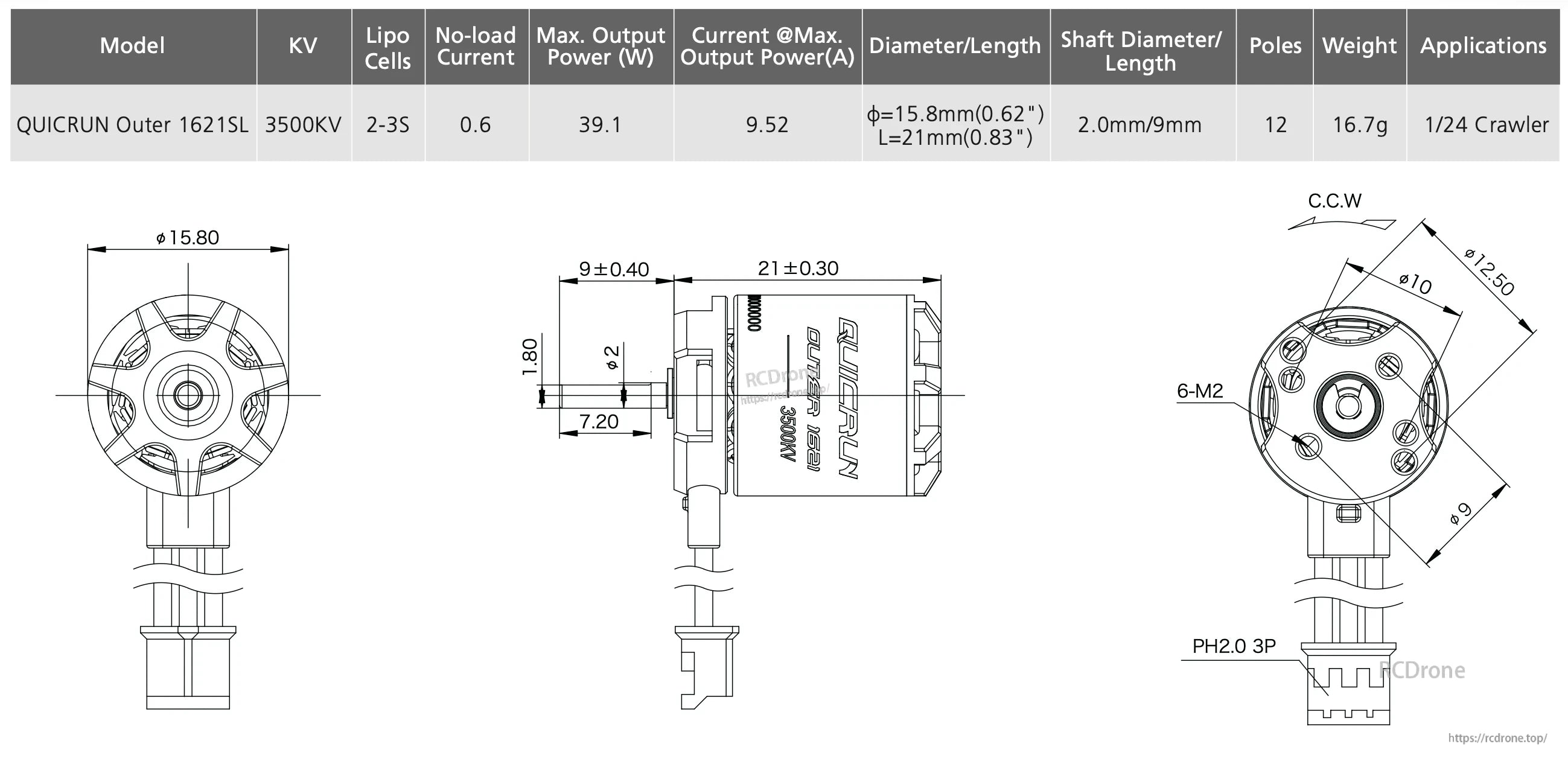

QUICRUN Outer 1621SL 3500KV motor dimensions list a 15.8mm diameter, 21mm length, and a 2.0mm x 9mm shaft.

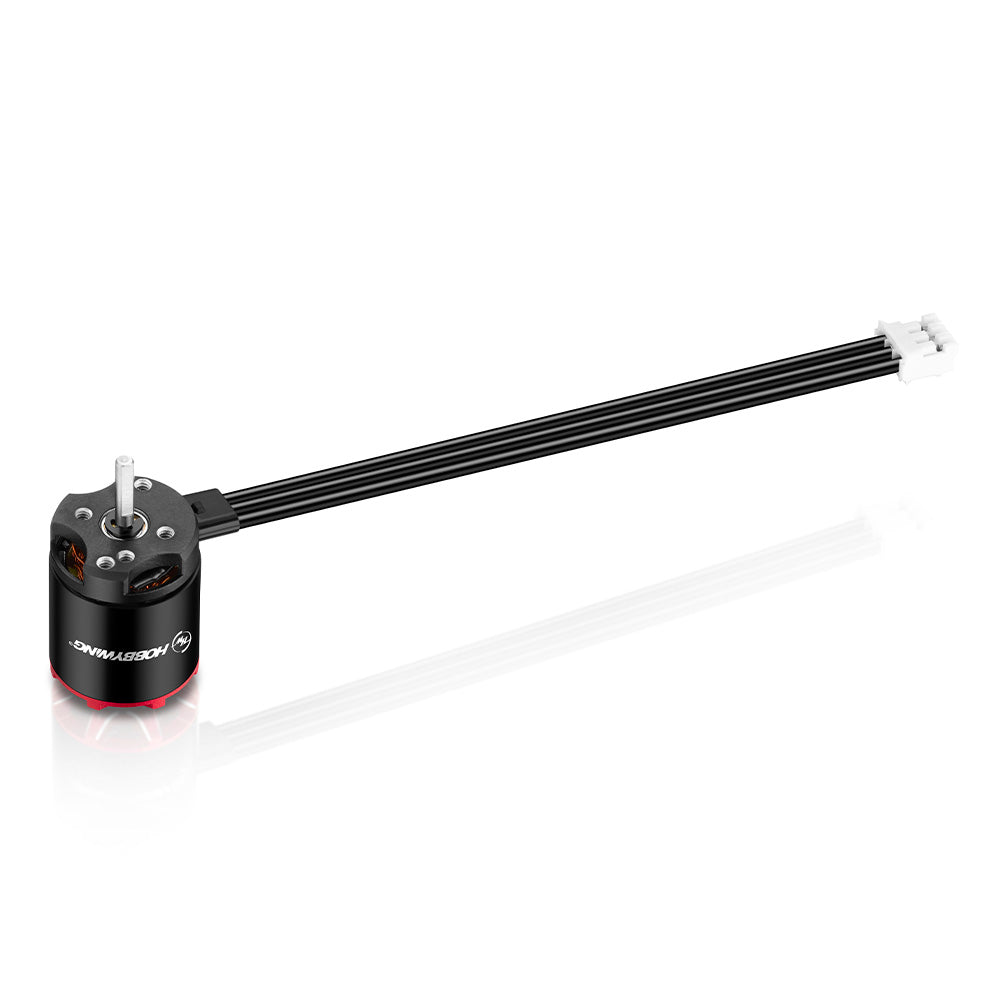

The Hobbywing QuicRun Outer 1621SL 3500KV motor features a compact can with an exposed shaft and multi-hole mounting face for easy installation.

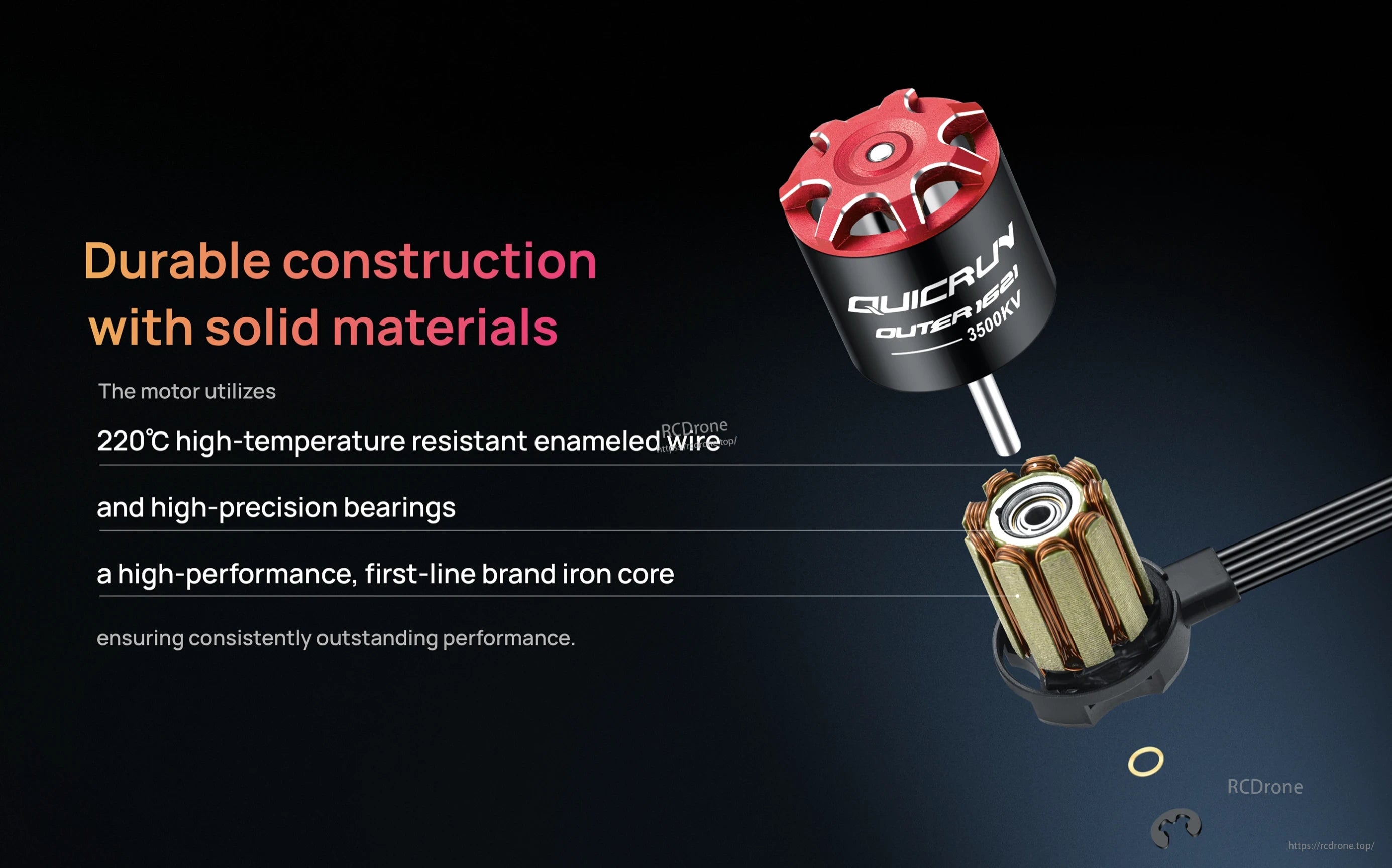

QUICRUN Outer 1621SL 3500KV motor construction features 220°C high-temperature enameled wire and high-precision bearings for reliable running.

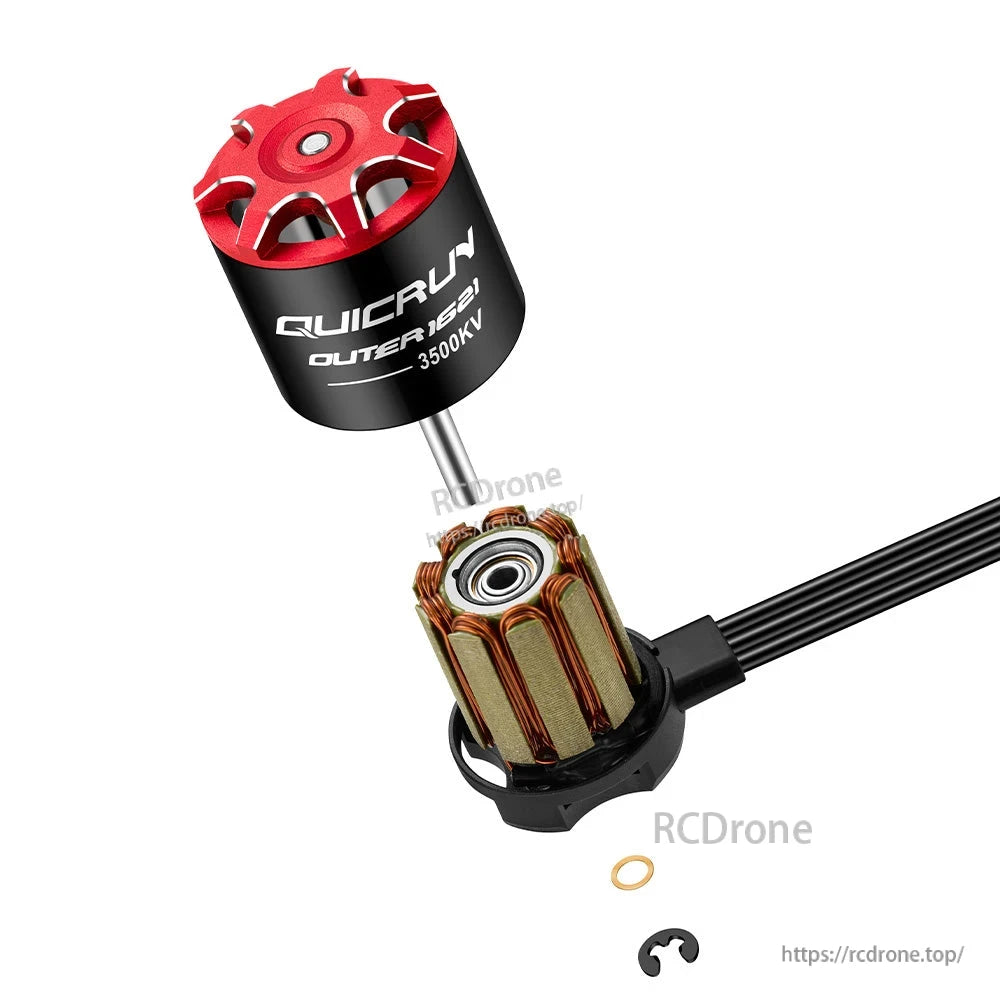

The QUICRUN Outer 1621SL 3500KV motor uses a modular design that makes disassembly and routine maintenance easier.

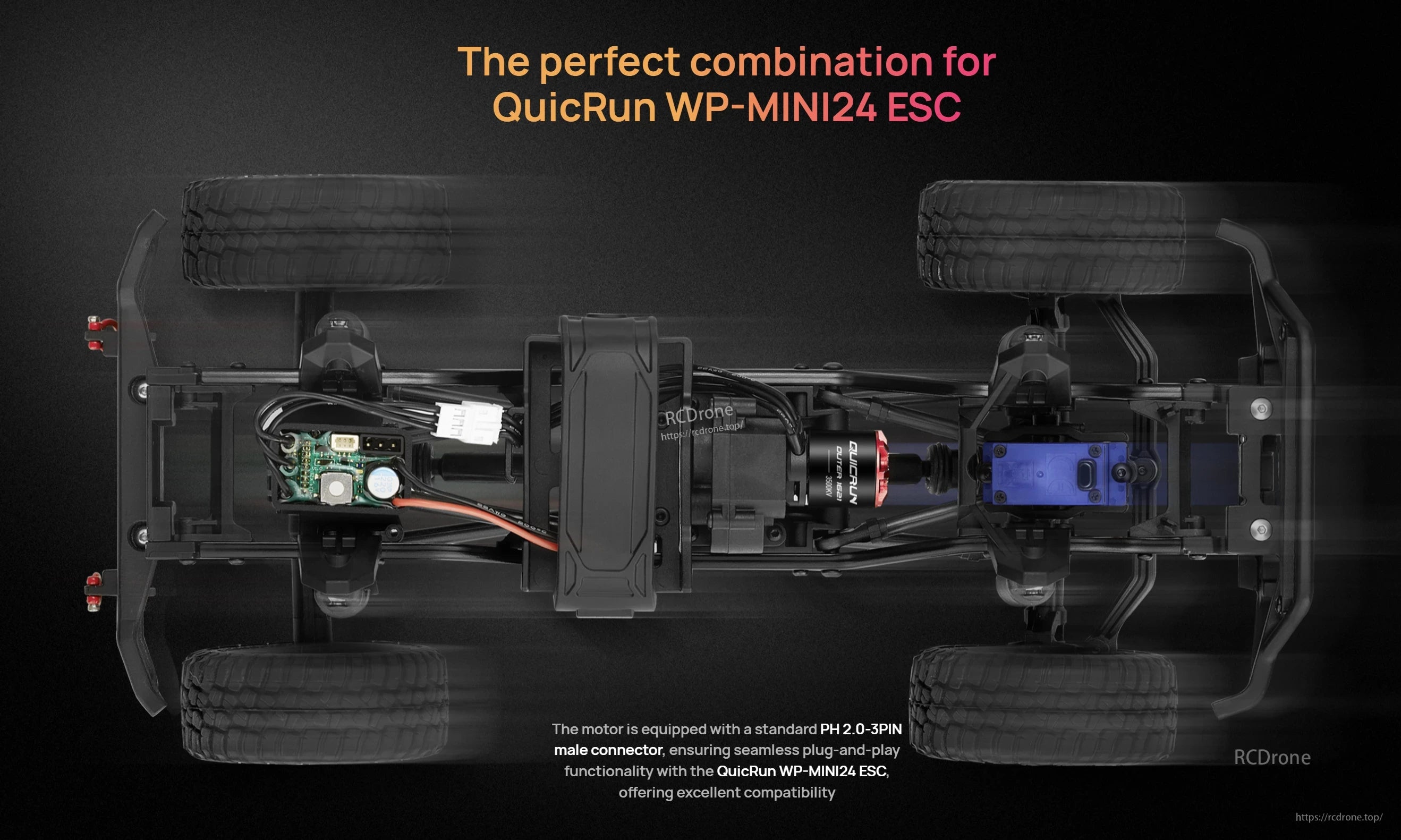

The QUICRUN 1621SL 3500KV motor uses a standard PH 2.0 3‑pin connector for straightforward plug-and-play pairing with the QuicRun WP-MINI24 ESC.

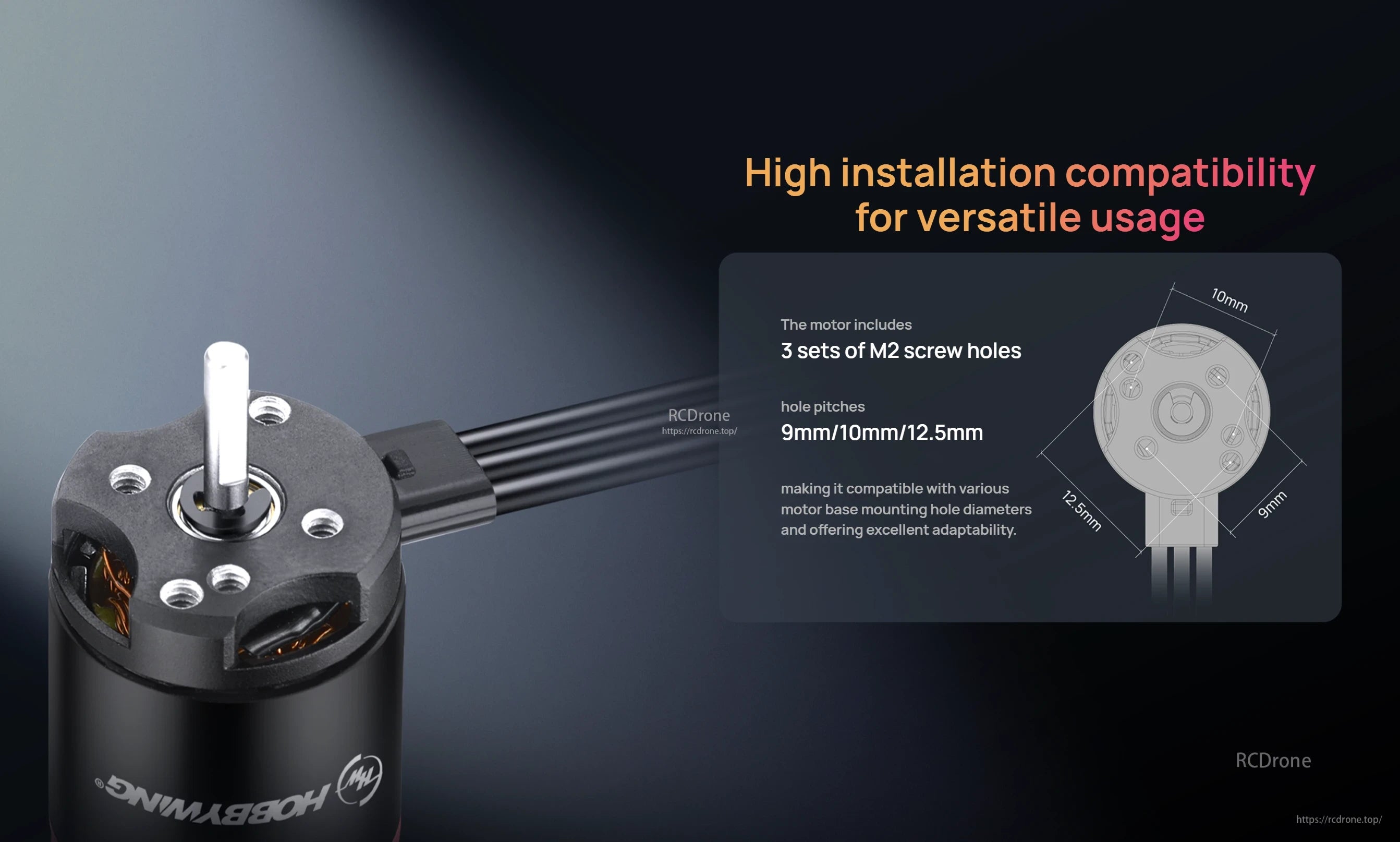

Three sets of M2 screw holes with 9mm, 10mm, and 12.5mm pitches make motor mounting easier across different base patterns.

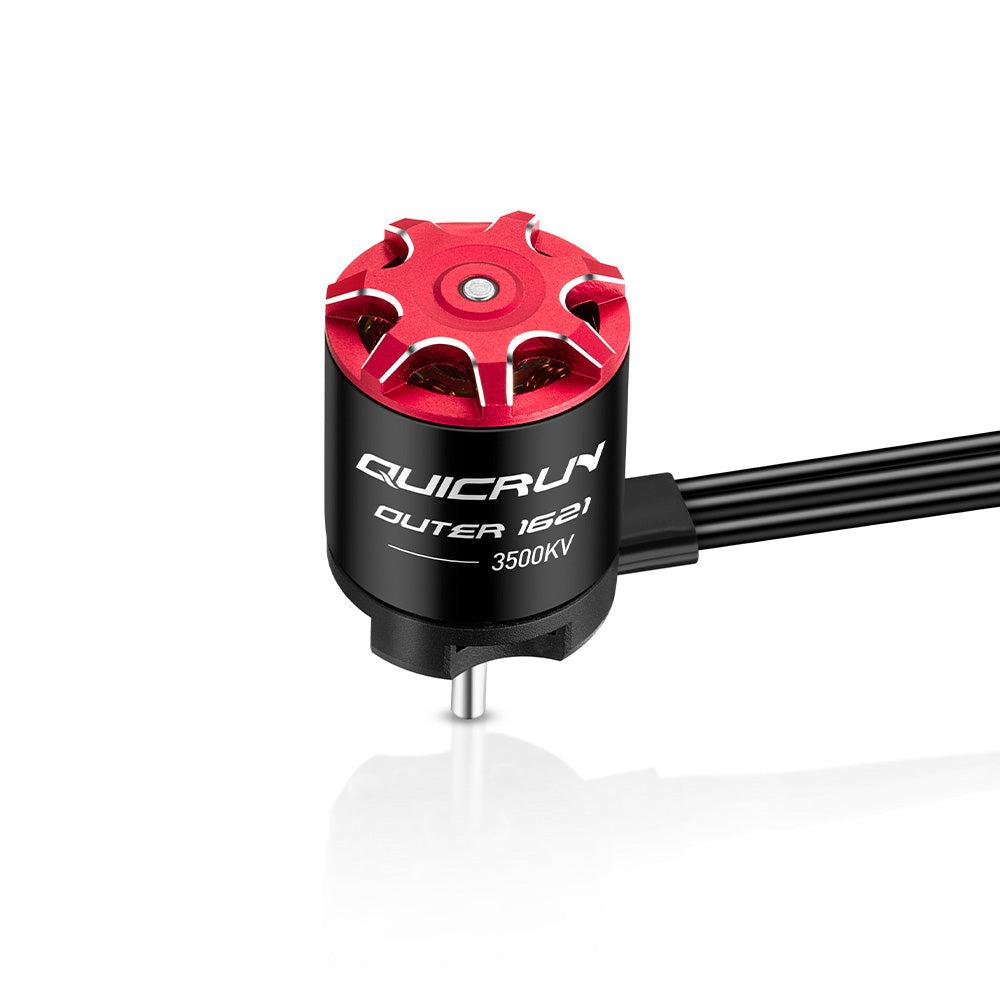

The QUICRUN Outer 1621SL 3500KV motor features a red endbell design and clearly marked can for easy identification during installs.

Hobbywing QUICRUN motor design is labeled for low cogging torque to support smoother operation and precise low-speed control.

The QUICRUN Outer 1621SL 3500KV motor uses a silicone wire outlet for cleaner, easier routing during installation.
