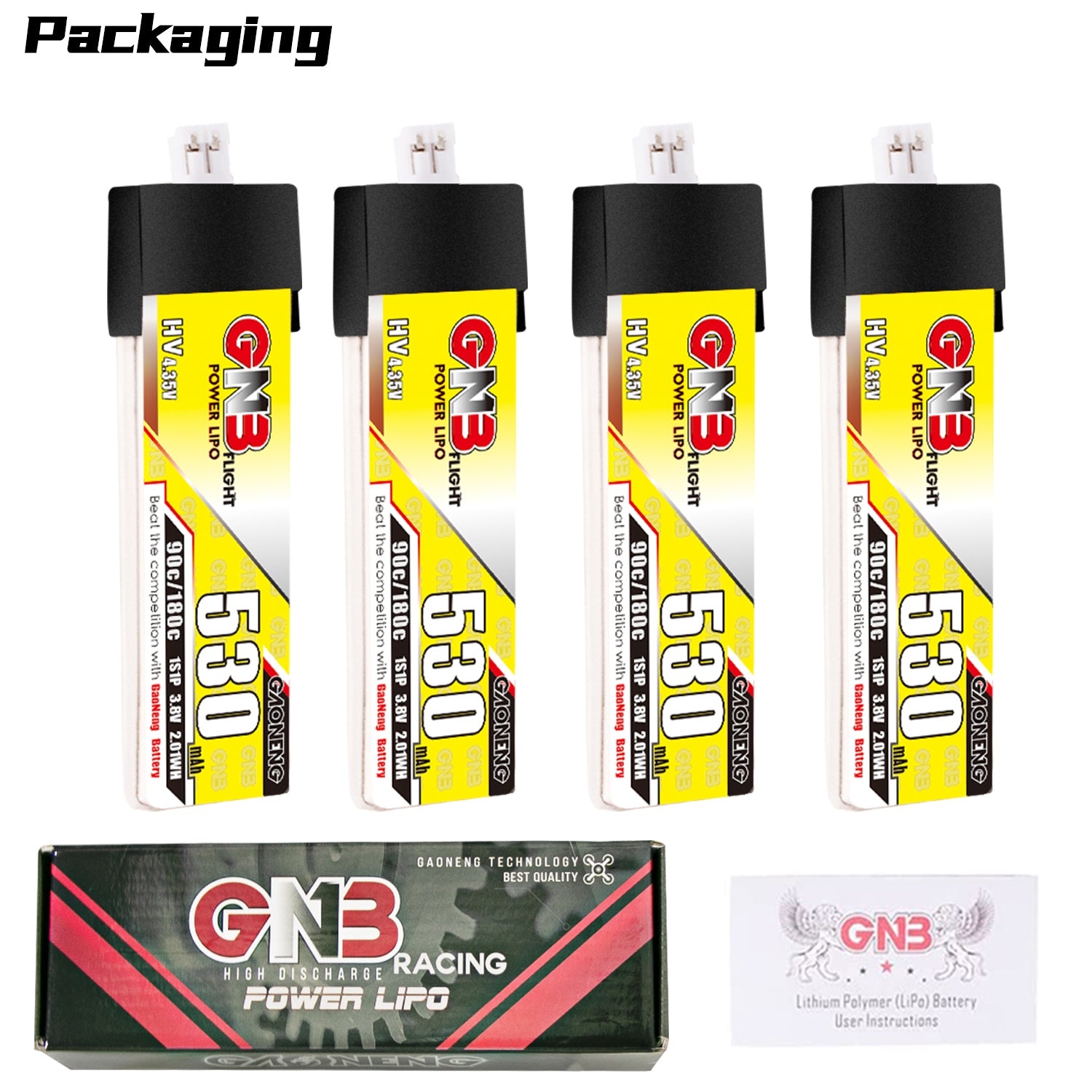

• Packaging contents: 4x GNB 530 LiHV batteries, GNB Racing Power LiPo box, and user instructions card

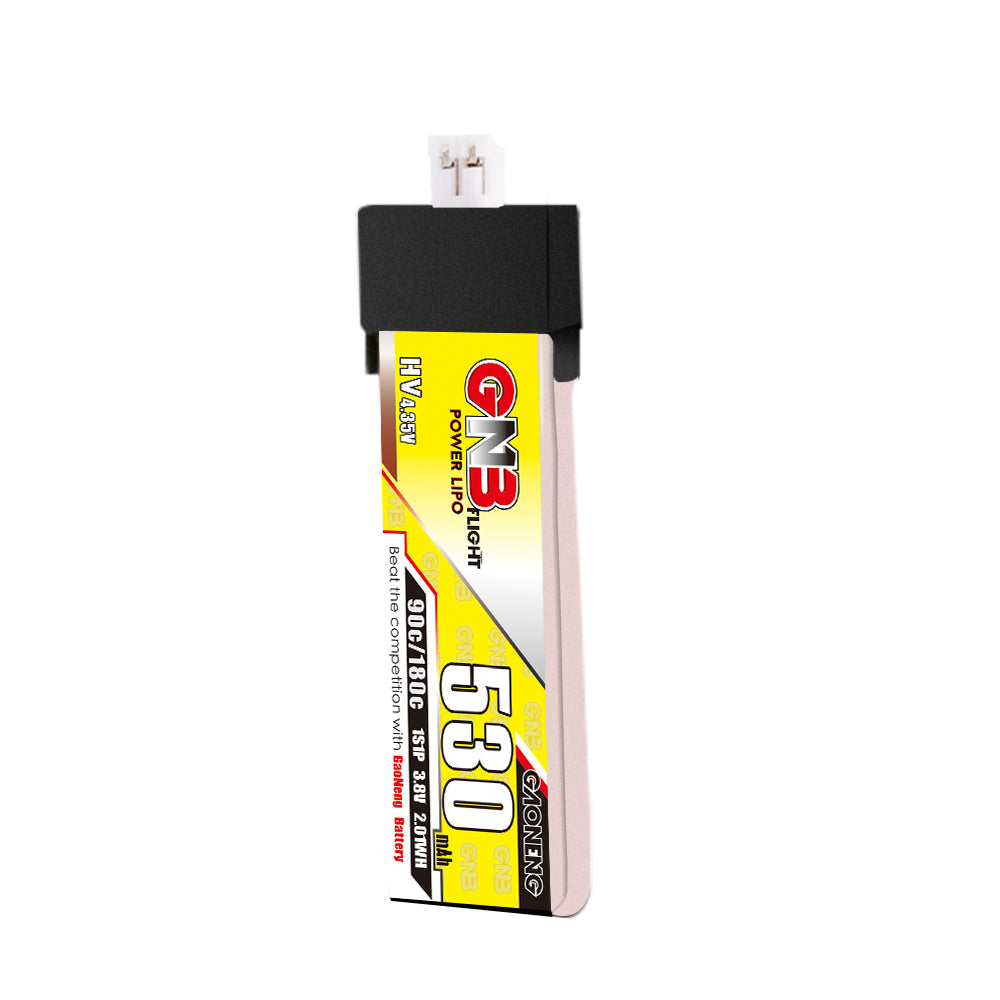

  • GAONENG GNB530 1S 3.8V 530mAh LiHV 90C battery with PH2.0 connector, upright front view

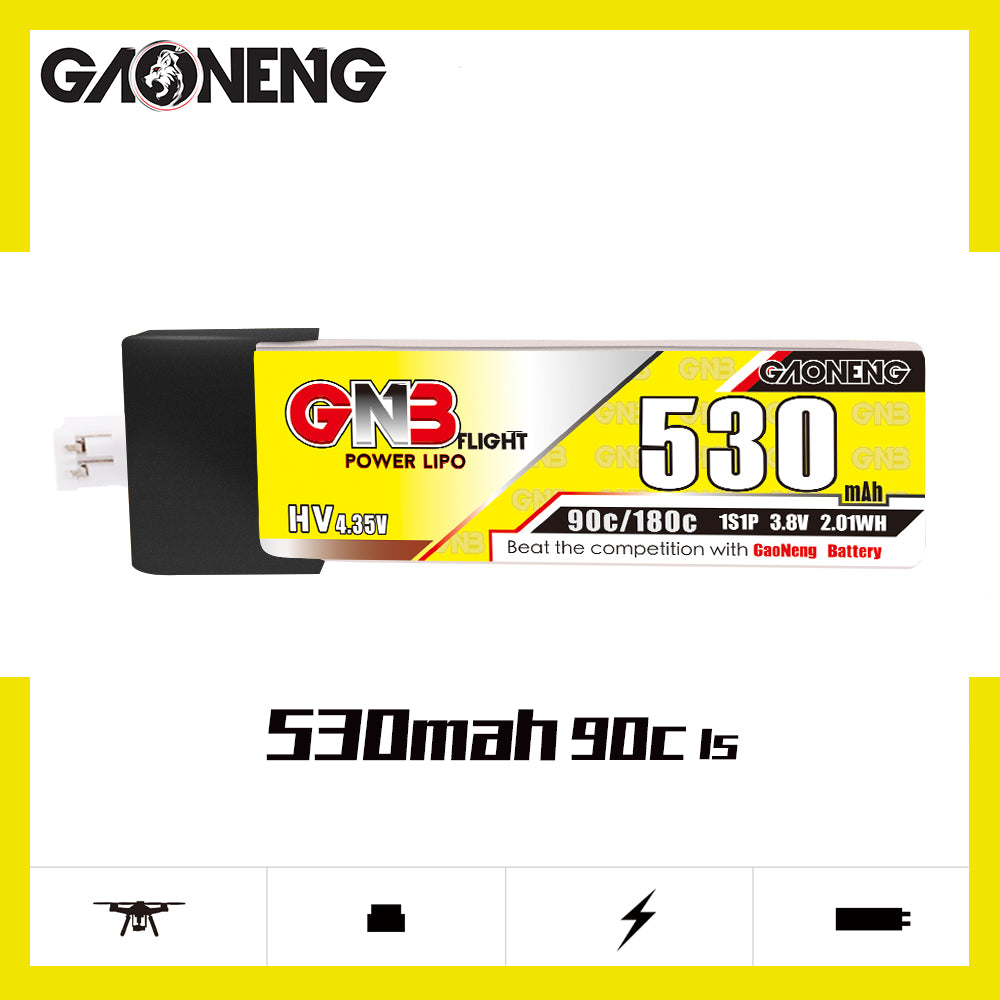

  • Side profile showing GAONENG GNB 530mAh 1S LiHV battery label with 90C/180C and HV 4.35V text

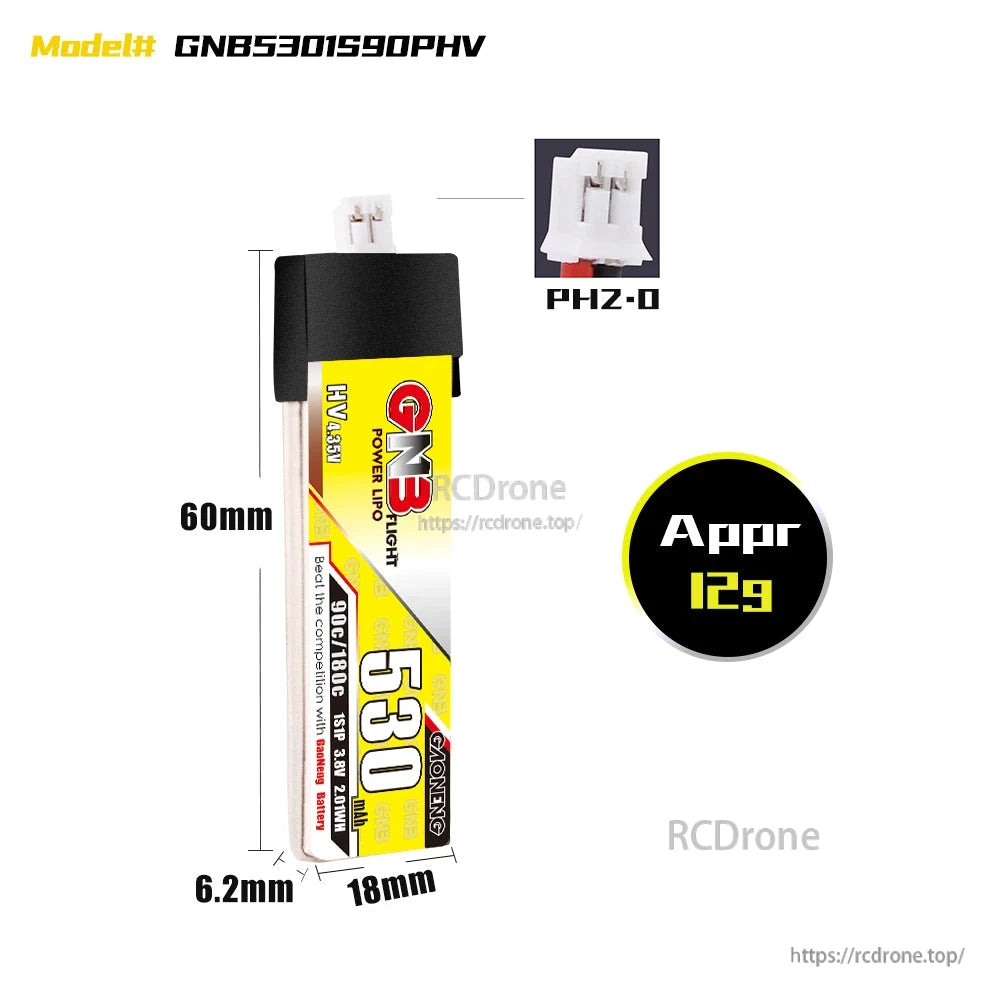

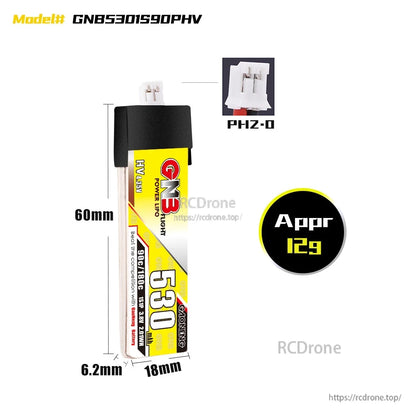

  • GNB5301S90PHV battery dimensions diagram (60 x 18 x 6.2mm) with PH2.0 plug and approx 12g weight

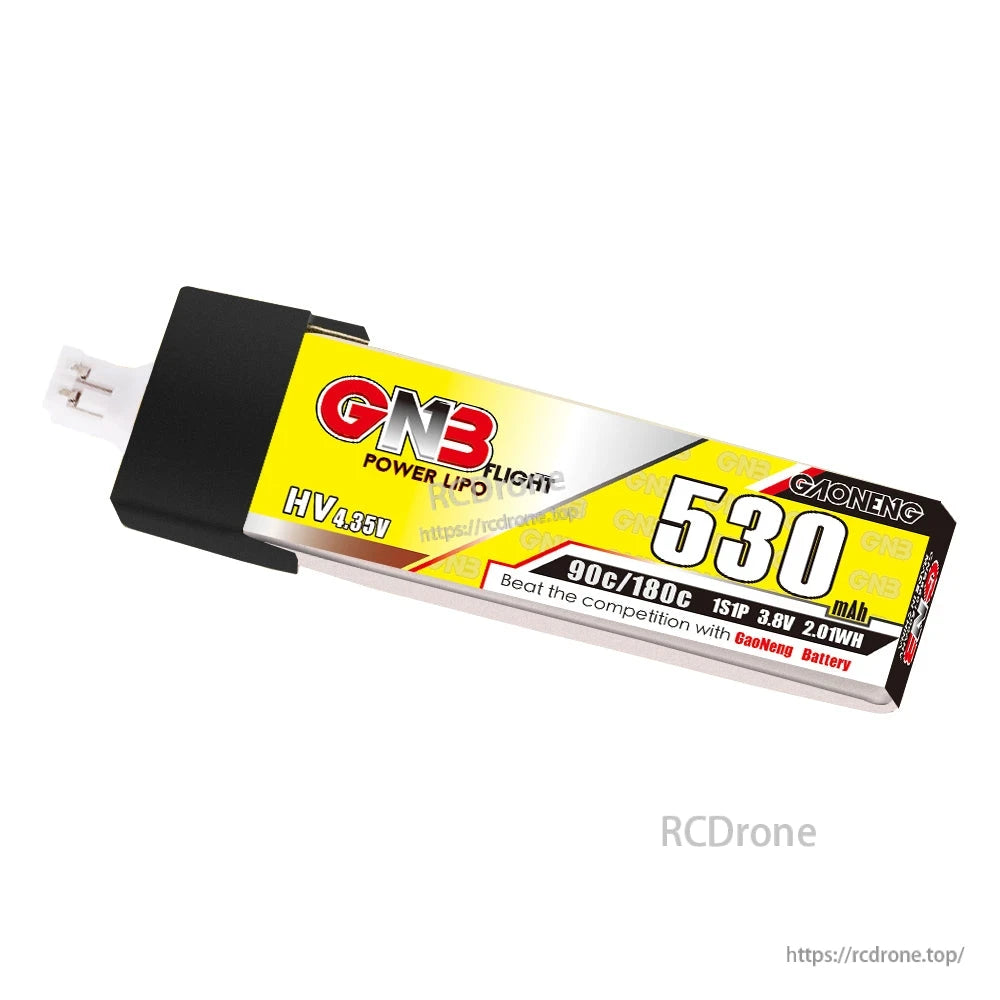

  • Angled view of GNB 530mAh LiHV 1S battery showing PH2.0 plug end and full wrap label

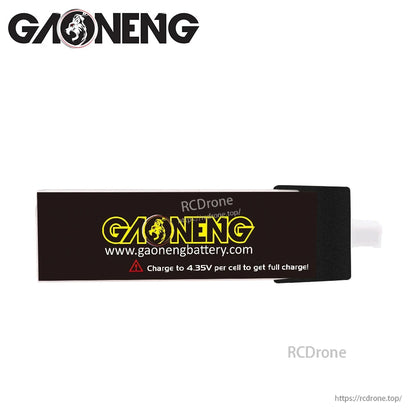

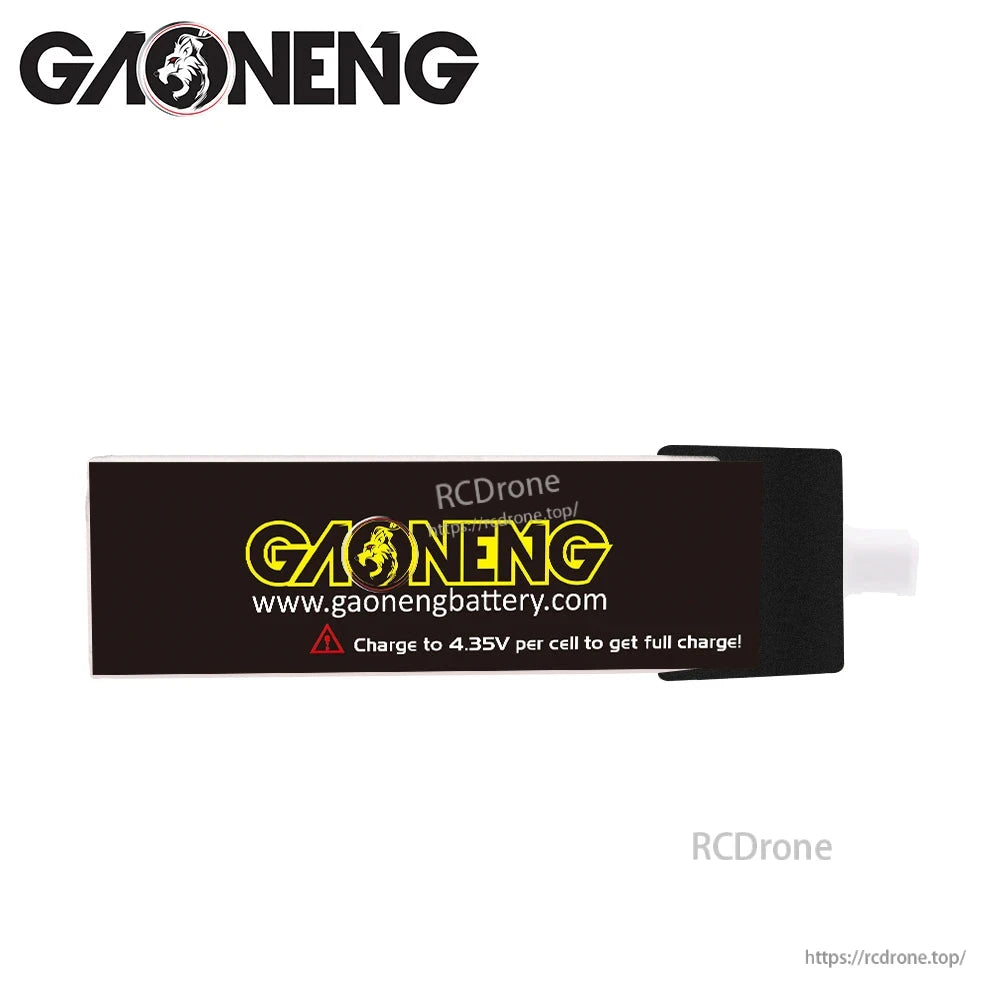

  • Rear sleeve view with GAONENG branding, website text, and charge-to-4.35V per cell warning
1 6

GAONENG GNB5301S90PHV LiHV 1S 3.8V 530mAh 90C LiPo Battery PH2.0 for 75mm FPV Whoop

GAONENG GNB5301S90PHV LiHV 1S 3.8V 530mAh 90C LiPo Battery PH2.0 for 75mm FPV Whoop

GAONENG

$28.00 USD
$28.00 USD
In offerta Esaurito
Imposte incluse. Spese di spedizione calcolate al check-out.
Quantity Options
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
Visualizza dettagli completi

Overview

The GAONENG (GNB) GNB5301S90PHV is a LiHV 1S 3.8V 530mAh LiPo battery with a 90C discharge rate and a PH2.0 discharge/charge connector (plastic head). It is designed as a compact power option for micro FPV and small RC models that use PH2.0 connections.

Key Features

  • LiHV 1S battery pack with 3.8V nominal voltage
  • 530mAh capacity
  • 90C discharge rate
  • Charge rate: 1C to 5C
  • PH2.0 connector for both discharge and charge
  • Compact size and low weight for small builds

Specifications

Model No. GNB5301S90PHV
Battery Type LiHV (LiPo)
Voltage 3.8V
Capacity 530mAh
Cells Configuration 1S1P
Discharge Rate 90C
Charge Rate 1C to 5C
Connector (Discharge/Charge) PH2.0
Pack Dimension (H*W*L) 6.2*18*60mm
Net Weight 12g (+/-1g)

Applications

Compatible with 75mm FPV Drone, Emax Tinyhawk S, NanoHawk, EZ Pilot Pro, Kingkong LDARC, BetaFPV Beta75X, Happymodel Mobula6 Mobula7 Snapper, GEPRC Cinewhoop, Yinywhoop Tiny7, NewBeeDrone Cockroach, HGLRC Petrel 75Whoop, Crazypony Moblite7, Indoor FPV Kit, Spare RC Parts, RC Toy, Airplane, Racing FPV, Brushless Drones, Mini Micro Whoops, PowerWhoop, Quads, Quadcopter, Helicopter etc.

For product selection and after-sales support, contact https://rcdrone.top/ or support@rcdrone.top.
