HGLRC Long Range Hammer Mini 5.8G FPV Antenna 2.5dBi RHCP/LHCP SMA UFL MMCX-L 135mm
HGLRC Long Range Hammer Mini 5.8G FPV Antenna 2.5dBi RHCP/LHCP SMA UFL MMCX-L 135mm
HGLRC
Prezzo di listino
$14.63 USD
Prezzo di listino
Prezzo scontato
$14.63 USD
Prezzo unitario
per
Imposte incluse.
Spese di spedizione calcolate al check-out.
Impossibile caricare la disponibilità di ritiro
Overview
The HGLRC Long Range Hammer Mini is a 5.8G FPV antenna for RC drone video transmission, offered in RHCP or LHCP polarization with a compact mini form factor.
Key Features
- 5.5–6.0 GHz operating frequency range (5500–6000 MHz)
- 2.5 dBi gain

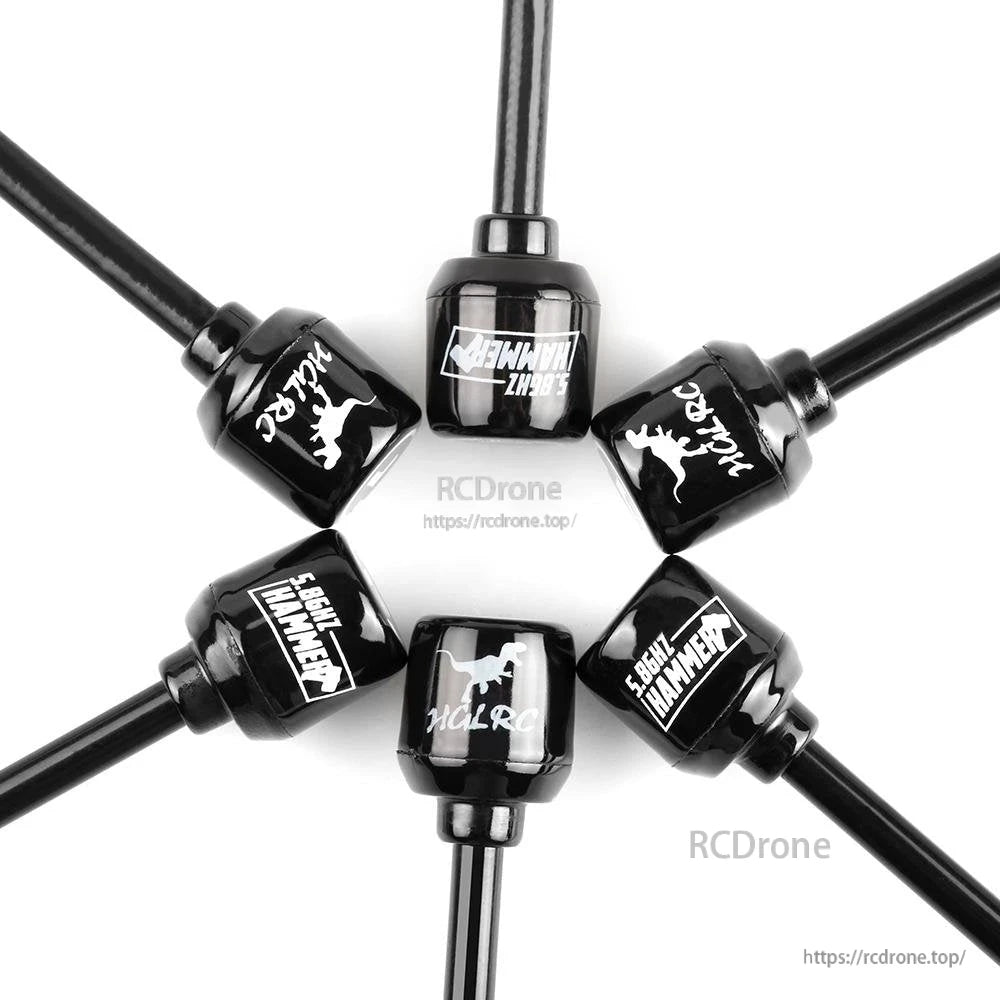

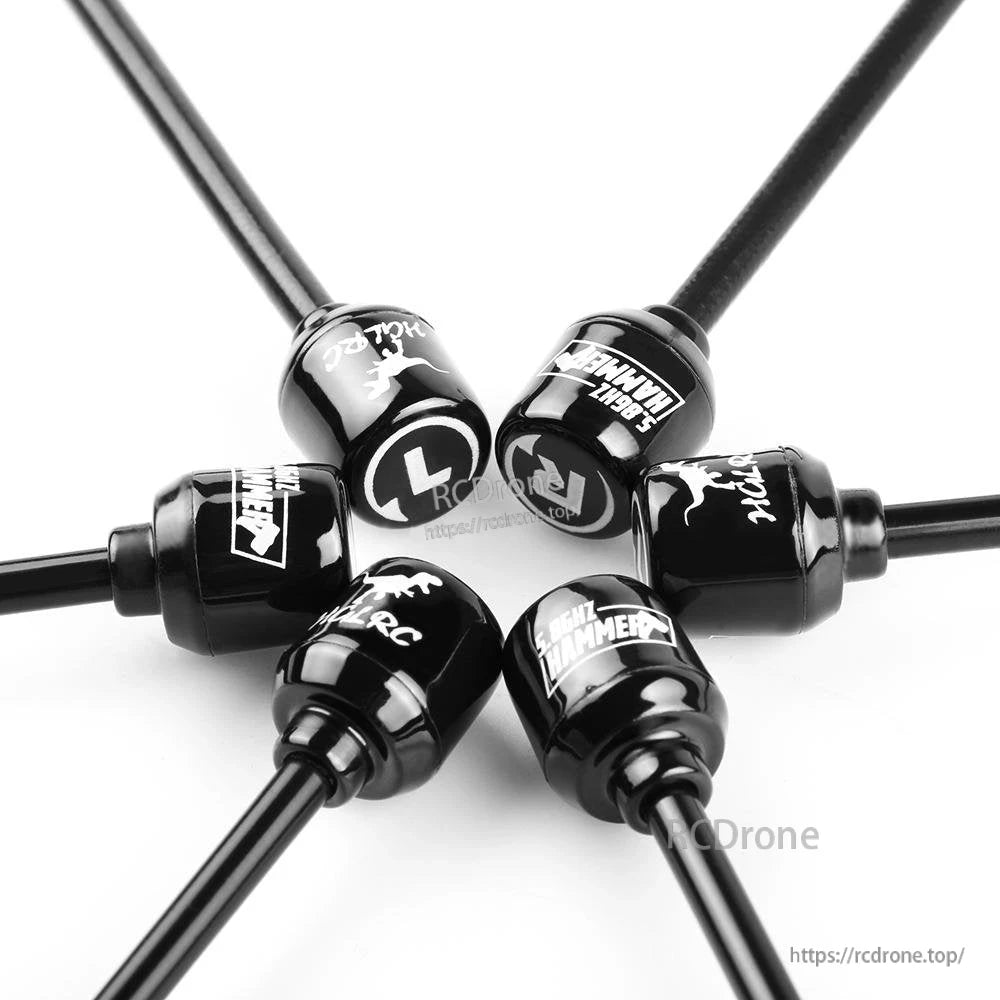

- RHCP/LHCP polarization options

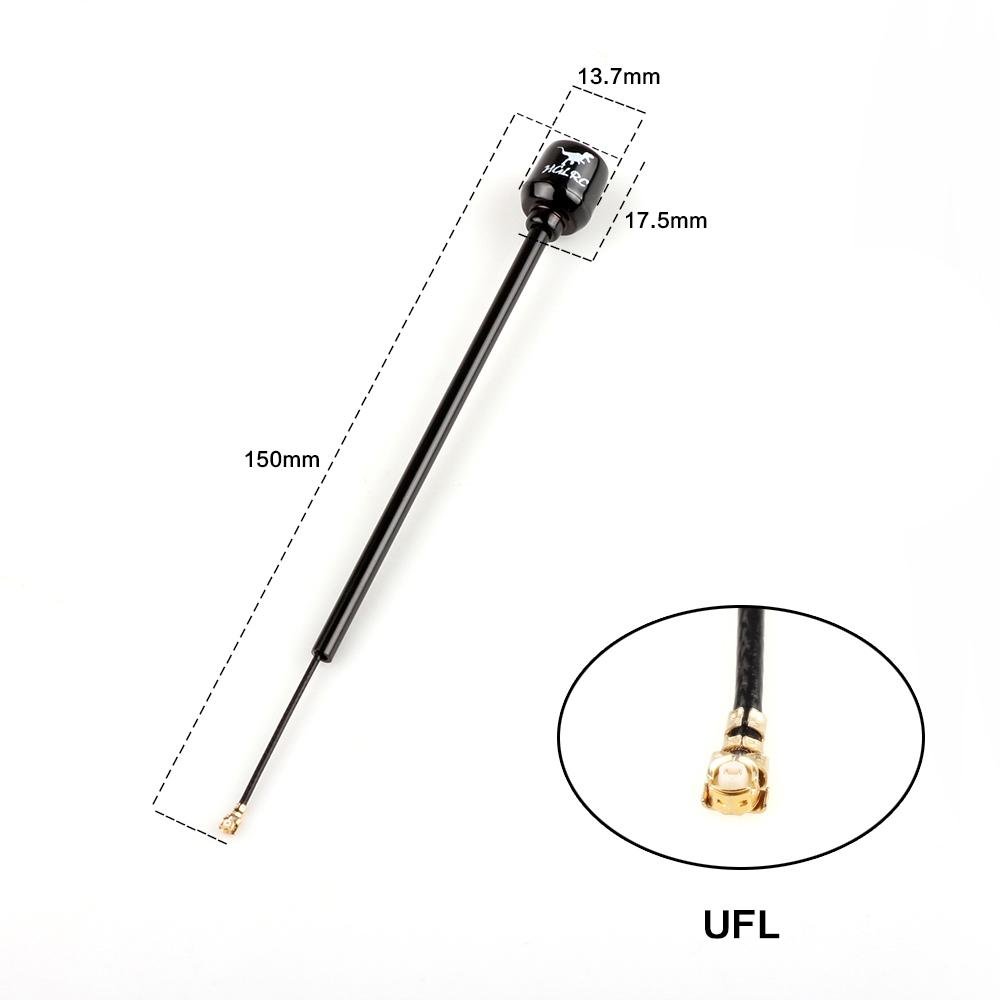

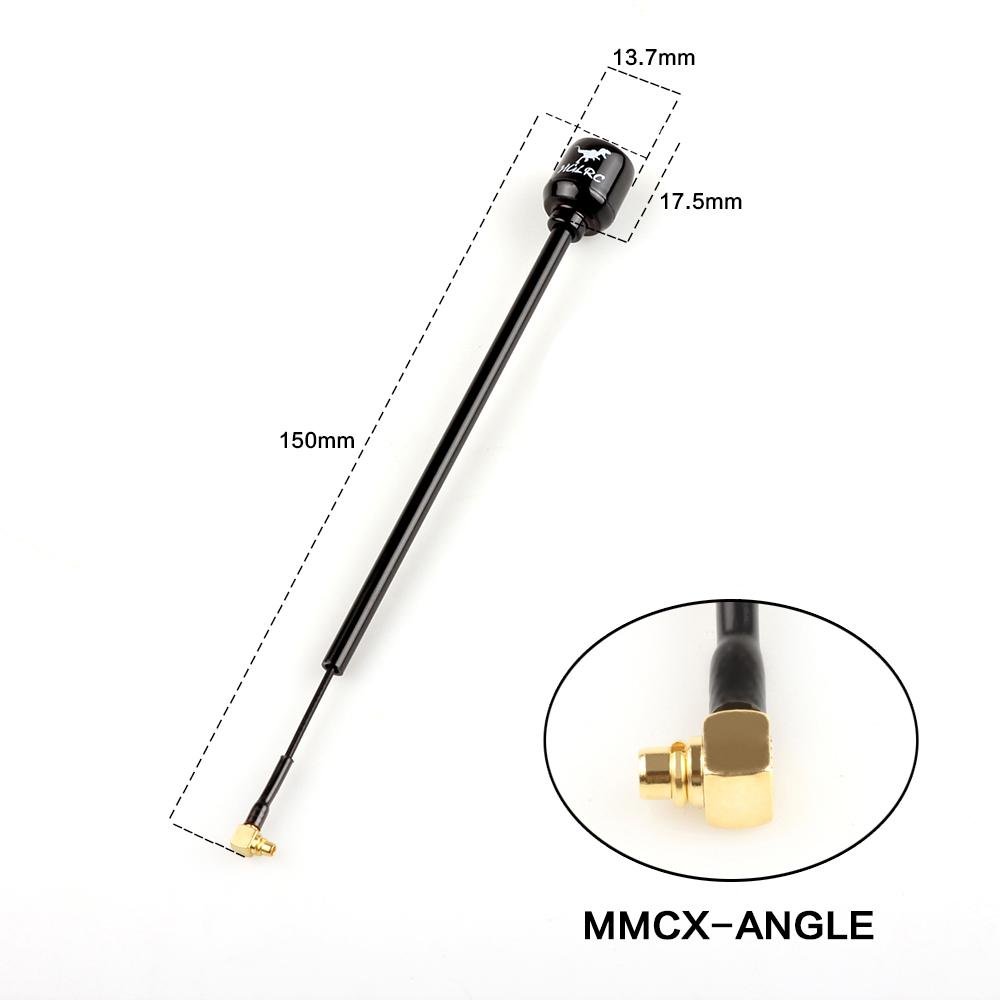

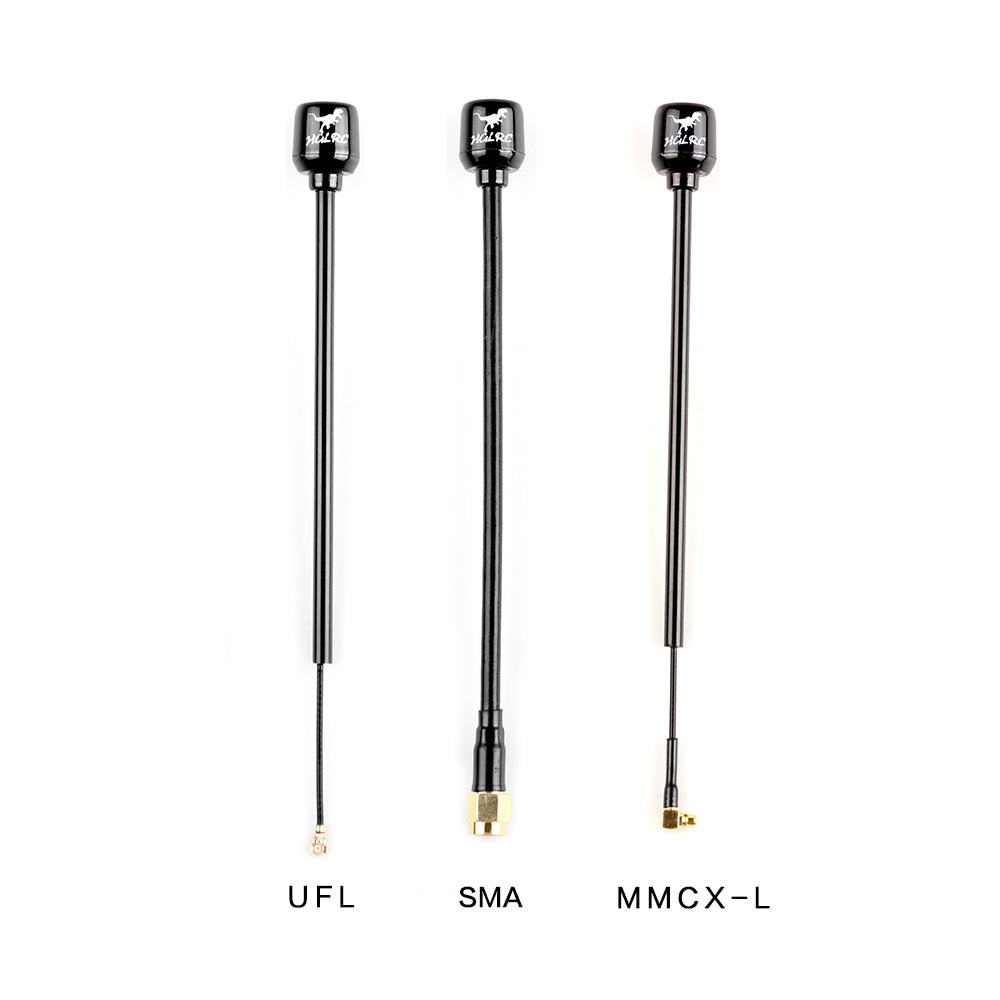

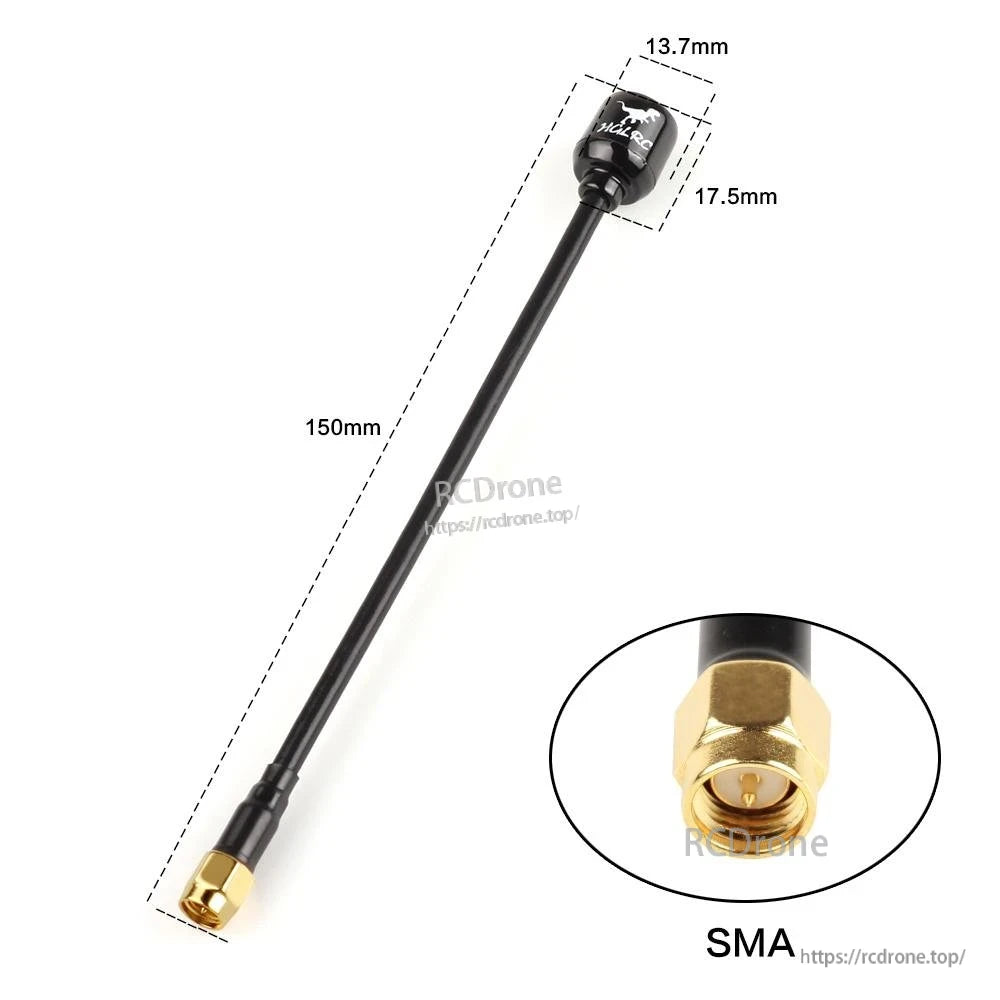

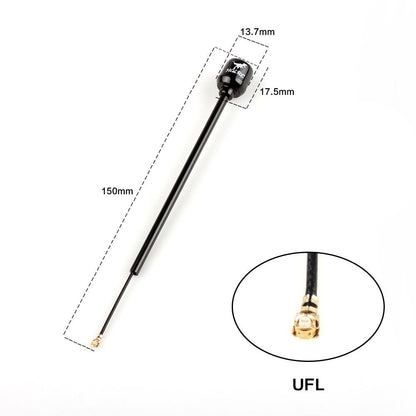

- Connector options: SMA / UFL / MMCX-L
- ABS radome in black

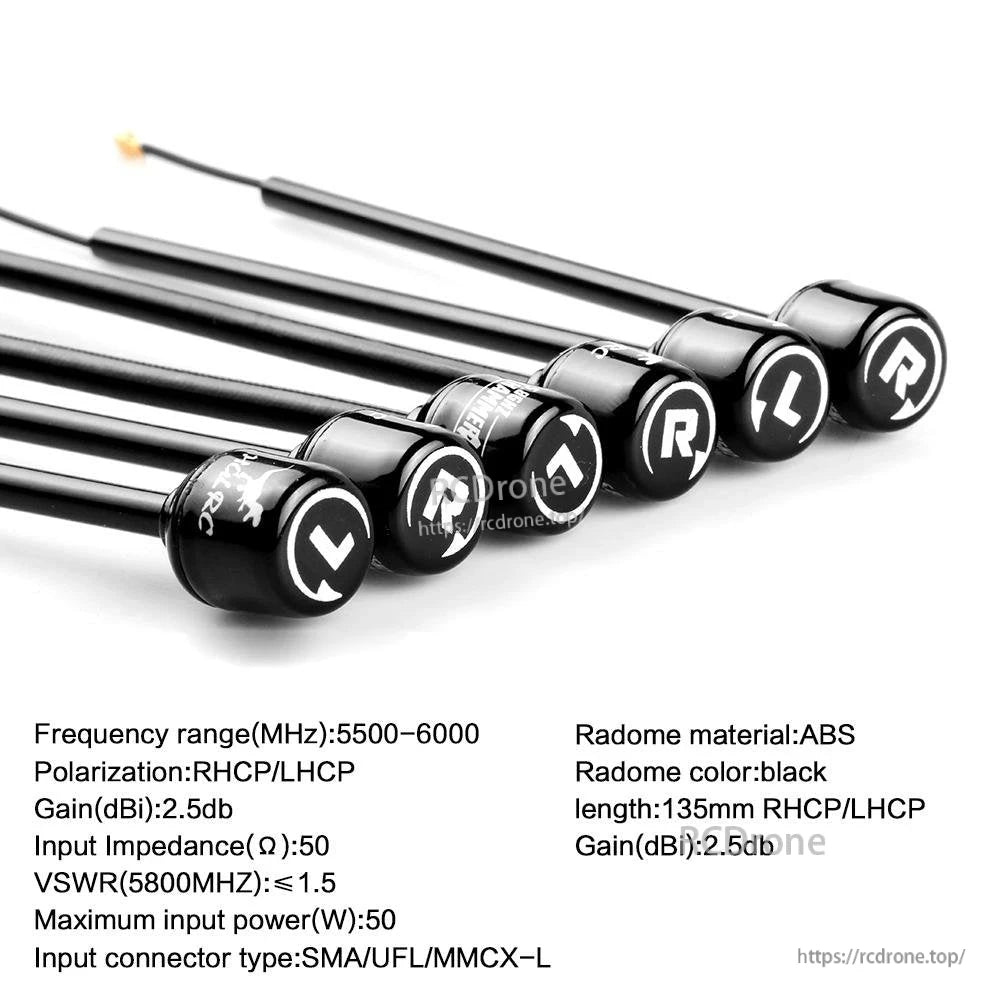

Specifications
| Product | Long Range Hammer Mini 5.8G Antenna |
| Frequency range | 5500–6000 MHz |
| Polarization | RHCP/LHCP |
| Gain | 2.5 dBi |
| Input impedance | 50 Ω |
| VSWR (5800 MHz) | ≤ 1.5 |
| Maximum input power | 50 W |
| Input connector type | SMA / UFL / MMCX-L |
| Radome material | ABS |
| Radome color | Black |
| Length | 135 mm |
What’s Included
- 1x Long Range Hammer Mini 5.8G Antenna
For help choosing RHCP vs LHCP and the correct connector (SMA/UFL/MMCX-L) for the build, contact support@rcdrone.top or visit https://rcdrone.top/.
Details
Built for 5.8GHz FPV video links, the Long Range Hammer Mini pairs a compact ABS radome with RHCP or LHCP options and common connector choices.
