• MKS DS9910 High Torque Coreless Servo Motor 4.8V–7.0V
  • MKS DS9910 High Torque Coreless Servo Motor 4.8V–7.0V

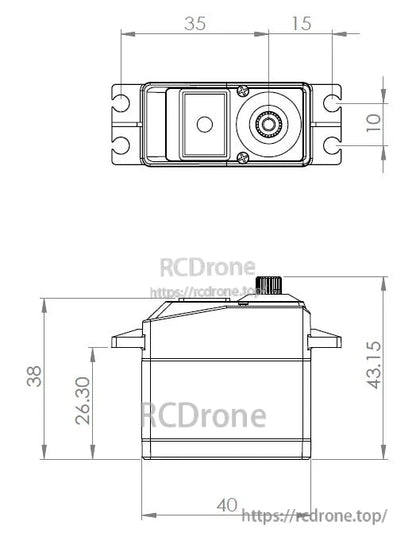

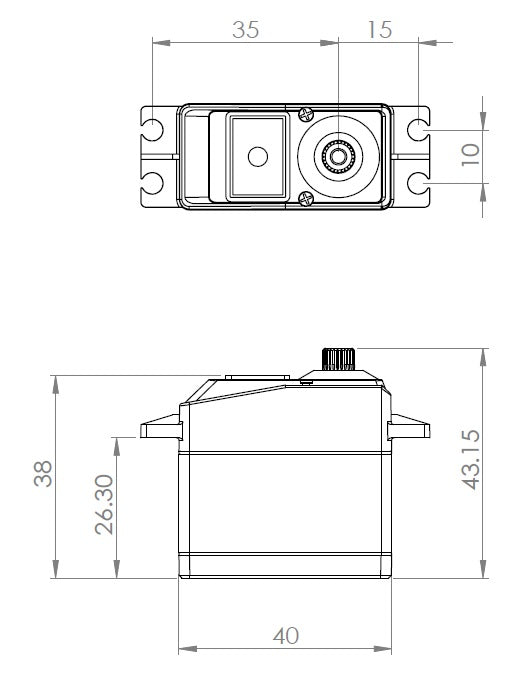

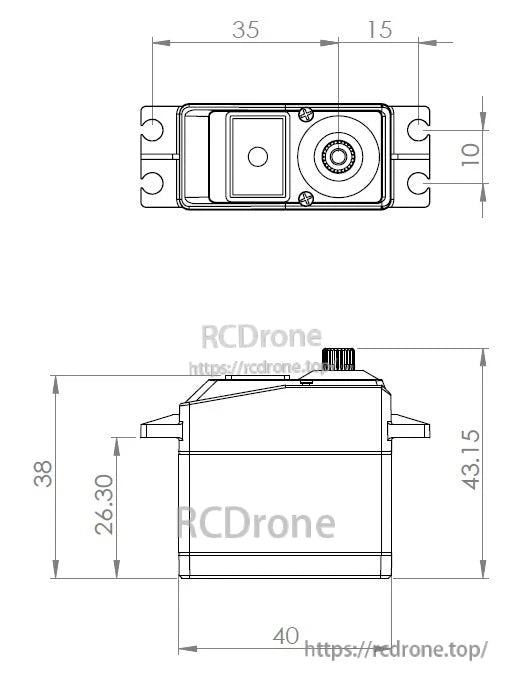

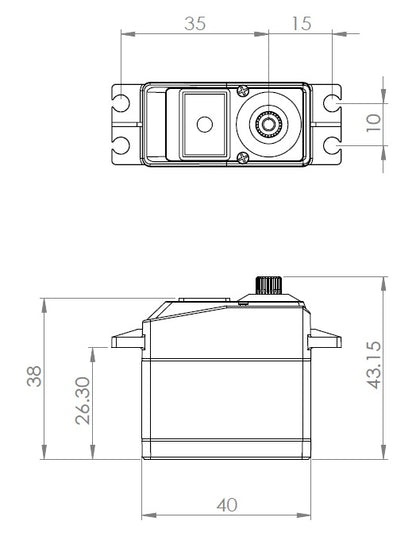

  • MKS DS9910 High Torque Coreless Servo, MKS DS9910 coreless servo motor operates at 4.8V–7.0V, measuring 35x15x10mm (top) and 40x38x43.15mm (side).
1 3

MKS DS9910 High Torque Coreless Servo Motor 4.8V–7.0V

MKS DS9910 High Torque Coreless Servo Motor 4.8V–7.0V

MKS Servos

$209.00 USD
$209.00 USD
In offerta Esaurito
Imposte incluse. Spese di spedizione calcolate al check-out.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
Visualizza dettagli completi

Overview

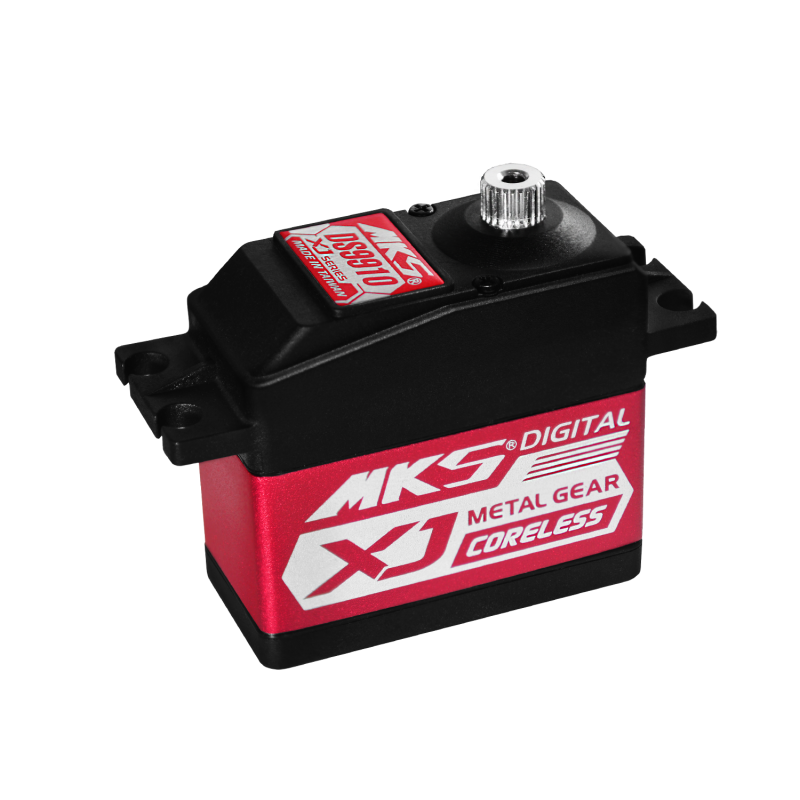

The MKS DS9910 Servo Motor is a high-torque, high-resolution coreless servo designed for precision control in F3A model aircraft and high-performance jet models. It combines a Japanese-made coreless motor, metal alloy gears, and an aluminium alloy middle case for strong, accurate operation with effective heat dissipation across a 4.8V to 7.0V DC working range.

Key Features

  • Ideal for F3A model aircraft and jet applications
  • Three copper bushings for strong, accurate support and smooth motion
  • Waterproof, dustproof bearing design for improved durability
  • Metal alloy gear train, wear-resistant and smooth running
  • Middle aluminium alloy case for high heat dissipation and stable performance
  • Japan high quality coreless motor, competition-level with high response and high torque
  • High efficiency with low power consumption
  • 0.0007 ms high resolution control (narrow dead band)
  • 2 ball bearings for reduced friction and precise output

Specifications

Parameter Value
Torque (4.8V) 21 kg-cm / 291.6 oz-in
Torque (6.0V) 26 kg-cm / 361.1 oz-in
Speed (4.8V) 0.198 s
Speed (6.0V) 0.159 s
Weight 58 g (2.04 oz)
Dimensions 40 x 20 x 37 mm
Stall Torque (kg-cm) 21 (4.8V) / 26 (6.0V)
Stall Torque (oz-in) 291.6 (4.8V) / 361.1 (6.0V)
No-load Speed 0.198 s (4.8V) / 0.159 s (6.0V)
Stall Current 4.1 A (6.0V) / 4.6 A (6.8V)
Working Voltage 4.8V ~ 7.0V DC Volts
Working Frequency 1520 us / 333 Hz
Dead Band 0.0007 ms (Default)
Bearing 2 ball bearing
Gear Metal alloy gear
Motor Japanese-made coreless motor

Applications

  • F3A pattern model aircraft requiring precise, high-torque control
  • High-performance jet models
  • Other radio control models needing fast response and accurate positioning

For technical support, installation questions or after-sales service, please contact support@rcdrone.top or visit https://rcdrone.top/.
