• MKS HV70H Servos Motor Micro Digital Coreless Servo, Metal Alloy Gear, 5.4 g, 18.6×7×16.7 mm for Glider Airplanes
  • MKS HV70H Servo, The ultra-compact MKS HV70H servo offers high torque, metal gears, and reliability for lightweight RC gliders.
  • MKS HV70H Servo, MKS HV70H micro servo: 5.4g, metal gears, compact size, ideal for glider planes.
1 3

MKS HV70H Servos Motor Micro Digital Coreless Servo, Metal Alloy Gear, 5.4 g, 18.6×7×16.7 mm for Glider Airplanes

MKS HV70H Servos Motor Micro Digital Coreless Servo, Metal Alloy Gear, 5.4 g, 18.6×7×16.7 mm for Glider Airplanes

MKS Servos

$109.00 USD
$109.00 USD
In offerta Esaurito
Imposte incluse. Spese di spedizione calcolate al check-out.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
Visualizza dettagli completi

Overview

MKS HV70H Servos Motor micro digital servo with metal alloy gear, designed for glider airplane applications. The HV70H is a compact, lightweight coreless-motor servo offering measured stall torque and no-load speed figures at multiple supply voltages and a 0.001 ms default dead band.

Customer service: support@rcdrone.top

Key Features

Primary features

  • Micro digital servo form factor: 18.6 x 7 x 16.7 mm; weight 5.4 g (±0.3 g).
  • Metal alloy gear train for improved gear durability.
  • Coreless motor for fast response and reduced rotor inertia.
  • Bearing: 1 × copper bushing.
  • Very small dead band: 0.001 ms (default).
  • Performance specified at multiple supply voltages (3.7 V, 4.8 V, 6.0 V, 7.4 V, 8.2 V).

Specifications

Parameter Value
Model MKS HV70H
Product type Servos Motor (micro digital servo)
Stall Torque (kg-cm) 1.5 (3.7V) / 2.0 (4.8V) / 2.6 (6.0V) / 2.9 (7.4V) / 3.1 (8.2V)
Stall Torque (oz-in) 20.8 (3.7V) / 27.8 (4.8V) / 36.1 (6.0V) / 40.3 (7.4V) / 43.1 (8.2V)
No-load Speed (s) 0.125 (3.7V) / 0.110 (4.8V) / 0.085 (6.0V) / 0.068 (7.4V) / 0.060 (8.2V)
Dead Band 0.001 ms (Default)
Bearing 1 × Copper Bushing
Gear Metal Alloy Gear
Motor Coreless Motor
Weight 5.4 g (±0.3 g) / 0.19 oz (±0.01 oz)

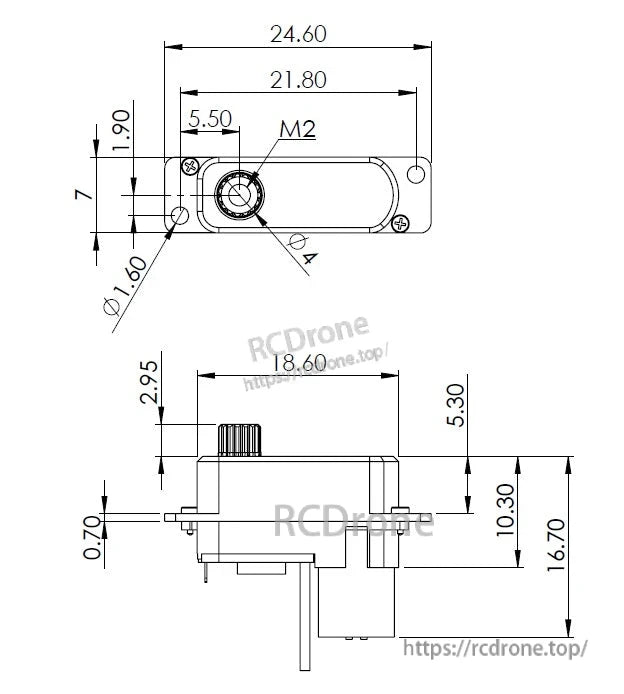

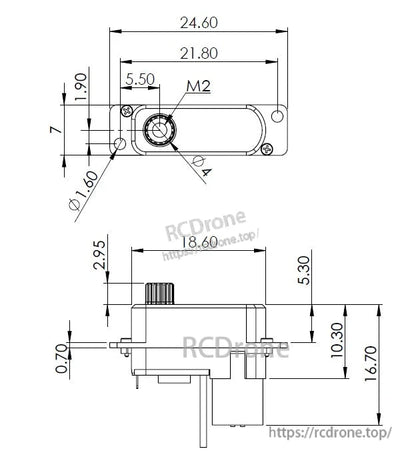

Dimension 18.6 x 7 x 16.7 mm

Applications

Intended for glider airplane control surfaces and other lightweight radio-controlled aircraft where a micro digital servo with metal alloy gears and a coreless motor is required.
