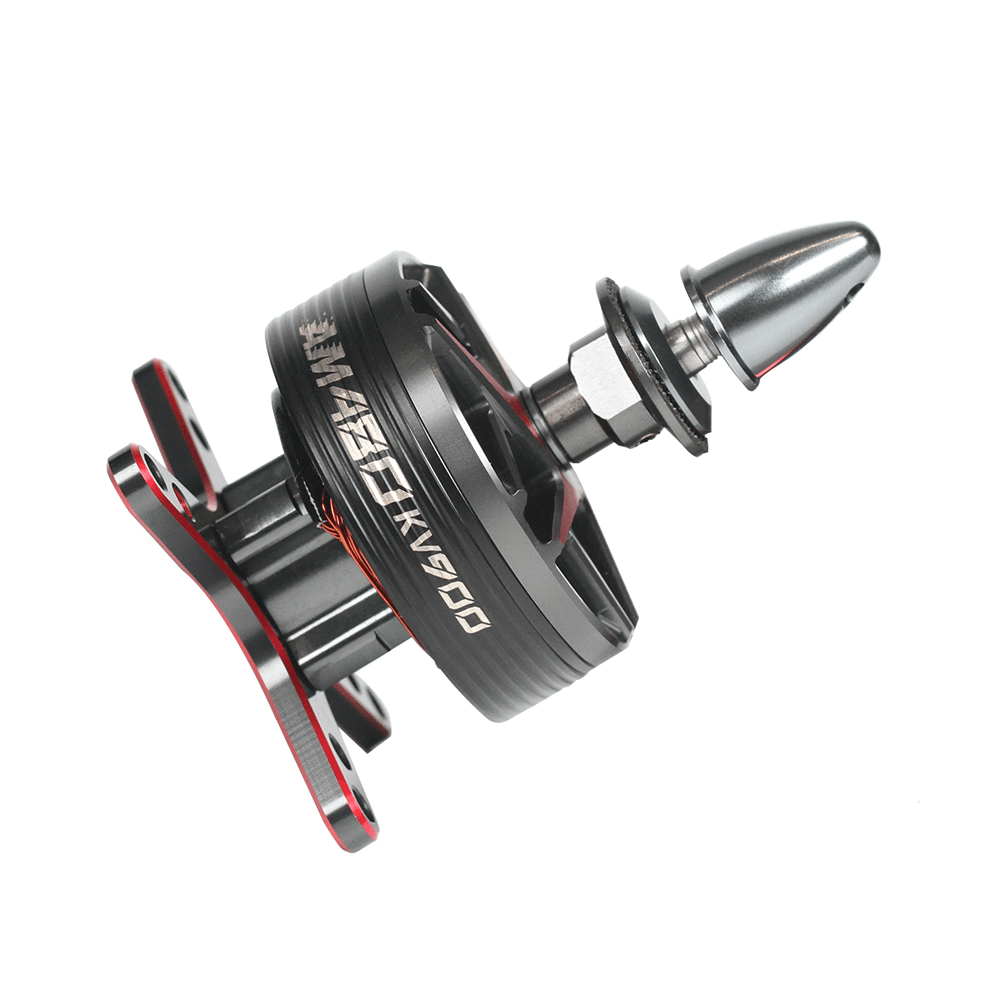

• T-Motor KV700 brushless motor with metal prop adapter, threaded shaft, and red-accent mounting base

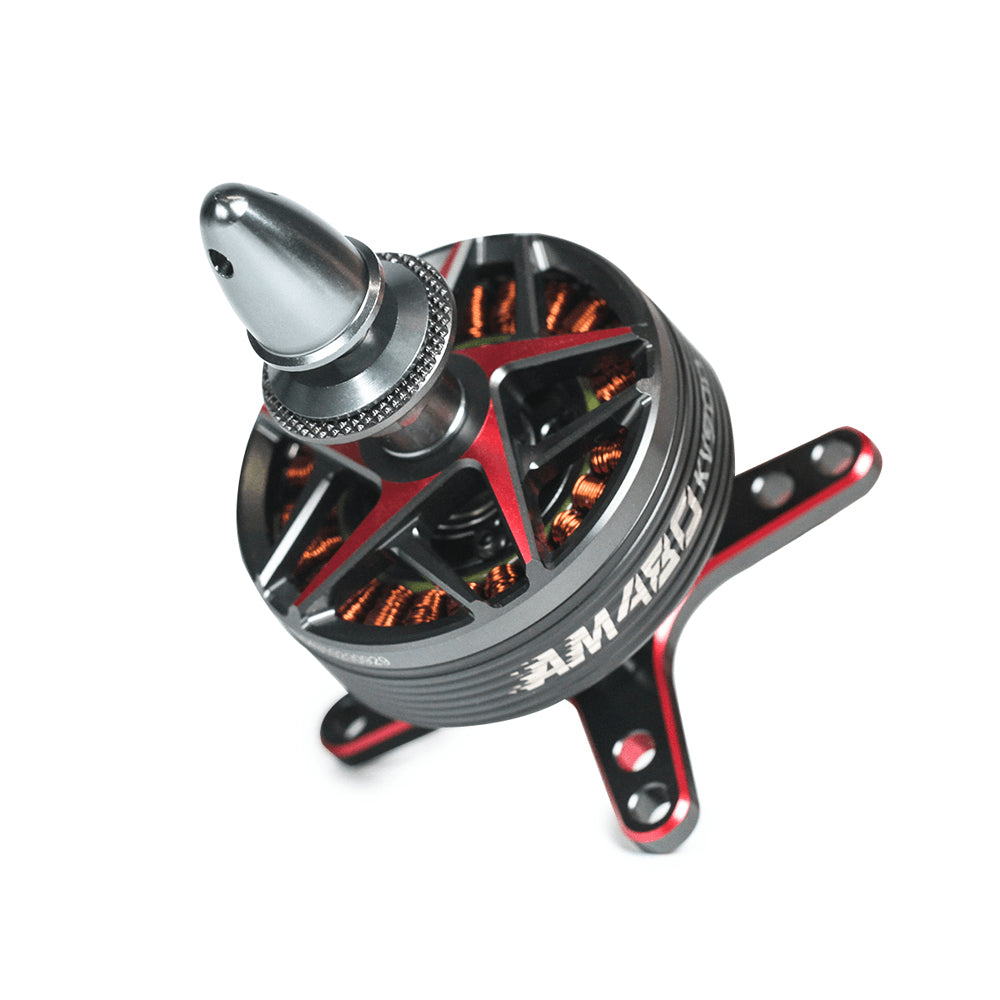

  • T-Motor brushless outrunner motor with prop adapter and cross mounting bracket, black and red housing

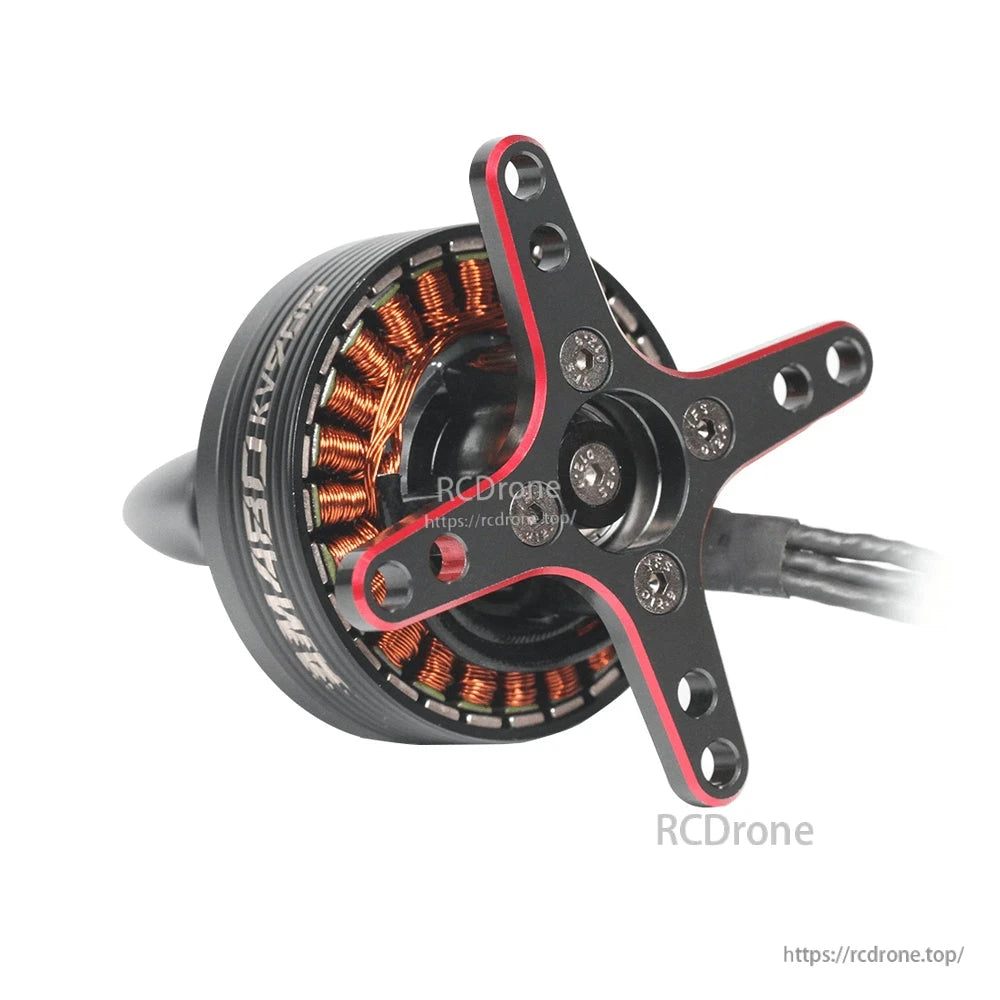

  • T-Motor brushless drone motor close-up with copper windings, black bell and X-style mounting bracket

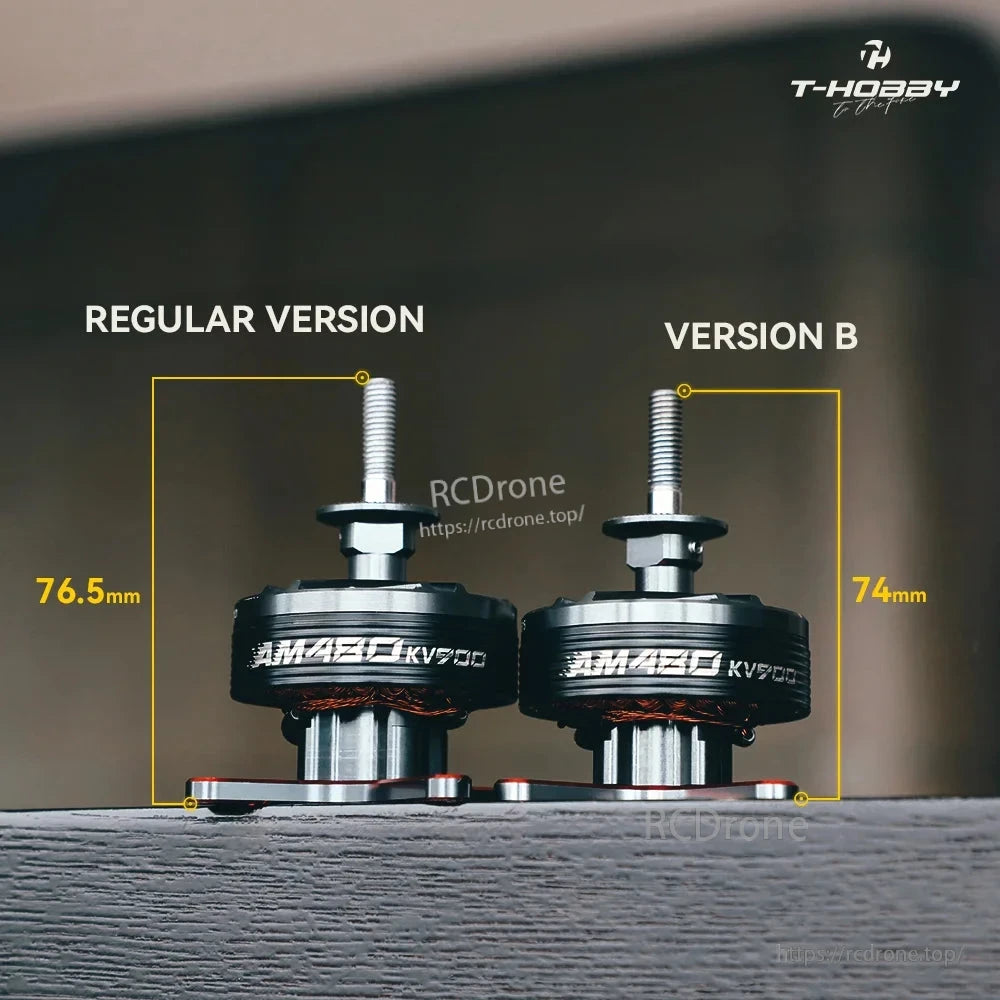

  • T-Motor, Side-by-side AM4260 brushless drone motors, regular version vs version B, with height marked 76.5mm and 74mm

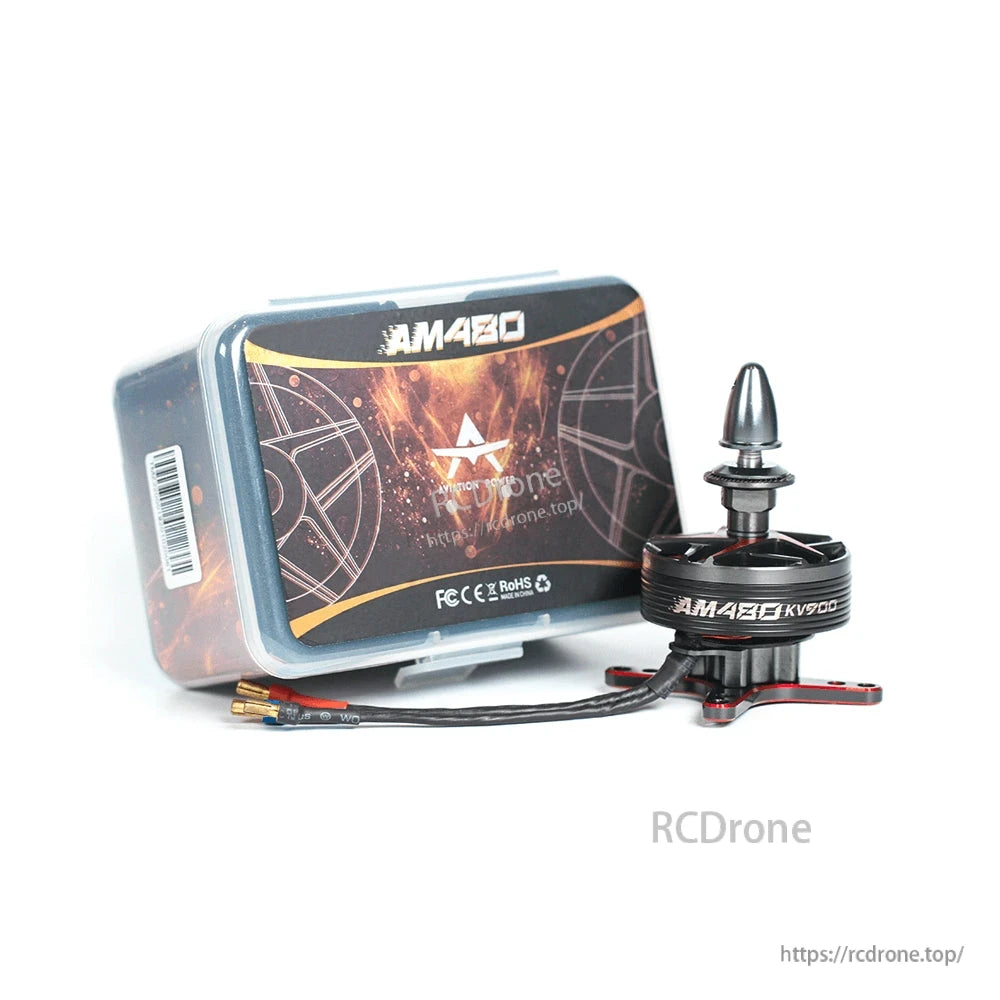

  • T-Motor, Brushless drone motor with prop nut, mounting base, wire leads, and AM-420 storage case
1 5

T-Motor AM480 B Version KV900 Brushless Motor for 48-52 in 3D Airplane, 3-4S, 145g

T-Motor AM480 B Version KV900 Brushless Motor for 48-52 in 3D Airplane, 3-4S, 145g

T-MOTOR

$75.00 USD
$75.00 USD
In offerta Esaurito
Imposte incluse. Spese di spedizione calcolate al check-out.
KV
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
Visualizza dettagli completi

Overview

T-Motor AM480 B Version KV900 is a brushless motor designed for 48-52 in 3D airplane models. The motor uses a rippled motor bell and a hollow shaft for improved robustness with reduced weight, and a 3:1 diameter-to-height ratio for higher torque and better cooling.

Structural design notes shown on the product images include: “Lighter and more durable achieving load-free flight”, and a staggered front cover strip for higher strength. Marked weight details: front cover strip 3g; no back cover 5g.

Key Features

  • Suitable for 48-52 in 3D plane
  • Rippled motor bell and hollow shaft design (robust and lighter vs. predecessors)
  • 3:1 diameter-to-height ratio (higher torque and better cooling)
  • Adjustable prop adapter and dual color craft
  • Staggered front cover strip for higher strength (as shown)

Recommended Setup

  • Frame: 48-52 in 3D plane
  • Recommended ESC: AM66A
  • Recommended propeller (KV900 column shown): 12*6 (for light weight), 13*6.5 (for high efficiency), 14*7 (for extreme flight)

AM480 Recommendations (as shown)

Item KV600 KV650 KV900
Cruising power 280W / 1718g 340W / 1931g 256W / 1557g
Recommended ESC AM66A AM66A AM66A
Recommended propeller 12*6 (for light weight); 13*6.5 (for high efficiency); 14*7 (for extreme flight) 12*6 (for light weight); 13*6.5 (for high efficiency); 14*7 (for extreme flight) 12*6 (for light weight); 13*6.5 (for high efficiency); 14*7 (for extreme flight)
Weight of scale model 11500g 12600g 9800g
Weight of 3D sports airplane 1900g 2100g 1600g

Specifications

AM480 B Version (KV900) - Specification Sheet

KV KV900
Motor dimensions 49*70mm
Weight (incl. cable) 145g
Internal resistance 18 mOhm
Configuration 24N28P
Rated voltage (Lipo) 3-4S
Peak current (180s) 60A
Max. power (180s) 800W
Idle current (10V) 2.45A
Lead Enameled wire 90mm
Shaft diameter IN: 6mm; OUT: 6mm

AM480 Series (KV600 / KV650 / KV900) - Specification Sheet

Parameter KV600 KV650 KV900
Motor dimensions 49*70mm 49*70mm 49*70mm
Weight (incl. cable) 145g 145g 145g
Internal resistance 35 mOhm 32 mOhm 18 mOhm
Configuration 24N28P 24N28P 24N28P
Rated voltage (Lipo) 5-6S 5-6S 3-4S
Peak current (180s) 45A 55A 60A
Max. power (180s) 960W 1150W 800W
Idle current (10V) 1.35A 1.55A 2.45A
Lead Enameled wire 90mm Enameled wire 90mm Enameled wire 90mm
Shaft diameter IN: 6mm; OUT: 6mm IN: 6mm; OUT: 6mm IN: 6mm; OUT: 6mm

Bench Test Report (as shown)

Note shown on test sheets: Motor temperature is motor surface temperature at 100% throttle running 3 mins. Data above based on bench test are for reference only; comparison with that of other motor types is not recommended.

AM480 KV600 - APC 12*6 (Operating temperature shown: 79°C)

Throttle Voltage (V) Current (A) Power (W) RPM Torque (N*m) Thrust (g) Efficiency (g/W)
40% 21.70 3.75 81.34 4905 0.110 632 7.77
50% 21.56 6.20 133.70 5914 0.164 944 7.06
55% 21.62 8.02 173.37 6454 0.195 1132 6.53
60% 21.59 9.99 215.69 6962 0.224 1331 6.17
65% 21.49 12.26 263.52 7465 0.257 1548 5.87
70% 21.43 14.79 316.95 7919 0.300 1758 5.55
75% 21.38 17.68 378.03 8369 0.341 1988 5.26
80% 21.31 20.75 442.00 8779 0.380 2224 5.03
90% 21.22 28.32 600.76 9608 0.483 2725 4.54
100% 21.02 36.75 772.54 10343 0.569 3197 4.14

AM480 KV600 - APC 13*6.5 (Operating temperature shown: 88°C)

Throttle Voltage (V) Current (A) Power (W) RPM Torque (N*m) Thrust (g) Efficiency (g/W)
40% 21.89 4.60 100.81 4761 0.146 795 7.89
50% 21.53 7.71 165.97 5715 0.209 1152 6.94
55% 21.54 9.90 213.27 6227 0.244 1383 6.48
60% 21.51 12.41 267.08 6709 0.289 1620 6.06
65% 21.46 15.37 329.84 7191 0.343 1886 5.72
70% 21.43 18.60 398.54 7629 0.389 2145 5.38
75% 21.30 21.95 467.61 8016 0.433 2391 5.11
80% 21.23 25.55 542.30 8383 0.479 2645 4.88
90% 21.06 34.72 731.43 9136 0.592 3171 4.34
100% 20.86 45.59 950.99 9777 0.707 3596 3.78

AM480 KV600 - T-MOTOR 13*6.5 polymer carbon (Operating temperature shown: 87°C)

Throttle Voltage (V) Current (A) Power (W) RPM Torque (N*m) Thrust (g) Efficiency (g/W)
40% 21.93 4.80 105.23 4721 0.152 838 7.97
50% 21.84 8.30 181.31 5738 0.222 1255 6.92
55% 21.79 10.59 230.67 6235 0.259 1489 6.45
60% 21.73 13.25 287.99 6719 0.309 1746 6.06
65% 21.66 16.32 353.46 7197 0.360 2016 5.70
70% 21.59 19.47 420.33 7623 0.408 2280 5.42
75% 21.52 23.00 494.98 8024 0.455 2539 5.13
80% 21.43 26.80 574.36 8393 0.506 2807 4.89
90% 21.09 35.31 744.81 9101 0.602 3335 4.48
100% 20.89 45.61 953.00 9786 0.711 3897 4.09

AM480 KV600 - T-MOTOR 13*6.5 polymer glass fibre (Operating temperature shown: 86°C)

Throttle Voltage (V) Current (A) Power (W) RPM Torque (N*m) Thrust (g) Efficiency (g/W)
40% 21.93 4.68 102.70 4736 0.152 826 8.04
50% 21.85 8.08 176.43 5757 0.216 1231 6.98
55% 21.79 10.33 225.09 6259 0.256 1462 6.50
60% 21.74 12.90 280.39 6740 0.305 1718 6.13
65% 21.67 15.97 346.17 7224 0.352 1995 5.76
70% 21.60 19.06 411.74 7652 0.399 2253 5.47
75% 21.53 22.62 486.99 8055 0.448 2522 5.18
80% 21.45 26.30 564.18 8430 0.493 2781 4.93
90% 21.12 34.75 733.88 9138 0.596 3294 4.49
100% 20.94 45.09 943.93 9836 0.697 3847 4.08

AM480 KV650 - APC 12*6 (Operating temperature shown: 81°C)

Throttle Voltage (V) Current (A) Power (W) RPM Torque (N*m) Thrust (g) Efficiency (g/W)
40% 21.94 4.73 103.84 5292 0.128 747 7.20
50% 21.86 7.98 174.55 6414 0.186 1111 6.36
55% 21.81 10.23 223.20 6960 0.223 1331 5.97
60% 21.76 12.79 278.31 7517 0.262 1575 5.66
65% 21.70 15.58 338.12 8013 0.312 1809 5.35
70% 21.64 18.74 405.46 8488 0.350 2054 5.07
75% 21.57 22.35 481.99 8931 0.387 2305 4.78
80% 21.50 26.26 564.52 9375 0.435 2574 4.56
90% 21.18 34.98 740.91 10148 0.534 3066 4.14
100% 20.98 45.59 956.42 10892 0.633 3550 3.71

AM480 KV650 - APC 13*6.5 (Operating temperature shown: 92°C)

Throttle Voltage (V) Current (A) Power (W) RPM Torque (N*m) Thrust (g) Efficiency (g/W)
40% 21.91 5.69 124.75 5102 0.166 911 7.30
50% 21.82 9.73 212.30 6159 0.246 1354 6.38
55% 21.75 12.61 274.21 6704 0.285 1616 5.90
60% 21.68 15.84 343.33 7214 0.347 1893 5.51
65% 21.60 19.31 417.07 7680 0.393 2167 5.20
70% 21.53 23.06 496.38 8100 0.445 2435 4.91
75% 21.43 27.26 584.21 8490 0.501 2703 4.63
80% 21.20 31.71 672.45 8838 0.546 2961 4.40
90% 20.97 42.53 891.90 9564 0.662 3475 3.90
100% 20.74 55.53 1151.83 10182 0.782 3930 3.41

AM480 KV650 - T-MOTOR 13*6.5 polymer carbon (Operating temperature shown: 89°C)

Throttle Voltage (V) Current (A) Power (W) RPM Torque (N*m) Thrust (g) Efficiency (g/W)
40% 21.90 5.98 130.94 5049 0.175 967 7.39
50% 21.79 10.21 222.43 6096 0.249 1424 6.40
55% 21.73 13.08 284.11 6629 0.305 1702 5.99
60% 21.65 16.45 356.20 7138 0.359 1988 5.58
65% 21.45 19.79 424.39 7569 0.405 2247 5.30
70% 21.33 23.47 500.53 7975 0.451 2516 5.03
75% 21.24 27.46 583.20 8363 0.499 2779 4.76
80% 21.12 32.08 677.54 8738 0.551 3055 4.51
90% 20.97 42.84 898.42 9513 0.663 3669 4.08
100% 20.76 55.19 1145.52 10183 0.779 4256 3.72

AM480 KV650 - T-MOTOR 13*6.5 polymer glass fibre (Operating temperature shown: 87°C)

Throttle Voltage (V) Current (A) Power (W) RPM Torque (N*m) Thrust (g) Efficiency (g/W)
40% 21.89 5.81 127.10 5065 0.170 948 7.46
50% 21.78 9.91 215.95 6114 0.248 1399 6.48
55% 21.52 12.54 269.85 6598 0.287 1645 6.10
60% 21.46 15.86 340.48 7106 0.344 1931 5.67
65% 21.39 19.26 412.17 7586 0.390 2210 5.36
70% 21.34 22.94 489.54 8009 0.438 2487 5.08
75% 21.25 27.02 574.18 8404 0.490 2759 4.80
80% 21.16 31.58 668.13 8789 0.540 3034 4.54
90% 20.98 42.19 885.01 9549 0.651 3626 4.10
100% 20.78 54.53 1133.03 10225 0.765 4203 3.71

AM480 KV900 - APC 12*6 (Operating temperature shown: 76°C)

Throttle Voltage (V) Current (A) Power (W) RPM Torque (N*m) Thrust (g) Efficiency (g/W)
40% 14.34 5.63 80.74 4779 0.107 601 7.44
50% 14.31 9.13 130.68 5732 0.149 882 6.75
55% 14.28 11.48 163.84 6219 0.178 1048 6.40
60% 14.23 14.13 201.08 6682 0.199 1223 6.08
65% 14.15 17.48 247.26 7173 0.238 1430 5.78
70% 14.05 20.68 290.54 7573 0.263 1606 5.53
75% 13.95 24.17 337.02 7949 0.302 1788 5.30
80% 13.89 28.29 393.02 8331 0.332 1984 5.05
90% 13.68 37.22 509.29 9023 0.404 2374 4.66
100% 13.51 48.17 650.75 9679 0.482 2779 4.27

AM480 KV900 - APC 13*6.5 (Operating temperature shown: 82°C)

Throttle Voltage (V) Current (A) Power (W) RPM Torque (N*m) Thrust (g) Efficiency (g/W)
40% 14.54 6.76 98.25 4615 0.137 736 7.49
50% 14.42 11.41 164.47 5565 0.199 1087 6.61
55% 14.35 14.17 203.30 6009 0.221 1279 6.29
60% 14.09 17.32 244.04 6392 0.263 1459 5.98
65% 13.97 20.90 292.01 6782 0.302 1660 5.69
70% 13.97 25.52 356.51 7232 0.343 1912 5.36
75% 13.88 29.68 411.95 7577 0.380 2114 5.13
80% 13.74 34.24 470.45 7886 0.420 2315 4.92
90% 13.53 44.52 602.46 8505 0.498 2718 4.51
100% 13.31 56.97 758.50 9086 0.582 3144 4.15

AM480 KV900 - T-MOTOR 13*6.5 polymer carbon (Operating temperature shown: 79°C)

Throttle Voltage (V) Current (A) Power (W) RPM Torque (N*m) Thrust (g) Efficiency (g/W)
40% 14.55 6.99 101.69 4573 0.141 780 7.67
50% 14.44 11.77 169.98 5519 0.204 1155 6.79
55% 14.37 14.74 211.92 5958 0.241 1358 6.41
60% 14.30 18.32 261.94 6404 0.278 1577 6.02
65% 14.22 22.28 316.78 6812 0.318 1803 5.69
70% 14.13 26.58 375.60 7226 0.363 2036 5.42
75% 14.03 30.98 434.79 7565 0.399 2253 5.18
80% 13.86 35.52 492.46 7862 0.436 2453 4.98
90% 13.56 45.48 616.85 8443 0.505 2841 4.61
100% 13.29 57.78 767.81 9000 0.585 3271 4.26

AM480 KV900 - T-MOTOR 13*6.5 polymer glass fibre (Operating temperature shown: 80°C)

Throttle Voltage (V) Current (A) Power (W) RPM Torque (N*m) Thrust (g) Efficiency (g/W)
40% 14.55 6.82 99.29 4580 0.140 768 7.73
50% 14.44 11.56 166.91 5534 0.205 1127 6.75
55% 14.38 14.45 207.71 5976 0.236 1337 6.44
60% 14.30 17.93 256.38 6432 0.282 1557 6.07
65% 14.22 21.68 308.35 6842 0.315 1776 5.76
70% 14.13 26.07 368.38 7256 0.358 2017 5.48
75% 14.03 30.32 425.45 7601 0.395 2227 5.24
80% 13.84 34.72 480.62 7891 0.428 2420 5.03
90% 13.58 44.86 609.38 8491 0.500 2826 4.64
100% 13.37 57.04 762.47 9086 0.581 3268 4.29

What's Included

  • Motor x 1
  • Parts Bag x 1

Applications

  • 48-52 in 3D airplane models

For pre-sale compatibility checks (ESC, propeller selection, battery setup) or after-sale support, contact support@rcdrone.top or visit https://rcdrone.top/.

Details

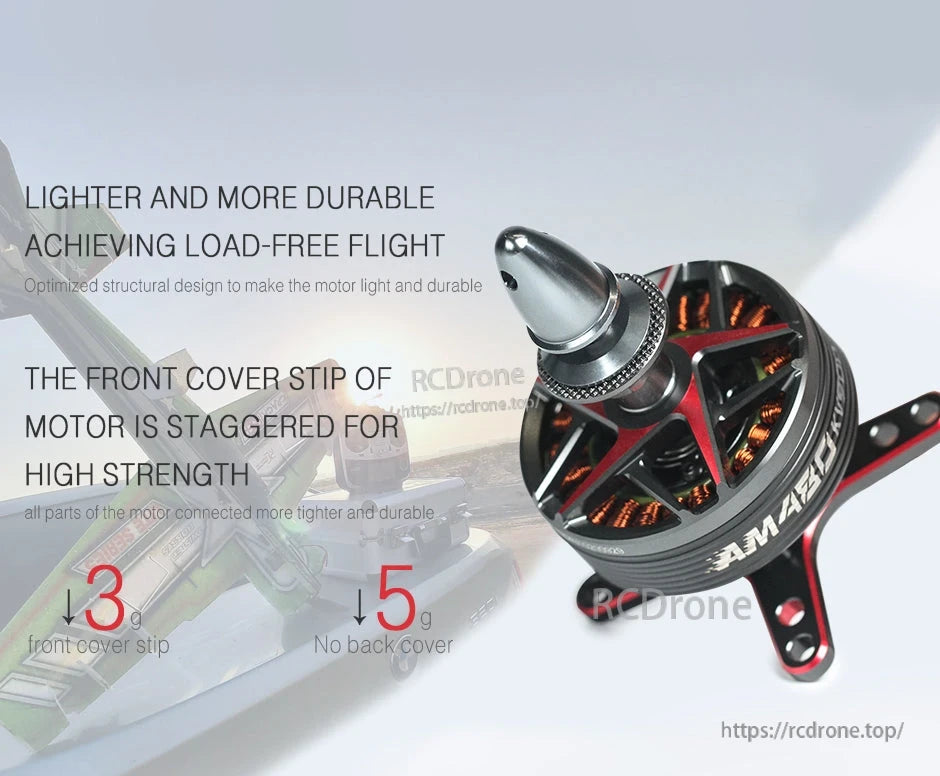

T-Motor AMAX brushless drone motor with red and black open-frame housing and silver prop adapter

The AMAX motor uses an open-frame design with a front cover strip to help keep the build light and rigid.

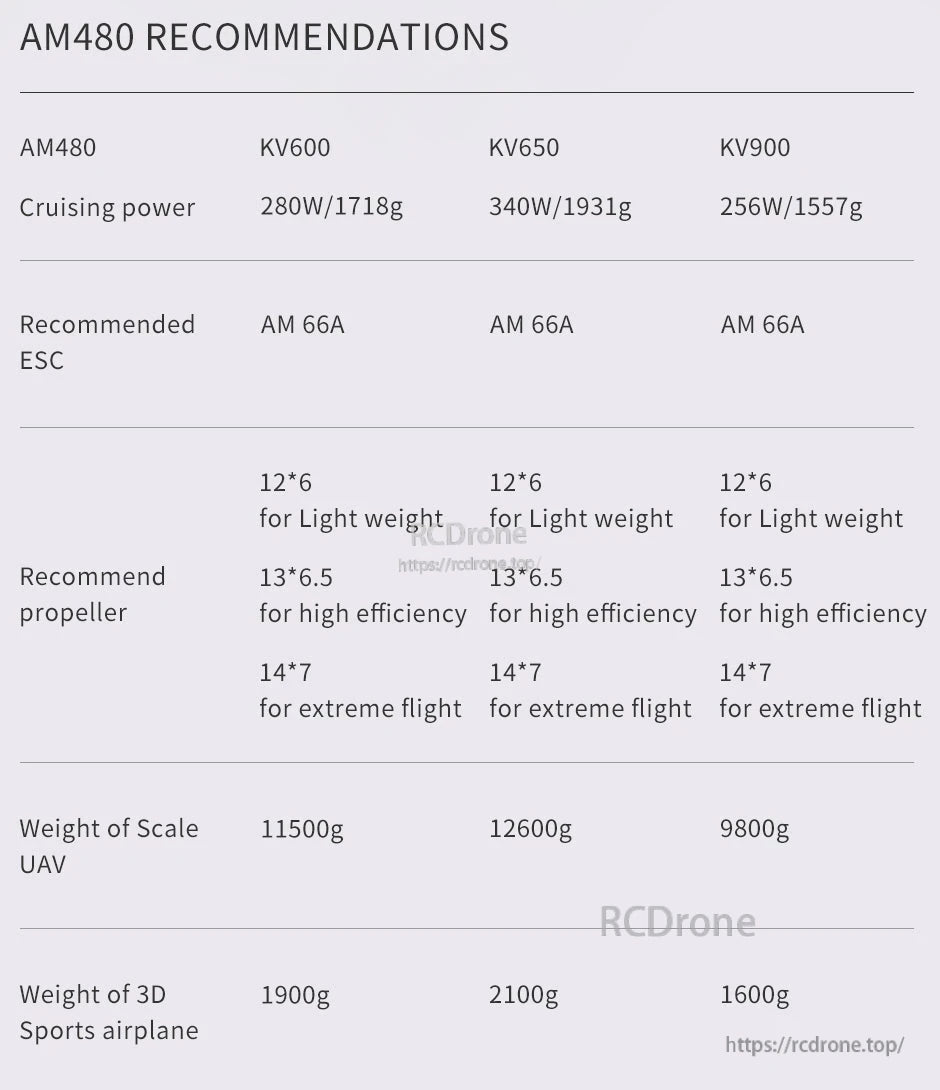

T-Motor AM480 recommendations table with KV600/KV650/KV900, AM 66A ESC, and 12x6–14x7 prop guidance

AM480 motor setup guidance lists KV600/KV650/KV900 cruising power, a recommended AM 66A ESC, and suggested 12x6, 13x6.5, and 14x7 propeller sizes.

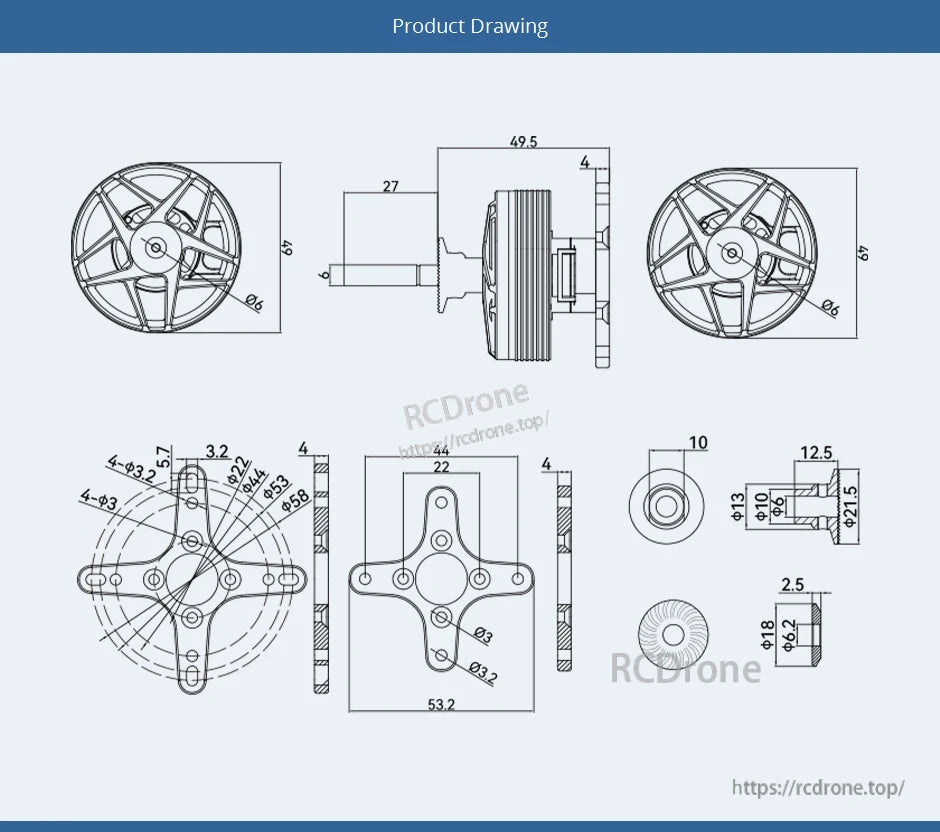

Technical dimension drawing with front and side views, mount hole pattern, and hub measurements for a T-Motor unit

Detailed dimensional views and the mounting hole pattern help confirm fitment for the hub, shaft, and bracket during installation.

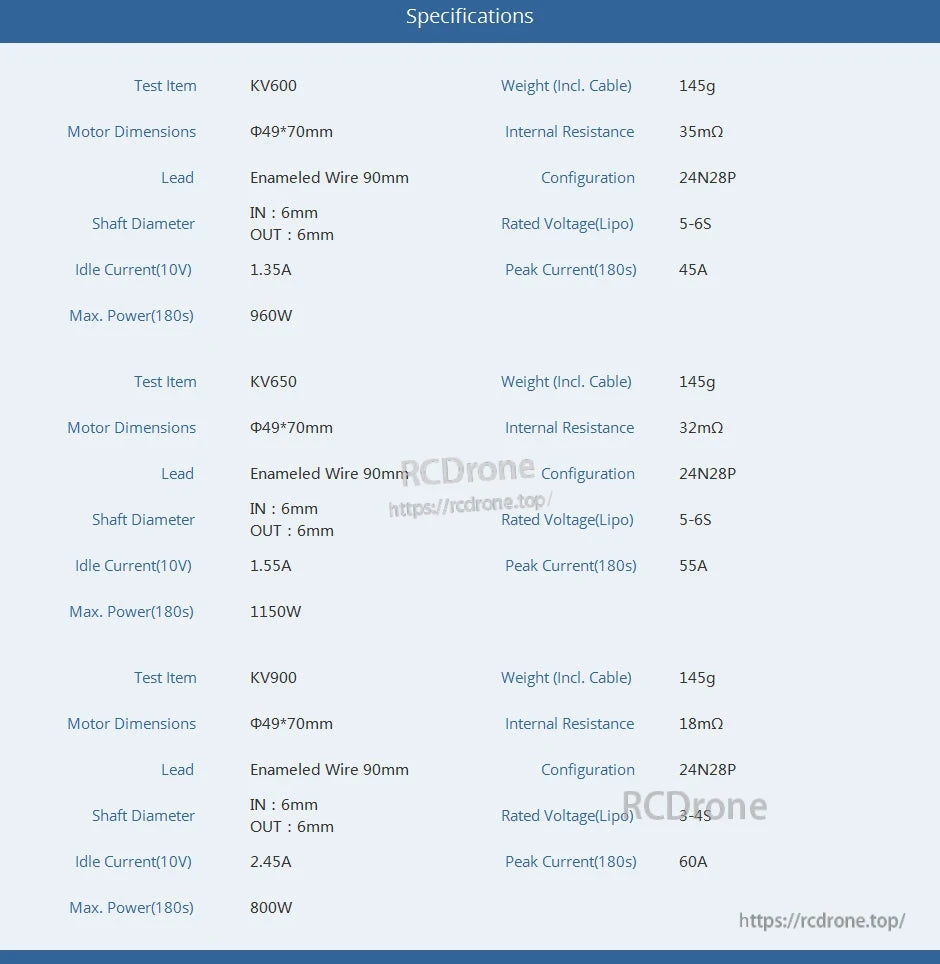

T-Motor motor specifications table showing KV600, KV650 and KV900 ratings, dimensions, weight, voltage and current

T-Motor KV600/KV650/KV900 options list key specs like 49×70mm size, 145g weight, 3–6S voltage range, and peak current up to 60A.

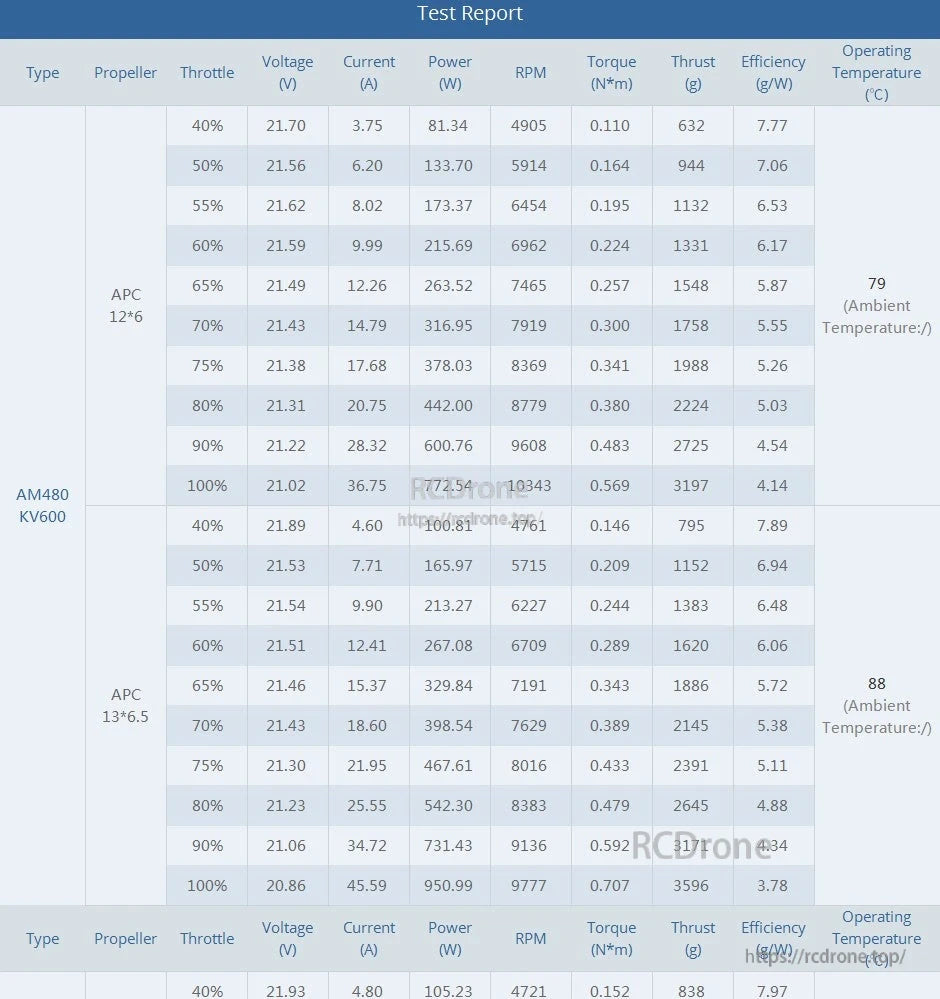

Test report table for T-Motor AM480 KV600 showing throttle vs voltage, current, RPM, thrust and efficiency with APC props

The T-Motor AM480 KV600 test report lists throttle, RPM, thrust, efficiency, and current for APC 12×6 and 13×6.5 propellers.

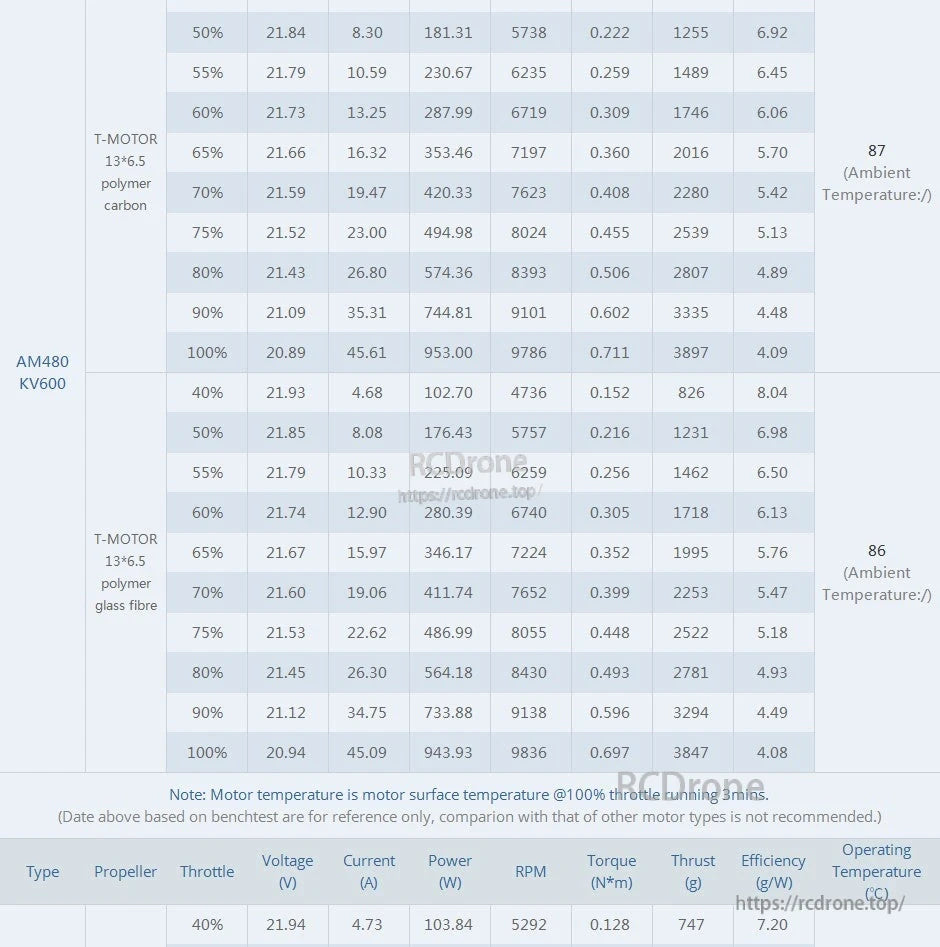

Bench test data table for T-Motor AM480 KV600 with 13x6.5 props, listing throttle, RPM, thrust, efficiency and temperature.

T-Motor AM480 KV600 bench-test results list throttle, voltage, current, power, RPM, torque, thrust, efficiency, and operating temperature with 13x6.5 props.

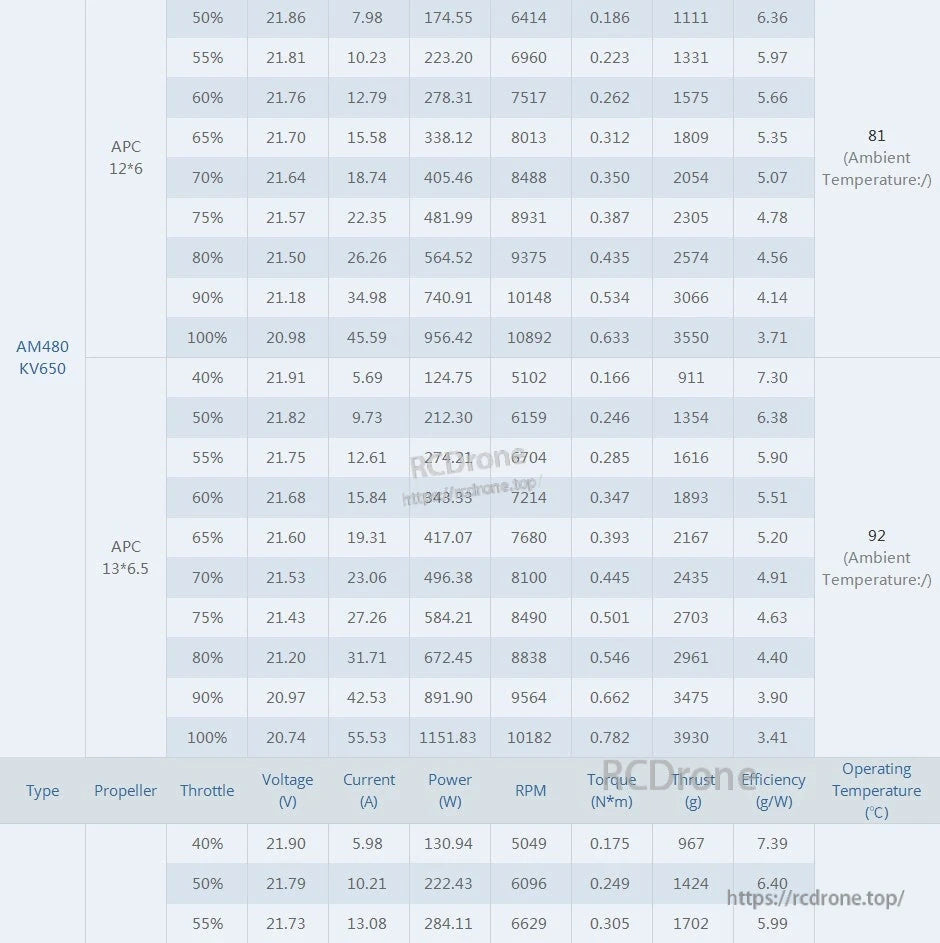

T-Motor AM480 KV650 test data table showing throttle, voltage, current, RPM, torque, thrust, efficiency and temp

T-Motor AM480 KV650 performance data is listed for APC 12×6 and 13×6.5 propellers, including voltage, current, RPM, thrust, and efficiency.

Bench test data table for T-Motor AM480 KV650 with 13×6.5 props, showing RPM, thrust, efficiency, and temps.

T-Motor AM480 KV650 bench test data lists voltage, current, power, RPM, torque, thrust, efficiency, and operating temperature across throttle settings with 13×6.5 propellers.

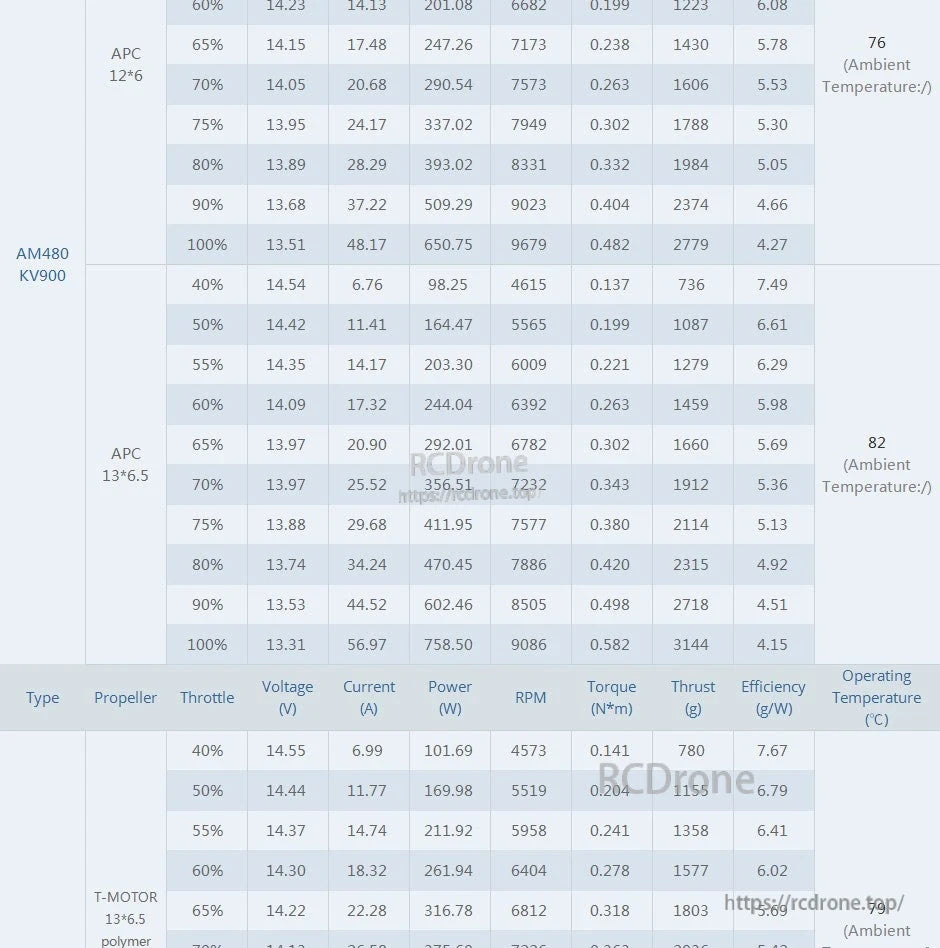

T-Motor AM480 KV900 motor test data table listing voltage, current, RPM, torque, thrust and efficiency by throttle

The AM480 KV900 performance table lists voltage, current, RPM, torque, thrust, and efficiency results at different throttle settings with various propellers.

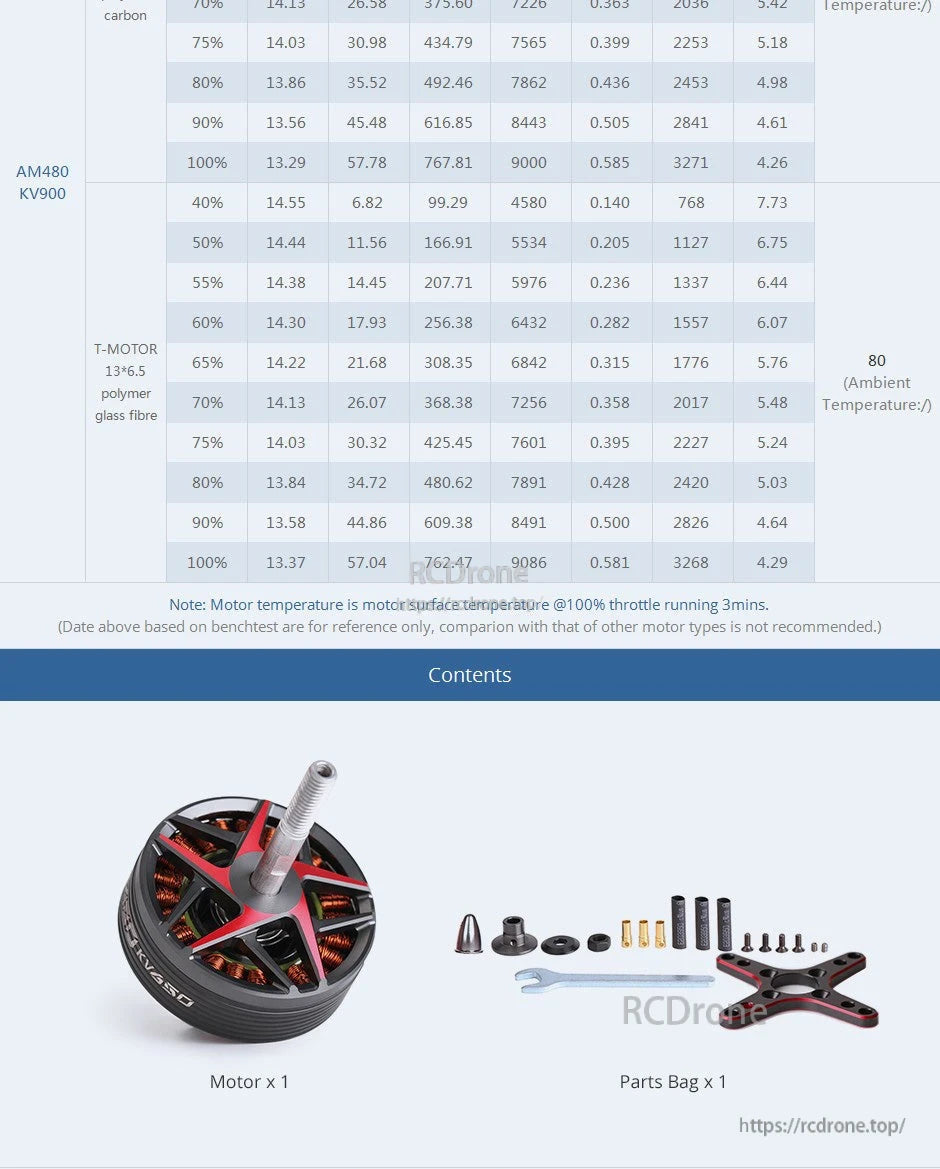

T-Motor AM480 KV900 brushless motor with threaded shaft, plus mounting X plate, spacers, screws and wrench

The T-Motor AM480 KV900 motor comes with a parts bag including an X-mount, spacers, screws, and a small wrench for installation.
