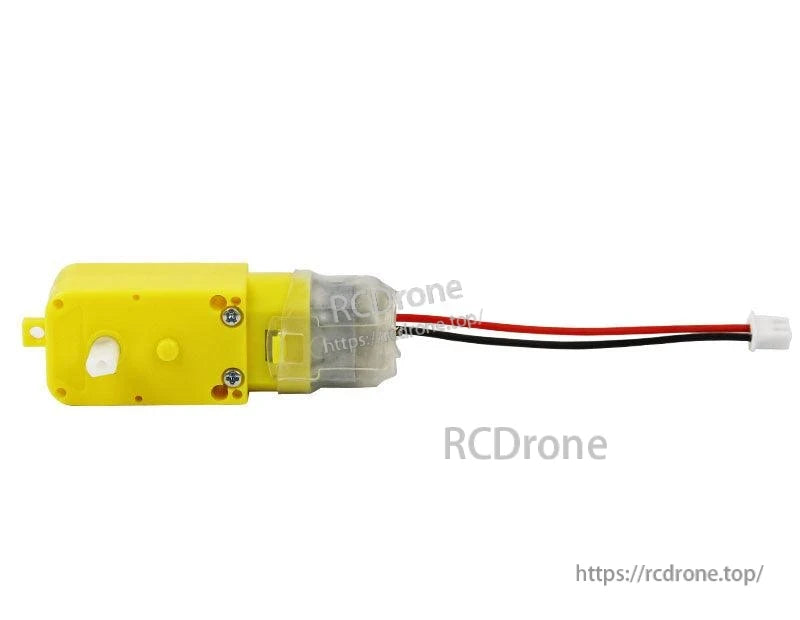

  • TT motor profile view showing screw holes, gearbox housing, and XH2.54 2-pin connector on wire lead
1 7

Yahboom TT DC Gear Reduction Motor 6V 245RPM 1:48 Carbon Brush, XH2.54 Plug for Smart Cars

Yahboom TT DC Gear Reduction Motor 6V 245RPM 1:48 Carbon Brush, XH2.54 Plug for Smart Cars

Yahboom

$9.08 USD
$9.08 USD
In offerta Esaurito
Imposte incluse. Spese di spedizione calcolate al check-out.
Plug
Support
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
Visualizza dettagli completi

Overview

The Yahboom TT DC gear reduction motor is a carbon-brush DC motor designed for smart car and robotics drive applications. It uses high-quality carbon brushes, a high-strength magnetic core, and a shielding ring; compared with ordinary motors, carbon brush motors are described as more stable for precise tracking and PWM speed regulation. Plug options include a welded XH2.54 (2-pin) terminal version or a version without plug for DIY wiring.

Key Features

  • High-strength magnetic carbon brush; anti-interference design.
  • High-quality copper wire with shielding ring; carbon brush material.
  • Entire enclosure and reinforced connection; connecting wire external reinforcement.
  • XH2.54 terminal head welded (with plug option); wire harness wrapped and reinforced as a whole.
  • With plug: wire is outsourced to strengthen the connection (reduces risk of solder joint falling off).
  • Without plug: no welding plug, for DIY creations by users.
  • Stated advantages of carbon brush: longer service life (stated as 5–8 times that of ordinary brushless motor) and supports frequent speed changes for smoother operation.

Specifications

Electrical & Performance

Model TT gear reduction motor
Brush material Brush carbon brush
Reduction ratio 1:48
Rated voltage 6V (Recommended: 3–6V)
Idle current 200MA
Locked rotor current 1.5A
Torque 0.8N.m
Speed before deceleration 12000±10%rpm
Speed after deceleration 245±10%rpm

Wiring / Connector

Connector (with plug version) XH2.54 2Pin plug; fits 2.54 terminal interface
Connect line length About 9.5cm
Wire polarity Red line = Motor line +; Black line = Motor line -
Plug options With plug / Without plug

Dimensions (Size: mm)

TT motor drawing values 70.30, 48.05, 17.25, 22.30, 36.40, 18.70, 11.50, 11, 9, 5, 17.50, 3.75, Φ7.50, Φ3, Φ1.80

Bracket Dimensions

Basic bracket drawing values 15, 4.90, 22.30, 17.50, Φ3.50, 8, M3*2
Stereo bracket Material: Steel; Weight: 4.2g; Thickness: 2mm; Surface treatment: Baking paint
Stereo bracket drawing values 20, 10, 12, Φ5, Φ3, 27.50, 17.50, 5

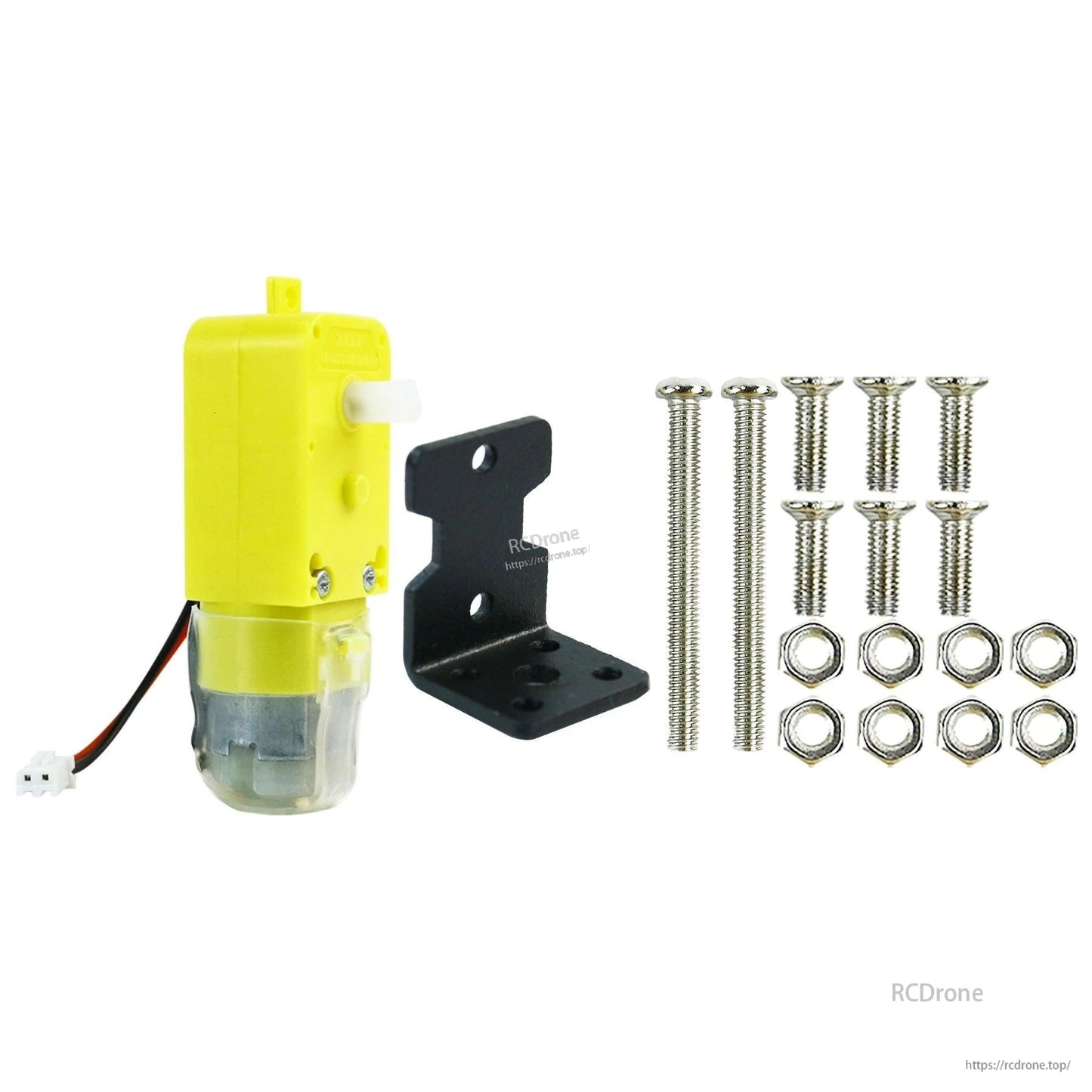

What's Included

  • TT motor (with plug or without plug, depending on selection)

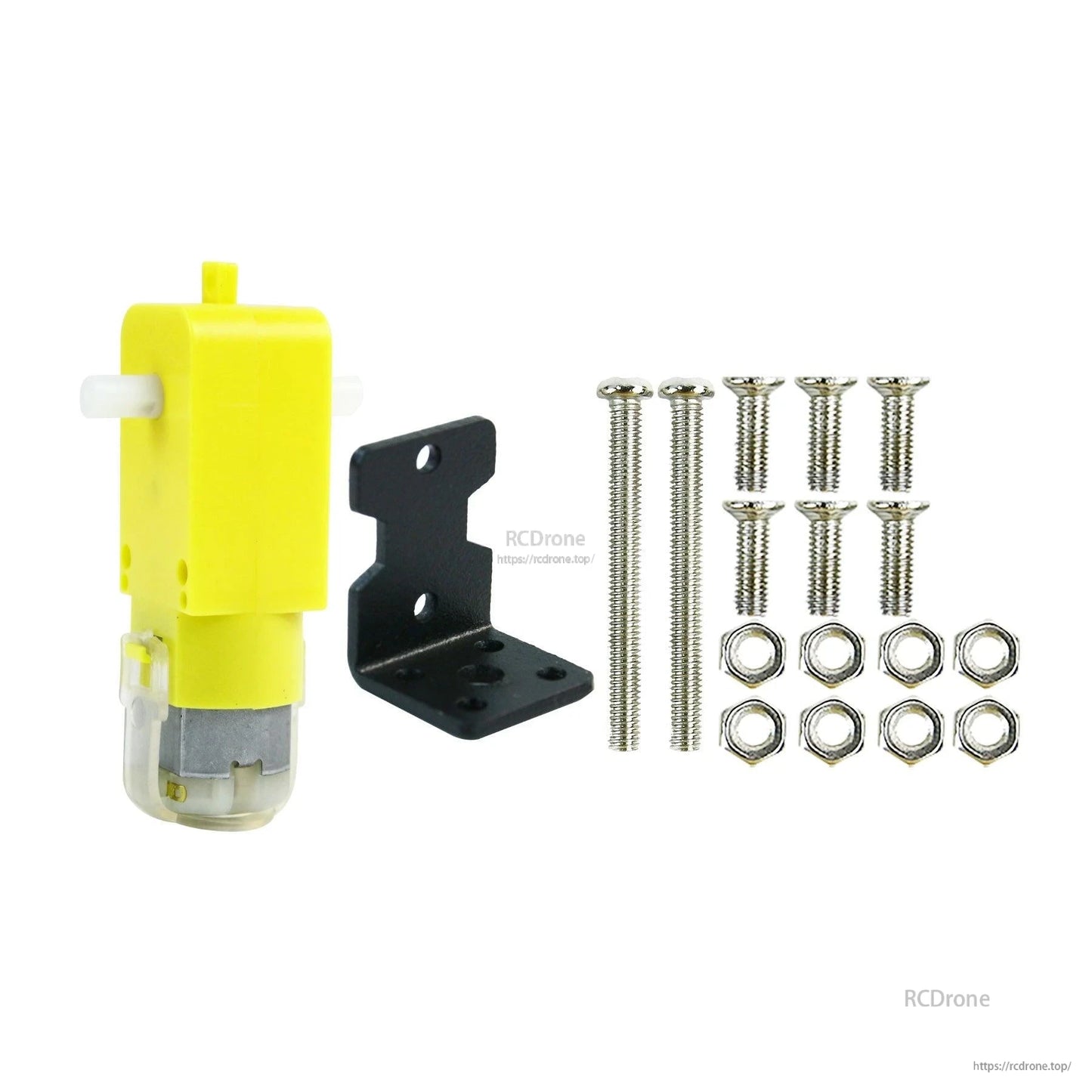

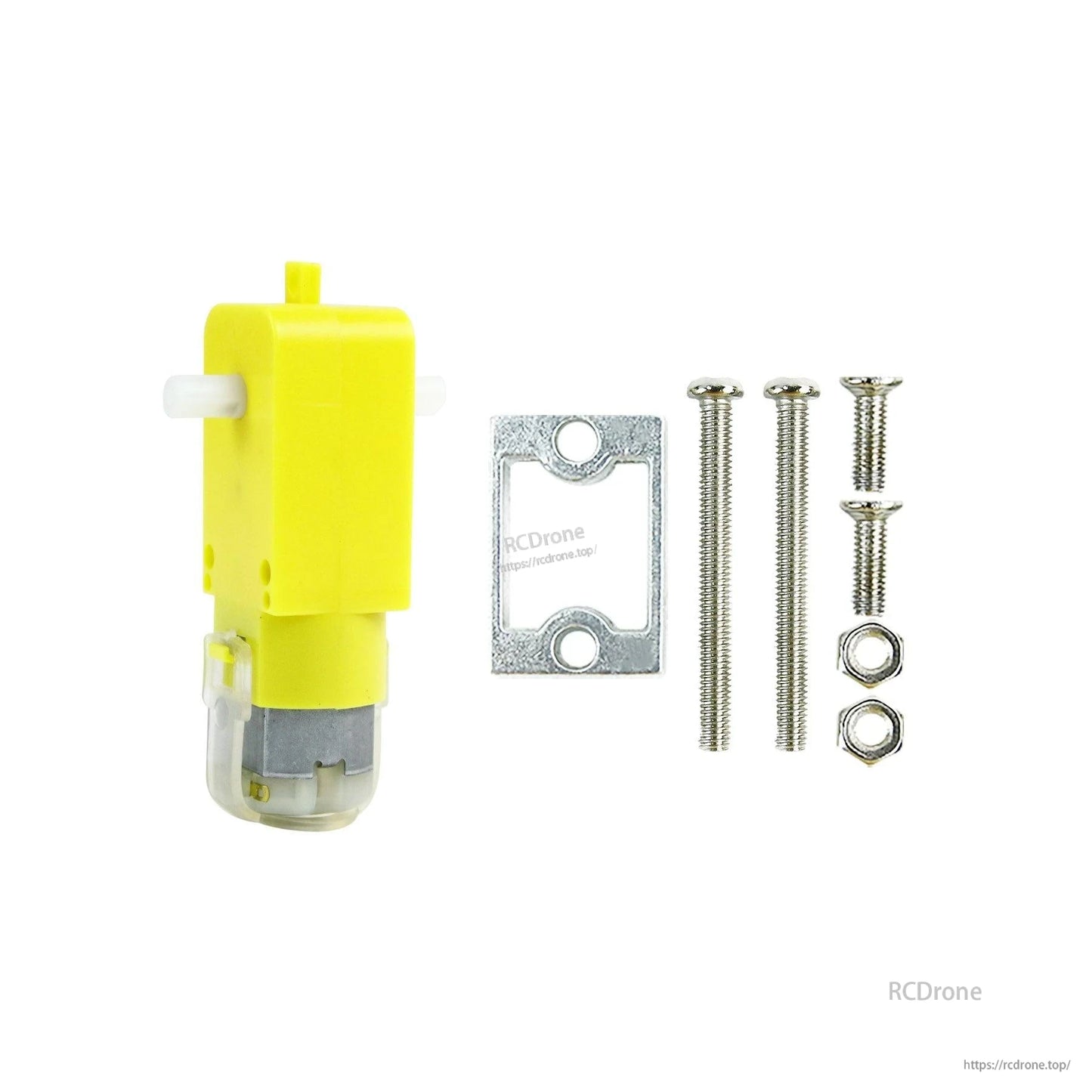

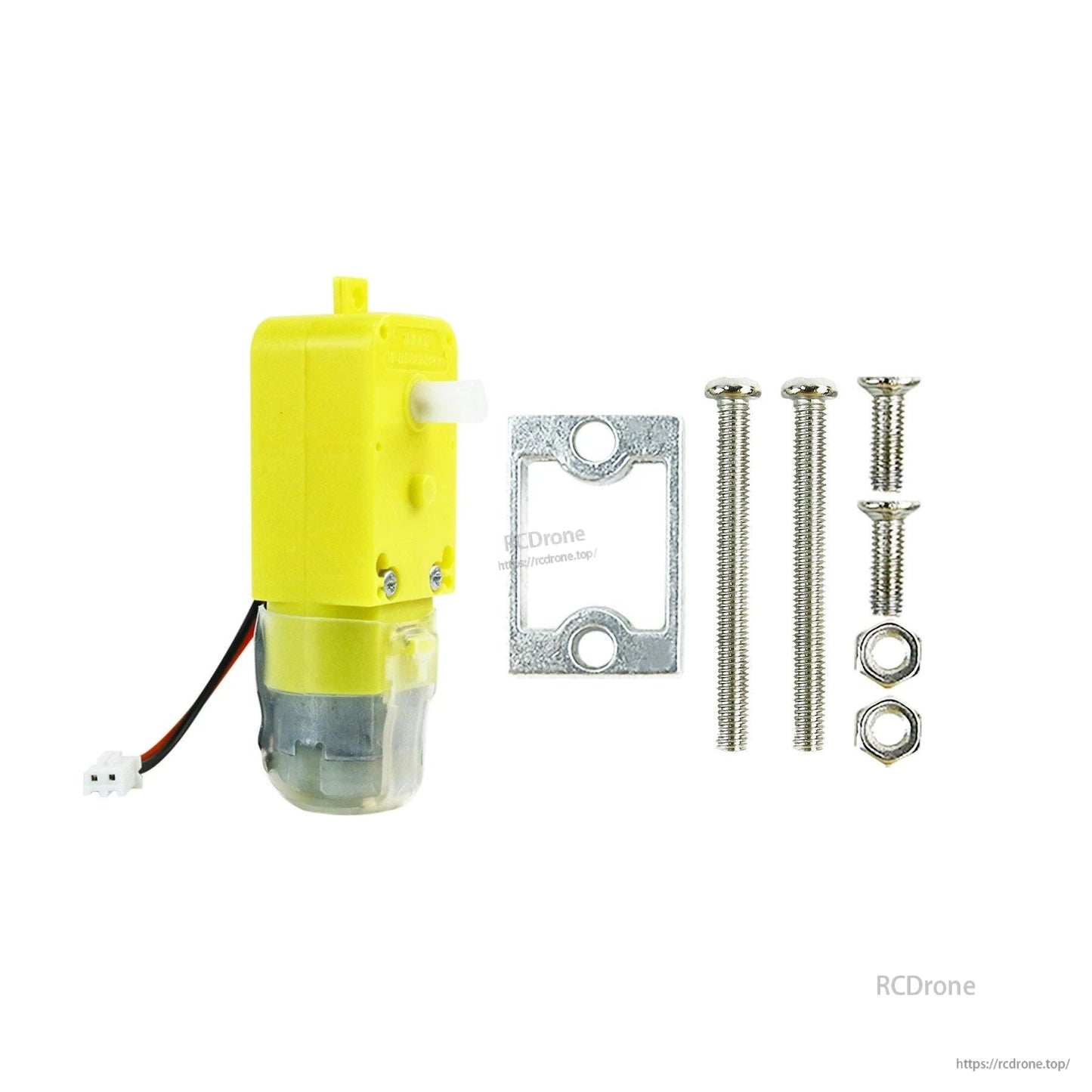

  • Optional basic bracket or stereo bracket (depending on selection)
  • Mounting hardware (screws/nuts), depending on selection

For help choosing the correct plug/bracket option for a smart car chassis or motor driver, contact support@rcdrone.top or visit https://rcdrone.top/.

Applications

  • Smart car / robot car drive (TT motor platforms)
  • DIY robotics projects requiring 3–6V geared DC motors and PWM speed regulation
  • Educational STEM builds (paired with suitable motor driver modules)

Details

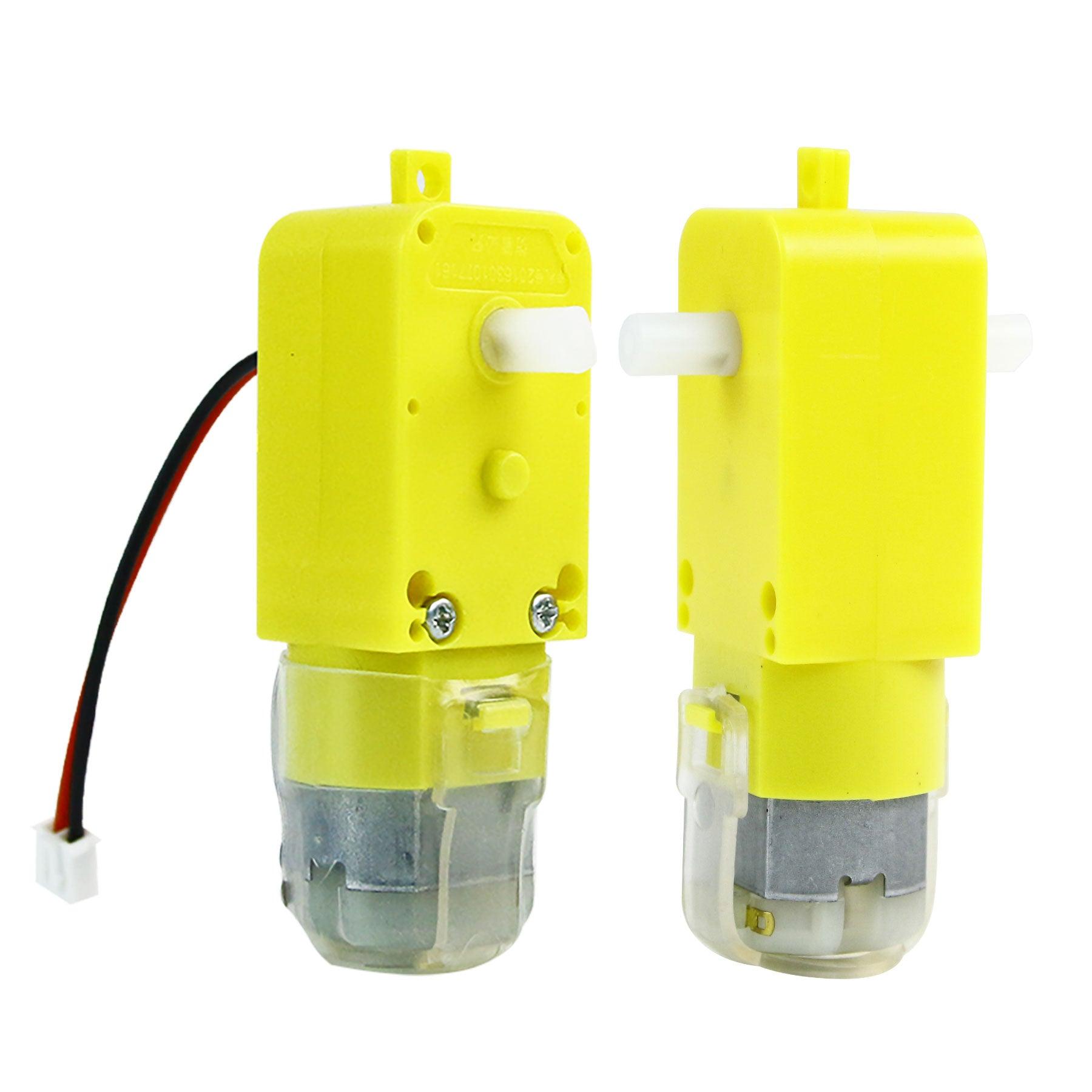

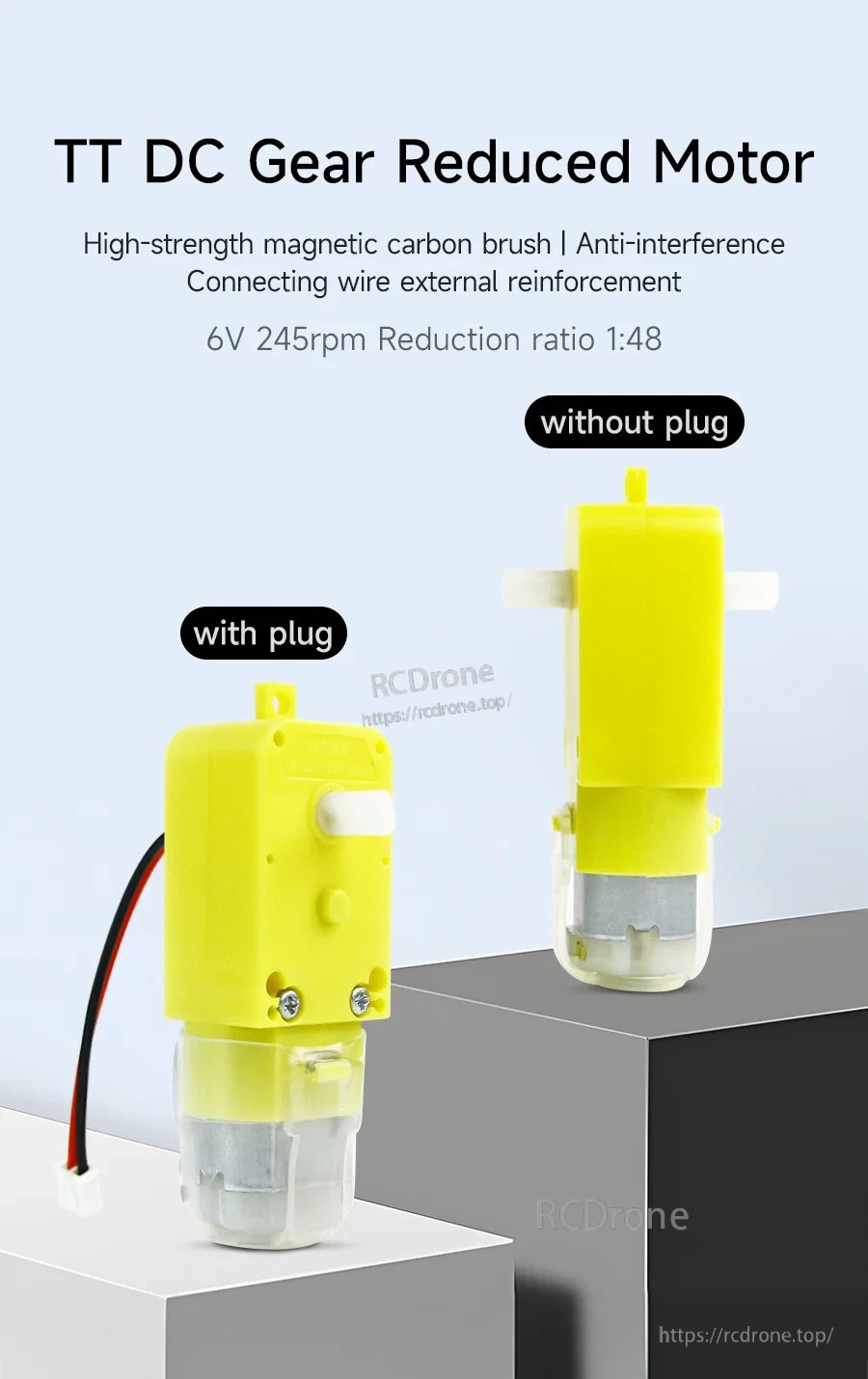

Yahboom TT DC gear reduction motor 6V 245RPM 1:48, comparison of XH2.54 plug vs no-plug versions

Choose the pre-wired XH2.54 2‑pin plug for quick installs, or the no‑plug version for custom wiring in DIY builds.

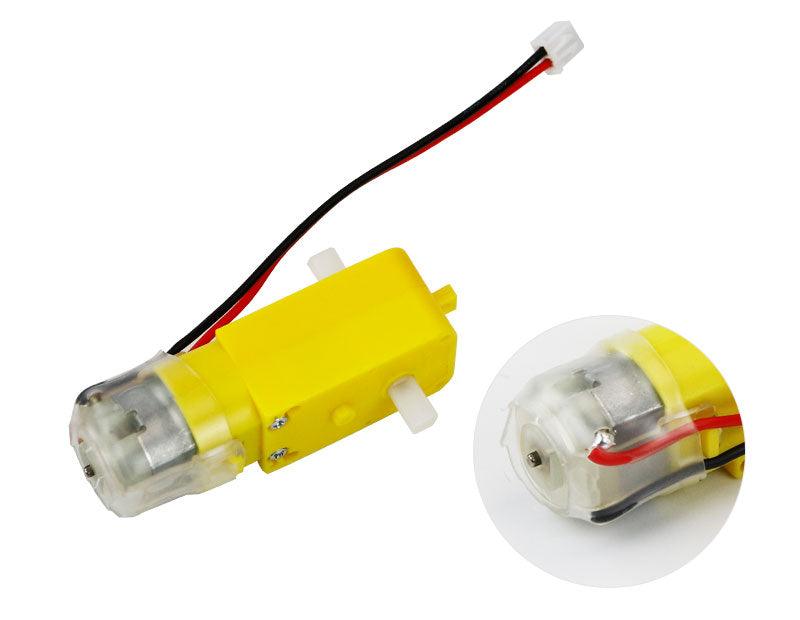

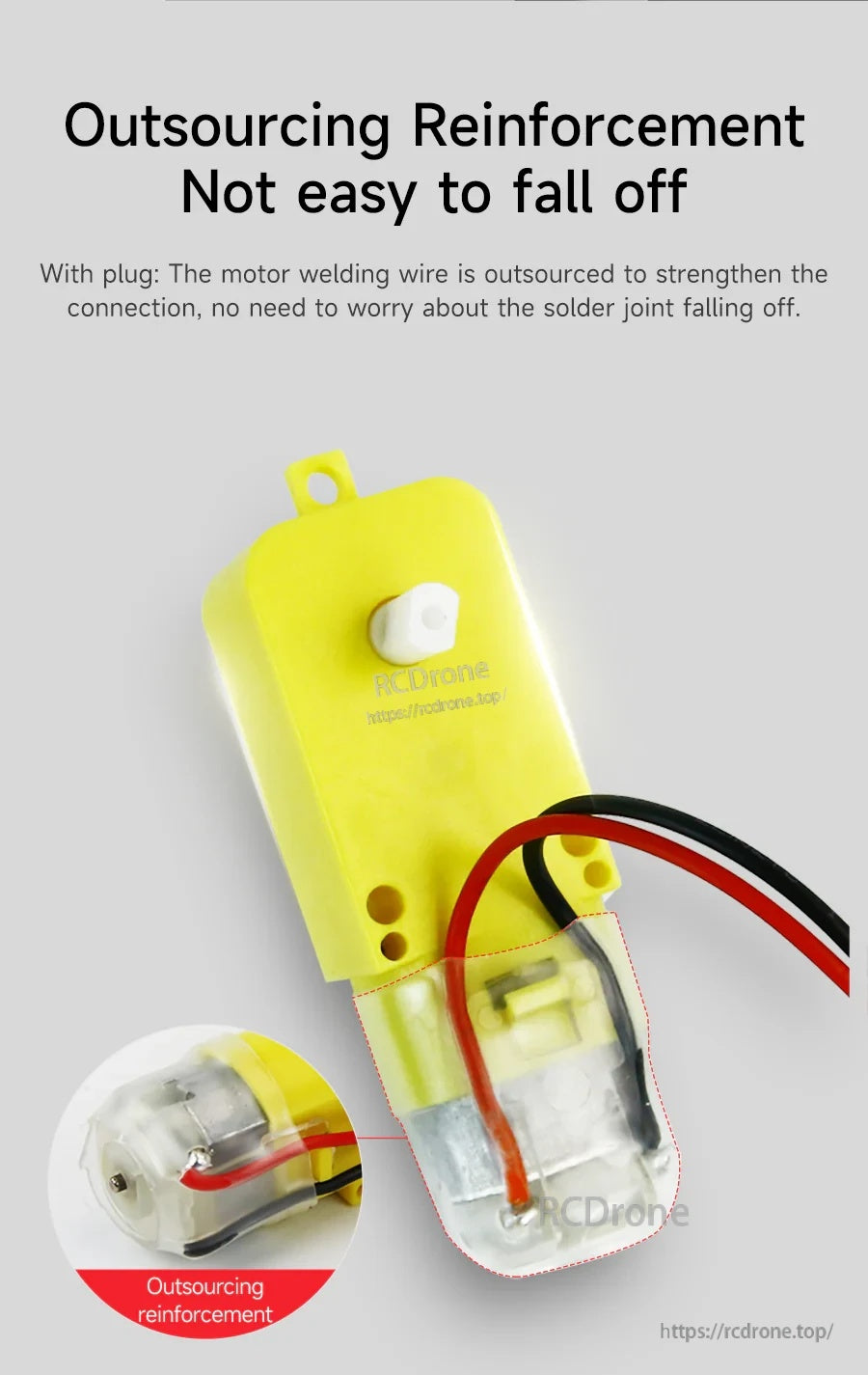

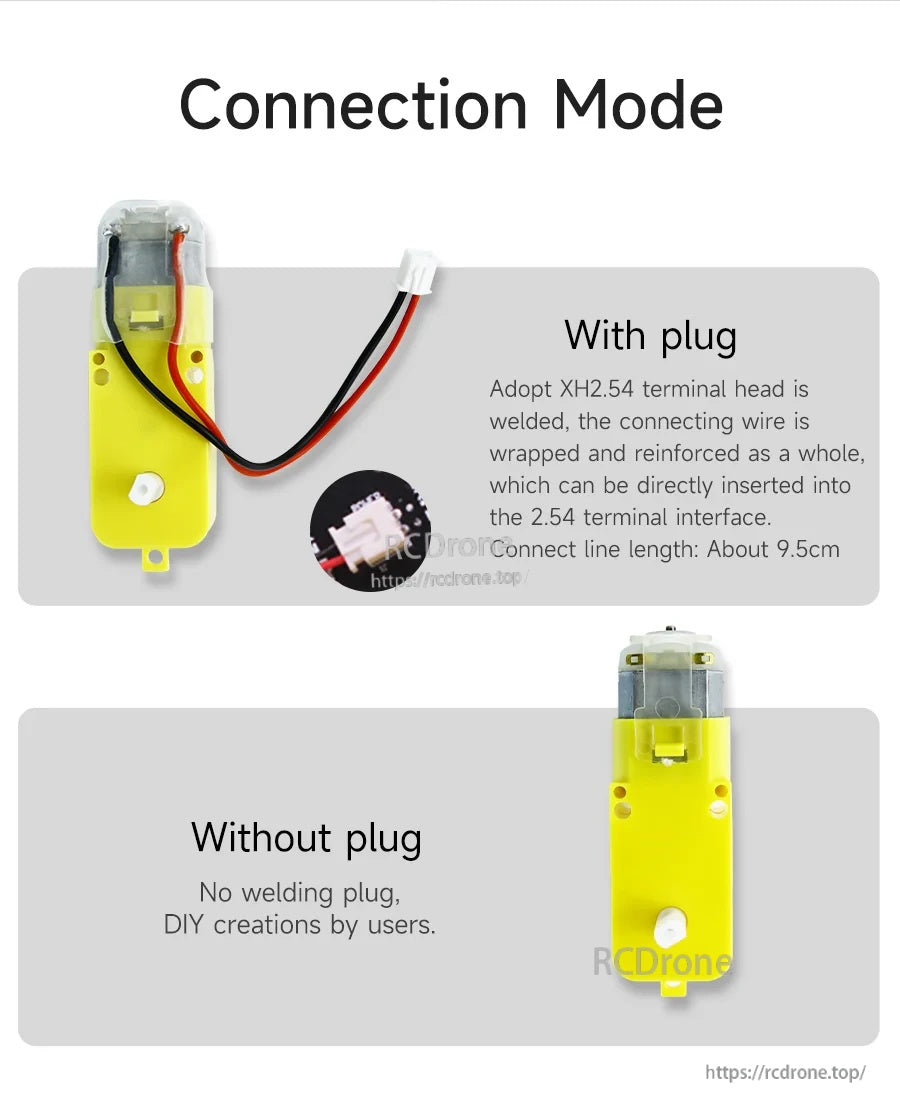

Close-up of TT DC gear motor lead with reinforced wire wrap to reduce stress on solder jointsConnection options for TT motor: welded XH2.54 2-pin plug with ~9.5 cm lead or no-plug DIY wiring

The plug version uses a welded XH2.54 connector and a wrapped harness for a firmer, more reliable connection.

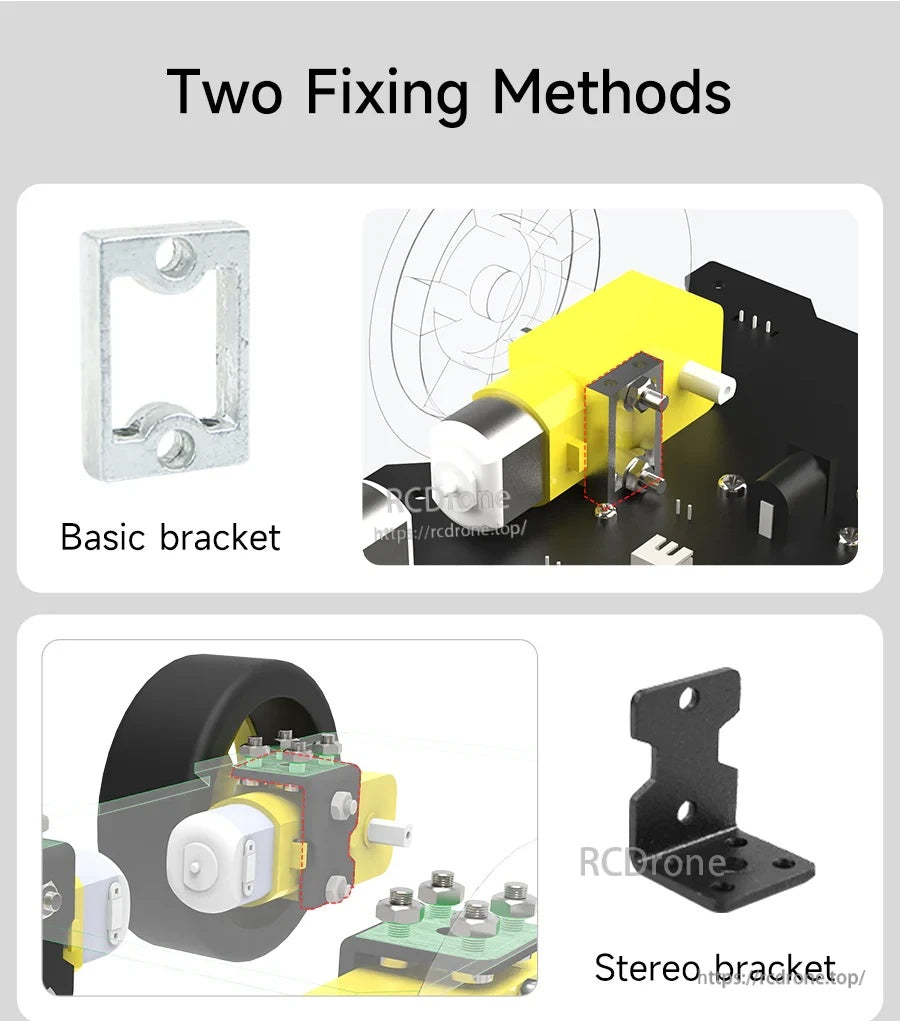

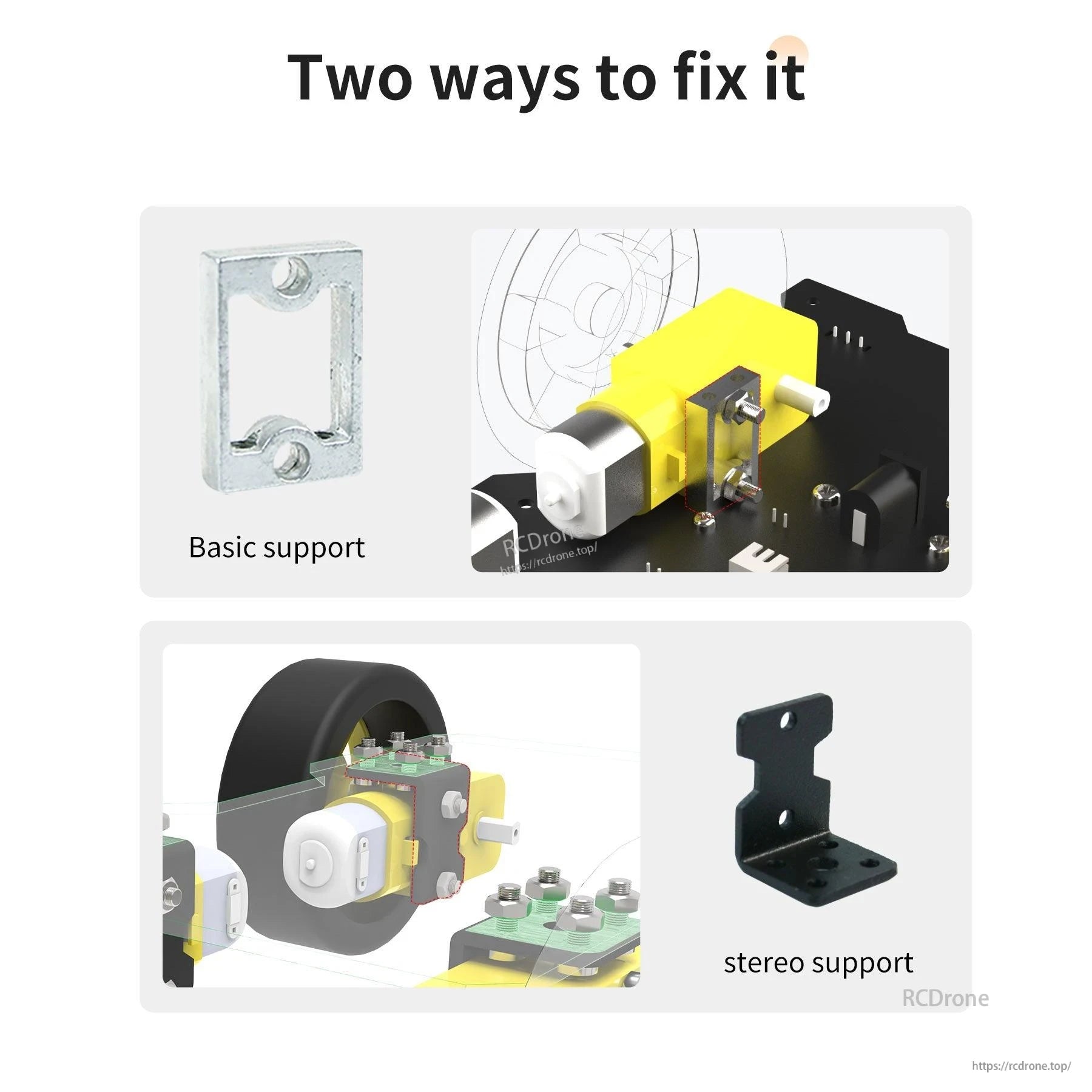

Two TT motor mounting choices: basic metal bracket and L-shaped stereo bracket for chassis installs

Two bracket styles support different chassis layouts, from simple side mounting to right-angle installations.

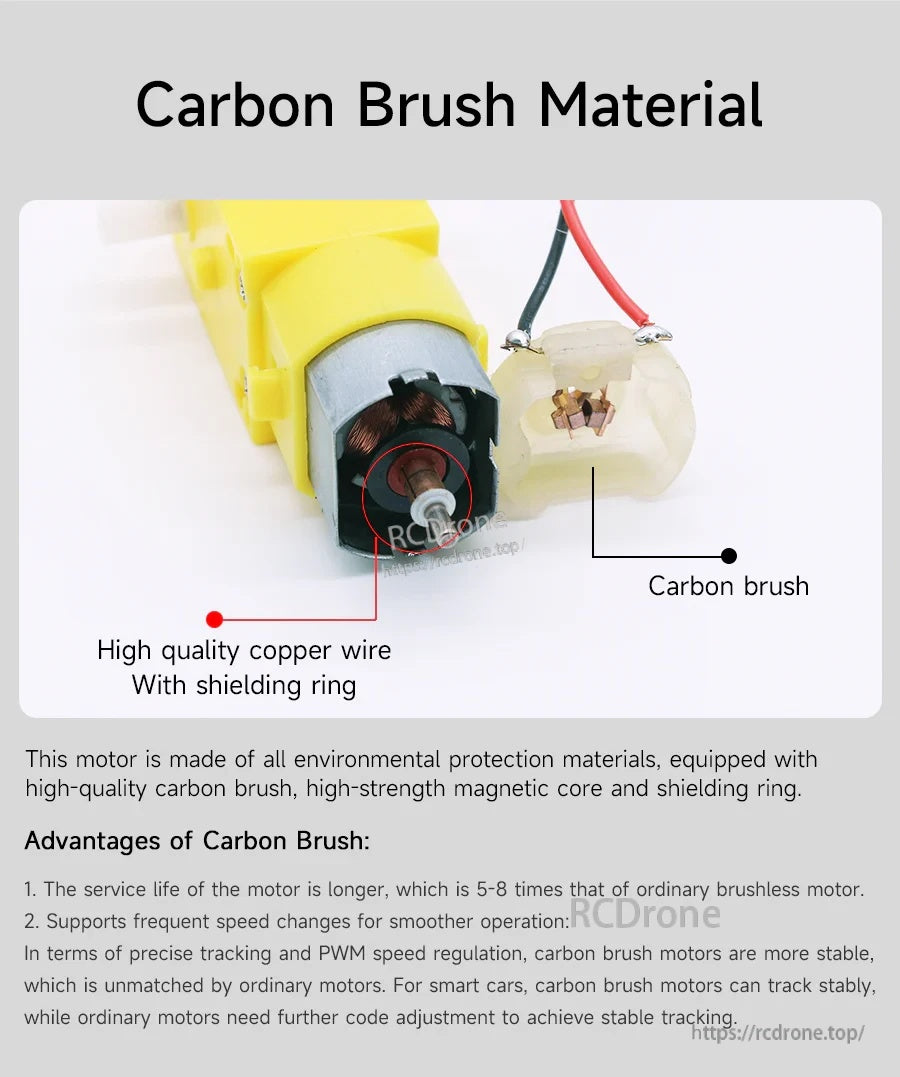

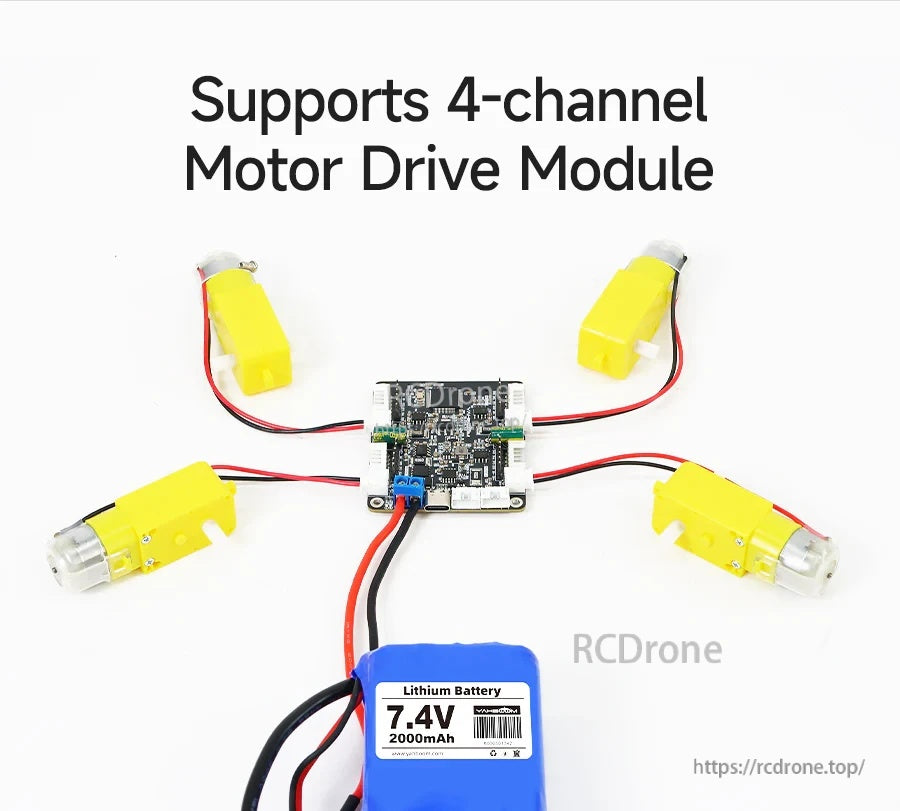

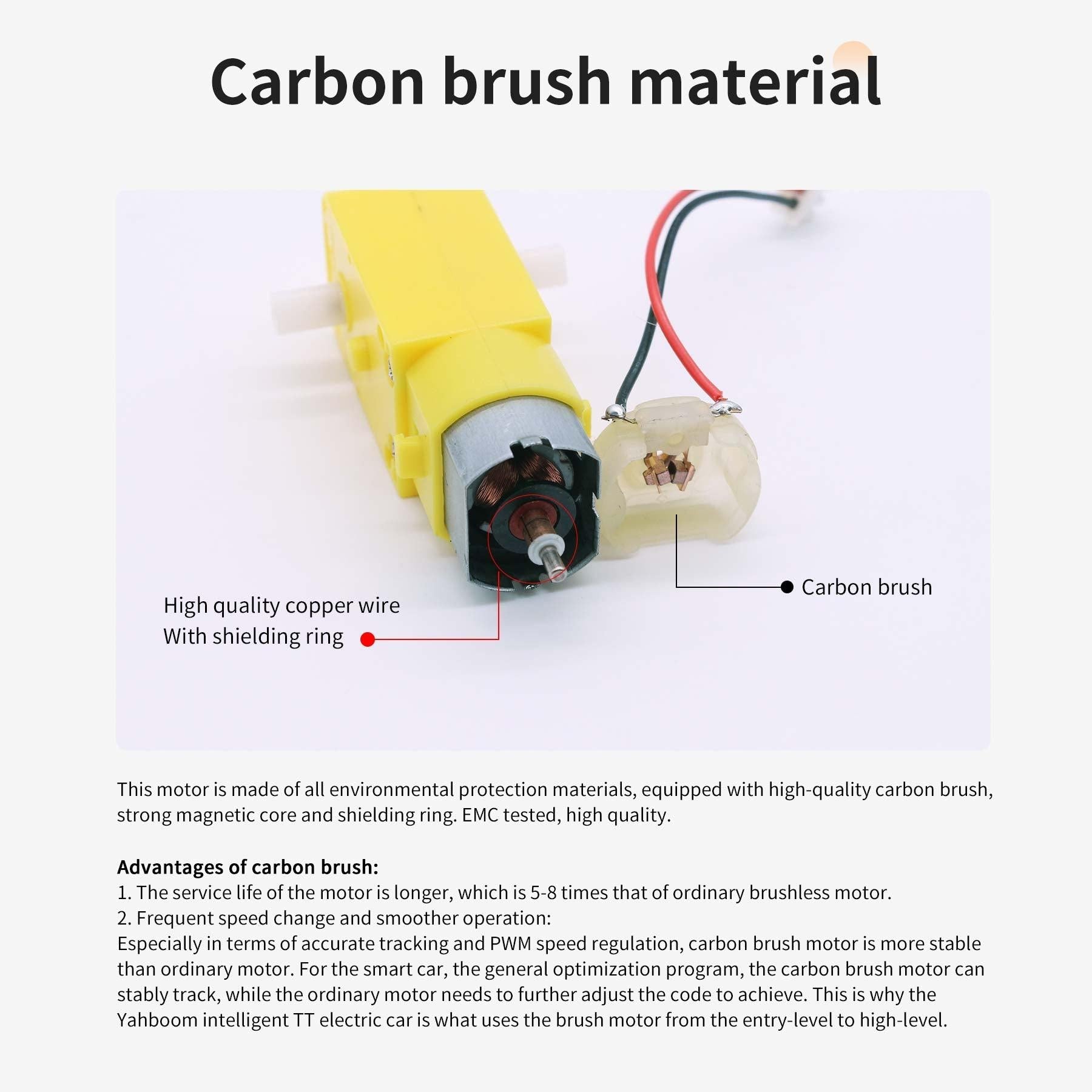

Optional 65mm rubber wheels compatible with TT motors (accessory banner)Optional 60mm mecanum wheel set for TT motor projects (accessory banner)Four TT motors connected to a 4-channel motor drive module with 7.4V battery (application example)Banner for optional 4-channel motor drive module (accessory prompt)Carbon brush TT motor internal parts highlighting copper windings, shielding ring, and carbon brushes

Carbon-brush construction with copper windings and a shielding ring helps maintain stable operation under PWM control.

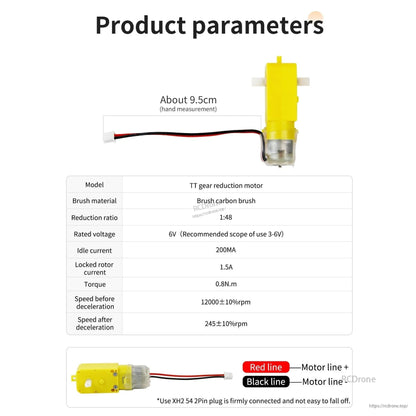

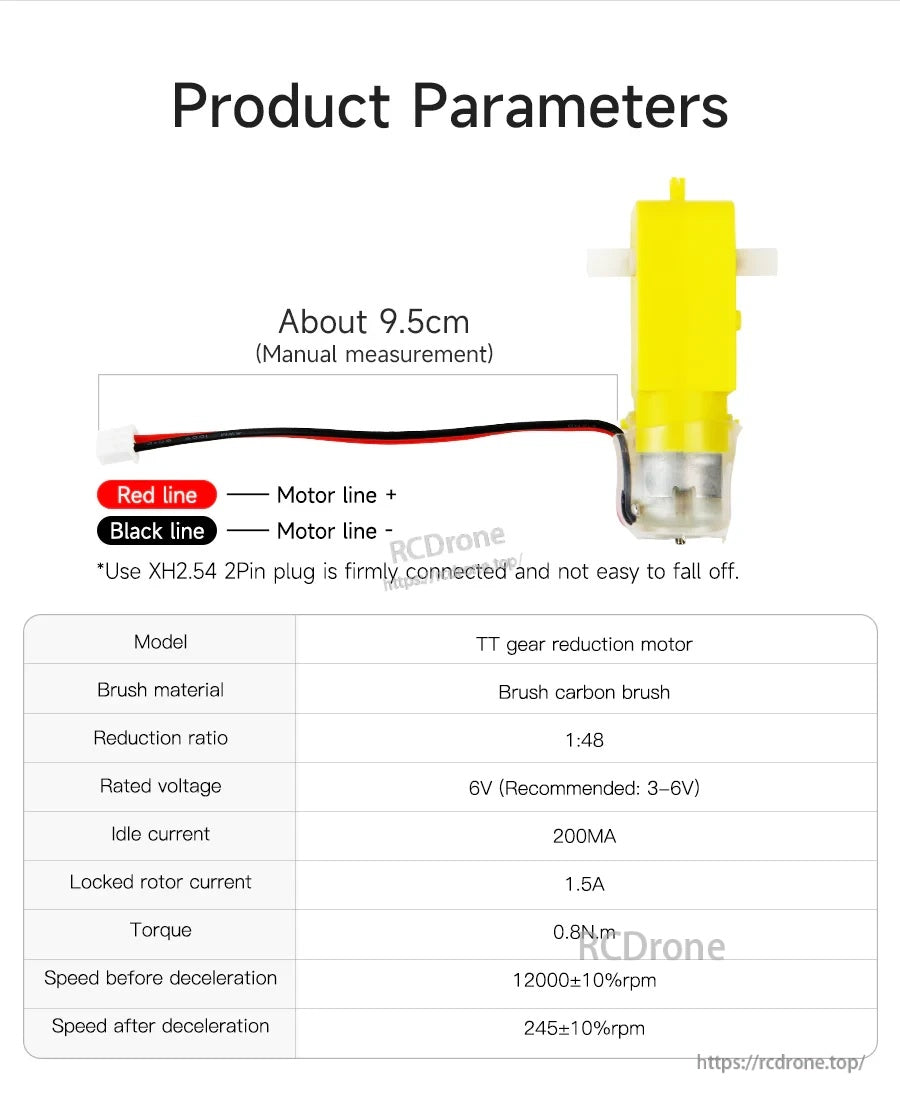

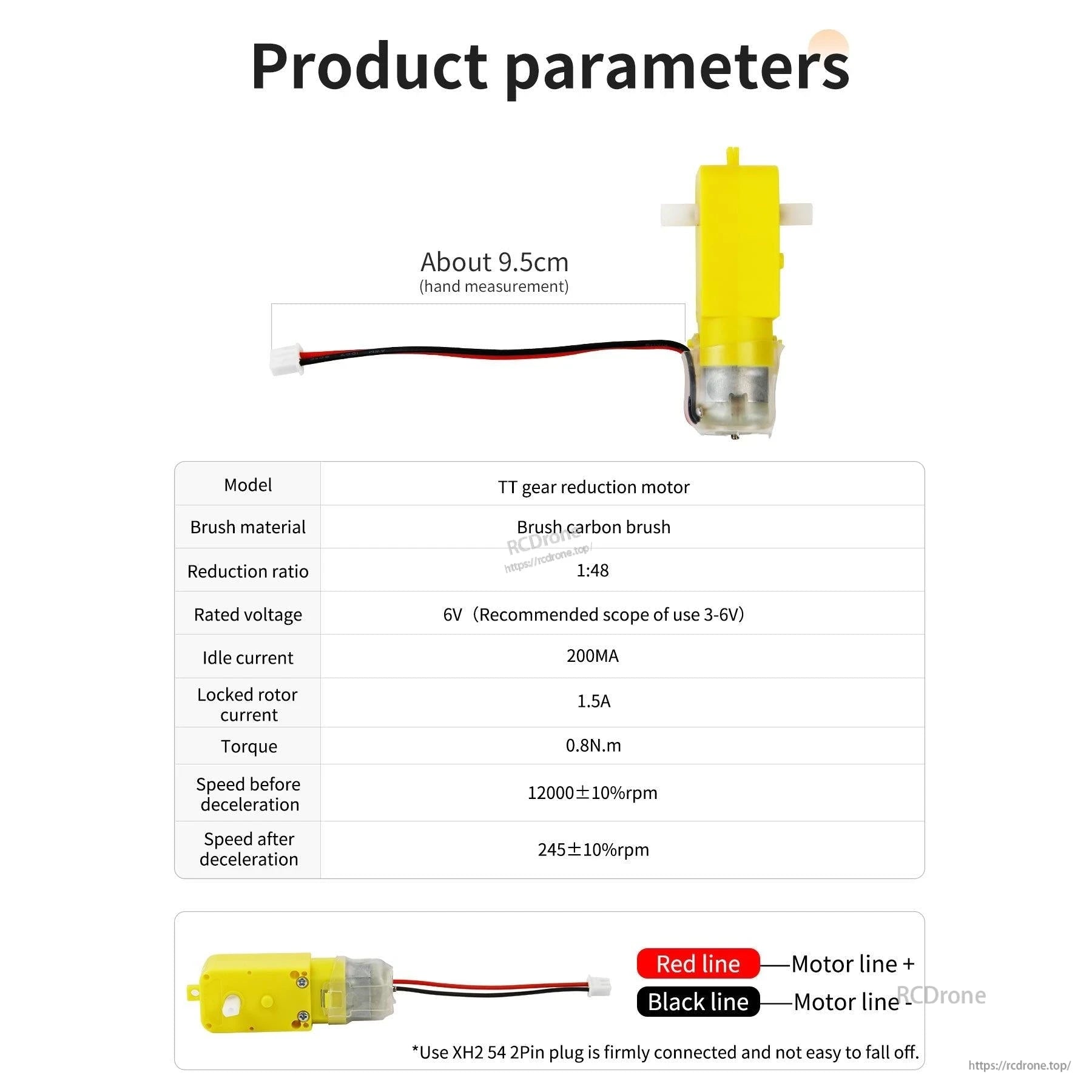

TT gear motor product parameters: 6V rated, 1:48 reduction, 245RPM output, red/black polarity and 9.5cm lead

Key specs at a glance: 6V rated (3–6V recommended), 1:48 reduction, and 245RPM output, with clear +/− polarity.

TT DC gear motor dimension drawing with overall size and shaft measurements in millimeters

Use the dimension drawing to confirm fit on smart car chassis plates, motor mounts, and wheel hubs before ordering.

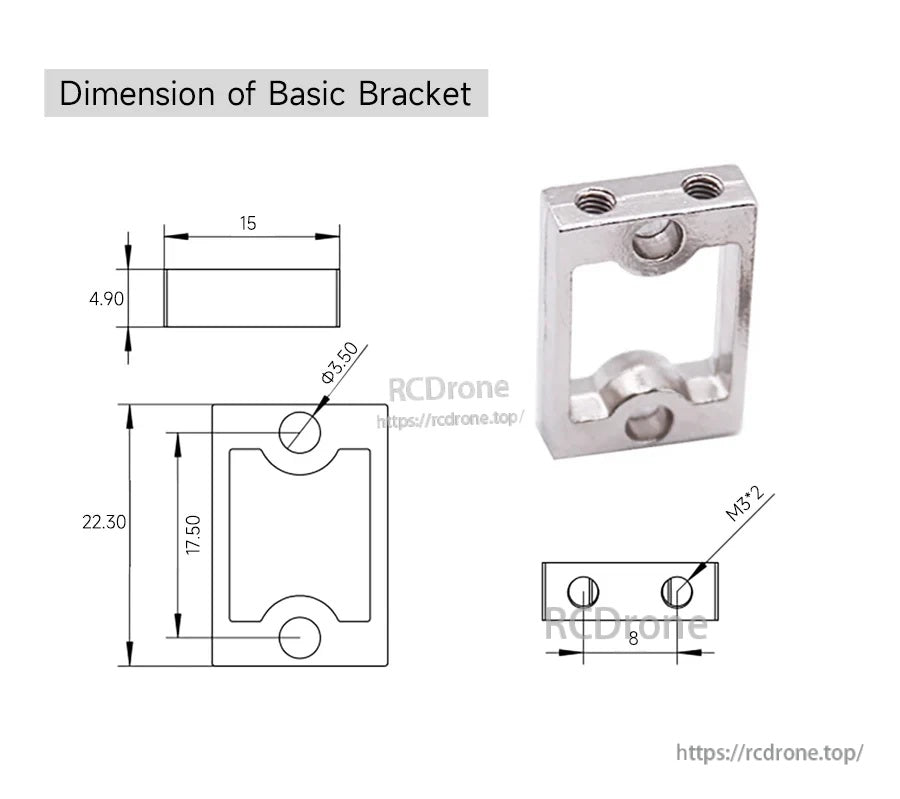

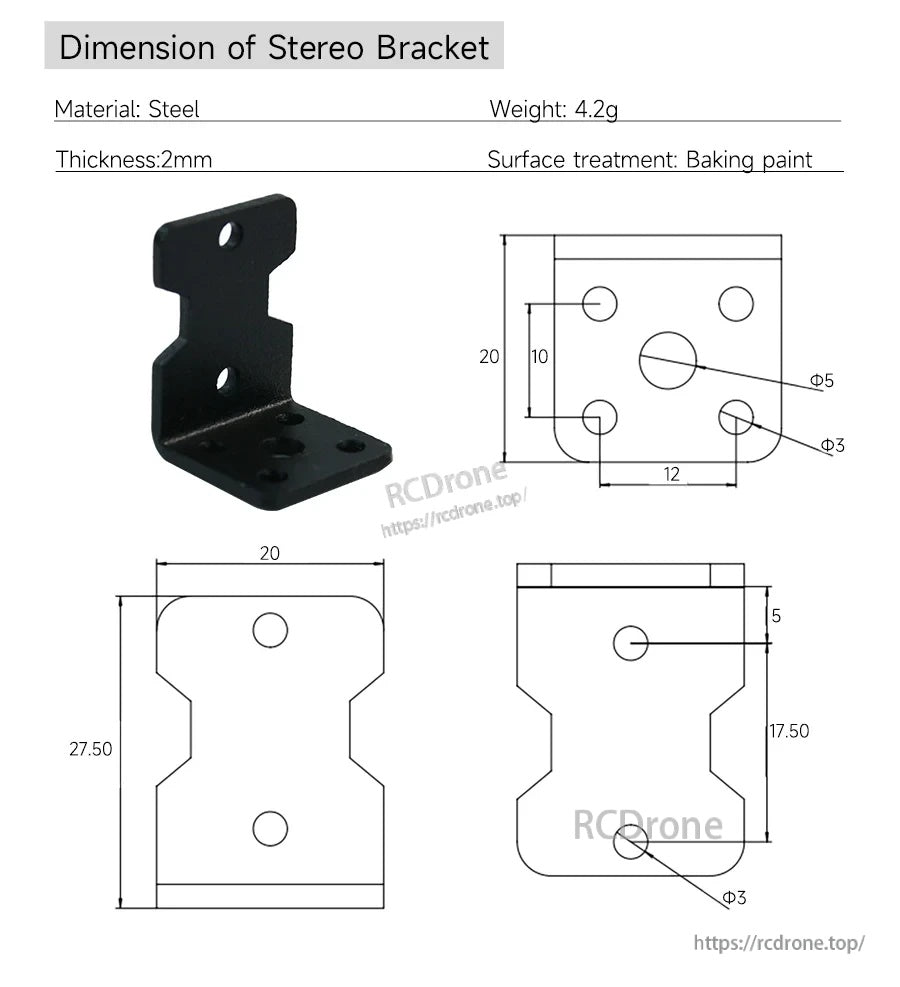

Basic bracket dimension drawing for TT motor mount with M3 screw spacing in millimetersStereo (L-shaped) bracket dimension drawing with hole sizes and thickness for TT motor mountingPacking list for TT motor options: with/without XH2.54 plug, plus basic or stereo bracket and hardware

Multiple bundles are available, including motor-only or sets with brackets and mounting screws/nuts.

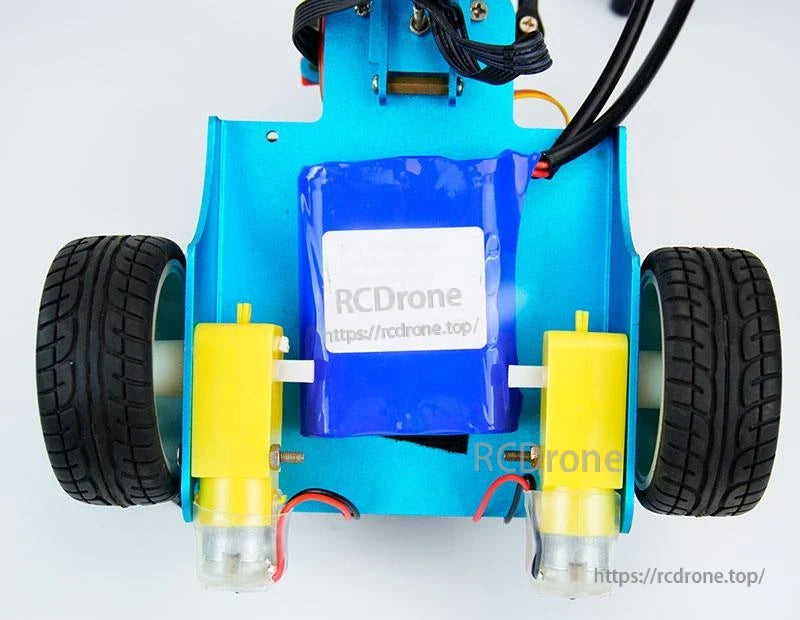

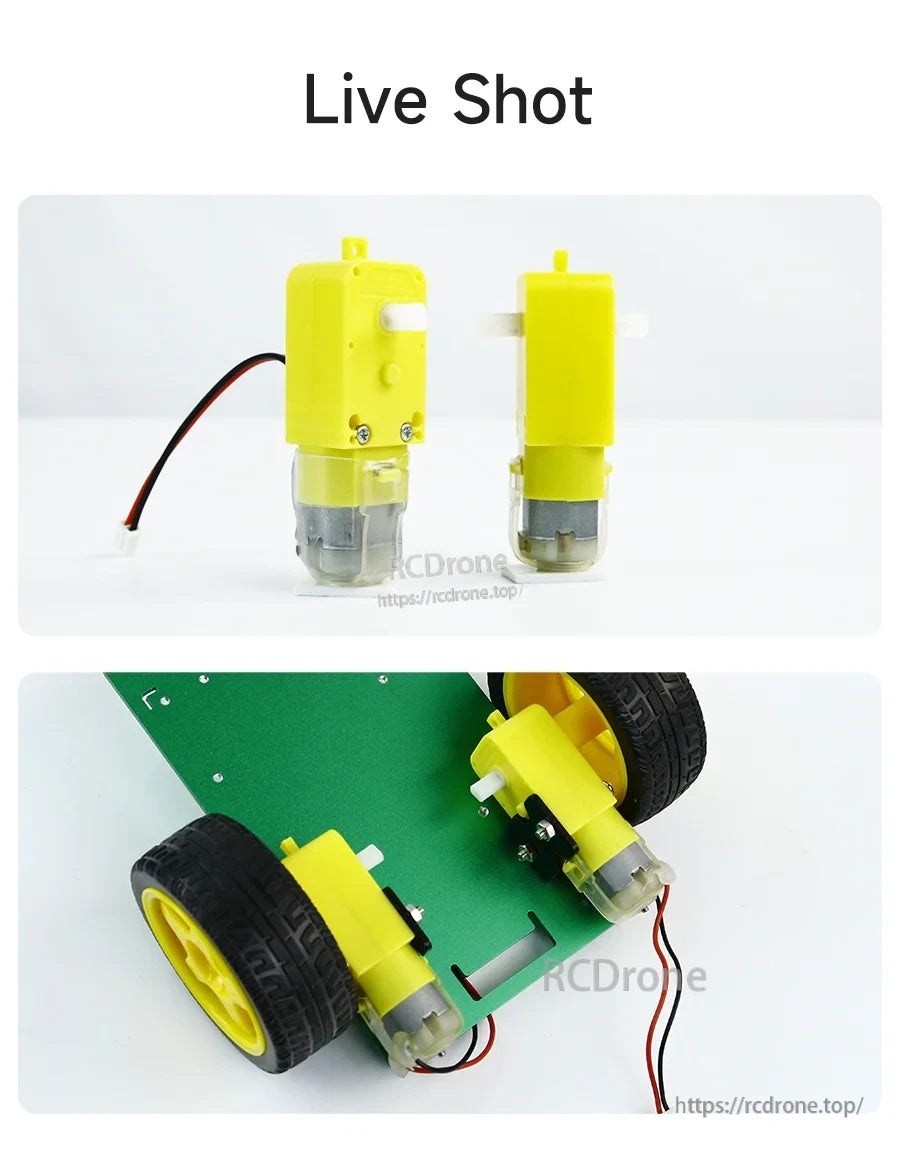

Real-life photos of TT motor with and without lead, plus installed pair on a small robot car chassis

A compact TT motor format makes it easy to pair with a chassis and wheels for a simple two-motor robot drive.
