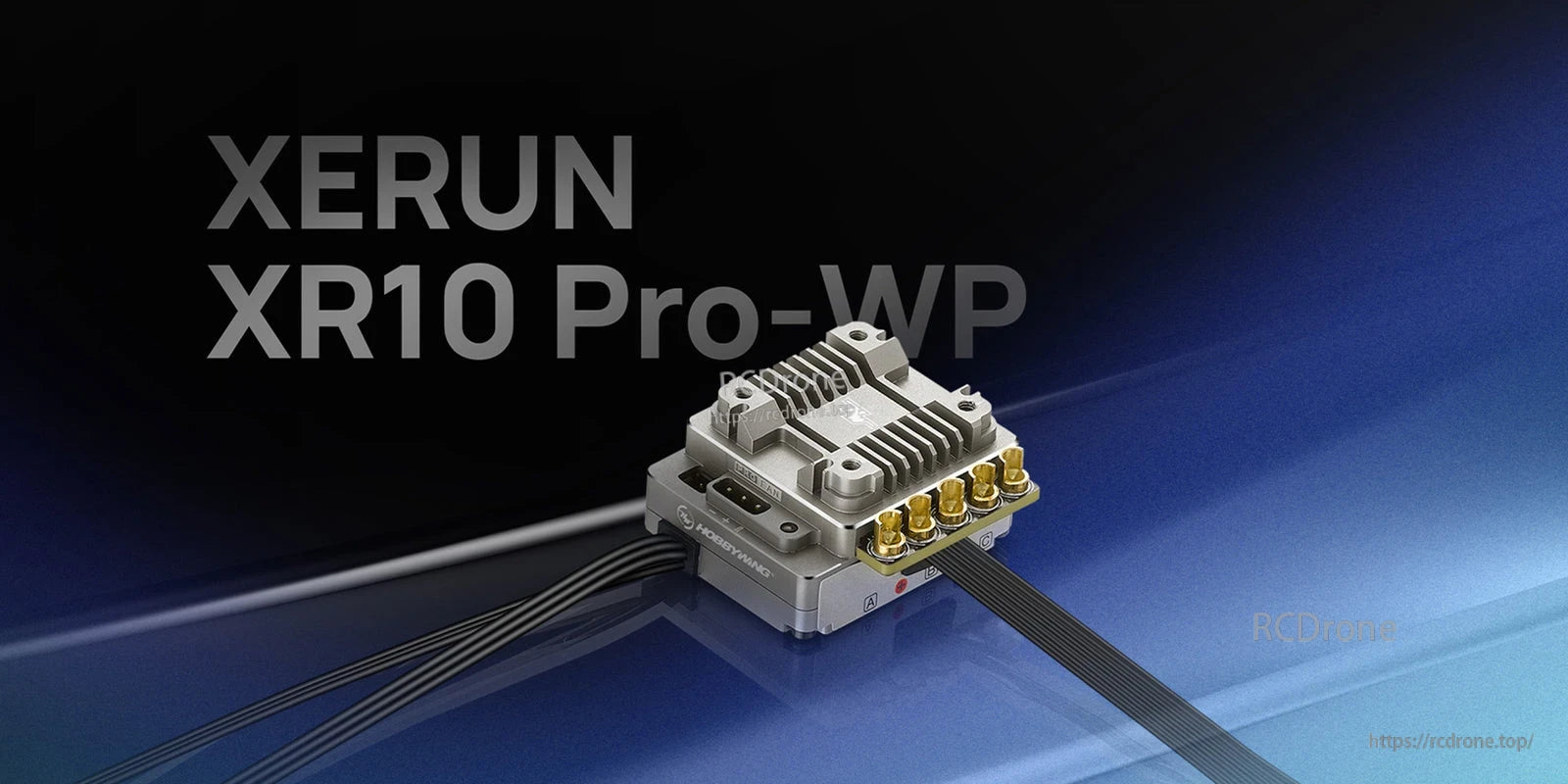

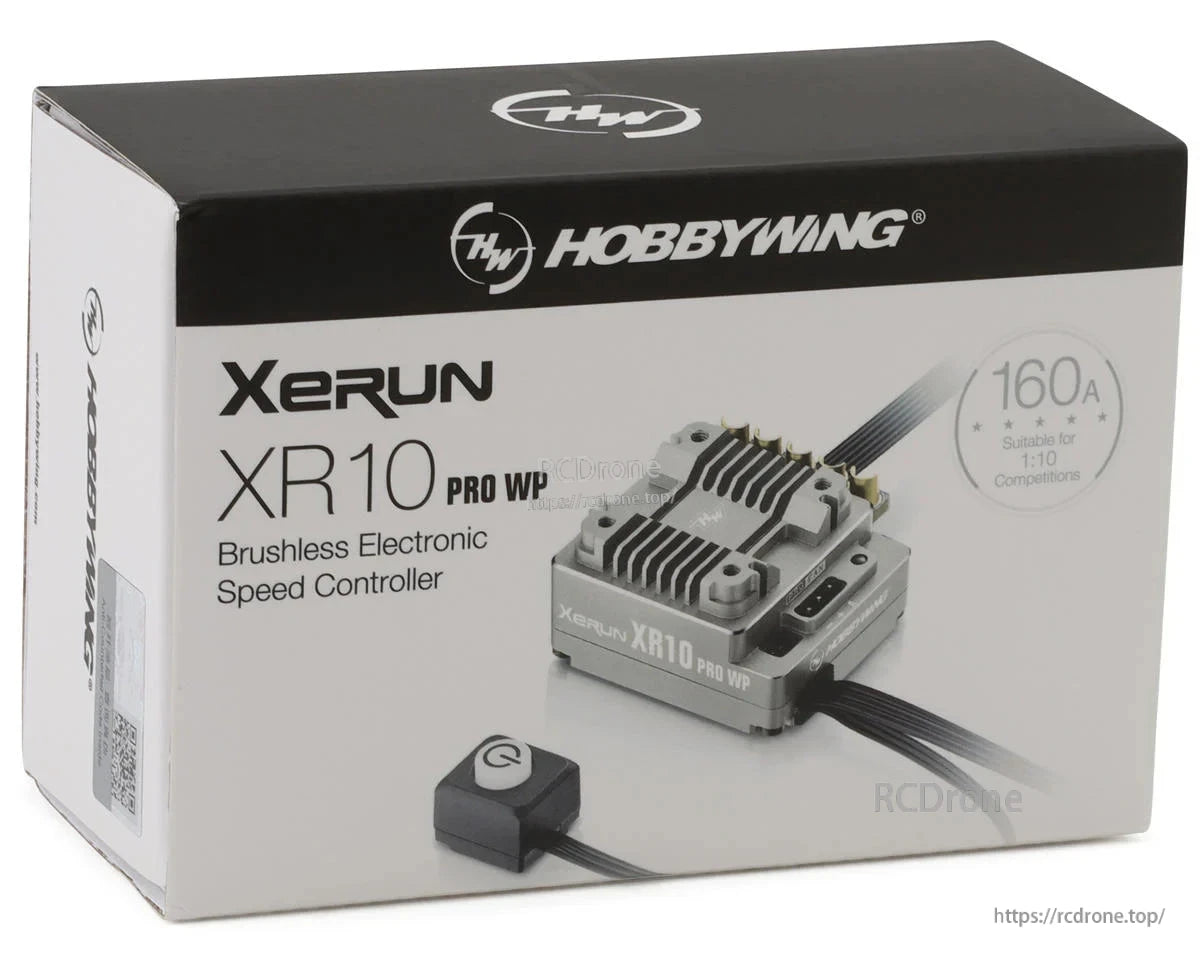

Hobbywing XeRun XR10 Pro WP ESC 160A Sensored Waterproof ESC for 1/10 Stock/Mod & Drift Cars

Overview

The Hobbywing XeRun XR10 Pro WP ESC is a sensored brushless waterproof ESC for 1/10th RC Stock/Mod racing and drift cars. It features IP67 protection for all-weather operation and supports programmable tuning options, including adjustable throttle curvature, boost/turbo timing, and expanded brake tuning.

Key Features

• IP67 protection for all-weather operation. Note: Do not submerge. Damage may occur when submerged.
• Built-in reverse polarity protection circuit for reverse voltage protection and protection from accidental cross connection of the battery.
• Note (reverse polarity): Reverse polarity protection of the entire power system can be achieved only by using the non-polarity capacitor sold as an option. The standard capacitor of the ESC does not have this protection. Reverse connection of the battery will damage the capacitor; replacement of the capacitor is needed immediately.
• Smart fan start & stop function: the fan does not run when the ESC temperature is low; it turns on automatically when the preset temperature is reached.
• Adjustable throttle curvature: +10 curve to -10 curve settings, plus a custom curve option.
• Real-time data acquisition and easy analysis when used with an OTA module and HW Link V2 / HW Link mobile app (monitoring includes throttle, voltage, temperatures, and RPM). Data logs can be saved to the OTA to view after the run.
• OTA module support for ESC tuning and firmware updates via phone/tablet (HW Link V2 app).
• Built-in BEC supporting high-voltage servos. BEC voltage adjustable from 5-7.4V (0.1V steps). BEC current rating is listed as @5A in the specification table; a feature graphic states up to 10 amps.
• Max Brake Tuning: 101%-150%.
• Pre-programmed profiles for 1/10 RC racing classes; supports adjustable boost and turbo timing.

For product questions or order support, contact support@rcdrone.top or visit https://rcdrone.top/.

Specifications

Applications

• Motors: Sensored brushless motors / Sensorless brushless motors
• Vehicles: 1/10th Touring car & Buggy racing; 1/10th Drift, F1, Rally
• KV Rating/T Count: Touring Car: >=4.5T; Buggy: >=5.5T
• Wide range of applications: suitable for various Modify and Stock competitions in 1/10 on-road and 1/10 off-road

Manuals

• Product catalog: XERUN XR10 Pro-WP_Leafiet EN.pdf
• User manual: HW-SMA540DUL00.pdf

Details

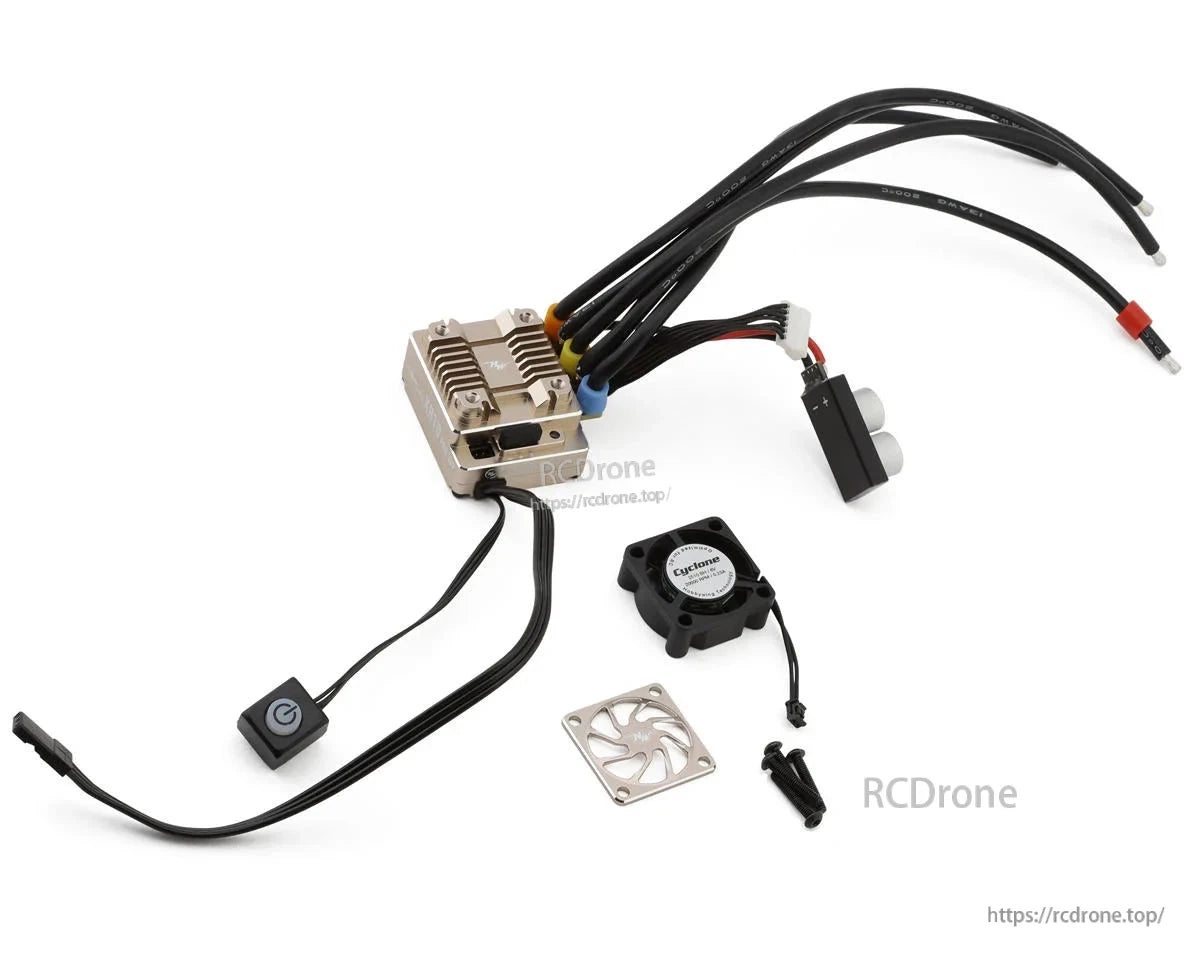

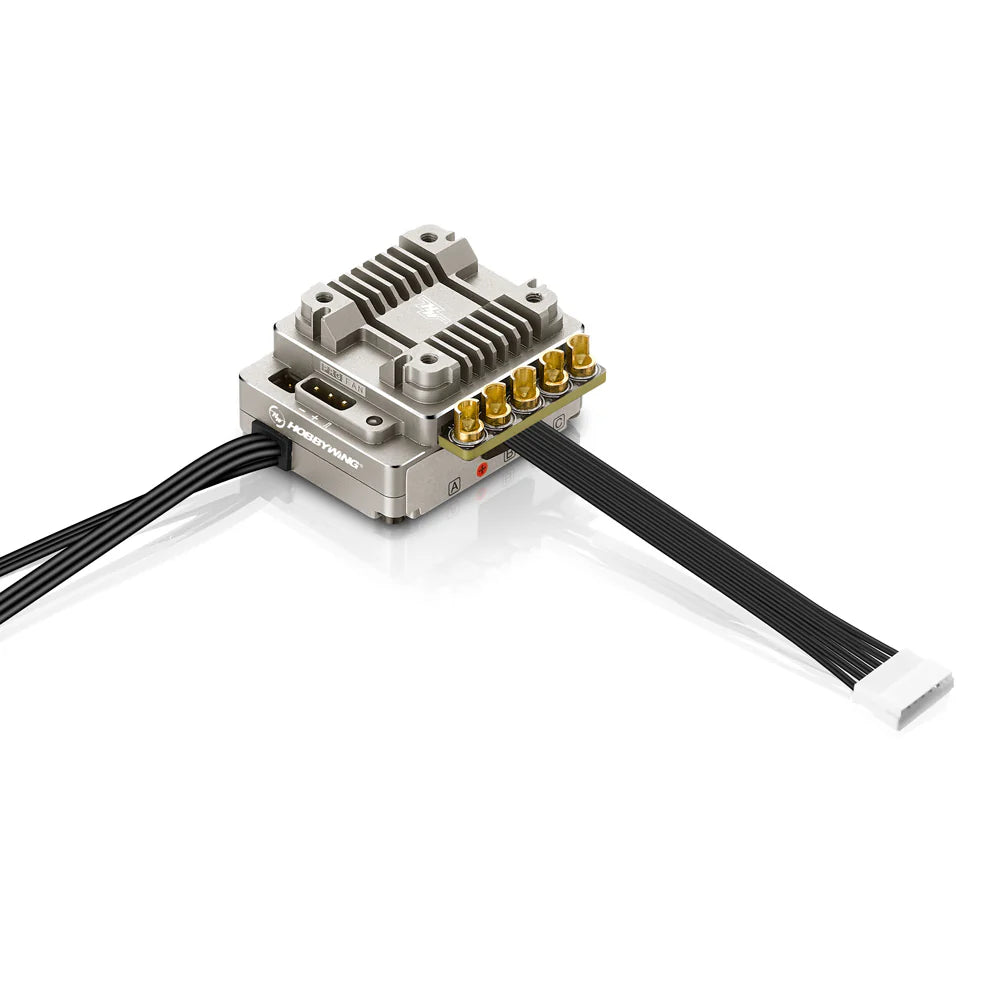

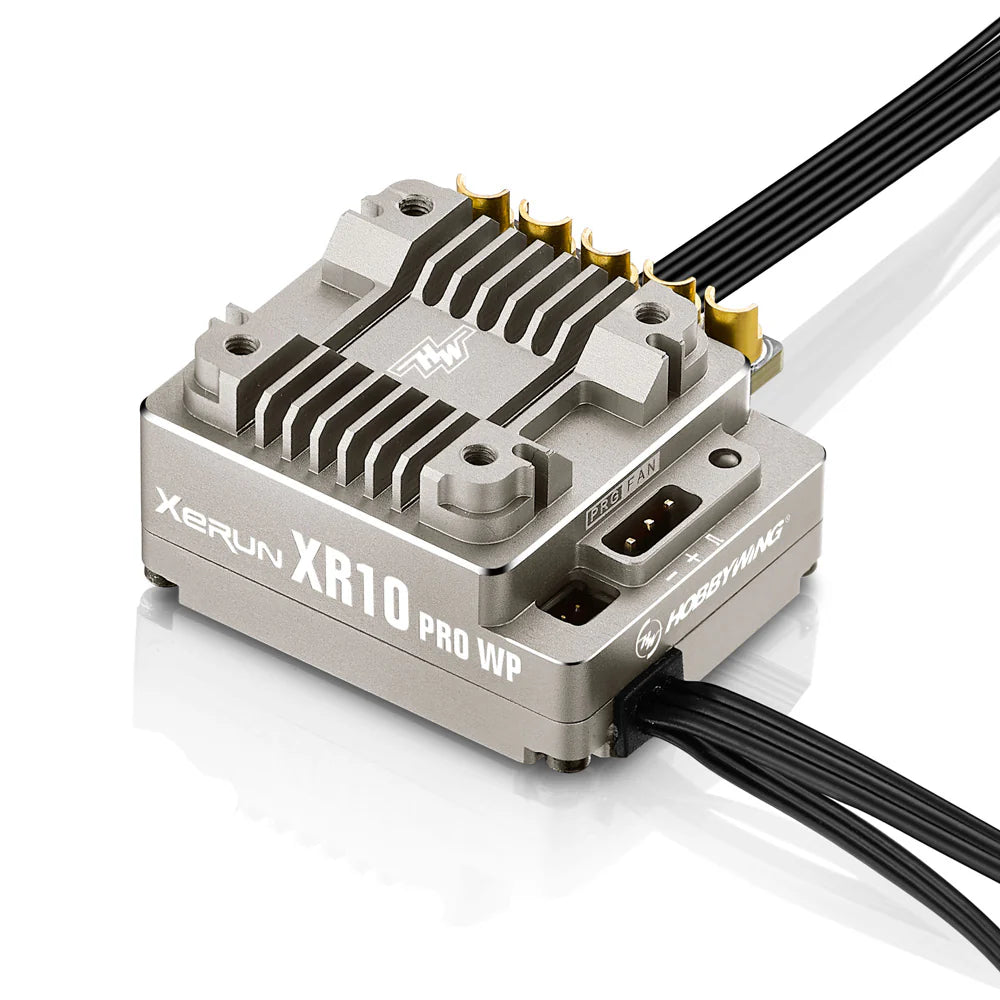

The XeRun XR10 Pro WP ESC features a finned aluminum heatsink and clearly labeled motor terminals for clean, secure wiring.

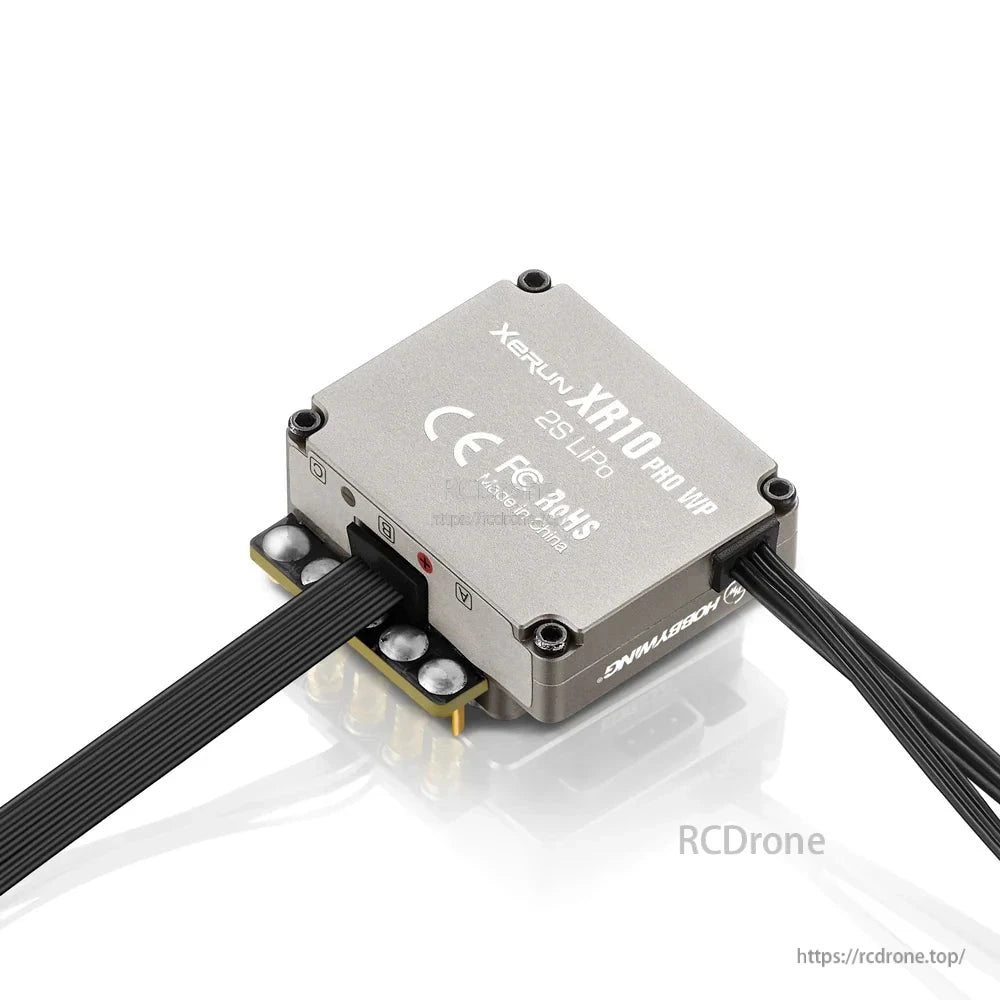

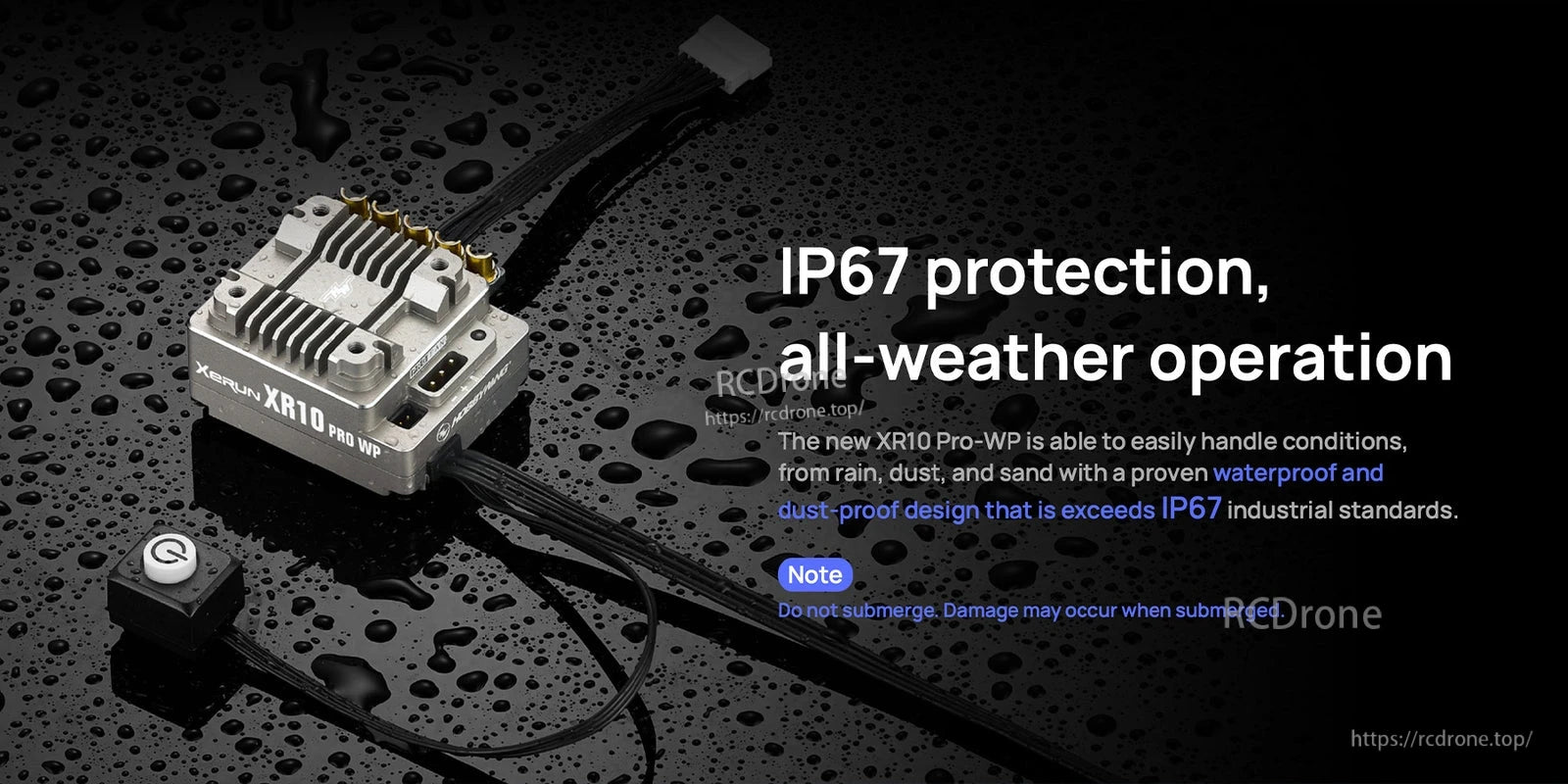

The Hobbywing XeRun XR10 Pro WP ESC is rated IP67 for dust and water protection for all-weather RC running (do not submerge).

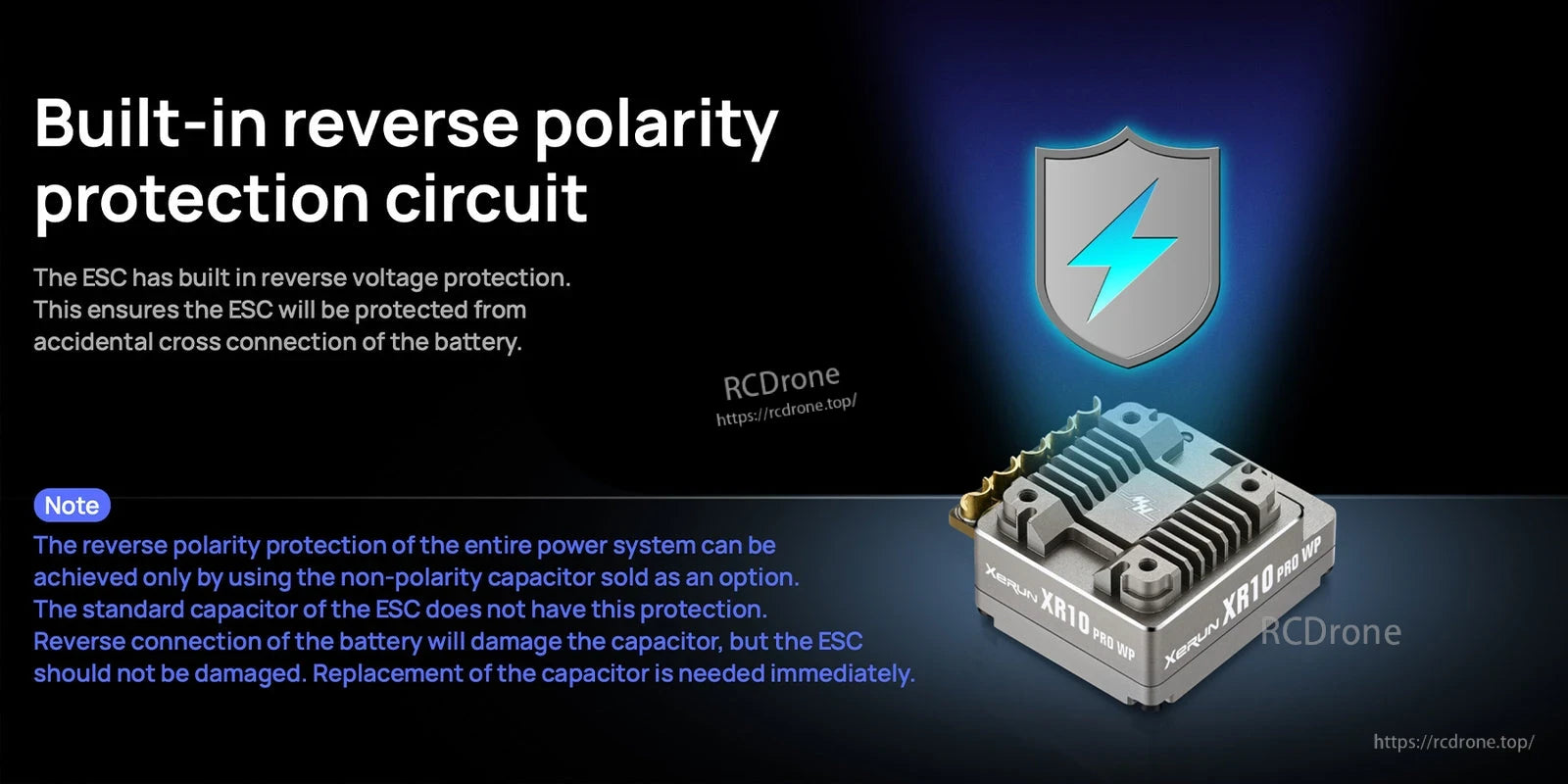

The Hobbywing XeRun XR10 Pro WP ESC includes a built-in reverse voltage protection circuit to help guard against accidental battery cross-connection.

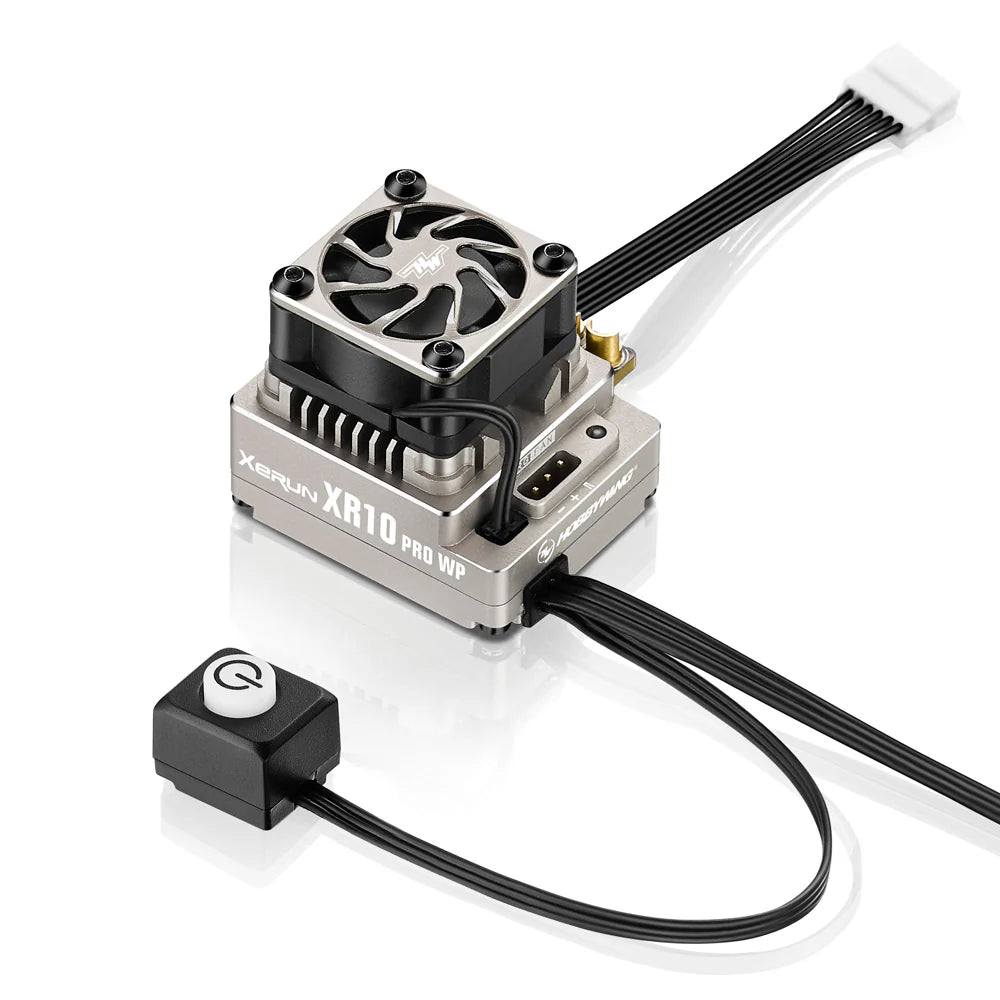

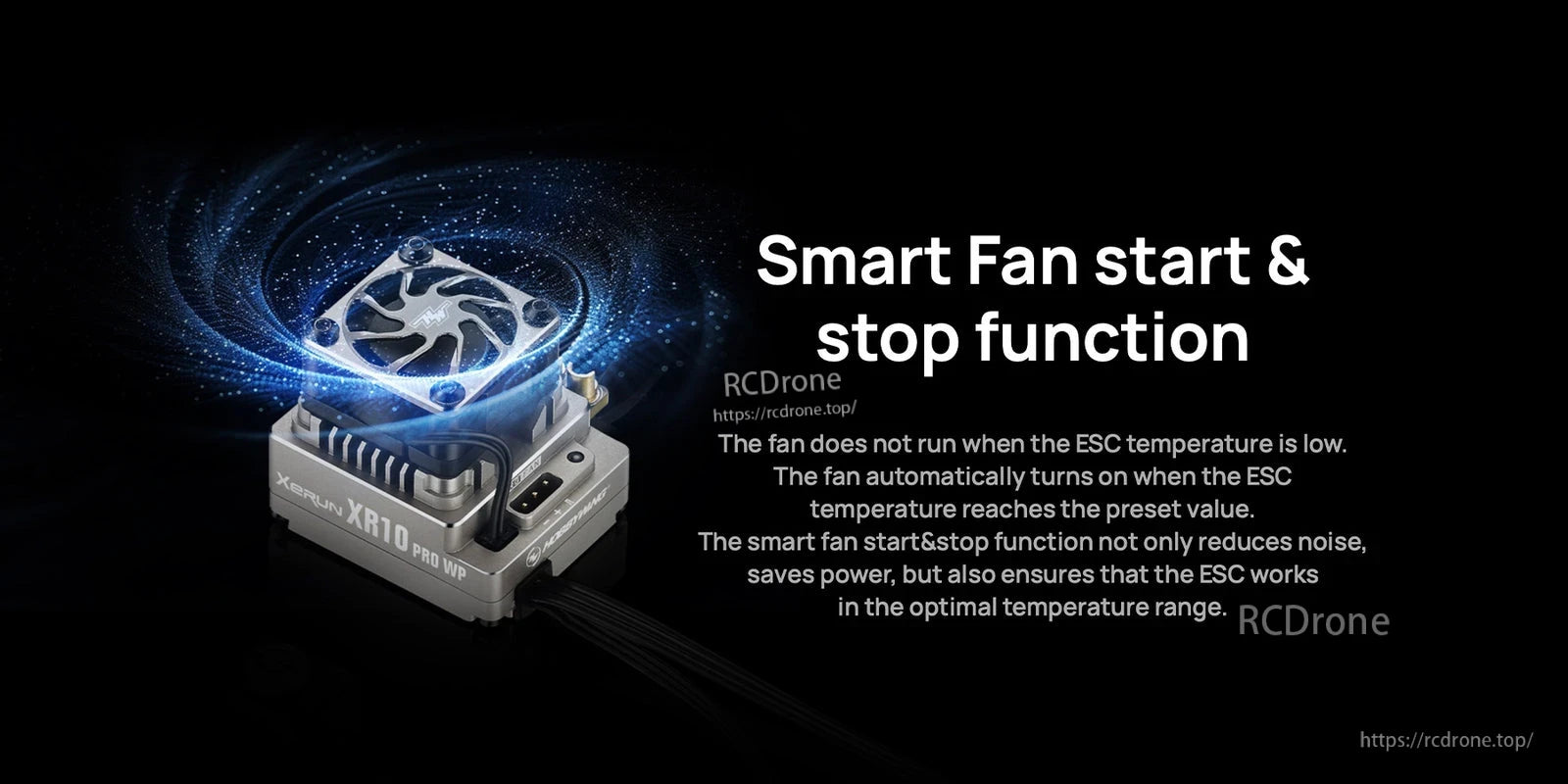

The Hobbywing XeRun XR10 Pro WP ESC uses a smart fan start/stop function that turns the fan on only when the ESC reaches a preset temperature.

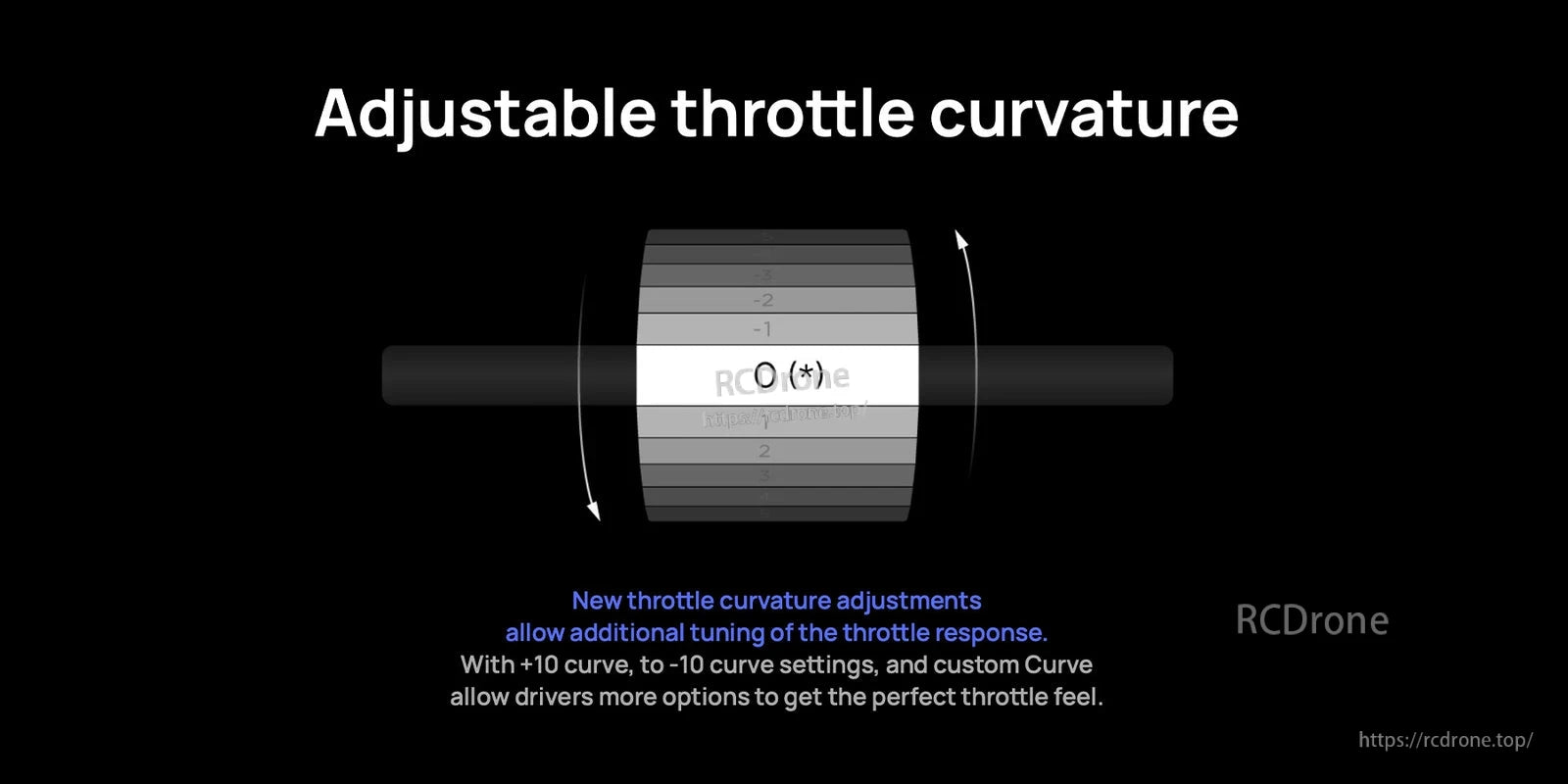

Adjustable throttle curvature settings let you fine-tune throttle response with +10 to -10 options plus a custom curve.

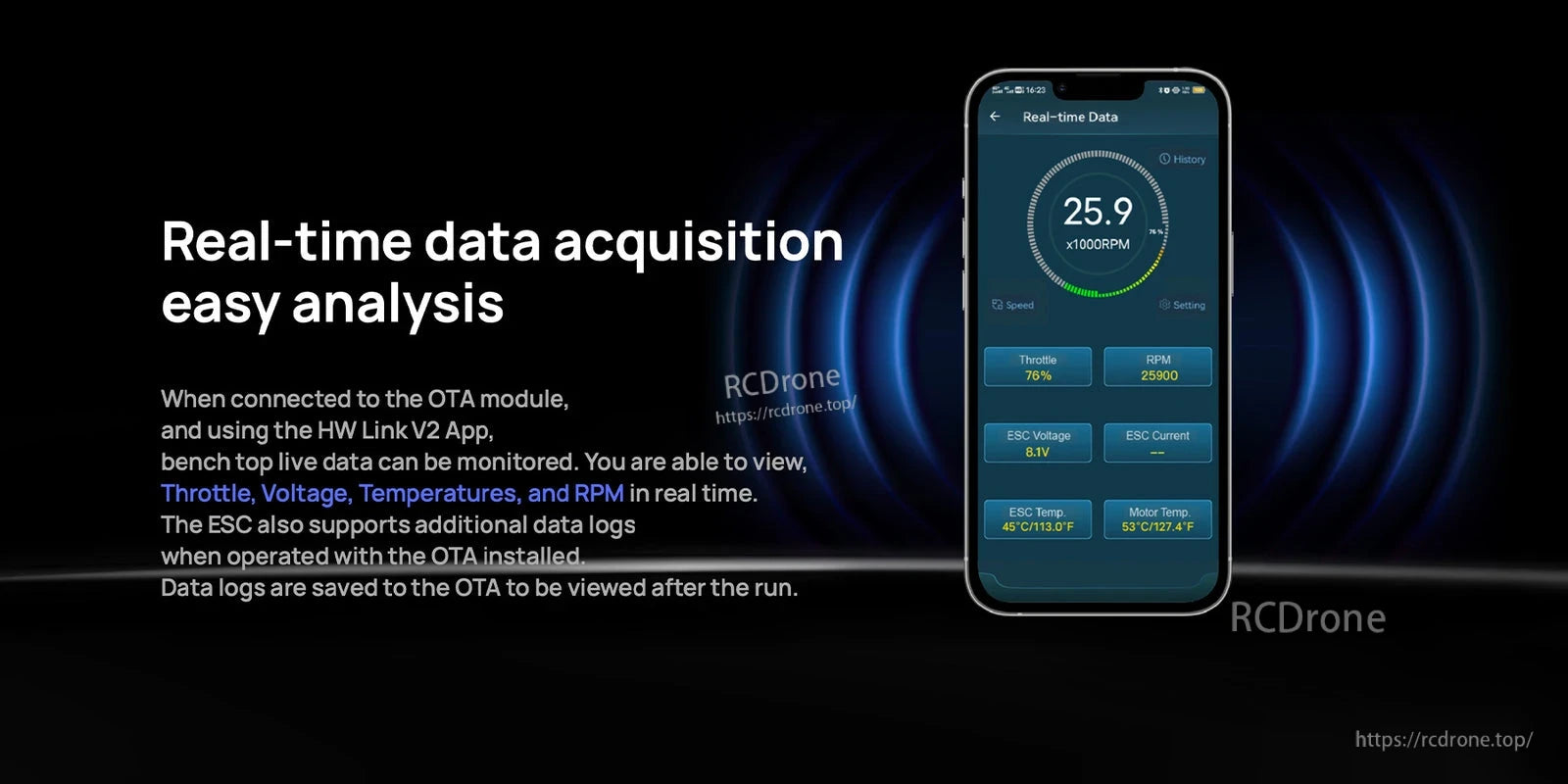

With the HW Link V2 app and an OTA module connected, the XeRun XR10 Pro WP ESC can display real-time throttle, voltage, RPM, and temperature data and save run logs.

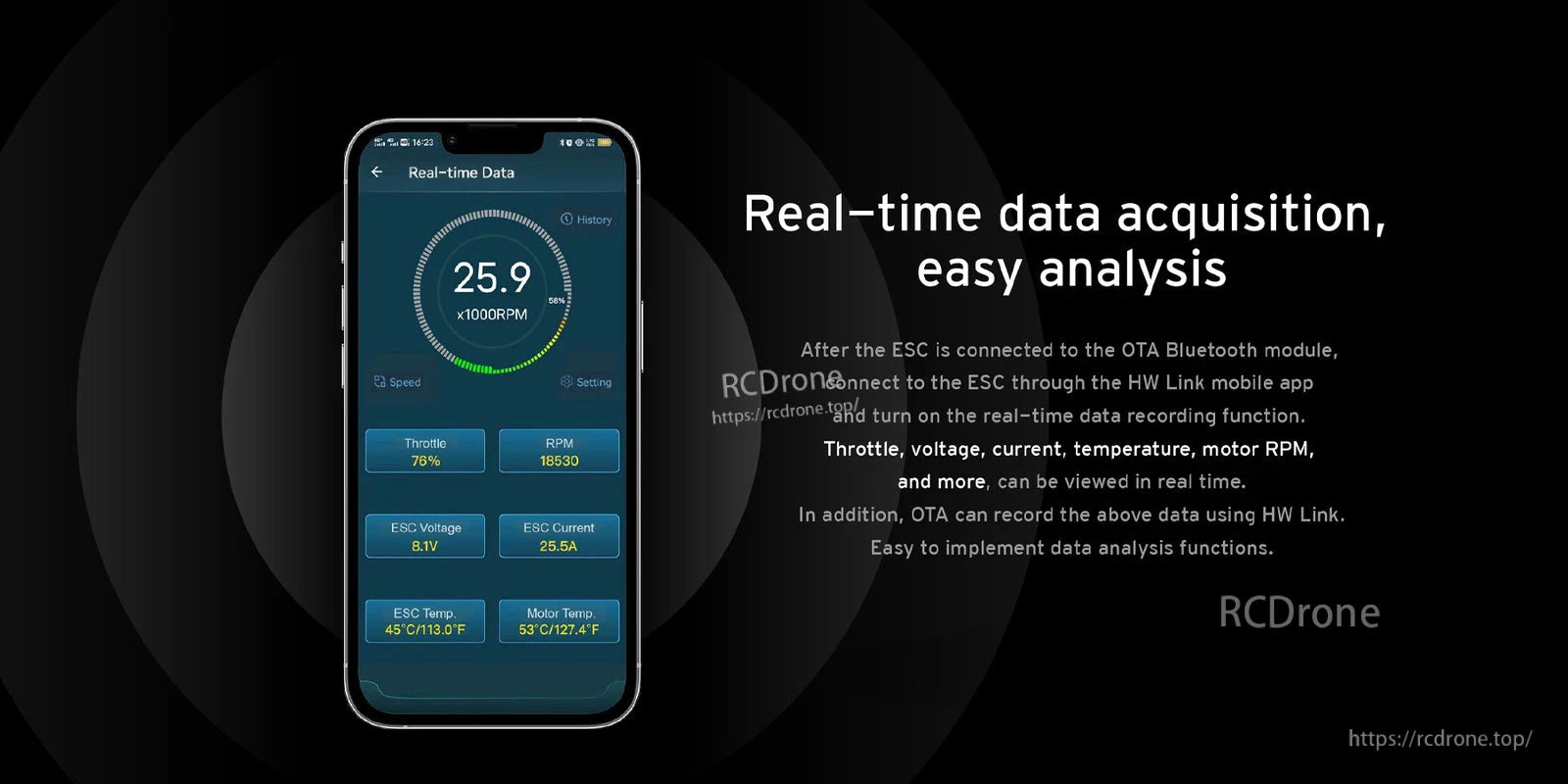

The XeRun XR10 Pro WP ESC supports real-time data viewing in the HW Link mobile app, including throttle, voltage, current, temperature, and motor RPM.

The Hobbywing XeRun XR10 Pro WP ESC supports OTA tuning and firmware updates using the HW Link V2 app on a phone or tablet.

The XeRun XR10 Pro WP ESC includes a built-in switch-mode BEC rated up to 10A with adjustable 5–7.4V output (0.1V steps) to support high-voltage servos.

The XeRun XR10 Pro WP ESC supports max brake tuning from 101% to 150% for more adjustable stopping power in stock/spec setups.

The Hobbywing XeRun XR10 Pro WP ESC is designed for 1/10 on-road and 1/10 off-road RC racing applications.
