Hobbywing XeRun XR10 Stock Spec G2 2S 100A Sensored Brushless ESC for 1/10 Touring/Buggy Drift

Overview

The Hobbywing XeRun XR10 Stock Spec G2 is a sensored brushless ESC (electronic speed controller) designed for 1/10 touring car and buggy stock class racing, and 1/10 drift applications. It supports 2S LiPo input and features dual firmware options for different competition requirements, plus real-time data recording when used with supported programming accessories.

For product selection, setup, or after-sales support, contact support@rcdrone.top or visit https://rcdrone.top/.

Key Features

• Cont./peak current: 100A/500A
• Increased maximum current rating to 100 amps (20 amps more than the previous Stock Spec)
• Testing shows as much as 30 C lower temperatures under the same loads
• Low center of gravity design: center of gravity lowered by 14.3%
• Built-in polarity protection
• Multi-level throttle and brake curve adjustment range: -10~10
• Drag brake frequency independently adjustable from standard brake frequency
• Variable frequency regulation of PWM and brake frequencies
• Dual firmware: built-in Blinky Stock firmware; Boost firmware can be flashed for non-Blinky competition or drift applications (requires a firmware update)
• RPM speed limit function: supports 79 settings (10000-88000RPM)
• Real-time data acquisition and analysis via HW Link app when connected with a supported OTA Bluetooth module (throttle, voltage, current, temperature, motor RPM, and more)

Specifications

Applications

• Motor compatibility: 3650 size motors
• Vehicle compatibility: Stock Class of 1/10th Touring Car and Buggy Racing; 1/10th Drift
• KV rating/T count: 9 10.5T

Details

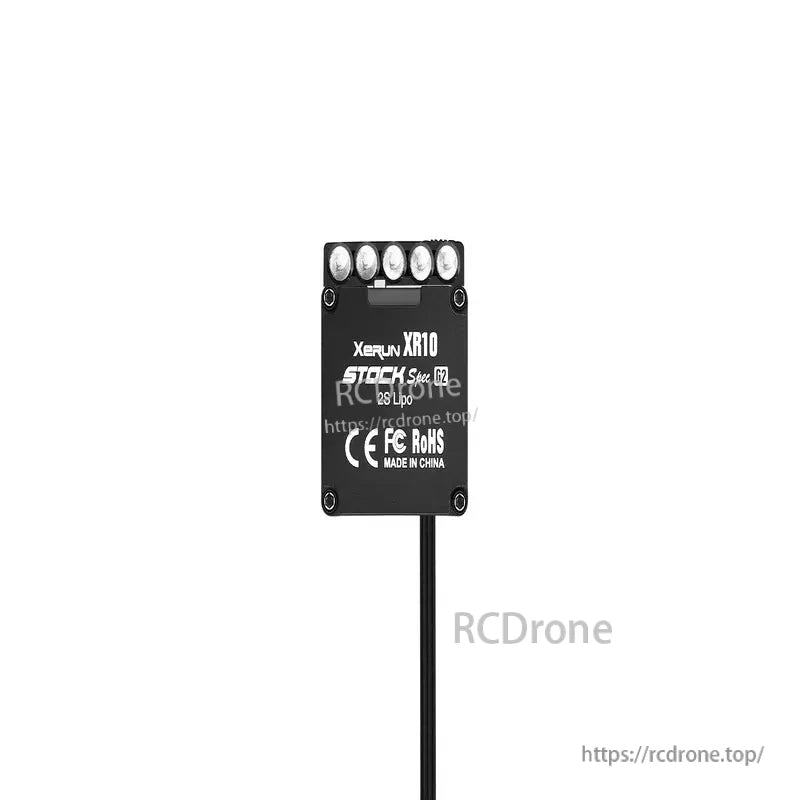

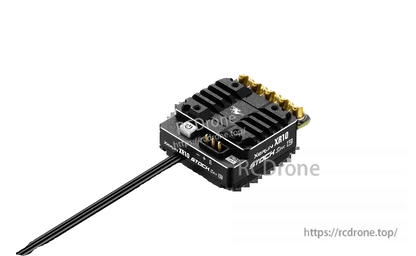

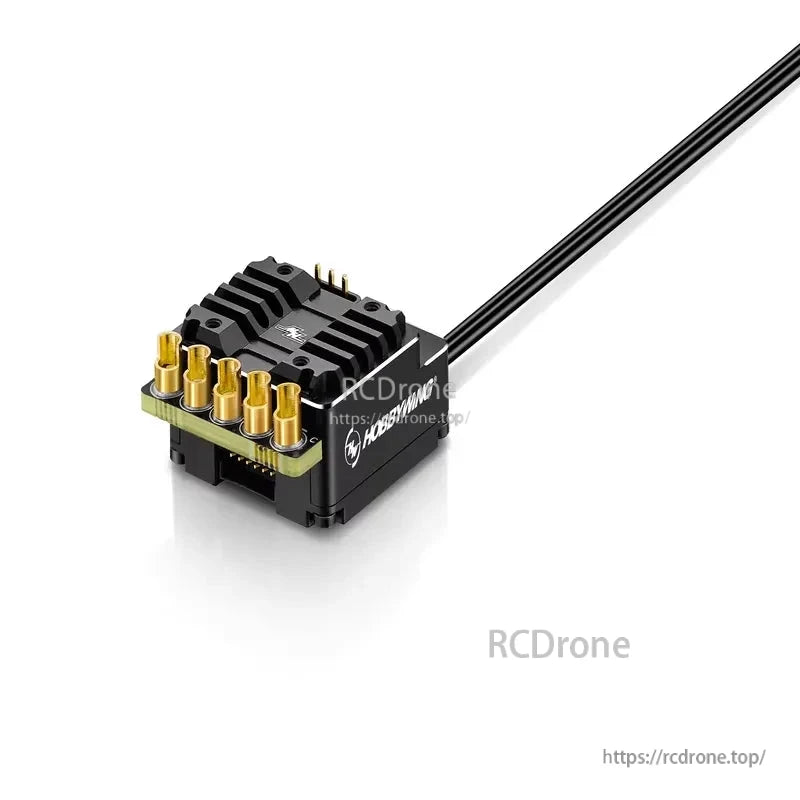

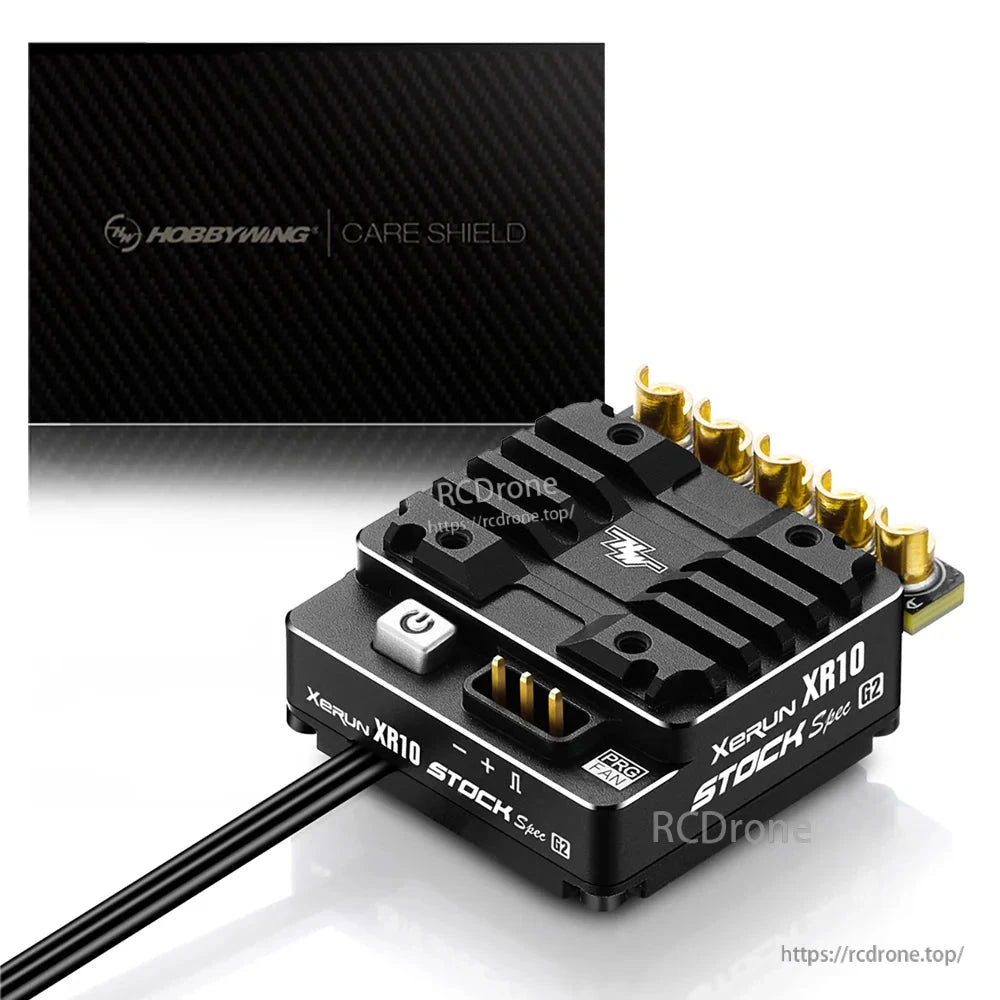

The XeRun XR10 Stock Spec G2 ESC is designed for sensored brushless setups in 1/10-scale RC cars.

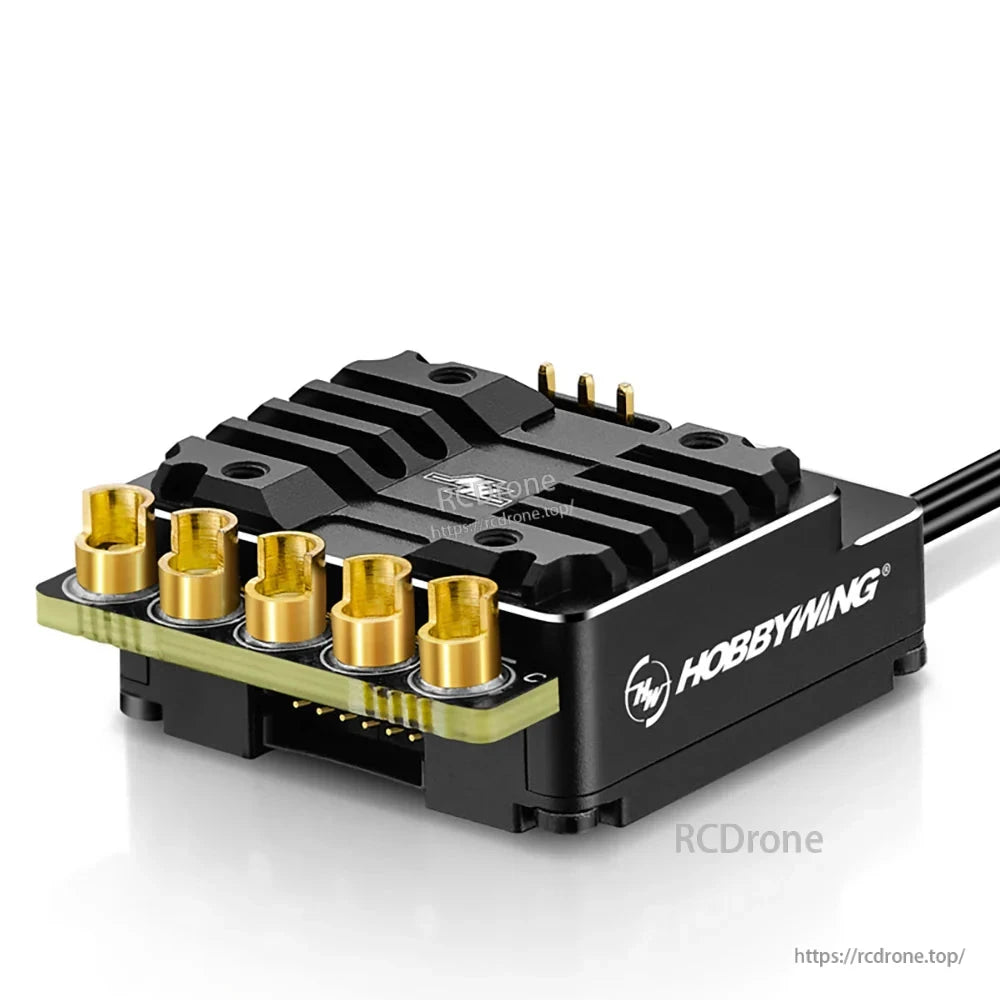

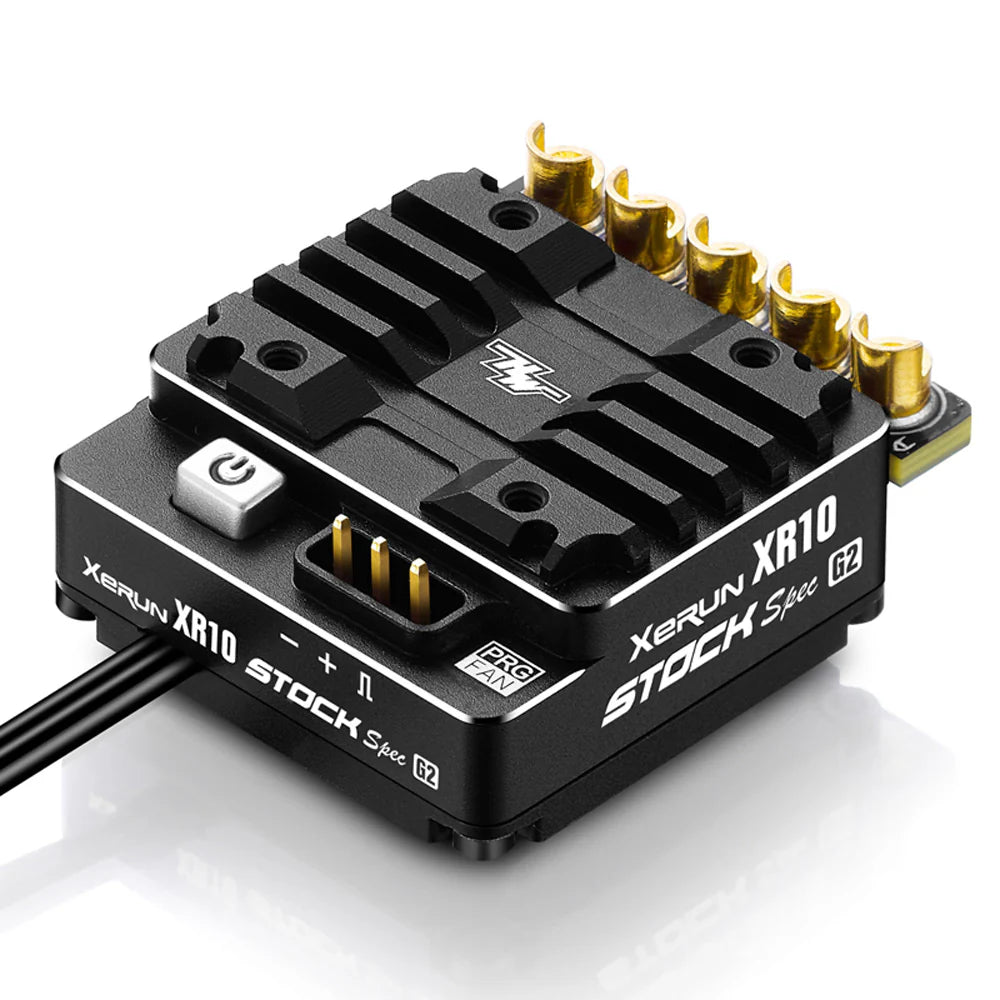

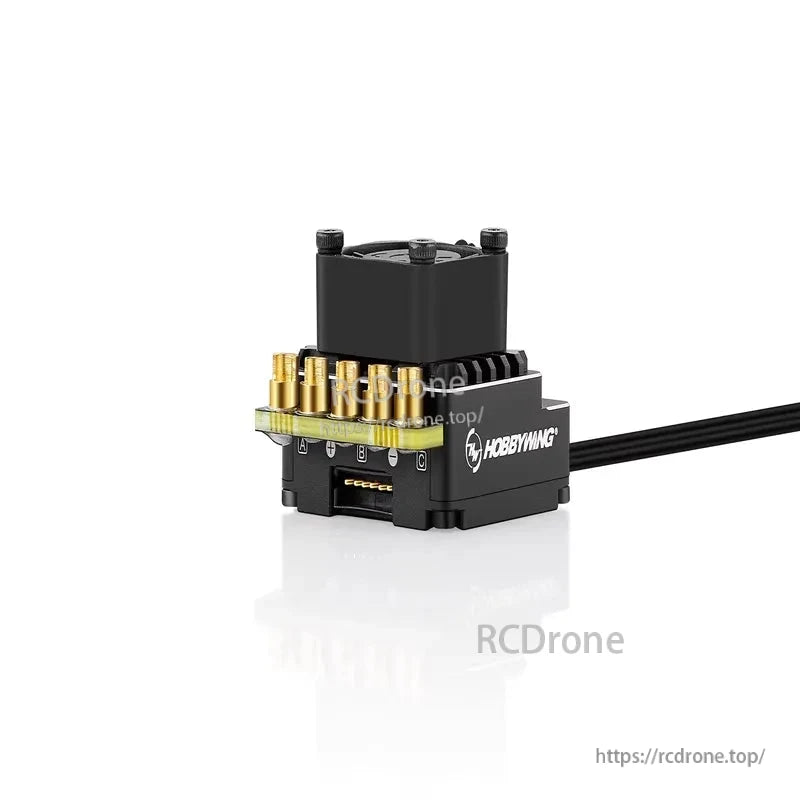

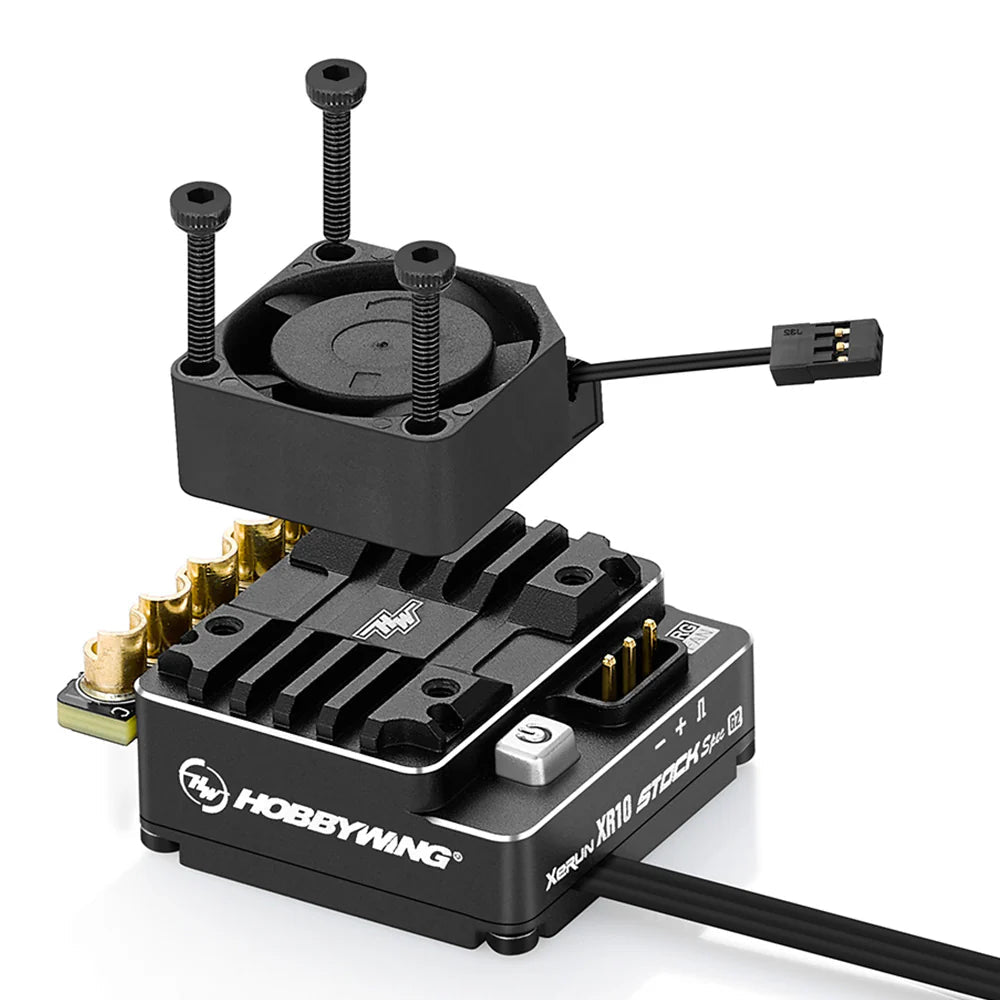

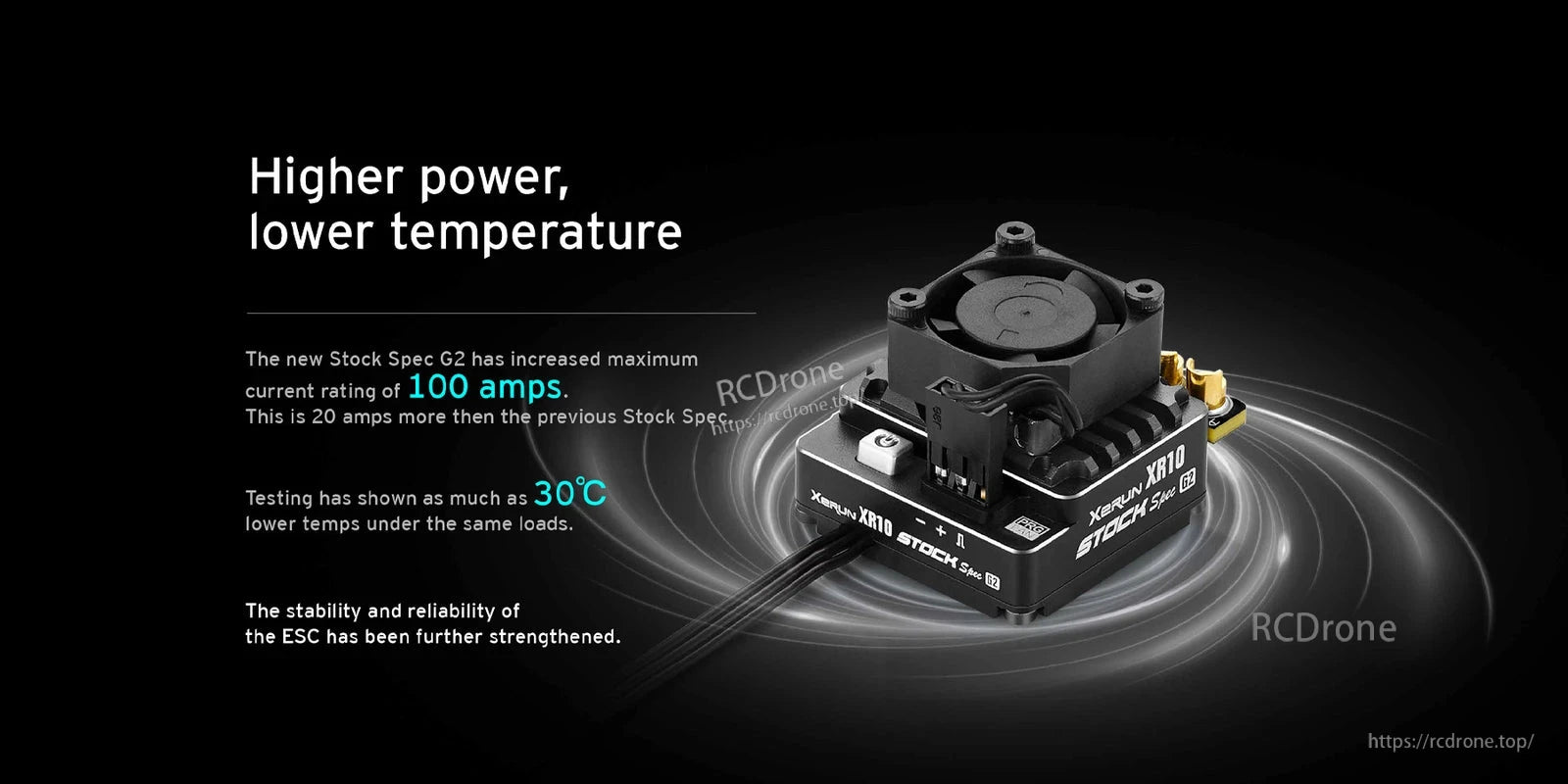

The Hobbywing XeRun XR10 Stock Spec G2 sensored ESC features a fan-cooled case with a stated 100A maximum current rating and up to 30°C lower temperatures under the same loads.

The built-in BEC supports high-voltage servos with adjustable 6V or 7.4V output and up to 5A continuous/10A max current.

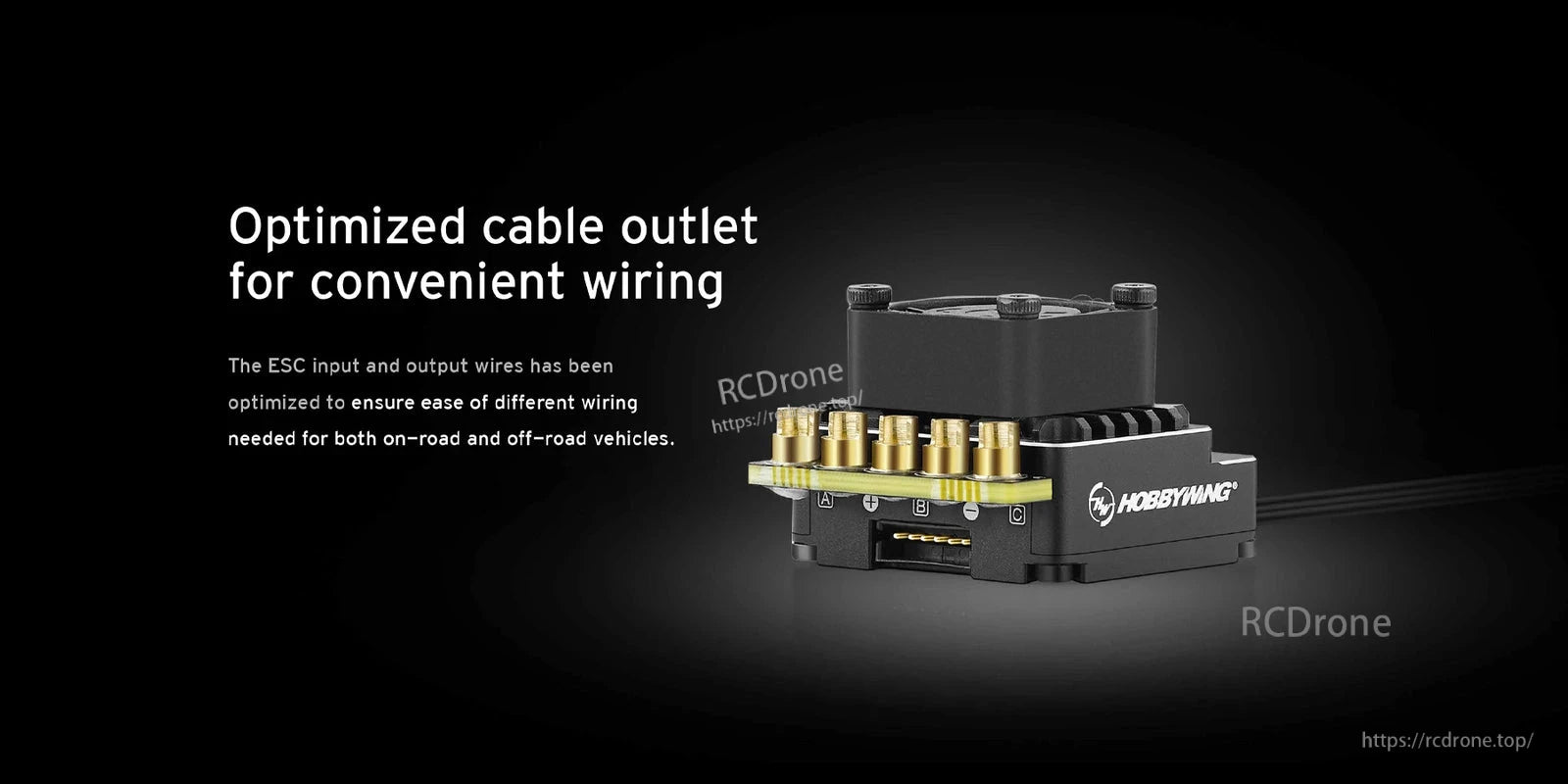

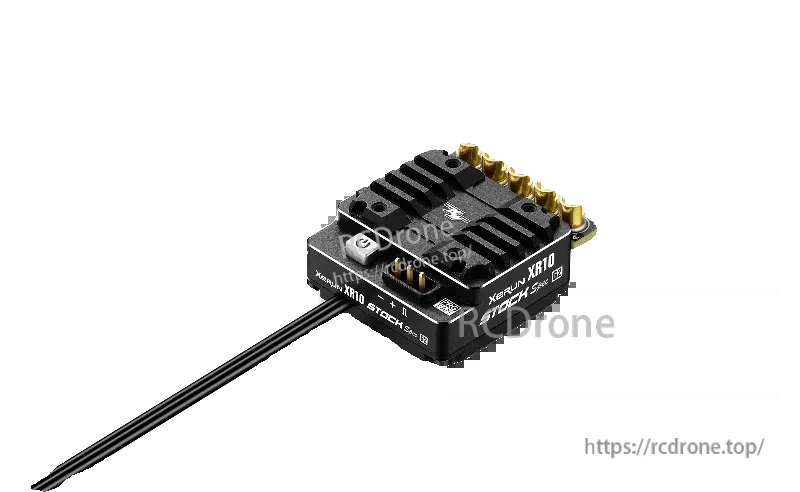

The optimized cable outlet and clearly labeled terminals make routing motor and battery wires cleaner on 1/10 builds.

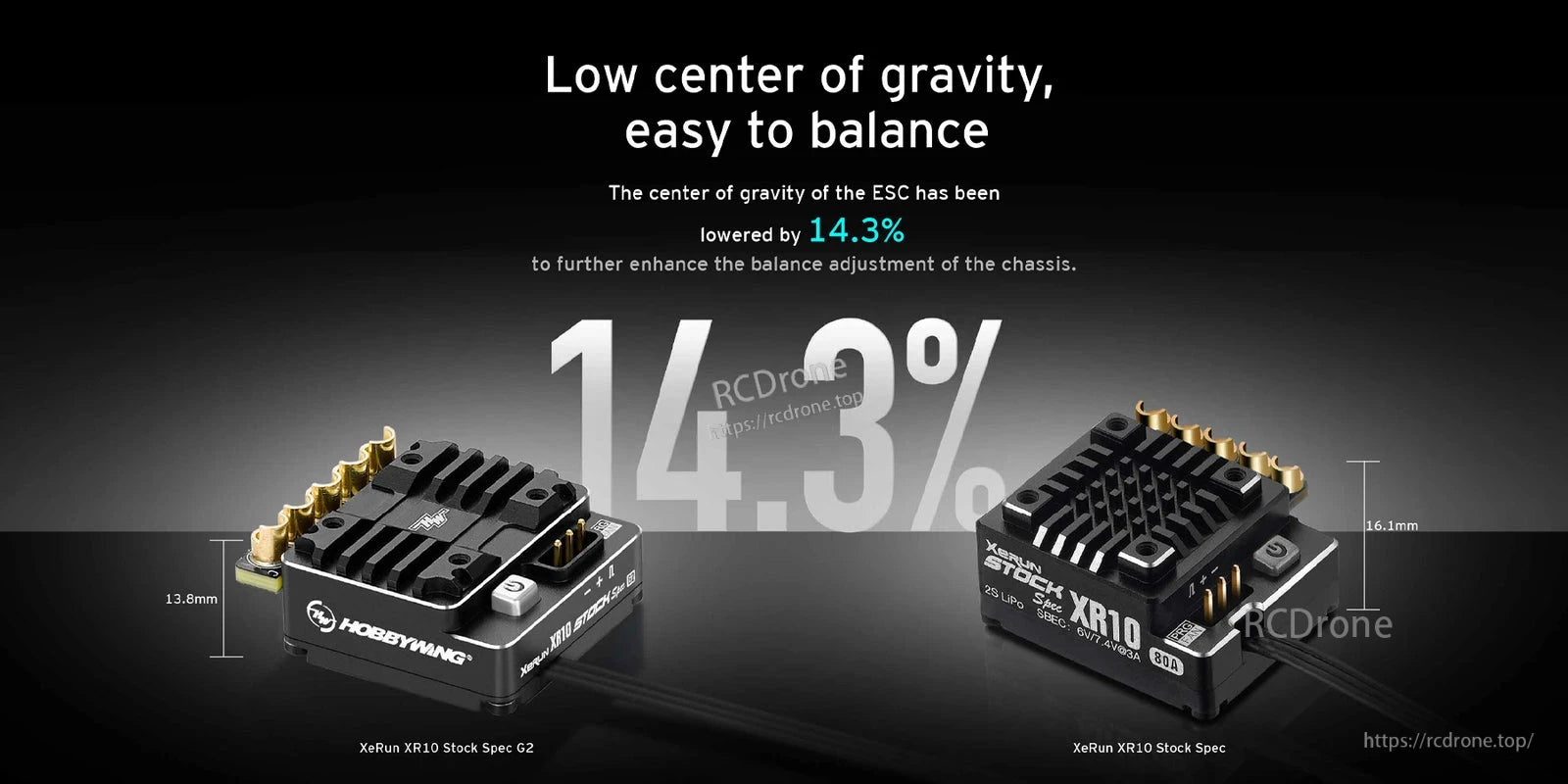

The XeRun XR10 Stock Spec G2 ESC is designed with a low-profile layout, with on-image text noting a 14.3% lower center of gravity for easier chassis balance.

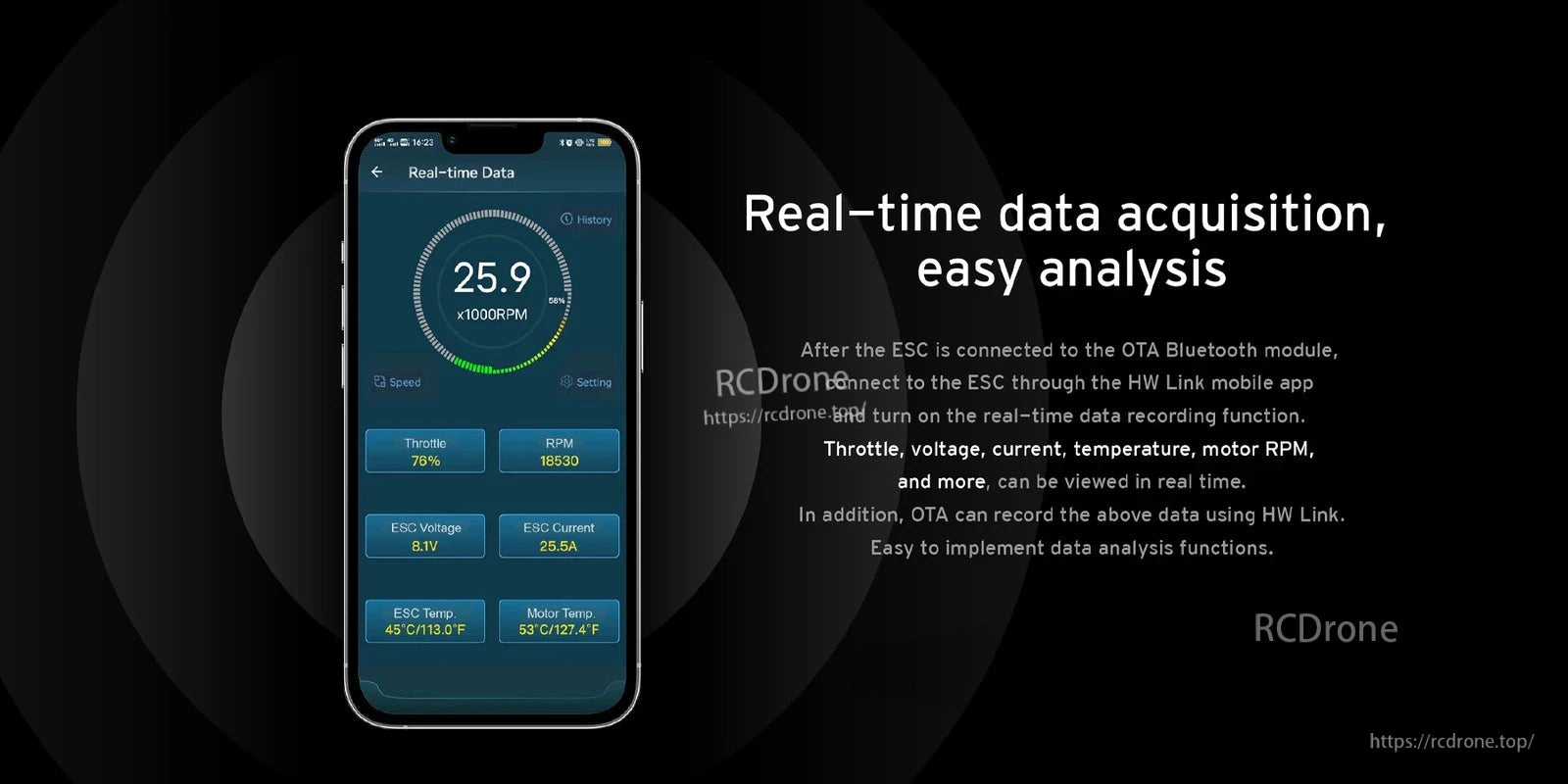

HW Link app support enables real-time monitoring of throttle, voltage, current, temperature, and motor RPM when paired with an OTA Bluetooth module.

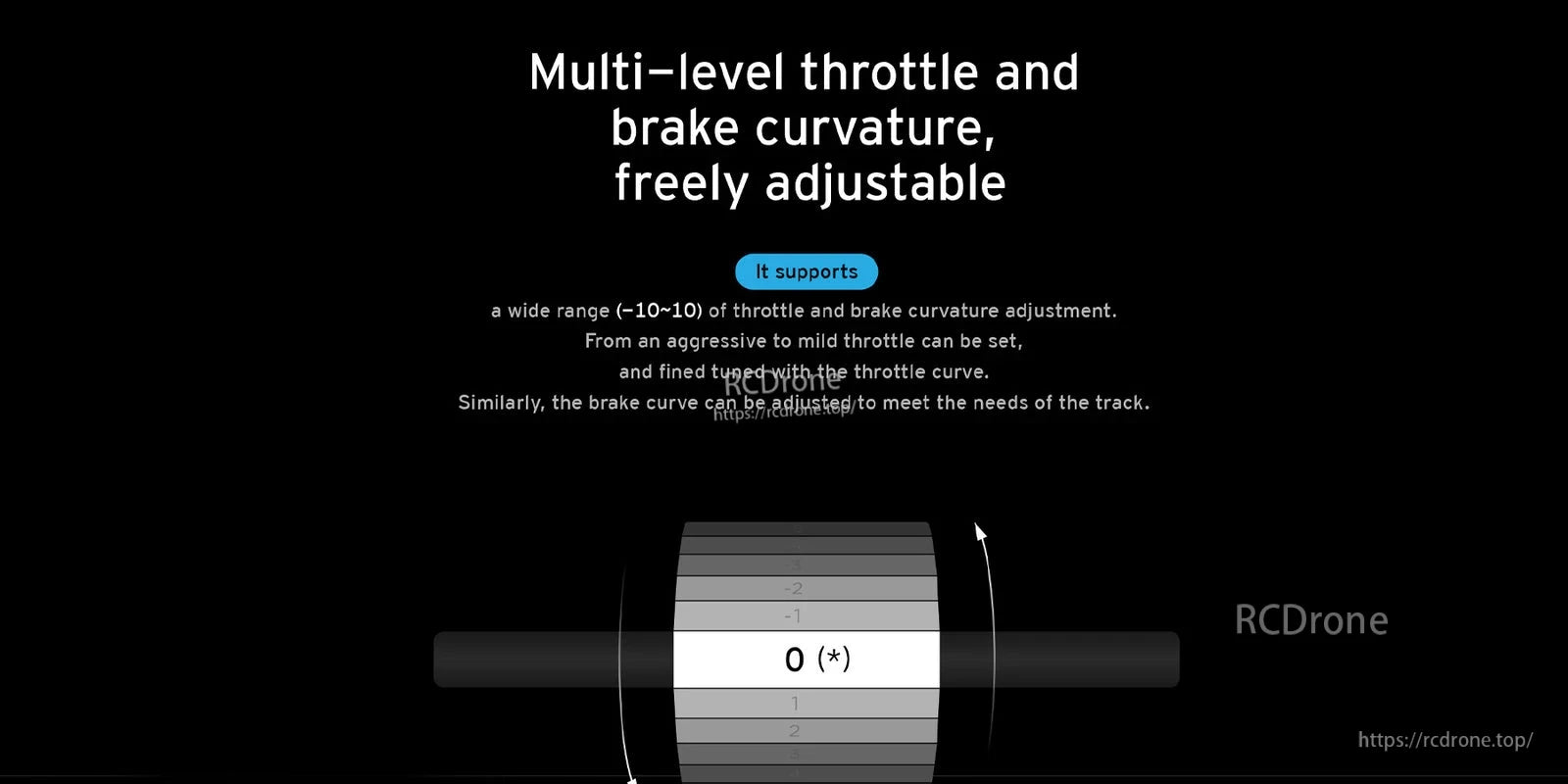

The XeRun XR10 Stock Spec G2 ESC supports multi-level throttle and brake curvature adjustment from -10 to 10 for finer control.

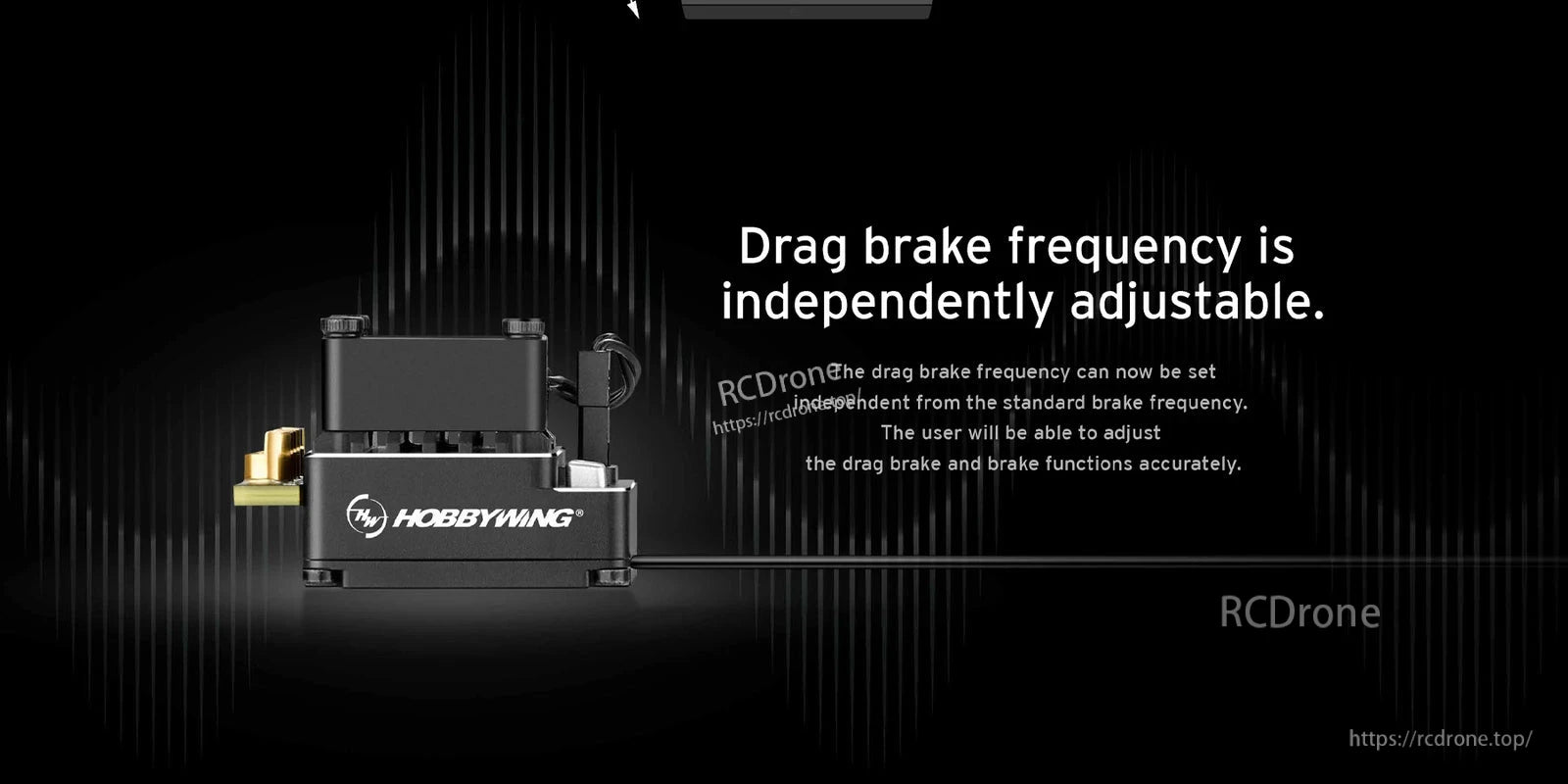

The XeRun XR10 Stock Spec G2 ESC supports independently adjustable drag brake frequency for more precise braking feel.

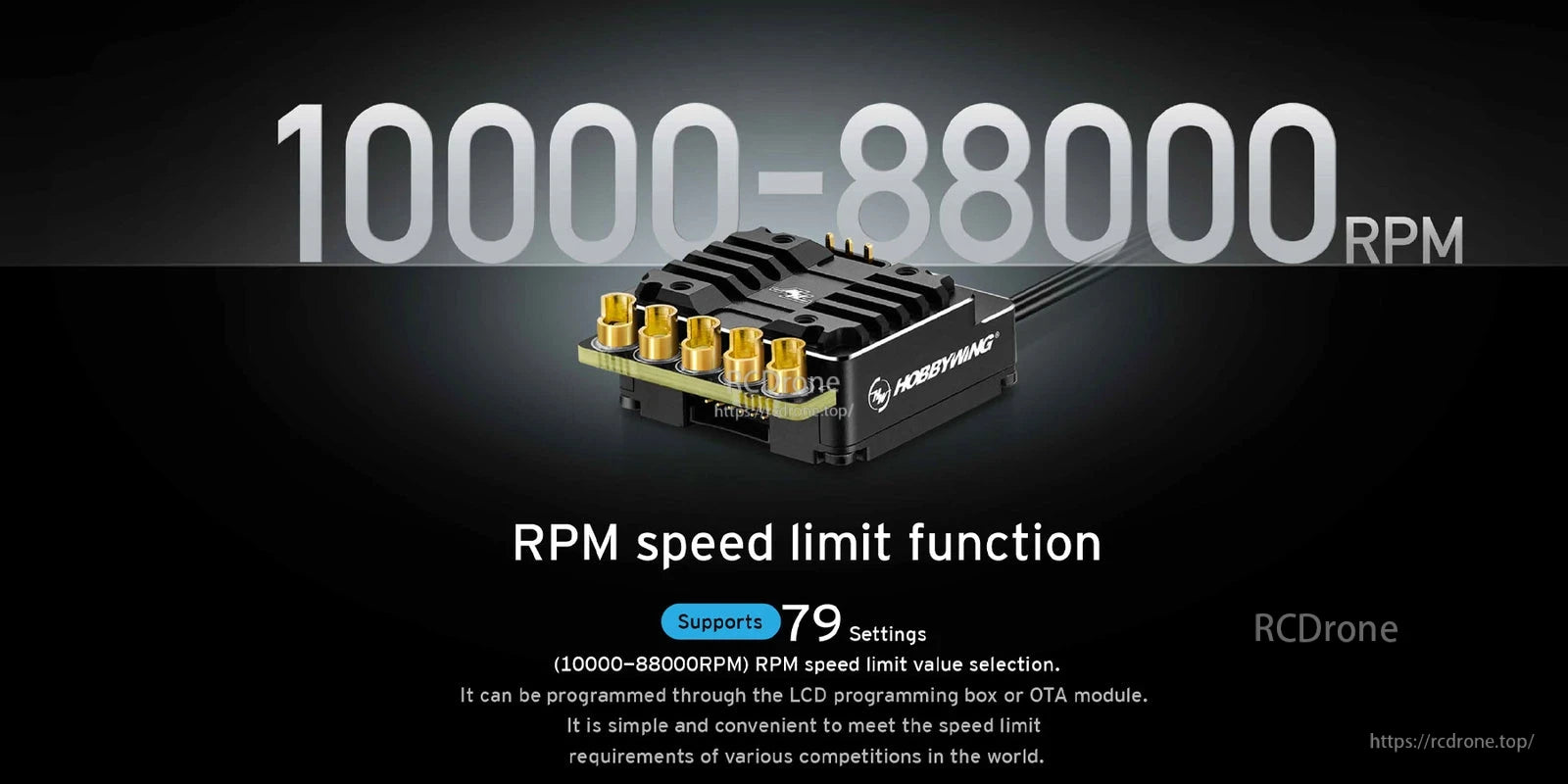

The XeRun XR10 Stock Spec G2 ESC includes an RPM speed limit function with 79 selectable settings from 10,000 to 88,000 RPM for meeting race rules.

Dual firmware support lets the ESC run built-in Blinky Stock firmware or flash Boost firmware for non-blinky competition or drift setups.
