Overview
Axisflying ECO NAJA Dual Optical Module is an FPV DIY camera module that combines an NAJA camera with a thermal camera option (TC256 / TC384 / TC640) for day and night use. The module supports CVBS video output and provides camera switching via a mapped servo channel.
Key Features
- Dual optical module: NAJA Camera + Thermal camera
- Model options: 256 / 384 / 640 (thermal camera series: TC256 / TC384 / TC640)
- Camera switching supported via servo mapping (LED or motor 5 mapping shown)
- CVBS video output (NAJA camera and thermal camera)

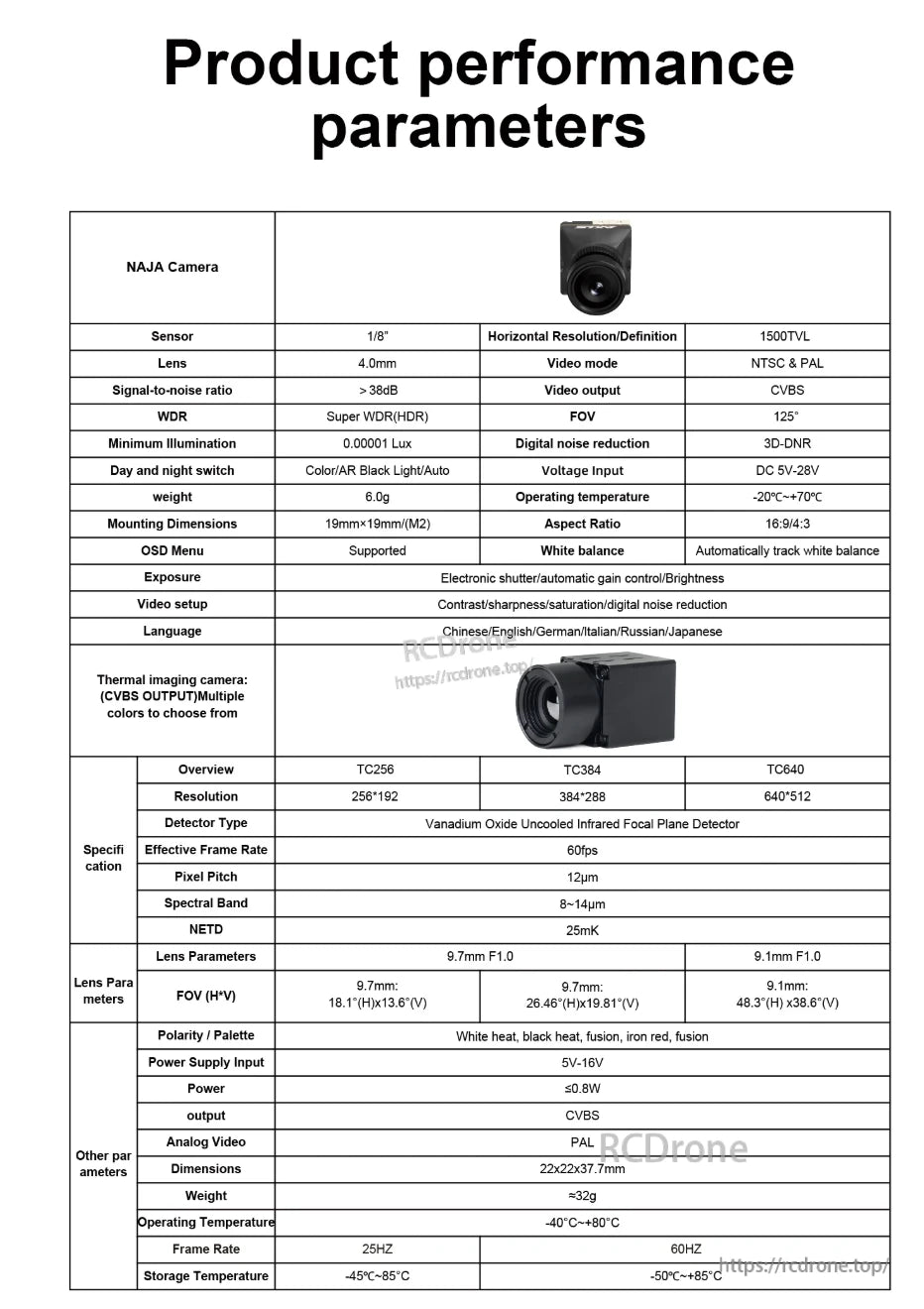

Specifications
Module
| Product name | NAJA Dual Optical Module |
| Model | 256 / 384 / 640 |
| Weight | 70.4g |

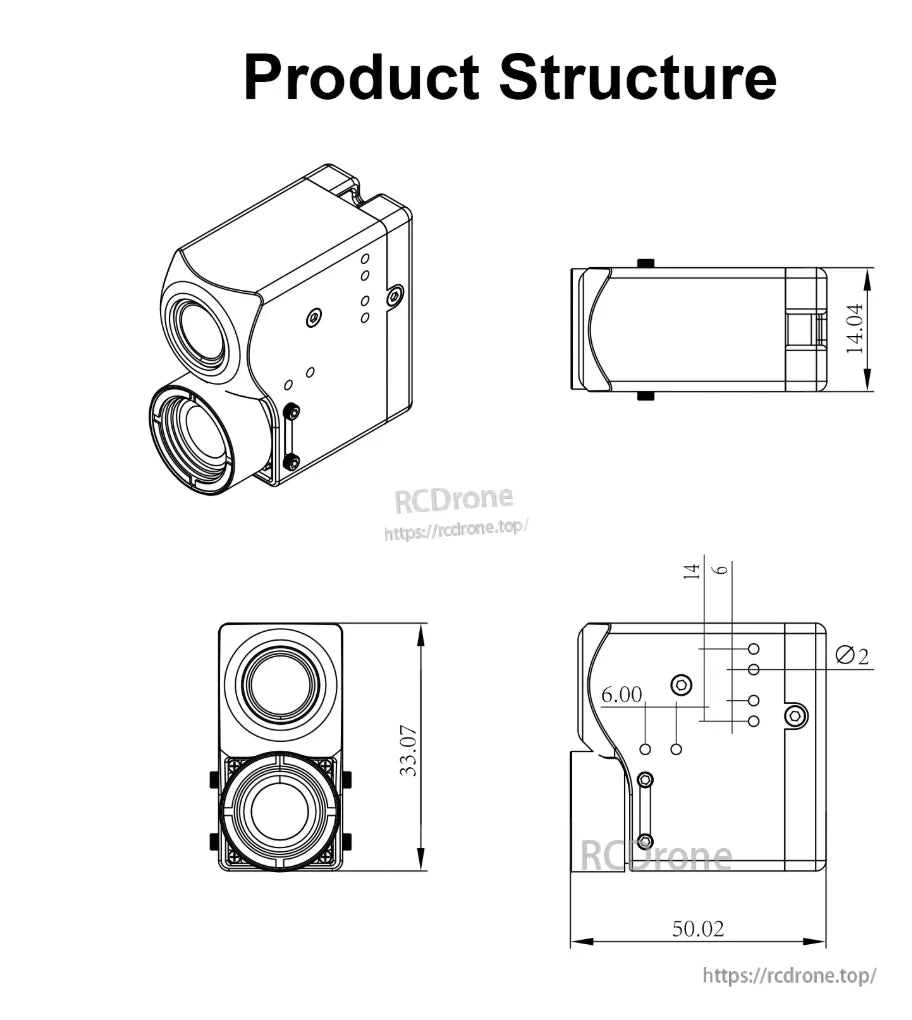

| Dimensions (drawing) | 50.02 / 33.07 / 14.04 |
| Other drawing callouts | 6.00; 14; 6; Ø2 |
NAJA Camera
| Sensor | 1/8" |
| Lens | 4.0mm |
| Horizontal Resolution/Definition | 1500TVL |
| Video mode | NTSC & PAL |
| Video output | CVBS |
| FOV | 125° |
| Signal-to-noise ratio | > 38dB |
| WDR | Super WDR(HDR) |
| Minimum Illumination | 0.00001 Lux |
| Digital noise reduction | 3D-DNR |
| Day and night switch | Color/AR Black Light/Auto |
| Voltage Input | DC 5V-28V |
| Operating temperature | -20°C~+70°C |
| Aspect Ratio | 16:9/4:3 |
| White balance | Automatically track white balance |
| Weight | 6.0g |
| Mounting Dimensions | 19mm x 19mm (M2) |
| OSD Menu | Supported |
| Exposure | Electronic shutter/automatic gain control/Brightness |
| Video setup | Contrast/sharpness/saturation/digital noise reduction |
| Language | English/German/Italian/Russian/Japanese |
Thermal Camera (CVBS output; multiple colors to choose from)
| Series | TC256 | TC384 | TC640 |
| Resolution | 256*192 | 384*288 | 640*512 |
| Detector Type | Vanadium Oxide Uncooled Infrared Focal Plane Detector | ||
| Effective Frame Rate | 60fps | ||
| Pixel Pitch | 12um | ||
| Spectral Band | 8~14um | ||
| NETD | 25mK | ||
| Lens Parameters | 9.7mm F1.0 | 9.7mm F1.0 | 9.1mm F1.0 |
| FOV (H*V) | 9.7mm: 18.1°(H) x 13.6°(V) | 9.7mm: 26.46°(H) x 19.81°(V) | 9.1mm: 48.3°(H) x 38.6°(V) |
| Polarity / Palette | White heat, black heat, fusion, iron red, fusion | ||
| Power Supply Input | 5V-16V | ||
| Power | ≤0.8W | ||
| Output | CVBS | ||
| Analog Video | PAL | ||
| Dimensions | 22 x 22 x 37.7mm | ||
| Weight | approx. 32g | ||
| Operating Temperature | -40°C~+80°C | ||
| Frame Rate | 25HZ | 60HZ | |
| Storage Temperature | -45°C~+85°C | -50°C~+85°C | |
Wiring / Switching
- Switch camera through servo mapped to LED.
- Switch camera through servo mapped to motor 5.
- The flight controller is connected to the CAM2 port by default. Switch to the CAM1 port using the USER1 soft serial. In Betaflight Configurator, enable USER1 in the modes tab and map it to the corresponding switch to toggle between camera feeds.
For pre-sales and setup support, contact support@rcdrone.top or visit https://rcdrone.top/.
Details

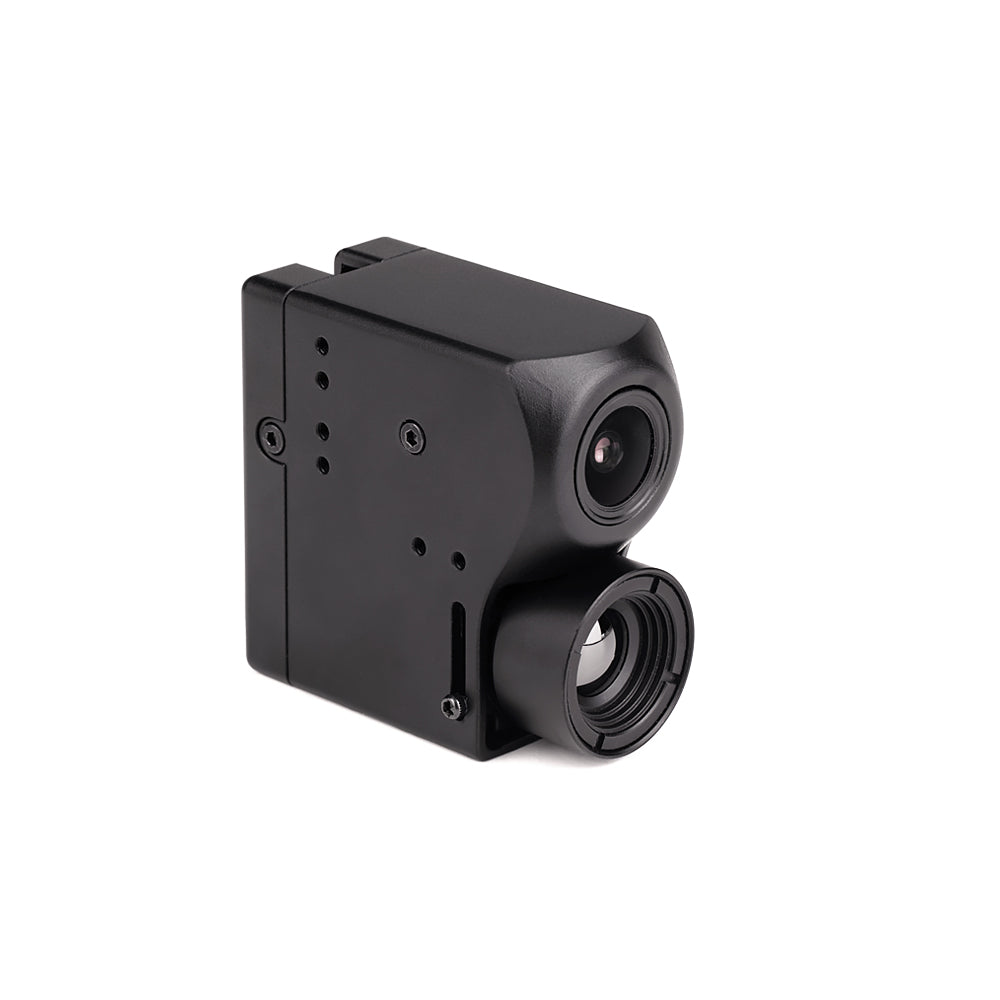

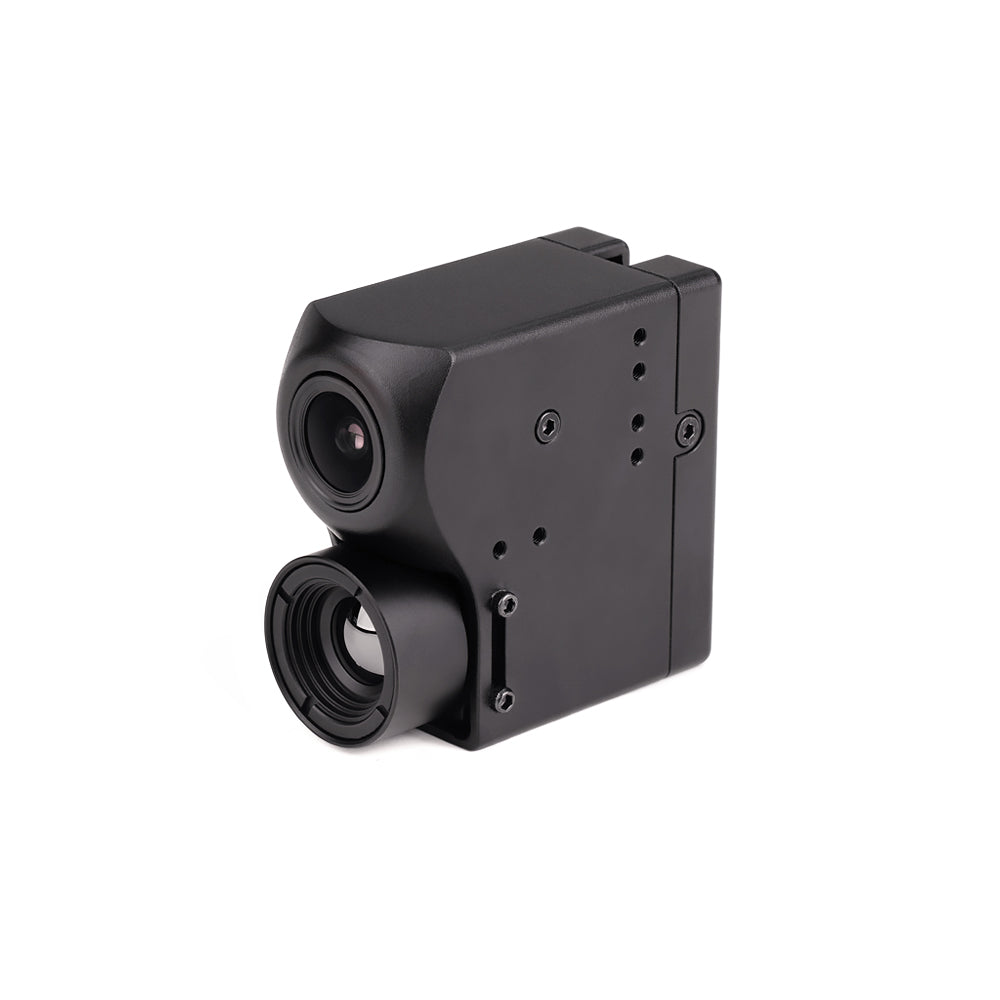

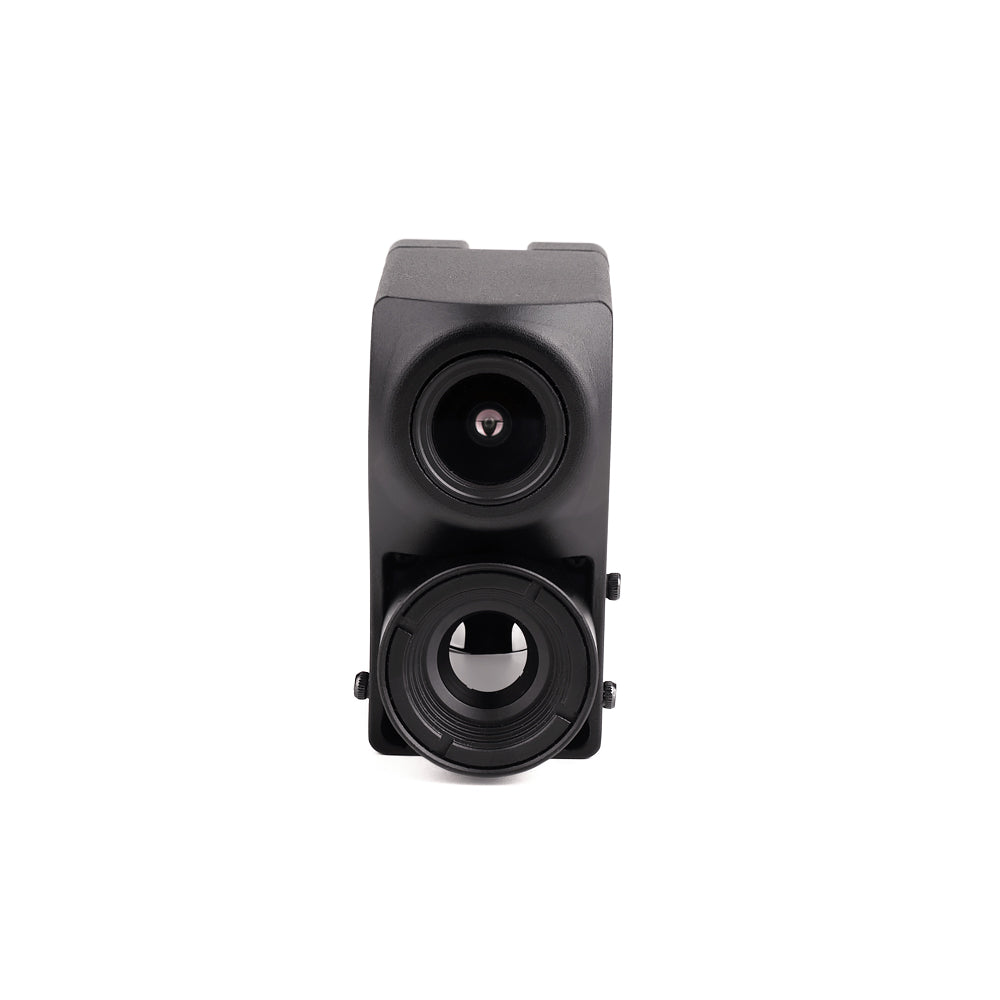

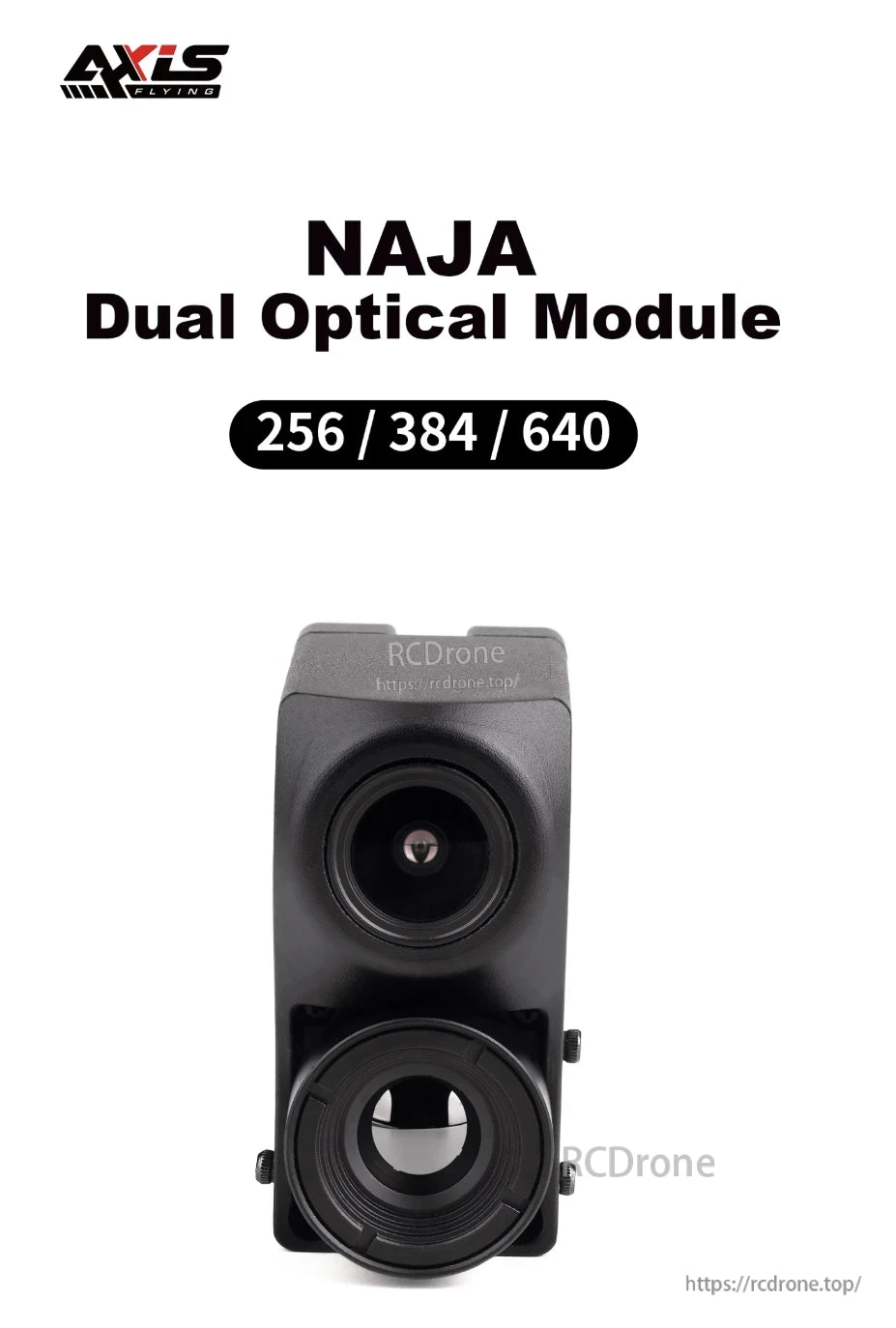

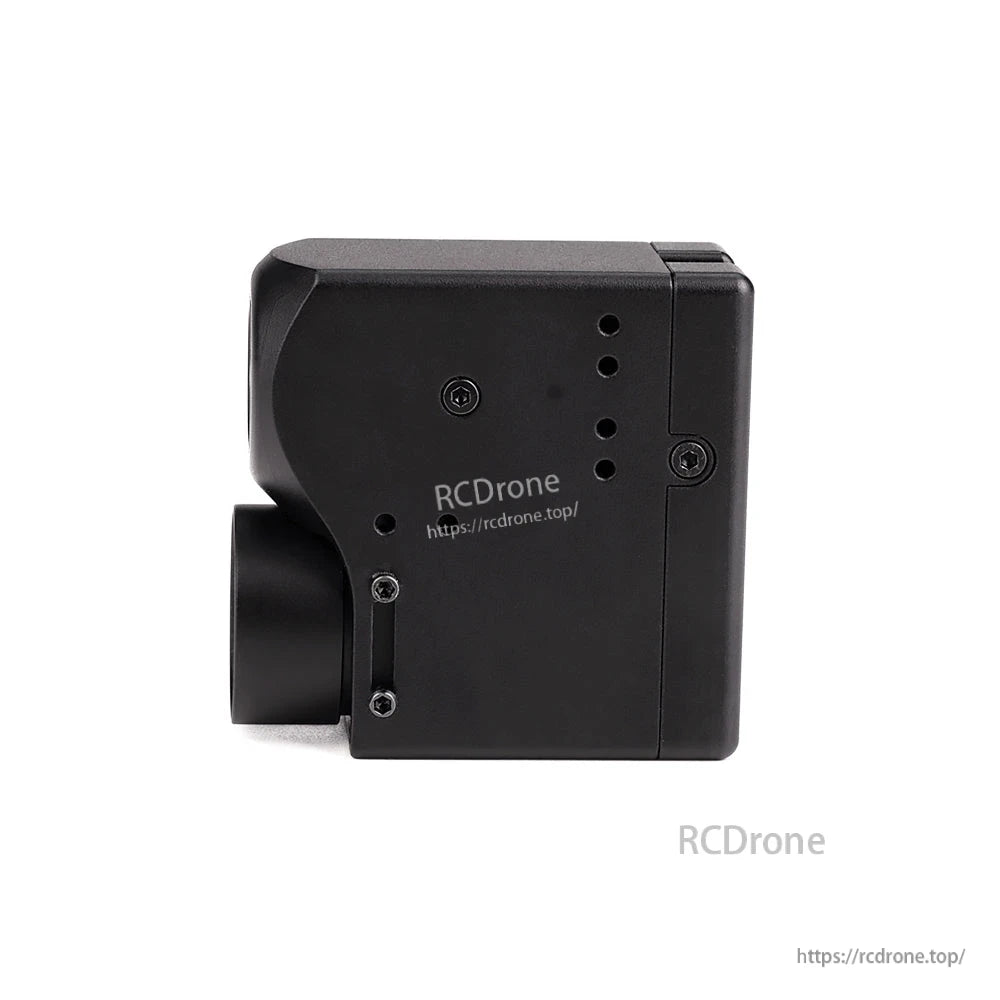

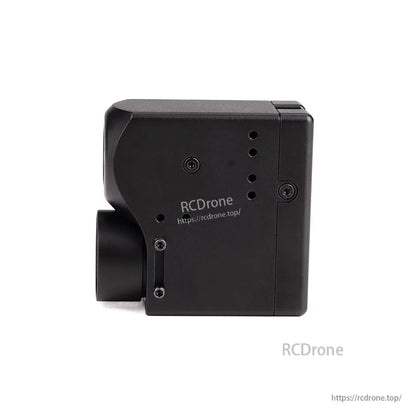

The Axisflying NAJA dual optical module combines two front-facing lenses in one compact housing for FPV DIY builds.

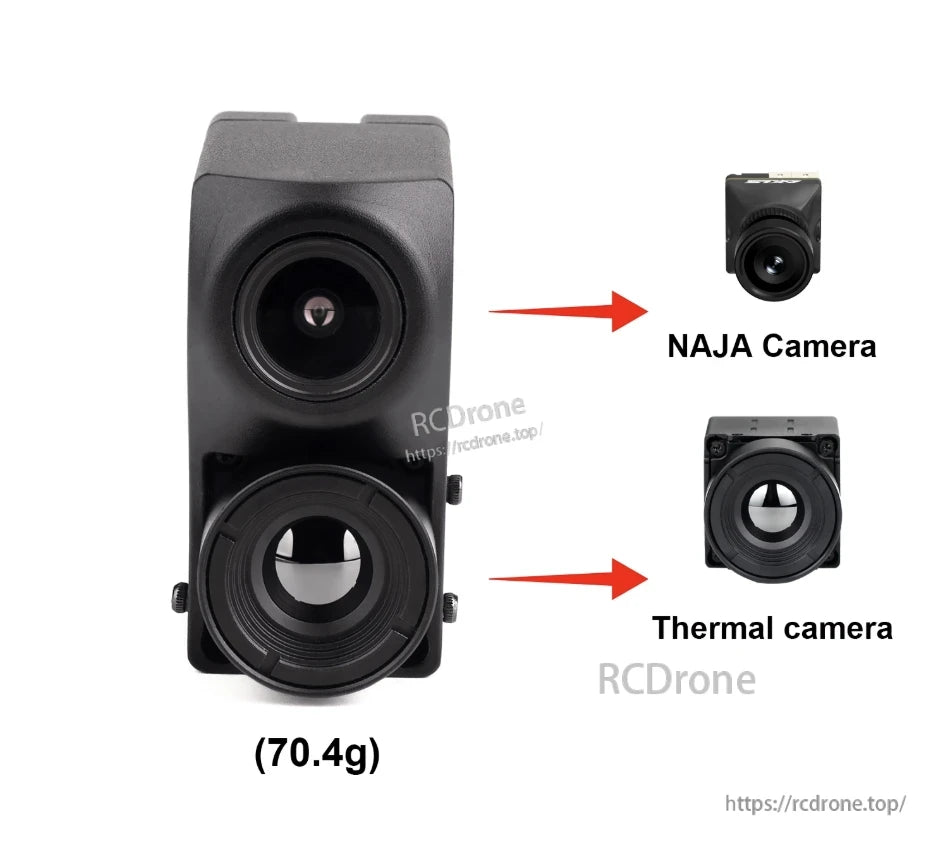

The ECO NAJA dual optical module combines a NAJA camera and a thermal camera in one stacked unit weighing 70.4g.
The dual-lens module measures about 50.02 mm long, 33.07 mm tall, and 14.04 mm wide for easier mounting planning.
The NAJA dual camera module can be wired to CAM1/CAM2 with 5V and GND, and camera switching can be mapped via LED or motor 5 in Betaflight.
NAJA camera specs list 1500TVL CVBS output with 125° FOV and DC 5V–28V input, alongside TC256/TC384/TC640 thermal options with CVBS output and 5V–16V power input.
