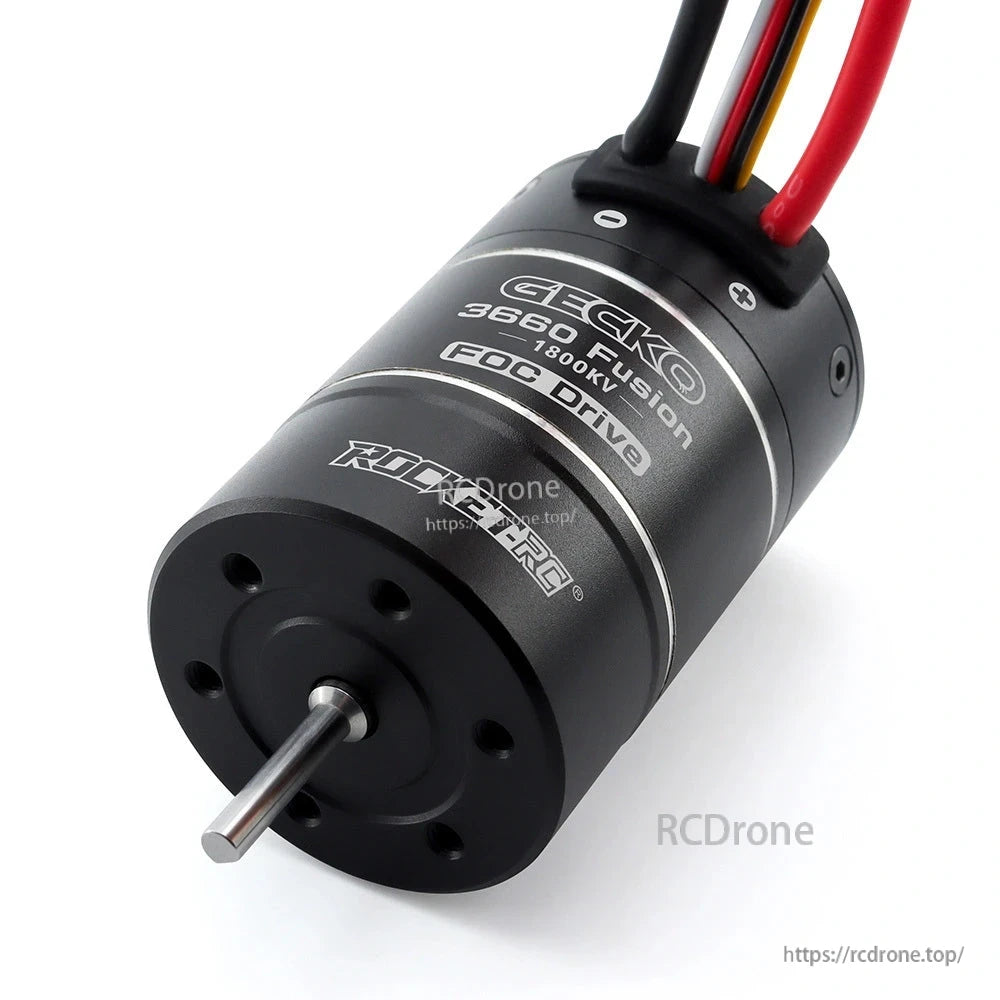

  • Rocket-RC GECKO 3660 Fusion 1800KV motor front view with steel output shaft
1 10

Rocket-RC GECKO 3660 Fusion 1800KV 2-in-1 Sensored Brushless Motor & 40A ESC for 1/10 Crawlers

Rocket-RC GECKO 3660 Fusion 1800KV 2-in-1 Sensored Brushless Motor & 40A ESC for 1/10 Crawlers

Rocket-RC

$99.00 USD
$99.00 USD
할인 품절
세금이 포함된 가격입니다. 배송료는 결제 시 계산됩니다.
Options
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
전체 세부 정보 보기

Overview

The Rocket-RC GECKO 3660 Fusion is a 2-in-1 sensored brushless motor and 40A ESC system for 1/10 RC crawler cars. Its integrated FOC drive combines the motor and ESC in a compact 36 x 56 mm assembly to help simplify chassis wiring and component layout.

Key Features

  • 1800KV sensored brushless 3660 motor with integrated 40A ESC
  • FOC drive with built-in magnetic encoder for rotor-position detection, low-speed torque, and linear low-speed control
  • IP67-rated waterproof and dustproof protection
  • Three operating modes: Forward with Brake, Forward/Reverse with Brake, and Forward/Reverse
  • Selectable BEC output: 6.0V, 7.4V, or 8.4V; 4A continuous and 8A maximum output
  • Built-in LED electronic switch for real-time motor-status and fault-code indication
  • ESC protections include over-temperature, overload, overcurrent, low-battery-voltage, and throttle-signal-loss protection
  • Supports LED digital programming cards with up to 20 programmable parameters; programming card is sold separately
  • 220 C high-temperature resistant enameled wire and stainless-steel shaft

For product assistance or compatibility questions, contact [email protected].

Specifications

Model GECKO 3660 Fusion
Motor Type Sensored brushless
Motor Size 3660
Motor KV 1800KV
ESC Continuous Current 40A
Suitable Vehicle 1/10 crawler car
Battery Input 2-3 cells LiPo; 4-9 cells NiMH
BEC Output 6.0V / 7.4V / 8.4V, 4A continuous, 8A maximum
Dimensions 36 x 56 mm
Shaft Diameter 3.175 mm
Wire Length 175 mm
Weight 177.8 g
Waterproof Rating IP67

Available Options

  • GECKO 3660 1800KV 2-in-1 Motor + ESC
  • Programming Card

Details

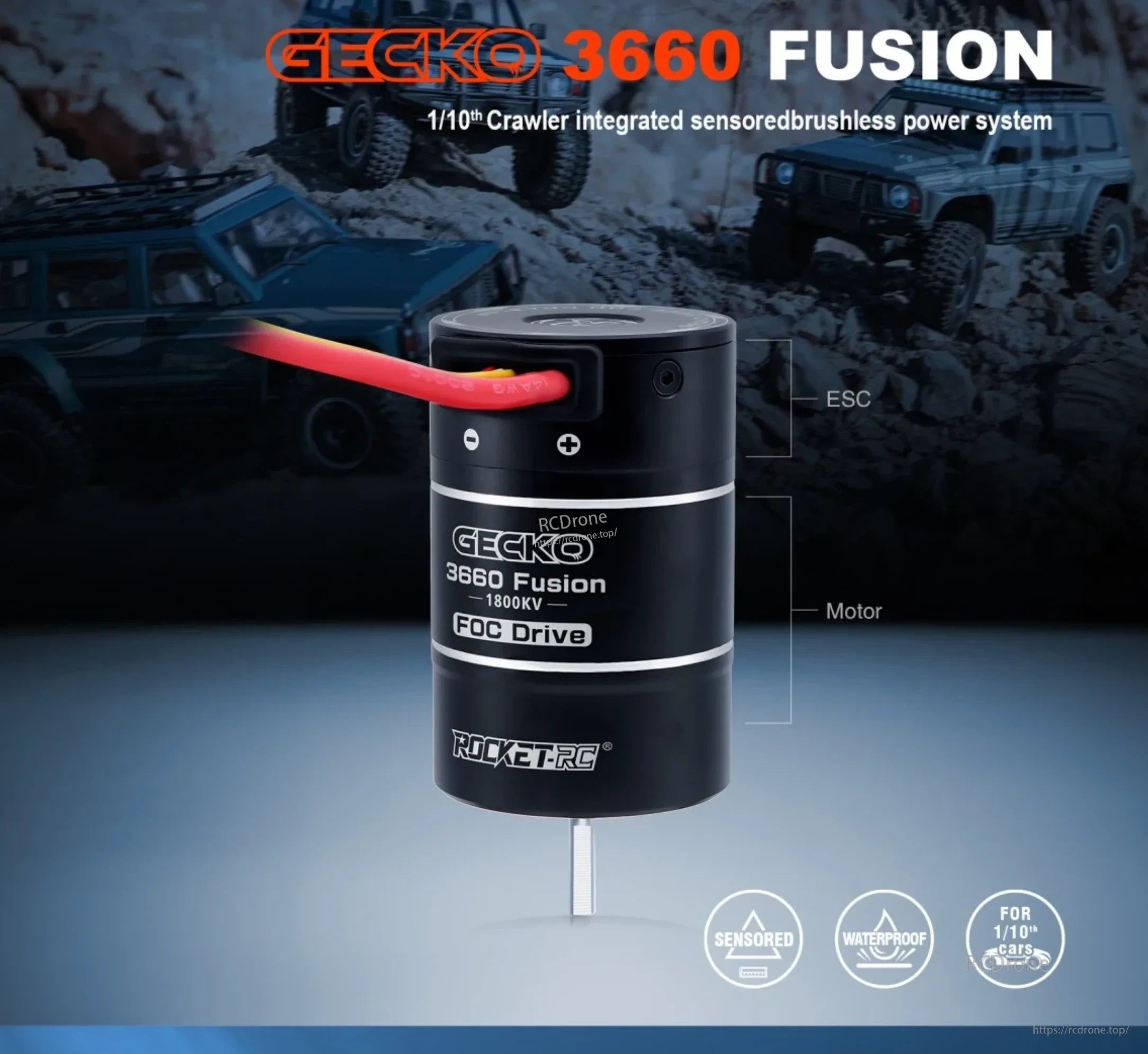

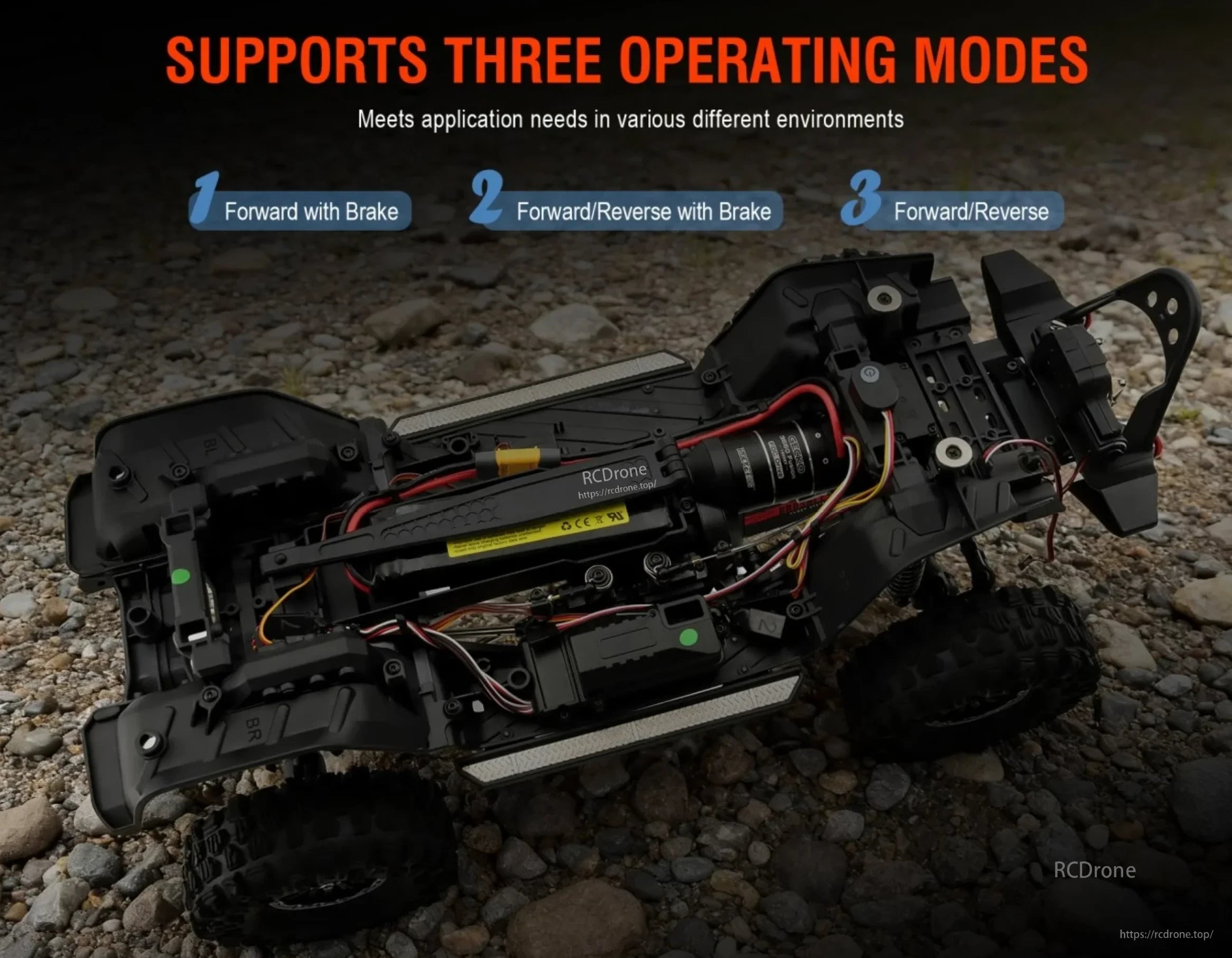

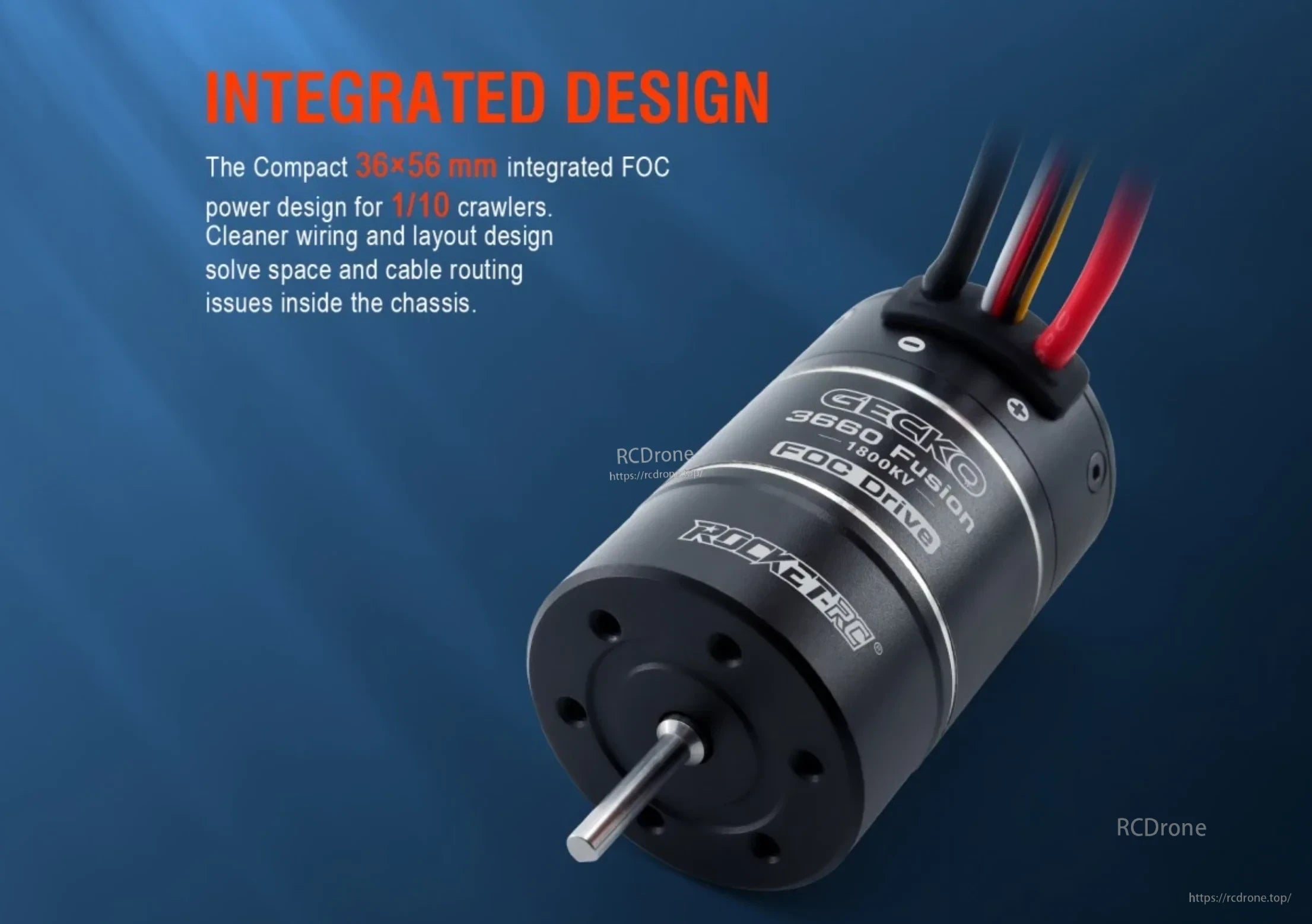

Rocket-RC GECKO 3660 Fusion 1800KV sensored brushless motor with integrated 40A ESCCompact GECKO 3660 Fusion motor and ESC assembly with output shaft and integrated wiringGECKO 3660 Fusion installed in a 1/10 crawler chassis with three selectable operating modes

Three operating modes support Forward with Brake, Forward/Reverse with Brake, and Forward/Reverse control.

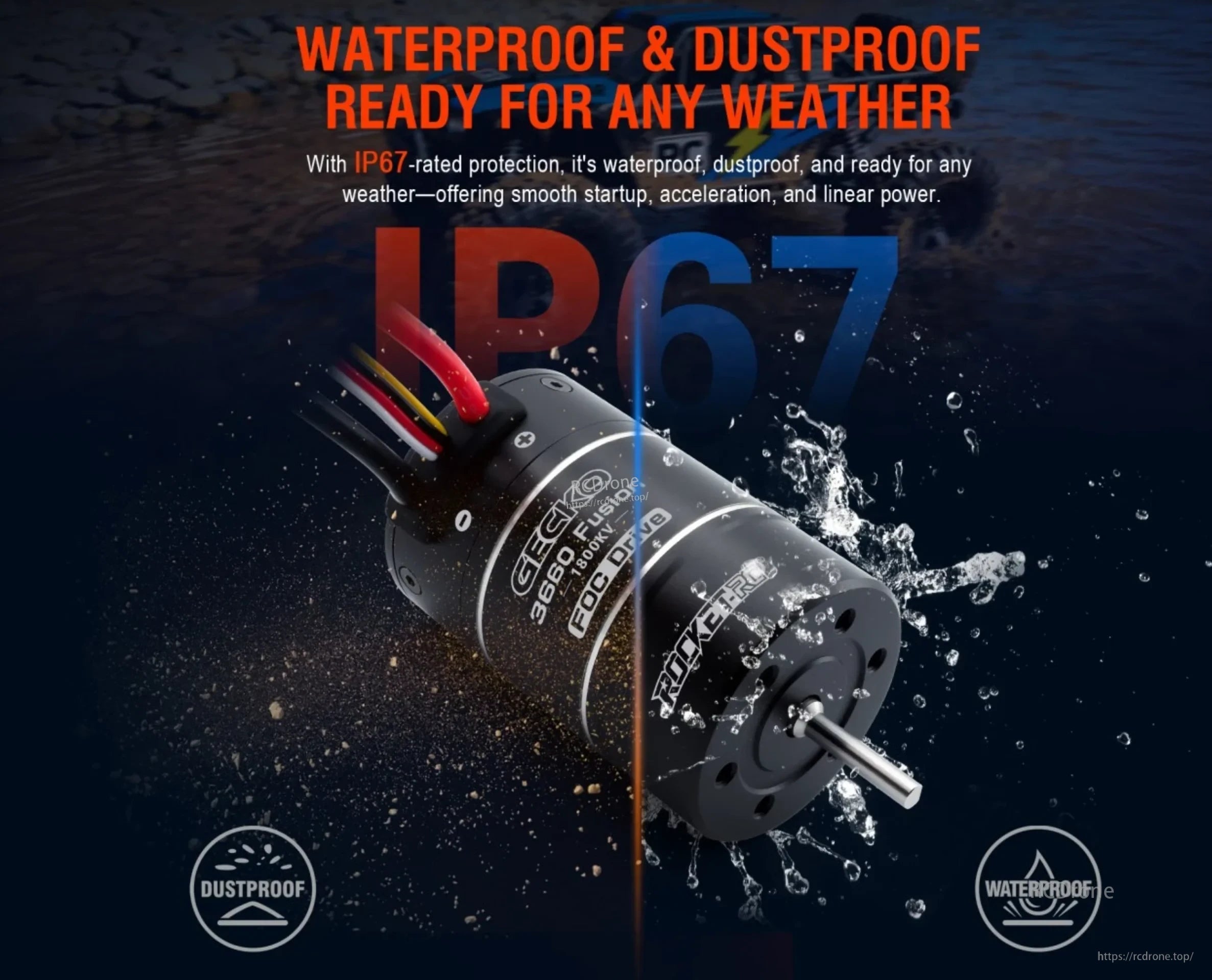

GECKO 3660 Fusion motor and ESC with IP67 waterproof and dustproof protection

IP67-rated protection helps the integrated power system handle wet and dusty crawler conditions.

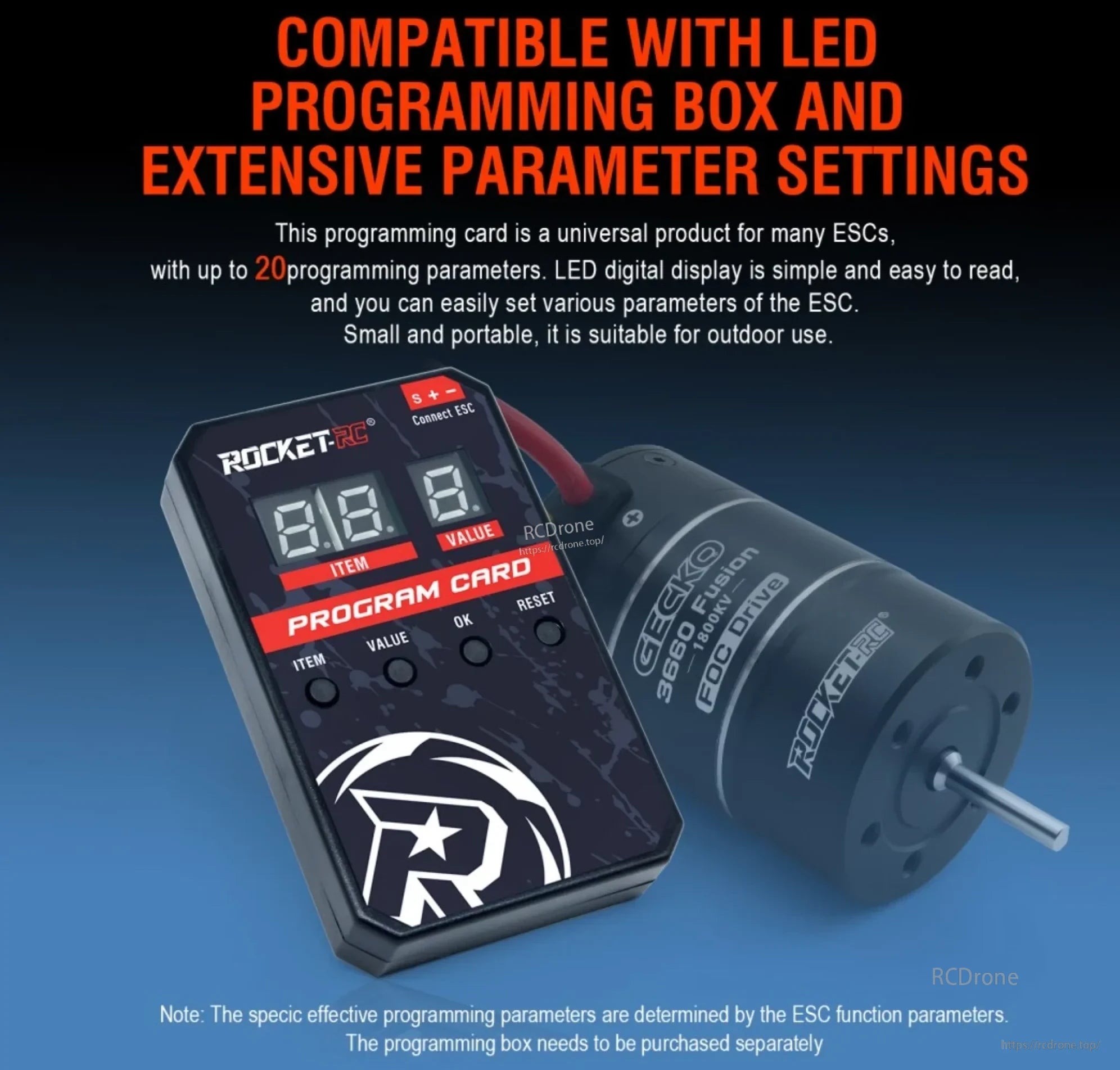

Rocket-RC LED programming card beside GECKO 3660 Fusion motor and ESC

An optional LED programming card provides access to up to 20 adjustable ESC parameters.

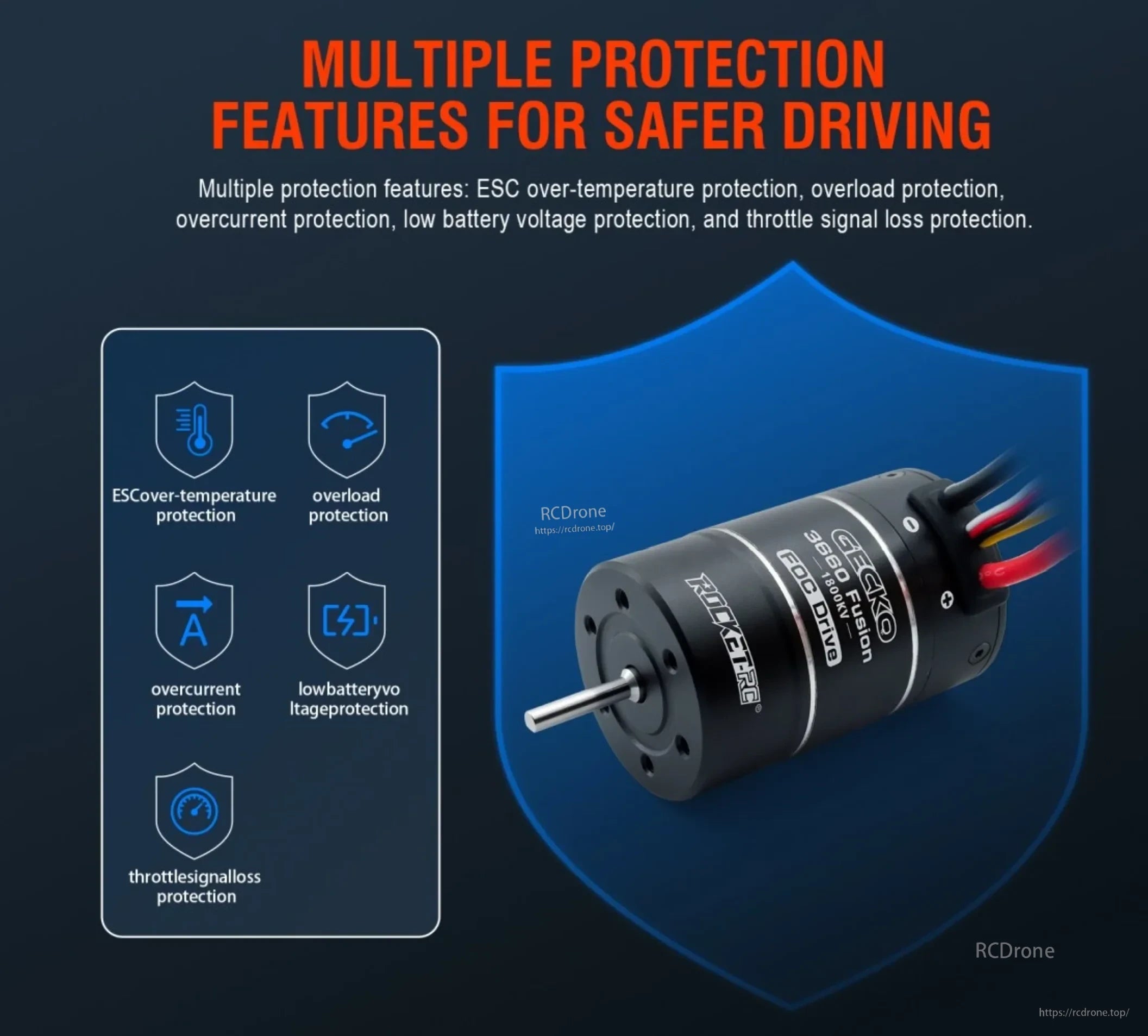

GECKO 3660 Fusion protection features for temperature, overload, current, voltage and signal loss

Built-in safeguards cover over-temperature, overload, overcurrent, low-voltage, and throttle-signal-loss conditions.

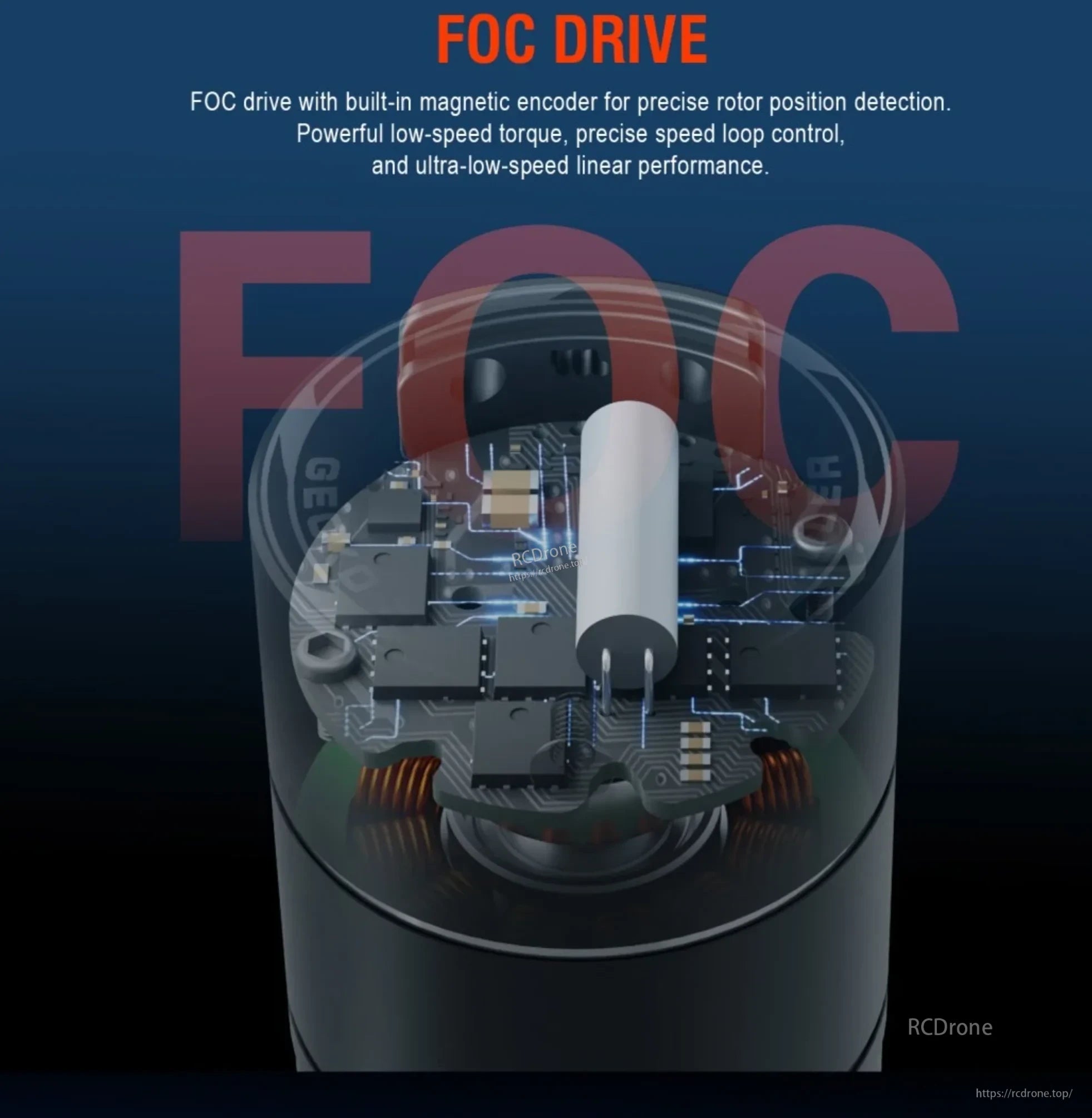

FOC drive and built-in magnetic encoder inside the GECKO 3660 Fusion motor

FOC drive with a magnetic encoder supports precise rotor detection, controlled low-speed operation, and torque.

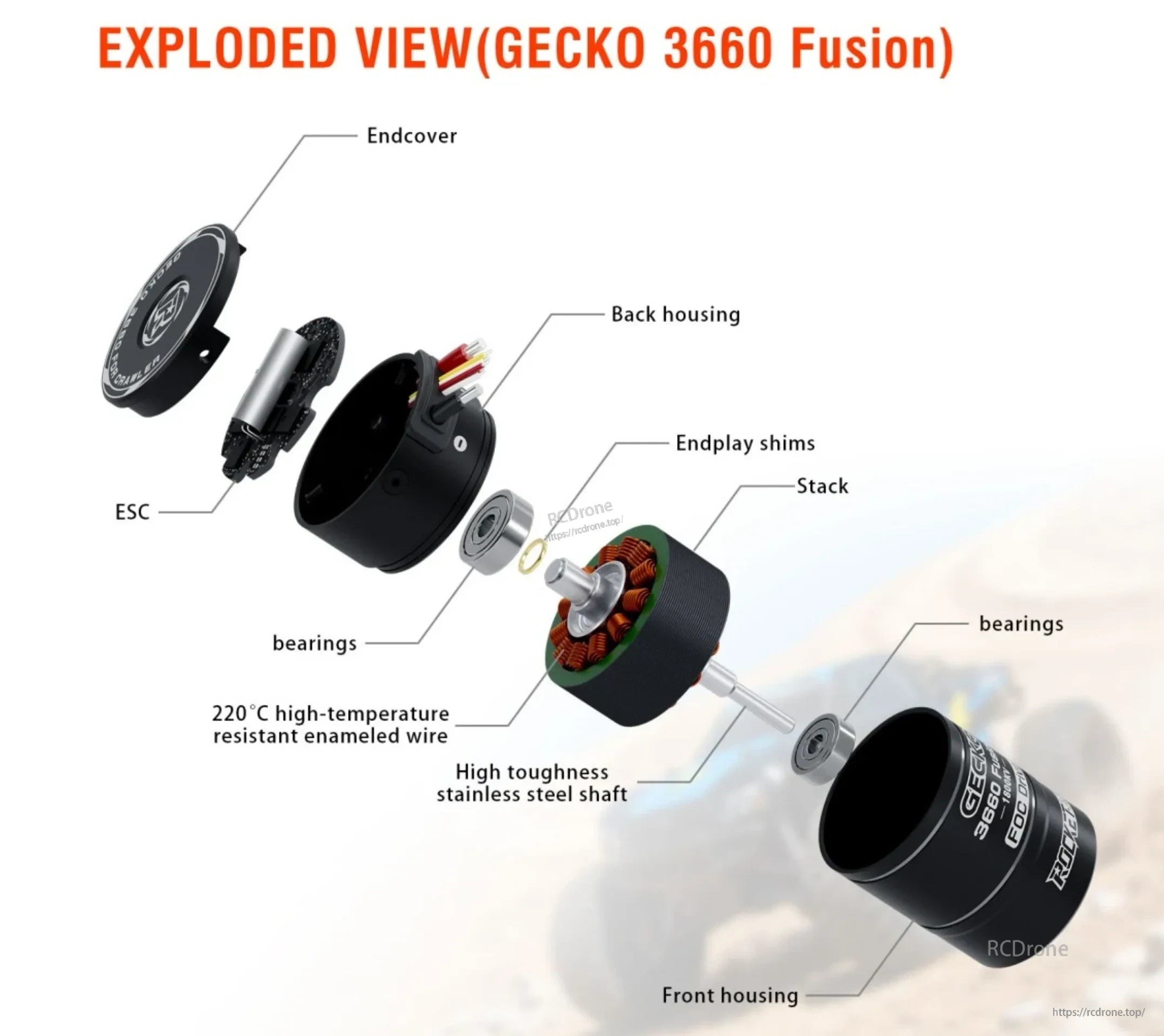

Exploded view of GECKO 3660 Fusion with integrated ESC, bearings, shaft and motor components

The compact construction combines the ESC and motor while using a stainless-steel shaft and high-temperature enameled wire.

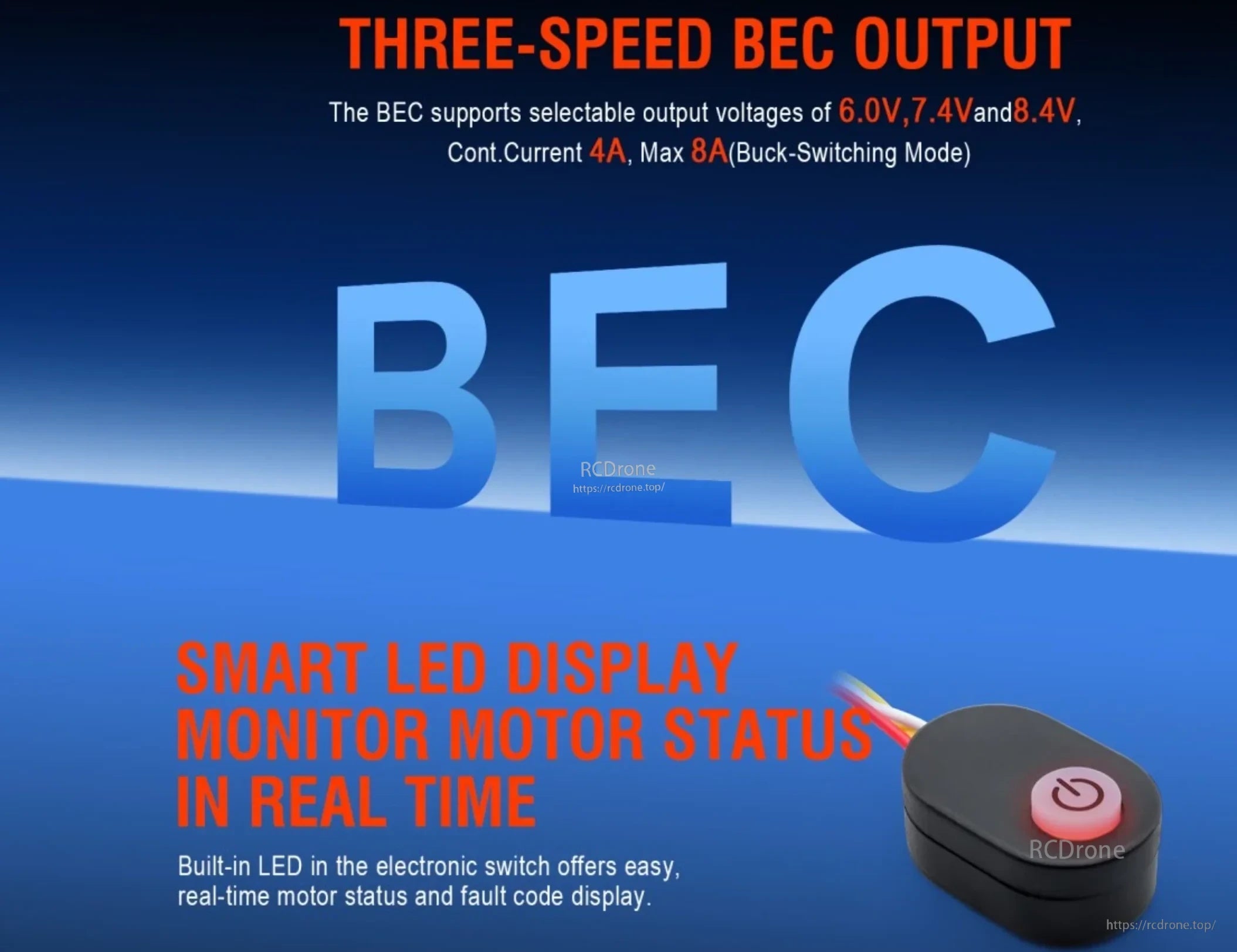

GECKO 3660 Fusion selectable BEC voltage output and LED electronic power switch

Select 6.0V, 7.4V, or 8.4V BEC output; the LED electronic switch also communicates motor status and fault codes.

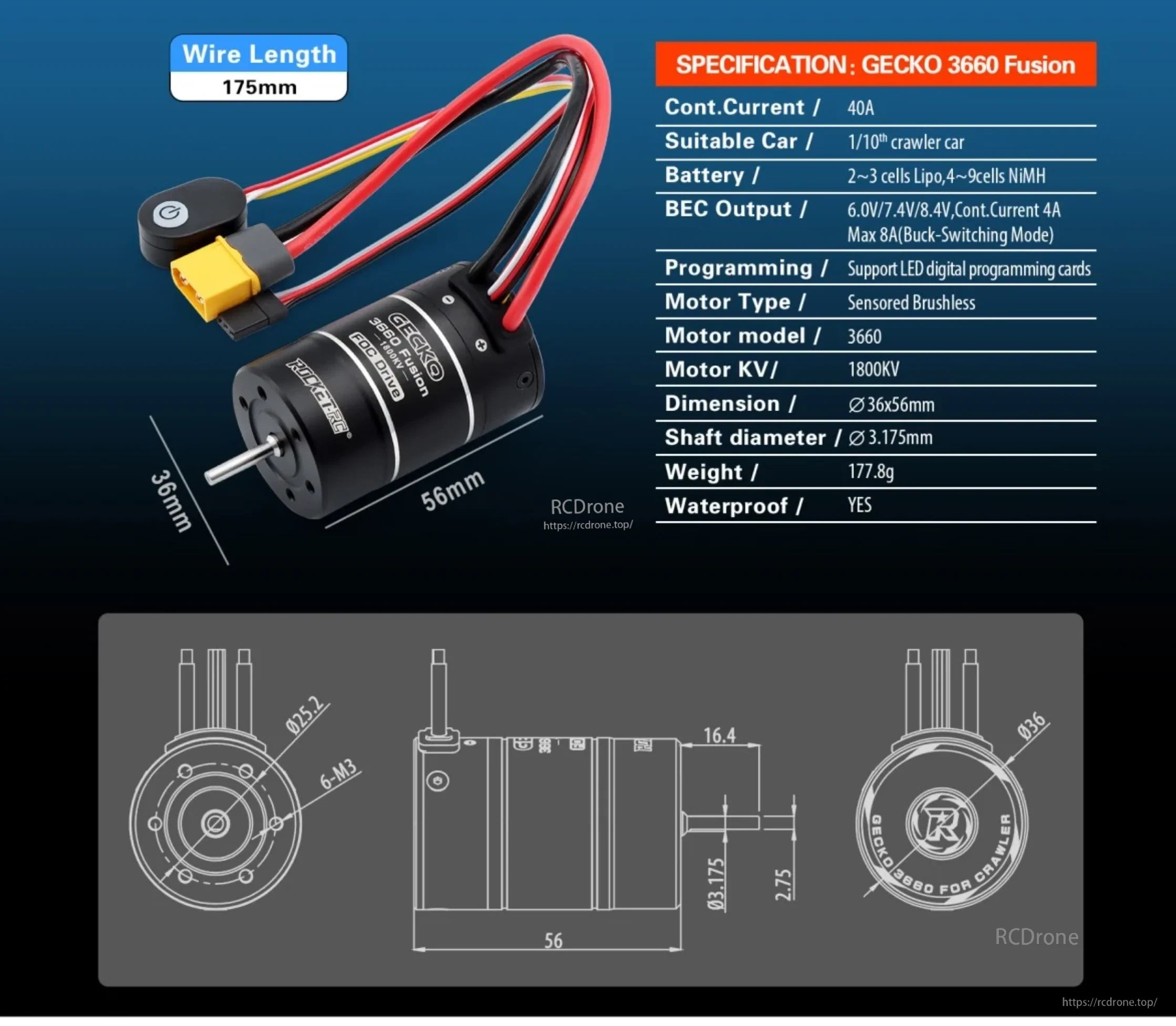

GECKO 3660 Fusion 36 x 56 mm dimensions, 175 mm wire length and specification chart

The 36 × 56 mm unit has a 175 mm wire length, 3.175 mm shaft, and 40A continuous current rating.
