SIYI F9P RTK GPS GNSS 모듈 개요
SIYI F9P RTK GPS GNSS 모듈은 고정밀 애플리케이션용으로 설계된 고급 네비게이션 시스템입니다. 184채널 ZED-F9P(UBLOX) 수신기, IST8310 나침반, GPS, GLONASS, Beidou 및 Galileo를 지원하는 이 제품은 센티미터 수준의 위치 정확도를 제공합니다. 핵심 기능에는 듀얼 모듈 방향 찾기, 전환 가능한 모바일 및 기지국 모드, PX4/Ardupilot과의 호환성이 포함됩니다. 주요 매개변수에는 1cm + 1ppm의 위치 정확도, 55초 미만의 RTK 측량 시간, 23초 미만의 GPS 콜드 스타트 시간이 포함됩니다. -30~75℃에서 낮은 전력 소모로 작동하며 드론 네비게이션, 로봇 공학, 토지 측량에 이상적이며 다양한 환경에서 안정적인 성능을 보장합니다.
SIYI F9P RTK 모듈 사양
범주 | 사양 |
---|---|
위성 수신기 | 184채널 ZED-F9P(UBLOX) |
나침반 | IST8310 |
GNSS | GPS, GLONASS, 베이두, 갈릴레오 |
GNSS 대역 | GPS - L1C/A, L2C GLONASS - L1OF, L2OF GALILEO - E1B/C, E5b Beidou - B1I, B2I QZSS - L1C/A, L2C |
위치 정확도 | 1cm + 1ppm |
방향(파인더 정확도) | (0.25/R)° R = 두 개의 이동국 안테나 사이의 거리(미터). *방향을 위해서는 두 개의 이동국이 필요합니다 |
단일 지점 위치 지정 | 1.5m CEP |
SBAS 보조 포지셔닝 | 1.0m CEP |
조사 시간 | RTK < 55초 |
GPS 획득 시간 | 콜드 스타트 < 23초 핫 스타트 < 1초 |
안테나 게인 | 모바일: 2dBi 기본: 5.5dBi |
이중 안테나 방향 찾기 | 지원 요 정확도: 0.35edg(참고용) |
인터페이스 | UART 2개 USB(C형) 1개 |
안테나 커넥터 | MMCX |
작동 전압 | 4.5~5.5V |
전력 소비 | 0.6W |
작동 온도 | -30 ~ 75℃ |
제품 규격 | 47 x 33 x 13mm |
제품 무게 | 31그램 |
![SIYI F9P RTK GPS, High-accuracy navigation system for flight control systems, achieving 3D accuracy down to centimeters.](https://rcdrone.top/cdn/shop/files/F9PRTKproduct1.webp?v=1718334302)

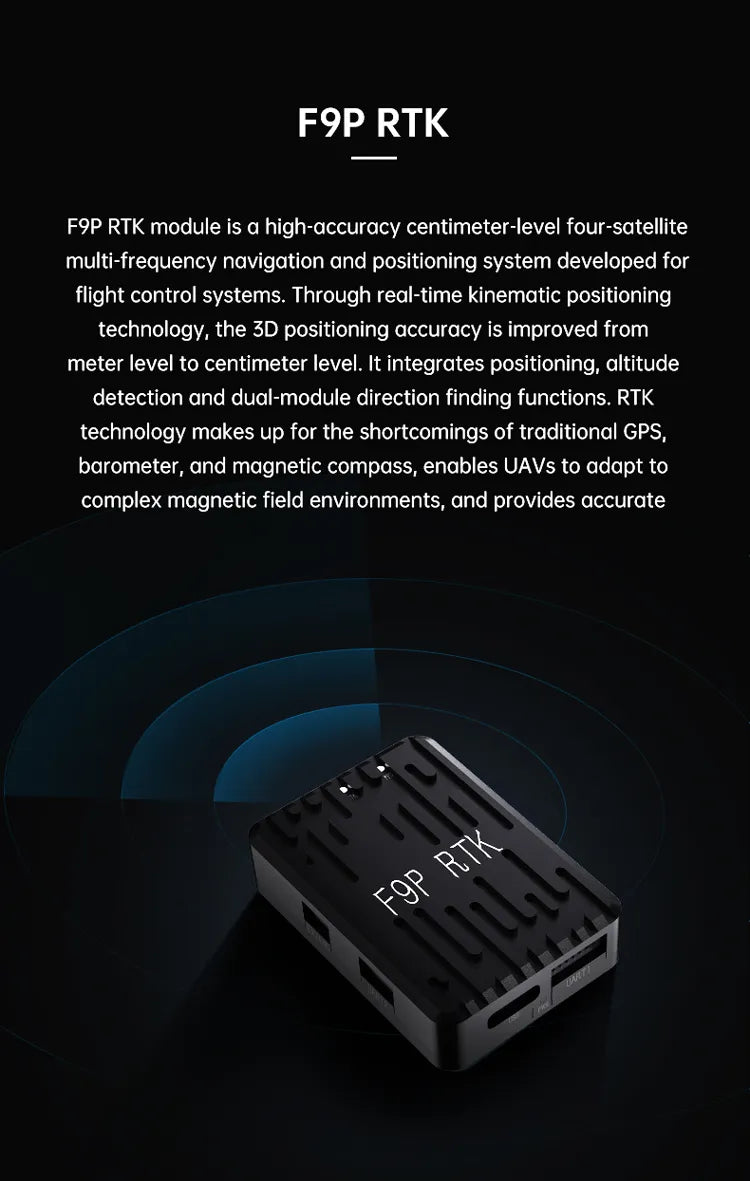

SIYI의 F9P RTK GPS 모듈은 비행 제어 시스템을 위한 고정밀 센티미터급 네비게이션 시스템입니다. 실시간 운동학적 위치 지정 기술을 활용하여 센티미터까지 3D 정확도를 달성합니다. 이 모듈은 위치 감지, 고도 측정 및 이중 모듈 방향 찾기를 통합합니다. 이 RTK 솔루션은 전통적인 GPS 한계를 극복하여 UAV가 복잡한 자기장에서도 높은 정밀도로 작동할 수 있도록 해줍니다.
![SIYI F9P RTK GPS, GPS GNSS module for precise centimeter-level positioning in various environments.](https://rcdrone.top/cdn/shop/files/F9PRTKproduct2.webp?v=1718334321)
SIYI F9P RTK GPS GNSS 모듈은 4개 위성, 다중 주파수 이중 모듈 시스템을 통해 센티미터 수준의 위치 확인 기능을 제공합니다. 이는 IST8310 나침반 및 기지국 Ardupilot에 탑재된 PX4와 호환되는 이동국을 위한 방향 찾기 및 전환 가능 모드를 갖추고 있습니다.
![SIYI F9P RTK GPS, Stable drone navigation module with advanced magnetic field adaptation and dual-module direction finding.](https://rcdrone.top/cdn/shop/files/F9PRTKproduct3.webp?v=1718334342)
SIYI F9P RTK GPS GNSS 모듈은 복잡한 자기장에 적응하는 이중 모듈 방향 찾기 기능을 갖추고 있어 나침반 대신 전력 검사와 같은 전자기 환경에서 안정적인 UAV 작동을 가능하게 합니다.
![SIYI F9P RTK GPS, Seamless switching between mobile/base stations via config uploads and compatible antennas (mushroom vs. 4-arm spiral).](https://rcdrone.top/cdn/shop/files/F9PRTKproduct4.webp?v=1718334359)

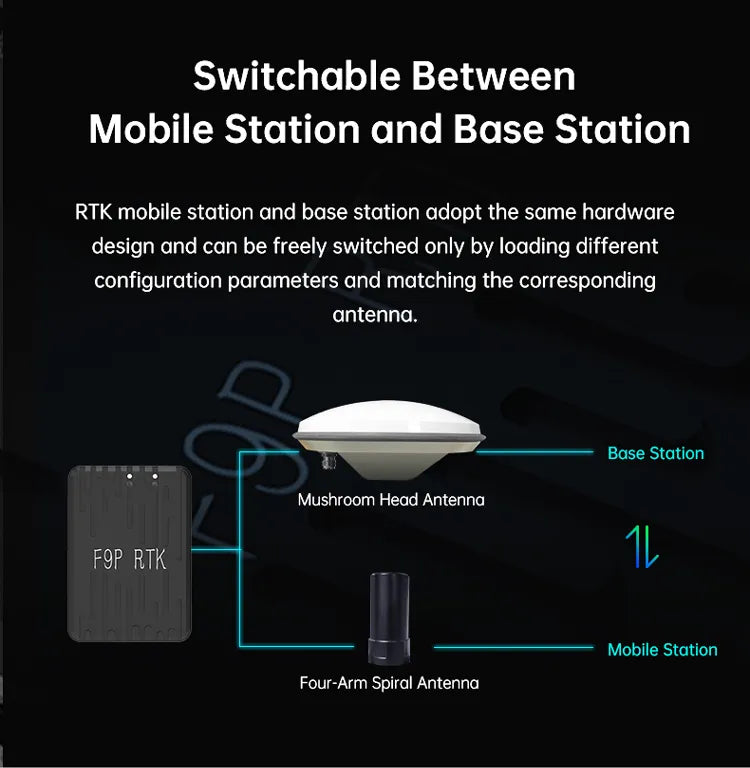

다양한 구성을 업로드하고 호환 가능한 안테나를 사용하여 모바일 스테이션과 기지국 간을 원활하게 전환합니다. 기지국은 머쉬룸 헤드를 사용하고 모바일 스테이션은 4암 나선형 안테나를 사용합니다.
![SIYI F9P RTK GPS, GPS/GNSS module with UART and USB interfaces, supporting up to 8 LNAs.](https://rcdrone.top/cdn/shop/files/F9PRTKproduct5.webp?v=1718334386)

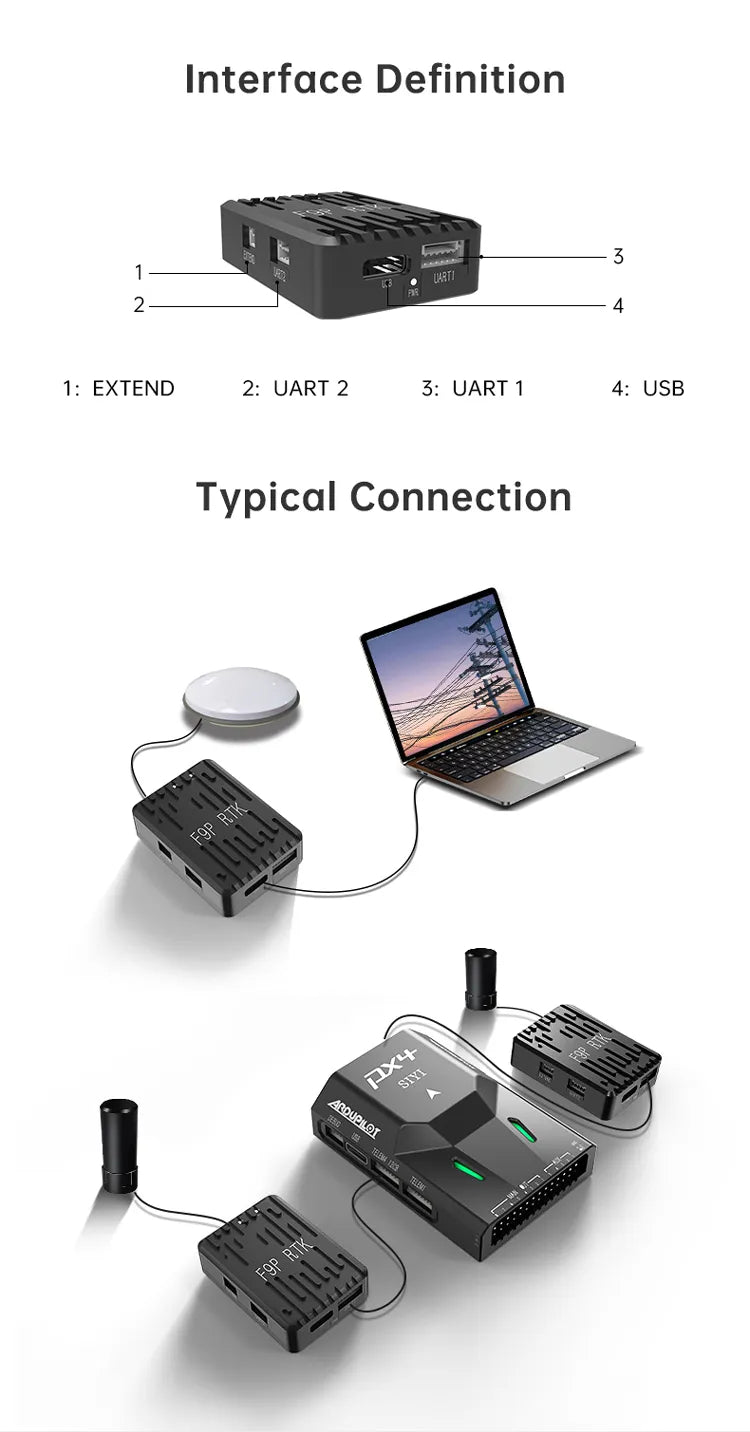

SIYI F9P RTK GPS GNSS 모듈은 2개 채널(UART1 및 UART2)이 있는 UART 인터페이스, USB 연결 기능을 갖추고 있으며 최대 8개 LNA의 일반적인 연결을 지원합니다.
![SIYI F9P RTK GPS, GPS module for real-time kinematic positioning with antenna combination for accurate location tracking.](https://rcdrone.top/cdn/shop/files/F9PRTKproduct6.webp?v=1718334404)

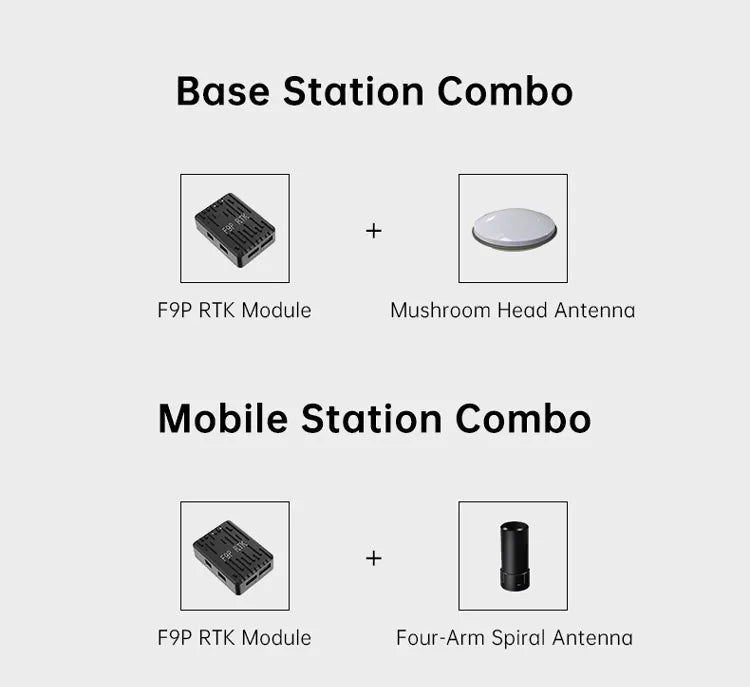

SIYI F9P RTK GPS GNSS 모듈: 머쉬룸 헤드 안테나가 있는 콤보 기지국과 RTK(실시간 운동학) 포지셔닝을 위한 4암 나선형 안테나가 있는 모바일 스테이션입니다.
![SIYI F9P RTK GPS GNSS Module: Satellite receiver with high accuracy and multiple interfaces.](https://rcdrone.top/cdn/shop/files/F9PRTKproduct7.webp?v=1718334433)

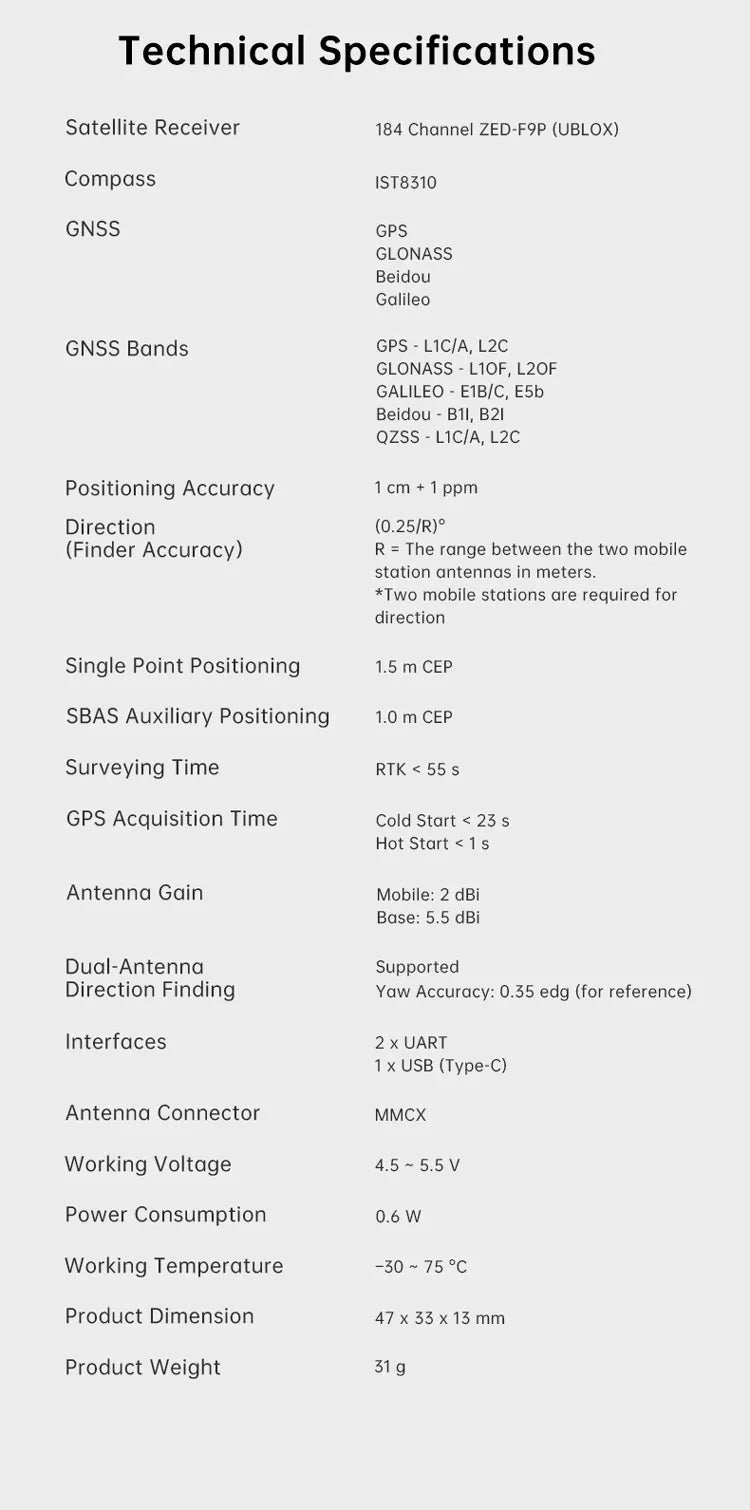

SIYI F9P RTK GPS GNSS 모듈: 184개 채널의 위성 수신기, ZED-FOP(UBLOX) 나침반, IST8310 GNSS, GPS, GLONASS, Beidou, Galileo 지원; 기술 사양에는 cm/ppm의 위치 정확도, (0.25/R)의 방향 정확도, 2 x UART 및 USB(Type-C)와 같은 인터페이스가 포함됩니다. 또한 안테나 이득, 작동 전압, 전력 소비 및 작동 온도도 제공합니다.
![SIYI F9P RTK GPS GNSS Module](http://rcdrone.top/cdn/shop/files/22c7413afc.webp?v=1718332749&width=1445)
![SIYI F9P RTK GPS GNSS Module](http://rcdrone.top/cdn/shop/files/1e8ced48b8.webp?v=1718332749&width=1445)
![SIYI F9P RTK GPS GNSS Module](http://rcdrone.top/cdn/shop/files/6f03255eb0.webp?v=1718332748&width=1445)
![SIYI F9P RTK GPS GNSS Module](http://rcdrone.top/cdn/shop/files/e3570b1f77.webp?v=1718332749&width=1445)
![SIYI F9P RTK GPS GNSS Module](http://rcdrone.top/cdn/shop/files/0e9fc34f35.webp?v=1718332748&width=1445)
![SIYI F9P RTK GPS GNSS Module](http://rcdrone.top/cdn/shop/files/1d412dca04.webp?v=1718332748&width=1445)
![SIYI F9P RTK GPS GNSS Module](http://rcdrone.top/cdn/shop/files/2d5310c4ed.webp?v=1718332748&width=1445)
![SIYI F9P RTK GPS GNSS Module](http://rcdrone.top/cdn/shop/files/8fb5aeeb77.webp?v=1718332748&width=1445)
![SIYI F9P RTK GPS GNSS Module](http://rcdrone.top/cdn/shop/files/45d078b28c.webp?v=1718332748&width=1445)
![SIYI F9P RTK GPS GNSS Module](http://rcdrone.top/cdn/shop/files/66ce1ac228.webp?v=1718332748&width=1445)
![SIYI F9P RTK GPS GNSS Module](http://rcdrone.top/cdn/shop/files/680f3ffb00.webp?v=1718332749&width=1445)
![SIYI F9P RTK GPS GNSS Module](http://rcdrone.top/cdn/shop/files/93018bf8e7.webp?v=1718332748&width=1445)
![SIYI F9P RTK GPS GNSS Module](http://rcdrone.top/cdn/shop/files/a893b0bed1.webp?v=1718332749&width=1445)
![SIYI F9P RTK GPS GNSS Module](http://rcdrone.top/cdn/shop/files/ab387ca6ed.webp?v=1718332748&width=1445)
![SIYI F9P RTK GPS GNSS Module](http://rcdrone.top/cdn/shop/files/d2018c76df.webp?v=1718332748&width=1445)
![SIYI F9P RTK GPS GNSS Module](http://rcdrone.top/cdn/shop/files/ed0d43dd5f.webp?v=1718332748&width=1445)
![SIYI F9P RTK GPS GNSS Module](http://rcdrone.top/cdn/shop/files/f6155e8e73.webp?v=1718332749&width=1445)
