Tattu 1800mAh 4S1P 14.8V 75C LiPo Battery Pack with XT60 Plug (JST-XHR Balance, 26.6Wh)
Tattu 1800mAh 4S1P 14.8V 75C LiPo Battery Pack with XT60 Plug (JST-XHR Balance, 26.6Wh)
TATTU
픽업 사용 가능 여부를 로드할 수 없습니다.
Overview
The Tattu 1800mAh 4S 75C LiPo Battery Pack with XT60 plug is a 4S1P (4-cell) battery pack rated at 14.8V and 26.6Wh. It uses an aluminium envelope designed for heat dissipation, with a standard balance plug and an XT60 main connector for FPV and RC power setups.
Key Features
- Stable automatic stacking technology enables single-cell capacities of 1800mAh.
- Strict single-cell capacity, voltage, resistance, and discharge curve matching process.
- Lithium polymer raw materials (Japan and Korea).
- Aluminium envelope for heat dissipation and impact resistance; designed to help minimize puffing during high discharge.
- Equipped with XT60 discharge connector and standard balance plug (JST-XHR).
Specifications
| Brand | Tattu |
| Capacity | 1800mAh |
| Capacity Range | 1000-2999mAh |
| Voltage | 14.8V |
| Cell Count / Configuration | 4S / 4 Cell / 4S1P |
| Energy | 26.6Wh |
| Discharge Rate | 75C |
| Max Burst Discharge Rate | 150C |
| Main Connector Type | XT60 |
| Balancer Connector Type | JST-XHR |
| Wire Gauge | AWG12# |
| Discharge Wire Length | 100mm |
| Balancer Wire Length | 65mm |
| Size (L x W x H) | 106mm x 36mm x 25mm |
| Length Tolerance | ±5mm |
| Width Tolerance | ±2mm |
| Height Tolerance | ±2mm |
| Weight | 202g |
| Net Weight Tolerance | ±20g |
| Store No. | E2-01A |
| Quantity per box | 20pcs/box |
| Over 300Wh | No |
| Preorder config | No |
| Is featured product | No |
For compatibility help (XT60 wiring, frame fit, or charger/balance lead support), contact support@rcdrone.top or visit https://rcdrone.top/.
Applications
- FPV and RC builds needing a 4S (14.8V) LiPo battery pack with XT60 connector
- Designed for LRC Freestyle V1(270-296), CX Pro Quadcopter(228), Vortex, Super Mini H Quad Power Train, Holybro Kopis 1, and other large FPV racing drones (210mm and up)
Manuals
Warning
California Proposition 65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
Details

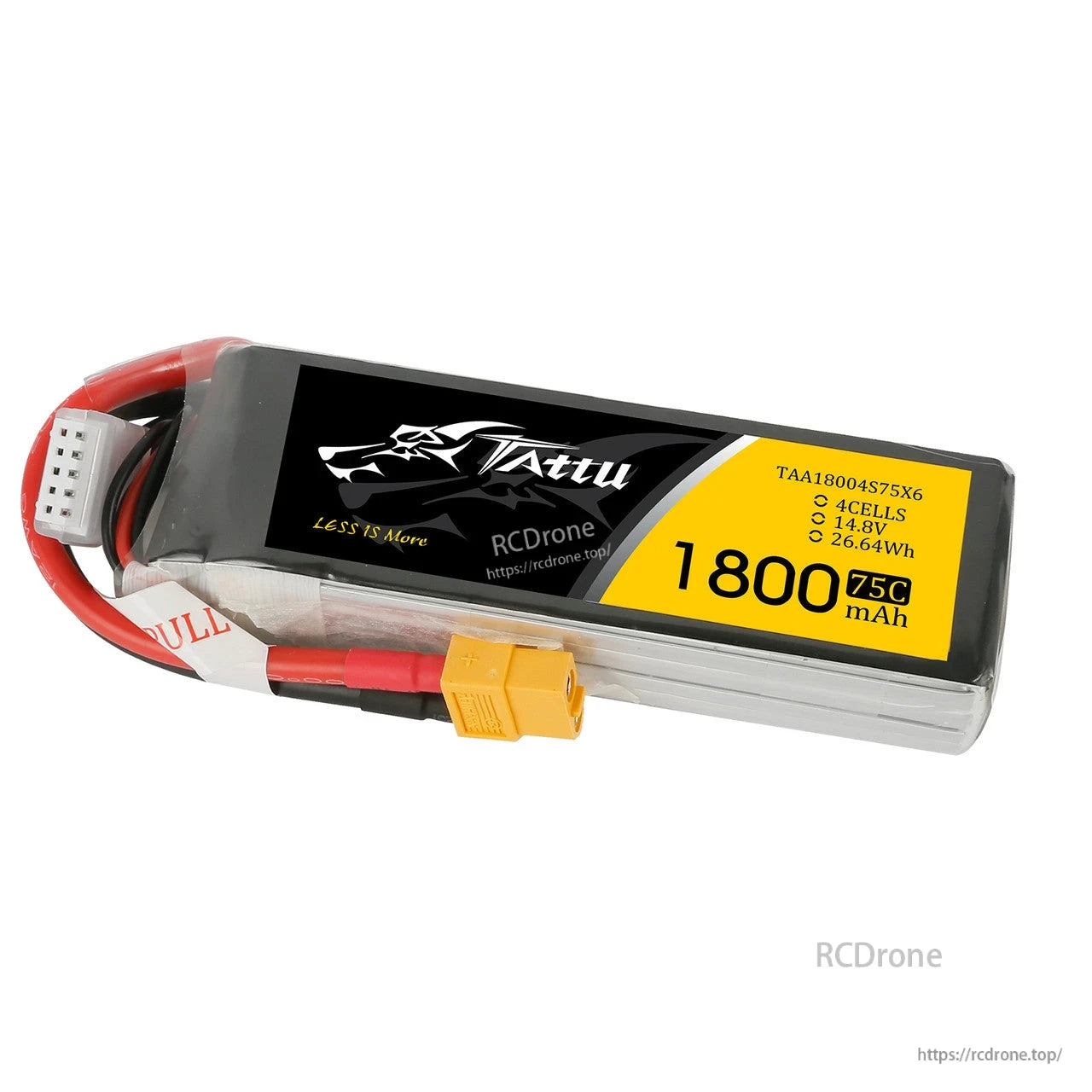

The Tattu 1800mAh 4S 14.8V 75C LiPo pack includes a main power lead and balance plug for charging and easy installation.

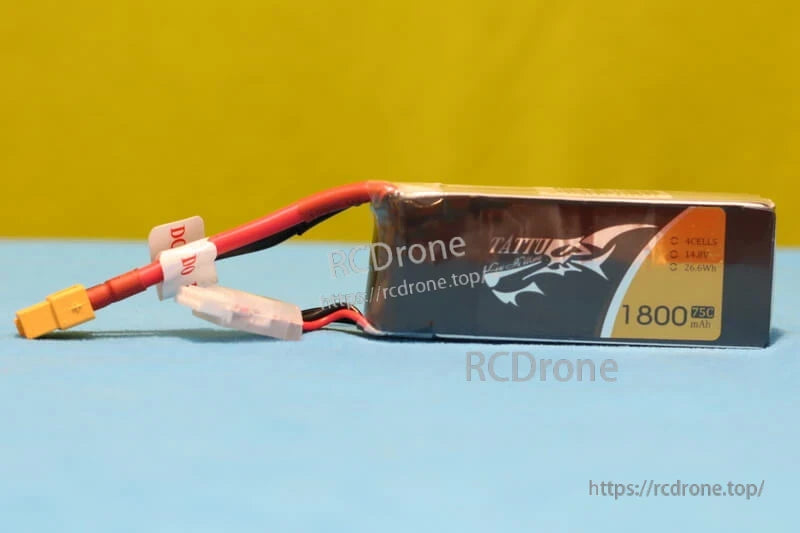

The Tattu 1800mAh 4S LiPo pack includes an XT60 power lead and a separate balance connector for charging and monitoring.

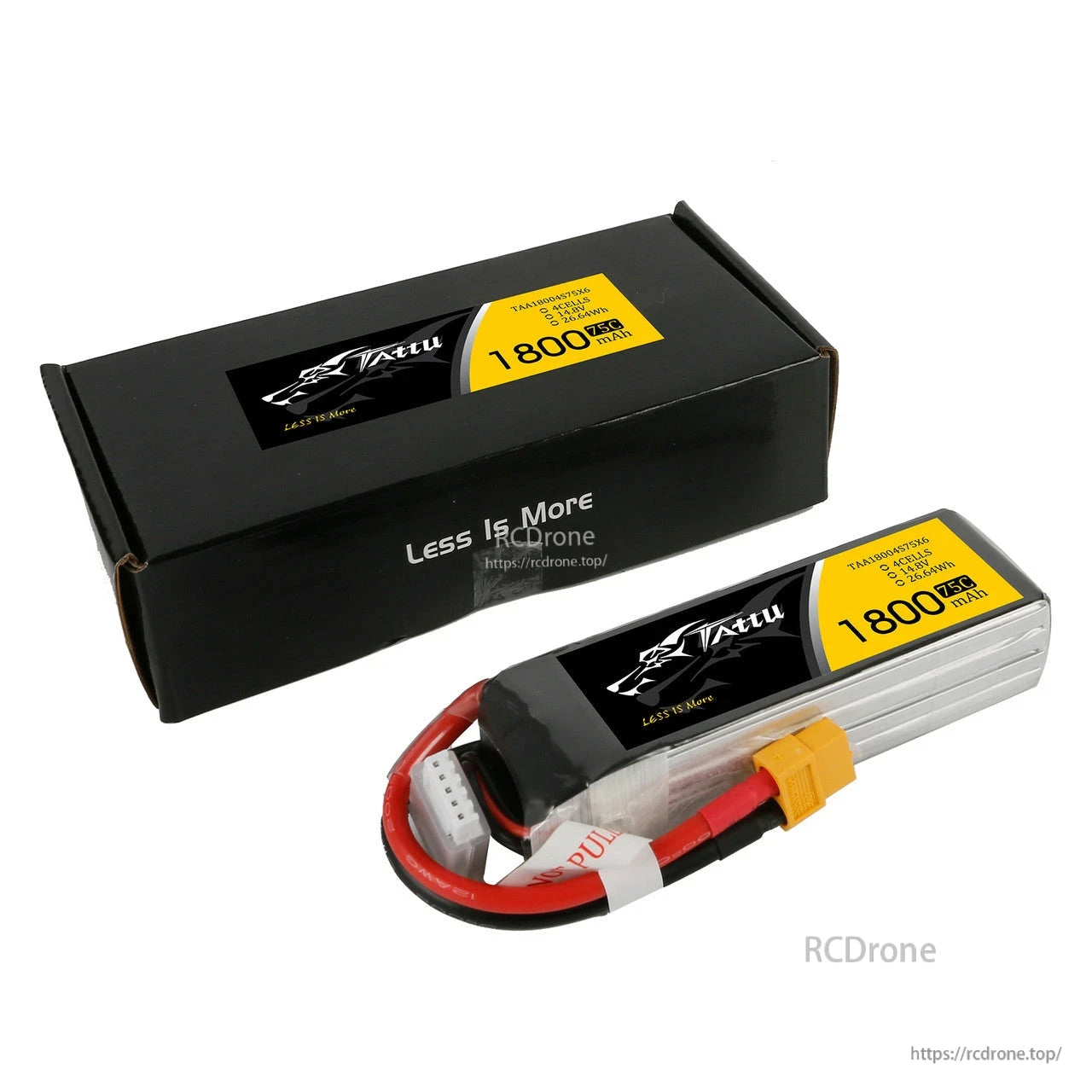

This 4S LiPo battery pack includes a main XT60-style power lead and a white balance connector for charging and monitoring.

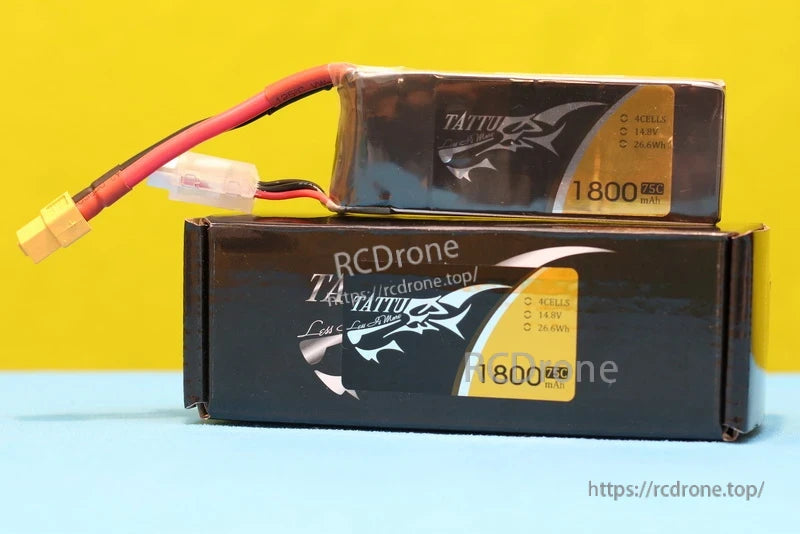

The Tattu LiPo battery pack features a compact wrapped case with an XT60-style lead and a QR-labeled end cap for identification.

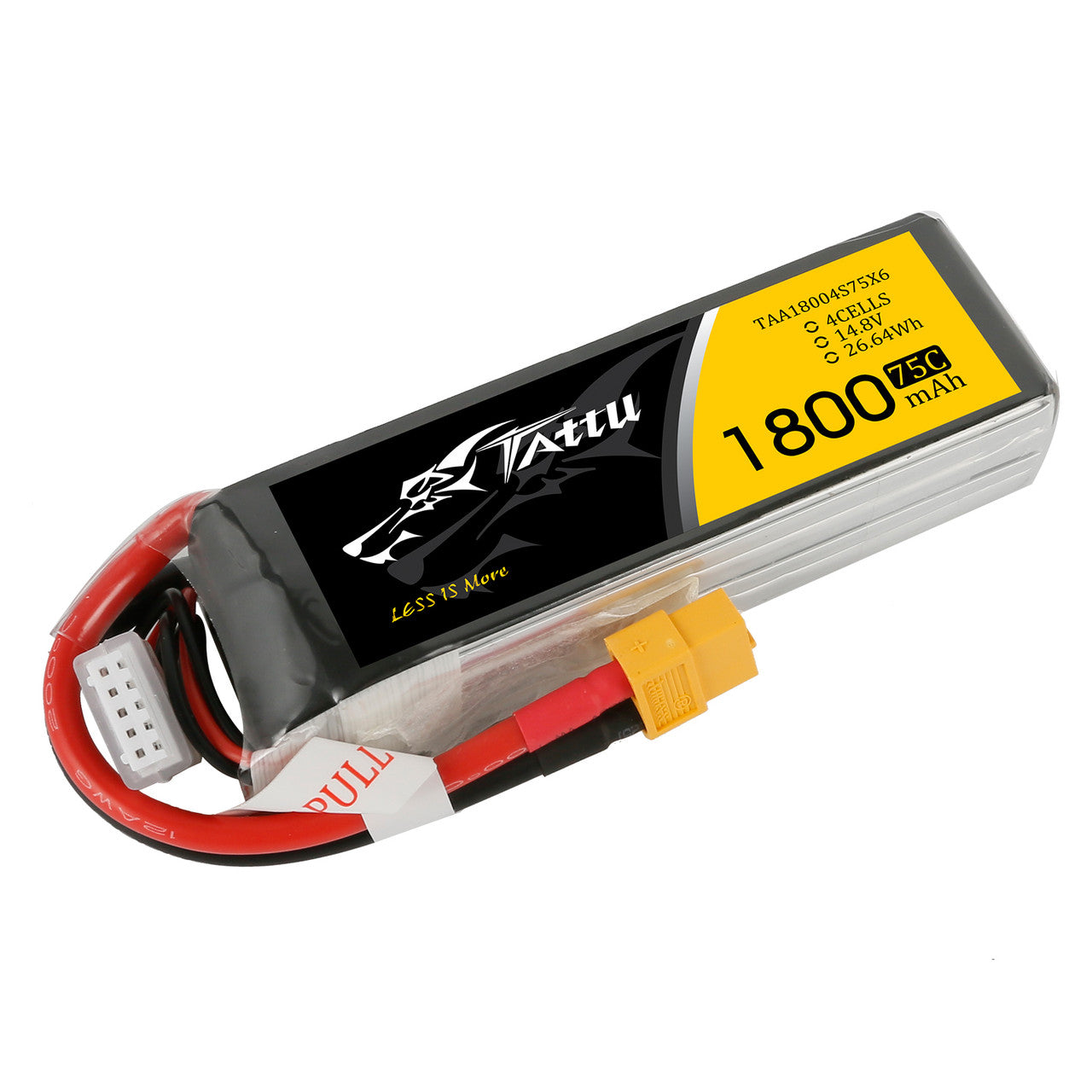

The Tattu 4S LiPo battery comes pre-wired with an XT60 power lead and a balance connector for charging and cell balancing.

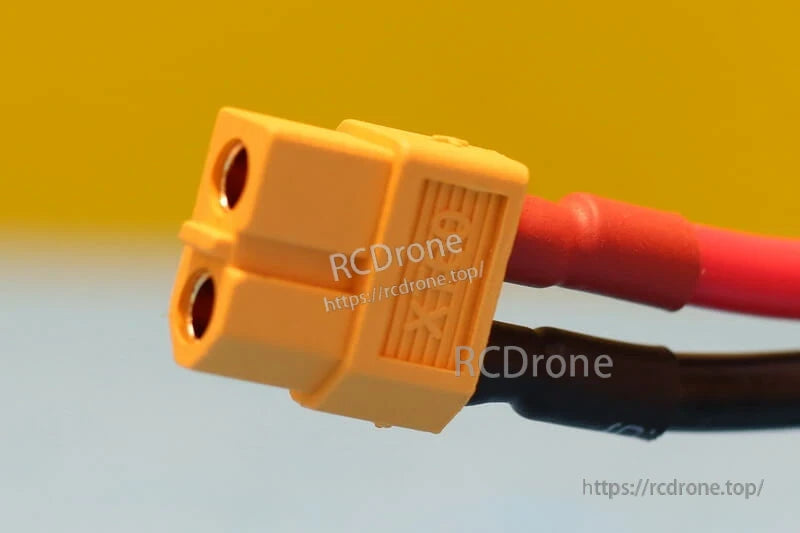

An XT60 plug with heavy-gauge red and black leads provides a secure, easy-to-connect power interface.

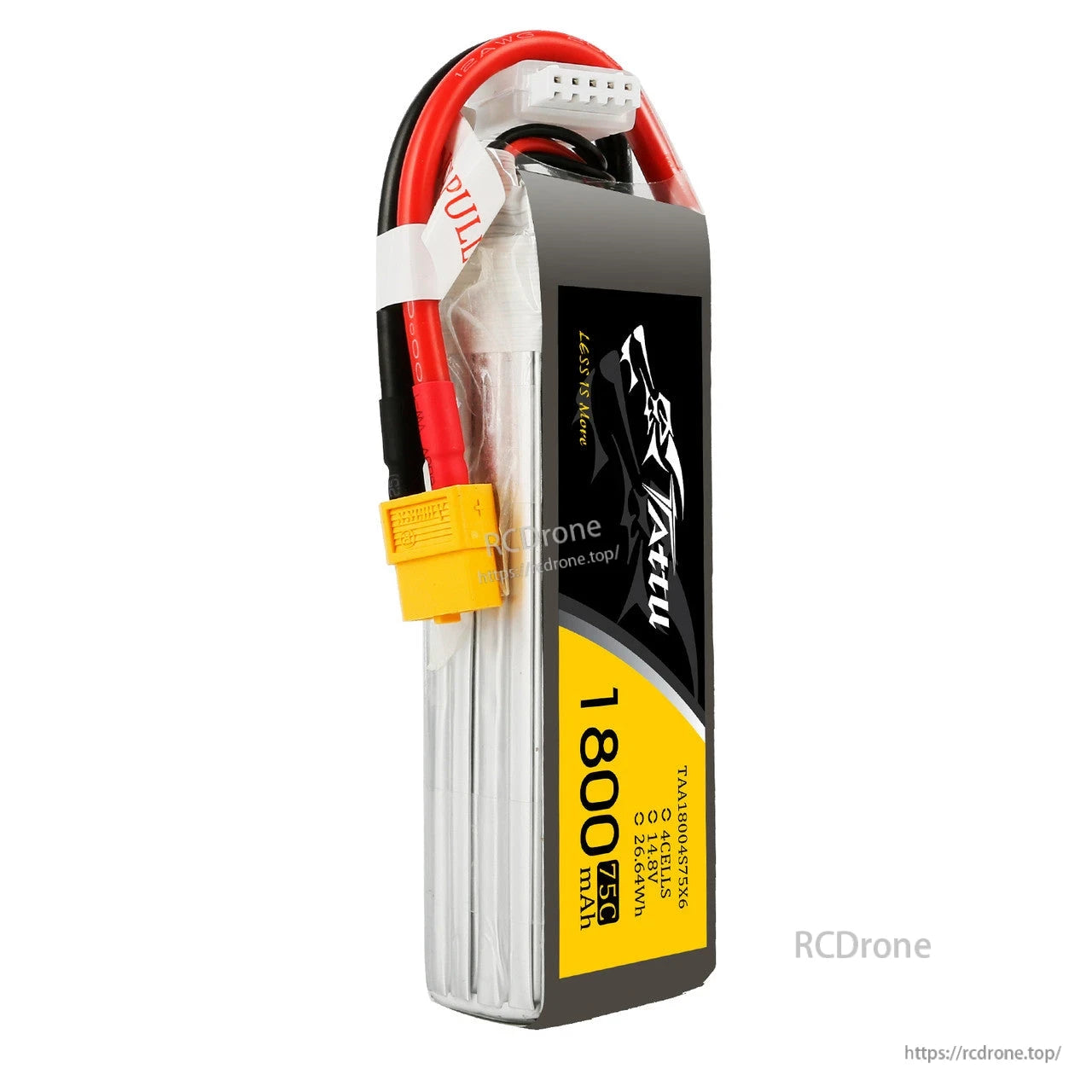

The 4S balance lead uses a white multi-pin plug for easy connection to a balance charger during charging and maintenance.
The Tattu 1800mAh 4S LiPo pack straps securely to a quadcopter frame and includes a main power plug with a balance lead for charging.

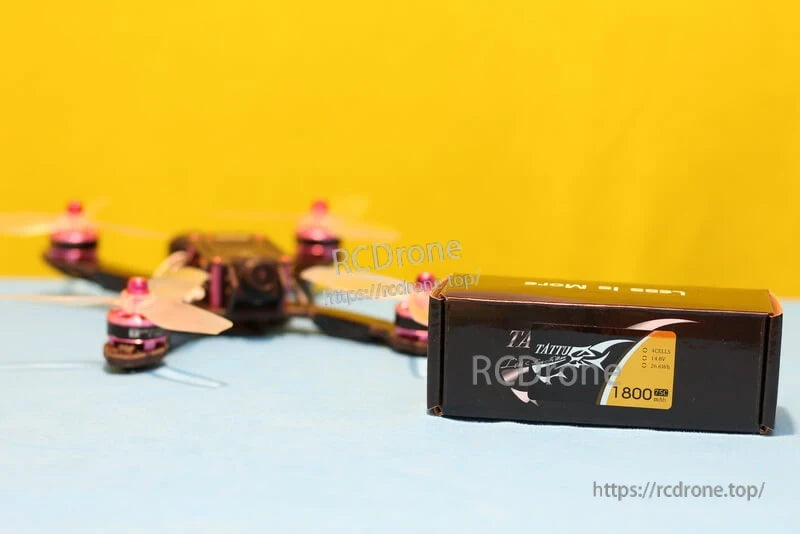

Tattu 1800mAh 4S 14.8V 75C LiPo packs are a common power option for FPV quadcopter builds and practice sessions.
