1.2G 1.3G 1.6W 8CH VTX - Long-Range FPV Transmitter

Overview

The 1.2G 1.3G 1.6W VTX is a high-performance video transmitter designed for long-range FPV applications. Offering a stable 1.6W power output without degradation due to overheating, it ensures reliable and consistent performance. Encased in a full metal shell, it provides superior shielding, reducing interference and enabling extended transmission distances. With its 8-channel frequency selection via buttons, the VTX delivers seamless operation for a variety of FPV setups.

Features

  • Stable 1.6W Power Output: Ensures long-term, consistent performance without power drops caused by excessive heat.
  • Metal Enclosure: Fully enclosed metal casing offers enhanced shielding, preventing interference and increasing reliability in complex environments.
  • Low-Frequency Signal: Operates in the 1.2G/1.3G band, providing excellent diffraction ability, stronger penetration, and reduced interference compared to higher frequency bands.
  • Long-Range Capabilities: Achieves over 5KM with a 5dB omnidirectional antenna and up to 10KM with a high-gain directional antenna in open environments.
  • Simple Channel Adjustment: Quickly switch between 8 channels using an intuitive button interface.
  • Multi-Environment Suitability: Ideal for complex terrains and various real-world FPV applications.

Specifications

Parameter Details
Model FPV 1.2G 1.6W VTX
Output Power 1.6W
Transmission Distance 5KM (up to 10KM with external antenna)
Input Power 12V
Current Consumption 330mA @ 1.6W
Video Format NTSC/PAL
Frequency Range 8 Channels (1080MHz to 1360MHz)
Antenna Interface SMA
Operating Temperature -20\u00b0C to 60\u00b0C
Dimensions 77 x 25 x 8mm
Weight (without antenna) 27.3 \u00b1 2g
Package Size 150 x 200mm

Frequency Channels

Channel Frequency (MHz)
CH1 1080
CH2 1120
CH3 1160
CH4 1200
CH5 1240
CH6 1280
CH7 1320
CH8 1360

Applications

  • FPV Drones: Designed for long-range video transmission, ideal for racing and exploration.
  • Complex Environments: Excels in challenging terrains with minimal interference.
  • Aerial Photography: Provides clear and stable wireless video for professional and hobbyist setups.

Package Includes

  • 1 x 1.2G 1.6W VTX Transmitter

Note: This product requires an amateur radio license to operate legally. Please verify local laws and regulations before purchase and use.

1.2G 1.3G 1.6W 8CH VTX, Device encased in a full metal shell provides superior shielding for reduced interference and extended transmission distances.

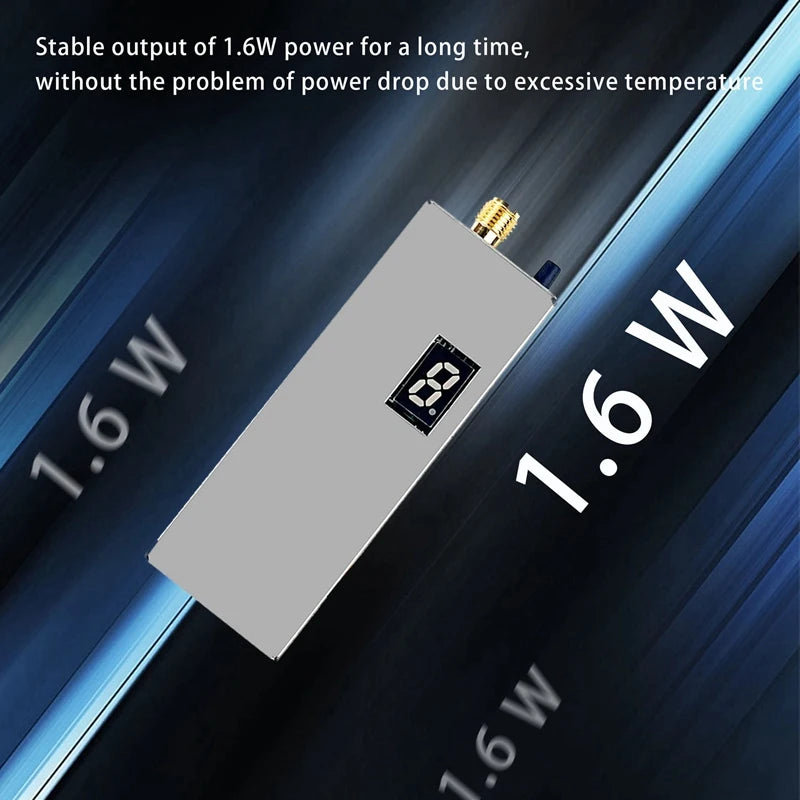

1.2G 1.3G 1.6W 8CH VTX, The device provides stable output of 1.6W power for an extended period, unaffected by high temperatures.

Stable output of 1.6W power for a long time, without the problem of power drop due to excessive temperature.

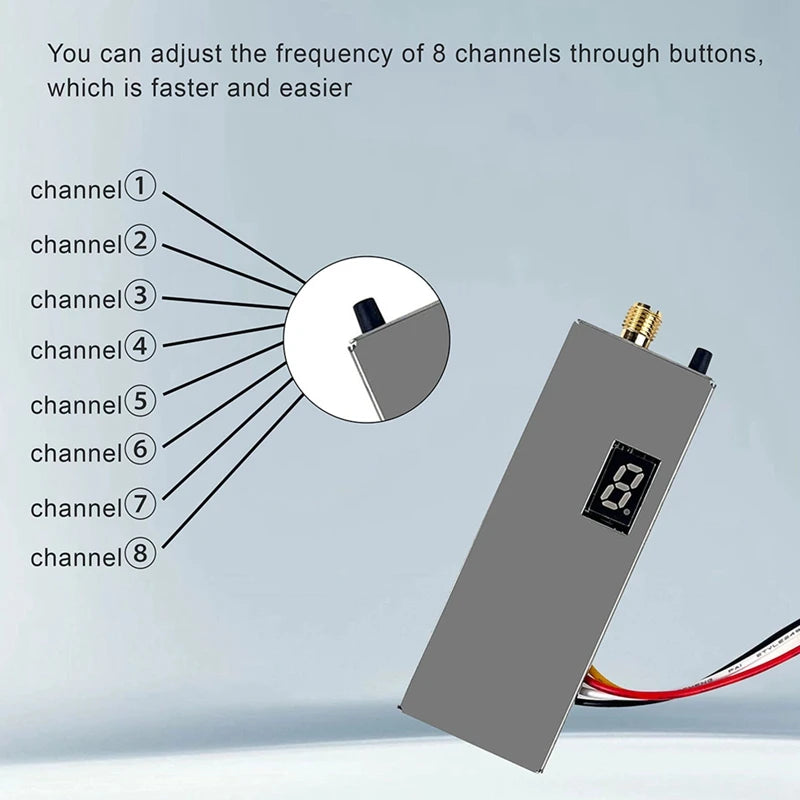

1.2G 1.3G 1.6W 8CH VTX, Adjusting 8-channel frequencies using buttons for ease with options including channels 1-8.

Adjust 8-channel frequencies using buttons for faster ease, with options including channel1, channel2, channel3, channel4, channel5, channel6 and channel8.

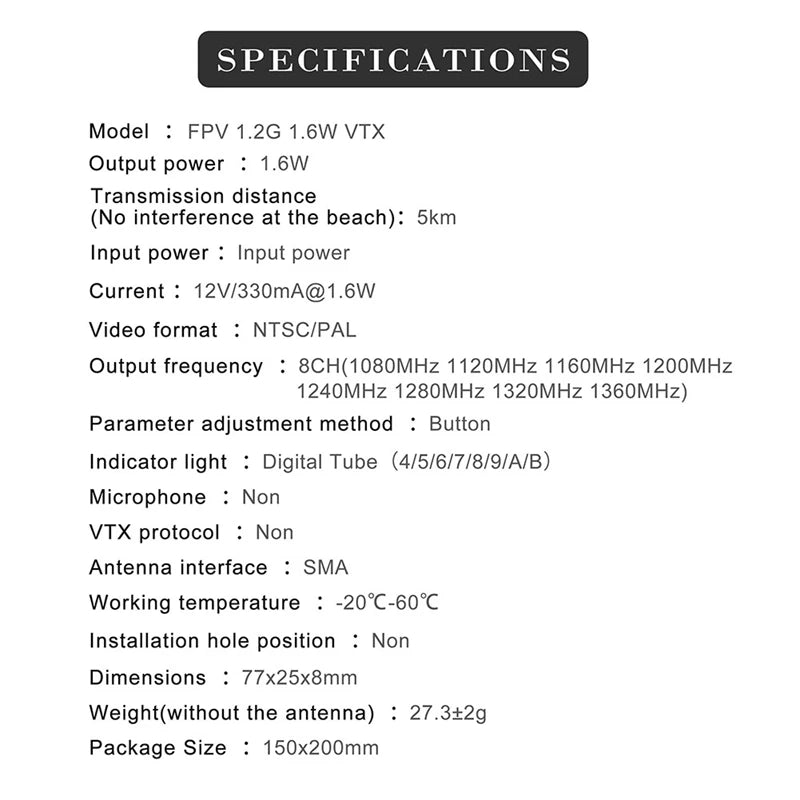

1.2G 1.3G 1.6W 8CH VTX, FPV drone specifications include 1.2G model, 1.6W VTX output, and parameters like video format, frequency, power, and dimensions.

Specifications: Model FPV 1.2G, 1.6W VTX. Output power: 1.6W. Transmission distance (no interference at the beach): Skm. Input power: 12V/330mA@1.6W. Video format: NTSC/PAL. Output frequency: 8CH (1080MHz, 1120MHz, 1160MHz, 1200MHz, 1240MHz, 1280MHz, 1320MHz, 1360MHz). Parameter adjustment method: Button. Indicator light: Digital Tube (4/5/6/7/8/9/A/B). Microphone: Non. VTX protocol: Non. Antenna interface: SMA. Working temperature: -20°C to 60°C. Installation hole position: Non. Dimensions: 77x25x8mm. Weight (without antenna): 27.3g. Package size: 150x200mm.

1.2G 1.3G 1.6W 8CH VTX, Quickly switch between 8 channels using an intuitive button interface.

1.2G 1.3G 1.6W 8CH VTX, The device encased in a metal shell reduces interference and enables longer transmission distances.



aeProduct.getSubject()

About Shipping and Tracking: If your tracking number has no logistics information, please contact us. We take time to carefully check product quality before shipping. Time of Shipment: Products are shipped within 1-5 weekdays after receiving customer orders. Time of Delivery: Due to force majeure factors, deliveries may be delayed. Logistics companies will not update tracking information for international packages. If your package is delayed, please contact the local post office. Protection Time Running Cut: When we finish shipping, if product protection period runs out, please extend it by contacting us. Import Duties and Taxes: These are the buyer responsibility. Feedback: When receiving products, please contact us about any issues before opening a dispute. We promise to resolve issues and give you satisfied service.



aeProduct.getSubject()

The 1.2G, 1.3G, and 1.6W transmitter-receiver pair features 8 channels of high-quality video transmission for a reliable wireless connection.




aeProduct.getSubject()

The 1.2G, 1.3G, and 1.6W 8CH VTX product features a compact design and high-quality components. With its advanced technology, this product offers reliable performance and excellent signal strength.
