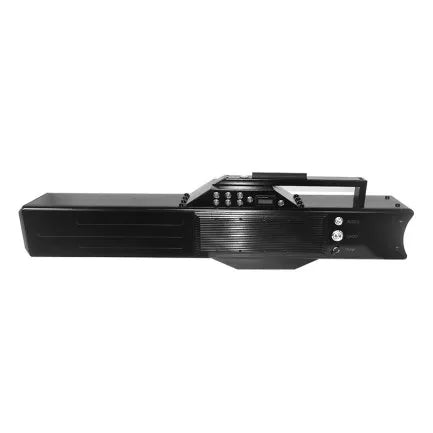

120W Anti Drone Device - 2KM Radius 6 Band Frequencies Crash Landing And Drive Away Drone Countermeasures

Parameter Name	Parameter Details
Model	EOTXQ06
frequencies	EOTXQ06: CH1 :433MHz CH2 :868/915MHz 2.4G :2400-2500 MHz 5.8G :5725-5850 MHz GPSL1&Glonass L1 :1560-1620 MHz GPSL2&Glonass L2 :1100-1300 MHz
radius	1000-2000M
Power supply	AC110-240V to DC24V
Total output power	120W
Working Time	around 1 -1.5hours
Device size	870*120*120 mm
Device weight	8.02Kg
Package Contents	* UAV countermeasure equipment*1, * Telescope*1, * AC charger*1

product features:
1. Shielding output high power 120W, super long distance 1000-2000 meters to counter UAV immediately (shielding distance depends on the actual environment)
2. Multi-band 6-channel countermeasures include UAV remote control signal 433MHz/900MHz/2.4GHz/5.8GHz and global positioning signal GPSL1&Glonass L1/GPSL2&Glonass L2
3. Each frequency band has a built-in high-integrated shielding module, which stably outputs accurate shielding signals, with high efficiency and long distance.
4. The portable and lightweight model is about 8KG, and the 3 different positions of the handle are convenient for shoulder rest and hand carry
5. Built-in safety certified rechargeable lithium battery, can last 1 to 1.5 hours (External battery can be connected to increase the usage time)
6. The LCD screen clearly shows the remaining power, and timely charging does not affect the use
7. The unique design of external thickened heat sink and built-in cooling fan accelerates the cooling of the device. Compared with other countermeasure guns, which can only work intermittently, the TX-Q06 can work continuously for 10-30 minutes.
The overall model is waterproof, heat-insulating, shock-proof, and easily adaptable to harsh outdoor environments

Instructions:
 1. Please press the power switch and LCD screen to check the remaining power to ensure that the device is fully charged before use 2. The LCD screen can be turned off when not in use to save power
3. According to the following table, press the corresponding button to select the corresponding working mode
(Mode 3 is the most commonly used working mode for most drone models on the market)
4. Use an optical telescope to aim at the drone target in the sky
5. The counter effect of the drone will be forced landing or return according to different working modes

Precautions:
 1. It is easy to consume power because all frequency bands are turned on. If it is fully turned on, please try to keep it within 10-20 minutes. to save power
2. Please ensure that the device has sufficient power before use to ensure normal use of the device
3. Please ensure that the shielded frequency band is suitable for personal use in order to improve the efficiency of product use
4. Please prohibit using the device while charging
5. Please try to avoid obvious obstacles between the drone countermeasure equipment and the drone
