RCDrone

$868.42 USD
$1,042.11 USD $868.42 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

5 orders in last 90 days

Color
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

SPECIFICATIONS

Brand Name: ACASOM

Item Type: amplifier

Origin: Mainland China

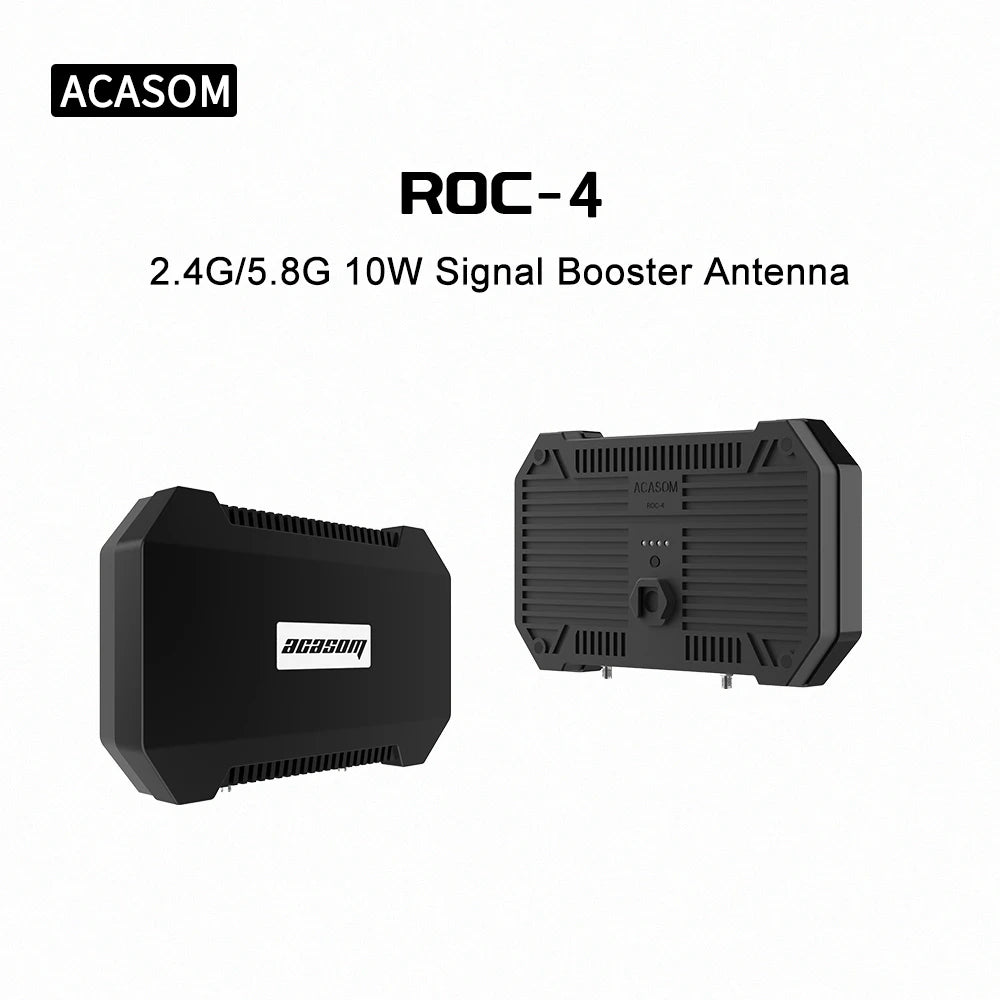

ACASOM Fio 2.4G/5.8G 1OW Signal Antenna

ROC-4  2.4G/5.8G 10W 8000mAh Dual-band Signal Booster Antenna Range Extender Remote for DJI Mavic 3, 3T, Matrix and Autel quadcopters


Working Band:  2.4G-2.5G/5.15-5.85GHz


Output Power：10W*2 / 40dBm

ROC-4 NEW 10W 2.46/5.8G Dualband acax0


ROC-4 NEW All-aluminum shell ACAsoM 2.46/5

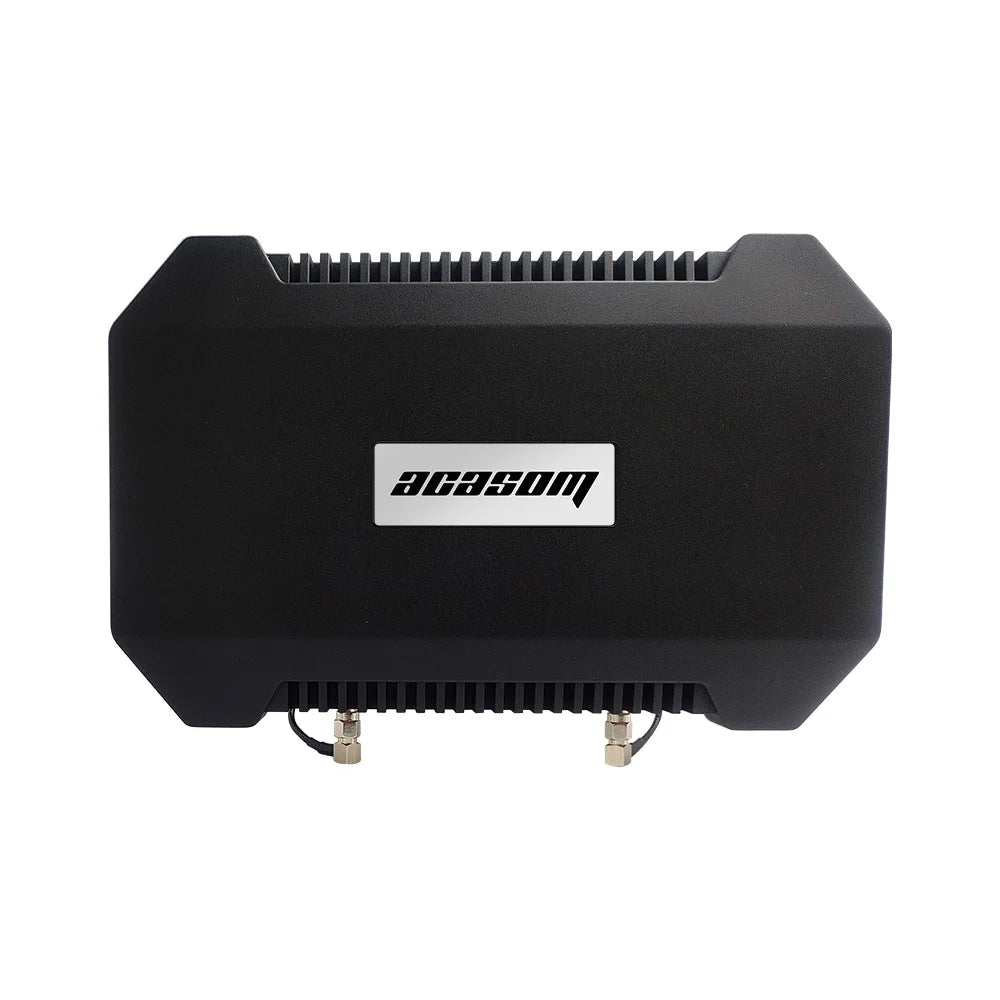

Introducing the ROC-4, an all-aluminum shell antenna featuring dual-band signal boosting capabilities for frequencies 2.4GHz and 5.8GHz.

ROC-4 NEW 8ooomAh 2.46/5.8G Dualband Signal

ROC-4 2.4G/5.8G 10W 8000mAh Dual-band Signal

Number

Items

Specifications

1

Frequency Range

2400-2500MHz

5150-5850MHz

2

Max Output Power

40dBm(10W)

40dBm(10W)

3

AntennaGain

15dB±1

18dB±1

4

Battery Capacity

8000mAh

5

Receiving Gain

16dB±1

16dB±1

6

Transmission Gain:

18dB±1

18dB±1

7

Input Trigger Power

Min:3dBm Max:23dBm

Min:3dBm Max:23dBm

8

EVM

3%@33dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz

3%@33dBm 802.11a54Mbps OFDM 64QAM BW 20MHz

9

Noise Figure

＜2.5dB

＜2.5dB

10

Current Supply

2.2A@Pout40dBm 12V

2.2A@Pout40dBm 12V

11

TX/RX Switch Time Delay

＜1 us

12

Charging Voltage

5V/2A

13

LED Indicator

4 Blue LED

14

Charging Port

Type-c

15

RF Connector

SMA-Female

16

Operating Temperature

-40℃～+70℃

17

Storage Temperature

-40℃～+150℃

18

Operating Humidity

Up to 95% rel. humidity

19

Shell Size

230*146*39(mm)

20

Shell Material

Aluminum

ACASOM ROC-4 2.46G/5.8G 1OW Signal Booster

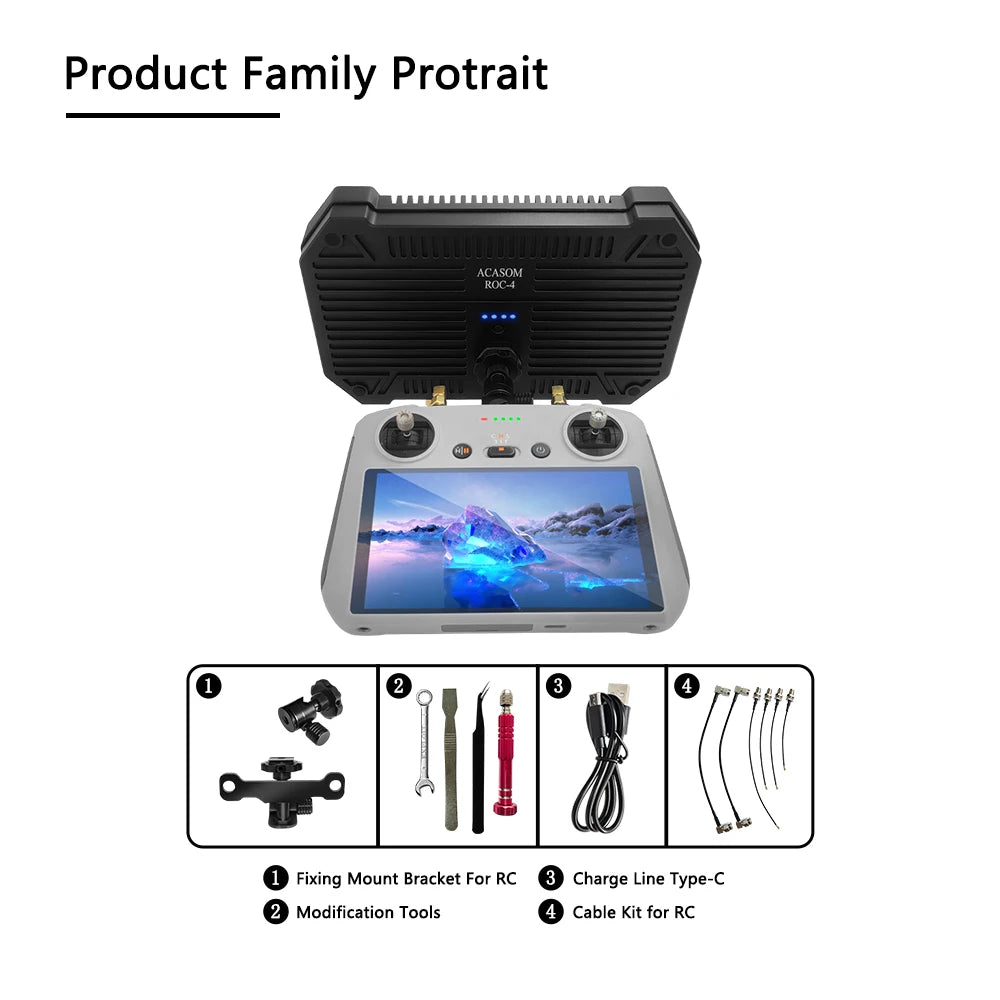

750 USD set 1PCS*ROC-4 with cables and modification tools . 2PC

750 USD set

  • 1PCS*ROC-4 with cables and modification tools

  • 2PCS*Mounting Brackets for DJI RC/RC2/RC-N1

  • ACASOM POC 4 Fixing Mount Bracket For RC Charge Line Type-

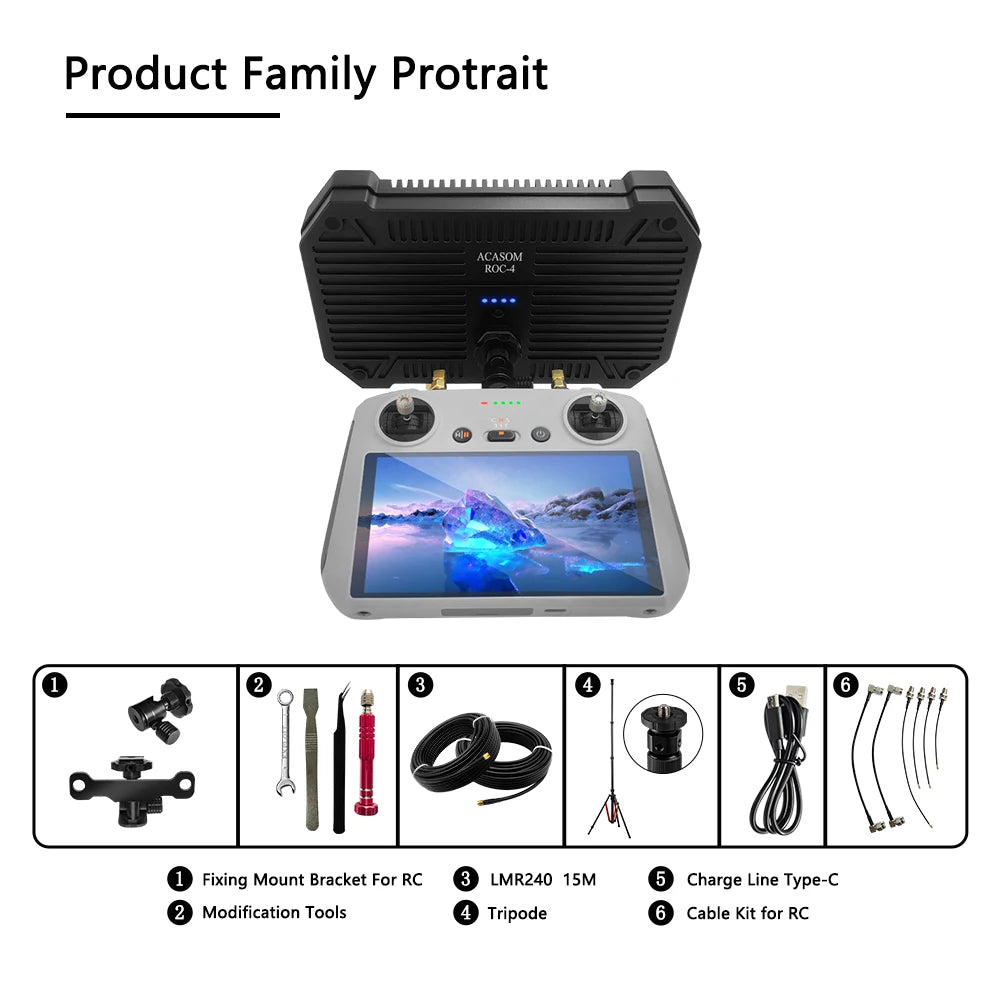

    ACASOM POC 4 Fixing Mount Bracket For RC Charge Line Type-C Modification Tools Cable Kit for RC .

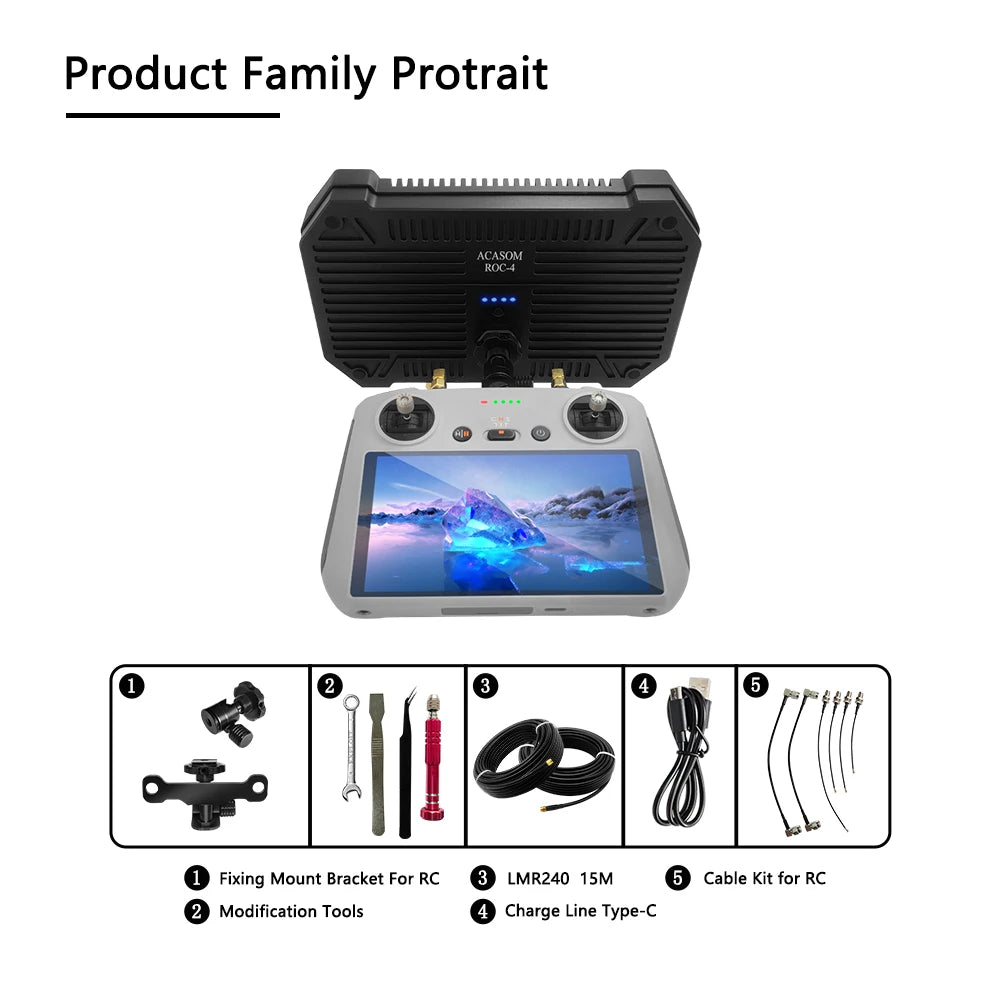

850 USD set

  • 1PCS*ROC-4 with cables and modification tools

  • 2PCS*Mounting Brackets for DJI RC/RC2/RC-N1

  • 2PCS*15M Cables with SMA male connector

ACASOM POC 4 Fixing Mount Bracket For RC LMRZ4

920 USD set

  • 1PCS*ROC-4 with cables and modification tools

  • 2PCS*Mounting Brackets for DJI RC/RC2/RC-N1

  • 2PCS*15M Cables with SMA male connector

  • 1PCS*1.7m Tripode

ACASOM POC 4 Fixing Mount Bracket For RC LMR24O

PACKAGE BOX750 USD set 1PCS*ROC-4 with cables and modification tools . 2PC

About brackets if you need DJI RC-PRO, OR RC-PLUS mounting brackets, pls contacts our sales.

buyers are responsible for all additional custom fees, duties, and taxes for importation into your country

1: Standard express has a certain risk of getting lost. For products with higher value, we recommend to choose fast commercial express, we will also provide very favorable price, please contact us for specific express price.


2: We do not guarantee delivery time on all international shipments due to differences in customs clearing times in special countries. Please note that buyers are responsible for all additional custom fees, duties, and taxes for importation into your country. We will not refund shipping charges for reused shipments.


3: Because some countries have strict regulations on the import of such products, such as Brazil, Russia, Germany, etc., please make sure whether individual could import the product in your country, or if you have the qualification to import the product. The buyers are responsible for the lost if the goods are detained by the customs.
