  • 2.4G 8CH F550 RC DIY Quadcopter Unassemble Kit - Mini Drone FPV Upgradable with Radiolink Mini PIX M8N GPS Altitude Hold Module
  • 2.4G 8CH F550 RC DIY Quadcopter Unassemble Kit - Mini Drone FPV Upgradable with Radiolink Mini PIX M8N GPS Altitude Hold Module
  • Jala Hanale Radiounk Rud Jer /Ietod Innat
  • 2.4G 8CH F550 RC DIY Quadcopter Unassemble Kit - Mini Drone FPV Upgradable with Radiolink Mini PIX M8N GPS Altitude Hold Module
1 6

2.4G 8CH F550 RC DIY Quadcopter Unassemble Kit - Mini Drone FPV Upgradable with Radiolink Mini PIX M8N GPS Altitude Hold Module

2.4G 8CH F550 RC DIY Quadcopter Unassemble Kit - Mini Drone FPV Upgradable with Radiolink Mini PIX M8N GPS Altitude Hold Module

RCDrone

$384.35 USD
$538.09 USD $384.35 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

40 orders in last 90 days
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

2.4G 8CH F550 RC DIY Quadcopter Unassemble Kit SPECIFICATIONS

Warranty: 1 Month

Warning: please take care

Video Capture Resolution: other

Type: HELICOPTER

State of Assembly: Ready-to-Go

Remote Distance: 1000M

Remote Control: Yes

Recommend Age: 14+y

Power Source: Electric

Plugs Type: USB

Package Includes: USB Cable,Operating Instructions,Batteries,Original Box,Remote Controller,Charger

Origin: Mainland China

Motor: Brush Motor

Material: Metal,Plastic,Carbon Fiber

Flight Time: 12-15min

Dimensions: Wheelbase: 550mm

Controller Mode: MODE2,MODE1

Controller Battery: Not included

Control Channels: 8 Channels

Charging Voltage: 220V

Charging Time: 2 Hours

Brand Name: jmt

Aerial Photography: No







F05114-BB F550 Hexacopter:
F550 FlameWheel Frame Kit * 1,

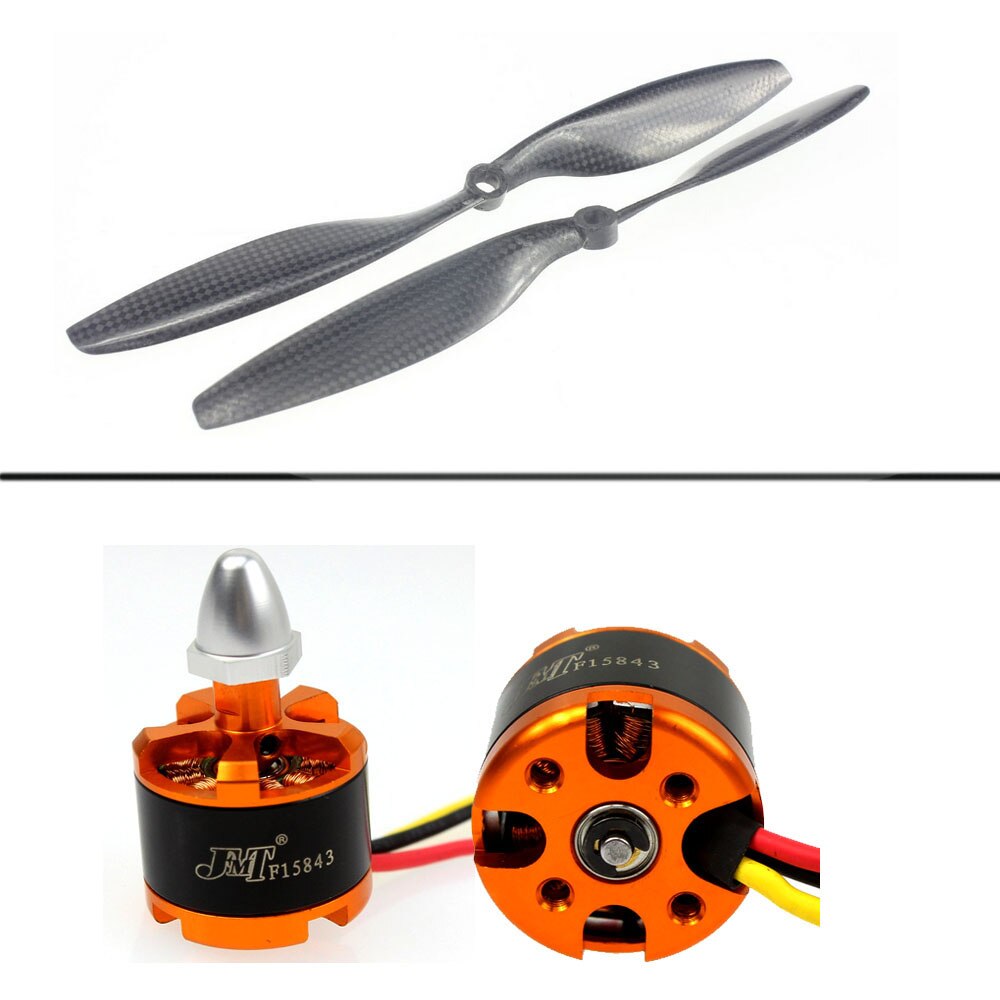

920KV CW Brushless Motor * 2,
920KV CCW Brushless Motor * 2,
Simonk firmware 30A ESC with BEC 5V * 4,
1045 Carbon Fiber DJI Versions CW CCW Propellers * 2,
Radiolink MINI PIX + MINI GPS * 1,
GPS Folding Antenna Mount * 1,
Radiolink T8FB Remote Controller * 1,
11.1V 4400MAH 30C Lipo Battery * 1,
B3PRO Charger * 1,
Buzzer Alarm * 1,
Accessories bag * 1

2.4G 8CH F550 RC DIY Quadcopter Unassemble Kit, RBEF: radiolink da;1stt' dSilp12.4G 8CH F550 RC DIY Quadcopter Unassemble Kit, How to connect the Flight control, GPS, receiver2.4G 8CH F550 RC DIY Quadcopter Unassemble Kit, message us if you need this service.2.4G 8CH F550 RC DIY Quadcopter Unassemble Kit - Mini2.4G 8CH F550 RC DIY Quadcopter Unassemble Kit, IeEd Phat tuitch Rudditantirane

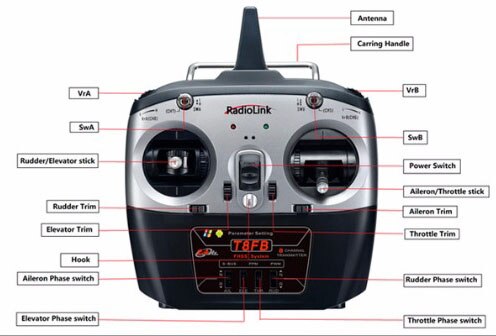

Hanele Radiounk iddereletnen Alconhotur Ruddct Tan uston Trn Ecdacon Throtele Trirn (IeEd Phat tuitch Rudditantirane Eqvator Fhax tatch Tnrottlc Pnar Crd Tanaen)


Function:
1. Forward/backward,Sideward flight,Turn left/right,Up/down,Hover,One Key Taking Off,Self-stability,Altitude Hold,Fixed point,A key landing (The above functions have been set before shipment, the following functions need to be set by buyer): Ratio control Acro (caution to beginner), automatic mode (AUTO), around, guide, following model, Improve the barometer set high, More stable than APM Flight controller.
2. RadioLinK T8FB support mobile phone APP setting parameters, support for USB online upgrade, keep leading .
3. The aircraft frame is using high-strength drop-resistant plastic material, durable.
4. Radiolink MINI PIX with M8N GPS, 50cm positioning accuracy, beyond the u-box M8 chip, achieve 1M positioning accuracy, can search 20 Pieces Star within 6 seconds in open place, very strong valley positioning capabilities,support a variety of positioning systems GPS, GLONASS L10F, QZSS L1 C/A, BeiDou b1, can dual-mode work at the same time.
5. Simple operation with manuals, do not need to make tedious setup and debugging to the Flight controller, simply assembled to fly.
6. When using the charger, please do not simultaneously charge the 2S and 3S batteries on the charger.
7. Do not understand the flight control and remote control, please do not modify any parameters and wiring.

Flight Controller:
Software: Mission Planner
Official website address: http://ardupilot.org/planner/index.html                     MINI PIX is an open source flight control, can you play APM well depend on individual ability. Player must have ability of basic understanding of monolithic integrated circuit, c-language, knowledge of electrical,mechanical, and also needs a certain degree of mental capacity, financialand material resources, energy support.If you're not ready, then We recommend that you prepare some introductory information first.

2.4G 8CH F550 RC DIY Quadcopter Unassemble Kit - Mini


Remote Controller:

T8FB Technical Parameters
2.4G 8CH F550 RC DIY Quadcopter Unassemble Kit, Specification TBFB size: 173*102*206mm, RBEF size

Specification TBFB size: 173*102*206mm, RBEF size: 48.5*21*1lmm Weight: 0.47kg ( including R8EF) Frequency: 2.4GHz ISM band 2400MHz2483.5MHz Modulation mode: GFSK Channel bandwidth: 400KHz Band width 1200KHz Spread spectrum: FHSS Adjacent channel rejection: 36dBM Sensitivity: -104dBM Speed rate: 38kbps PWM output: 1.O


R8EH Receiver:
Channel: 8CH
Operating voltage: max 10V.
Operating current: 19-25mA(input voltage 5V)
Size: 48.5*21*11mm
Weight: 7g
Section precision: 4096
Signal output: S-BUS, PPM and PWM PWM
signal mode: Green LED, output 8 channel PWM signal.
SBUS/PPM signal mode: Both red and green LED on, CH1 output S-BUS signal, CH2 output PPM signal, CH3 to CH8 output PWM signal at the same time

2.4G 8CH F550 RC DIY Quadcopter Unassemble Kit, RadioLink Feaneenc TBEB 0 channan CL Radiolink

RadioLink Feaneenc HDocceoraatt TBEB 0 channan CL Radiolink Cht chg- R8EH Two LED - BUS & PPM chAs chJ 246h2 Ppmichz busicht cho ChS 2


Specification:

2.4G 8CH F550 RC DIY Quadcopter Unassemble Kit, Model F02192-AI F05114-BB Version ARF (Almost Ready To Fly


Q & A:
1. How to connect the Flight control, GPS, receiver? How to calibrate GPS and flight control?
A: They are connected when you open the package. The GPS, Flight Control, and Remote Control (transmitter) are calibrated and tested. You only need to follow the instructions to assemble them.
2. Can we use other kinds of Motor and ESC? If yes, What kinds of Motor and ESC recommend? Can we change the Propellers?
A: Of course, we recommend the motor 1400kv-2300kv, ESC 20A-35A, 6-inch to 8-inch Propellers.
3. Can I add PTZ and FPV equipment?
A: Our products can be modified to upgrade, sports camera with two-axis stabilized PTZ is a good choice.
4. Is the product welded? Can RTF (Ready To Fly)?
A: Our products default motor, ESC are welding the banana head and ESC and sub-board welding together, do not need your hands-on welding. And Of course you can do RTF. But For RTF version, The shipping fee is more expensive, if you can pay the extra shipping cost and Pay a small service fee, we can give you RTF. Please message us if you need this service.
5. Can be used with larger capacity battery?
A: ESC support voltage in 3-4s, the maximum recommended capacity 4000mah.
6. I do not like your remote control, can you change the remote control?
A: Yes, replace the remote control, the same set for you all the auxiliary flight mode, but will be little different with the instructions, After setting,we will inform you about the setting information in time.We will mostly brand of remote control and this flight control settings.
7. What kinds of flight environment is applicable to this quadcopter? Can I fly indoors?
A: This quadcopter is not suitable for indoor flight, it is recommended to fly outdoors and open areas, but please avoid interference with the crowd and the surrounding areas.

Notice:
This RC model is not a toy and is not suitable for children under 14 years old.
Carefully read the instruction before any use, if you are a beginner, it's advisable to be assisted by an experienced adult
