Namimno ExpressLRS ELRS TX & VX - 2.4GHz Flash Low Latency High Refresh Rate TX Module With OLED WIFI Nano RC Receiver

Namimno ExpressLRS ELRS TX & VX - 2.4GHz Flash Low Latency High Refresh Rate TX Module With OLED WIFI Nano RC Receiver

Namimno

Regular price $65.86 USD
Regular price $85.62 USD Sale price $65.86 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

277 orders in last 30 days

Color
Ships From

If you have payment problems, pls refresh the page or "Chat with us".

Free Shipping: 10-20 days to arrive.

Express Delivery: 6-14 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 10-18 days
  • Paid Express: Ships within 2days,arrives within 4-7 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

Namimno ExpressLRS ELRS TX & VX SPECIFICATIONS

Brand Name: NoEnName_Null

Origin: Mainland China

Material: Plastic

Plastic Type: PC

Recommend Age: 14+y

RC Parts & Accs: Radio Systems

Size: As below shown

For Vehicle Type: Airplanes

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Adapter

Remote Control Peripherals/Devices: Remote Controller

Tool Supplies: Assembled class

Quantity: 1 pcs

Technical parameters: Value 2

Model Number: Namimno ExpressLRS ELRS 2.4GHz

Four-wheel Drive Attributes: Assemblage

Wheelbase: Bottom Plate


Namimno ExpressLRS ELRS 2.4GHz Flash Low Latency and High Refresh Rate TX Module with OLED Screen Nano Mini RC Receiver For RC FPV Drone



Upgraded the hardware of the module, added OLED (now only supports display, the button function will be available in V2.1 firmware), optimized the shell.

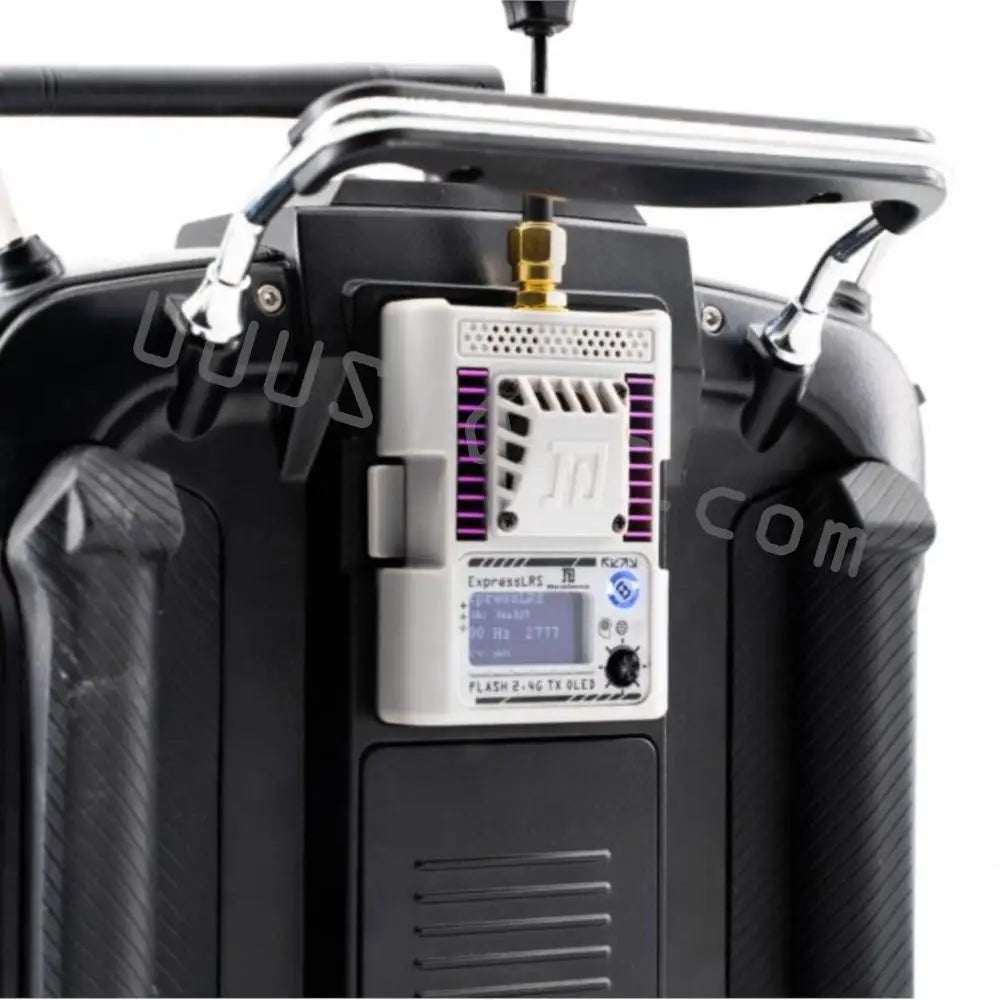

FLASH_TX is based on the open sourced EXPRESS LRS project, The hardware has been optimized and designed for real world environments, and it adopts the popular Lora SX1280 radio frequency chip with excellent performance. The Express LRS firmware allows for low latency and high refresh rates, suitable for long range flights and FPV racing. The entire transmitter module is built within a JR-style module. Equipped with customized heat sinks and fans, excellent heat dissipation performance ensures the stability of the transmitter module during flight.

FLASH_RX is based on the open-sourced EXPRESS LRS project. The hardware has been optimized and designed for real-world environments giving it a compact size and stable performance. Conveniently upgradable via WIFI.

The Express LRS firmware allows for low latency and high refresh rates. Built-in telemetry functionality sends aircraft parameters in real-time.

Matched with an optimized antenna and enjoy increased distance and telemetry.

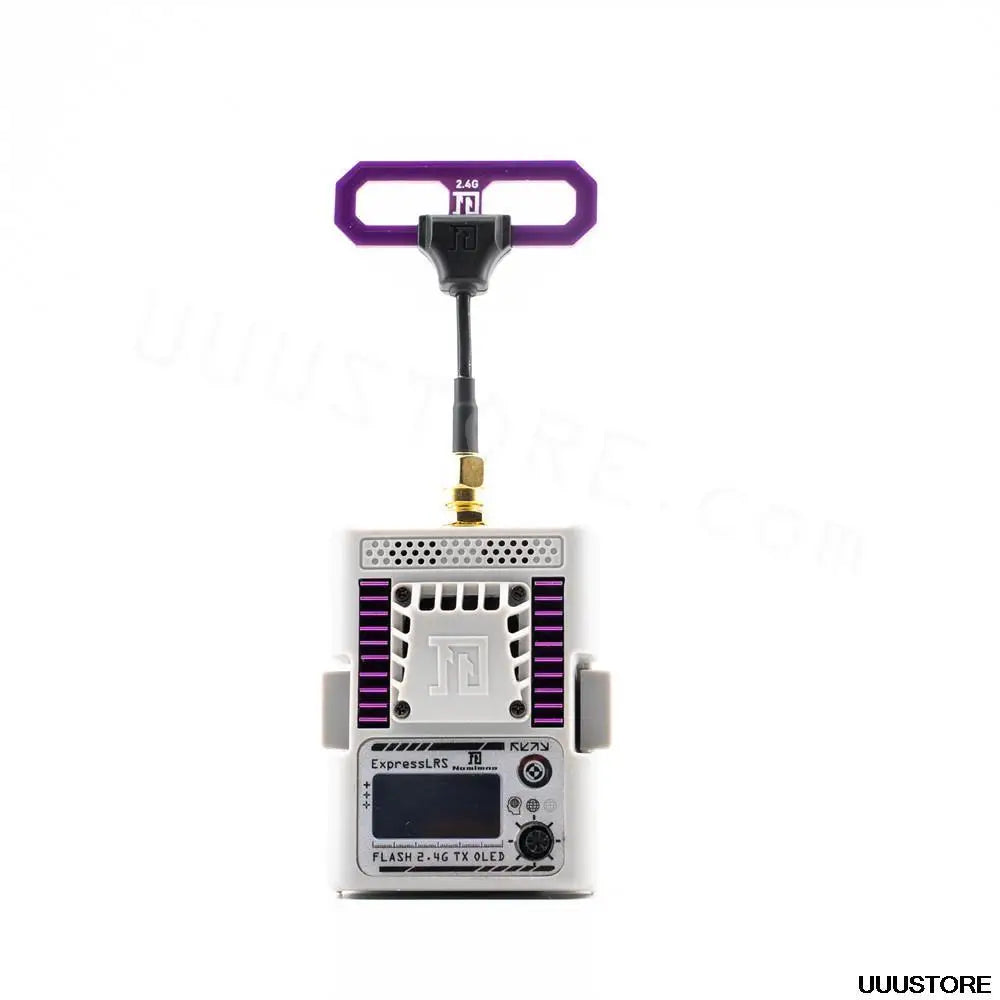

2.4GHz Flash TX Module:

Model: FLASH_TX

Wireless frequency: 2400-2480MHz

Transmitting power: <27dBm

Remote control distance: >3000m

Remote control refresh rate: 25Hz-500Hz

RF interface: SMA-outer screw inner hole (adapted antenna inner screw inner pin)

Power supply: internal power supply: 6-13V, external power supply 6-16V

Size: 64*52*40mm


2.4GHz Flash Nano Receiver:

Model: FLASH_RX

Wireless frequency: 2400-2480MHz

Transmitting power: <12.5dBm

Remote control distance: >3000m

Remote control refresh rate: 25Hz-250Hz

RF interface: IPEX generation

Power supply: 4.5-10V

Size: 18.35*11.5*3.5mm


Package Included:

2.4G Flash TX:

1 x Flash TX Module (with Loop antenna)

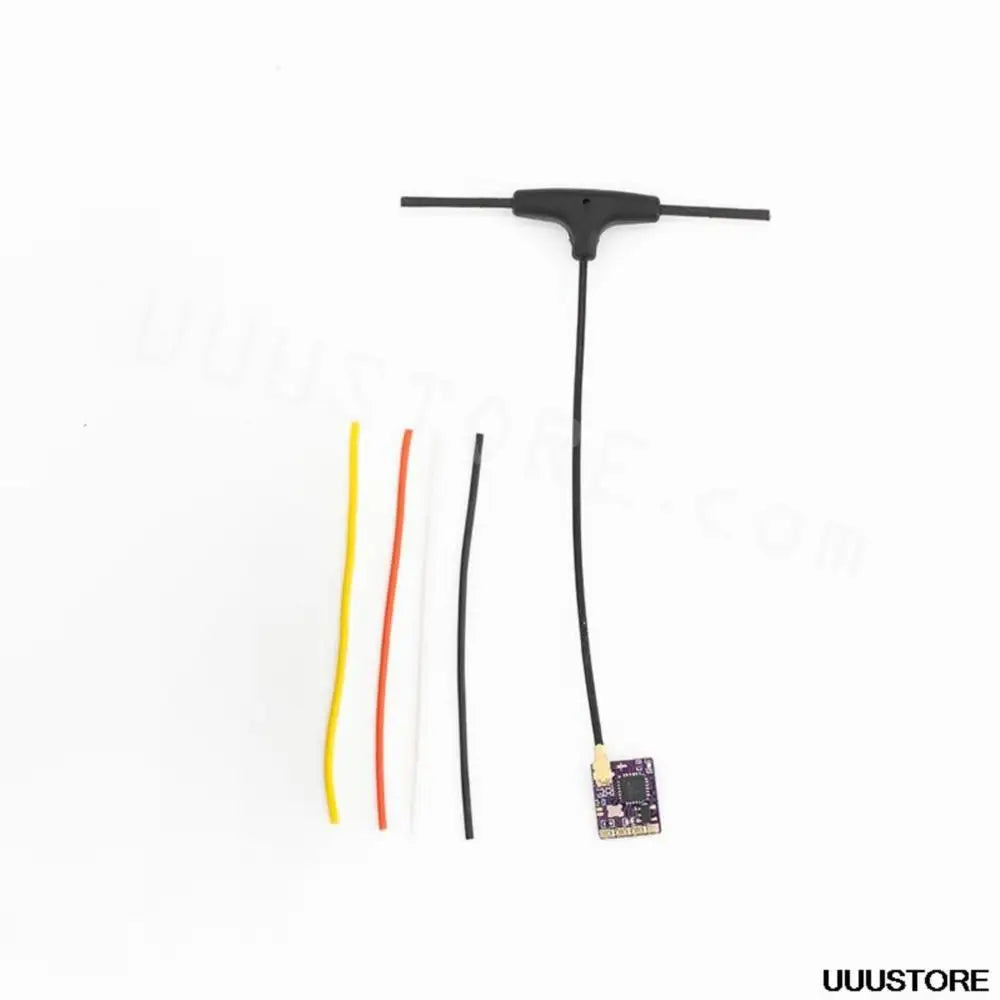

2.4G Nano RX:

1 x Nano Receiver (with T antenna)

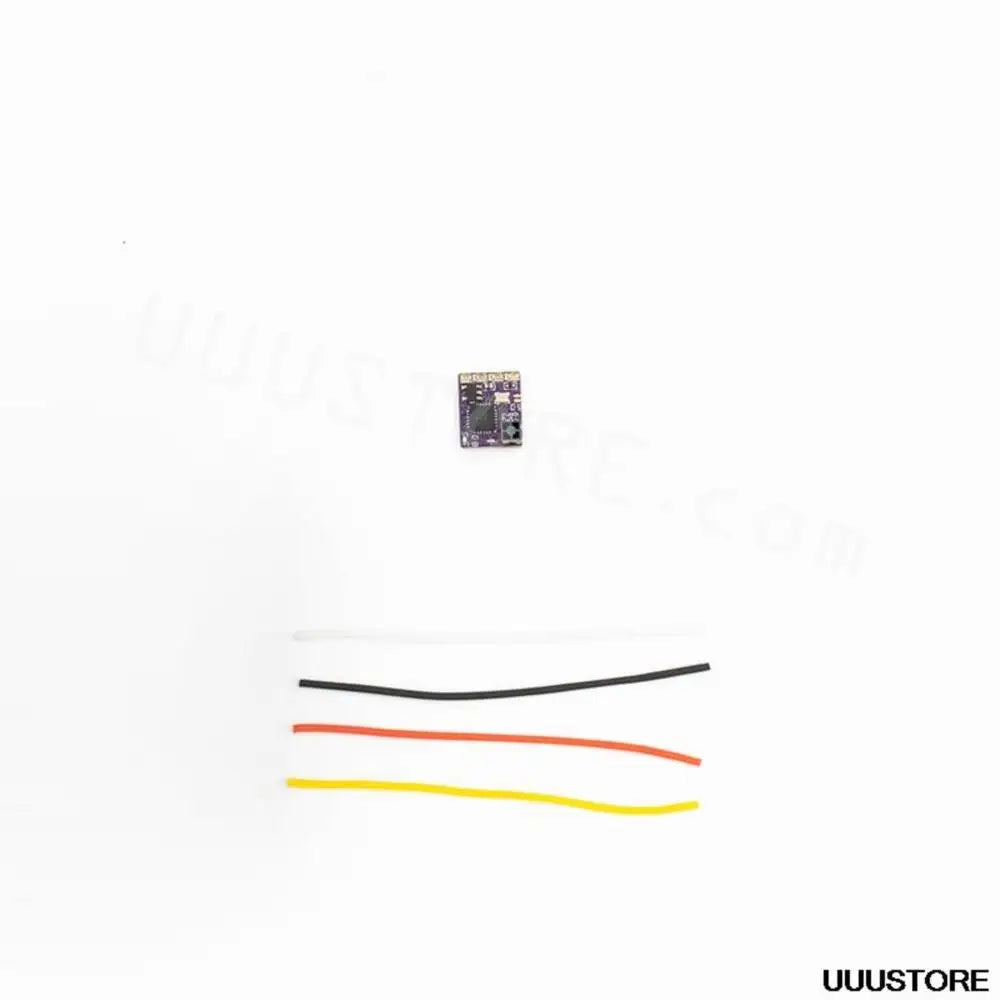

2.4G Nano RX(onboard):

1 x Nano Receiver (onboard antenna racing version)

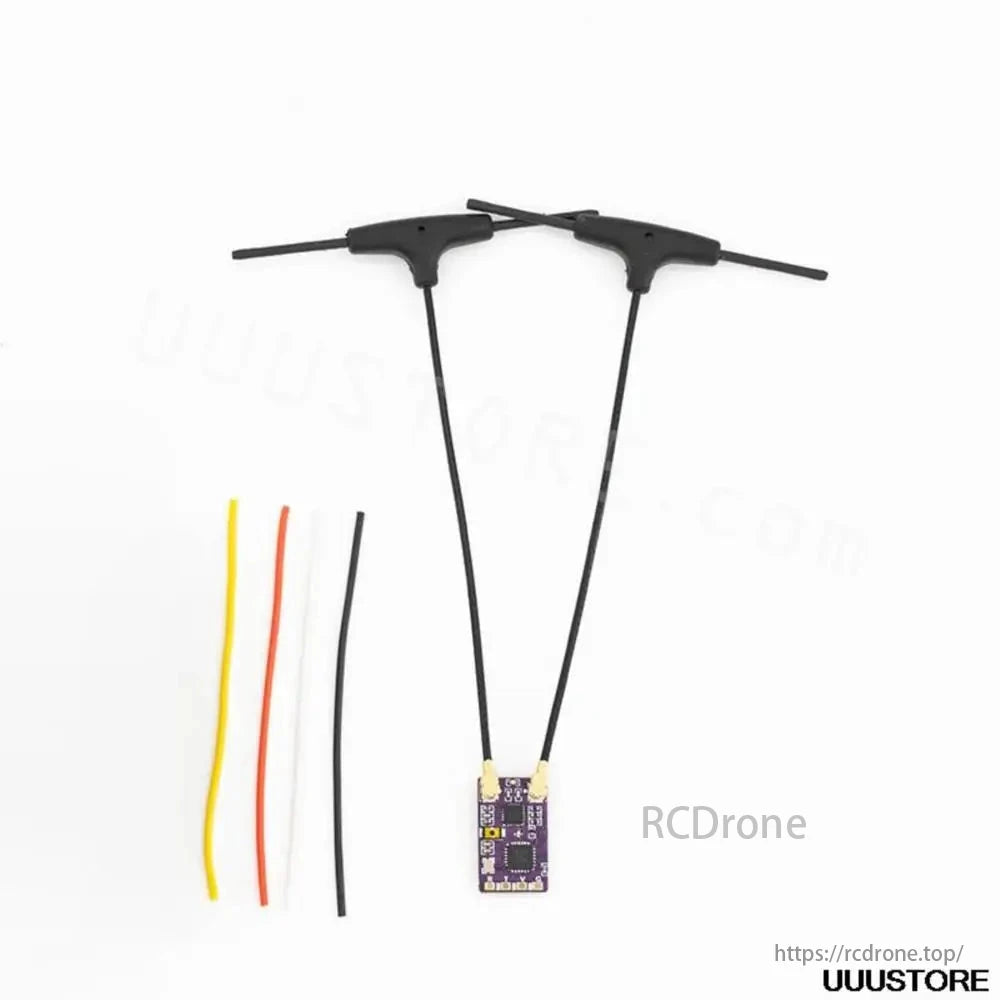

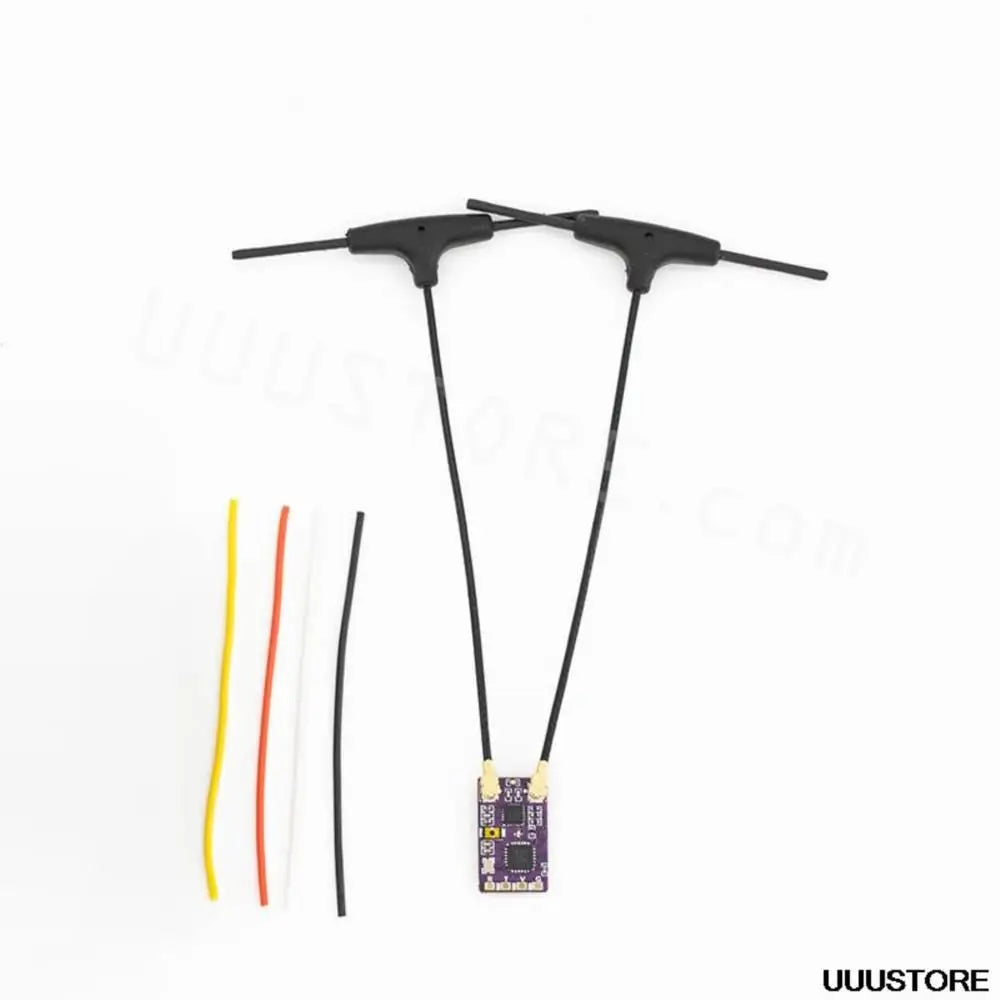

2.4G Diversity Nano Receiver:

1 x Nano Receiver (with T antenna)

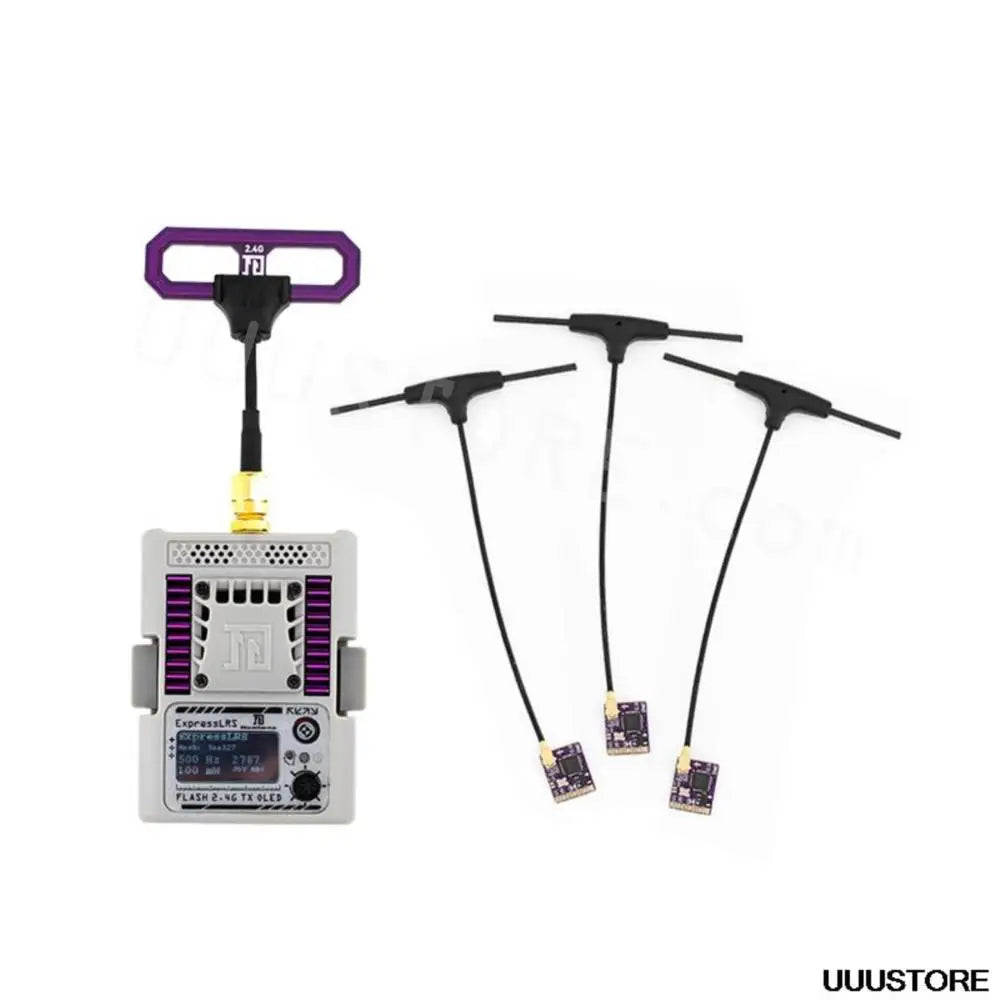

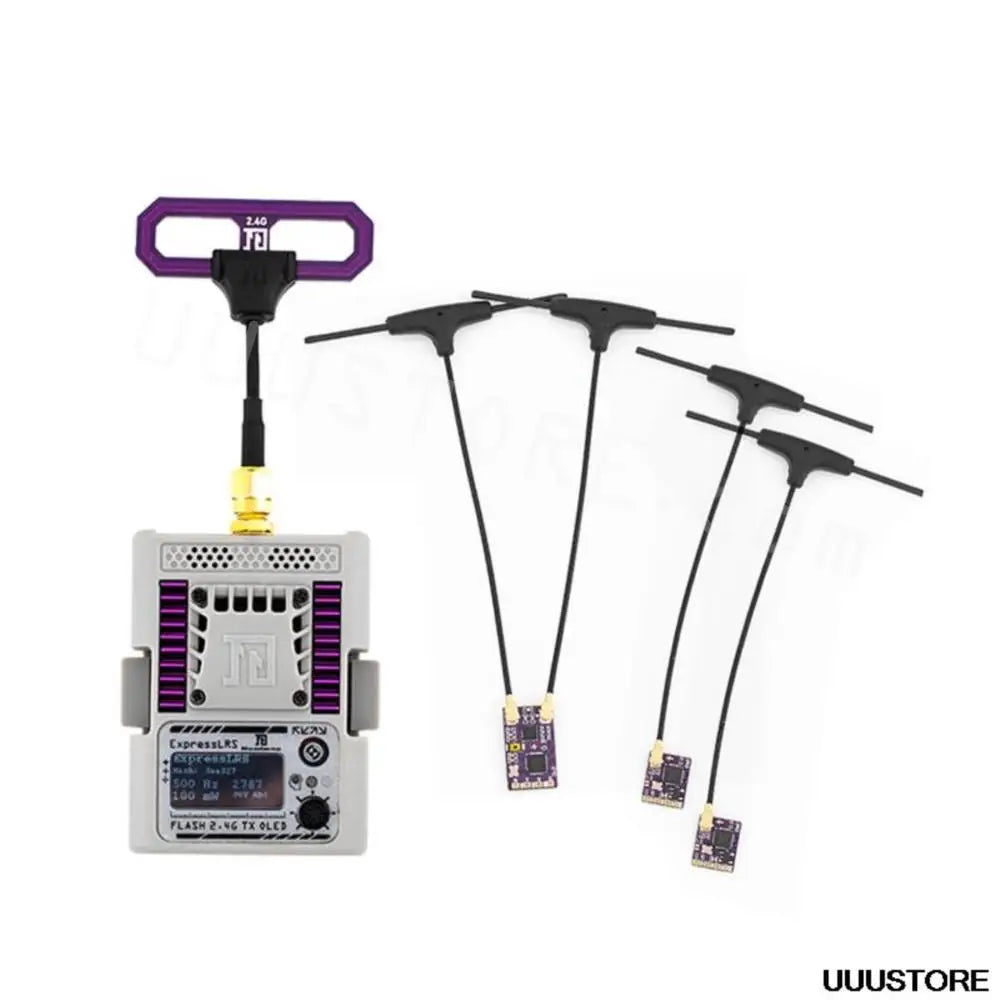

2.4G TX+3RX KIT1:


1 x Flash TX Module (with Loop antenna)

3 x Nano Receiver (with T antenna)


2.4G TX+3RX KIT2:

1 x Flash TX Module (with Loop antenna)

2 x Nano Receiver (with T antenna)

1 x Nano RX(onboard)


2.4G TX+3RX KIT3:


1 x Flash TX Module (with Loop antenna)

2 x Nano Receiver (with T antenna)

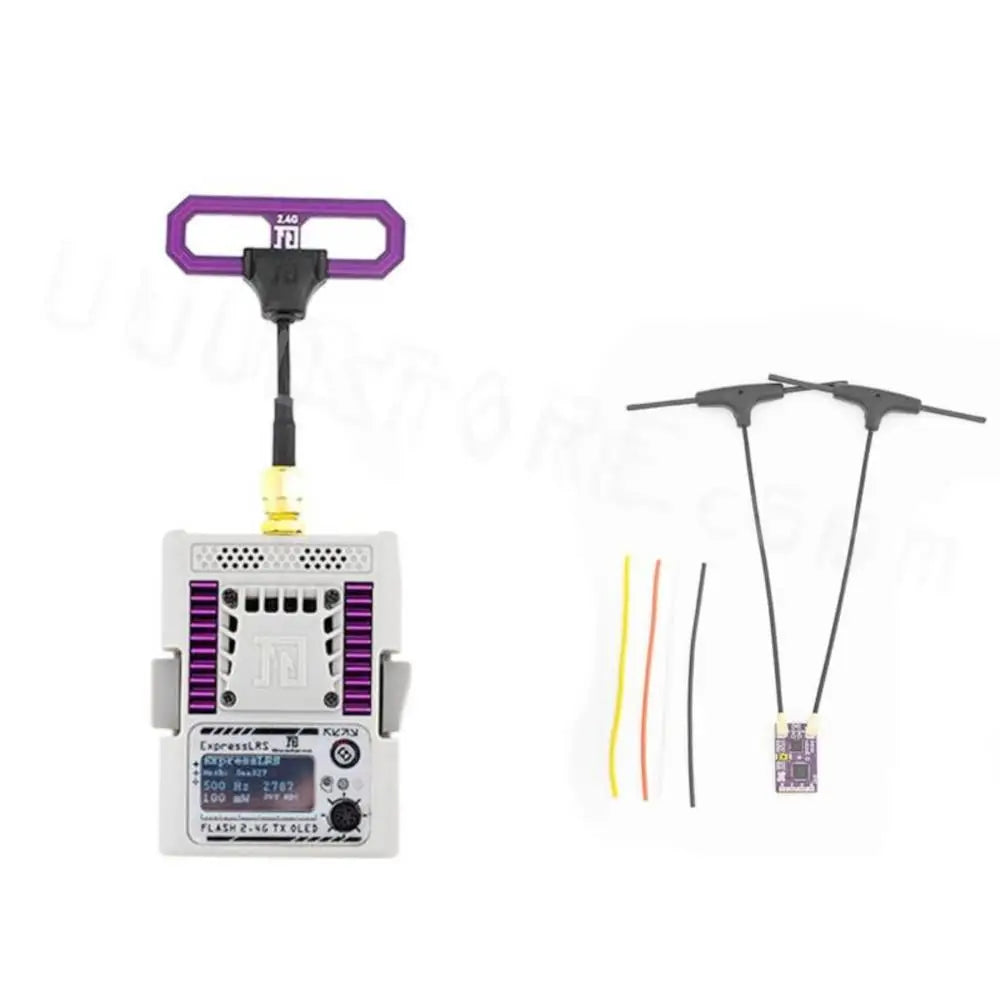

1 x Diversity Nano Receiver

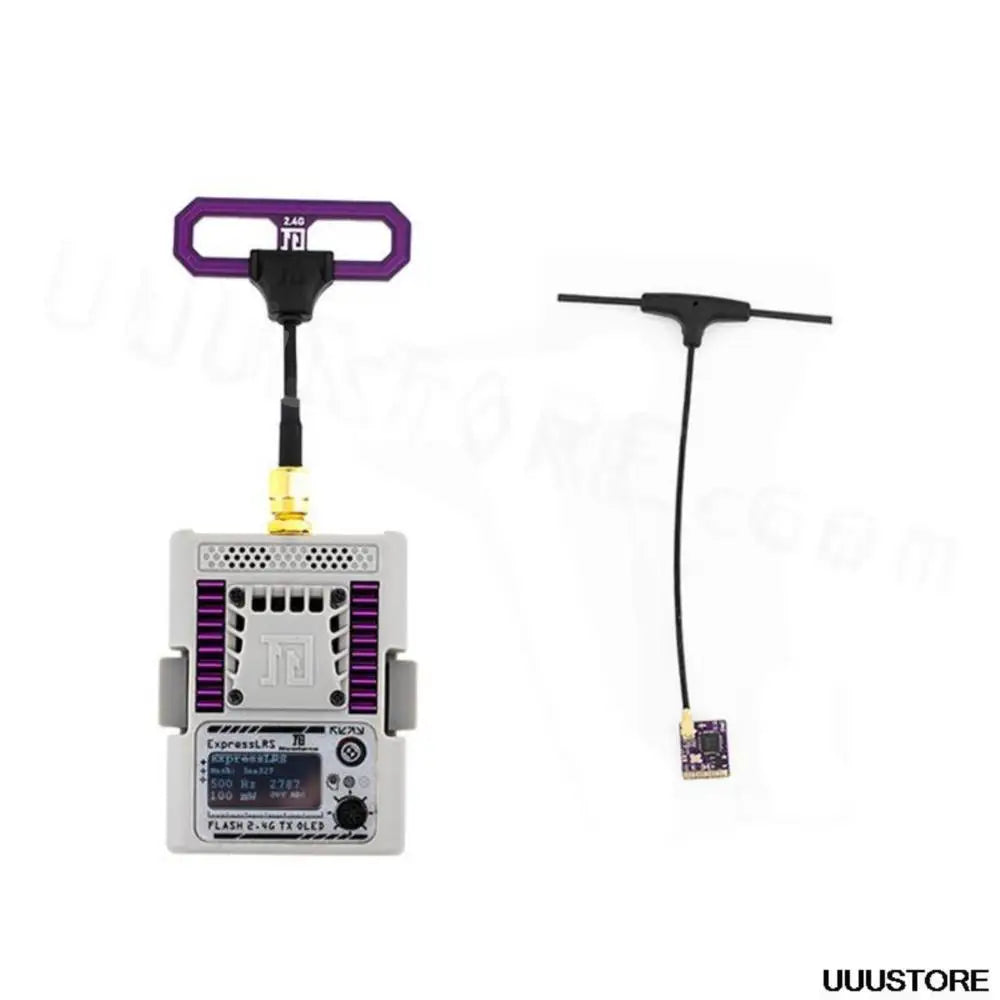

2.4G TX+RX KIT1:


1 x Flash TX Module (with Loop antenna)

1 x Nano Receiver (with T antenna)

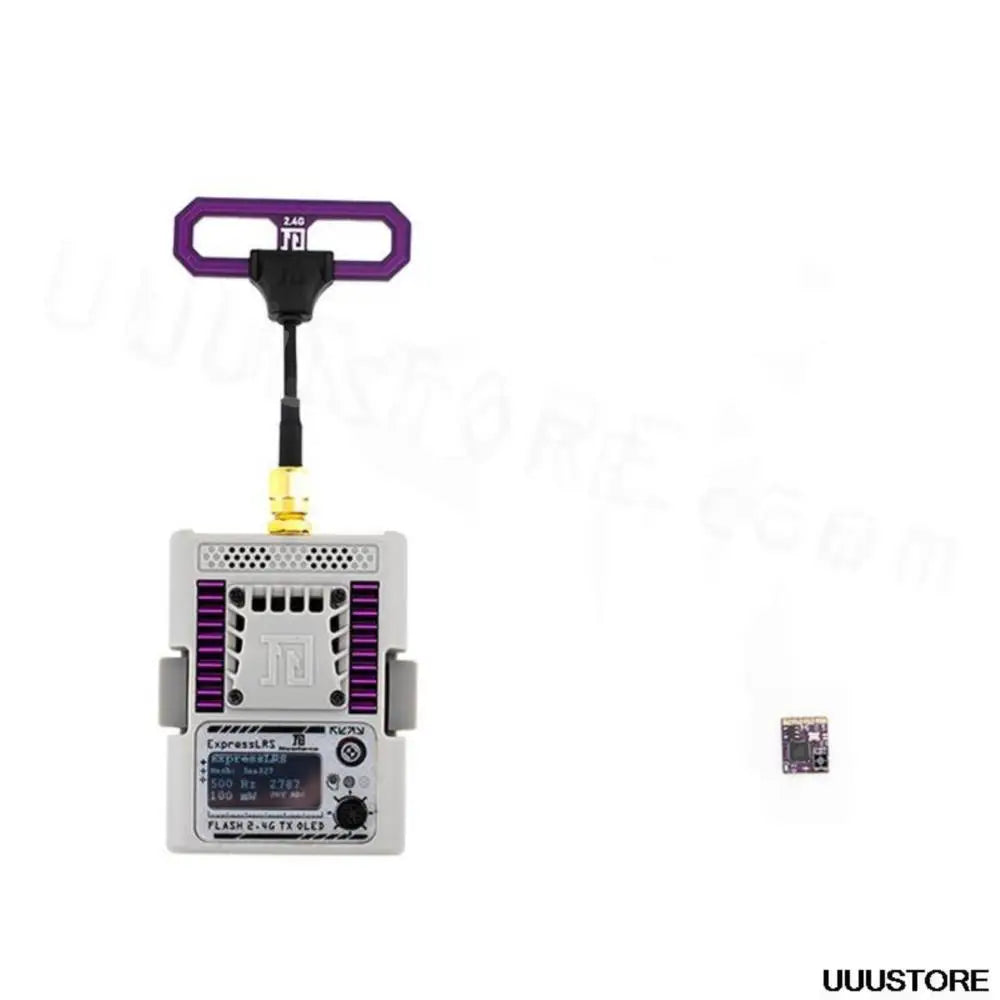

2.4G TX+RX KIT2:

1 x Flash TX Module (with Loop antenna)

1 x Nano RX(onboard)


2.4G TX+RX KIT3:


1 x Flash TX Module (with Loop antenna)

1 x Diversity Nano Receiver
