Basic Set: Z50 Agriculture drone frame kit x 1 Power system x 4 Water pump x 2 Flow meter x 1 Level Gauge x1 Centrifugal nozzle x 2 Adapter Board x 1 Pipes and Fittings x 1 Flight controller x 1 Receiver module x 1 Camera x 1 Remote Control x 1

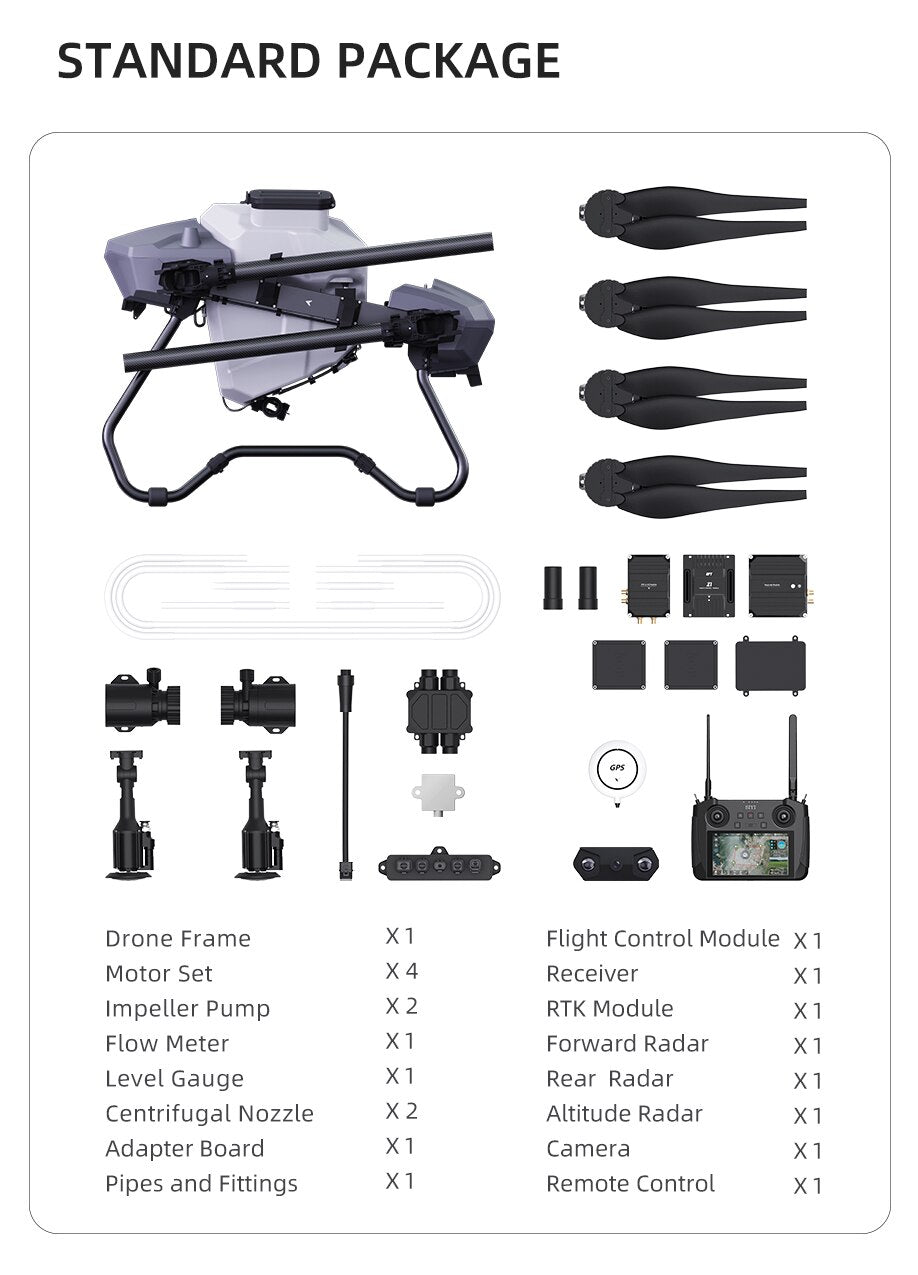

Standard Set: Z50 Agriculture drone frame kit x 1 Power system x 4 Water pump x 2 Flow meter x 1 Level Gauge x1 Centrifugal nozzle x 2 Adapter Board x 1 Pipes and Mittings x 1 Flight controller x 1 Receiver module x 1 Camera x 1 Remote Control x 1 RTK module x 1 Forward Rader x1 Rear obstacle radar x 1 Altitude radar x 1
Note: The weight fluctuation is ±1kg according to the real operation and process.
Three solutions are optional, as follows:
Item
Basic set
Advanced set
Standard set
Drone frame
√
√
√
Motor set*4
√
√
√
Impeller pump*2
√
√
√
Flowmeter
√
√
√
Liquid level gauge
√
√
√
Centrifugal nozzle*2
√
√
√
Switchboard
√
√
√
Piping fittings
√
√
√
Flight control
√
√
√
Receiver
√
√
√
Camera
√
√
√
Remote control
√
√
√
Rear radar
X
√
√
Front radar
X
√
√
Altitude Radar
X
√
√
RTK
X
X
√

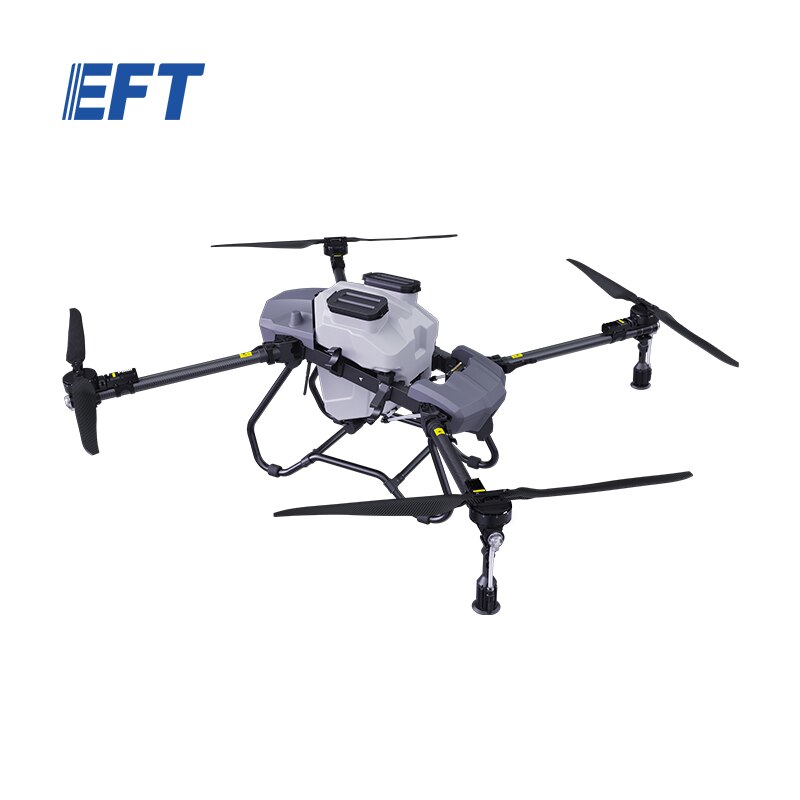

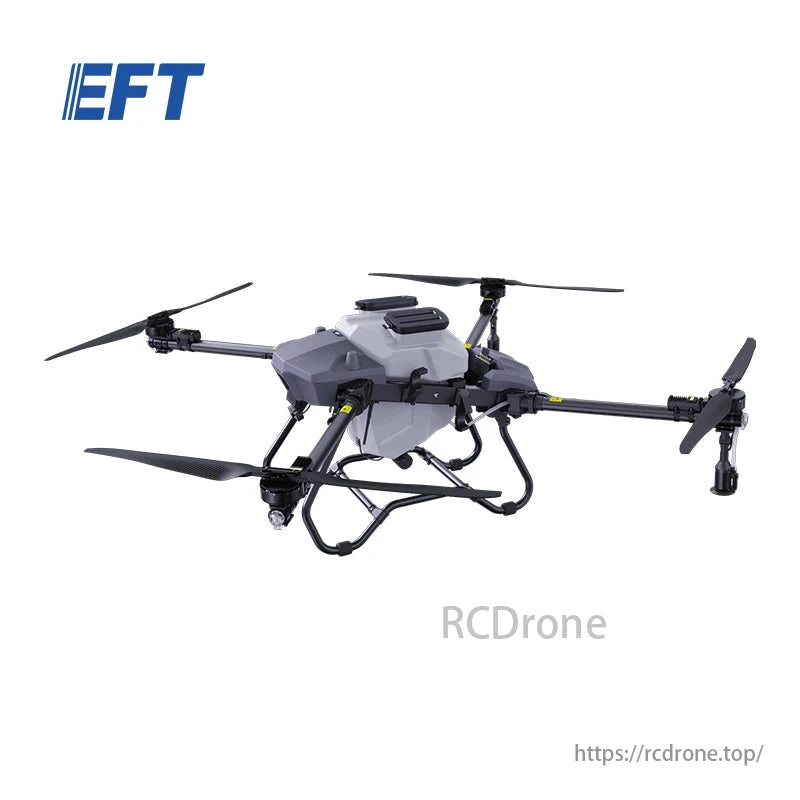

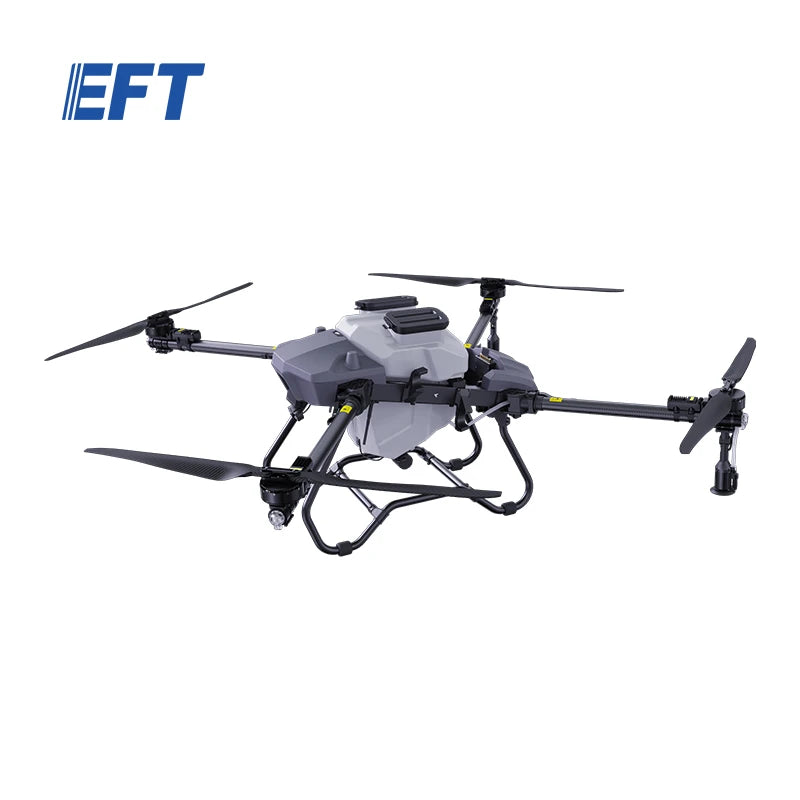

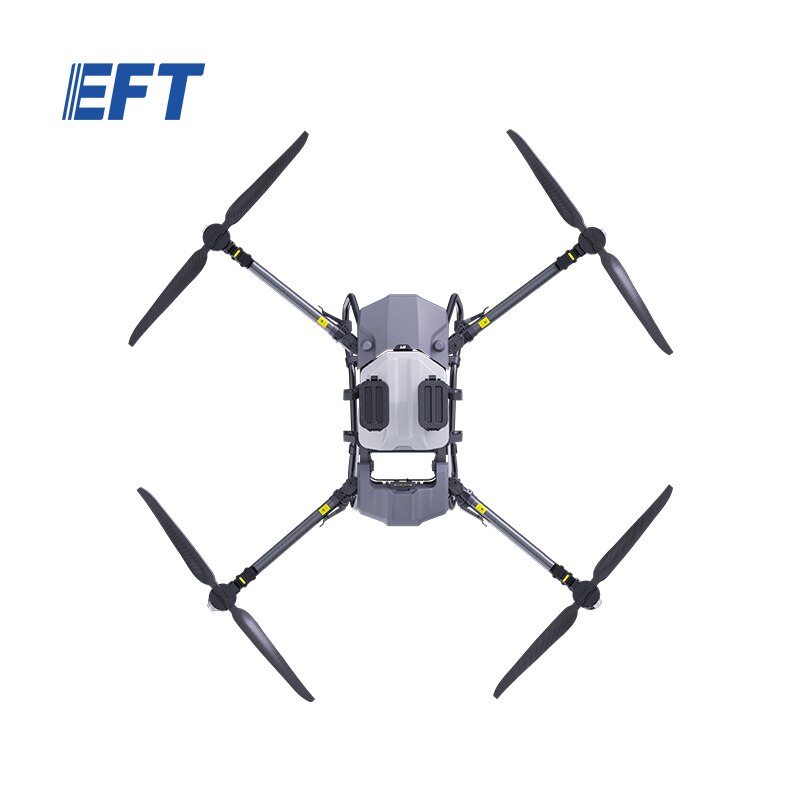

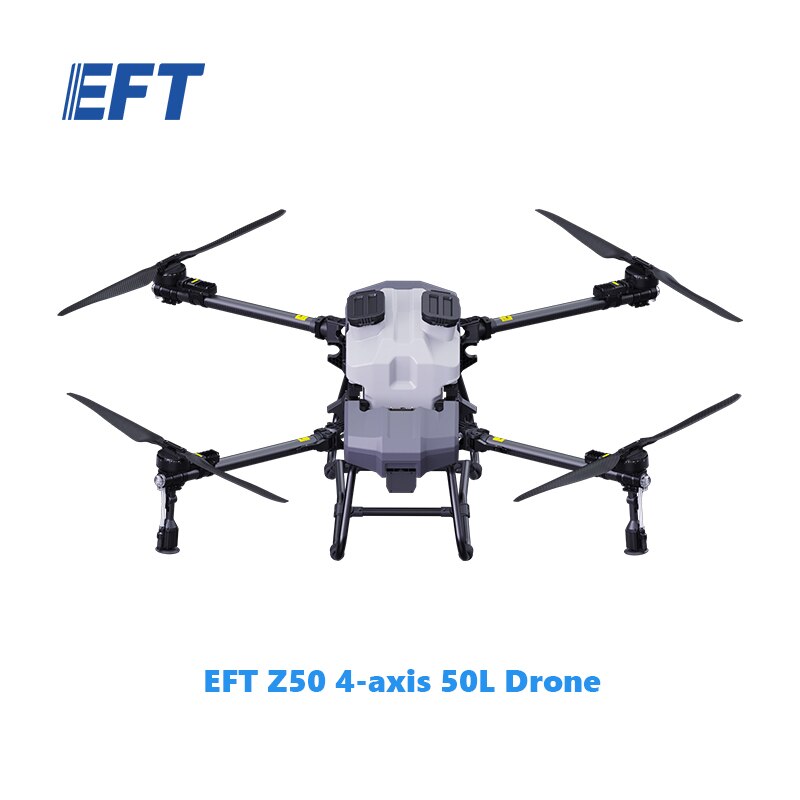

EFT just released the Z series heavy payload agriculture drones, 30kg capacity payload Z30 and 50kg capacity payload Z50 agriculture drones. The Z30/Z50 series agriculture drone adopts new truss structure with better strength and durability. Z-shaped folding structure makes it small in folded size, easy to transport.
The flight controller system adopts group modular design, convenient to install without cumbersome wiring.With ultrasonic flow-meter, high precision weighing module and other parts,you can get the real-time disply of remaining liquid information. Original creation of water-cooled centrifugal nozzle effectively reduce the working temperature, extend the working life. The waterproof level of the whole drone reaches IP67, the EFT Z30 and Z50 can be widely used in various fields.
Main Features: EFT Z30/Z50 Agriculture drone frame adopts a new truss structure with better strength and durability.

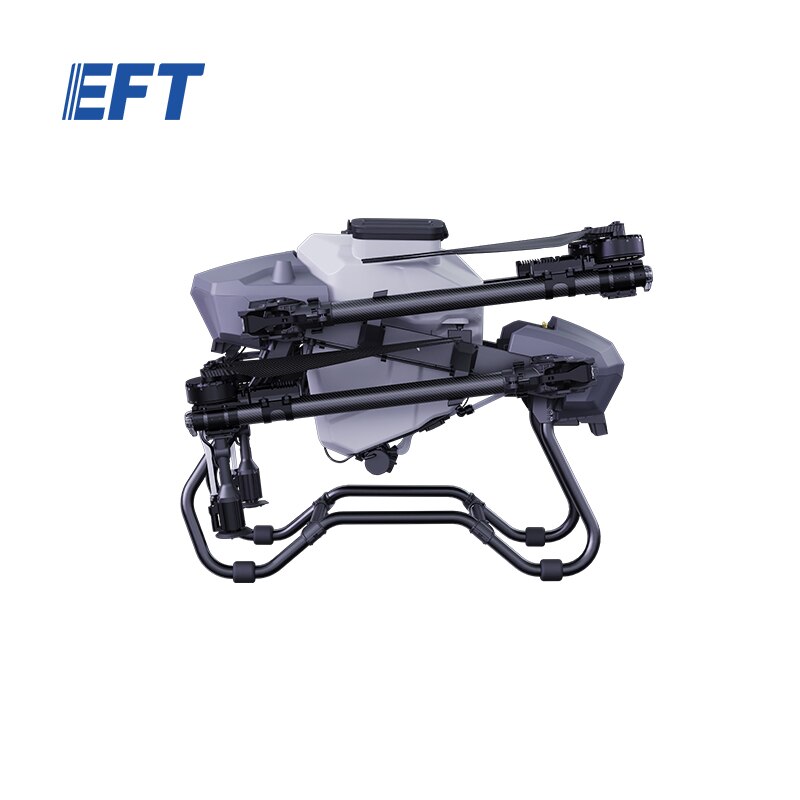

Z-shaped folding structure--Small folding size, more convenient to transport.
The newly upgraded arm locking structure is easy to operate, firm and reliable.
Super large bilateral liquid inlet--Adding pesticides is smoother, and the liquid does not leak.
Snap-in fuselage--Tool-free disassembly.
High front and low tail design, the flight resistance is smaller.
With ultrasonic flow-meter,the sensor and liquid medicine are separated and detected.
High-precision weighing module, real-time display of remaining liquid information.
Early warning of failure information.
Group modular design of flight control system.Convenient installation without cumbersome wiring
Newly Upgraded Spraying System Equipped with bilateral large diameter impeller pump With ultrasonic flow-meter,the sensor and liquid medicine are separated and detected.No fear of corrosion, stable and reliable. Original creation water-cooled centrifugal nozzle, which effectively reduce the working temperature, extend the working life. Delicate droplet particles and large atomization radius.
Precise Spreading Integrated liquid container assembly can change to spreading system quickly. Simple and efficient operation, large feeding port, double the feeding efficiency, The bow-shaped tripod design can effectively avoid the collision of the broadcasting particles, and the weight of the remaining material can be detected to achieve precise broadcasting.
The waterproof level of the whole drone reaches IP67. The whole machine is upgraded waterproof from the inside to the outside, the main board of the power supply is potted as a whole, the plug is replaced with a waterproof terminal, and the core module is independently waterproof.
Same structure, convenient maintenance The Z30 and Z50 adopt the same platform architecture design, more than 95% of the parts are the same, and the spare parts are easier to prepare. Greatly reduce maintenance costs and improve production efficiency.
