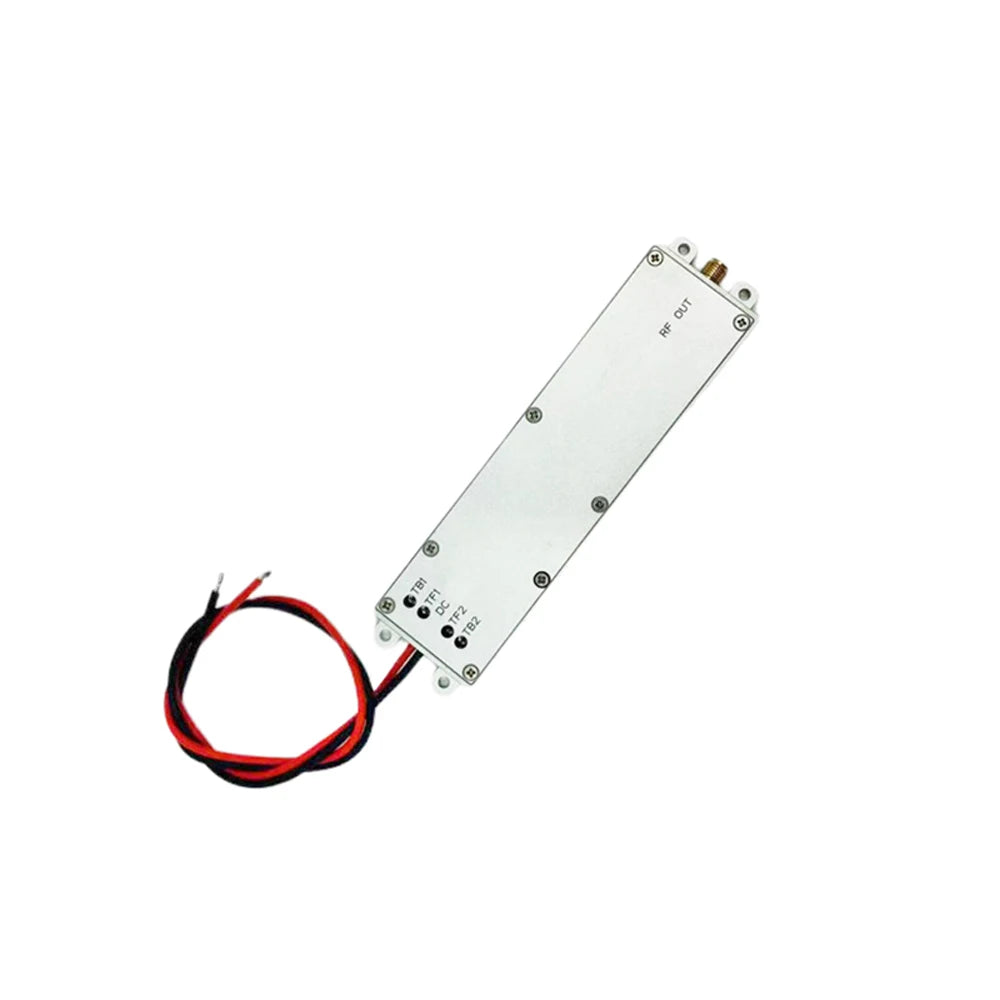

20W 10W module DC 29V 433Mhz 1.5Ghz 2.4Ghz 5.2Ghz 5.8Ghz for Anit Remote control 2.4G WIFI Bluetooth 5.8G drone UAV

Warning:

The antenna must be plugged in before powering on. Otherwise, the chip will be burned because reflected signal is too large.

How to Choose Antenna?

Pay attention to interface and frequency. The output interface of this module is female port, then your antenna should be with corresponding frequency + male port.

Frequnency range: 433Mhz / 900Mhz / 1.2Ghz / 1.5Ghz / 2.4Ghz / 5.2Ghz / 5.8Ghz

Supply voltage:DC 27-28V

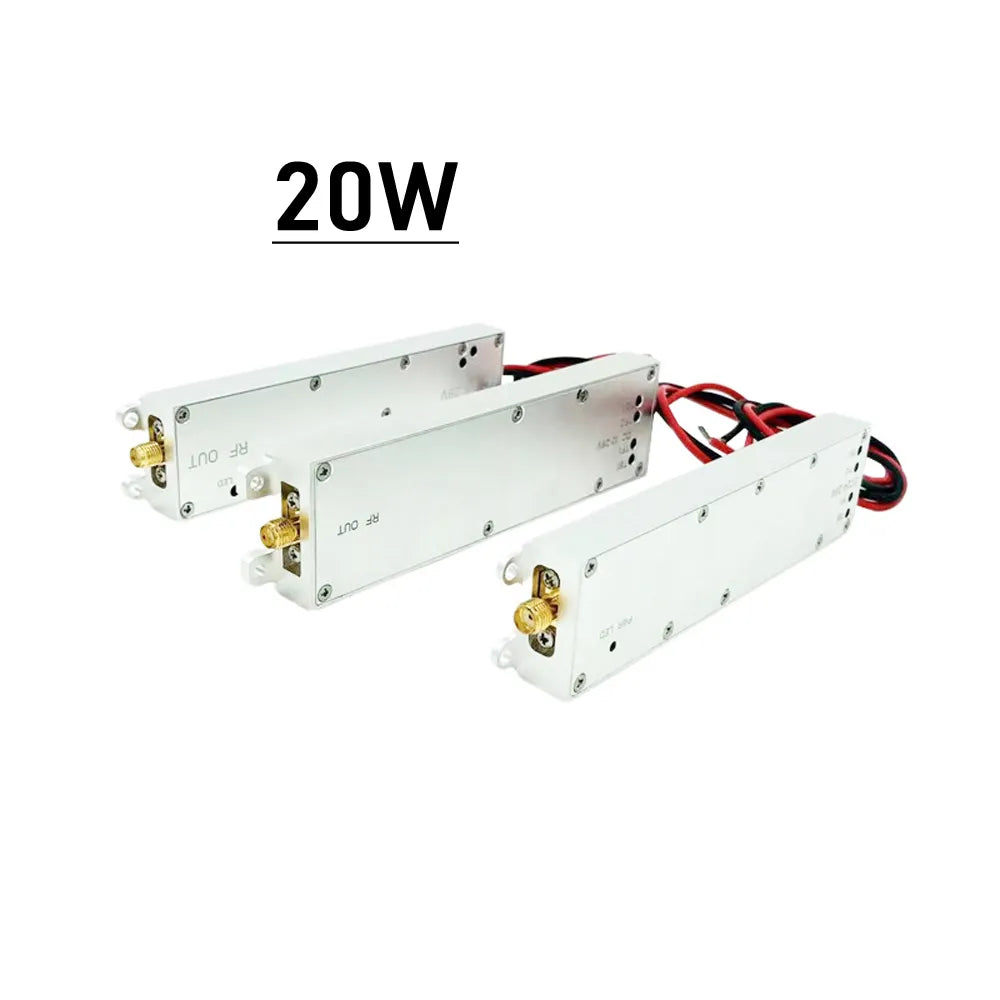

Output power:10W / 20W

Average output power 10W (directional antenna interference distance: 3-500M)

Average output power 20W (directional antenna interference distance: 3-2000M)

Power flatness:1-1.5dB

Input/Output VSWR:1.5dB

10W Supply current: 1-1.1A

20W Supply current:2.1-2.4A

10w Size LWH: 130x30x15mm

20w Size LWH:137x34x15mm

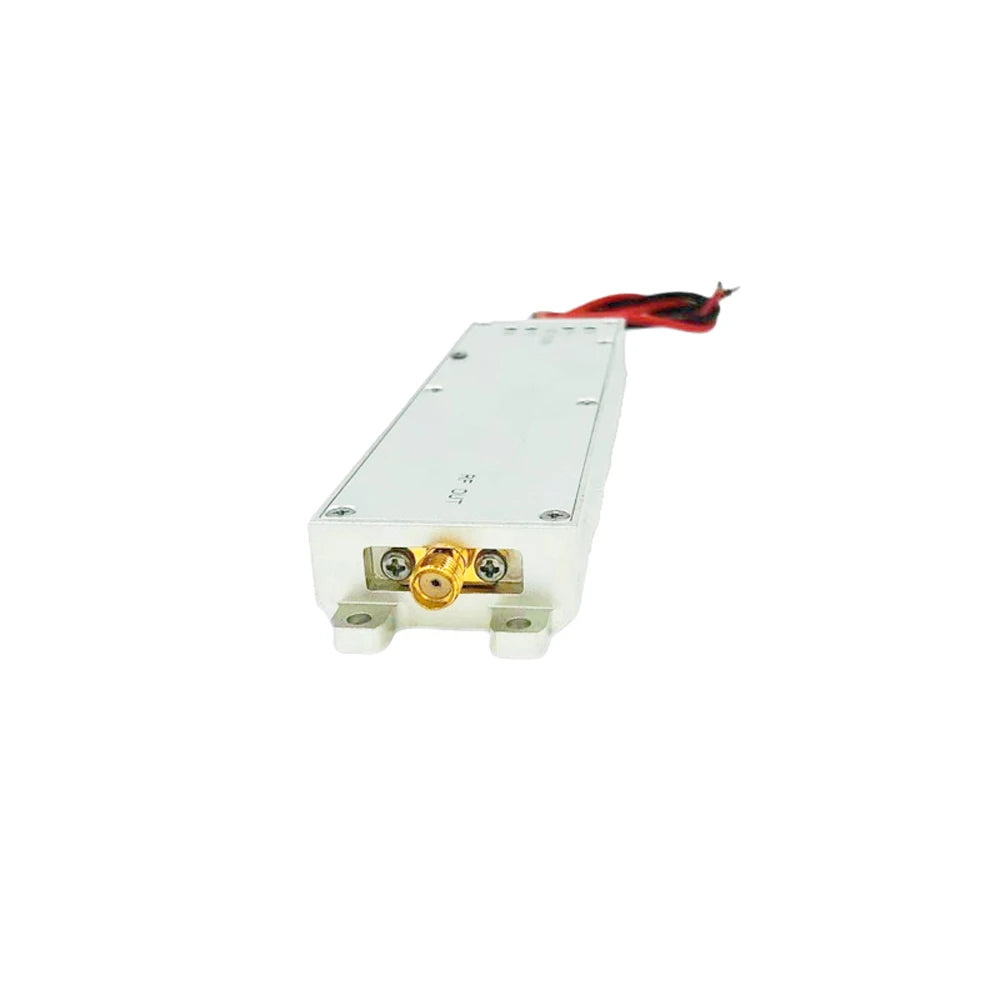

RF connector:SMA

Weight:110g / 156g

Operating temperature:-20℃~80℃
