2812 900KV 1115KV 3-6S Brushless Motors for 7-9 Inch FPV Long Range Racing Drones XL7 APEX Mark4 Multirotors DIY Parts

Overview

The 2812 900KV and 1115KV brushless motors are built for 7 to 9-inch FPV long-range and freestyle drones, offering a balance of thrust, efficiency, and durability. Featuring a 28mm stator diameter, 12mm stator height, and 81g lightweight construction, these motors deliver reliable performance for demanding RC multirotor builds such as XL7, APEX, and Mark4.

Specifications

Key Features

• High Thrust Output: Up to 3000g+ thrust capability for 7-9" propeller setups.

• Efficient Power Delivery: Optimized efficiency up to 68% for better endurance and temperature control.

• Durable Build: Precision manufacturing and tight tolerances ensure consistent performance and long service life.

• Smooth and Stable Operation: Supports agile maneuvers and stable cruising, perfect for long-range FPV flights.

• Wide Application: Compatible with multirotors like XL7, APEX, Mark4, and other large freestyle or long-range builds.

Application Scenarios

• Long-range FPV drones (7", 8", 9" builds)

• Freestyle drones

• Heavy-lift FPV frames

• DIY multirotor racing projects

Package Includes

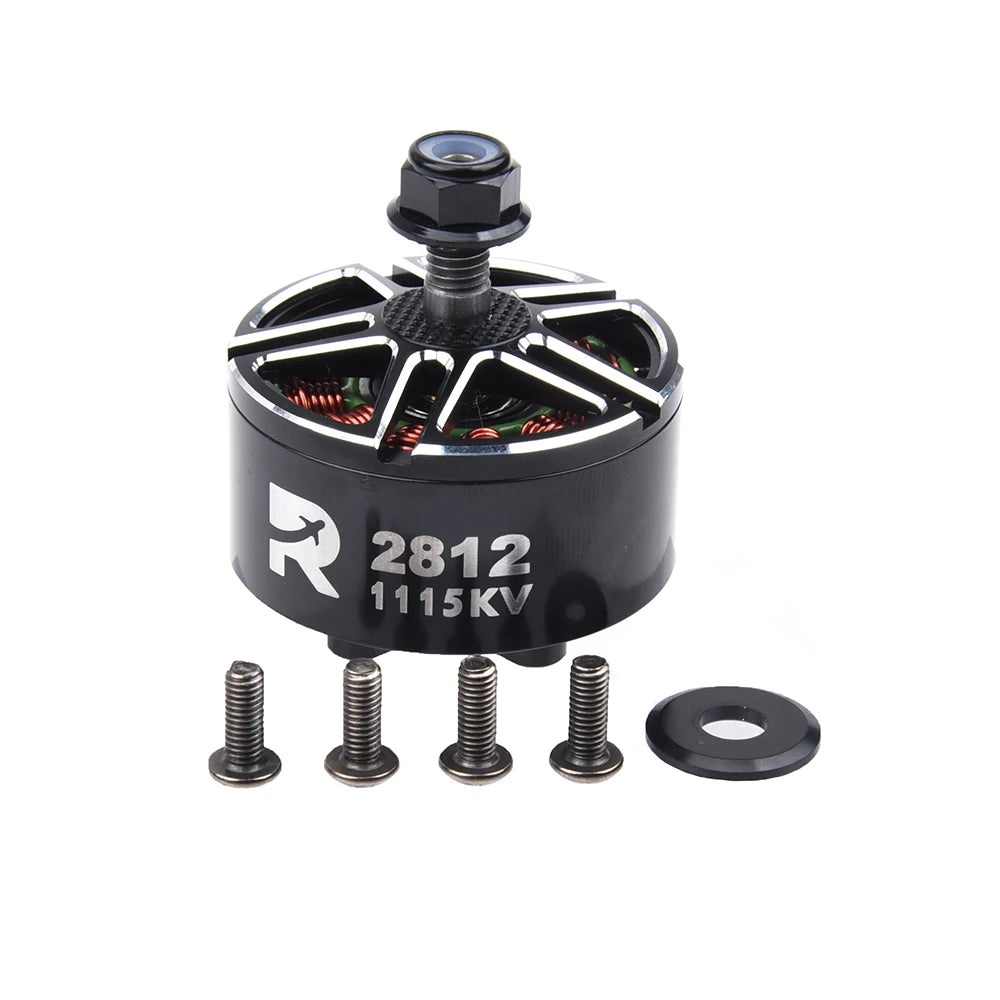

• 1 × 2812 900KV or 1115KV Brushless Motor

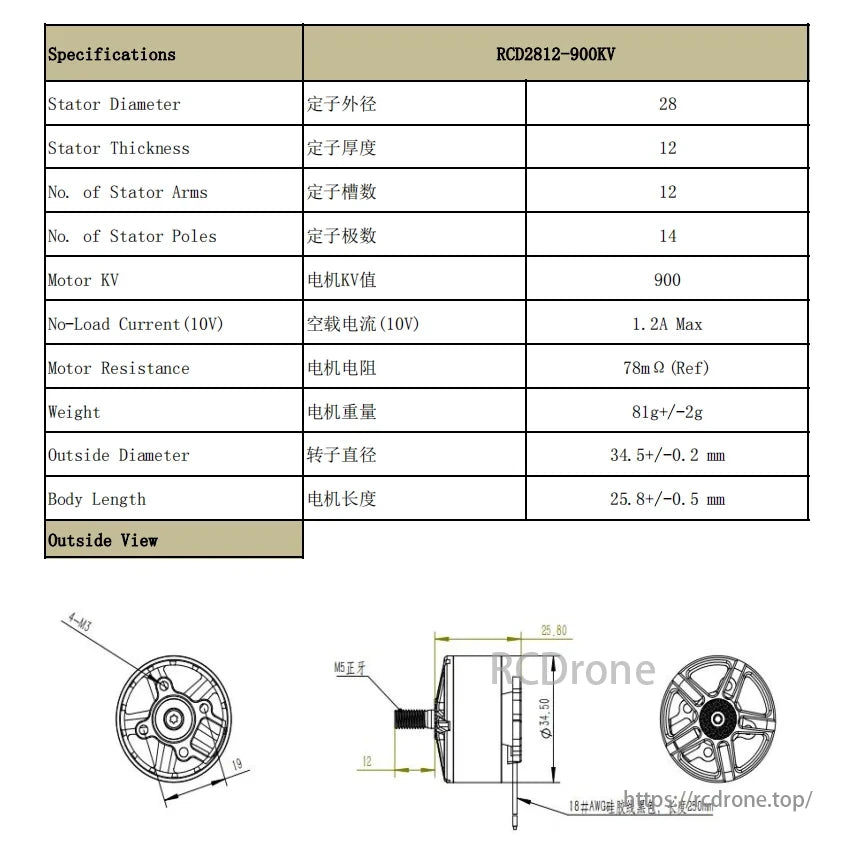

2812 900KV motor specs: 28mm stator diameter, 12mm thickness, 12 arms, 14 poles. KV 900, max 1.2A at 10V, 78mΩ resistance, 81g weight, 34.5mm outside diameter, 25.8mm length. Diagrams illustrate dimensions.

2812-9045 brushless motor data: RPM, voltage, current, torque, power, efficiency at various throttle settings. Motor customizable in color, engraving, and KV value. Available in 2807/2810/2812 models.

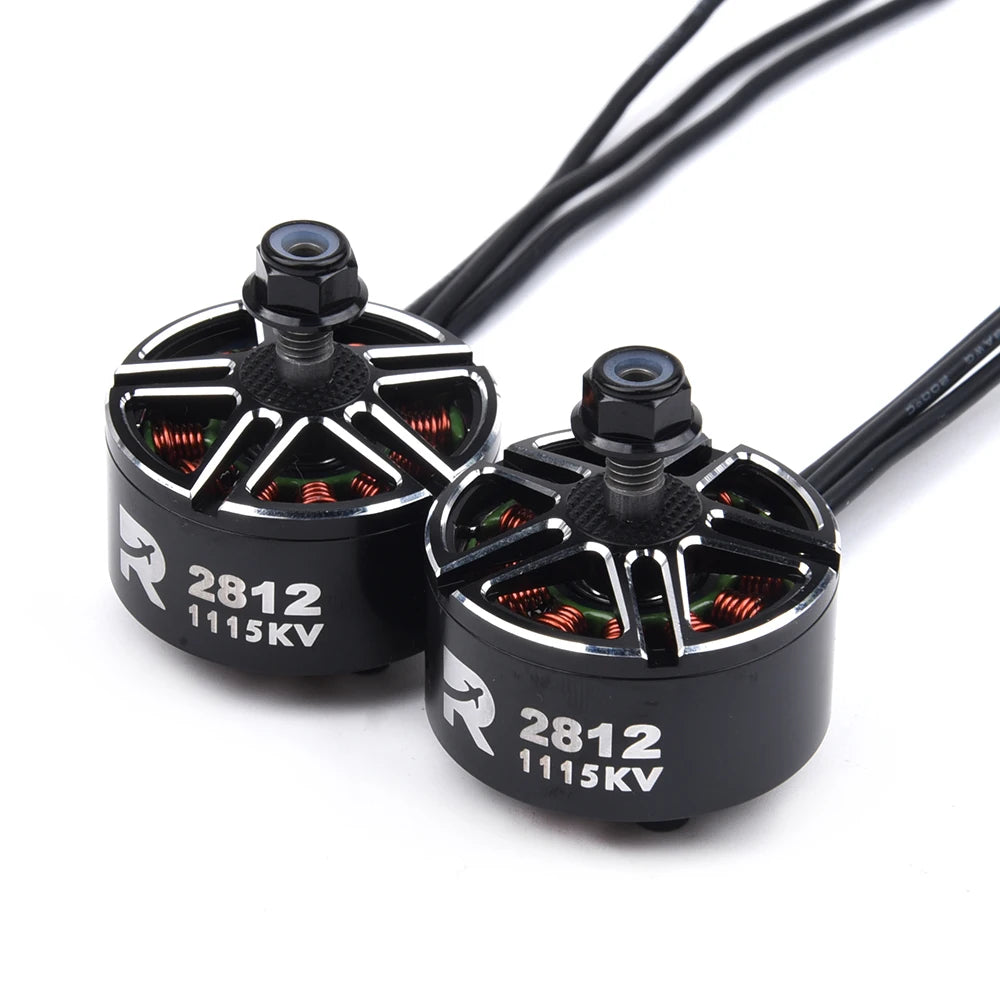

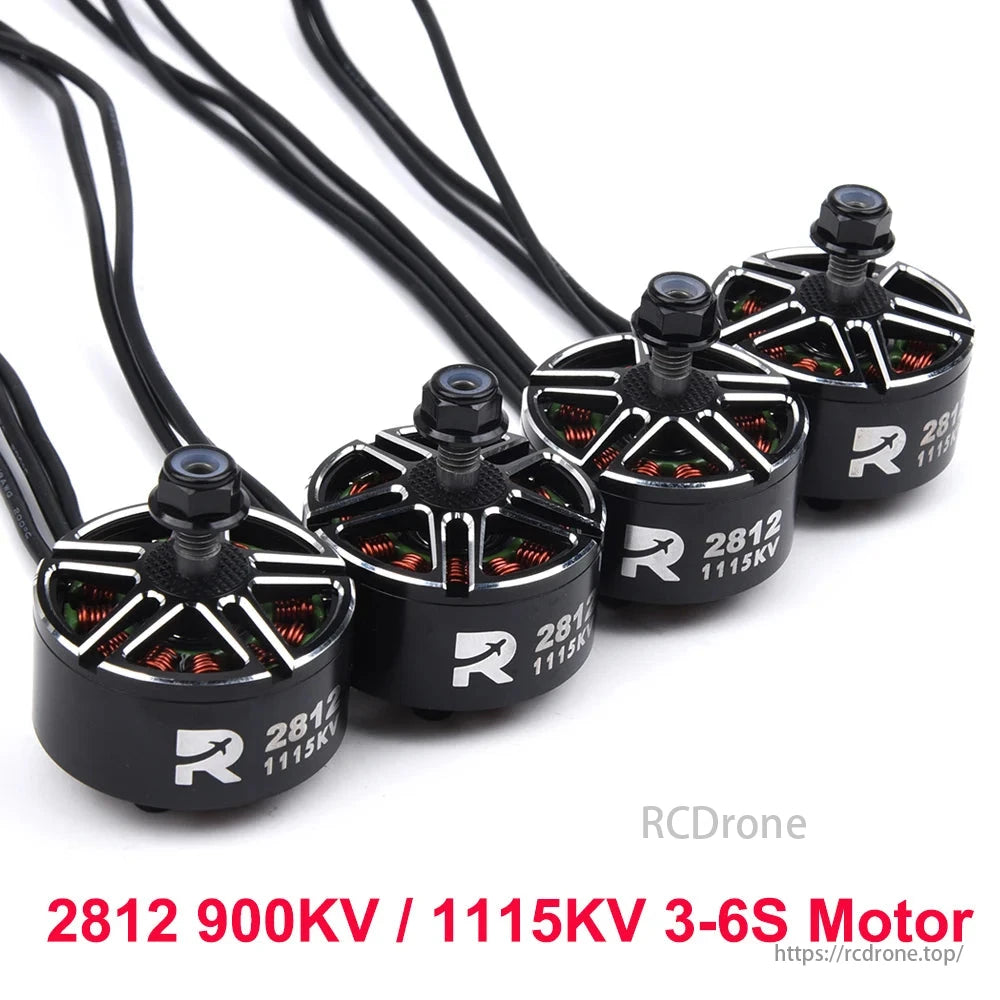

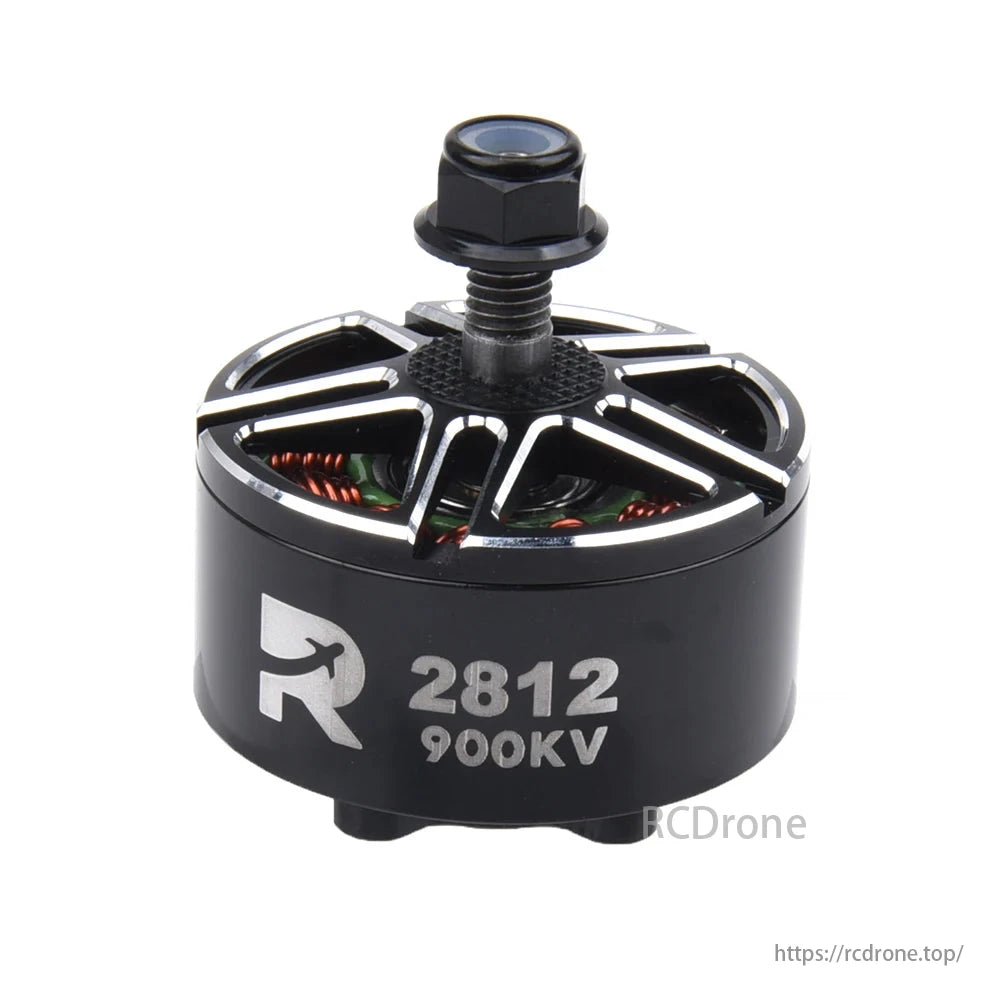

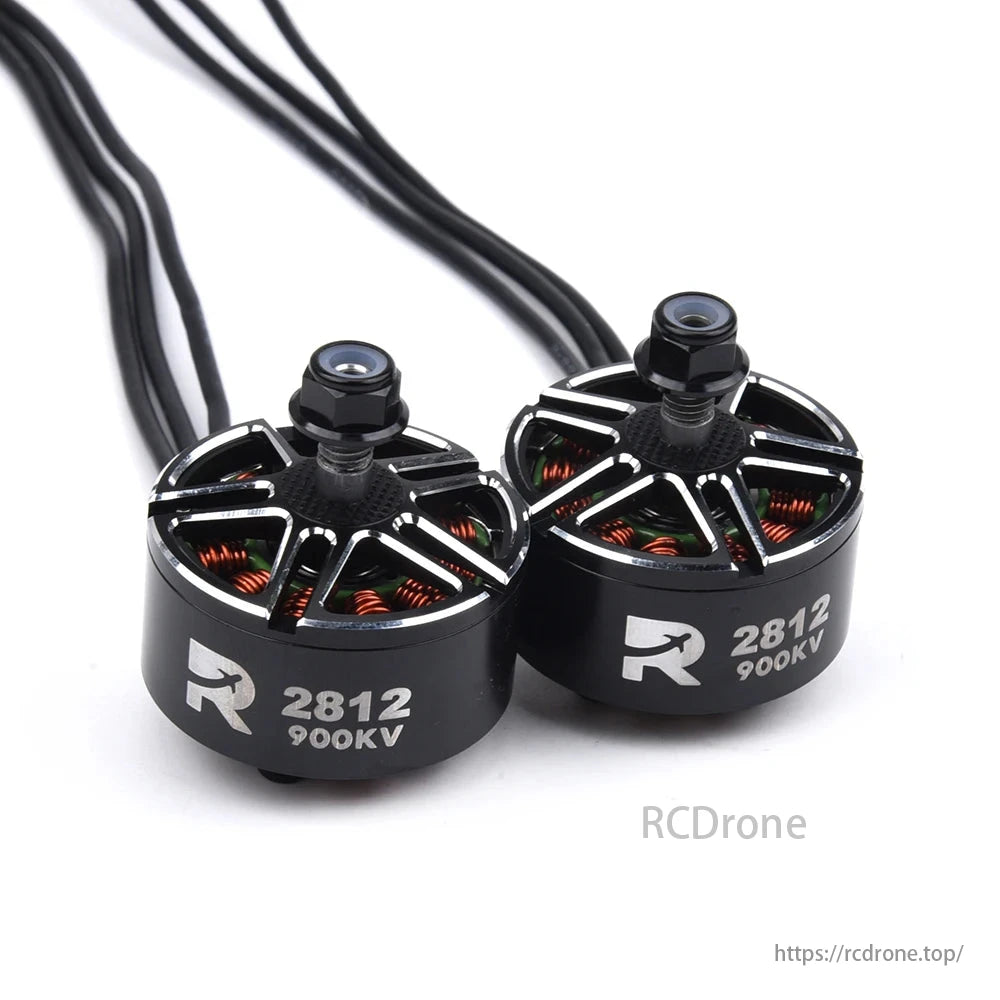

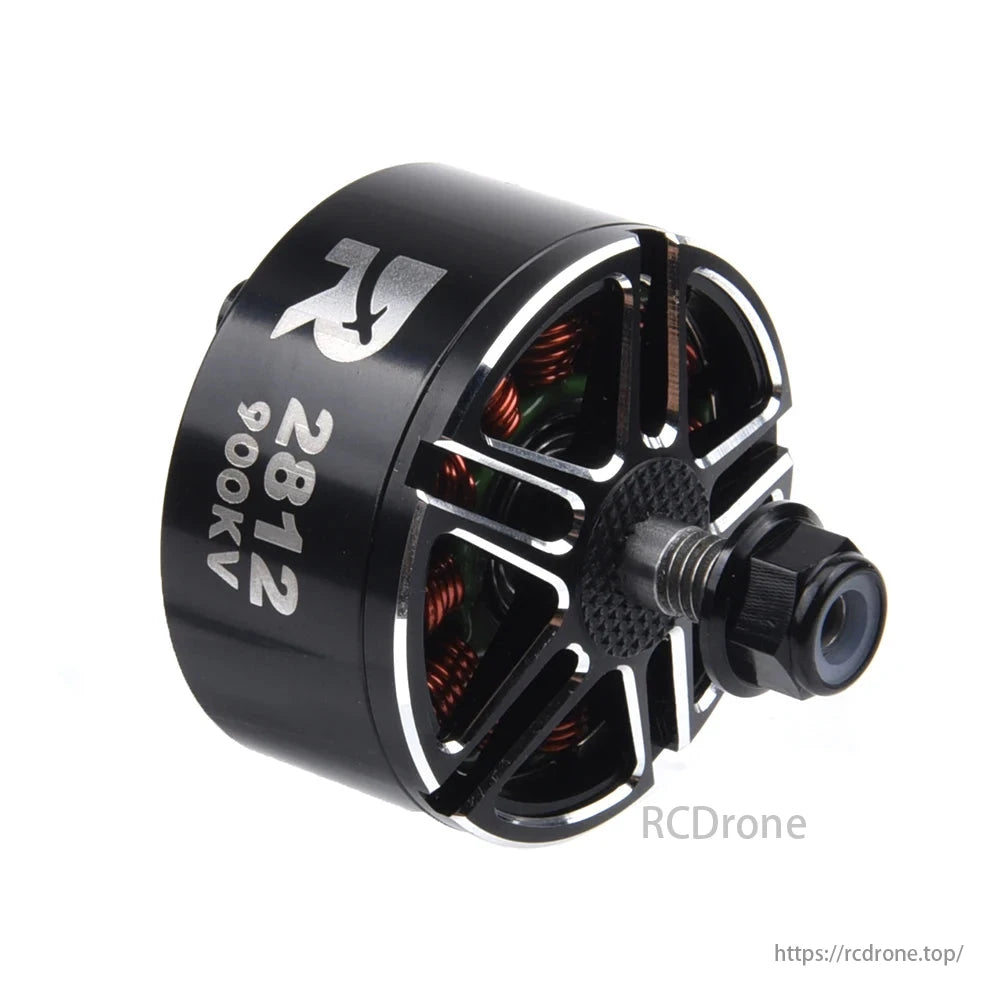

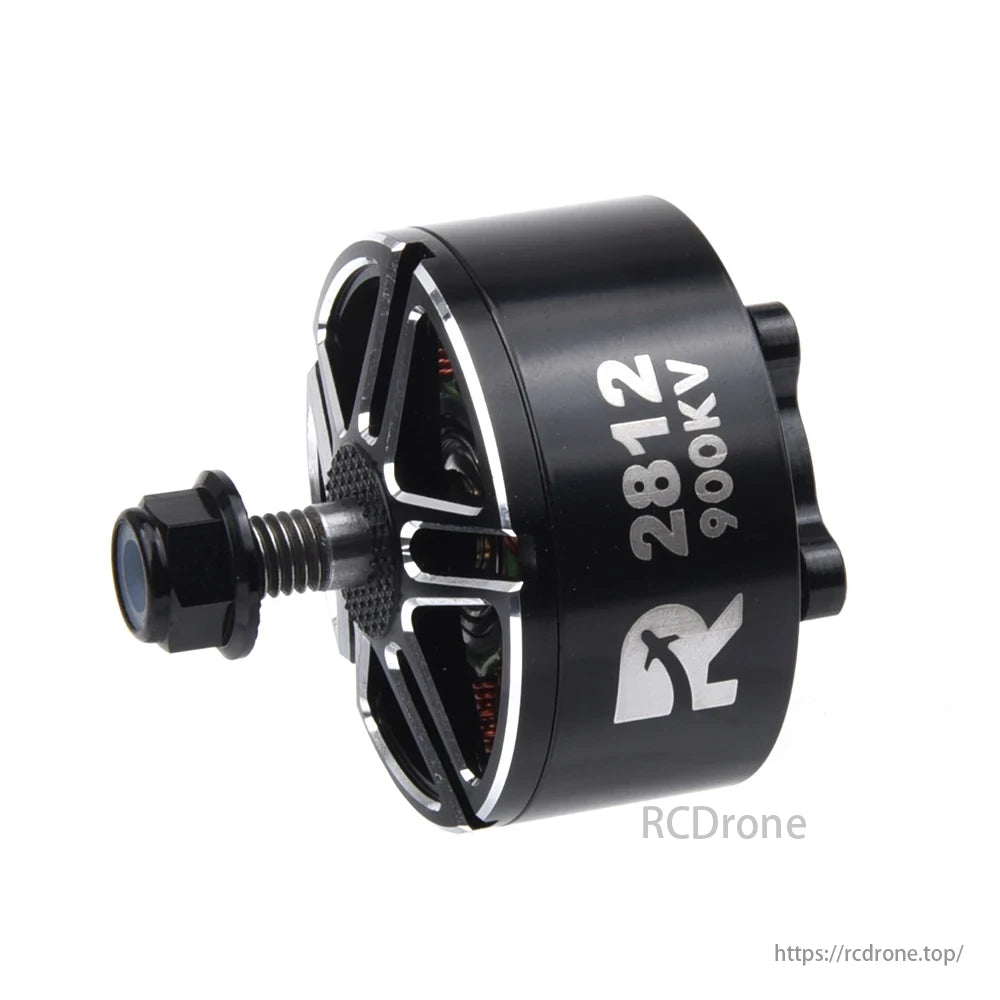

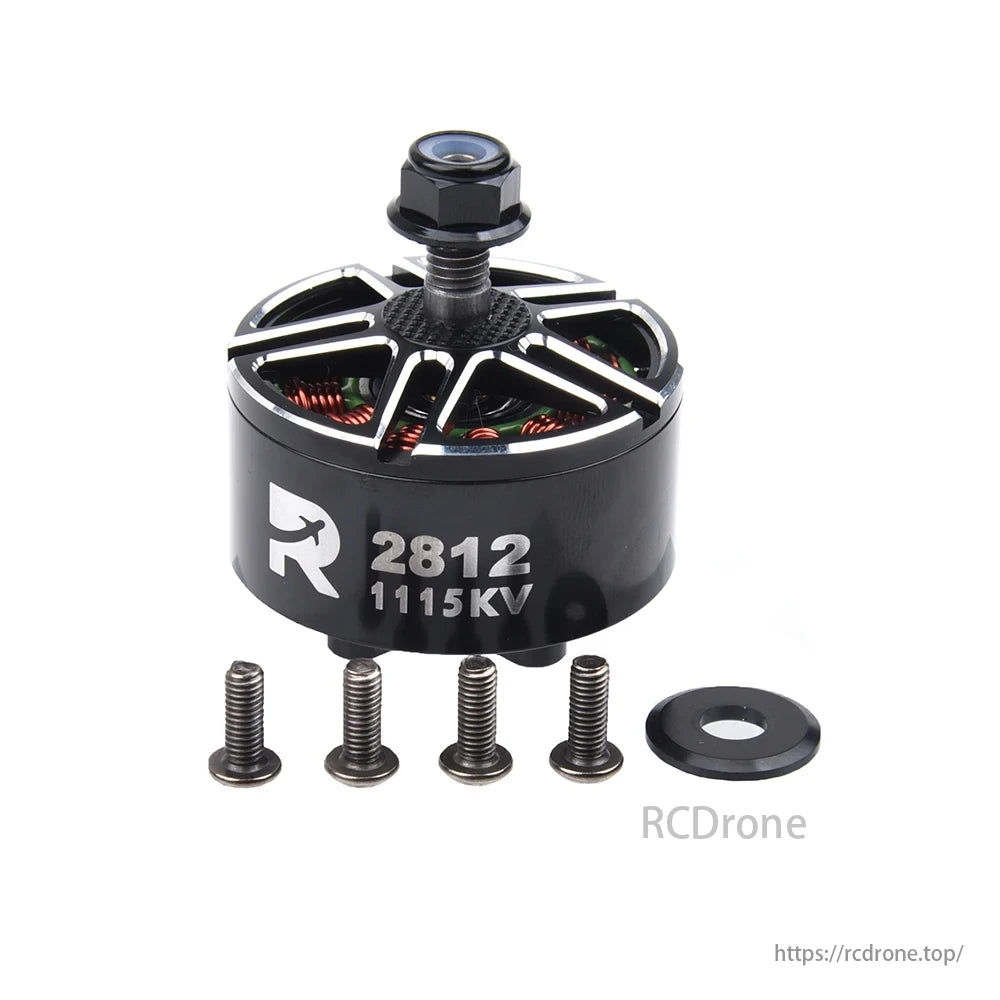

2812 900KV/1115KV 3-6S brushless motor, black design with red coils.
