Description：

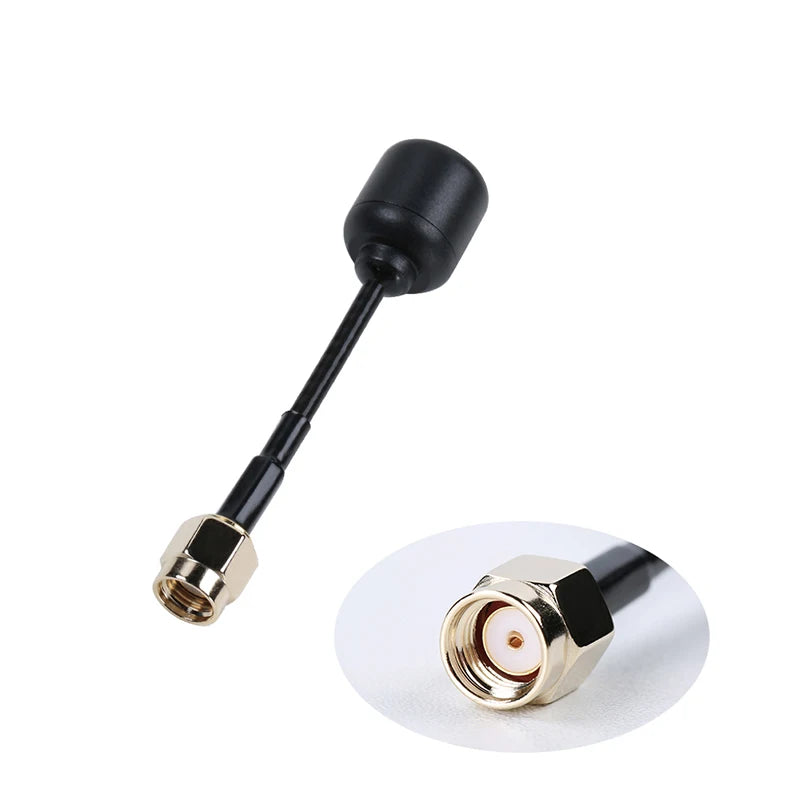

• DJI FPV Air Unit LHCP antenna is both small and light weight (only 6g), it does not sacrifice any performance. It has a high max gain of 2 dB gain and 3dB axial ratio beamwidth at 5.8GHz, enabling better range and penetration. It has a wide bandwidth covering the popular FPV 5GHz band from 5.4GHz-6GHz, ensuring you have a clear and strong signal no matter which frequency you're on.


Tips

• Keep the antennas of the air unit at least 40 mm apart.

• Keep the air unit away from metal objects or carbon fiber frames. Make sure to choose a position where the transmission will not be blocked during flight.


In The Box

• DJI FPV Air Unit Antenna (RP-SMA) × 2PCS


Specifications

• VSWR<2 frequency range: 5.4GHz-6GHz, 2 dB gain and 3dB axial ratio beamwidth at 5.8GHz

• Size: 12.7 × 12.7 × 55 mm

• Weight: 6g


Compatibility（not include）

• DJI FPV Air Unit
