High-Power Portable Backpack Drone Signal Jammer – 433MHz to 2.5GHz, Ideal for Cellular, GSM, 3G, 4G LTE, Wi-Fi, GPS, UHF, VHF Signal Defense in Prisons, Military, and Government Facilities
Description
Introducing our Portable Backpack Style Drone Signal Jammer, designed to provide robust defense against unauthorized UAV activities and various communication signals. This high-power jammer effectively covers frequencies from 433MHz to 2.5GHz, making it ideal for securing sensitive areas such as prisons, military bases, and government facilities.
Equipped with six high-gain antennas, this jammer delivers a powerful jamming ability, capable of neutralizing drones such as Phantom 4, Phantom 3, FPV Professional, Advanced, Standard Series, and Inspire Series up to a distance of 600-2000 meters. The built-in battery allows for 60 minutes of continuous operation, ensuring reliable protection when needed.
Product Parameters
JH-XBG-3-90W: Configuration 1
Frequency | Working Frequency | dBm | Channel Output Power |
---|---|---|---|
CH1 | 720-840MHz | 43dBm | 20dBm/30KHz (min) |
CH2 | 830-940MHz | 47dBm | 20dBm/30KHz (min) |
CH3 | 950-1050MHz | 43dBm | 20dBm/30KHz (min) |
JH-XBG-3-90W: Configuration 2
Frequency | Working Frequency | dBm | Channel Output Power |
---|---|---|---|
CH1 | 600-700MHz | 47dBm | 20dBm/30KHz (min) |
CH2 | 720-840MHz | 43dBm | 20dBm/30KHz (min) |
CH3 | 950-1050MHz | 43dBm | 20dBm/30KHz (min) |
JH-XBG-3-90W: Configuration 3
Frequency | Working Frequency | dBm | Channel Output Power |
---|---|---|---|
CH1 | 720-840MHz | 47dBm | 20dBm/30KHz (min) |
CH2 | 830-940MHz | 43dBm | 20dBm/30KHz (min) |
CH3 | 2400-2500MHz | 43dBm | 20dBm/30KHz (min) |
JH-XBG-4-120W: Configuration 1
Frequency | Working Frequency | dBm | Channel Output Power |
---|---|---|---|
CH1 | 720-840MHz | 43dBm | 20dBm/30KHz (min) |
CH2 | 830-940MHz | 47dBm | 20dBm/30KHz (min) |
CH3 | 950-1050MHz | 43dBm | 20dBm/30KHz (min) |
CH4 | 2400-2500MHz | 45dBm | 20dBm/30KHz (min) |
JH-XBG-4-120W: Configuration 2
Frequency | Working Frequency | dBm | Channel Output Power |
---|---|---|---|
CH1 | 720-840MHz | 43dBm | 20dBm/30KHz (min) |
CH2 | 830-940MHz | 47dBm | 20dBm/30KHz (min) |
CH3 | 950-1050MHz | 43dBm | 20dBm/30KHz (min) |
CH4 | 5725-5850MHz | 45dBm | 20dBm/30KHz (min) |
JH-XBG-4-120W: Configuration 3
Frequency | Working Frequency | dBm | Channel Output Power |
---|---|---|---|
CH1 | 720-840MHz | 47dBm | 20dBm/30KHz (min) |
CH2 | 830-940MHz | 43dBm | 20dBm/30KHz (min) |
CH3 | 2400-2500MHz | 43dBm | 20dBm/30KHz (min) |
CH4 | 5725-5850MHz | 45dBm | 20dBm/30KHz (min) |
JH-XBG-5-140W: Configuration 1
Frequency | Working Frequency | dBm | Channel Output Power |
---|---|---|---|
CH1 | 420-450MHz | 43dBm | 20dBm/30KHz (min) |
CH2 | 830-940MHz | 47dBm | 20dBm/30KHz (min) |
CH3 | 950-1050MHz | 43dBm | 20dBm/30KHz (min) |
CH4 | 2400-2500MHz | 43dBm | 20dBm/30KHz (min) |
CH5 | 5725-5850MHz | 44dBm | 20dBm/30KHz (min) |
JH-XBG-5-140W: Configuration 2
Frequency | Working Frequency | dBm | Channel Output Power |
---|---|---|---|
CH1 | 420-450MHz | 43dBm | 20dBm/30KHz (min) |
CH2 | 830-940MHz | 47dBm | 20dBm/30KHz (min) |
CH3 | 1550-1620MHz | 43dBm | 20dBm/30KHz (min) |
CH4 | 2400-2500MHz | 43dBm | 20dBm/30KHz (min) |
CH5 | 5725-5850MHz | 44dBm | 20dBm/30KHz (min) |
JH-XBG-5-140W: Configuration 3
Frequency | Working Frequency | dBm | Channel Output Power |
---|---|---|---|
CH1 | 420-450MHz | 43dBm | 20dBm/30KHz (min) |
CH2 | 830-940MHz | 47dBm | 20dBm/30KHz (min) |
CH3 | 1550-1620MHz | 43dBm | 20dBm/30KHz (min) |
CH4 | 2400-2500MHz | 43dBm | 20dBm/30KHz (min) |
CH5 | 5150-5350MHz | 44dBm | 20dBm/30KHz (min) |
Invest in our Portable Backpack Style Drone Signal Jammer today to ensure the security and privacy of your critical areas.

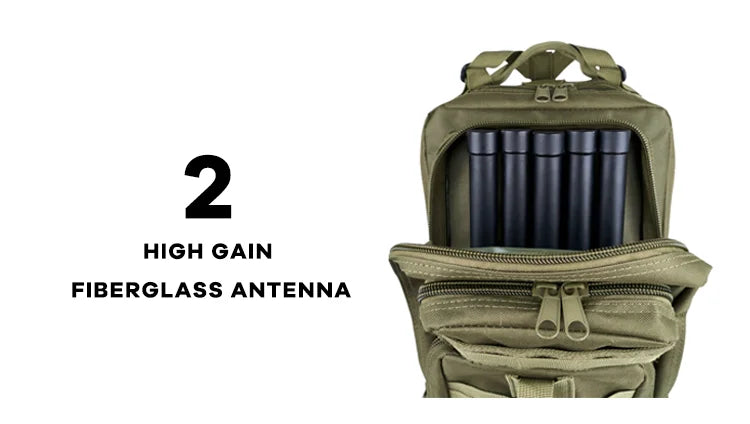

Features a high-gain fiberglass antenna for effective signal disruption.

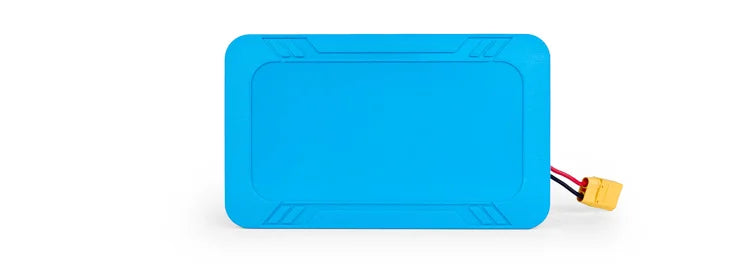

Three-and-a-half-channel mainframe jammer backpack uses lithium-ion battery.

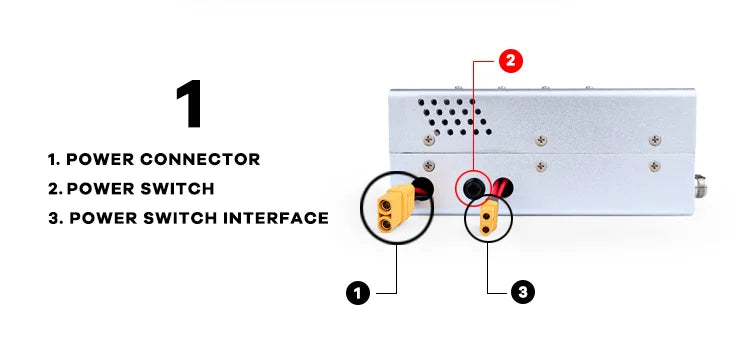

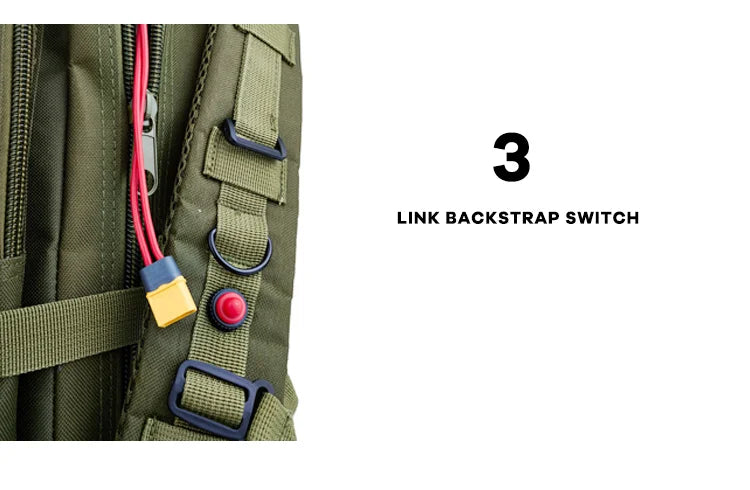

Equipped with power connector, power switch, and interface for easy activation.

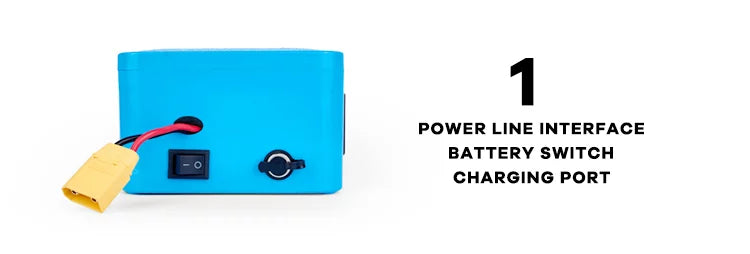

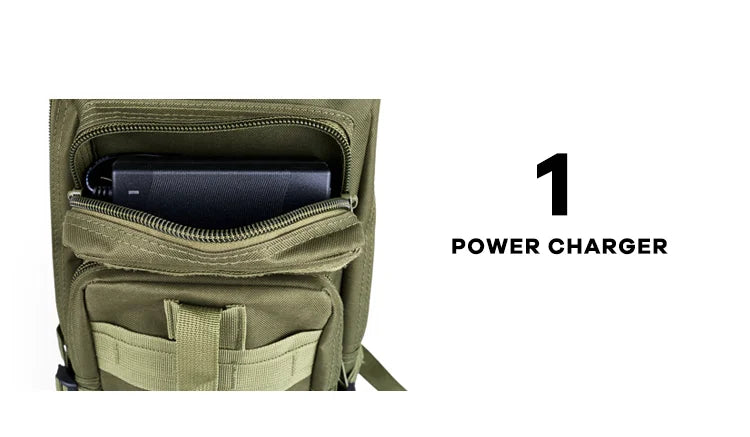

Power interface for battery charging, with switch and port

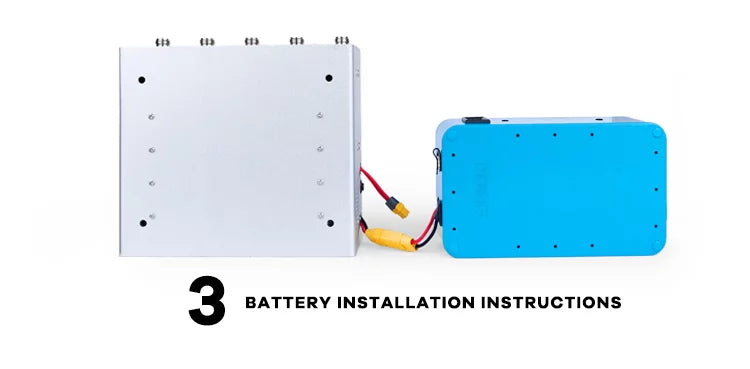

Insert three rechargeable batteries to power this anti-drone jammer backpack.

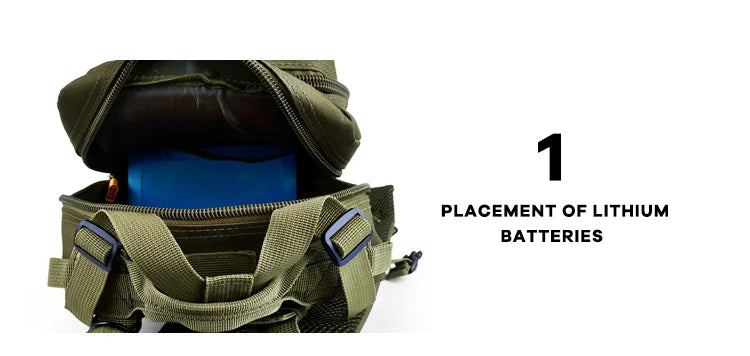

Please place lithium batteries within designated compartments for safe storage.

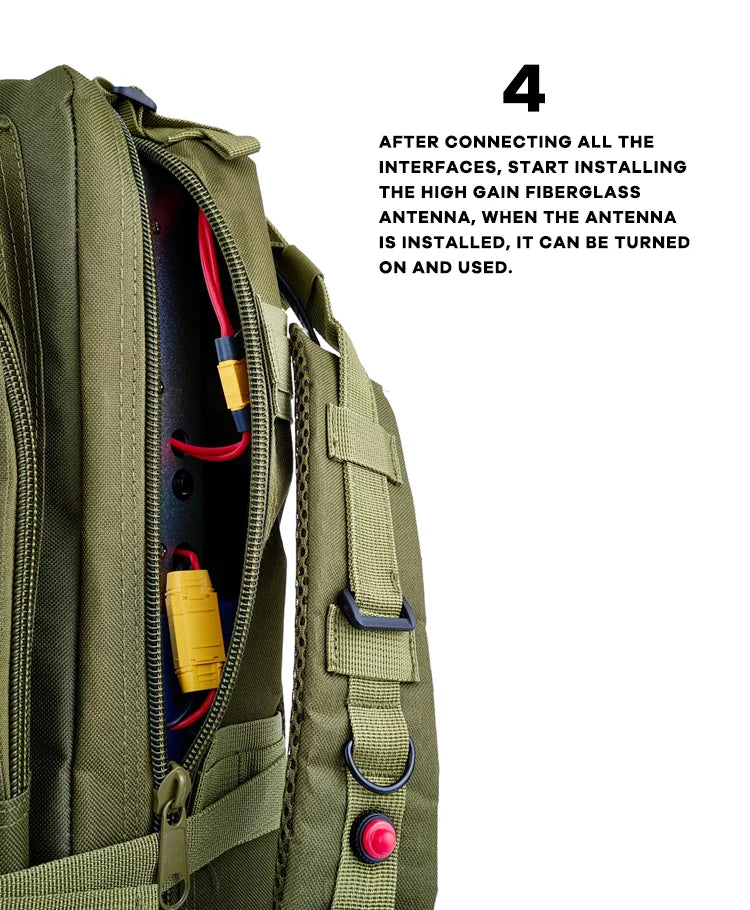

Once all interfaces are connected, start installing the high-gain fiberglass antenna. After installation, power it on and begin using it.
