CNNHL 14.8V 4S Battery SPECIFICATIONS
Wheelbase: Bottom Plate
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: lipo
Tool Supplies: Battery
Size: 1501004BK
Remote Control Peripherals/Devices: Battery
Recommend Age: 14+y
Recommend Age: 12+y
RC Parts & Accs: Batteries - LiPo
Origin: Mainland China
Model Number: 1501004BK
Material: llipo
Four-wheel Drive Attributes: Battery
For Vehicle Type: Airplanes
Certification: CE
Brand Name: CNHL
4PCS CNHL Lipo Battery 4S 14.8V 1100mAh 1300mAh 1500mAh 100C With XT60 Plug For RC FPV Helicopter Airplane Quadcopter Drone Car
Basic Parameters
Model 1:1100mah 4S 14.8V 100C XT60-Plug
Stock Number:1101004BK
Capacity :1100mAh
Voltage:14.8V / 4-Cell / 4S1P
Discharge Rate:100C Continual / 200C Burst
Charge Rate:5C Max
Size:30x34x76mm
Weight :146g (Including wire and connector)
Output Connector:XT60
Balance Connector:JST / XH
Remarks:N/A
Model 2:1300mah 4S 14.8V 100C XT60-Plug
Stock Number:1301004BK
Capacity :1300mAh
Voltage:14.8V / 4-Cell / 4S1P
Discharge Rate:100C Continual / 200C Burst
Charge Rate:5C Max
Size:33.5X34X74mm
Weight :163g (Including wire and connector)
Output Connector:XT60
Balance Connector:JST / XH
Remarks:N/A
Model 3:1500mah 4S 14.8V 100C XT60-Plug
Stock Number: 1501004BK
Capacity : 1500mAh
Voltage: 14.8V / 4-Cell / 4S1P
Discharge Rate: 100C Continual / 200C Burst
Charge Rate: 5C Max
Size: 34X35X73.5mm
Weight: 183G (Including Wire And Connector)
Output Connector: XT60
Balance Connector: JST / XH
Remarks: N/A
Note: due to the difference between the measurement, the battery dimension and weight may have little error.
Notice
1.Only if the voltage, dimension and the plug match, then it will fit.
2.Check the battery condition carefully before using or charging.
3.Don't overcharge more than 4.2V and don't over discharge below 3.2V, or your battery will be destroyed,never leave battery unattended when charging.
4.If the new battery won’t hold a full charge or loss the charge very quickly in short time, please use Balance Charger to charge and recycle several times first.

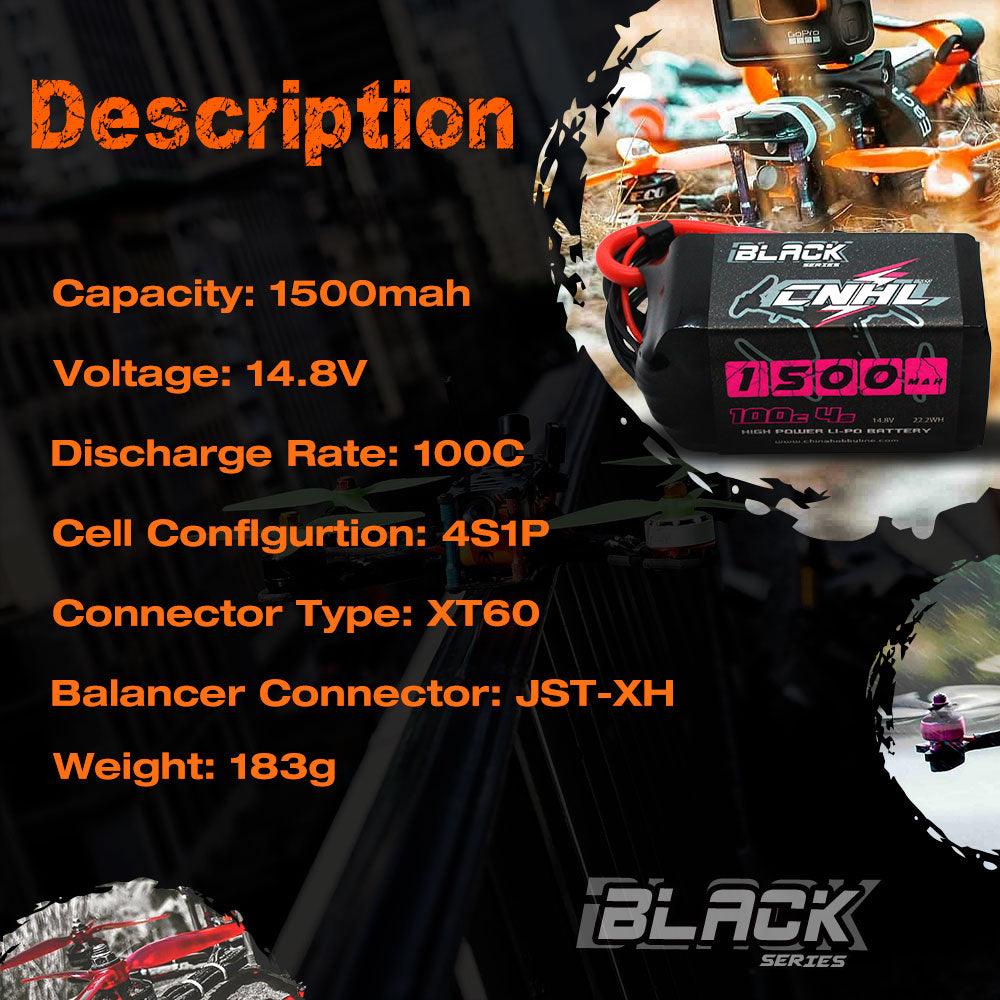

Specifications: Capacity: 1500mAh Voltage: 14.8V Discharge Rate: 100C Cell Configuration: 4S (4 cells in series) Connector Type: XT60 Balancer Connector: JST-XH Weight: 183g
Dimensions: Overall Length: 76mm (3 inches) Weight: 628g Height: 34mm (1.33 inches) Width: 31mm (1.18 inches)

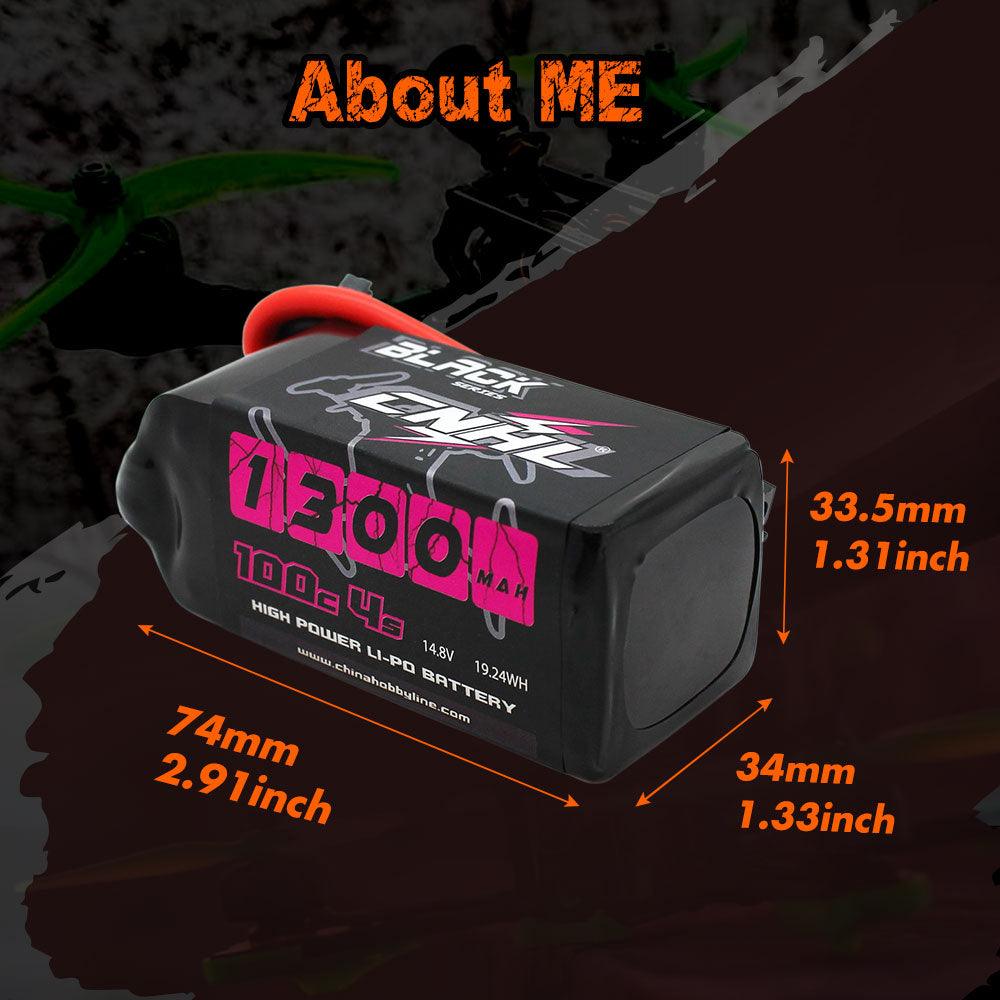

Dimensions: Length: 74mm (2.91 inches) Width: 34mm (1.33 inches) Height: 33mm (1.31 inches) Note: The product seems to be a lithium-ion battery with high power, specifically designed for RC FPV applications.

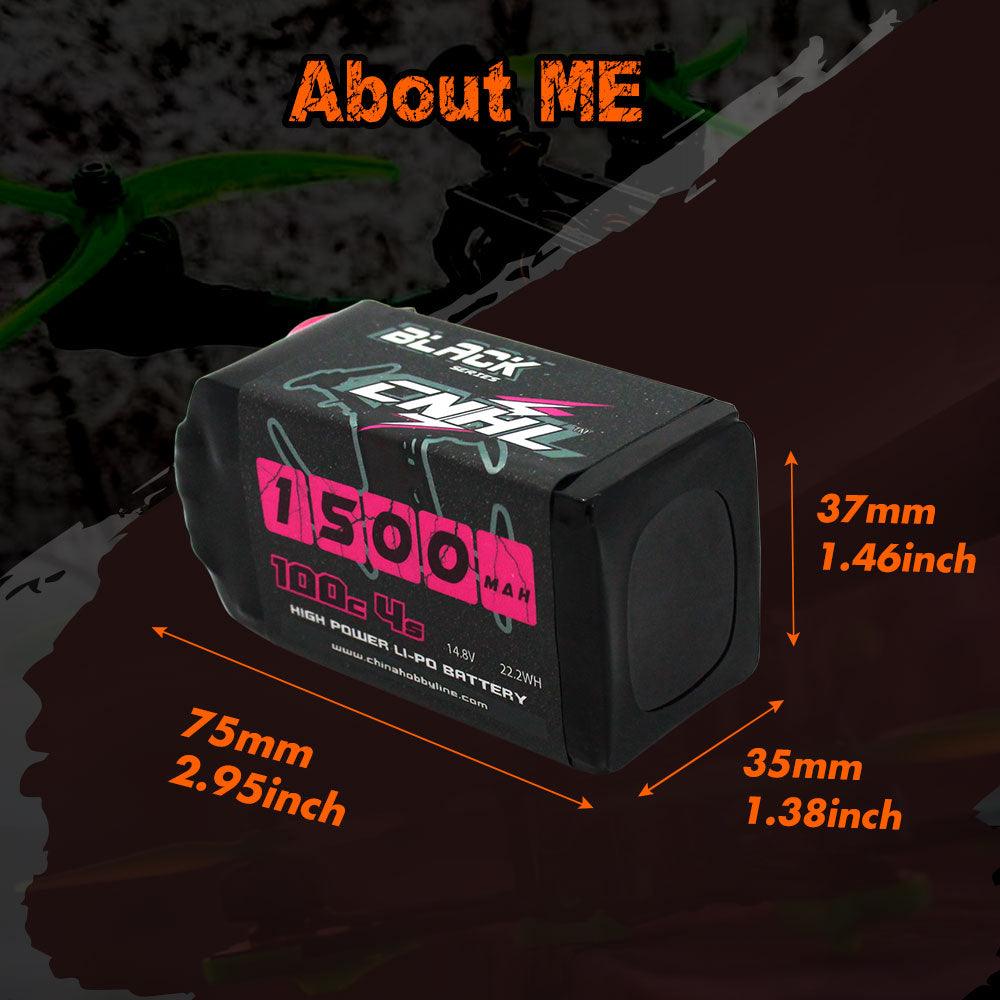

Dimensions: Length: 75mm (2.95 inches), Width: 35mm (1.38 inches), Height: 37mm (1.46 inches) Note: The product appears to be an L-PO battery with a high capacity of 227Wh, featuring ease of use and a powerful design.

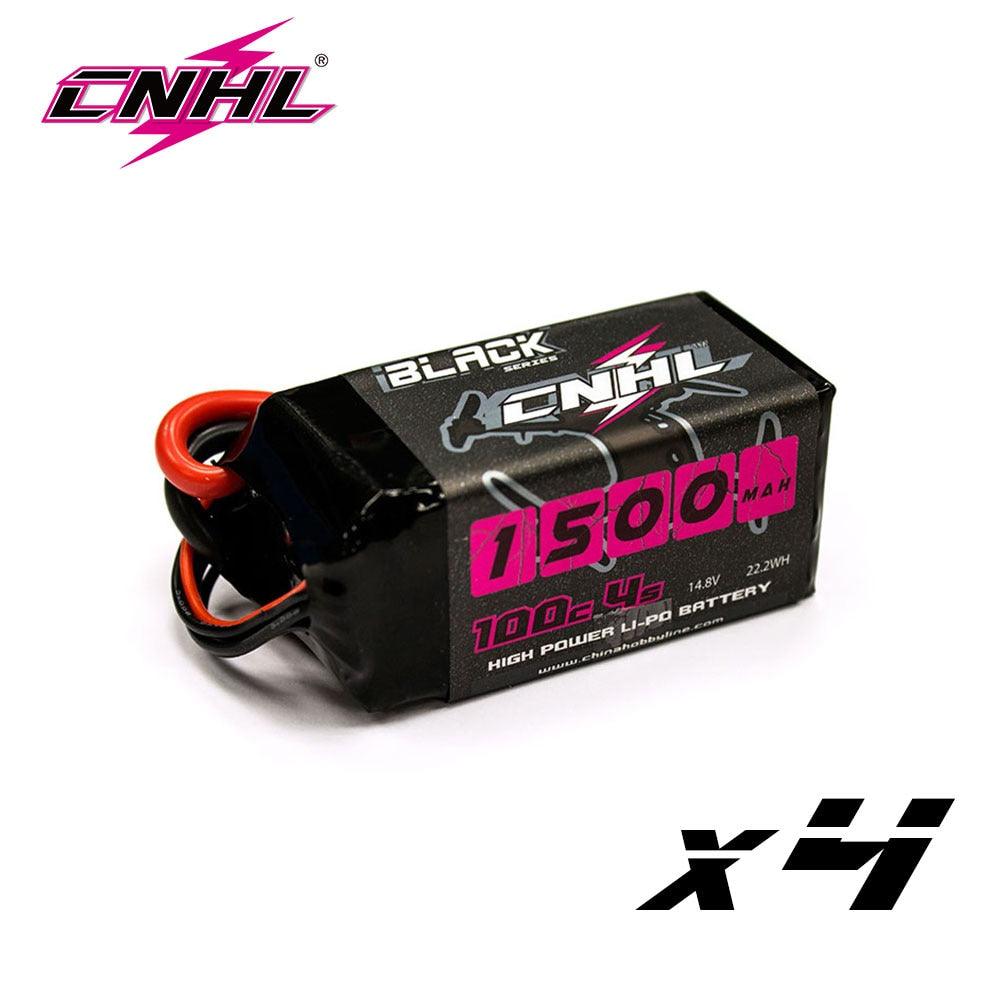

Specifications: Weight: Approximately 183g (or 6.45 oz) Note: The product features a powerful lithium-polymer design with a capacity of 22RWh and an output voltage of 48v.

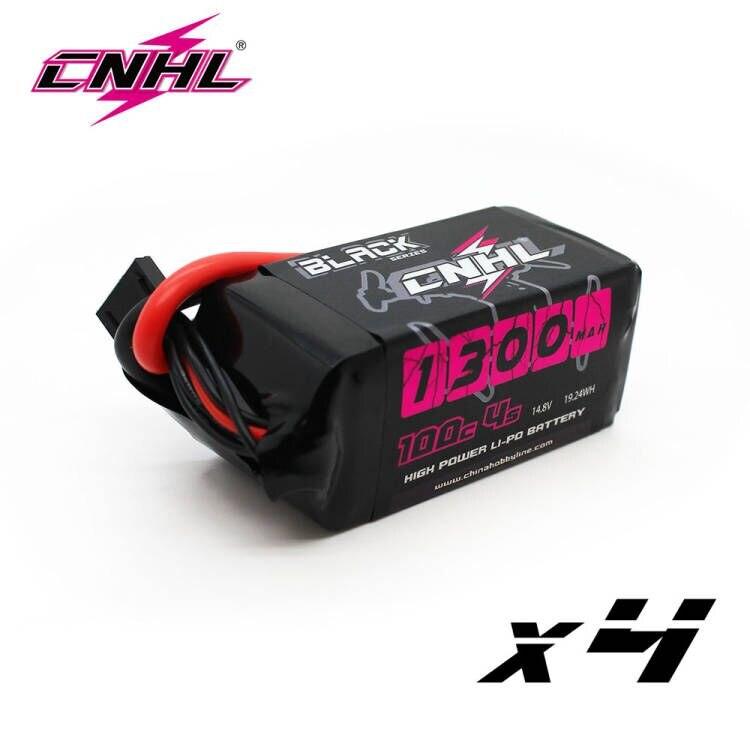

Specifications: Nominal Voltage: 14.8V Capacity: 19.24Wh Approximate Weight: 163.0g (or 5.74 oz) Note: The product is a high-power lithium-polymer battery with an impressive capacity and weight.

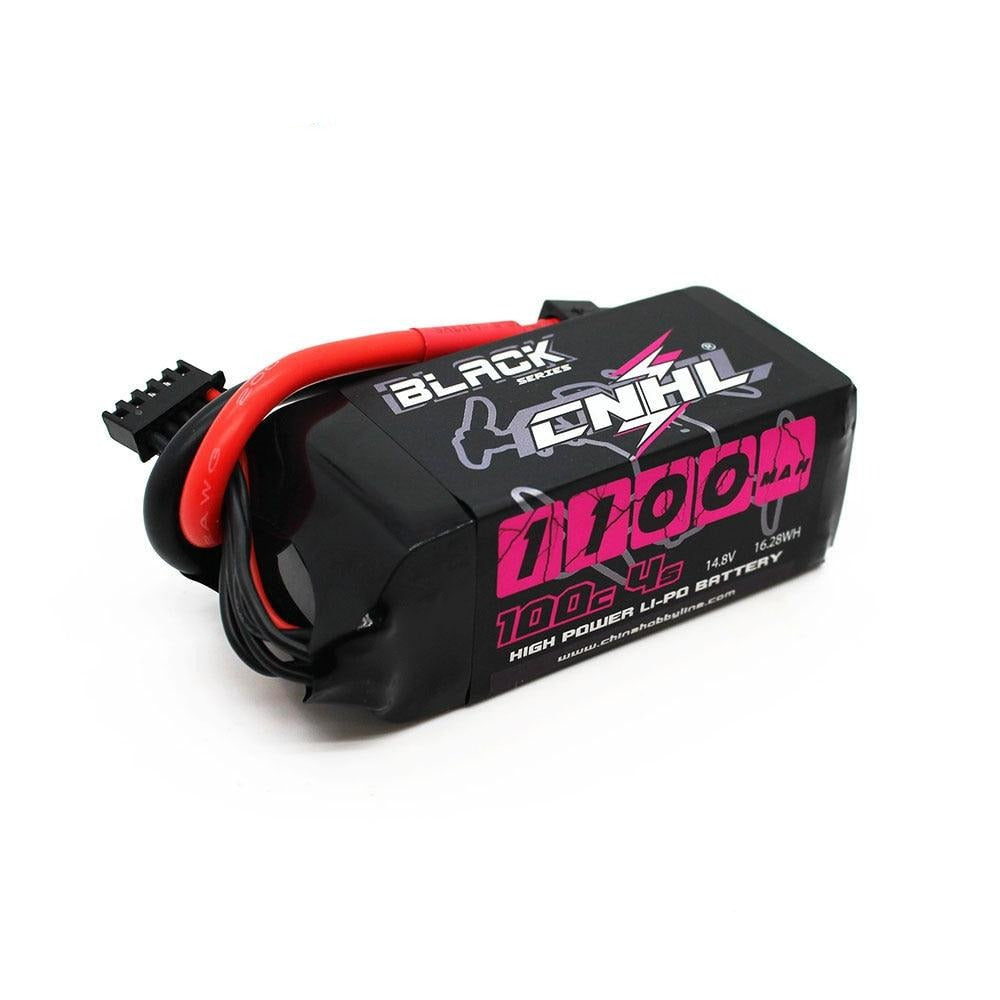

Specifications: Nominal Voltage: 14.8V Capacity: 16.28Wh Approximate Weight: 146.0g (or 5.19 oz) Note: The product is a high-power lithium-polymer battery with impressive capacity and weight.
