CNHL 4S Battery SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Lithium Battery
Remote Control Peripherals/Devices: Battery
Recommend Age: 14+y
Recommend Age: 12+y
RC Parts & Accs: Batteries - LiPo
Origin: Mainland China
Model Number: 1301204 Combo 4
Material: lipo
Certification: CE
Brand Name: CNHL
4PCS CNHL 4S 14.8V Lipo Battery 1300mAh 1500mAh 1800mAh 120C MiniStar With XT60 Plug For RC FPV Quadcopter Helicopter Airplane Drone
Specification:

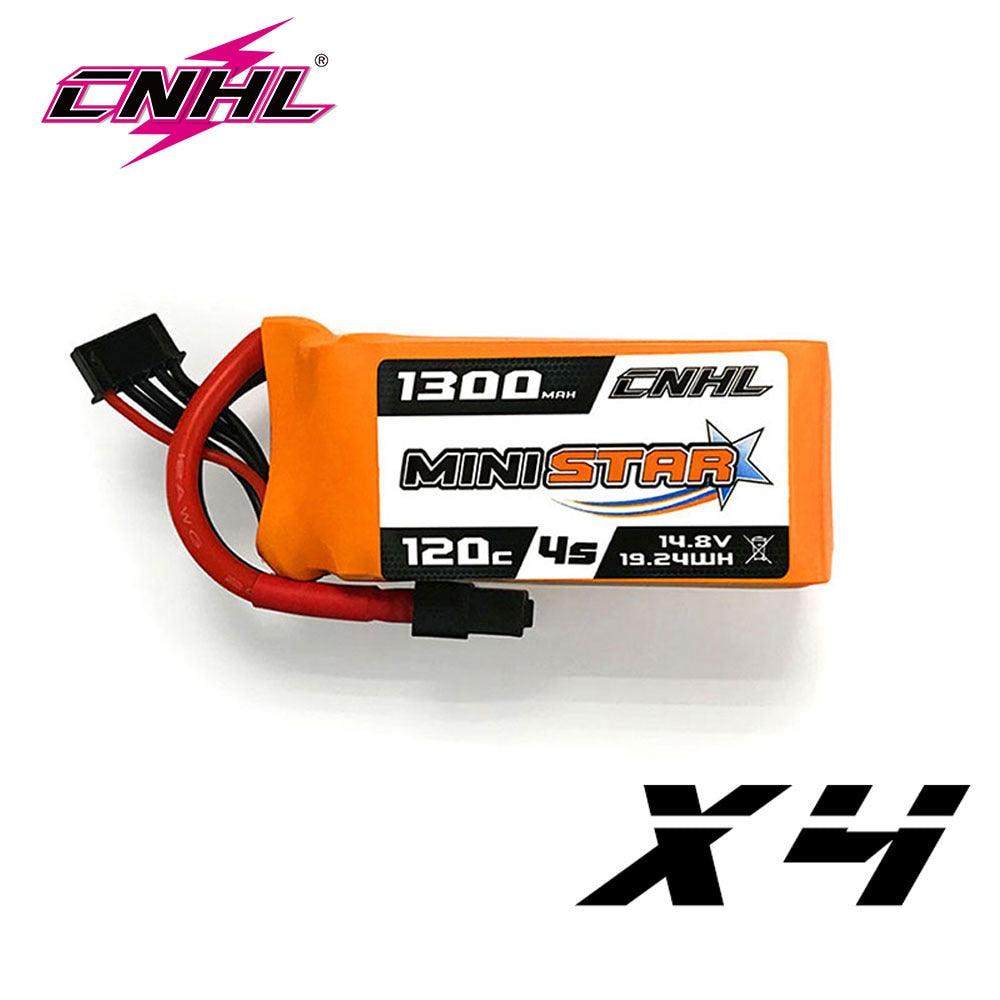

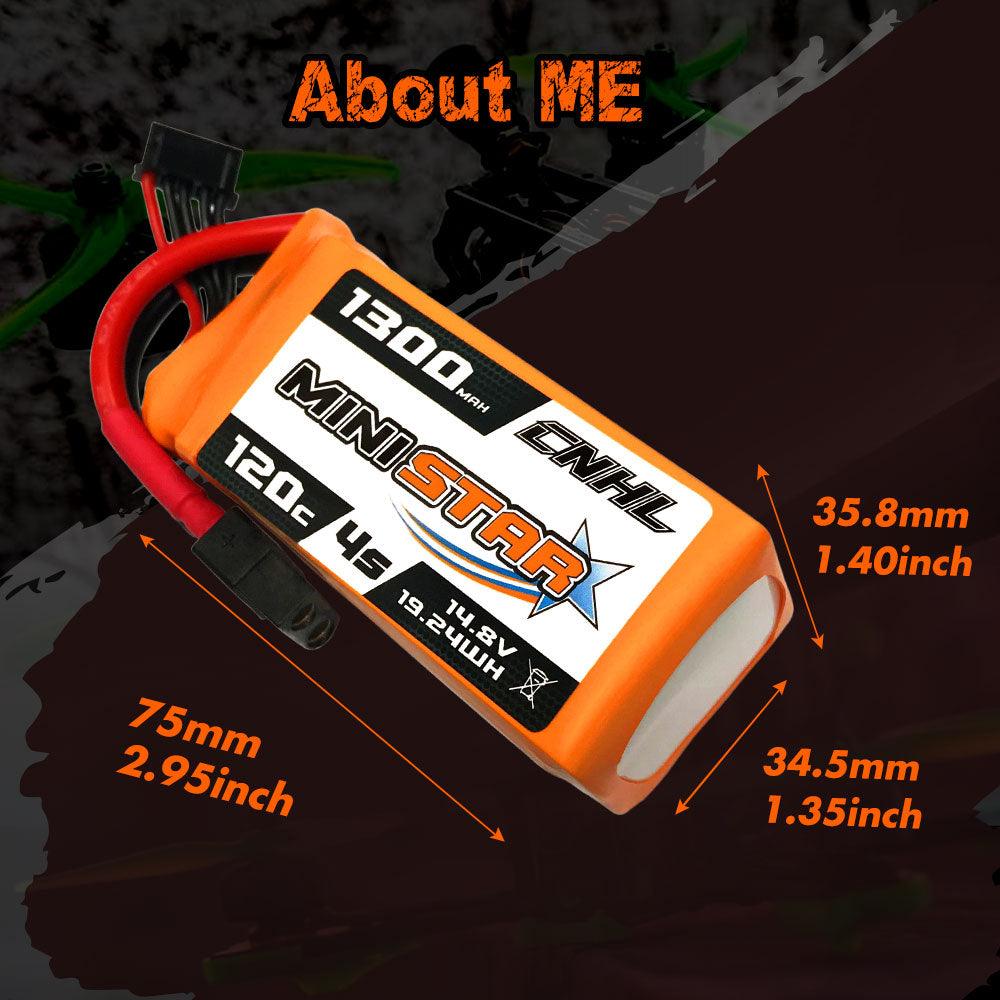

Model 1:
Stock Number:1301204
Capacity :1300mAh
Voltage:14.8V / 4-Cell / 4S1P
Discharge Rate:120C Continual / 240C Burst
Charge Rate:5C Max
Size:35.5X34.5X75mm
Weight :170g (Including wire and connector)

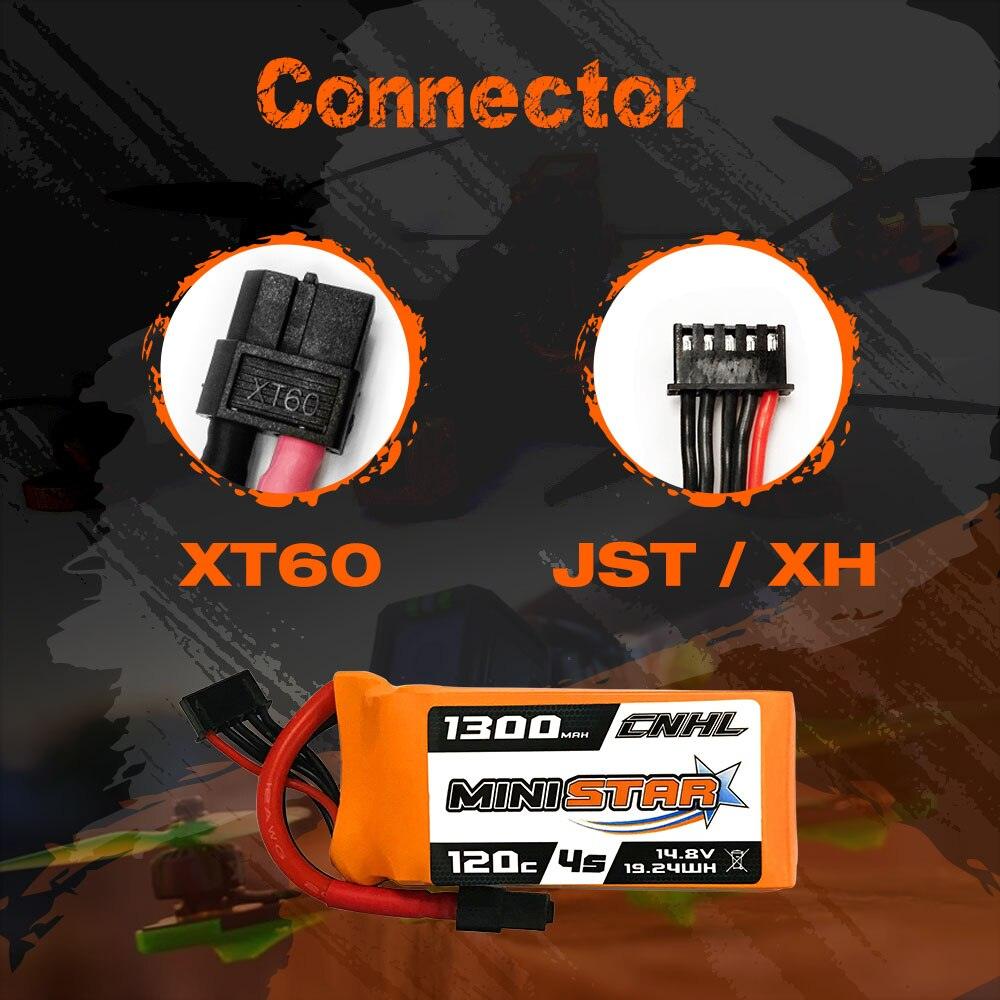

Output Connector:XT60
Balance Connector:JST / XH
Remarks:N/A

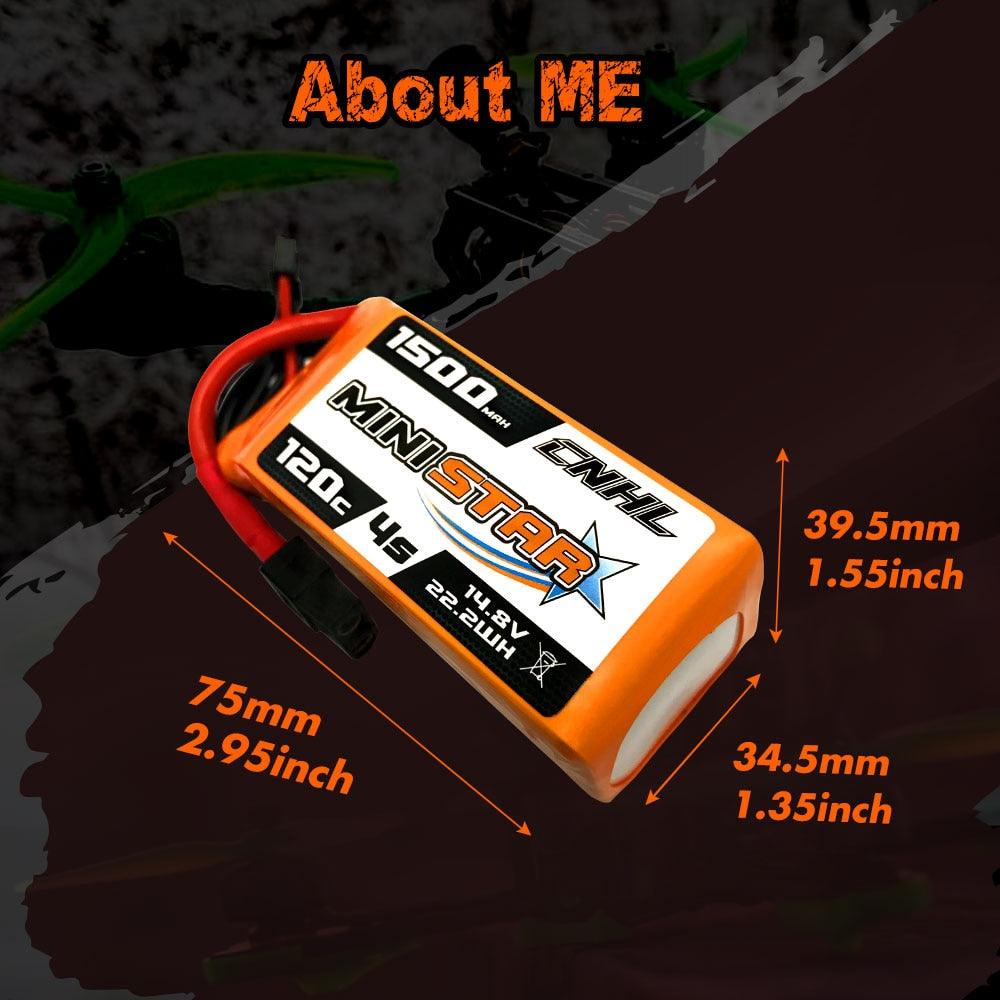

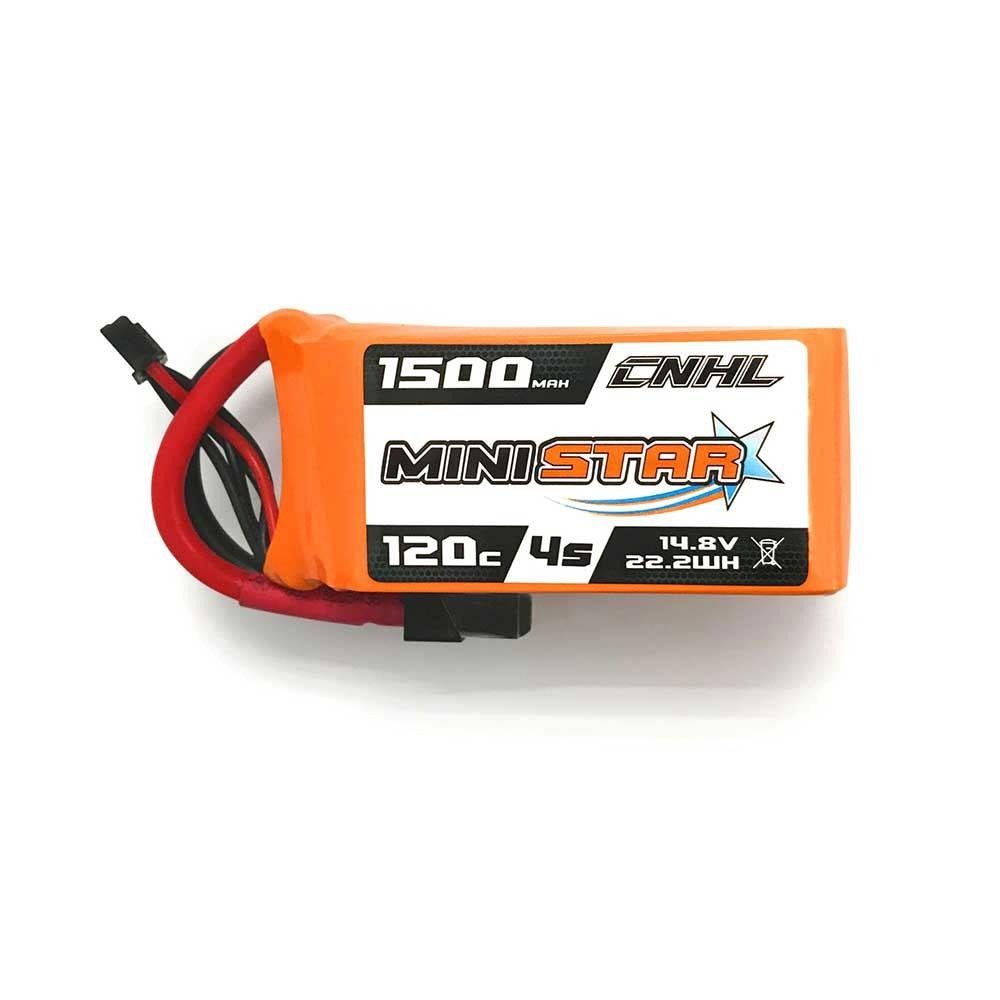

Model 2:
Stock Number:1501204
Capacity :1500mAh
Voltage:14.8V / 4-Cell / 4S1P
Discharge Rate:120C Continual / 240C Burst
Charge Rate:5C Max
Size:39.5X34.5X75mm
Weight :189g (Including wire and connector)
Output Connector:XT60
Balance Connector:JST / XH
Remarks:N/A

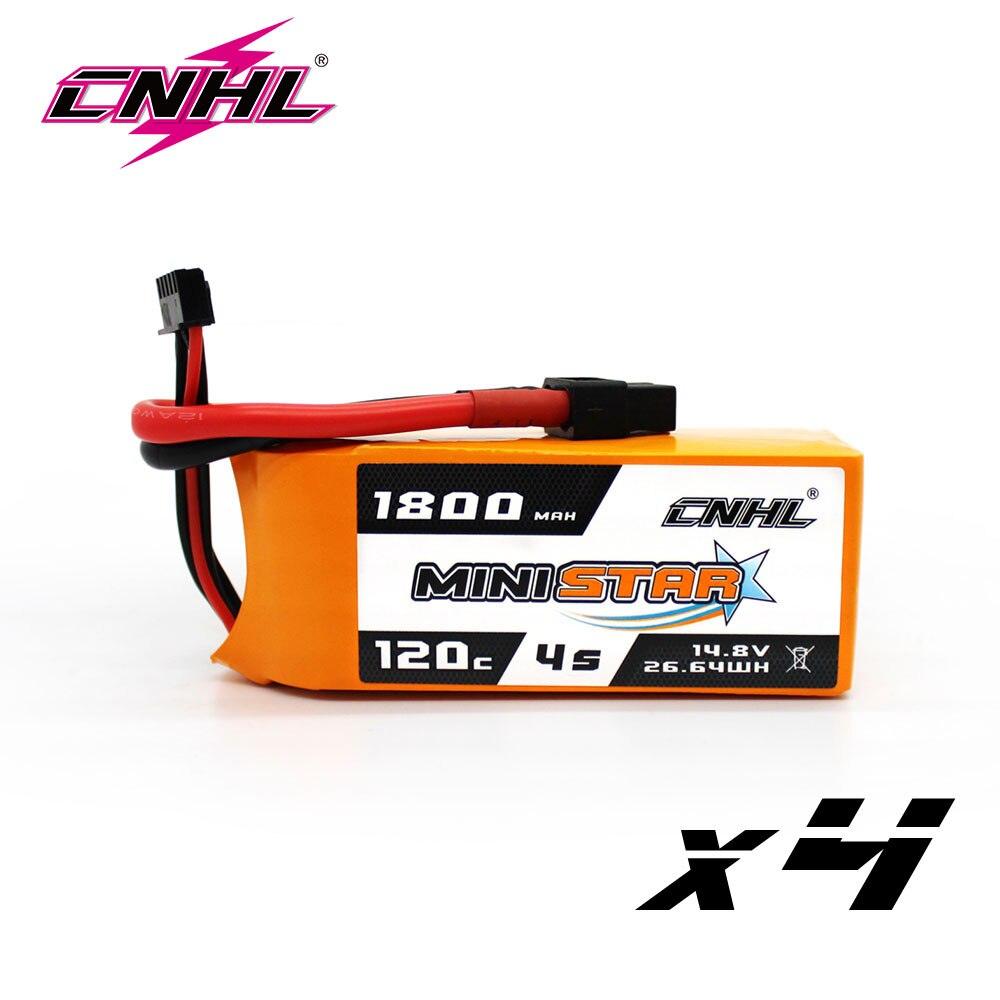

Model 3:
Stock Number:1801204G
Capacity :1800mAh
Voltage:14.8V / 4-Cell / 4S1P
Discharge Rate:120C Continual / 240C Burst
Charge Rate:5C Max
Size:38.5X34X86mm
Weight :209g (Including wire and connector)
Output Connector:XT60
Balance Connector:JST / XH
Remarks:N/A
Feature:
1.Elected premium-grade materials.
2.Low-resistance, high-reliability, good consistency,Automatic stacking technology, better performance.
3.Lightweight and small size, long battery life, high specific power.
4.Great value without the loss of performance.
Notice:
1.Only if the voltage, dimension and the plug match, then it will fit.
2.Check the battery condition carefully before using or charging.
3.Don't overcharge more than 4.2V and don't over discharge below 3.2V, or your battery will be destroyed,never leave battery unattended
when charging.
4.If the new battery won’t hold a full charge or loss the charge very quickly in short time, please use Balance Charger to charge and recycle
several times first.

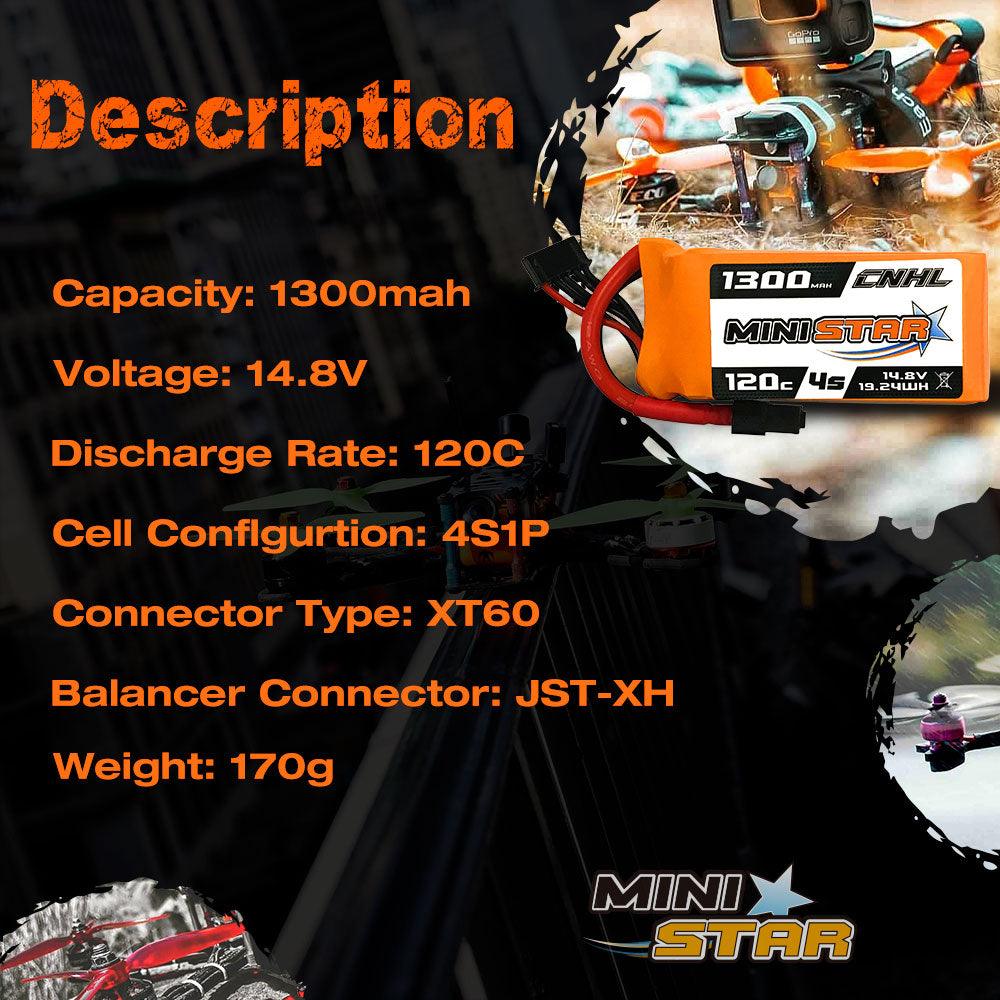

Product Description: CNHL 4S Lipo Battery, Capacity: 1300mAh, Voltage: 14.8V, Discharge Rate: 120C, Cell Configuration: AS1P, Connector Type: XT60, Balancer Connector: JST-XH, Weight: 170g, suitable for RC FPV boat, quadcopter, airplane drone.
Product Details: CNHL 4S Lipo Battery, Capacity Options: 1300mAh, 1500mAh, 1800mAh, Voltage: 14.8V, Discharge Rate: 120C, Energy Density: 9.24Wh, Approximate Weight: 170g/5.99oz, suitable for RC FPV boat, quadcopter, airplane drone.
