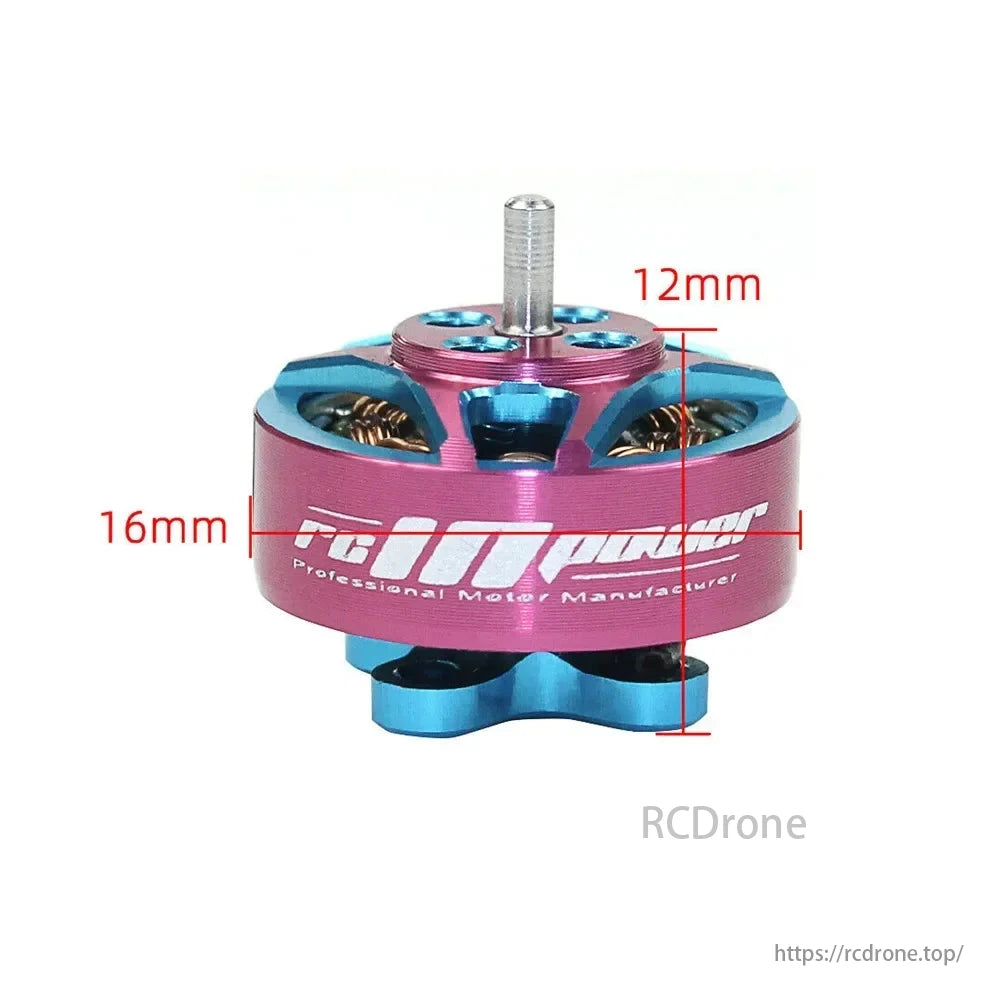

  • RCINPOWER GTS V2 1204 brushless motor, sized 16mm x 12mm, powers micro FPV drones with efficiency and performance.
1 5

4PCS RCINPOWER GTS V2 1204 5000KV / 8000KV 3-4S Brushless Motors for 2–3 Inch Micro FPV Drone

4PCS RCINPOWER GTS V2 1204 5000KV / 8000KV 3-4S Brushless Motors for 2–3 Inch Micro FPV Drone

RCINPOWER

$51.08 USD
$51.08 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Color
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Key Features:

  • Lightweight and compact – only 6g per motor

  • High efficiency at 1.5–2A, delivering over 80% performance

  • Durable 1.5mm shaft with precision-balanced rotor

  • Premium 0.8mm silicone wire, 8cm length

  • Supports both 5000KV and 8000KV variants for different flight styles

  • Ideal for 2–3 inch quadcopters on 3–4S LiPo



Specification


Brand Name: RCINPower
Model: GTS 1204
Item Name: 1204 5000KV 3-4S Brushless Motor
KV: 5000KV
Input Voltage: 3-4S Lipo
Configuration: 9N12P
Stator Diameter: 12mm
Shaft Diameter: 1.5mm
Idle Current: 0.95A @10V
Max. Con. Power: 89W (3S)
Internal Resistance: 125mΩ
Max. Current: 6A (3S) Max.
Effciency Current: 1.5-2A ( More than 80%)
Motor Dimension: 16.1x10.9mm ( Dia. x Len)
Weight: 6g
Wire: 0.8mm silicone wire

Line length: 8cm

Package Included:
4x RCINPower GTS 1204 5000KV Motor

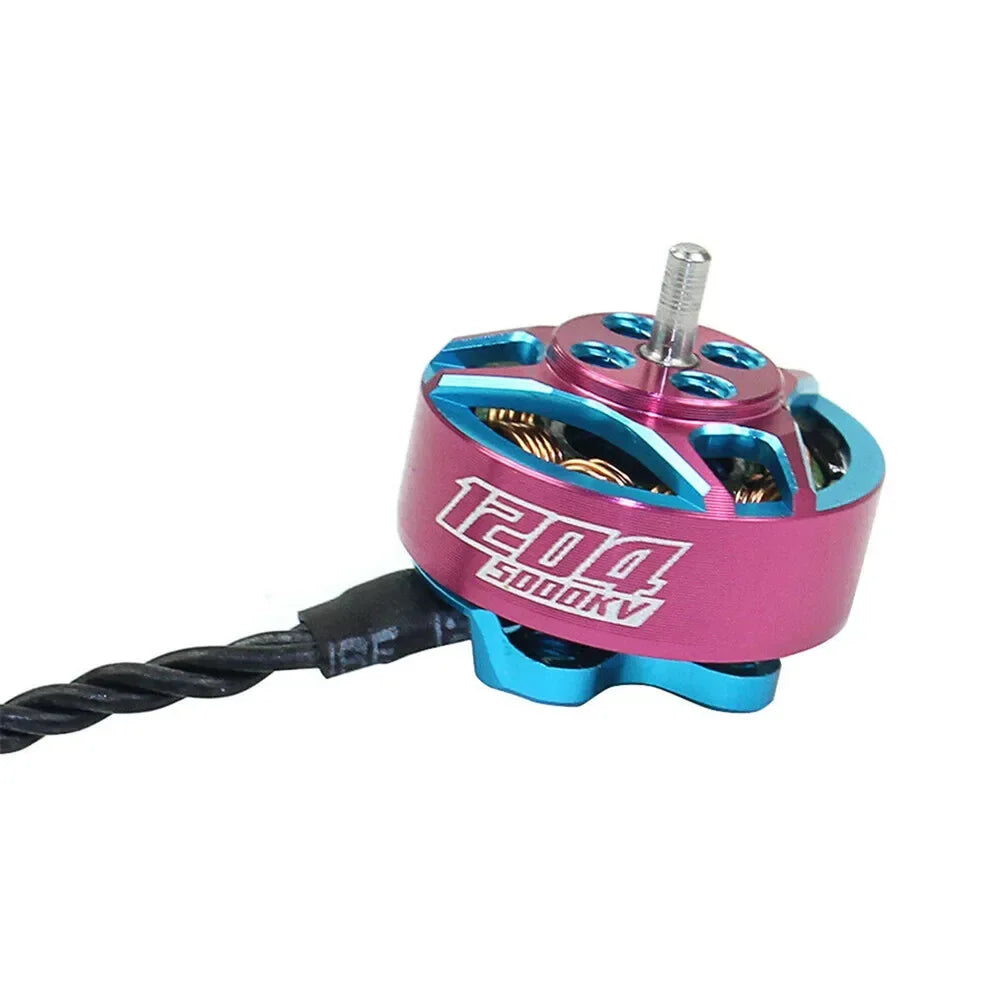

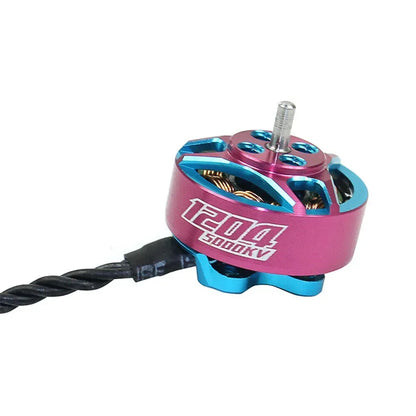

GTS V2 Brushless Motor, RC motor for micro FPV drone.

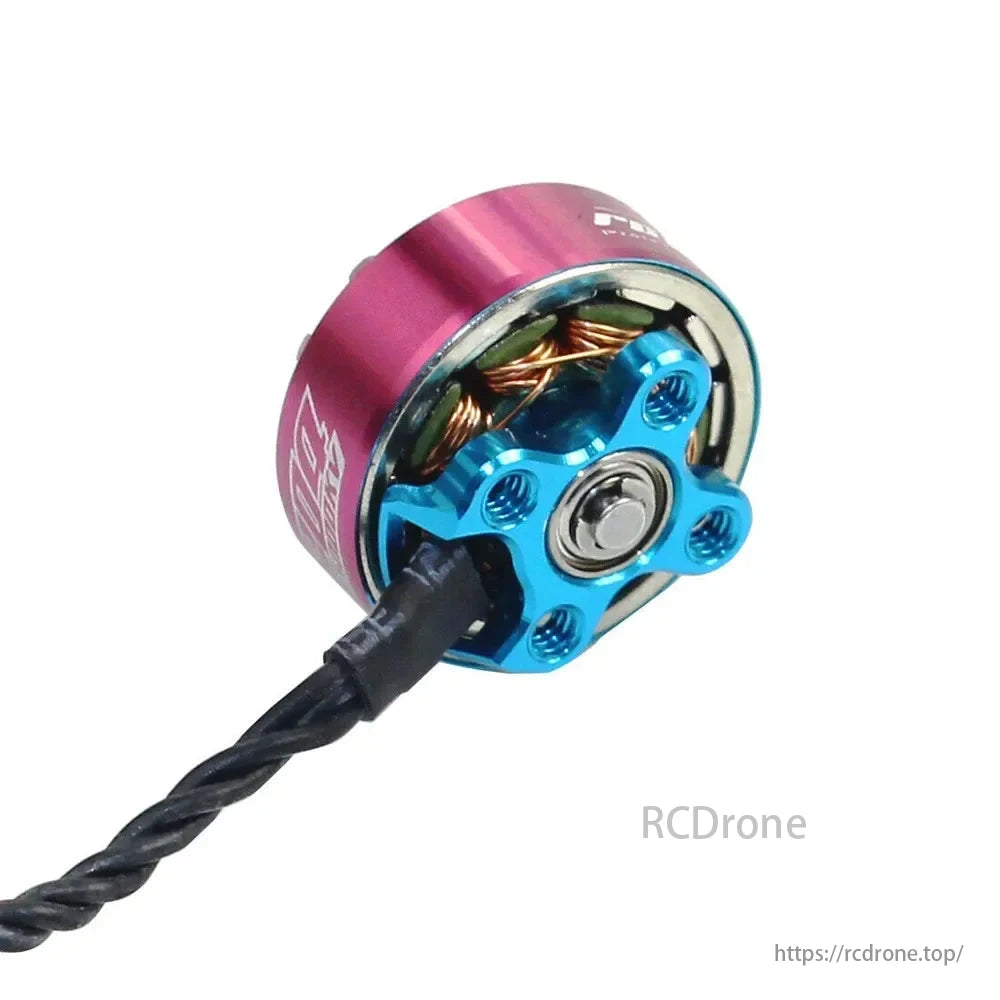

GTS V2 Brushless Motor, Compact and efficient brushless motor with high performance, suitable for 2-3 inch quadcopters on 3-4S LiPo.

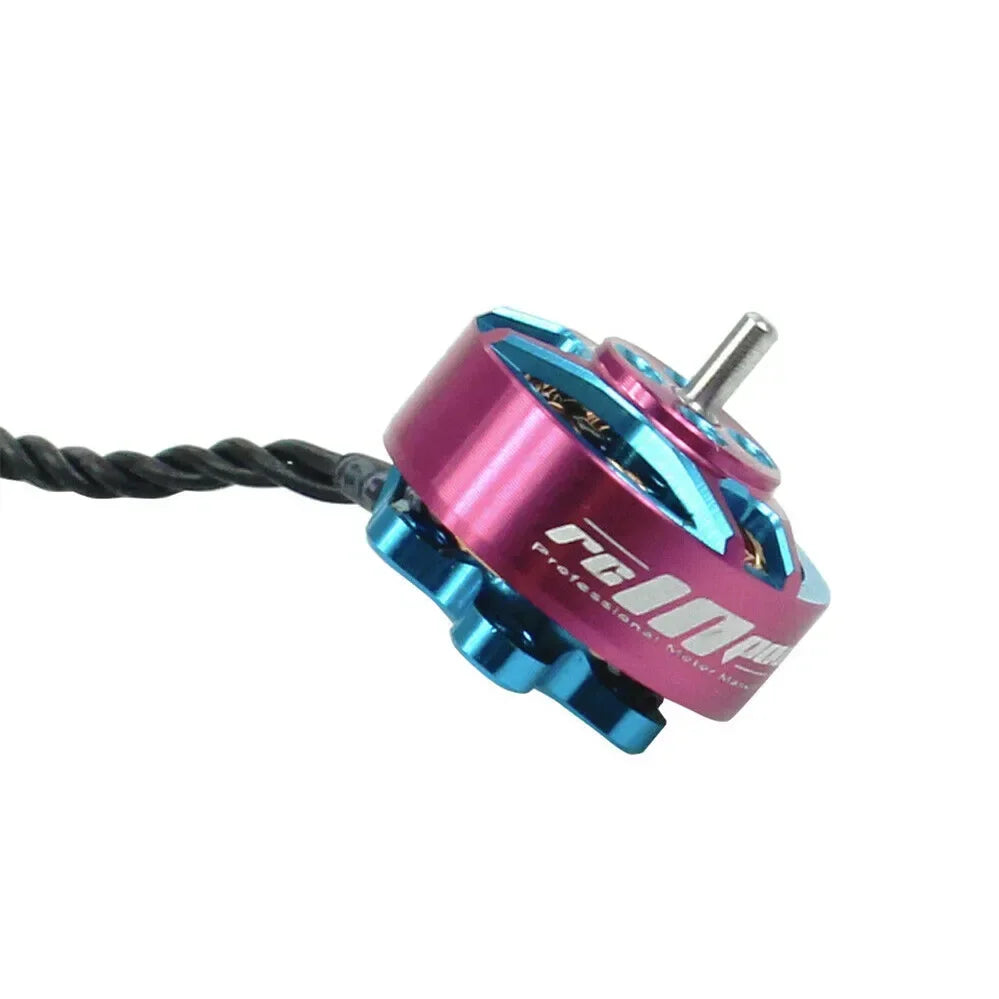

GTS V2 Brushless Motor, Compact brushless motor with high efficiency and durability for quadcopters, suitable for 2-3 inch quads on 3-4S LiPo.

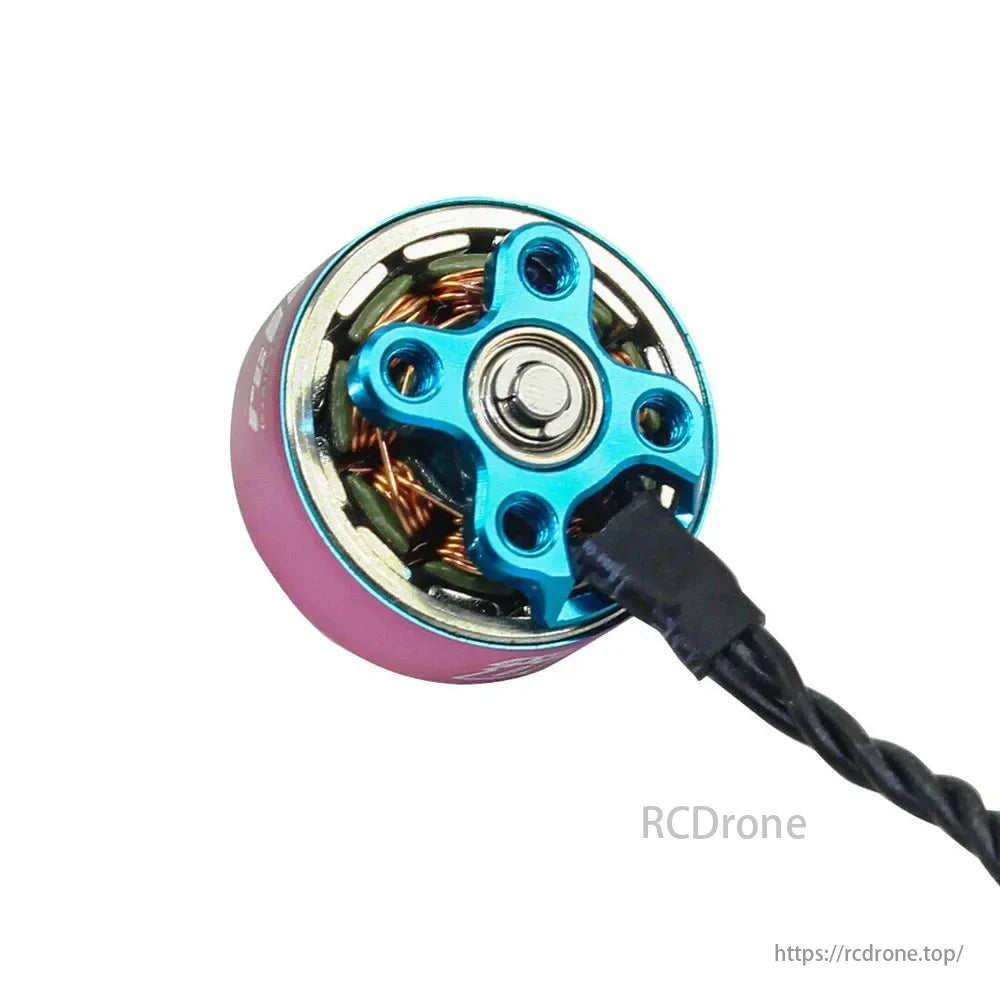

GTS V2 Brushless Motor, RC motor set for micro FPV drone

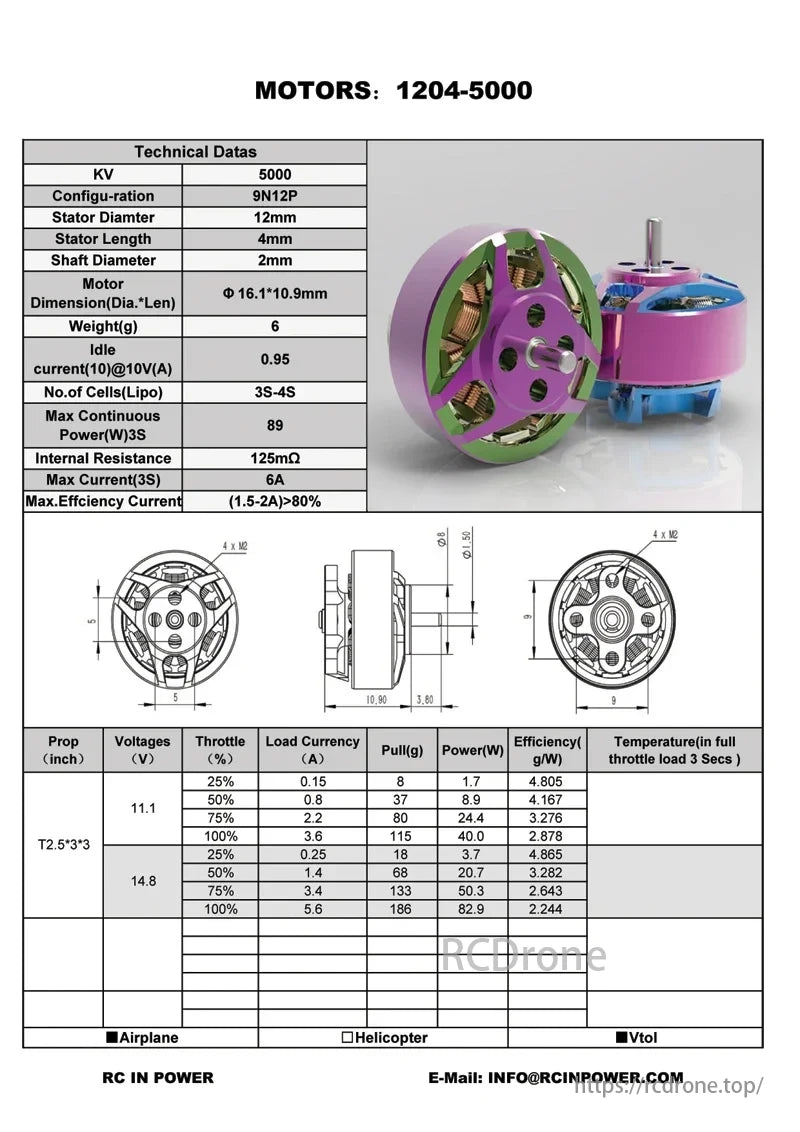

GTS V2 Brushless Motor, RC motor package with 4x 1204 5000KV motors and 6g silicone wire for RCINPower applications.GTS V2 brushless motor specs: 1204 size, 5000KV, 9N12P, 12mm stator, 6g, 89W max power, 6A, >80% efficiency, T2.5*3*3 prop details at 11.1V/14.8V.

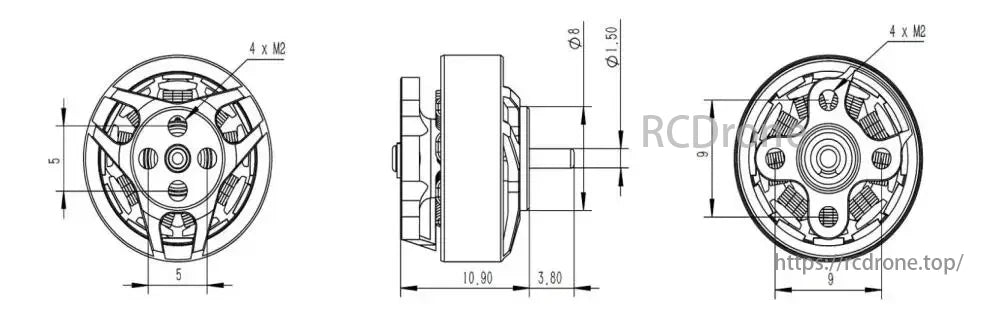

GTS V2 Brushless Motor: 1204-5000, KV 5000, 9N12P config, 12mm stator diameter, 6g weight. Max continuous power 89W (3S), max current 6A, efficiency >80% at 1.5-2A. Detailed specs for T2.5*3*3 prop at 11.1V and 14.8V.

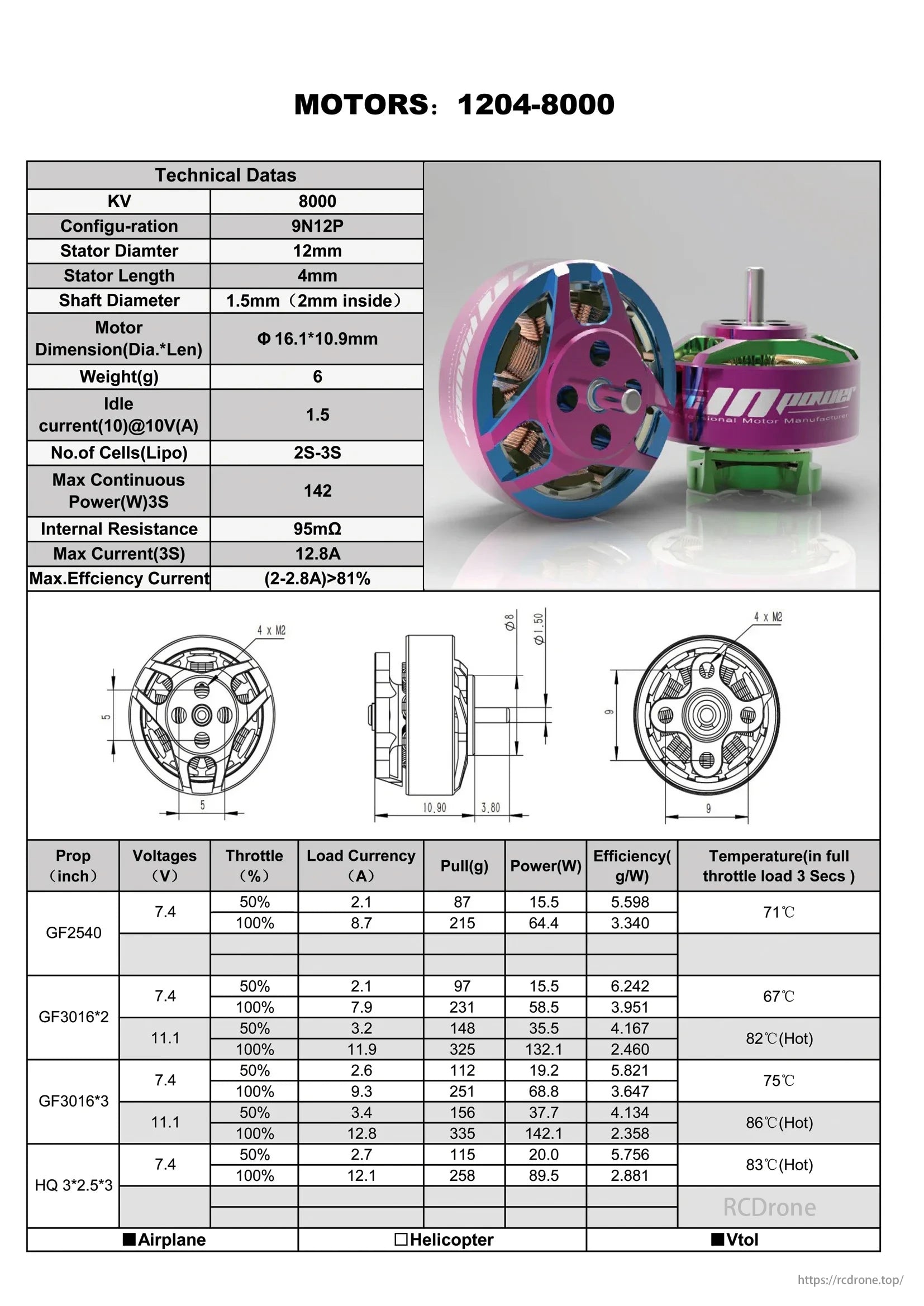

GTS V2 brushless motor specs: 1204 size, KV 8000, 9N12P, 12mm diameter, 4mm length. Max 142W at 3S, 12.8A, >81% efficiency. Tested with multiple props.

GTS V2 Brushless Motor: 1204-8000, KV 8000, 9N12P config, 12mm diameter, 4mm length. Max power 142W at 3S, max current 12.8A, efficiency >81%. Tested with various props at different voltages and loads.


GTS V2 Brushless Motor, The RCINPower GTS 1204 motor features high efficiency, durability, and compact design for 2-3 inch quadcopters on 3-4S LiPo.

GTS V2 Brushless Motor, GTS V2 motor data with T2.5*3*3 prop, 11.1V/14.8V, includes throttle, current, pull force, power, efficiency, and temperature at full throttle for 3 seconds.

GTS V2 Brushless Motor data: T2.5*3*3 prop, 11.1V and 14.8V voltages, throttle percentages, load currents, pull force, power output, efficiency, and temperature at full throttle for 3 seconds.
