• 4pcs RCinPower GTS V3 0702 27000KV / 29000KV Micro Brushless Motors for 1S FPV Racing Drone
  • RCinPower GTS V3 0702 motors for 1S FPV drones, with high KV ratings.
  • 4pcs RCinPower GTS V3 0702 27000KV / 29000KV Micro Brushless Motors for 1S FPV Racing Drone
  • 4pcs RCinPower GTS V3 0702 27000KV / 29000KV Micro Brushless Motors for 1S FPV Racing Drone
  • GTS V3 0702-29000KV motor specs: 29000KV, 7mm stator, 1.5g weight. Max 19.7W at 3S, 4.7A, >82% efficiency. Perfect for FPV racing drones.
  • GTS V3 0702-27000KV motor: 27000KV, 9N12P, 7mm stator, 1.5g weight, 17.6W max power, >83% efficiency, perfect for FPV drones.
1 6

4pcs RCinPower GTS V3 0702 27000KV / 29000KV Micro Brushless Motors for 1S FPV Racing Drone

4pcs RCinPower GTS V3 0702 27000KV / 29000KV Micro Brushless Motors for 1S FPV Racing Drone

RCINPOWER

$53.87 USD
$53.87 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Color
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

Upgrade your micro FPV build with the RCinPower GTS V3 0702 brushless motors, available in 27000KV and 29000KV options. Featuring a 9N12P configuration, double-ball bearings, and weighing just 1.5g including plug, these motors are built for 1S micro drones requiring top-tier power-to-weight performance. Ideal for racing whoops and toothpicks demanding insane RPM and agility.

Key Specifications

Parameter 27000KV 29000KV
KV Rating 27000 29000
Configuration 9N12P 9N12P
Stator Size 7mm x 2mm 7mm x 2mm
Shaft Diameter 1mm (1.5mm internal) 1mm (1.5mm internal)
Motor Dimensions Φ9.6mm x 8.1mm Φ9.6mm x 8.1mm

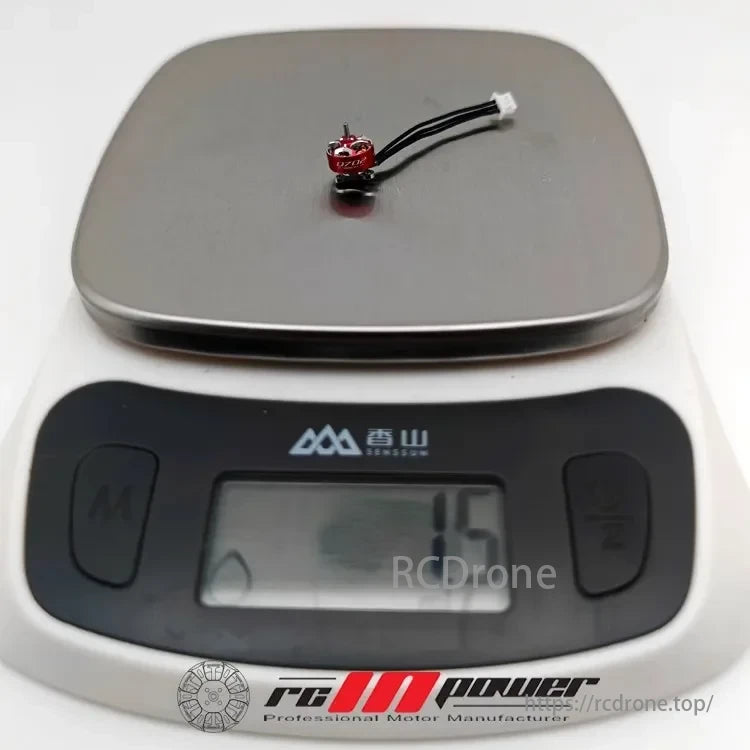

Weight (with plug) 1.5g 1.5g
Idle Current @5V 0.2A 0.25A
Max Continuous Power 17.6W 19.7W
Max Current 4.2A 4.7A
Internal Resistance 222mΩ 210mΩ
Max Efficiency Current 1–2A (>83%) 1–2A (>82%)
Input Voltage 1S LiPo 1S LiPo

What's Included

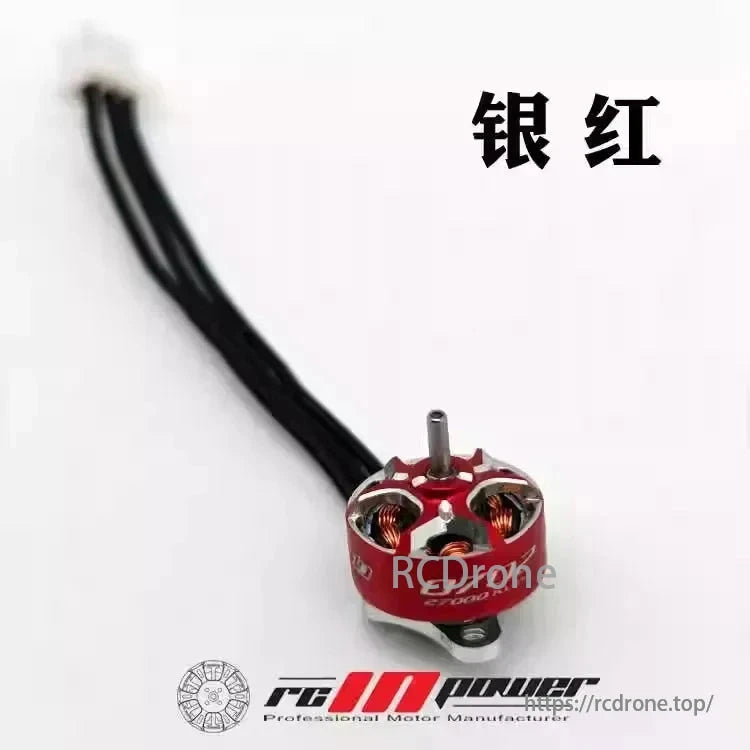

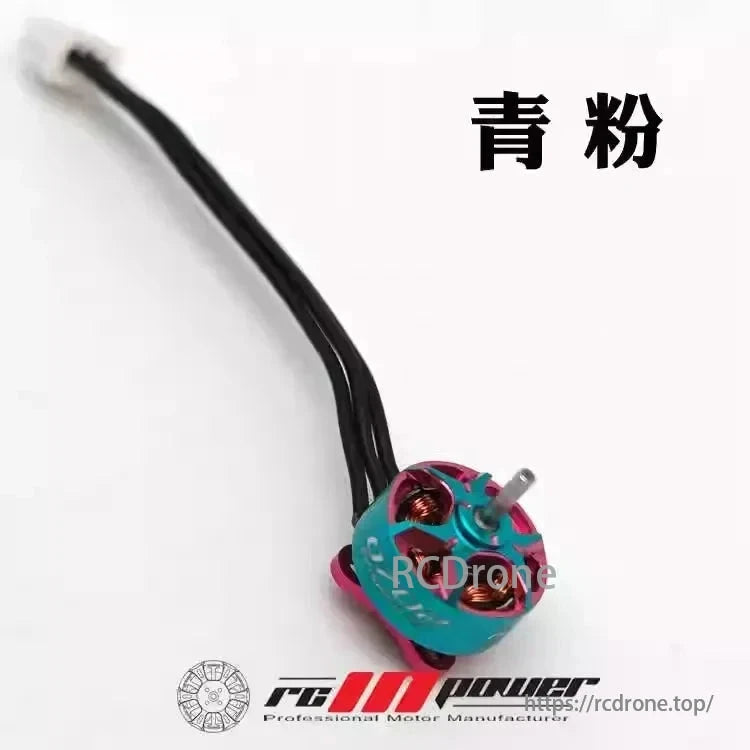

  • 4x RCinPower GTS V3 0702 27000KV Motors (Teal/Pink) or 29000KV Motors (Red/Silver)



Why Choose RCinPower GTS V3 0702 ?

  • Ultra-lightweight for optimal thrust-to-weight ratio

  • Dual ball bearings for smoother and longer-lasting performance

  • Two KV options for precise tuning of your micro FPV quad

  • Perfect for 65mm and 75mm whoop frames on 1S

Details

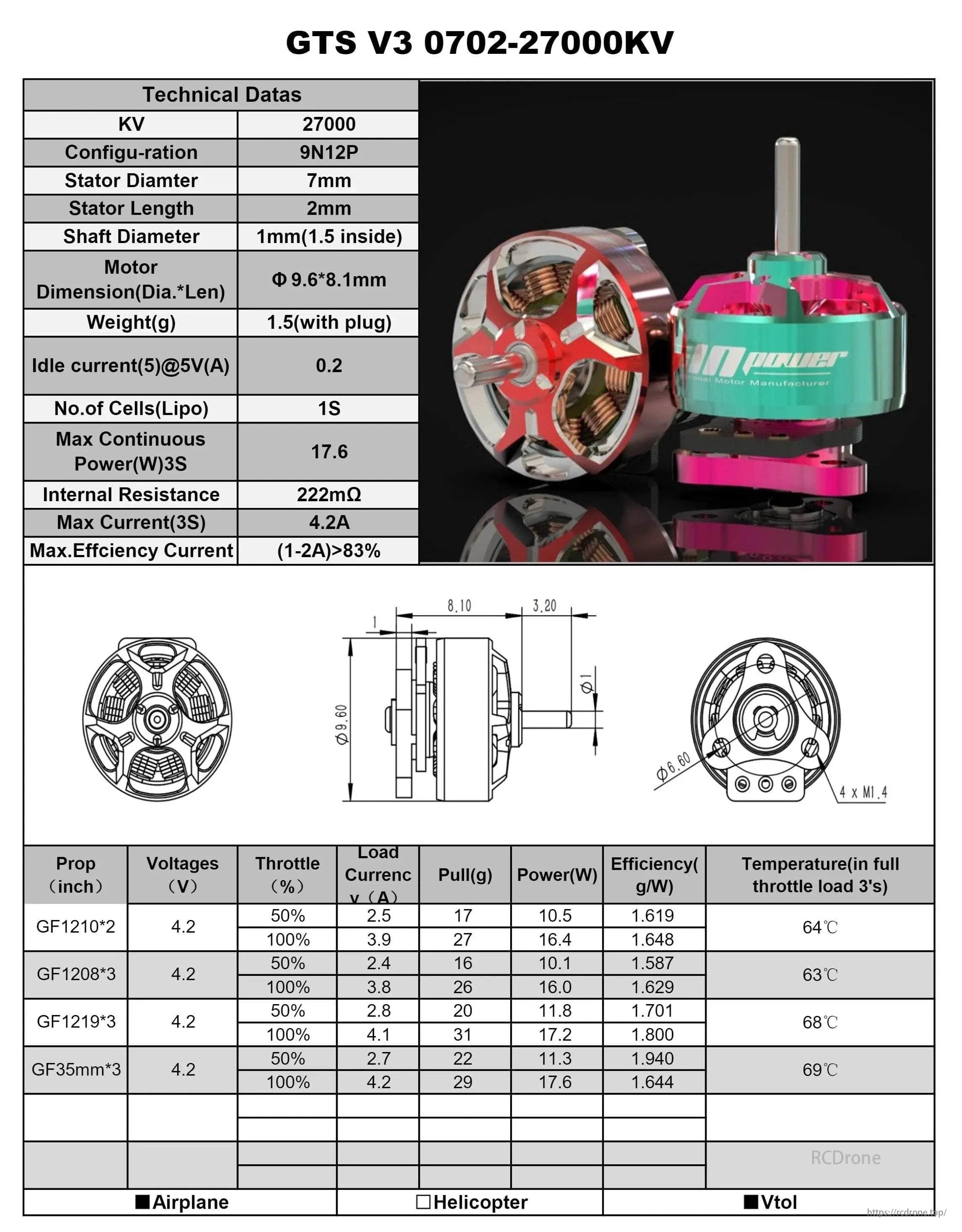

 GTS V3 Micro Motor, GTS V3 0702-27000KV micro motor: 27,000KV, 7mm stator, 1.5g, 1S Lipo, 17.6W max power, 4.2A max current, >83% efficiency, with prop performance data.

GTS V3 0702-27000KV micro motor specs: 27,000 KV, 7mm stator diameter, 1.5g weight, 1S Lipo, 17.6W max power, 4.2A max current, >83% efficiency. Performance data for various props included.

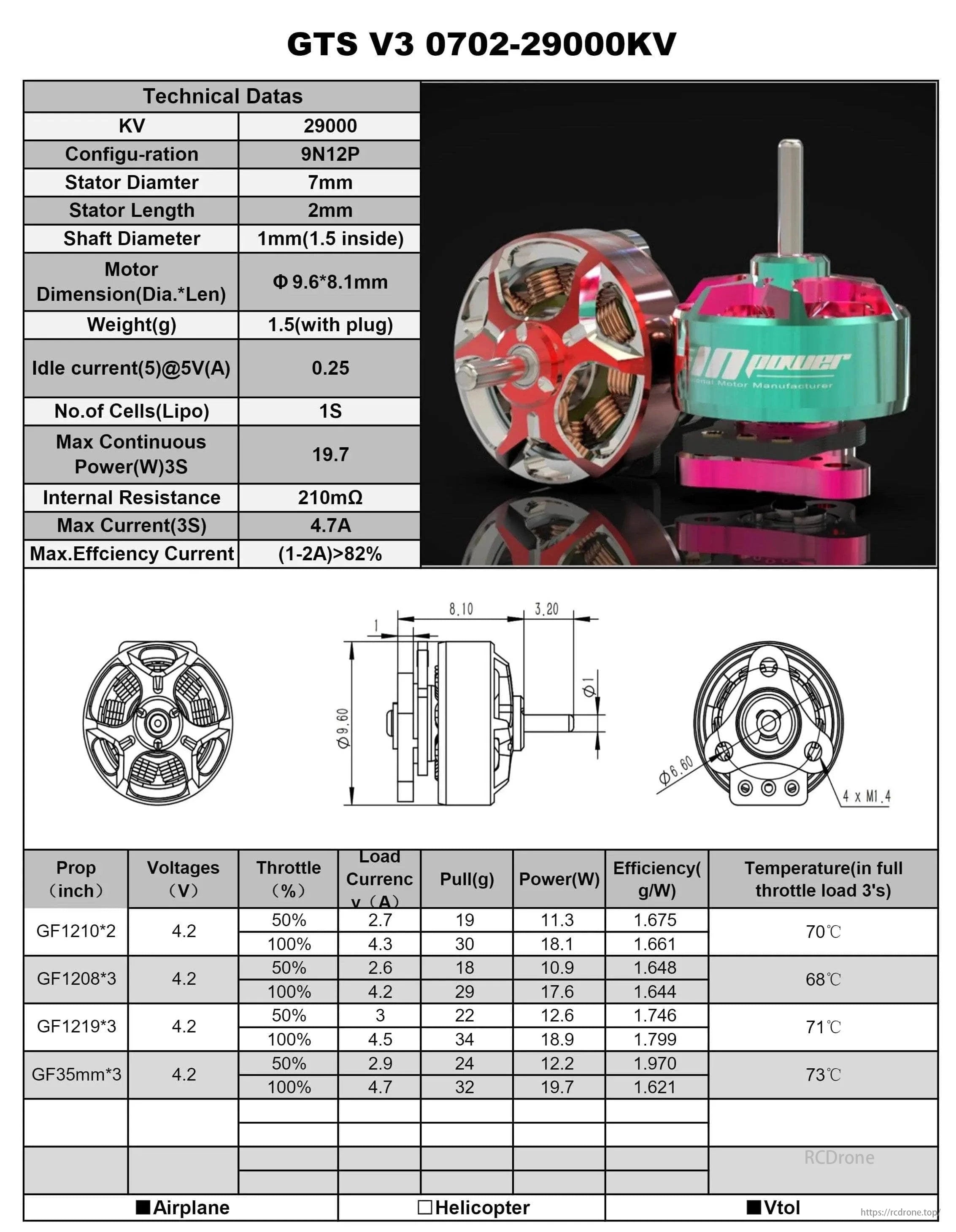

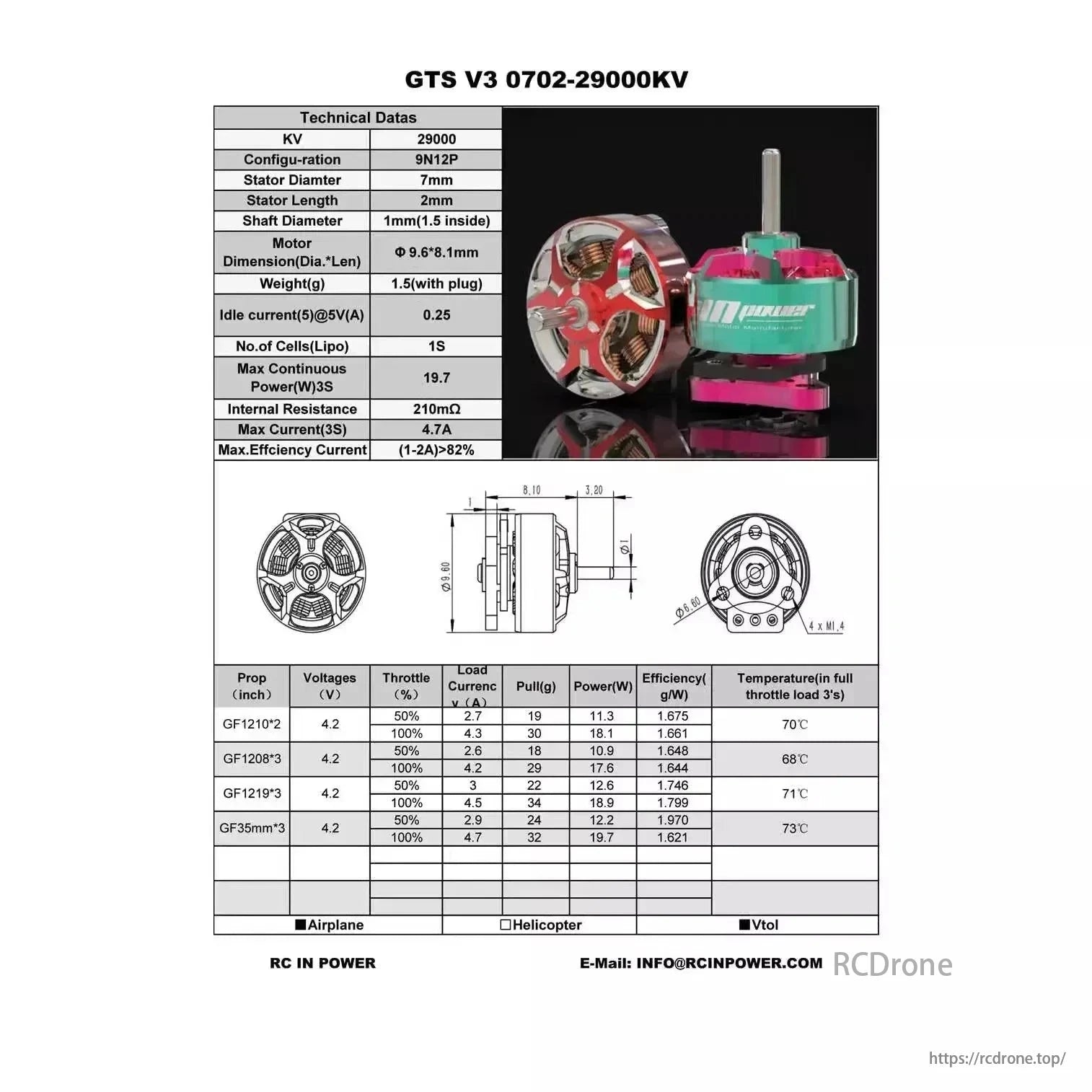

GTS V3 Micro Motor, GTS V3 0702-29000KV: 29000KV, 9N12P, 7mm stator, 2mm length, 1.5g weight, 19.7W max power at 3S, >82% efficiency for RC models.

GTS V3 0702-29000KV specs: KV 29000, 9N12P, 7mm stator, 2mm length. Weighs 1.5g, max power 19.7W at 3S, efficiency >82% for RC models.





GTS V3 Micro Motor, These motors feature a 9N12P configuration, double-ball bearings, and weigh 1.5g, designed for 1S micro drones requiring high power-to-weight performance.

GTS V3 Micro Motor, RCinPower GTS V3 0702 motors feature high KV ratings, compact dimensions, and efficient performance for various applications.

GTS V3 Micro Motor, RCinPower GTS V3 0702 motors feature various specifications including KV ratings, dimensions, and performance metrics for 27000KV and 29000KV models.
