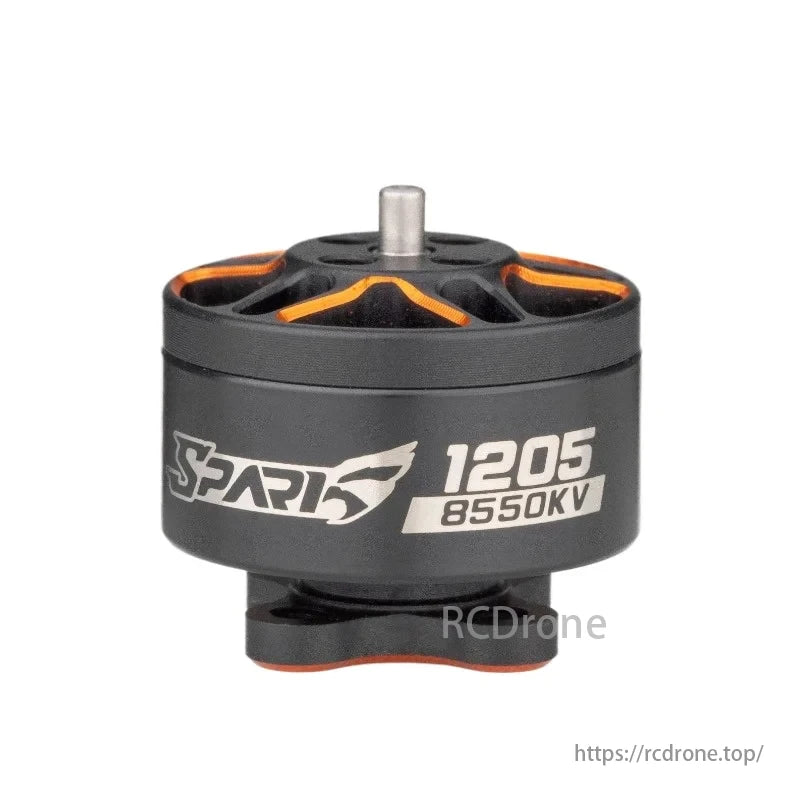

2PCS VCI SPARK 1205 Brushless Motor – 4100KV / 4700KV / 5500KV / 6500KV / 8550KV for 2–3 Inch 3–4S Micro FPV Racing Drones

VCI SPARK 1205 Motor 4100KV4700KV5500KV6500KV8550KV Twin Pack Micro FPV Racing Drone Motor

Product Description:

The VCI SPARK 1205 Motor is a high-performance micro motor designed for lightweight FPV racing drones and micro UAVs. Available in 4100KV, 4700KV, 5500KV, 6500KV, and 8550KV variants, this motor delivers exceptional speed and agility while maintaining efficiency. Each pack includes 2 motors for dual-engine setups, optimized for 3-4S LiPo configurations.

Key Features:

• Ultra-High KV Options: Ranges from 4100KV to 8550KV for speed-focused micro builds.

• Premium N52SH Magnets: Enhances magnetic flux density for smoother torque and lower heat.

• Lightweight Design: Weighs only 6.5g (per motor) with 28AWG silicone wires for minimal resistance.

• Precision Engineering: 9512P stator and 12×5mm stator size ensure rapid response and stability.

• Durable Shaft: 1.5mm hardened steel shaft resorts bending in crashes.

Technical Specifications:

• Phase Resistance: 285mΩ

• Peak Current: 8.63A

• Max Power: 138.08W

• No-Load Current (10V): 0.4A

• Dimensions: Ø15.3×14.7mm

• Wire Length: 80mm

Performance Highlights:

• Efficiency: Optimized for 3-4S (12-16V) batteries, ideal for micro drone racing.

• Low Heat Generation: Stable operation even at 8550KV under full throttle.

• Compact Build: Fits 2-inch to 3-inch propellers for agile freestyle flights.

Applications:

• Micro FPV racing drones

• Tiny whoop quadcopters

• Lightweight cinematic UAVs

Upgrade your micro drone's performance with the VCI SPARK 1205 Motor-combining cutting-edge power density, precision engineering, and ultra-responsive control for unmatched speed and agility in compact builds.

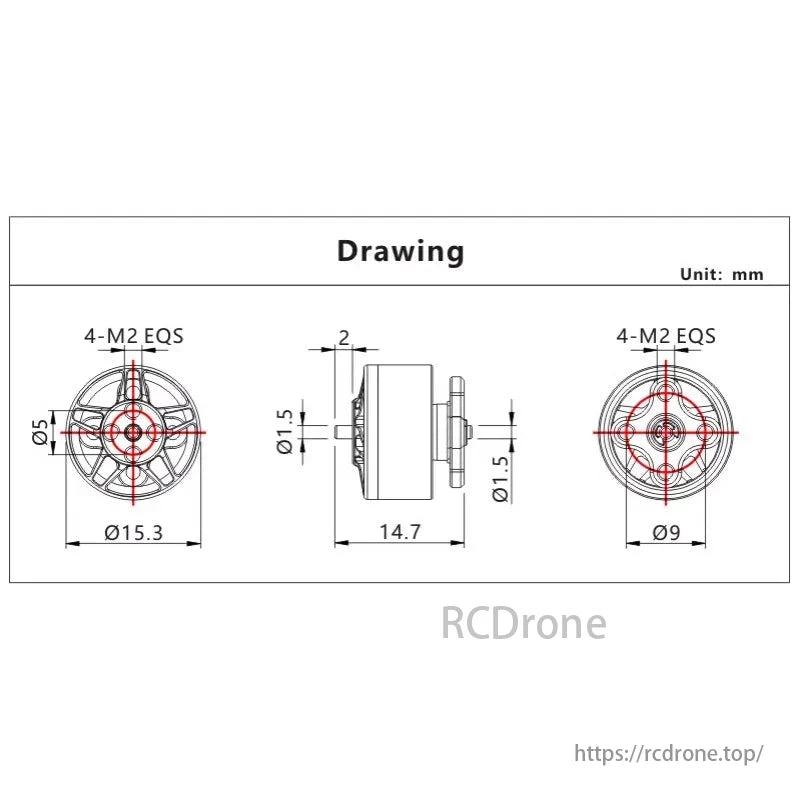

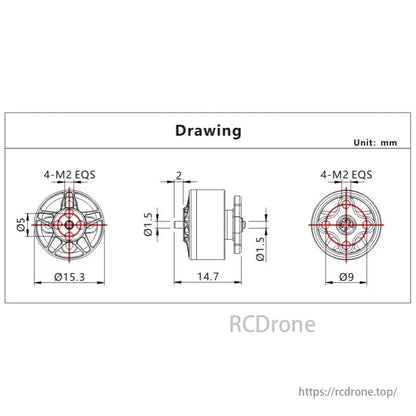

VCI SPARK 1205 Brushless Motor dimensions: Ø15.3 mm, Ø9 mm, 14.7 mm length, 4-M2 EQS mounting holes, unit in mm.

SPARK 1205-4100KV motor specs: KV 4100, stator 9S12P, rotor N52SH. Rated voltage 4S (16V), max current 7.32A. Efficiency up to 81.28%, power 117.12W at 100% throttle. Weight 6.4g.

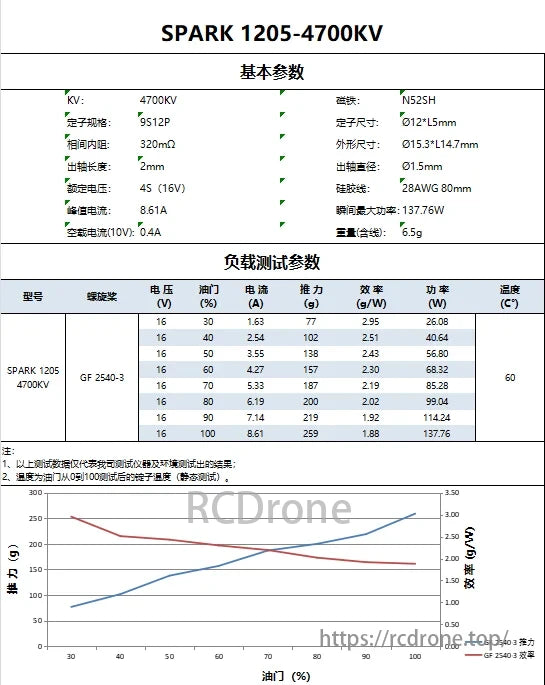

SPARK 1205-4700KV motor specs: KV 4700, 9512P stator, N52SH magnets. Rated voltage 4S (16V), max current 8.61A. Efficiency and thrust data provided for various throttle percentages. Temperature tested up to 60°C.

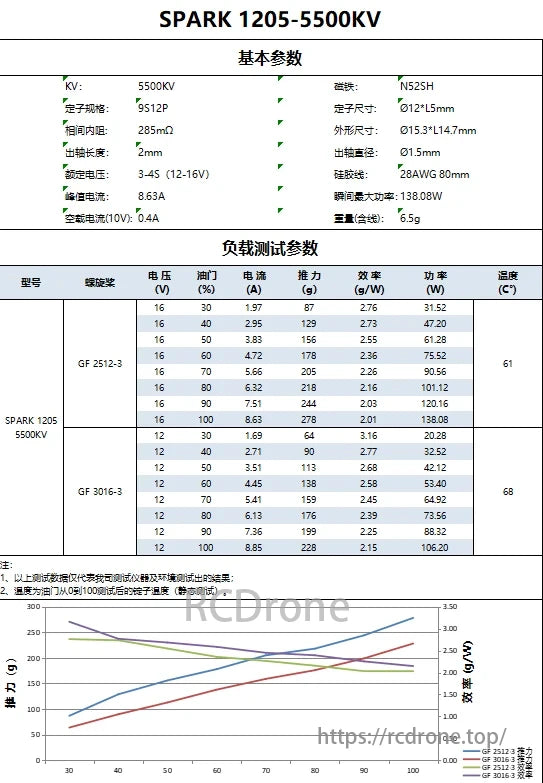

SPARK 1205-5500KV motor specs: KV 5500, stator 9S12P, max power 138.08W, weight 6.5g. Test data for GF 2512-3 and GF 3016-3 props at various voltages, showing thrust, efficiency, and power output.

SPARK 1205-6500KV motor specs: KV 6500, 9512P stator, 175mΩ resistance, 2mm shaft. Tested at 3S (12V), 12.34A current, 148.08W power. Graphs display thrust and efficiency versus throttle percentage.

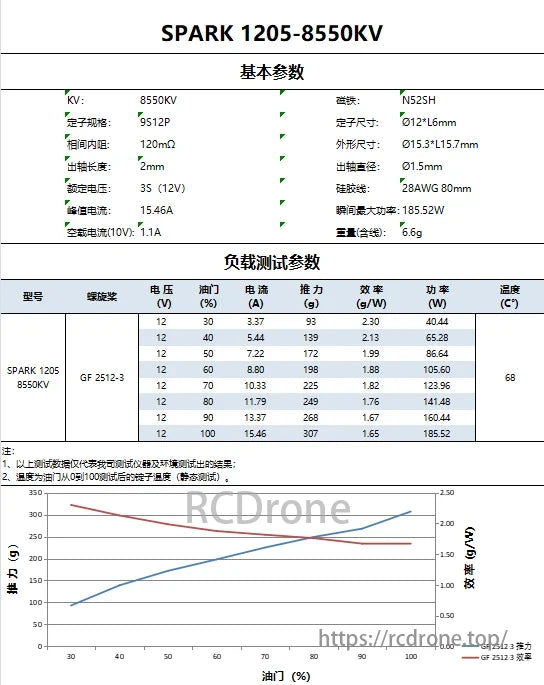

SPARK 1205-8550KV motor specs: 8550KV, 9S12P stator, 120mΩ resistance, 2mm shaft length. Rated voltage 3S (12V), max current 15.46A. Efficiency and power vary with throttle percentage.
