MAD 5008 IPE V3 Drone Motor Overview

The MAD 5008 IPE V3 Drone Motor is a highly efficient and versatile motor designed by MAD EU, ideal for multirotors needing 1-2kg thrust per rotor. It supports propeller sizes of 18-20 inches and is widely used in long-range inspection, mapping, and surveying drones, including quadcopters and hexacopters. Key features include a stator from Taiwan, IP45 protection, and centrifugal heat dissipation. With a weight of 136-142g depending on the KV rating (170-400 KV), it offers maximum power ranging from 602W to 1029W and thrust up to 4.8kg. The motor is compatible with various recommended propellers and ESCs, ensuring optimal performance across different UAV configurations.

MAD 5008 IPE V3 Drone Motor Specifications

Motor Data

Specifications Details Specifications Details
Motor Model MAD 5008 IPE V3.0 Number of pole pairs 14
Stator TAIWAN / Anticorrosive Varnished wire Degree 180°C
Motor Size D:56 × 29.3 mm Magnet Degree 150°C
Degree of Protection IP45 Cable Length 150 mm 16# Awg(Black) silicone
Centrifugal Heat Dissipation YES Rotor Balance ≤5 mg
Propeller Mounting Holes D:12 M3×4, D:15 M3×4 Motor Balance ≤10 mg
Shaft Diameter IN: 6 mm Motor Mounting Holes D:25 M3×4
Bearing EZO 696ZZ*2 Disruptive test 500 V

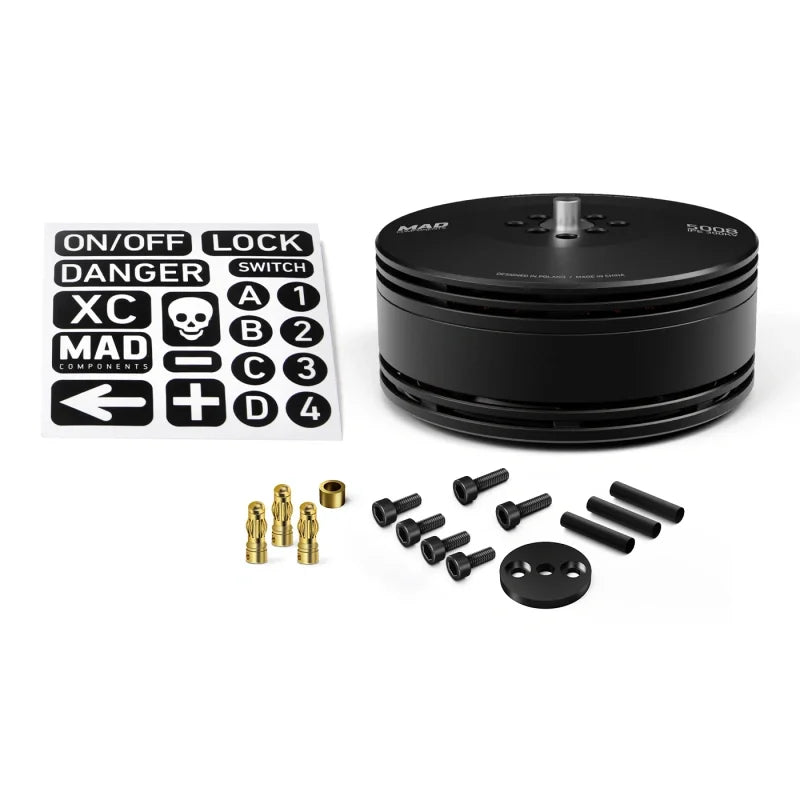

Additional Accessories Propeller Plate 1, Ø4-6 Adapter Ring 1, 3.5mm Bullet Connector3, Heat Shrinkable Tube3, M3*8mm 4 Motor Screws, M310mm 2 Propeller Screws, Sticker2

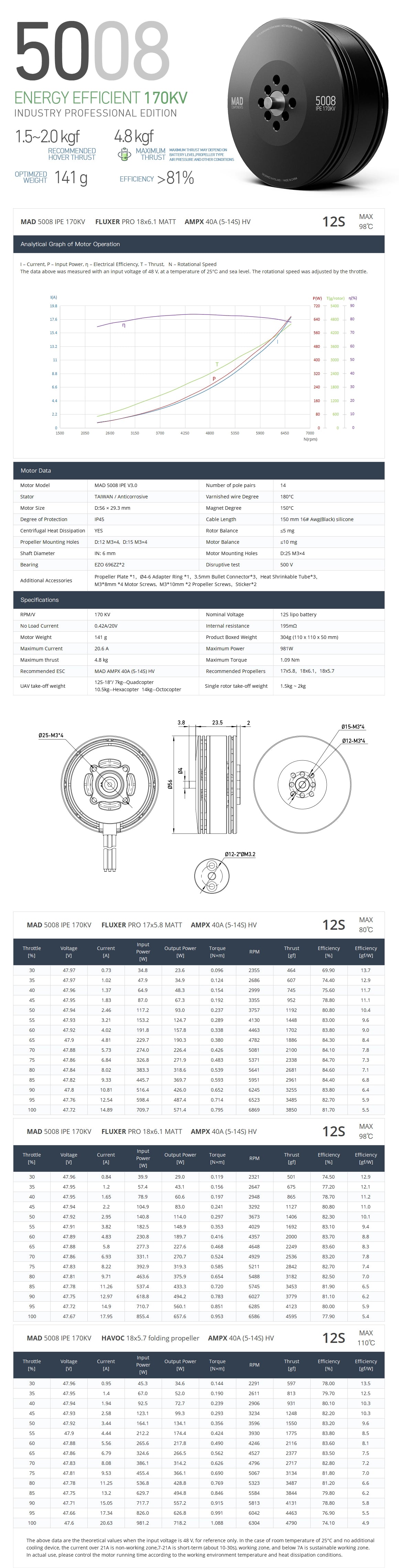

MAD 5008 170 KV Specifications

Specifications Details Specifications Details
RPM/V 170 KV Nominal Voltage 12S lipo battery
No Load Current 0.42A / 20V Internal resistance 195mΩ
Motor Weight 141 g Product Boxed Weight 304g (110 x 110 x 50 mm)
Maximum Current 20.6 A Maximum Power 981 W
Maximum thrust 4.8 kg Maximum Torque 1.09 Nm
Recommended ESC MAD AMPX 40A (5-14S) HV Recommended Propellers 17x5.8, 18x6.1, 18x5.7
UAV take-off weight 12S-18" 7kg--Quadcopter Single rotor take-off weight 1.5kg ~ 2kg
10.5kg--Hexacopter
14kg--Octocopter

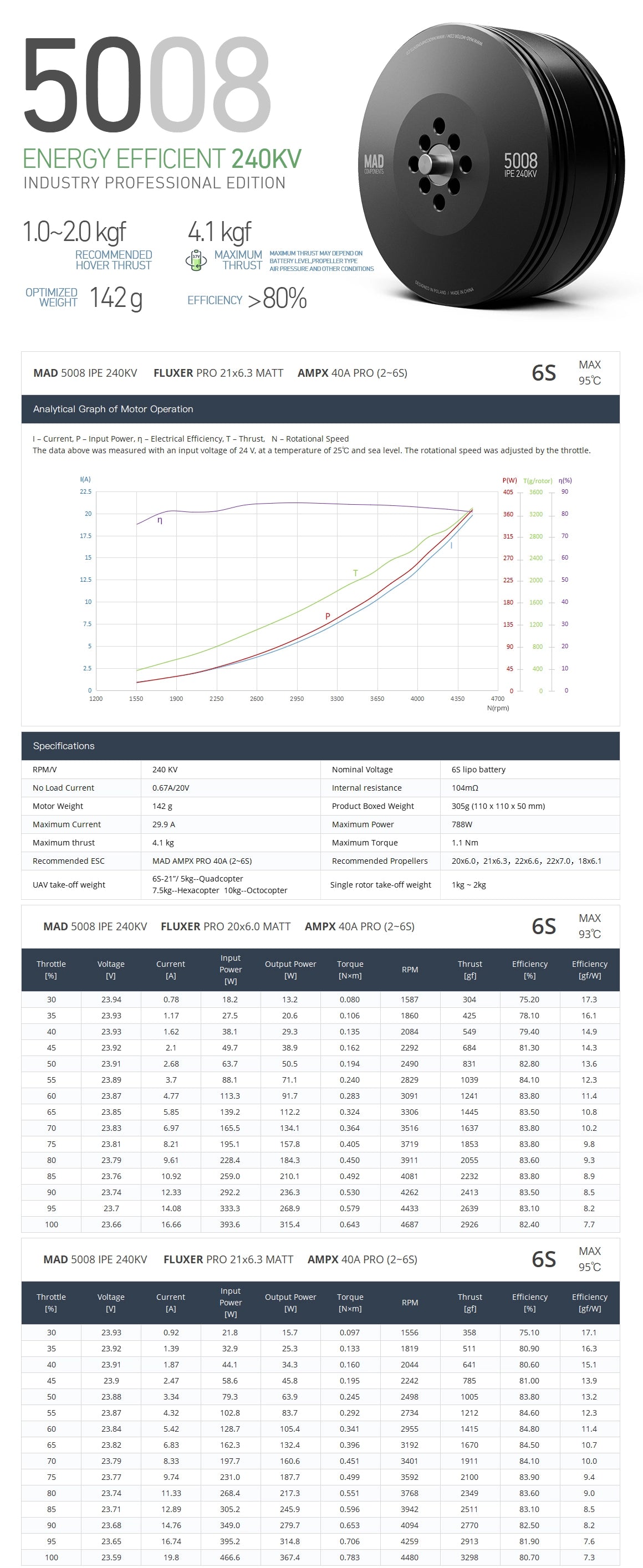

MAD 5008 240 KV Specifications

Specifications Details Specifications Details
RPM/V 240 KV Nominal Voltage 6S lipo battery
No Load Current 0.67A / 20V Internal resistance 104mΩ
Motor Weight 142 g Product Boxed Weight 305g (110 x 110 x 50 mm)
Maximum Current 29.9 A Maximum Power 788 W
Maximum thrust 4.1 kg Maximum Torque 1.1 Nm
Recommended ESC MAD AMPX PRO 40A (2~6S) Recommended Propellers 20x6.0, 21x6.3, 22x6.6, 22x7.0, 18x6.1
UAV take-off weight 6S-21" 5kg--Quadcopter Single rotor take-off weight 1kg ~ 2kg
7.5kg--Hexacopter
10kg--Octocopter

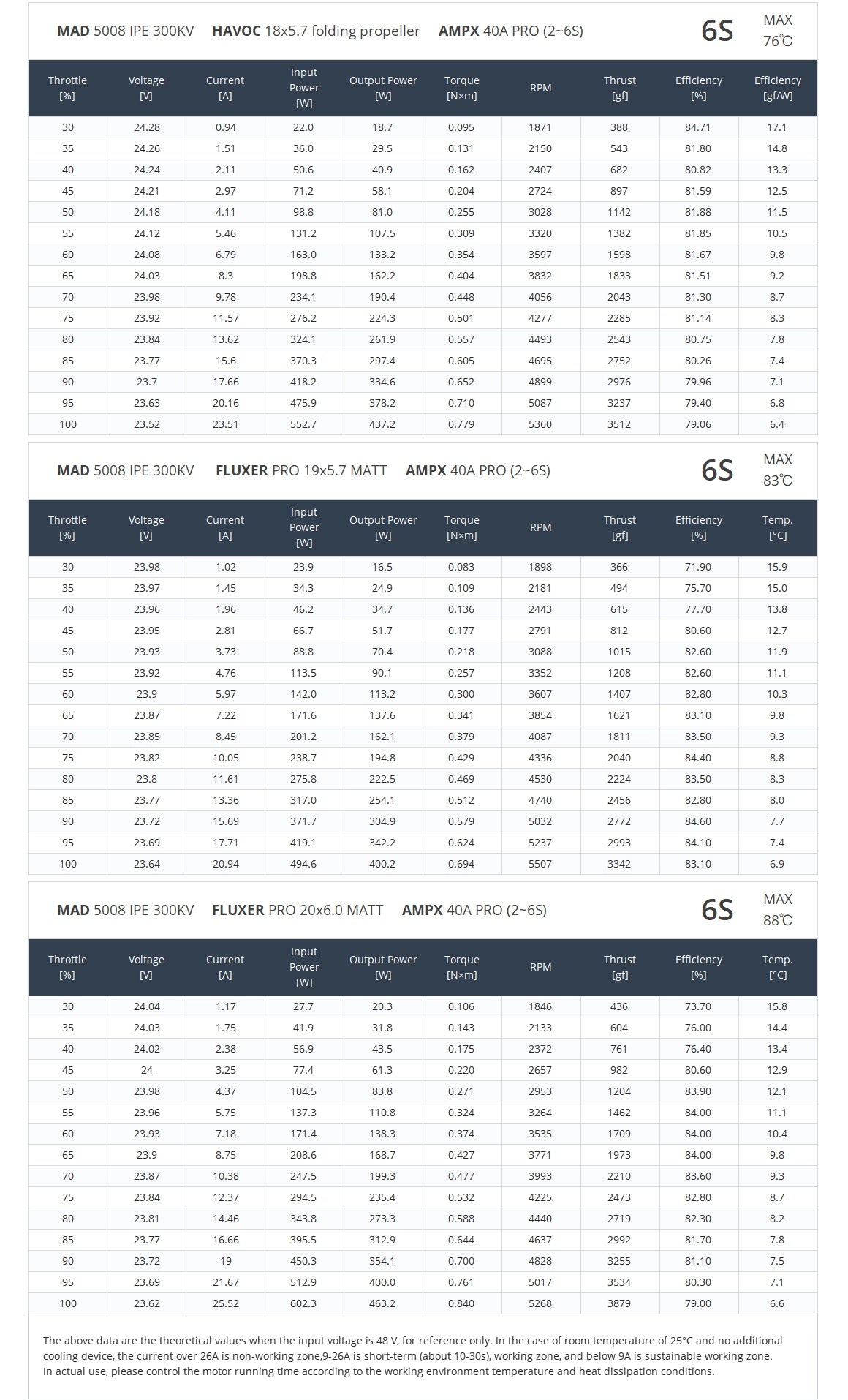

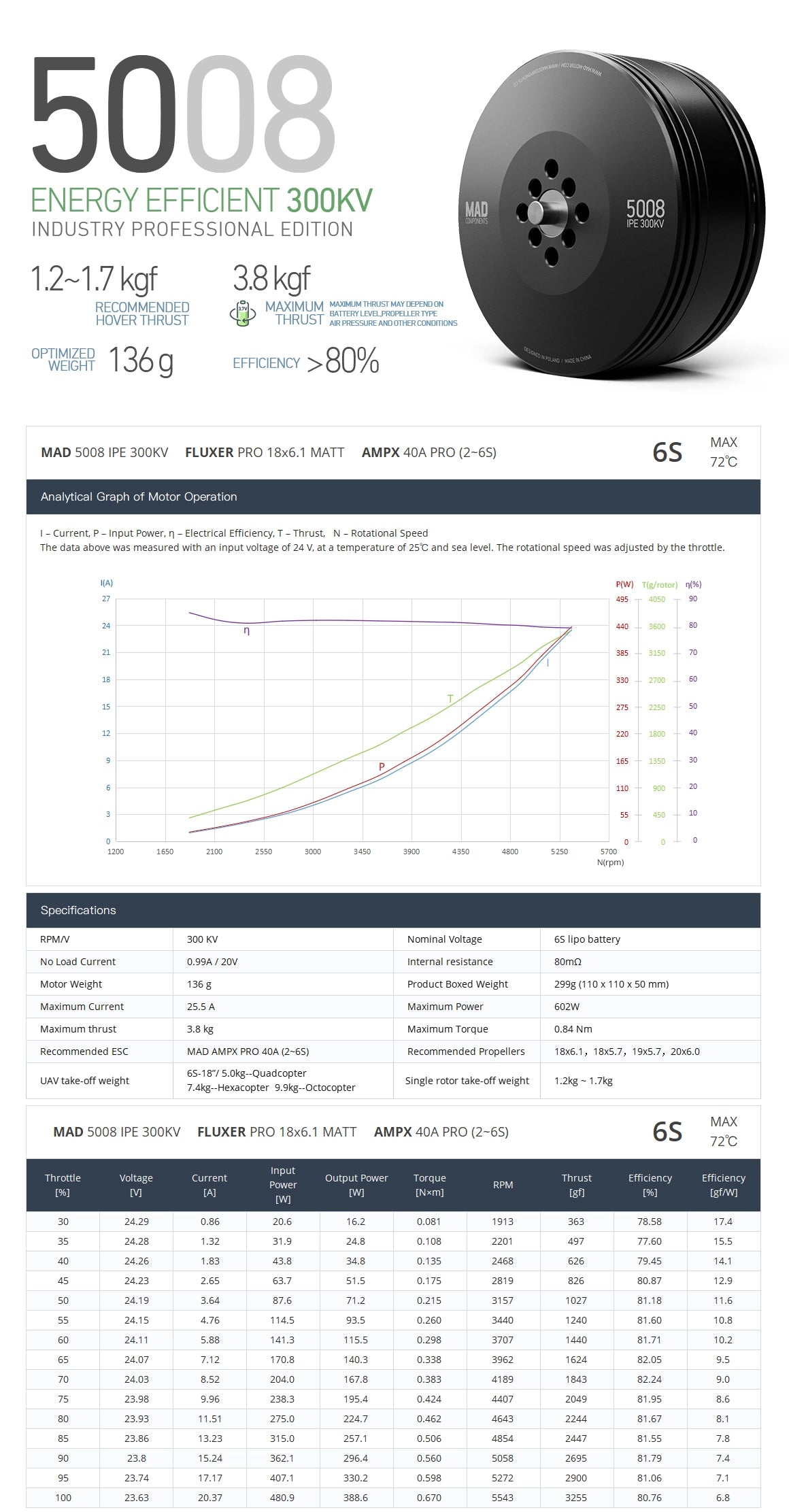

MAD 5008 300 KV Specifications

Specifications Details Specifications Details
RPM/V 300 KV Nominal Voltage 6S lipo battery
No Load Current 0.99A / 20V Internal resistance 80mΩ
Motor Weight 136 g Product Boxed Weight 299g (110 x 110 x 50 mm)
Maximum Current 25.5 A Maximum Power 602 W
Maximum thrust 3.8 kg Maximum Torque 0.84 Nm
Recommended ESC MAD AMPX PRO 40A (2~6S) Recommended Propellers 18x6.1, 18x5.7, 19x5.7, 20x6.0
UAV take-off weight 6S-18" 5kg--Quadcopter Single rotor take-off weight 1.2kg ~ 1.7kg
7.4kg--Hexacopter
9.9kg--Octocopter

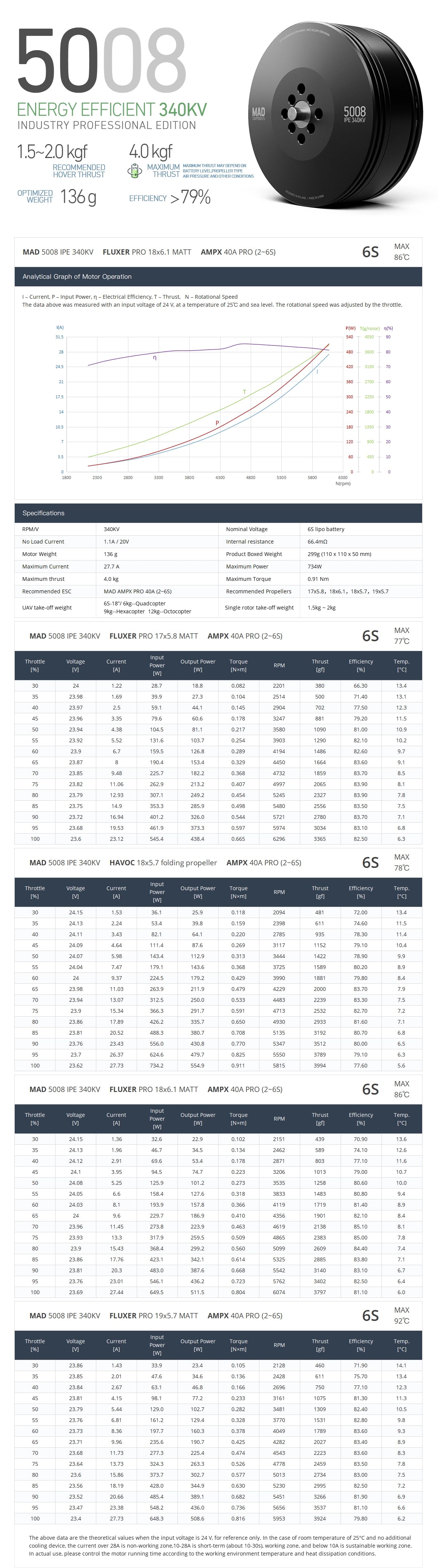

MAD 5008 340 KV Specifications

Specifications Details Specifications Details
RPM/V 340 KV Nominal Voltage 6S lipo battery
No Load Current 1.1A / 20V Internal resistance 66.4mΩ
Motor Weight 136 g Product Boxed Weight 299g (110 x 110 x 50 mm)
Maximum Current 27.7 A Maximum Power 734 W
Maximum thrust 4.0 kg Maximum Torque 0.91 Nm
Recommended ESC MAD AMPX PRO 40A (2~6S) Recommended Propellers 17x5.8, 18x6.1, 18x5.7, 19x5.7
UAV take-off weight 6S-18" 6kg--Quadcopter Single rotor take-off weight 1.5kg ~ 2kg
9kg--Hexacopter
12kg--Octocopter

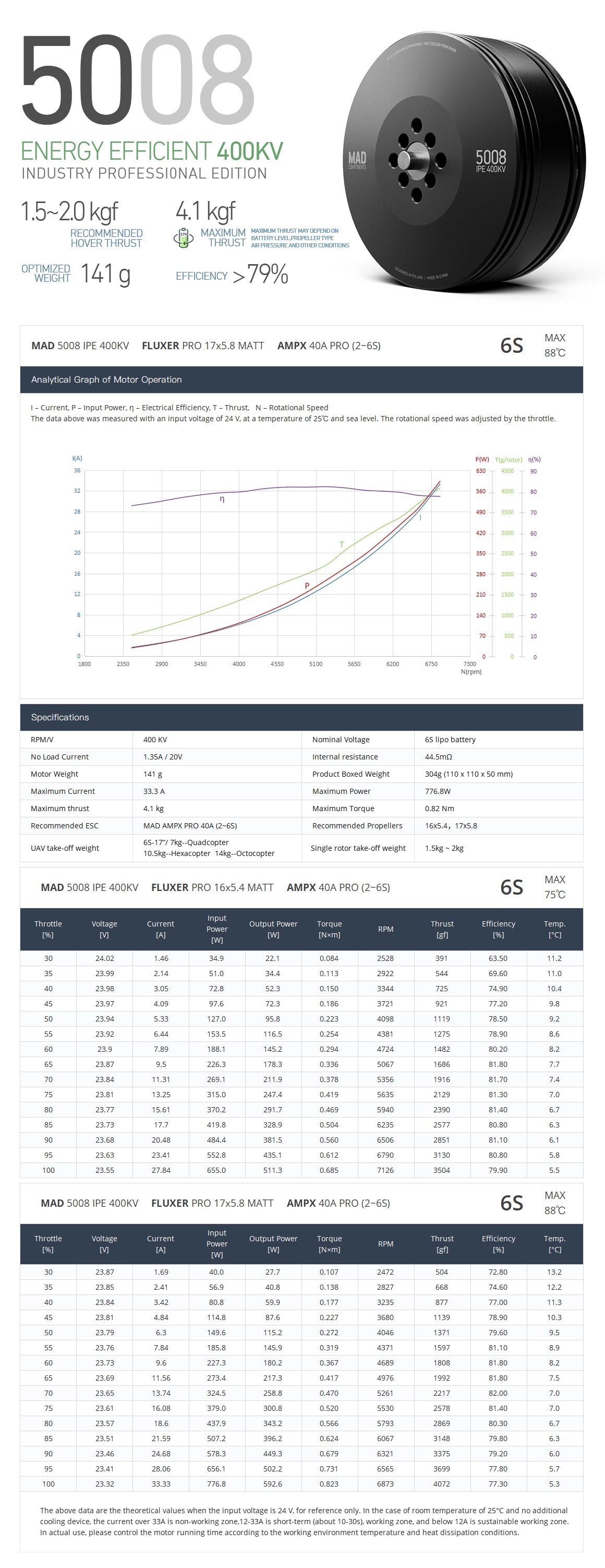

MAD 5008 400 KV Specifications

Specifications Details Specifications Details
RPM/V 400 KV Nominal Voltage 6S lipo battery
No Load Current 1.35A / 20V Internal resistance 44.5mΩ
Motor Weight 141 g Product Boxed Weight 304g (110 x 110 x 50 mm)
Maximum Current 33.3 A Maximum Power 776.8 W
Maximum thrust 4.1 kg Maximum Torque 0.82 Nm
Recommended ESC MAD AMPX PRO 40A (2~6S) Recommended Propellers 16x5.4, 17x5.8
UAV take-off weight 6S-17" 7kg--Quadcopter Single rotor take-off weight 1.5kg ~ 2kg
10.5kg--Hexacopter
14kg--Octocopter



MAD 5008 IPE V3 Drone Motor Details




MAD 5008 IPE V3 Drone Motor, Degree of Protection

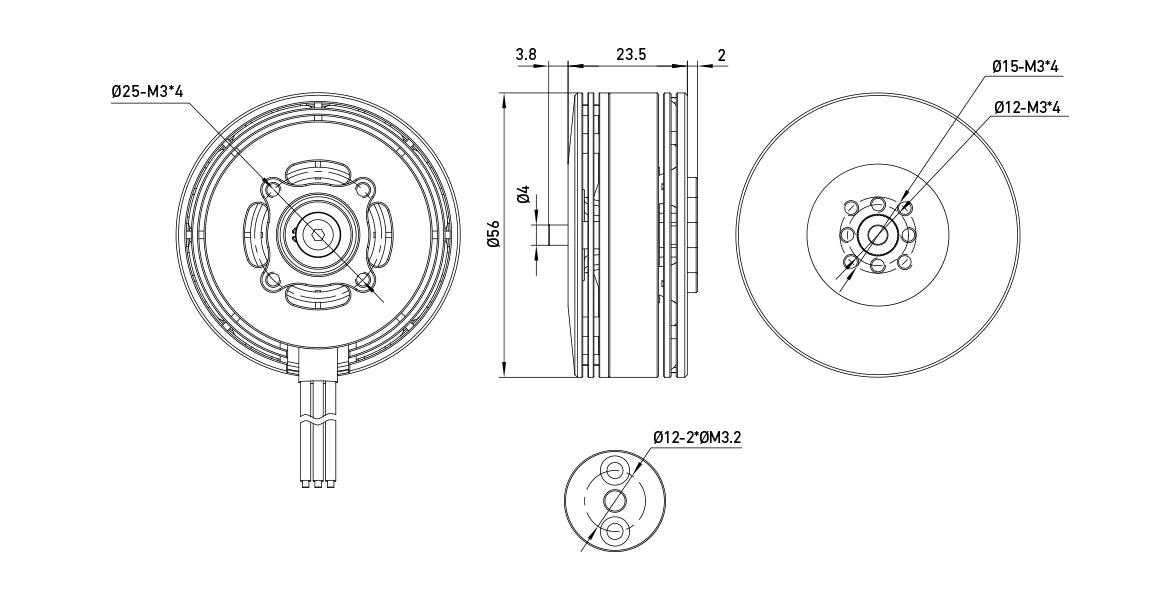

Drawing and mount holes

MAD 5008 IPE V3 Drone Motor - 12S 170KV 6S 240KV 300KV 340KV 400KV Brushless Motor for Long-Range Inspection Mapping DroneMAD 5008 IPE V3 Drone Motor, Optimal performance across various drone configurations with compatible motor, propellers, and ESCs.MAD 5008 IPE V3 Drone Motor, Highly efficient drone motor for small to medium-sized quadcopters.MAD 5008 IPE V3 Drone Motor, Motor compatible with various propellers and ESCs for optimal performance across different UAV configurations.MAD 5008 IPE V3 Drone Motor, Brushless motor with max power (602-1029W) and thrust (up to 4.8kg)MAD 5008 IPE V3 drone motor specifications, including RPM, voltage, current, thrust, and recommended propellers.MAD 5008 IPE V3 drone motor specifications, including RPM/V, nominal voltage, and recommended propellers.MAD 5008 IPE V3 Drone Motor, High-power motor with weights 136-142g, offering 602-1029W of power and 4.8kg of thrust.
