Introducing Our 6, 7, and 8 Channel Anti-Drone Jammer Backpacks
Overview
Our 6, 7, and 8 channel anti-drone jammer backpacks are the ultimate solution for protecting sensitive areas from unauthorized drone activity. With the increasing popularity and accessibility of drones, it is crucial to have a reliable and effective defense system in place.
Advanced Technology
Equipped with cutting-edge technology, our anti-drone jammer backpacks are capable of neutralizing drones within a radius of up to 2 kilometers. The backpacks feature multiple channels, allowing for simultaneous jamming of multiple frequencies commonly used by drones. Using sophisticated signal jamming techniques, our backpacks disrupt the communication between the drone and its operator, rendering the drone inoperable. This ensures that any potential threats posed by drones, such as surveillance or delivery of harmful payloads, are eliminated.
Portable and Easy to Use

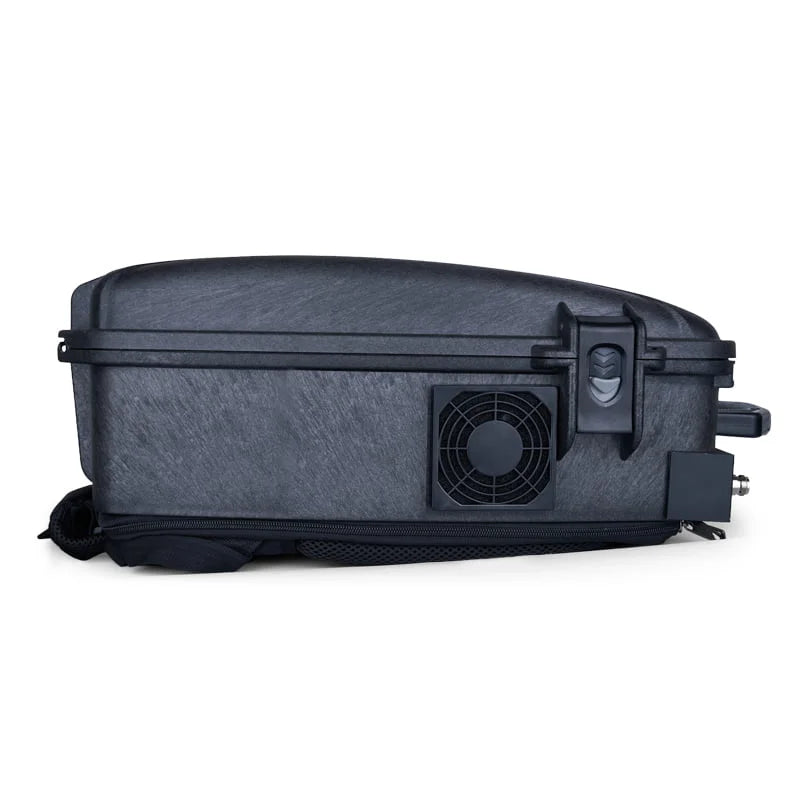

Designed with portability in mind, our anti-drone jammer backpacks are lightweight and comfortable to wear. The backpacks are equipped with adjustable straps and padded back panels, ensuring a secure and comfortable fit for extended periods of use. Operating the backpacks is simple and user-friendly. With the push of a button, the jamming process begins, effectively neutralizing any drones within range. The backpacks also feature an intuitive display that provides real-time information about the jamming status and battery life.
Whether you need to protect sensitive government facilities, corporate events, or public gatherings, our 6, 7, and 8 channel anti-drone jammer backpacks provide the ultimate defense against unauthorized drone activity. Invest in the security and privacy of your organization with our state-of-the-art anti-drone technology.
Technical Parameters
- Frequency Coverage: 814-5850MHz, covering 3G, 4G, GPS, mobile phones, UAVs, etc.
- Total RF Transmitting Power: ≤180W, multi-channel output
- Battery: Built-in 24V/21A battery with battery protection system BMS, continuous use >1 hour; can also be powered by an external backup battery

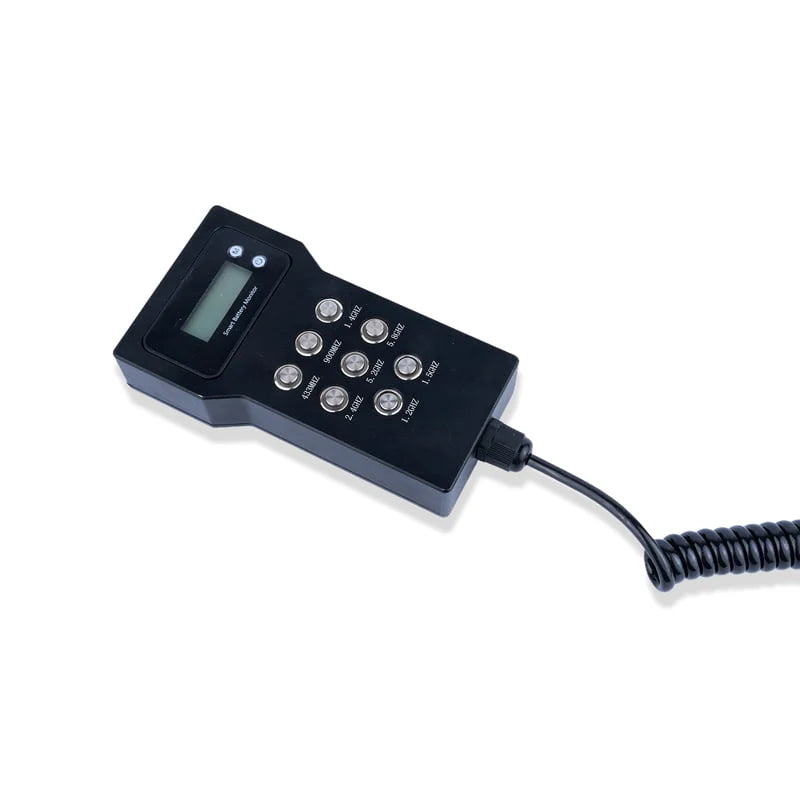

- Control: Remote wire control box, each circuit can be controlled separately, and can also be switched on and off with one key, with battery power display
- Weight: Total weight of the machine <28kg; FRP omnidirectional antenna coverage; Net Weight: 16KG - 18KG;
- Indicators: Module working indicator, high gain broadband antenna
- Protection: Temperature protection and standing wave protection function
Configurations
JH-BG-6-250W: Configuration 1
Frequency | Working Frequency | dBm | Channel Output Power |
---|---|---|---|
CH1 | 420-450MHz | 47dBm | 20dBm/30KHz (min) |
CH2 | 720-840MHz | 44dBm | 20dBm/30KHz (min) |
CH3 | 830-940MHz | 47dBm | 20dBm/30KHz (min) |
CH4 | 1550-1620MHz | 43dBm | 20dBm/30KHz (min) |
CH5 | 2400-2500MHz | 47dBm | 20dBm/30KHz (min) |
CH6 | 5725-5850MHz | 47dBm | 20dBm/30KHz (min) |
JH-BG-6-300W: Configuration 2
Frequency | Working Frequency | dBm | Channel Output Power |
---|---|---|---|
CH1 | 420-450MHz | 47dBm | 20dBm/30KHz (min) |
CH2 | 720-840MHz | 47dBm | 20dBm/30KHz (min) |
CH3 | 830-940MHz | 47dBm | 20dBm/30KHz (min) |
CH4 | 1550-1620MHz | 47dBm | 20dBm/30KHz (min) |
CH5 | 2400-2500MHz | 47dBm | 20dBm/30KHz (min) |
CH6 | 5725-5850MHz | 47dBm | 20dBm/30KHz (min) |
JH-BG-6-300W: Configuration 3
Frequency | Working Frequency | dBm | Channel Output Power |
---|---|---|---|
CH1 | 420-450MHz | 47dBm | 20dBm/30KHz (min) |
CH2 | 830-940MHz | 47dBm | 20dBm/30KHz (min) |
CH3 | 1550-1620MHz | 47dBm | 20dBm/30KHz (min) |
CH4 | 2400-2500MHz | 47dBm | 20dBm/30KHz (min) |
CH5 | 5150-5350MHz | 47dBm | 20dBm/30KHz (min) |
CH6 | 5725-5850MHz | 47dBm | 20dBm/30KHz (min) |
JH-BG-7-350W: Configuration 1
Frequency | Working Frequency | dBm | Channel Output Power |
---|---|---|---|
CH1 | 420-450MHz | 47dBm | 20dBm/30KHz (min) |
CH2 | 720-840MHz | 47dBm | 20dBm/30KHz (min) |
CH3 | 830-940MHz | 47dBm | 20dBm/30KHz (min) |
CH4 | 1120-1280MHz | 47dBm | 20dBm/30KHz (min) |
CH5 | 1550-1620MHz | 47dBm | 20dBm/30KHz (min) |
CH6 | 2400-2500MHz | 47dBm | 20dBm/30KHz (min) |
CH7 | 5725-5850MHz | 47dBm | 20dBm/30KHz (min) |
JH-BG-7-350W: Configuration 2
Frequency | Working Frequency | dBm | Channel Output Power |
---|---|---|---|
CH1 | 420-450MHz | 47dBm | 20dBm/30KHz (min) |
CH2 | 720-840MHz | 47dBm | 20dBm/30KHz (min) |
CH3 | 830-940MHz | 47dBm | 20dBm/30KHz (min) |
CH4 | 950-1050MHz | 47dBm | 20dBm/30KHz (min) |
CH5 | 1550-1620MHz | 47dBm | 20dBm/30KHz (min) |
CH6 | 2400-2500MHz | 47dBm | 20dBm/30KHz (min) |
CH7 | 5725-5850MHz | 47dBm | 20dBm/30KHz (min) |
JH-BG-7-350W: Configuration 3
Frequency | Working Frequency | dBm | Channel Output Power |
---|---|---|---|
CH1 | 420-450MHz | 47dBm | 20dBm/30KHz (min) |
CH2 | 720-840MHz | 47dBm | 20dBm/30KHz (min) |
CH3 | 830-940MHz | 47dBm | 20dBm/30KHz (min) |
CH4 | 1550-1620MHz | 47dBm | 20dBm/30KHz (min) |
CH5 | 2400-2500MHz | 47dBm | 20dBm/30KHz (min) |
CH6 | 5150-5350MHz | 47dBm | 20dBm/30KHz (min) |
CH7 | 5725-5850MHz | 47dBm | 20dBm/30KHz (min) |
JH-BG-8-340W: Configuration 1
Frequency | Working Frequency | dBm | Channel Output Power |
---|---|---|---|
CH1 | 420-450MHz | 47dBm | 20dBm/30KHz (min) |
CH2 | 720-840MHz | 47dBm | 20dBm/30KHz (min) |
CH3 | 830-940MHz | 47dBm | 20dBm/30KHz (min) |
CH4 | 950-1050MHz | 47dBm | 20dBm/30KHz (min) |
CH5 | 1170-1280MHz | 43dBm | 20dBm/30KHz (min) |
CH6 | 1550-1620MHz | 43dBm | 20dBm/30KHz (min) |
CH7 | 2400-2500MHz | 47dBm | 20dBm/30KHz (min) |
CH8 | 5725-5850MHz | 47dBm | 20dBm/30KHz (min) |
JH-BG-8-400W: Configuration 2
Frequency | Working Frequency | dBm | Channel Output Power |
---|---|---|---|
CH1 | 420-450MHz | 47dBm | 20dBm/30KHz (min) |
CH2 | 830-940MHz | 47dBm | 20dBm/30KHz (min) |
CH3 | 1120-1280MHz | 47dBm | 20dBm/30KHz (min) |
CH4 | 1340-1450MHz | 47dBm | 20dBm/30KHz (min) |
CH5 | 1550-1620MHz | 47dBm | 20dBm/30KHz (min) |
CH6 | 2400-2500MHz | 47dBm | 20dBm/30KHz (min) |
CH7 | 5150-5380MHz | 47dBm | 20dBm/30KHz (min) |
CH8 | 5725-5850MHz | 47dBm | 20dBm/30KHz (min) |
JH-BG-8-400W: Configuration 3
Frequency | Working Frequency | dBm | Channel Output Power |
---|---|---|---|
CH1 | 420-450MHz | 47dBm | 20dBm/30KHz (min) |
CH2 | 720-840MHz | 47dBm | 20dBm/30KHz (min) |
CH3 | 830-940MHz | 47dBm | 20dBm/30KHz (min) |
CH4 | 950-1050MHz | 47dBm | 20dBm/30KHz (min) |
CH5 | 1550-1620MHz | 47dBm | 20dBm/30KHz (min) |
CH6 | 2400-2500MHz | 47dBm | 20dBm/30KHz (min) |
CH7 | 5150-5350MHz | 47dBm | 20dBm/30KHz (min) |
CH8 | 5725-5850MHz | 47dBm | 20dBm/30KHz (min) |
Invest in our Portable Backpack Style Drone Signal Jammer today to ensure the security and privacy of your critical areas.
