868MHz 915MHz 10W 20W Drone FPV Signal Amplifier Extender Signal Booster Drone Range Extender Tarot FPV Image Transmission

868MHz 915MHz 10W 20W Drone FPV Signal Amplifier Extender Signal Booster Drone Range Extender Tarot FPV Image Transmission

RCDrone

$184.11 USD
$220.93 USD $184.11 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

15 orders in last 90 days

Color
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

SPECIFICATIONS

Brand Name: ACASOM

Item Type: amplifier

Origin: Mainland China

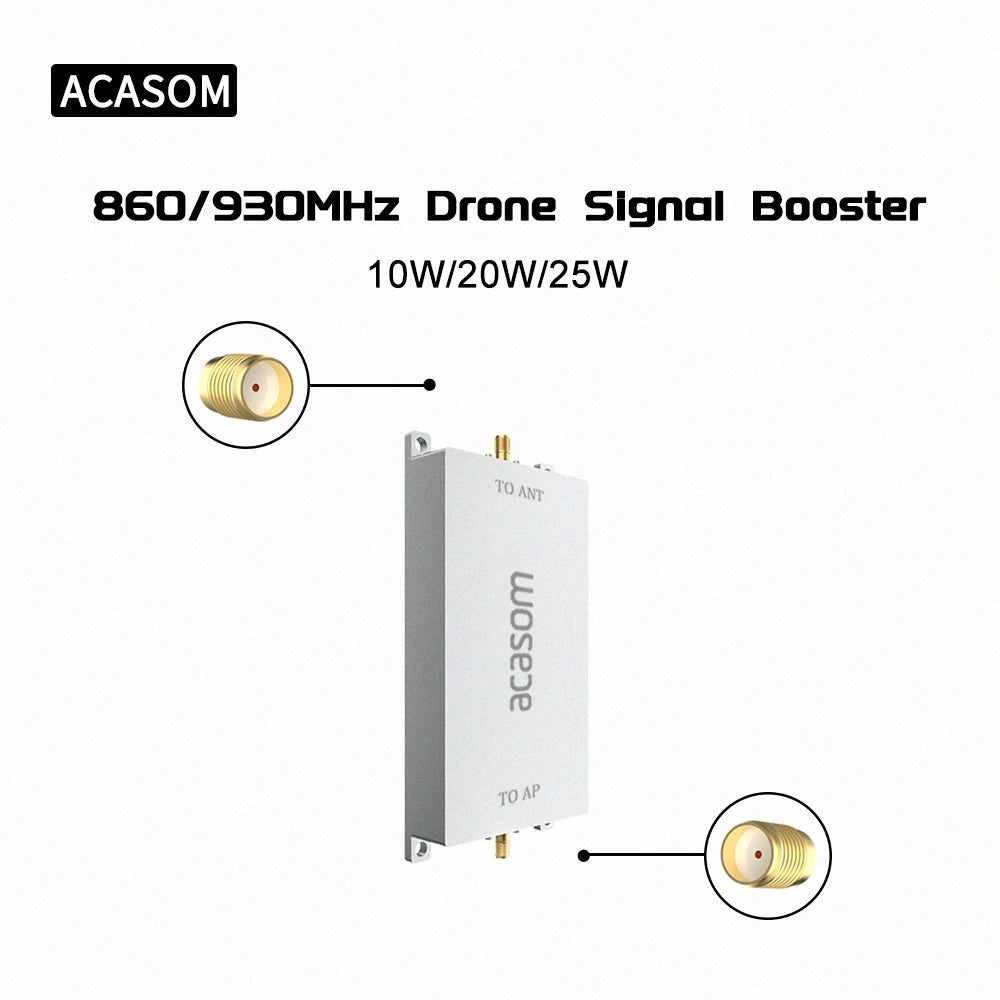

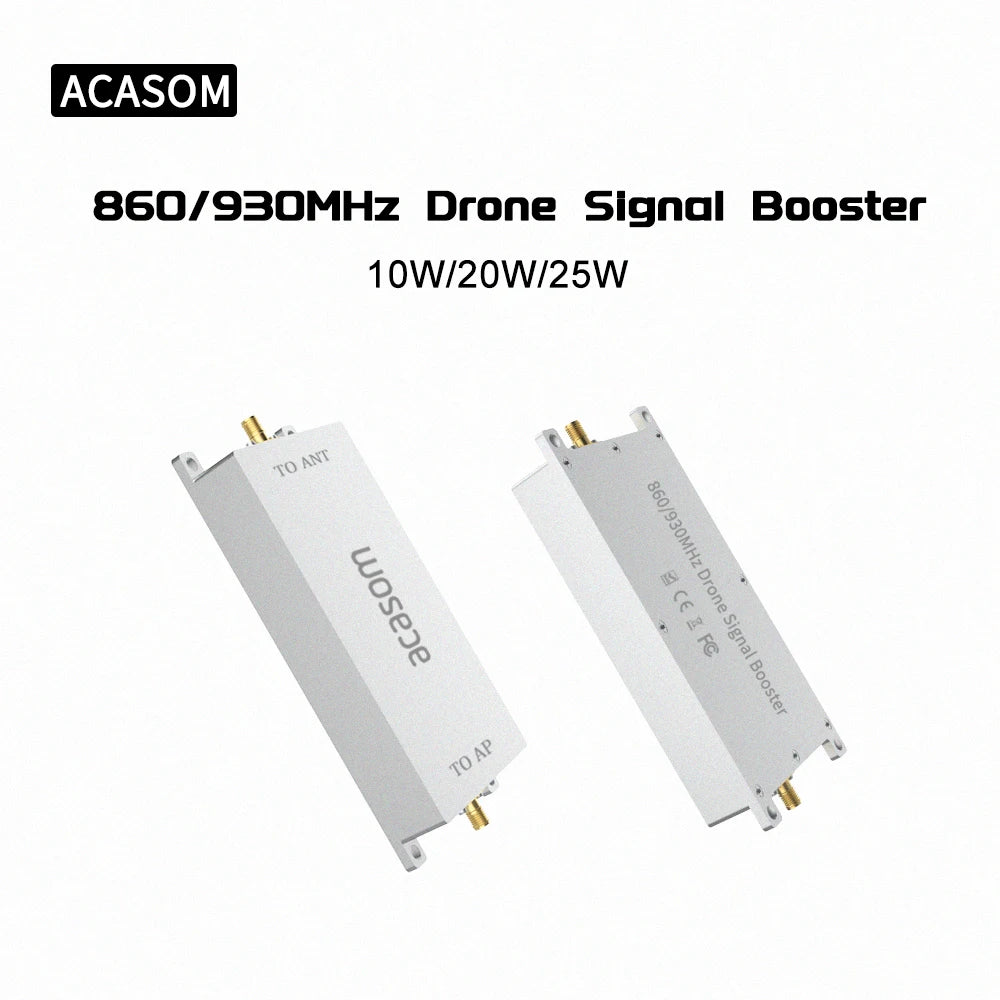

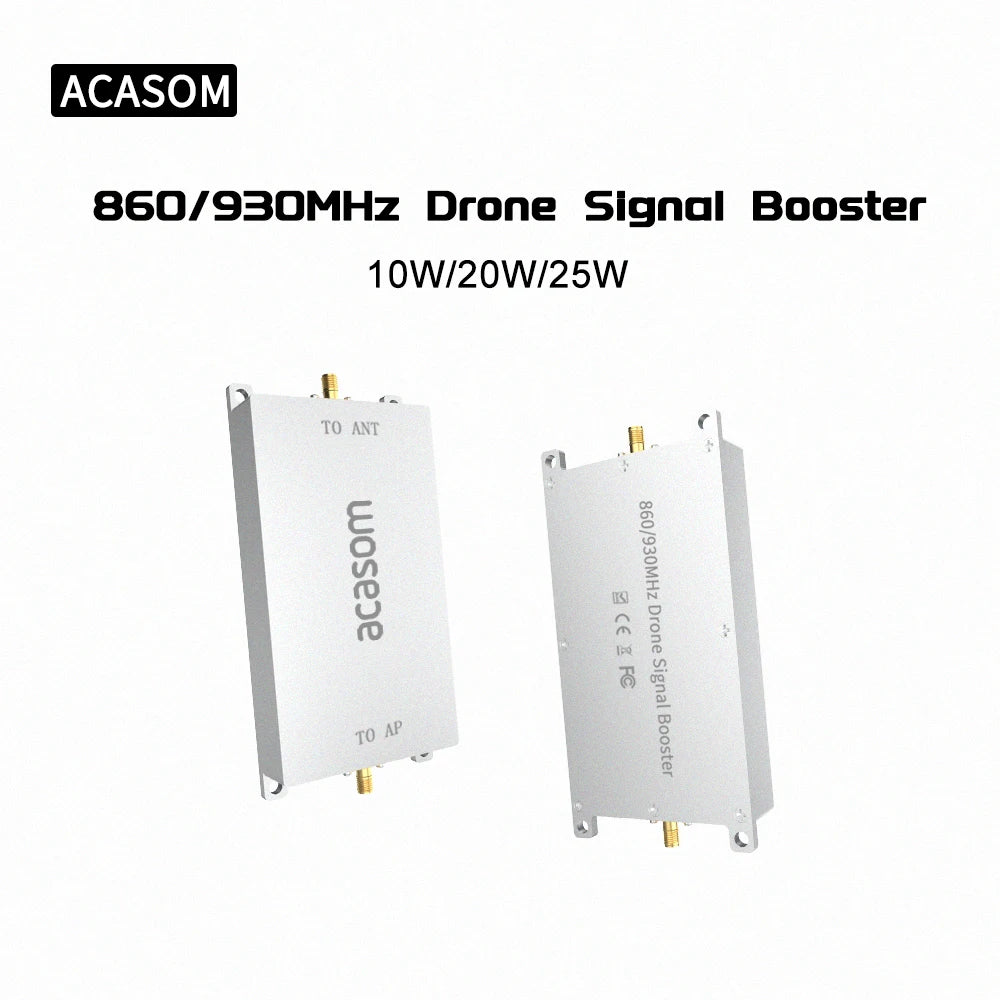

ACASOM 868M/915MHz 10W Signal Etender Design For Drone FPV


Working Band:  860-930MHz(800-1000MHz CUSTOMIZED )


Output Power：10W / 40dBm

buyers are responsible for all additional custom fees, duties, and taxes for importation into your country


ACASOM 868MHz915MH 10W Signal Booster/Extender is a device that helps to

enhance the range and strength of wireless signals in both the

868MHz915MH frequency bands. It works by amplifying the signals that are transmitted and received by wireless devices such as routers, smartphones, laptops, and tablets, thereby improving the signal strength and extending the coverage area.


reused shipments will not be refunded


Number

Items

Specifications

1

Frequency Range

860-930MHz

2

Operating Voltage

12-20V

3

ReceivingGain

18dB±1

4

Transmission Gain:

18dB±1

5

Max Output Power(P1dB)

40dBm(10W)

6

Input Trigger Power

Min:3dBm Max:22dBm

7

EVM

3%@34dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz

8

Noise Figure

＜2.5dB

9

Current Supply

1.7A@Pout 34dBm 12V

10

TX/RX Switch Time Delay

＜1 us

11

LED Indicator

Transmitter: Green; Receiver: Red

12

OperatingTemperature

-30℃～+70℃

13

StorageTemperature

-40℃～+150℃

14

Operating Humidity

Up to 95% rel. humidity

15

RF Connector

Input: SMA-K; Output:SMA-K

16

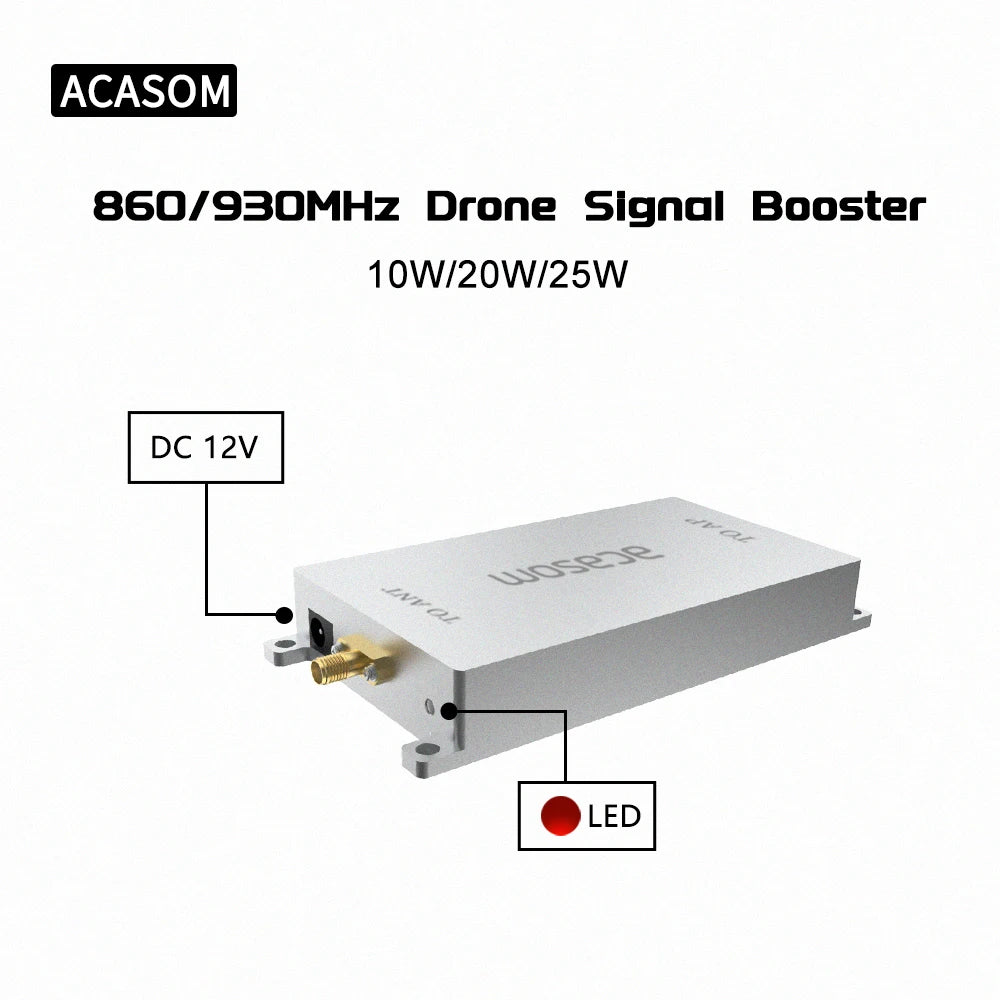

Power Socket

5.5*2.1mm

17

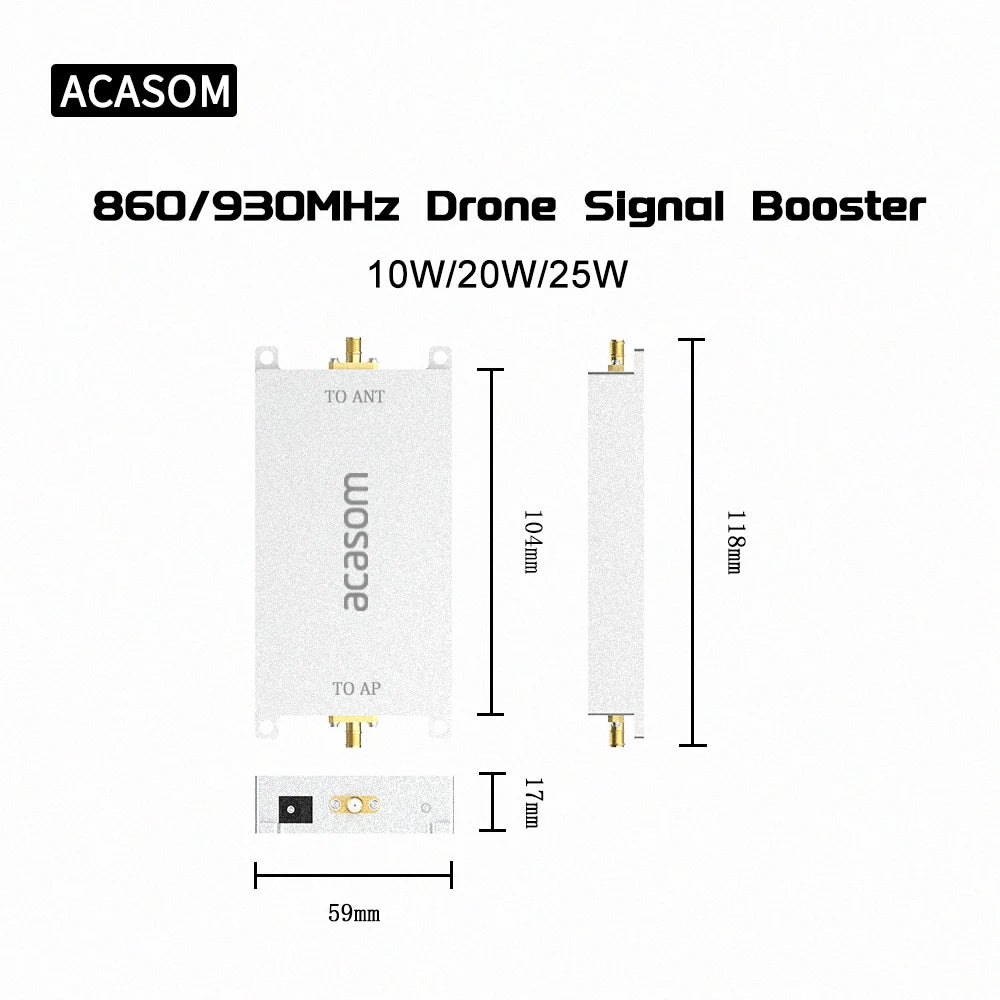

Shell Size

104*60*17(mm)

18

Shell Material

Aluminum

19

Net Weight

0.27Kg

ACASOM 860/930MHz Drone Signol Booster 1OWACASOM 860/930MHz Drone Signol Booster 10wEVM 3%@34dBm 802.11g 54Mbps OFDM 64QA

1PCS*868MHz/915MH 10W Signal Amplifier

ACASOM 860/930MHz Drone Signol Booster 10w
Brazil, Russia, Germany, etc. have strict regulations on the import of such products .

1: Standard express has a certain risk of getting lost. For products with higher value, we recommend to choose fast commercial express, we will also provide very favorable price, please contact us for specific express price.


2: We do not guarantee delivery time on all international shipments due to differences in customs clearing times in special countries. Please note that buyers are responsible for all additional custom fees, duties, and taxes for importation into your country. We will not refund shipping charges for reused shipments.


3: Because some countries have strict regulations on the import of such products, such as Brazil, Russia, Germany, etc., please make sure whether individual could import the product in your country, or if you have the qualification to import the product. The buyers are responsible for the lost if the goods are detained by the customs.
