SPECIFICATIONS
Brand Name: ACASOM
Item Type: Antenna
Origin: Mainland China
Frequency:900MHz-940MHz
Hign Gain : 9dB
ACASOM accept customizing the Frequency you need!
900MHz High Power Yagi Atenna
1.6GHz Yagi Antenna |
||
Frequency: |
900-940MHz |
|
Gain: |
9 dBi |
|
VSWR: |
<1.5:1 |
|
Polarization: |
Horizontal or Vertical |
|
Horizontal Beamwidth: |
71.1° |
|
Vertical Beamwidth: |
57.3° |
|
Nominal Impedance: |
50 Ohms |
|
F/B Ratio: |
>25 dB |
|
Isolation: |
||
Max Input Power: |
30 W |
|
Lightning Protection: |
DC Ground |
![ACASOM 915MHz 9dBi Drone Antenna](https://rcdrone.top/cdn/shop/files/S8ecb321006fb4aa6b144b07a91944433x_5971eb89-72a3-4dcd-8c25-ae1b39bcad46.webp?v=1715019581)
![ACASOM 915MHz 9dBi Drone Antenna Frcquo](https://rcdrone.top/cdn/shop/files/S381e67fb19674ee7b5d9a7193b9abea8y_c2271568-d0a8-4bb1-b51e-9d3f496027d4.webp?v=1715019603)

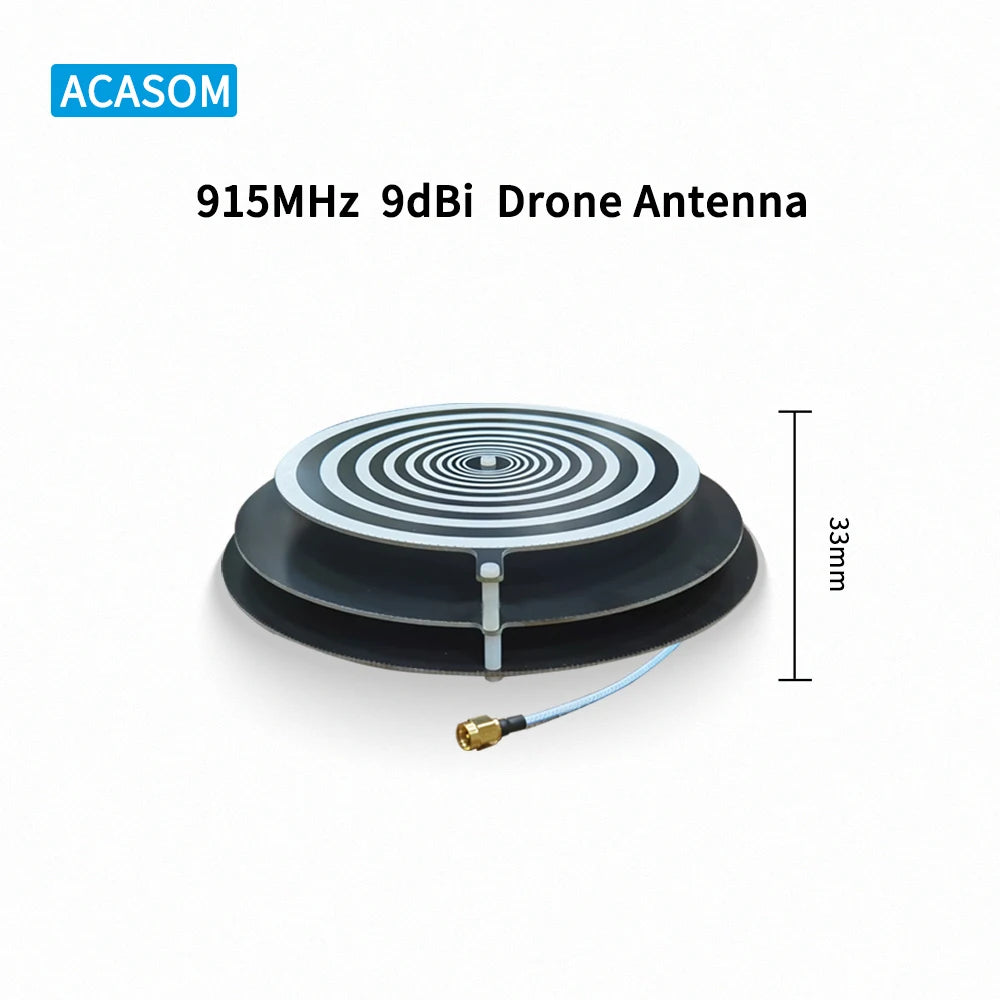

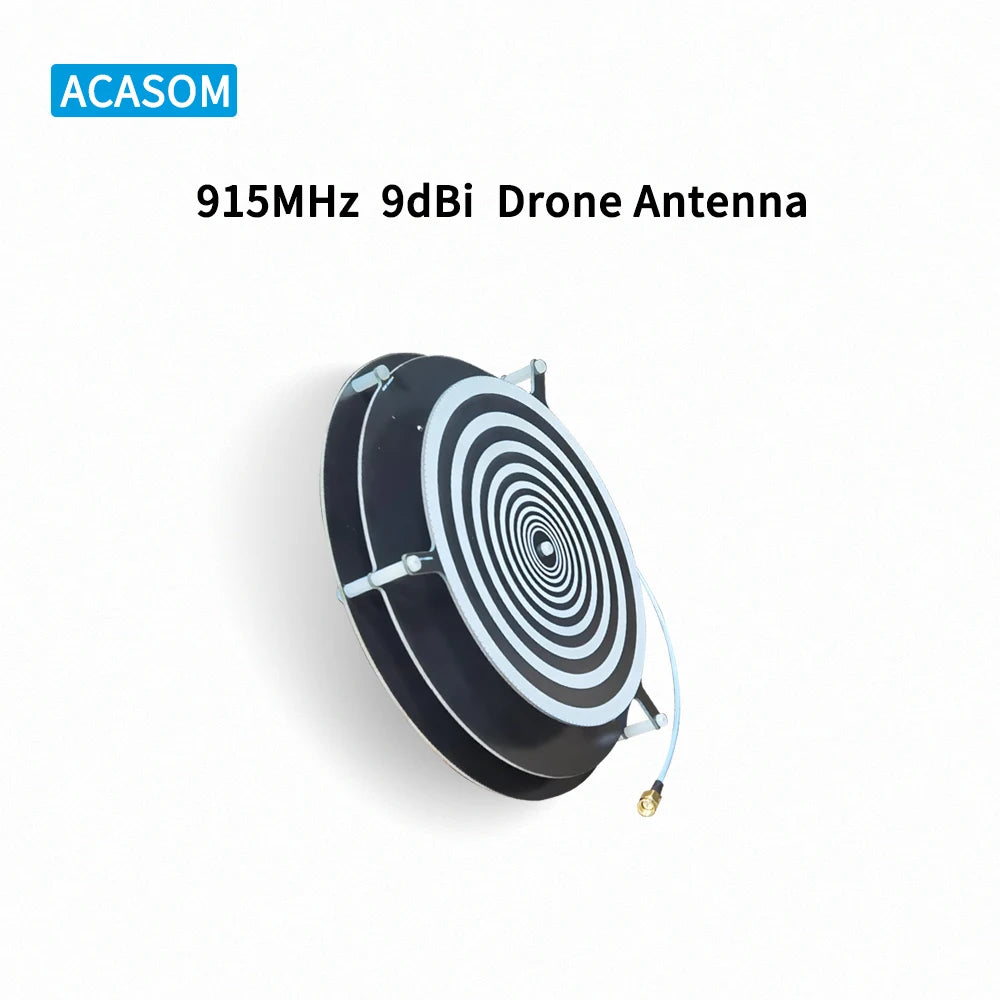

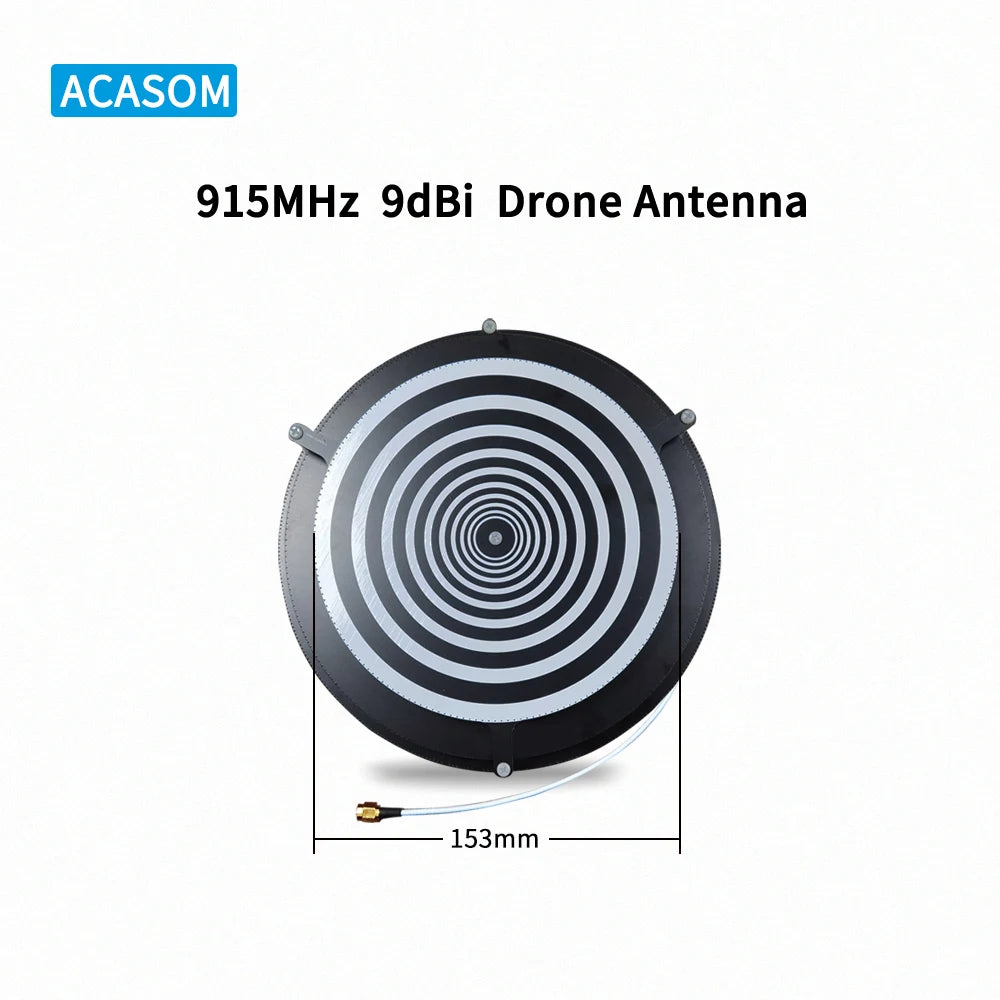

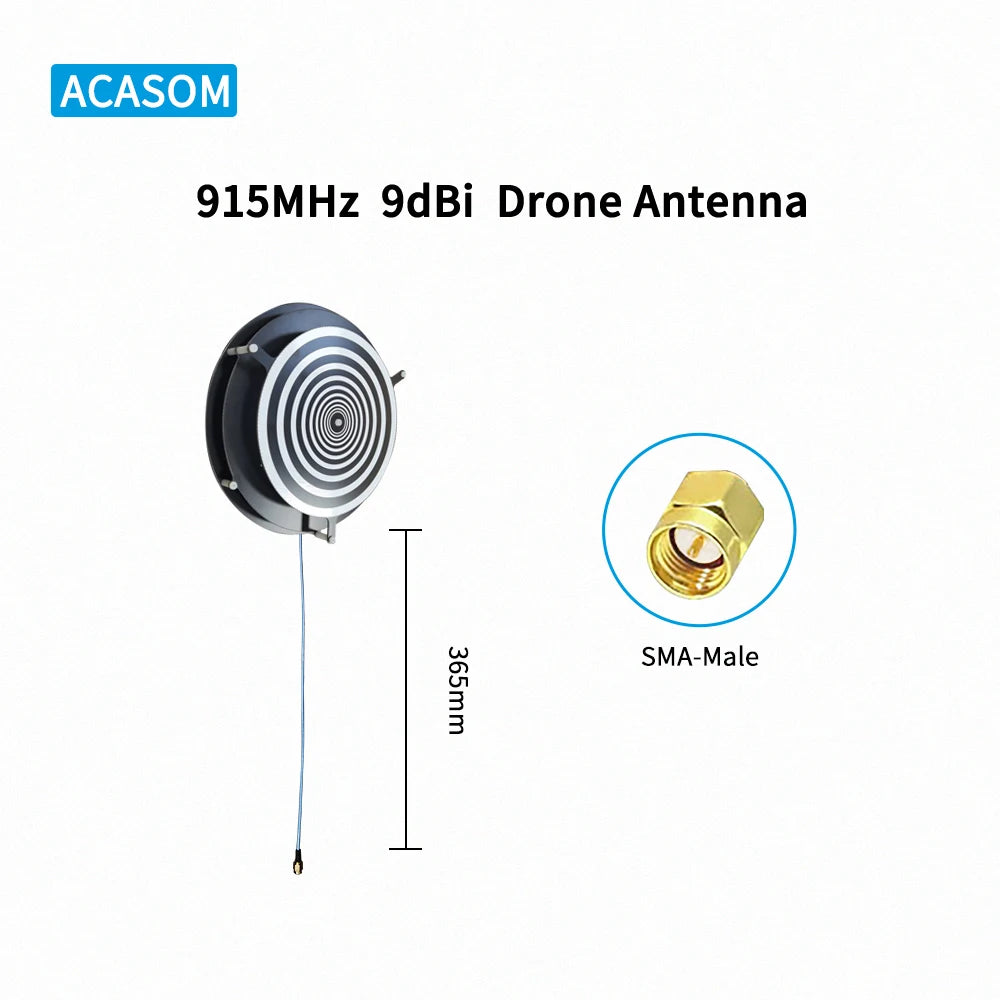

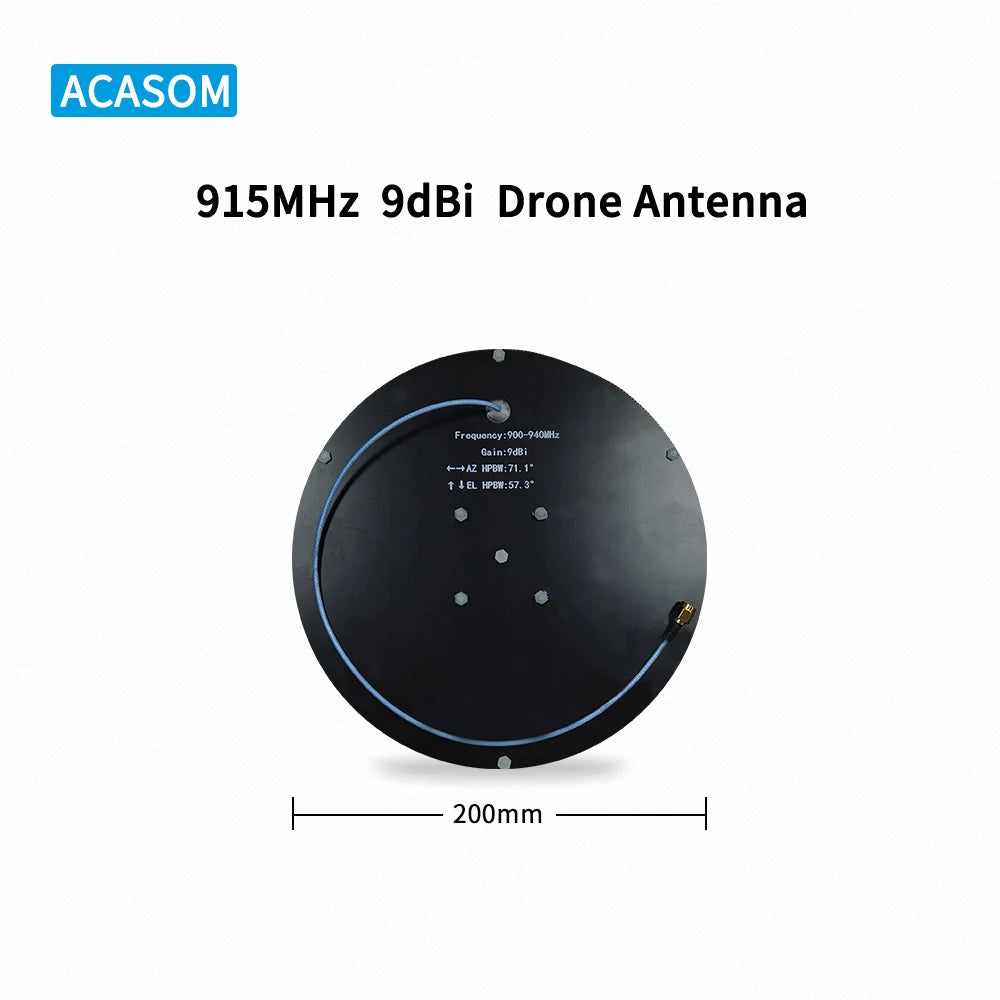

ACASOM 915MHz high-gain drone antenna features a frequency range of 900-915 MHz, with a gain of 9dBi (decibels isotropic), and measures approximately 71.1 inches in length.
![ACASOM 915MHz 9dBi Drone Antenna](https://rcdrone.top/cdn/shop/files/S8ecb321006fb4aa6b144b07a91944433x_8f99825b-0259-4e75-8311-a68f665014e0.webp?v=1715019613)
![ACASOM 915MHz 9dBi Drone Antenna 153](https://rcdrone.top/cdn/shop/files/Sce8d852d088f4411af0f7232b34c3e38o_f54dbfbe-cb09-455e-9774-ca7657afe842.webp?v=1715019624)
1pcs* Antenna
![ACASOM 915MHz 9dBi Drone Antenn](https://rcdrone.top/cdn/shop/files/S2f3137a5e7a24a098b1e84ac86add5e0U_d49e4a44-65a7-4b7f-affd-4ec220aa96ff.webp?v=1715019643)
1: Standard express has a certain risk of getting lost. For products with higher value, we recommend to choose fast commercial express, we will also provide very favorable price, please contact us for specific express price.
2: We do not guarantee delivery time on all international shipments due to differences in customs clearing times in special countries. Please note that buyers are responsible for all additional custom fees, duties, and taxes for importation into your country. We will not refund shipping charges for reused shipments.
3: Because some countries have strict regulations on the import of such products, such as Brazil, Russia, Germany, etc., please make sure whether individual could import the product in your country, or if you have the qualification to import the product. The buyers are responsible for the lost if the goods are detained by the customs.
