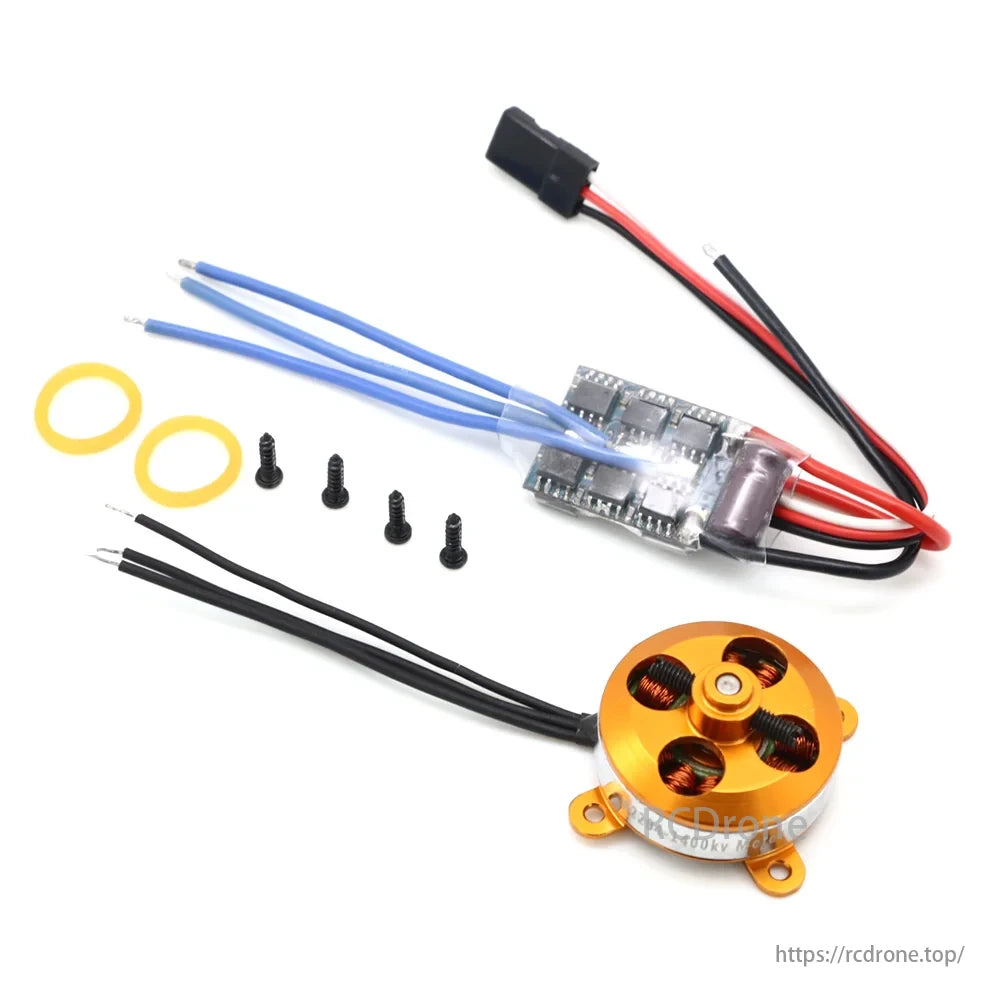

A2204 1400KV Brushless Motor with 10A ESC Combo for 2–3S RC Drone Quadcopter Fixed Wing

Upgrade your RC aircraft or drone with this efficient and lightweight A2204 1400KV brushless motor and 10A ESC combo. Designed for 2S–3S LiPo-powered multirotors, fixed-wing planes, and quadcopters, this setup delivers stable performance for hobbyists and DIY builders alike.

The motor provides a KV rating of 1400RPM/V, offering a solid balance of torque and speed for small to medium-sized aircraft. Paired with a compact 10A ESC, this combo ensures smooth throttle response, low idle current, and reliable power delivery even under dynamic flight conditions.

Motor Specifications:

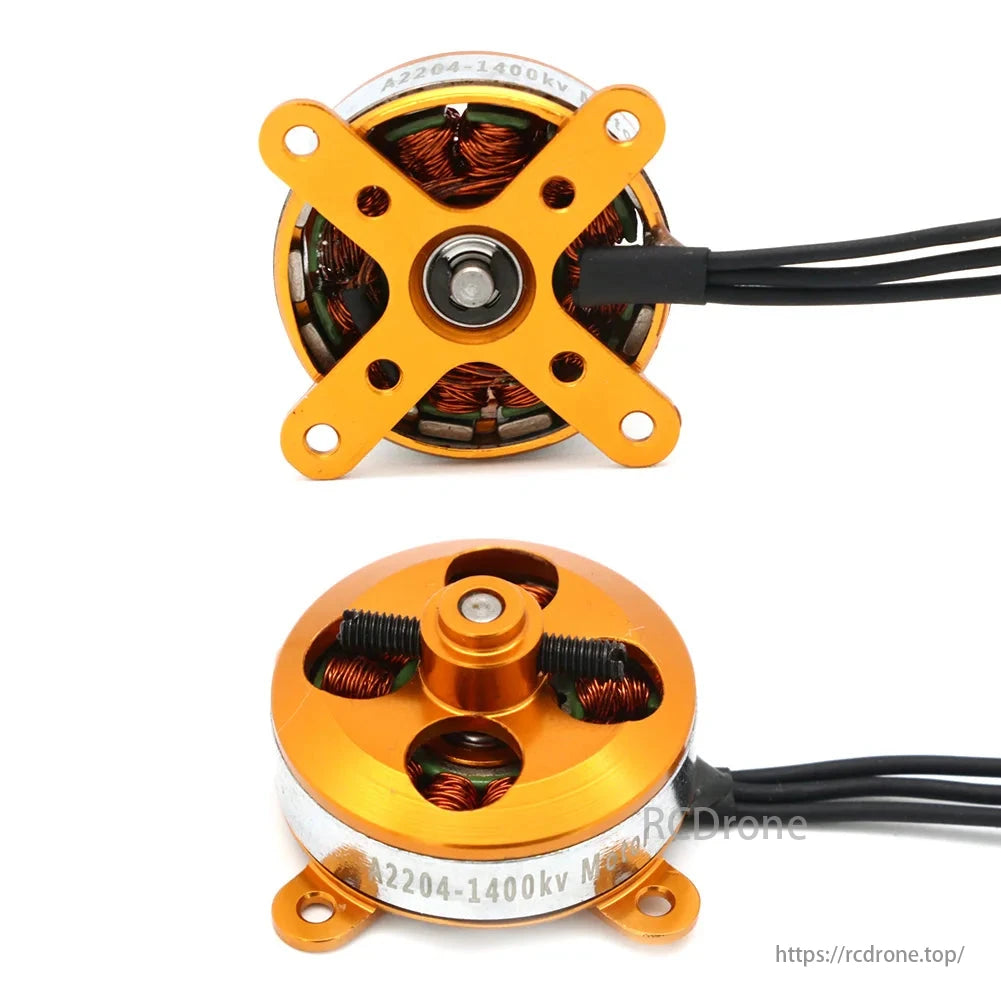

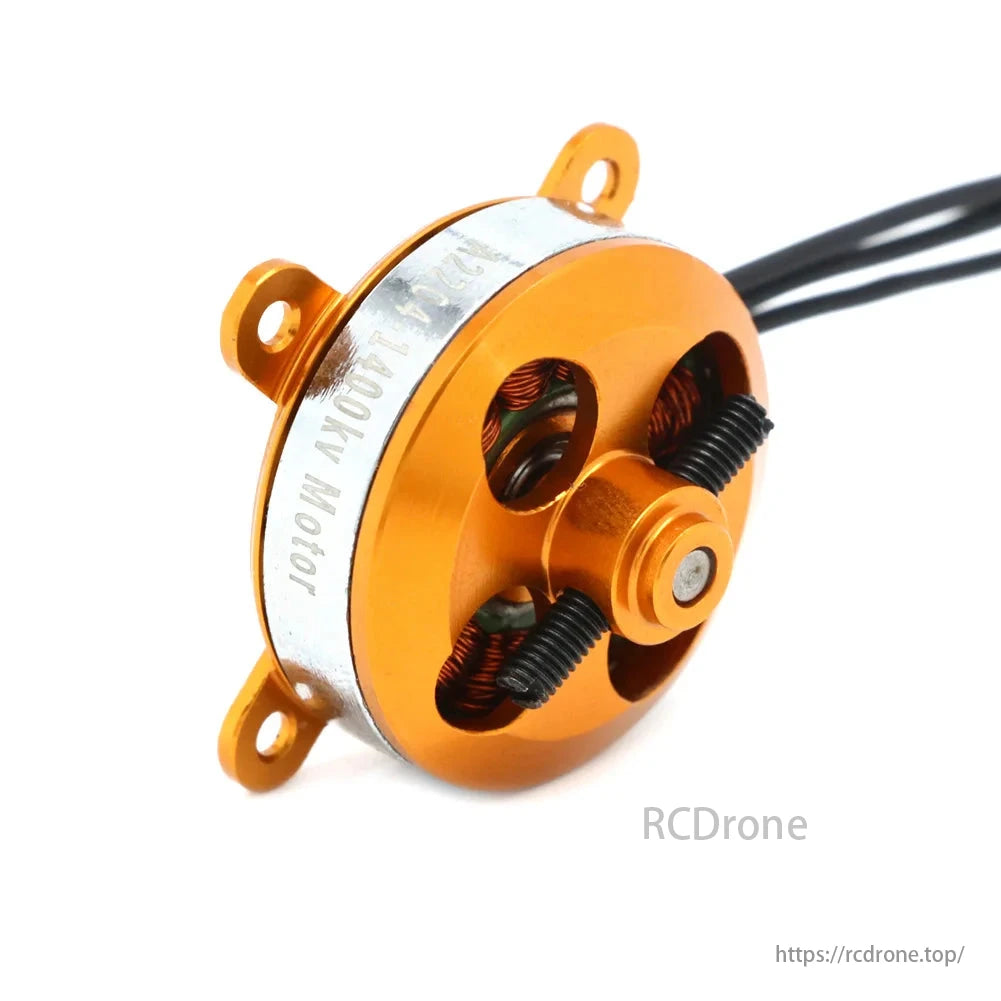

• Model: A2204

• KV Rating: 1400KV

• Motor Dimensions: Ø27.6 × 11.5mm

• Shaft Diameter: Ø3.0mm

• Operating Voltage: 2S–3S LiPo

• No-Load Current: 0.3A

• Peak Current: 14–22A

• Weight: 19g

• Mount Included: Yes

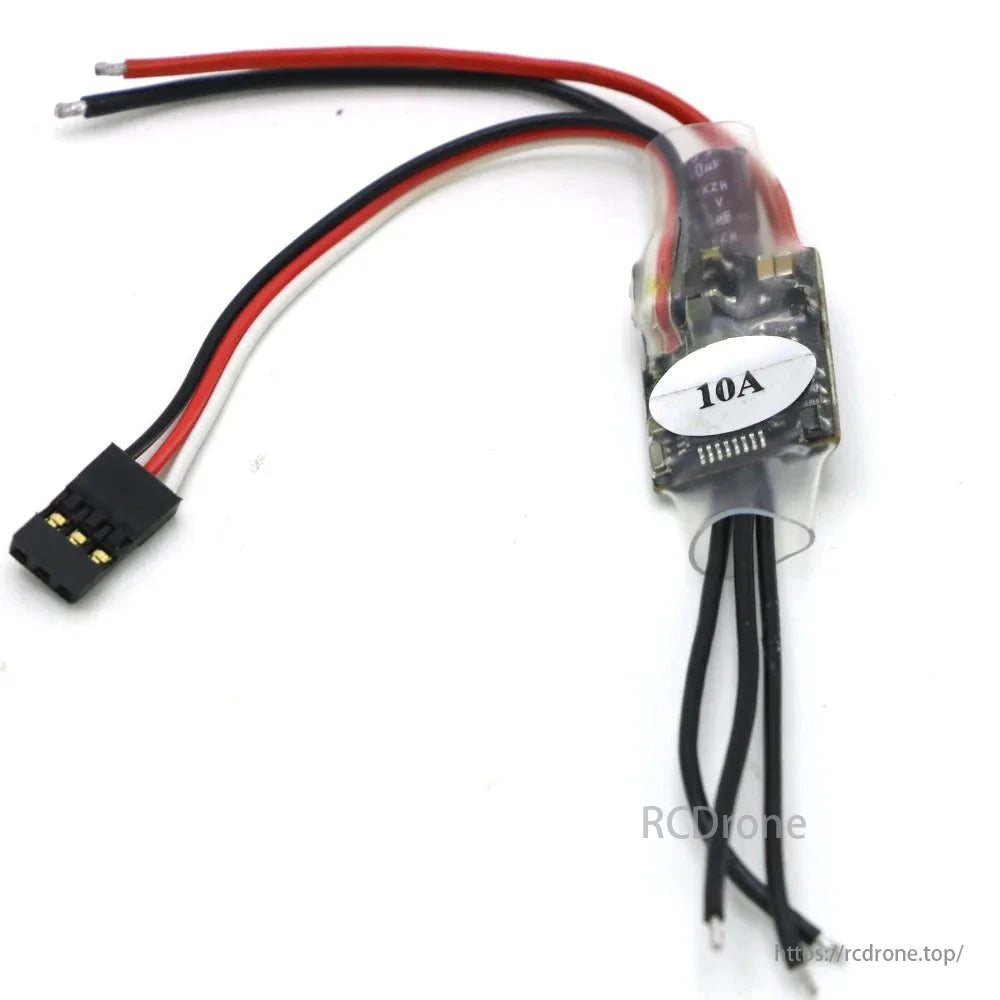

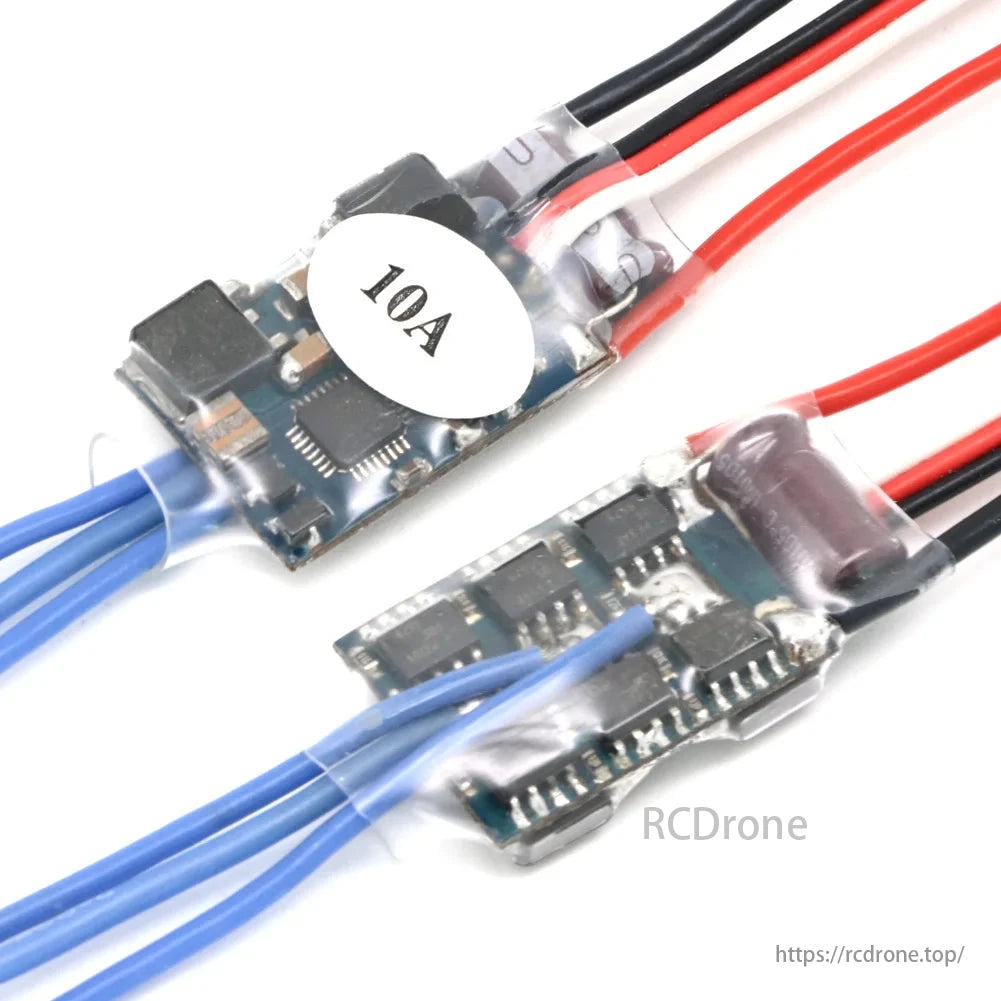

ESC Specifications:

• Max Current: 10A (continuous), 15A (burst)

• BEC Output: 1A

• PWM Frequency: 8K

• Supported Battery: 2S–3S LiPo

• Dimensions: 23.5 × 15.7 × 6.1mm

• Weight: 8g

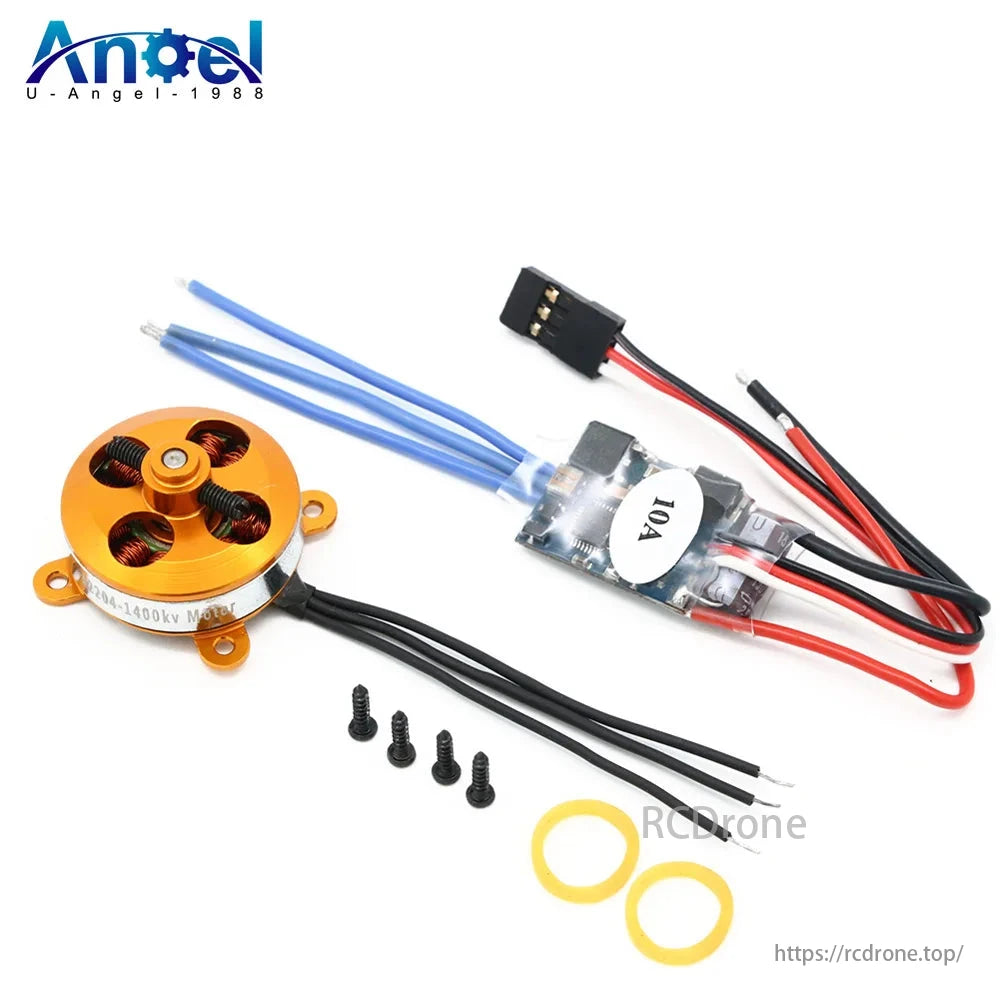

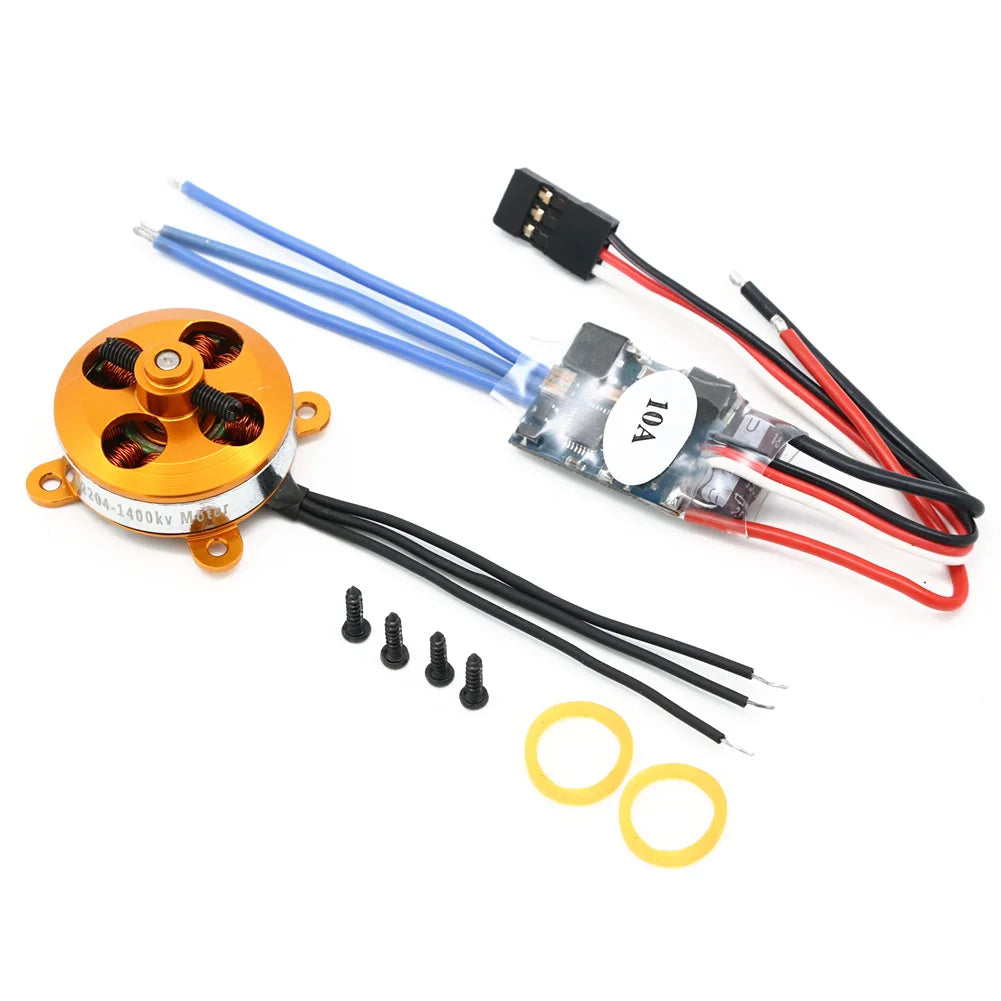

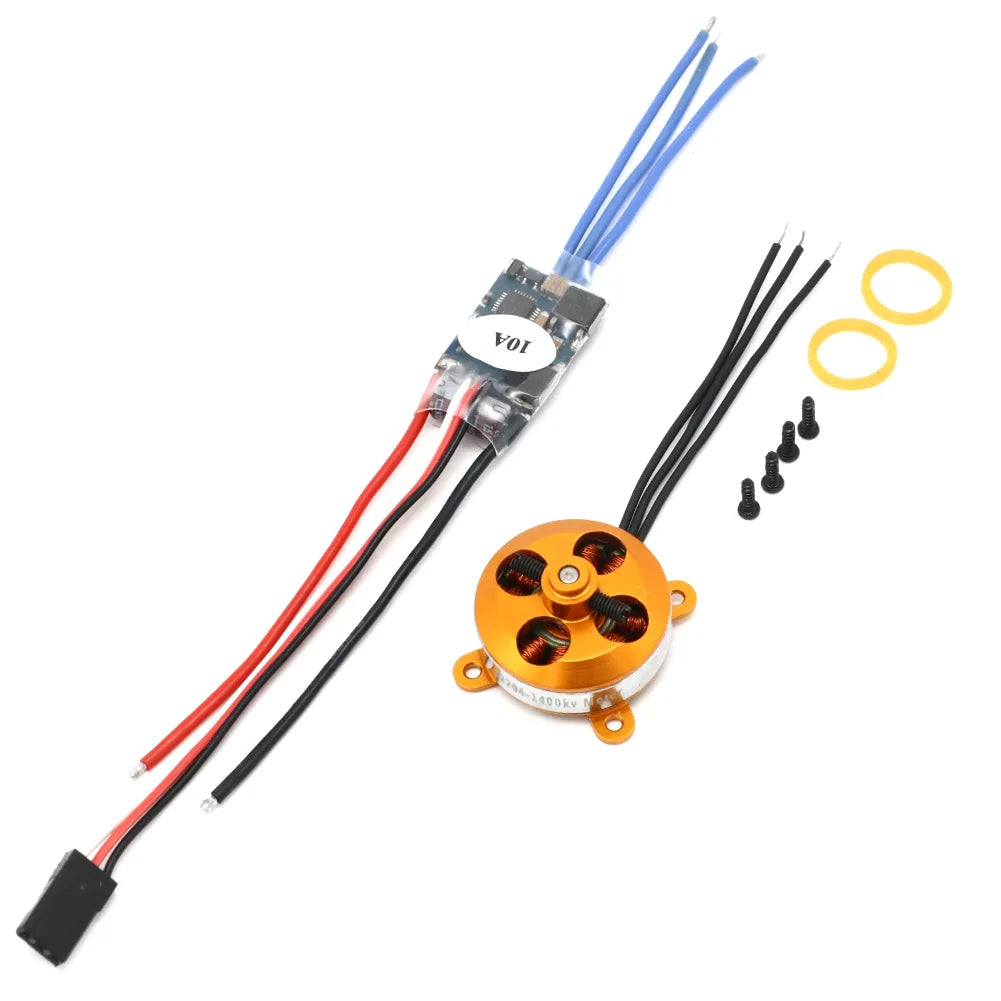

Package Includes:

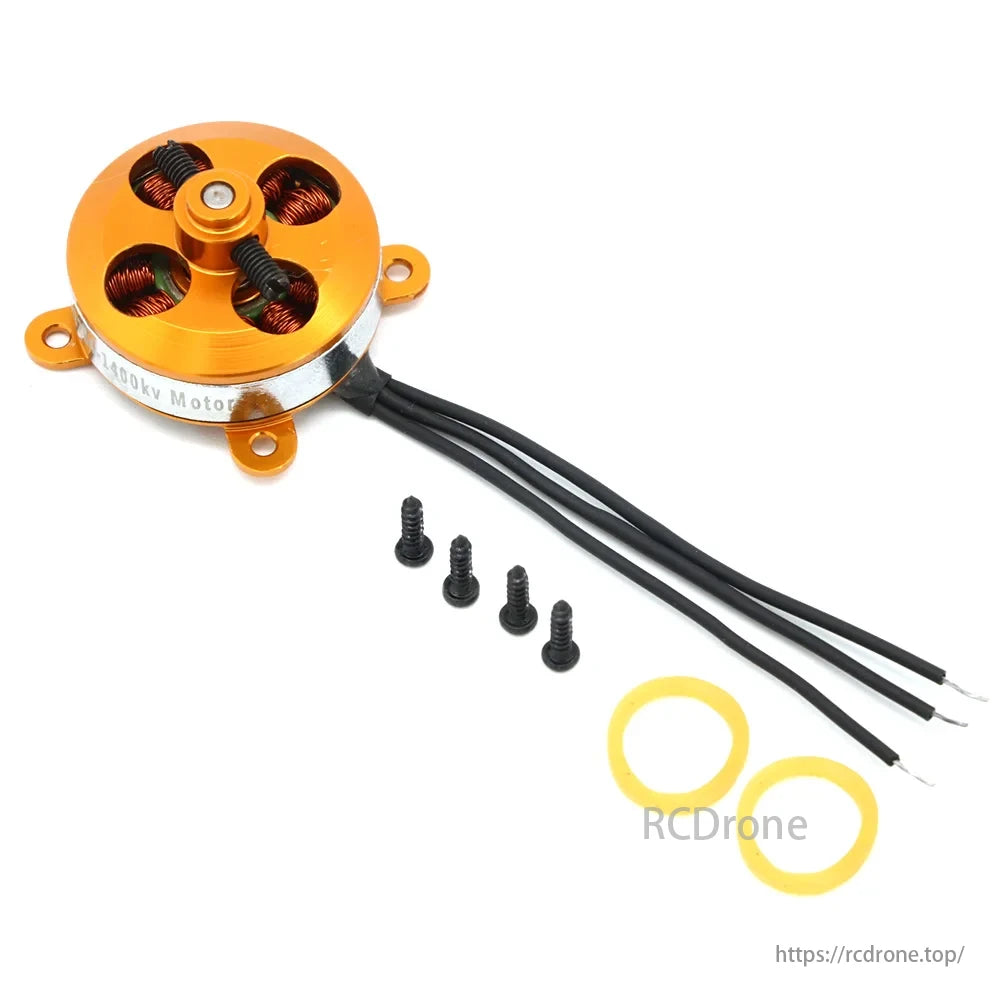

• 1 × A2204 1400KV Brushless Motor

• 1 × 10A Brushless ESC

• 1 × Motor Mount Set

Ideal for:
Mini RC planes, FPV quadcopters, racing drones, UFO-style flyers, and DIY aircraft projects requiring compact and efficient power systems.
