Description:

The A19Q-V3 1303 Plus Brushless Motor is engineered for high-performance 2-inch FPV racing drones and cinewhoops. Featuring a lightweight yet rugged build, this motor delivers smooth throttle response, efficient power, and durable performance, making it ideal for both cinematic flights and high-speed freestyle.

Available in 6000KV, 8000KV, and 11500KV configurations, this motor supports 1S to 4S LiPo setups, allowing pilots to choose the perfect balance of thrust and efficiency. Constructed with 7075 aluminum housing, N52H magnets, and a 1.5mm shaft, the motor maintains stability and reliability under demanding conditions.

Key Features:

  • Optimized for 2-inch FPV drones and cinewhoops

  • KV options: 6000KV / 8000KV / 11500KV

  • Dual-color anodized finish (Gold & Orange)

  • Precision 12N14P configuration for smooth output

  • 1.5mm shaft diameter for durable connection

  • High-efficiency winding, >85% in working range

  • Perfect for freestyle, cinematic shots, or compact racers

Technical Specifications:

Parameter 6000KV 8000KV 11500KV
Configuration 12N14P 12N14P 12N14P
Stator Diameter 13mm 13mm 13mm
Stator Length 3.2mm 3.2mm 3.2mm
Shaft Diameter 1.5mm 1.5mm 1.5mm
Idle Current @5V (A) 0.7 0.8 1.2
Input Voltage (Lipo) 2–4S 2–3S 1–2S
Max Continuous Power (3S) 250W 250W 223W
Max Current (3S) 16.9A 22.5A 30.1A
Internal Resistance 166mΩ 145mΩ 105mΩ
Max Efficiency Current 2–5A >85% 2–5A >85% 3–7A >85%
Weight (Without Cable) ~5.6g ~5.6g ~5.6g
Mounting Hole Pattern 9×9mm 9×9mm 9×9mm

Package Includes:

Note: Product color and printed markings may vary slightly by batch. This does not affect performance or compatibility. Minor dimensional deviations (±1–3mm) may occur due to manual measurement.

A19Q V3 Brushless Motor, Minor dimensional deviations of ±1-3mm may occur due to manual measurement.

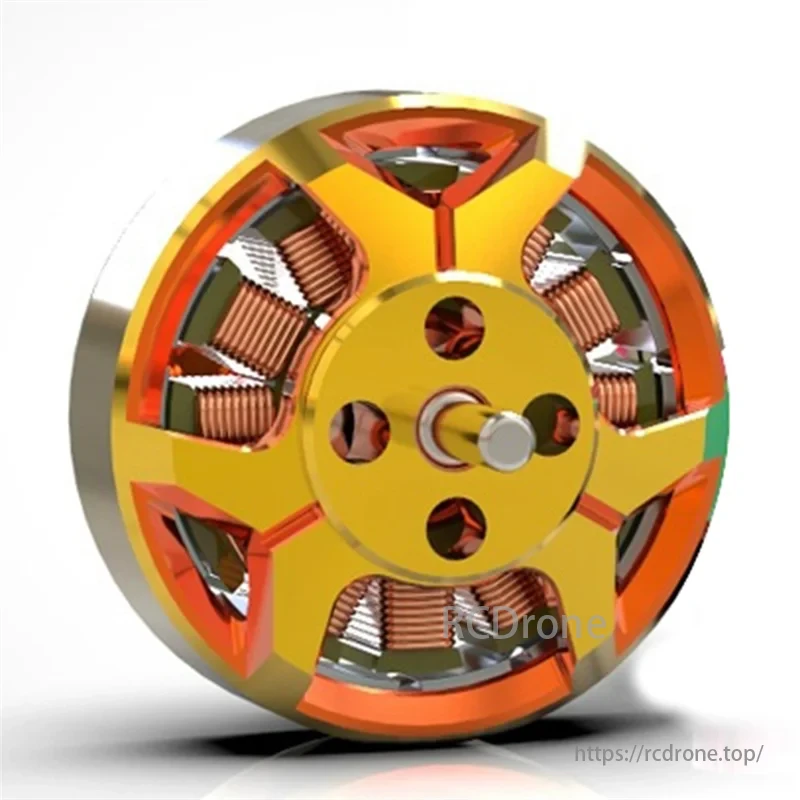

A19Q V3 Brushless Motor, Motor built with 7075 aluminum, N52H magnets, and 1.5mm shaft for stable and reliable performance.

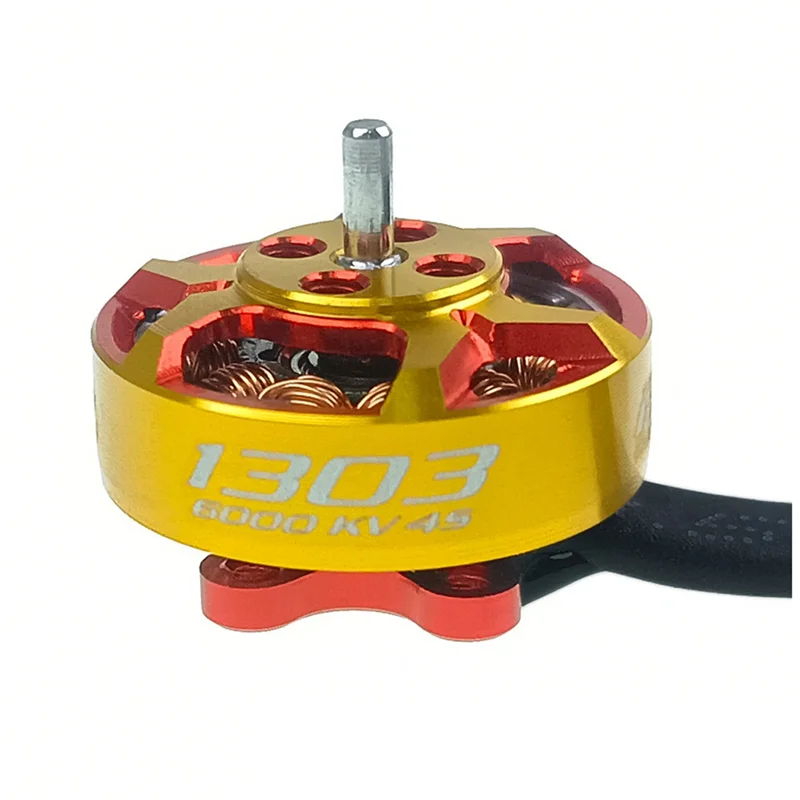

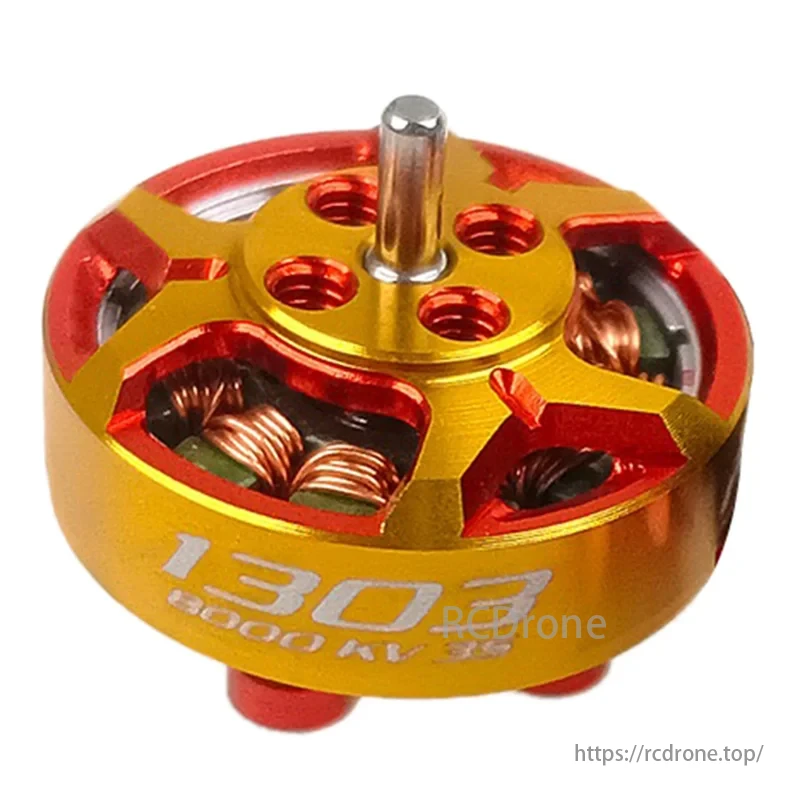

A19Q V3 Brushless Motor, High-performance brushless motor designed for 2-inch FPV racing drones and cinewhoops.

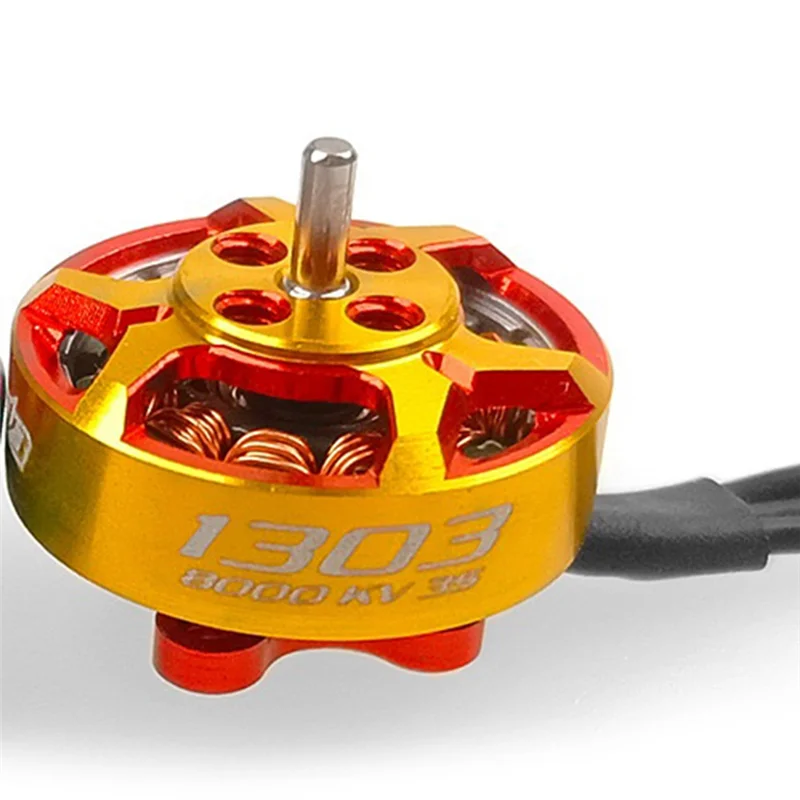

A19Q V3 Brushless Motor, Motor constructed with aluminum housing, N52H magnets, and 1.5mm shaft for stability and reliability

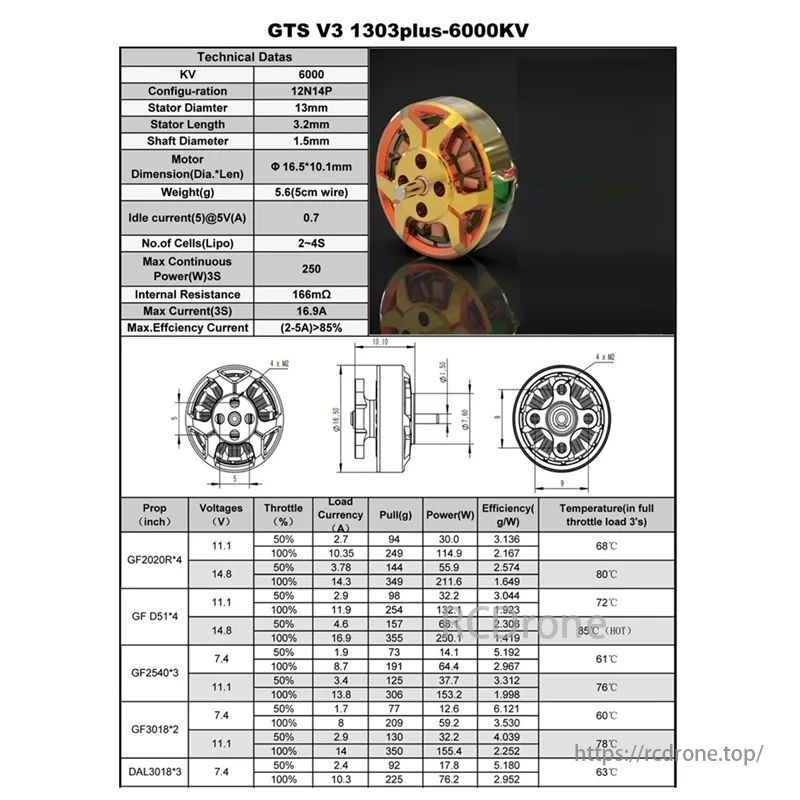

A19Q V3 Brushless Motor, GTS V3 1303plus-6000KV motor: 6000KV, 12N14P, 13mm stator, 5.6g, 250W max power, 16.9A, >85% efficiency (2-5A), with prop performance data.

GTS V3 1303plus-6000KV motor specs: KV 6000, 12N14P configuration, 13mm stator diameter, 3.2mm length, 1.5mm shaft. Weighs 5.6g, max power 250W, 16.9A current, efficiency over 85% at 2-5A. Detailed performance data for various props included.

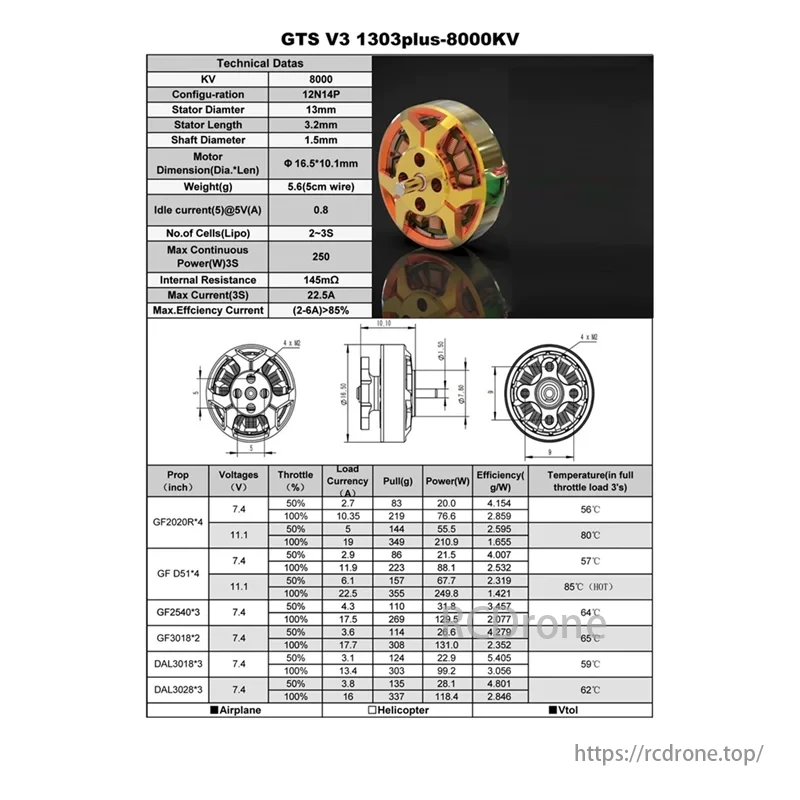

A19Q V3 Brushless Motor, GTS V3 1303plus-8000KV motor specs: 8000KV, 12N14P, 13mm stator, 5.6g. 250W max power at 3S, 22.5A max current, >85% efficiency. Includes prop performance data.

GTS V3 1303plus-8000KV brushless motor specs: 8000 KV, 12N14P config, 13mm stator diameter, 5.6g weight. Max power 250W at 3S, max current 22.5A, efficiency over 85% at 2-6A. Detailed performance data for various props included.

A19Q V3 Brushless Motor, GTS V3 1303plus-11500KV motor: 11500KV, 12N14P, 13mm stator, 3.2mm length, 1.5mm shaft. Max 223W/30.1A, >85% efficiency. Includes prop data.

GTS V3 1303plus-11500KV motor specs: KV 11500, 12N14P configuration, 13mm stator diameter, 3.2mm stator length, 1.5mm shaft diameter. Max power 223W, max current 30.1A, efficiency over 85%. Detailed performance data for various props included.
