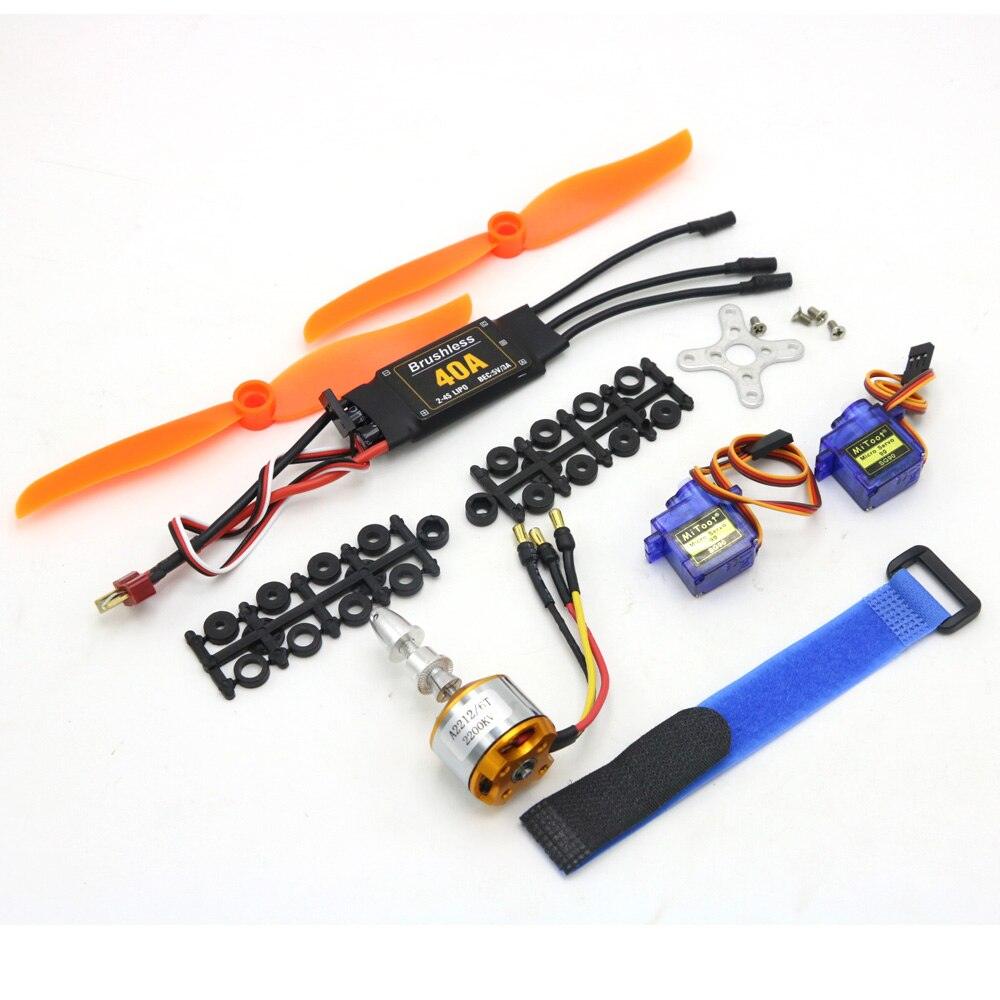

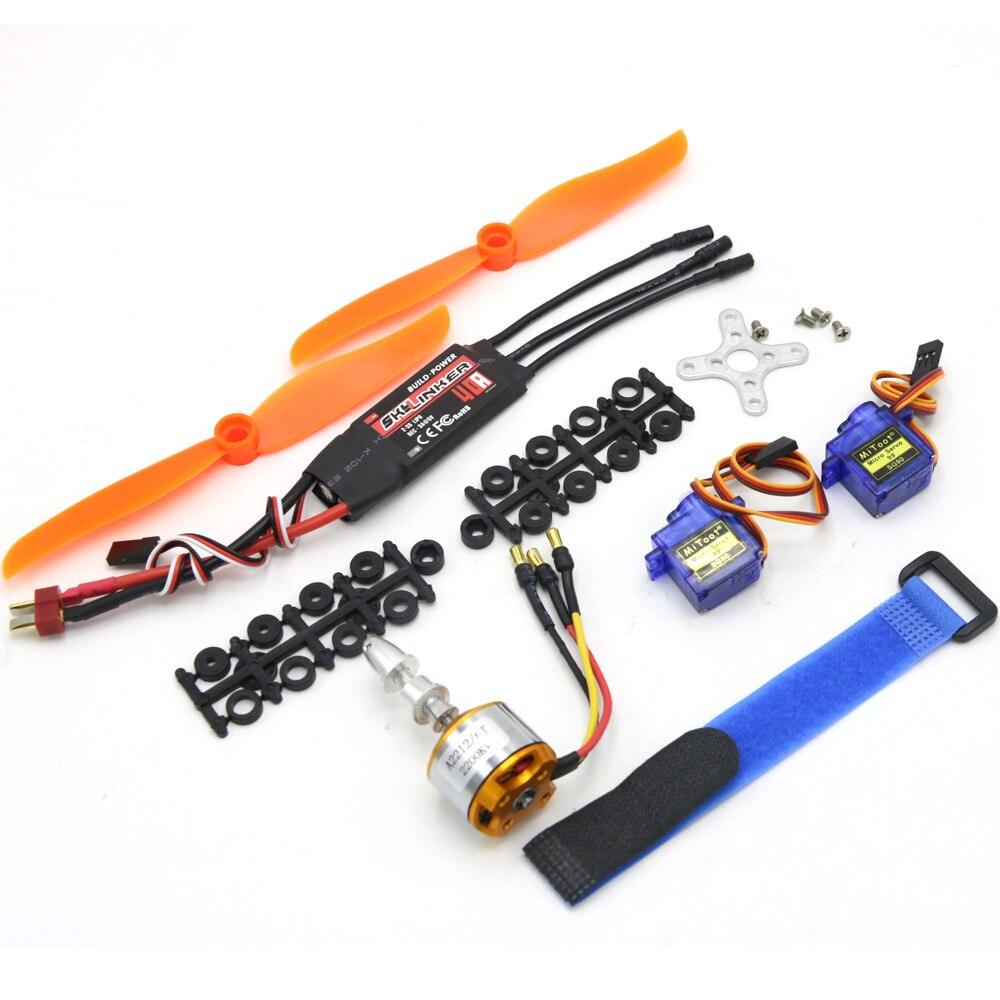

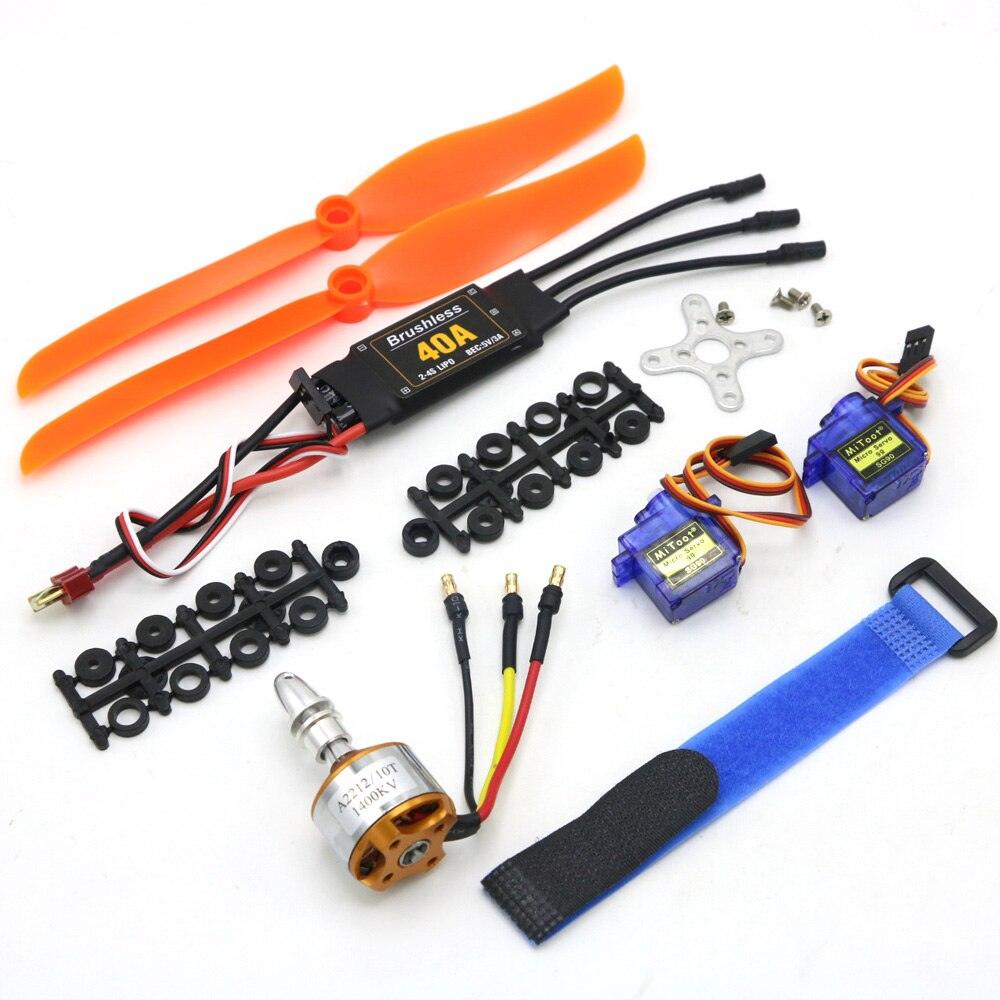

A2212 2212 2200KV 1400KV 1000KV Brushless Motor 30A 40A / 40A BLheli ESC SG90 9G Micro Servo for RC Fixed Wing Plane Helicopter

A2212 2212 2200KV 1400KV 1000KV Brushless Motor 30A 40A / 40A BLheli ESC SG90 9G Micro Servo for RC Fixed Wing Plane Helicopter

RCDrone

Regular price $35.11 USD
Regular price $59.69 USD Sale price $35.11 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

194 orders in last 90 days

Color

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

A2212 2212 2200KV 1400KV 1000KV Brushless Motor SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Lithium Battery

Tool Supplies: Assembled class

Technical parameters: Value 9

Remote Control Peripherals/Devices: Motor

Recommend Age: 12+y

RC Parts & Accs: Batteries - LiPo

Quantity: 1 pcs

Origin: Mainland China

Model Number: A2212

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

Brand Name: NoEnName_Null

A2212 2212 2200KV 1400KV 1000KV Brushless Motor

9G Micro Servo
This is the most popular mini servo. Only weighs 9 gram and gives you a 1.5 kg/cm torque. Pretty strong regarding its size. Suitable for beam type robots.

Key features:
• Translucent body
• Lightweight
• Less noise

Size: 21.5mmX11.8mmX22.7mm
Weight: 9 grams
No load speed: 0.12 sec / 60 deg (4.8 V)
Locked-rotor torque: 1.5-1.7kg/cm (4.8V-6V)
Operating temperature: -30~~+60 degrees Celsius
Dead zone setting: 5 microseconds
Working voltage: 4.8V-6V

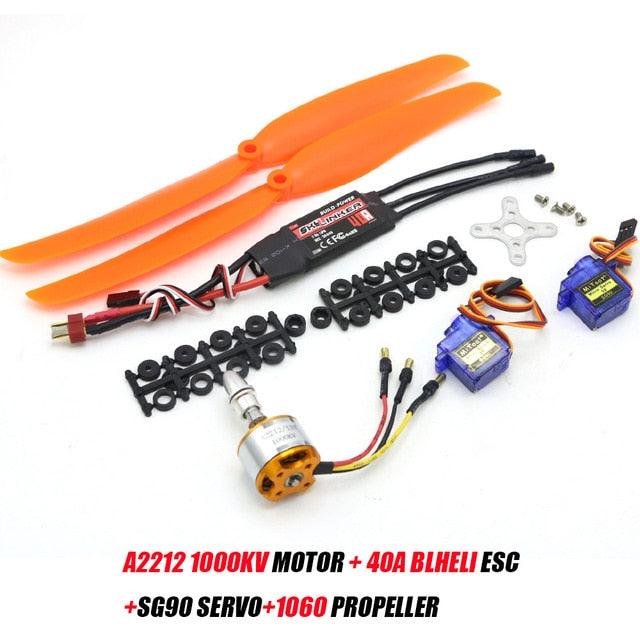

A2212 1000KV brushless outrunner motor:
KV: 1000
Max. efficiency: 80%
Max. efficiency current: 4-10A (>75%)
Current capacity: 12A/60s
No Load current @ 10V: 0.5A
No. of cells: 2-3 Li-Poly
Motor size: 27.5 * 27mm / 1.1 * 1.1in
Shaft diameter: 3.17mm / 0.1in
Weight: 48g / 1.7oz

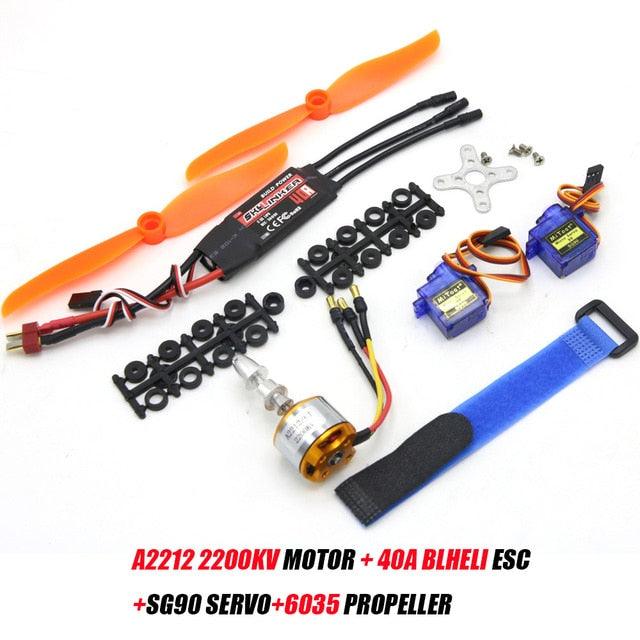

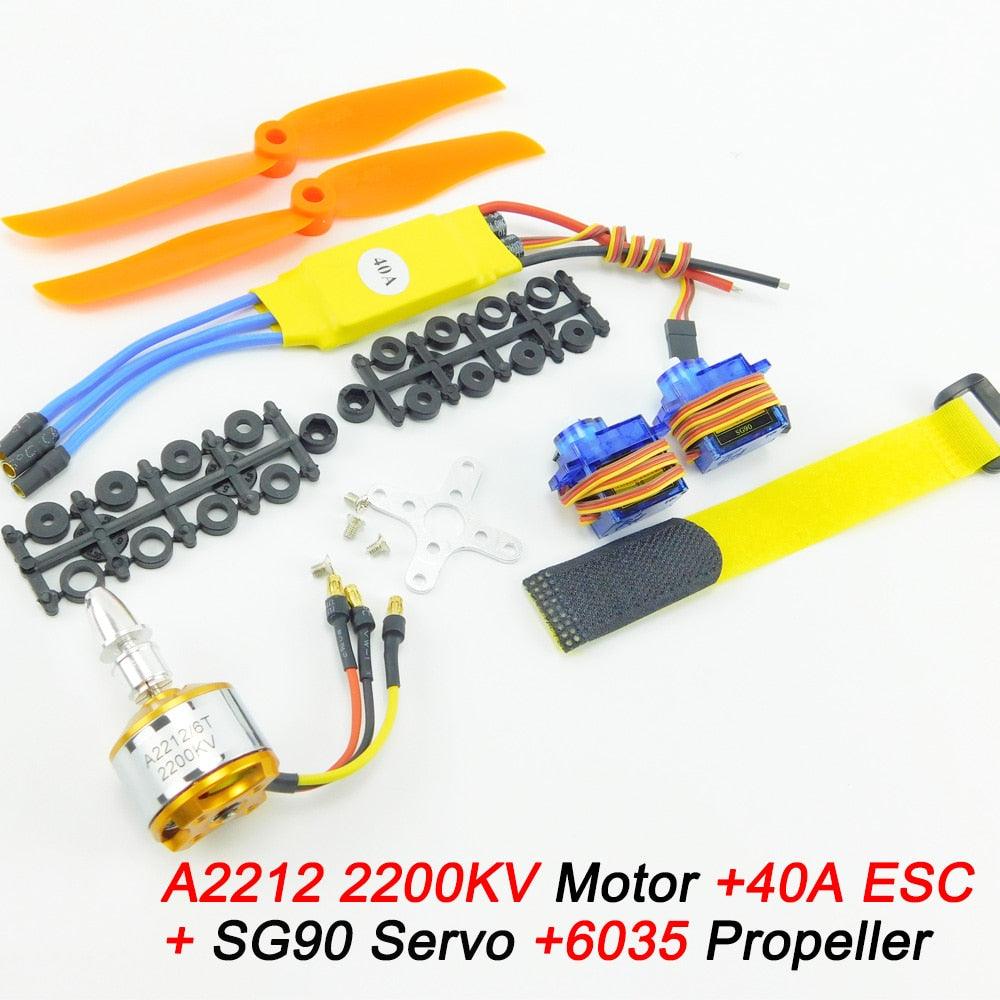

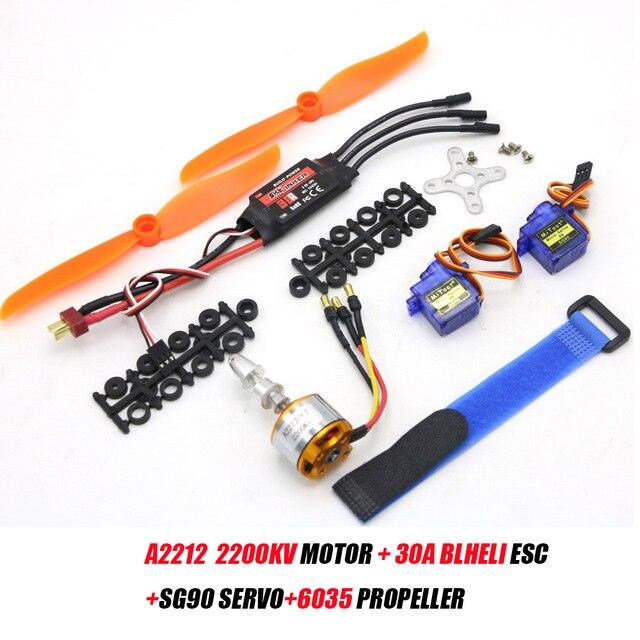

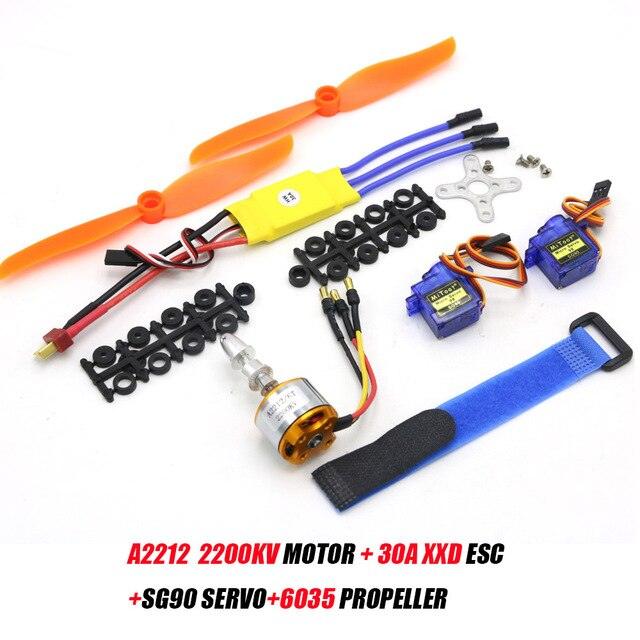

A2212 2200kv Motor Specification:
KV: 2200
Ri(M Ω): 0.033
Battery: 2-3Li-Po
Max Power: 342W
Test Prop: 7x3/7x4
Motor Size: 27.5x38mm/1.08''x1.5''
Shaft Diameter: 3.17mm/0.12''

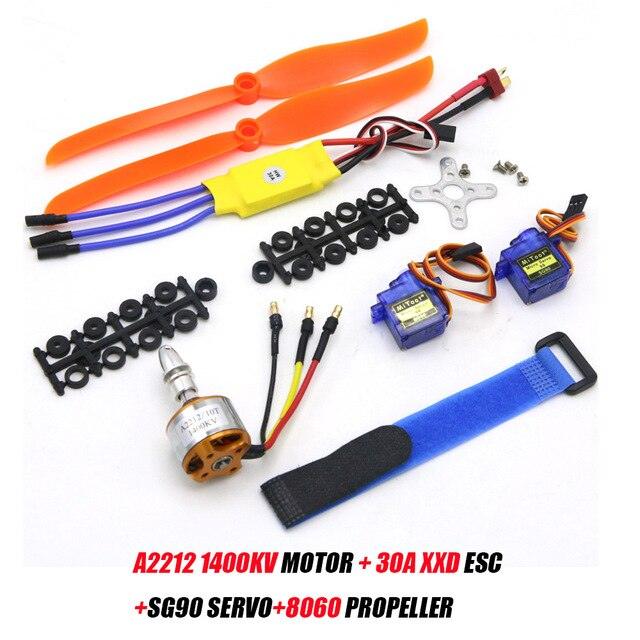

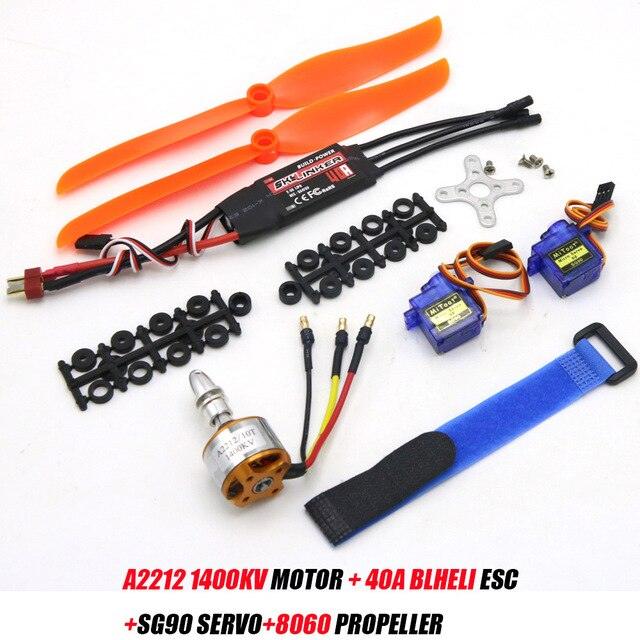

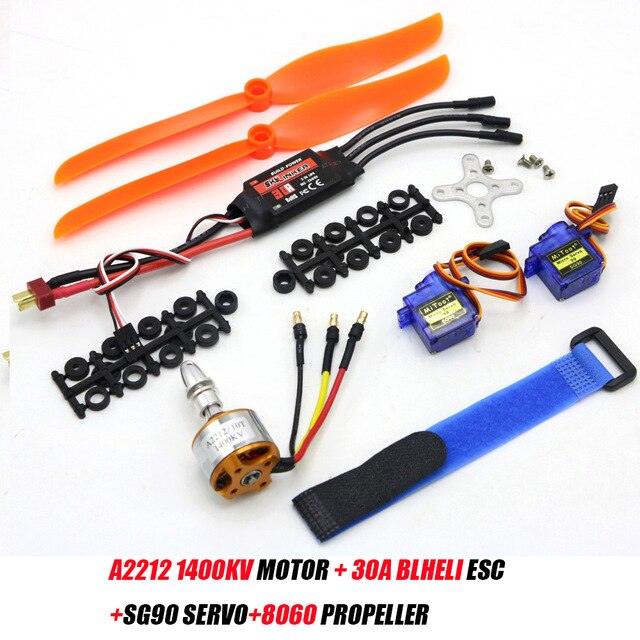

A2212 1400kv Motor Specification:
KV: 1400
Max Efficiency: 80%
Max Efficiency Current: 4-10A (>75%)
Current Capacity: 12A/60s
No Load Current @ 10V: 0.5A
No. Of Cells: 2-3 Li-Poly
Motor Dimensions: Φ27.5 x 30mm
Shaft Diameter: Φ3.17mm
Weight: 47g


30A Brushless speed controller ESC:
Compatible with: 400-450 helicopters / Aircraft or Quad-Rotor Multi RC Helicopter
-Output: Continuous 30A, Burst 40A up to 10 Secs.
-Input Voltage: 2-3cells lithium battery or 5-9 cells NiCd/NIMh battery.
-BEC: 2A / 5V (Linear mode).
-Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.
(BLM: BrushLess Motor)
With T plug and 3.5mm banana connectors

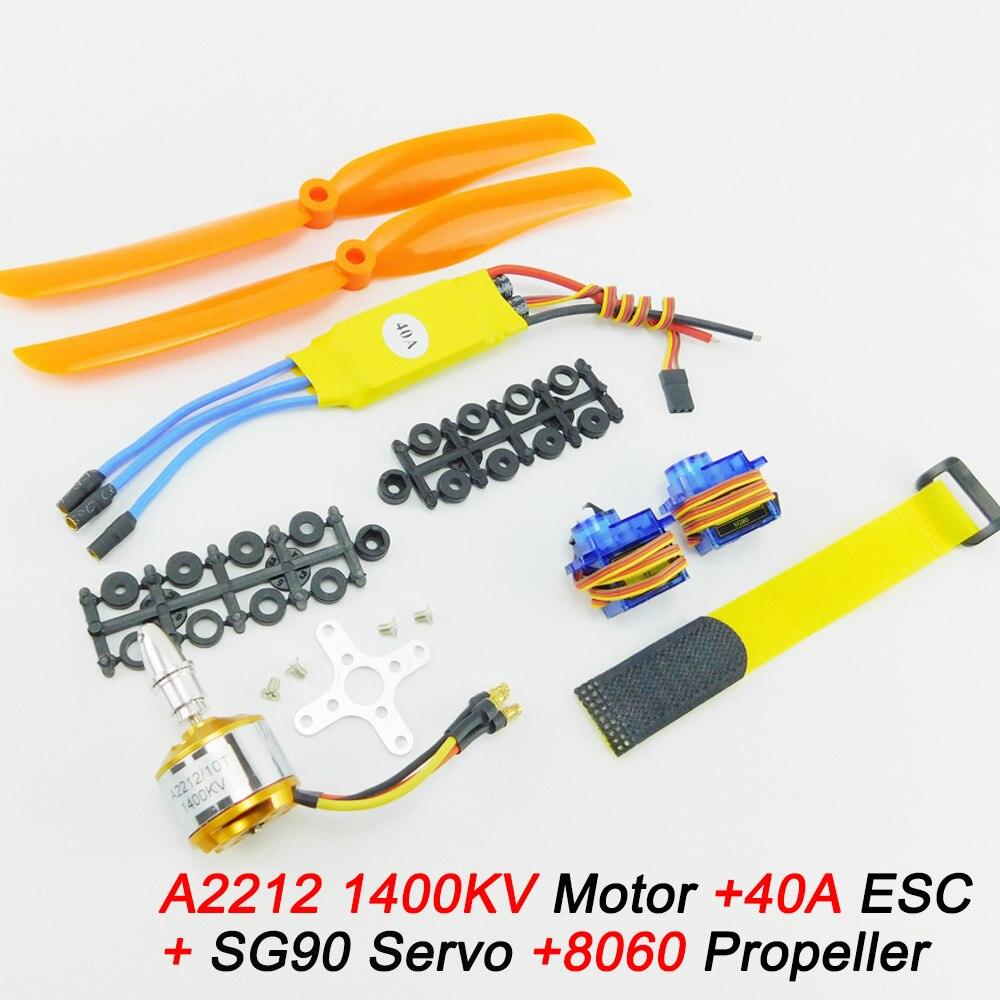

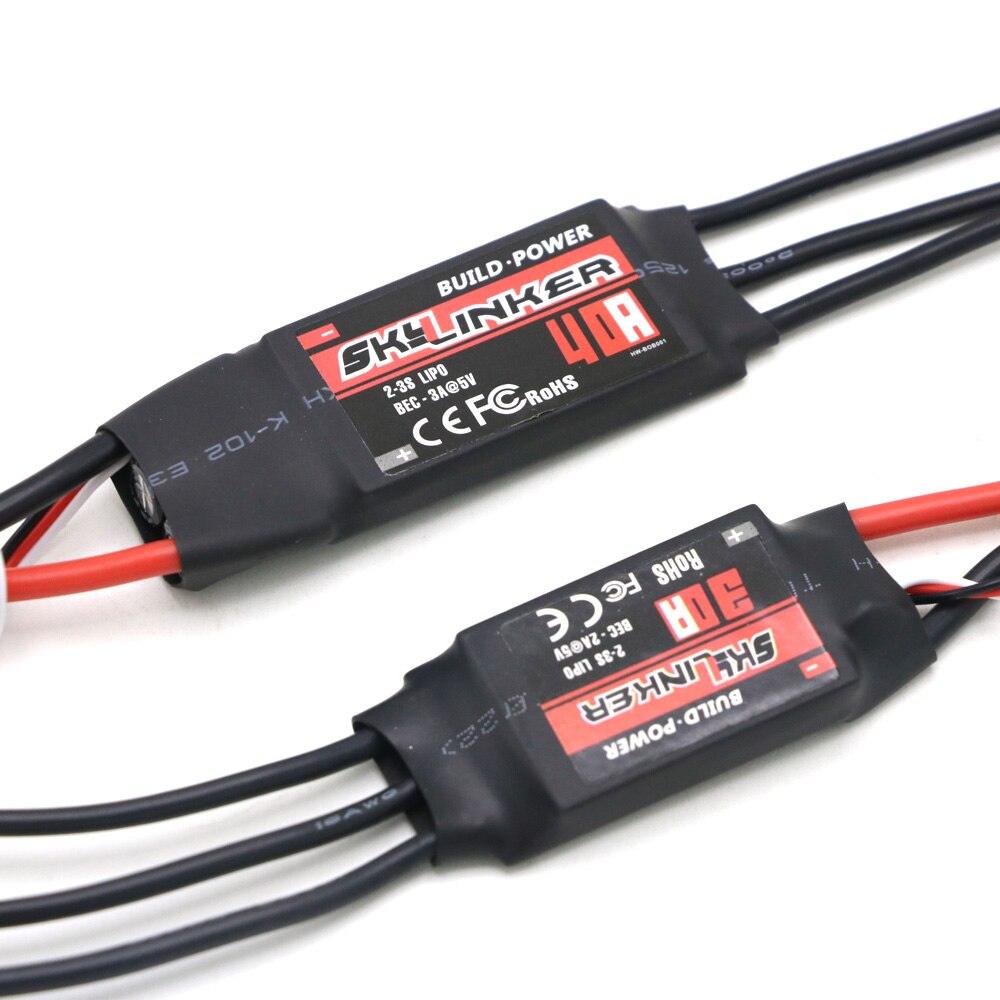

40A ESC:
Continuous / peak current: 40A/55A
Number of battery sections: 2-3S LiPo
BEC output: linear mode: 5V, 3A
Power cord: red -16AWG-100mm*1; black -16AWG-100mm*1
Output line: blue -16AWG-75mm*3
Power plug: T Plug (can be customized according to requirements)
Output plug: 3.5Mm bananer  connect (female)

baeebd8889 2612 (tcot [itoor 22only weighs 9 gram and gives you a 1.5 kg/cm torque[Miteor 42212/FT 22uuk!efficiency current: 4-10A (>75%) Current capacity: 12A/60s No7 peeet Mteot" 42212/"T 220urRC Parts & Accs : Batteries - LiPo QuantESC: Continuous / peak current: 40A/55A Number of battery sections:ESC: Continuous / peak current: 40A/55A Number of battery sections:A2212 2212 2200KV 1400KV 1000KV Brushless Motor2 Brushless 4OA Jcauni 3uo tae9 Mito27.5x27mm/1.08''x1.5'' Shaft Diameter:key features: • Translucent body • Lightweight • Less noise Size: 21.5-Max Speed: 210,000rpm for 2 Poles BLM, 70,000rRC Parts & Accs : Batteries - LiPo Quant27.5x27mm/1.08''x1.5'' Shaft Diameter:efficiency current: 4-10A (>75%) Current capacity: 12A/60s NoA2212 2212 2200KV 1400KV 1000KV Brushless MotorA2212 2212 2200KV 1400KV 1000KV Brushless MotorHL govz YY3XNiLhs Foan 97

52 + Bec 9 .338 BUILD -Power EkALIKER @DA Lipo -3a@5v C€FCroms 238 201-A Shou 3)38 HL govz YY3XNiLhs Foan 97 0tind 032G Wjmod

27.5x27mm/1.08''x1.5'' Shaft Diameter:A2212 2212 2200KV 1400KV 1000KV Brushless Motor

This product includes a brushless motor with options for 2212, 2200KV, 1400KV, or 1000KV configurations, as well as a BL heli ESC (electronic speed controller) and an SG90 9G micro servo suitable for fixed-wing planes and helicopters in RC applications.
