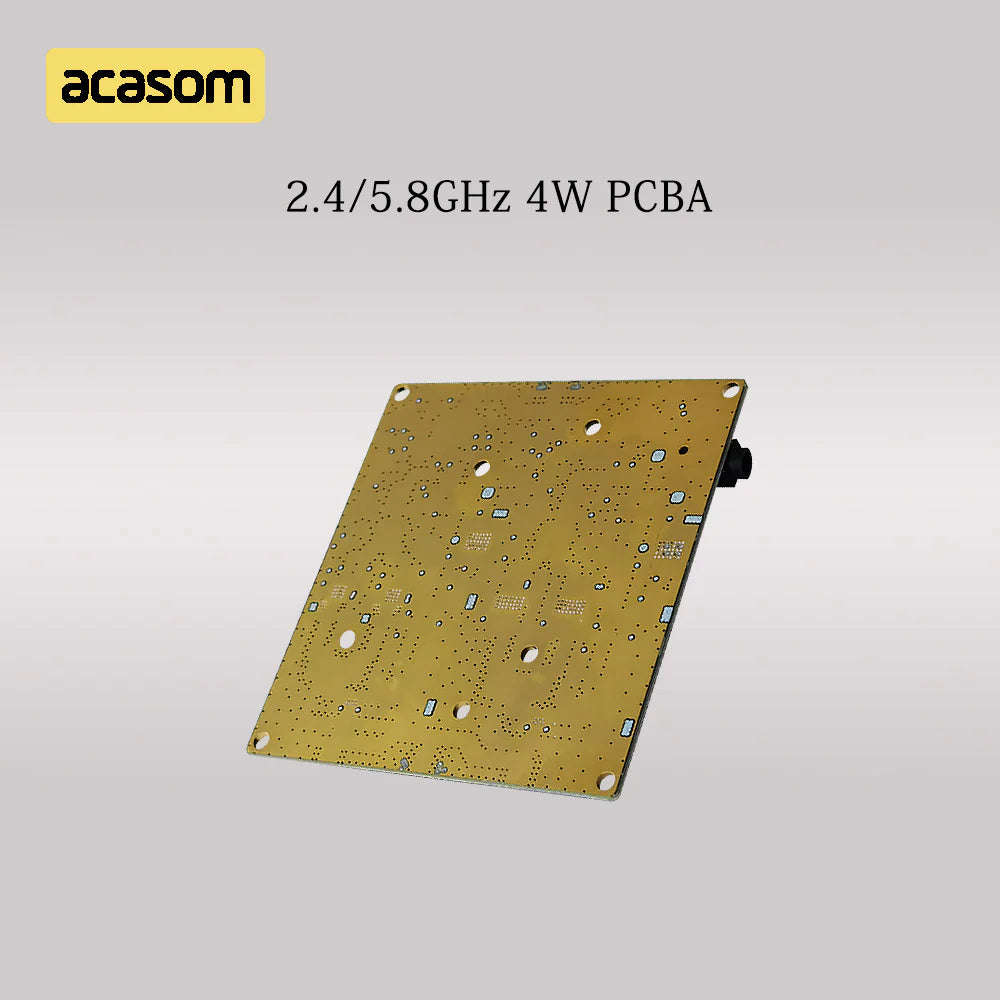

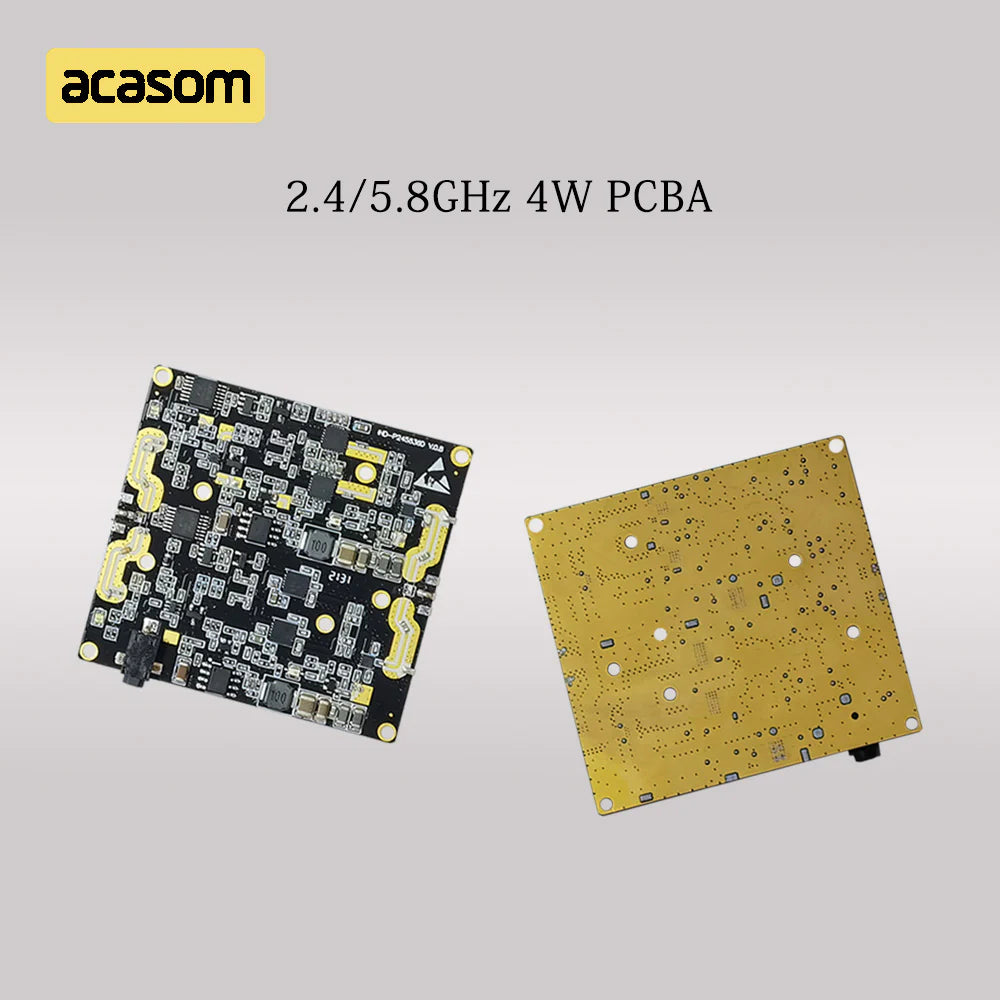

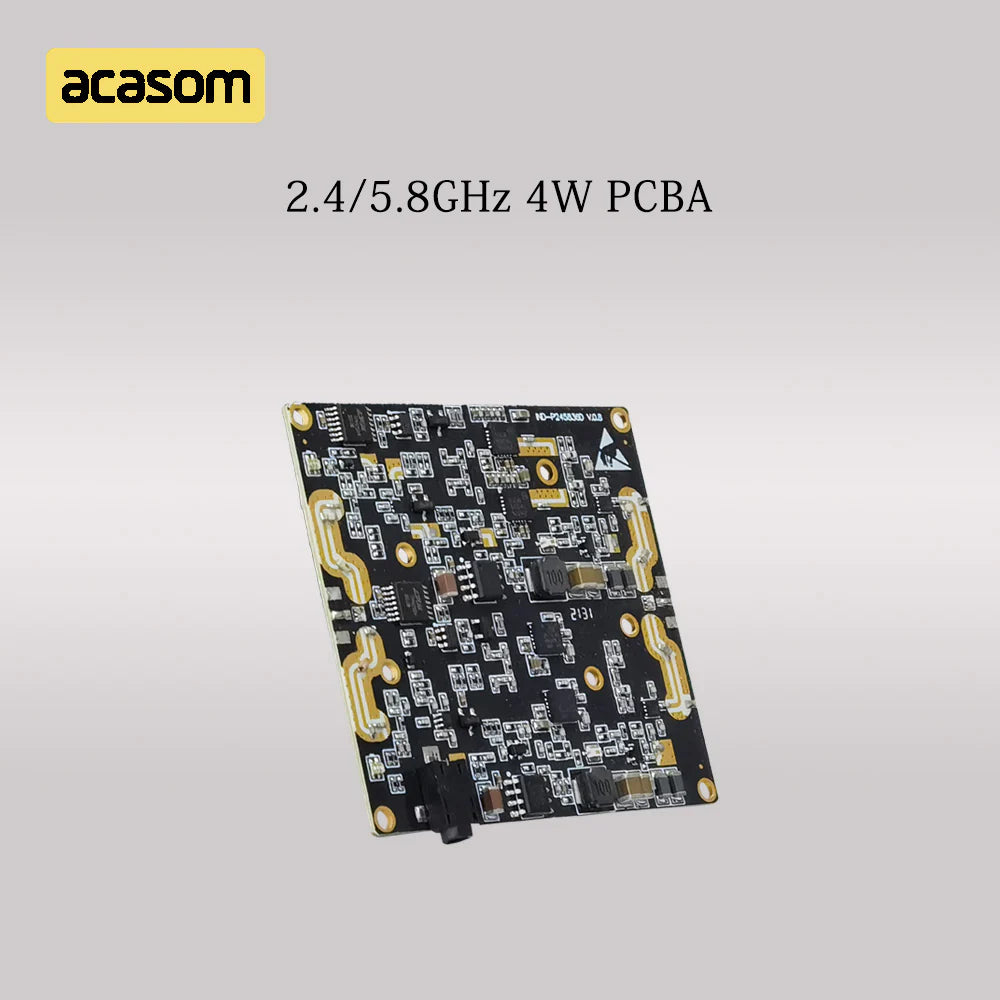

ACASOM 2.4G 5.8G Dual Frequency Drone Signal Booster Amplifier PCBA

The ACASOM 2.4G & 5.8G Dual Band Signal Booster PCBA is a high-performance amplifier module designed to extend the range and strength of wireless signals across the 2.4GHz and 5.8GHz bands. With an output power of 4W (36dBm), this dual-band booster enhances connectivity for a wide range of applications, including FPV drones, wireless communication devices, IoT systems, and smart home applications. Its compact PCBA format is ideal for easy integration into various systems where reliable signal amplification is required.

Product Overview

• Dual Band 2.4G & 5.8G Signal Boosting: Optimized to operate in both 2400-2500MHz and 5725-5850MHz bands, this booster extends signal range and improves link quality for dual-band applications.
• Powerful 4W Output: Capable of 36dBm output power, this PCBA effectively amplifies signals, making it perfect for long-range, stable communication.
• Compact and Lightweight Design: Weighing only 0.1 kg and crafted from durable aluminum, the booster is both lightweight and robust, ensuring reliable performance in various environments.

Key Specifications

Features and Highlights

1. Dual-Band Amplification: Extends signal range and enhances link stability in both 2.4GHz and 5.8GHz frequency bands, ideal for FPV systems, IoT devices, and wireless communication networks.
2. High Gain and Low Noise: Provides 17dB receiving gain for 2.4GHz and 15dB for 5.8GHz with minimal noise figures (<3.0dB and <4.0dB respectively), ensuring strong signal clarity.
3. Compact and Durable Build: Constructed from lightweight aluminum and designed for easy PCB integration, this booster is ideal for embedded applications.
4. Simple Plug-and-Play Setup: Easy to install with SMA-Female input and RP-SMA-Female output, enabling quick setup in a wide variety of devices.

Applications

• Drone & FPV Systems: Enhances range and signal stability for drones and FPV, providing strong connectivity for long-range operations.
• Industrial & IoT Networks: Suitable for wireless data acquisition, remote control, and smart home applications requiring dual-band amplification.
• Wireless Communication Devices: Ideal for devices like wireless speakers, remote controls, and network extenders operating in both frequency bands.

Package Includes:

• 1 x Dual Band Signal Amplifier PCBA (2.4GHz & 5.8GHz)

For wholesale and customization inquiries, please contact support@rcdrone.top.

ACASOM Dual Frequency Drone Signal Booster Amplifier, 2.4G and 5.8G frequencies, 4W power, PCBA component for improved signal reception and transmission.

ACASOM 2.4G/5.8G Dual Frequency Drone Signal Booster Amplifier PCBA, DC 12V, OST GND, 081 [V012 to AP, TO ANT LED.

acasom dual frequency drone signal booster amplifier pcba, 2.4/5.8ghz, 4w power, eot 5.8ghz led to drone, ant 2.4ghz led, dc supply 6v

ACASOM 2.4G and 5.8G dual frequency drone signal booster amplifier PCBA, compatible with Toenci 2131 module, 8cm length, 57mm width, suitable for wireless communication enhancement.
