ACASOM 200M-300M 10W 20W 30W 40W 50W 60W GAN Drone Signal Jammer Module UAV Blocker For Oil Depot

ACASOM 200M-300M GaN 10W-60W Drone Signal Jammer Module UAV Blocker for Oil Depot Security

The ACASOM 200M-300M GaN Drone Signal Jammer Module is a high-efficiency UAV Blocker designed specifically for protecting sensitive areas like oil depots. This 50W jammer module operates within the 200-300MHz frequency range, effectively disrupting remote control, WiFi, and GPS signals to prevent unauthorized drone activity. Integrated with GaN technology and circulator and isolator components, it can block UAV signals within a radius of 1000-3000 meters, causing drones to lose control, cease data and video transmission, and initiate landing or return-to-home functions.

Key Specifications:

• Frequency Range: 200-300MHz
• Operating Voltage: 28V
• Output Power: Up to 47dBm (customizable from 10W to 60W)
• Flatness: ±0.5dB for stable performance
• Current: 4.30A @ 28V, 47dBm
• Efficiency: 45% at 47dBm output
• LED Indicator: Red, indicating operational status
• Operating Temperature: -30℃ to 85℃
• Storage Temperature: -40℃ to 150℃
• Operating Humidity: Less than 95% RH

Design and Connectors:

• RF Port: SMA-F connector for reliable signal transmission
• Power Connection: 15cm red/black wire for stable power input
• Housing Material: Aluminum shell for enhanced heat dissipation and durability
• Dimensions: 131mm x 53mm x 17mm
• Net Weight: 0.25kg, compact for convenient installation

Advantages of GaN Technology:

1. High Work Efficiency: GaN technology offers superior energy efficiency, reducing power consumption.
2. Ceramic Package: The ceramic tube shell improves heat dissipation, enhancing stability and operational longevity.
3. Open-Circuit Protection: GaN chips are resilient in open-circuit states, preventing chip burnout.

Application and Usage:

This GaN-based jammer module is ideal for Anti-Drone Systems in high-security areas like oil depots, where interference with unauthorized UAVs is critical. By blocking control and GPS signals, it safeguards sensitive sites from potential drone threats.

Usage Guidelines:

1. Power Supply: Operates on a 28V/5A power source.
2. Heat Dissipation: Use a heat sink or radiator fan for optimal performance.
3. Connection Sequence: Attach the antenna first, then connect the power adapter.

Package Includes:

• 1 x GaN Sweep Signal Source

For bulk orders or custom power configurations, please contact support@rcdrone.top. ACASOM offers customizable power options from 10W to 60W, ensuring compatibility with diverse anti-drone setups for enhanced security and reliable performance.

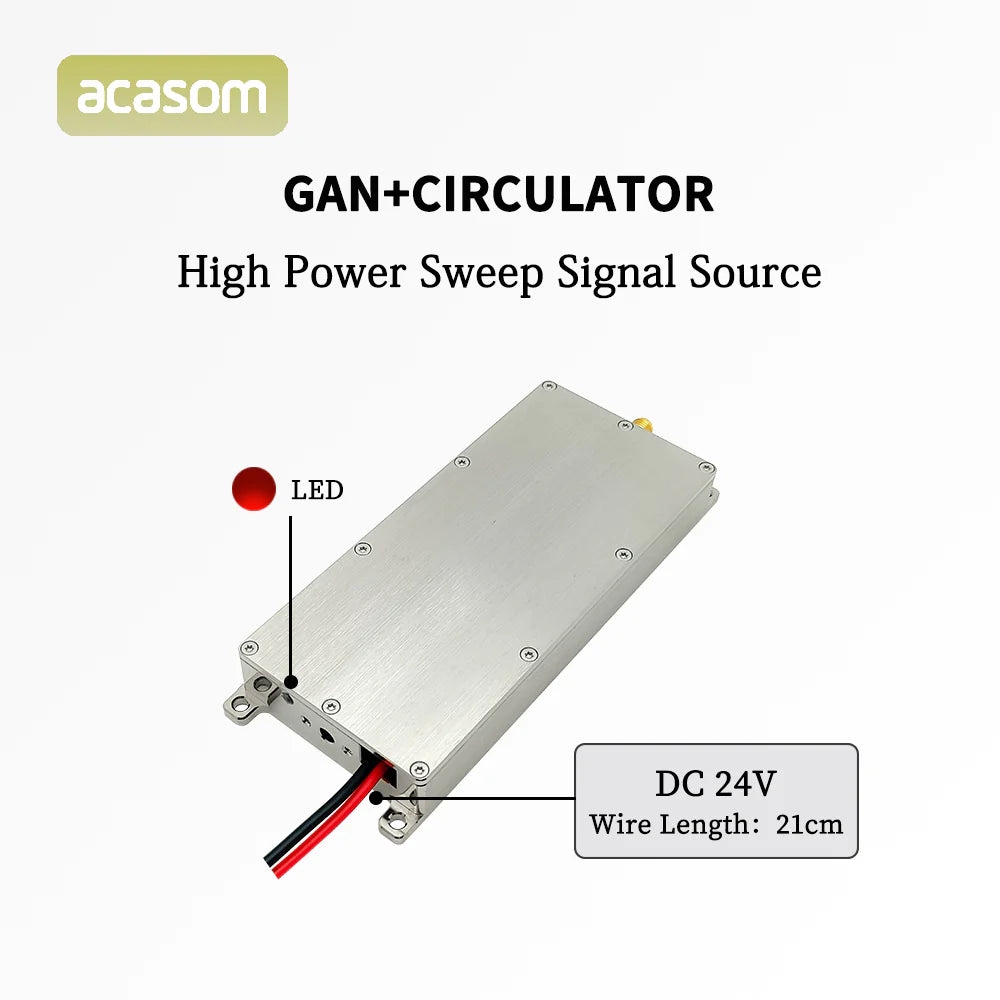

ACASOM GAN Drone Jammer, a high-power sweep signal source using GAN+Circulator technology with DC power supply. The unit features a compact design and robust construction for reliable performance. It an effective tool for drone jamming and other frequency applications.

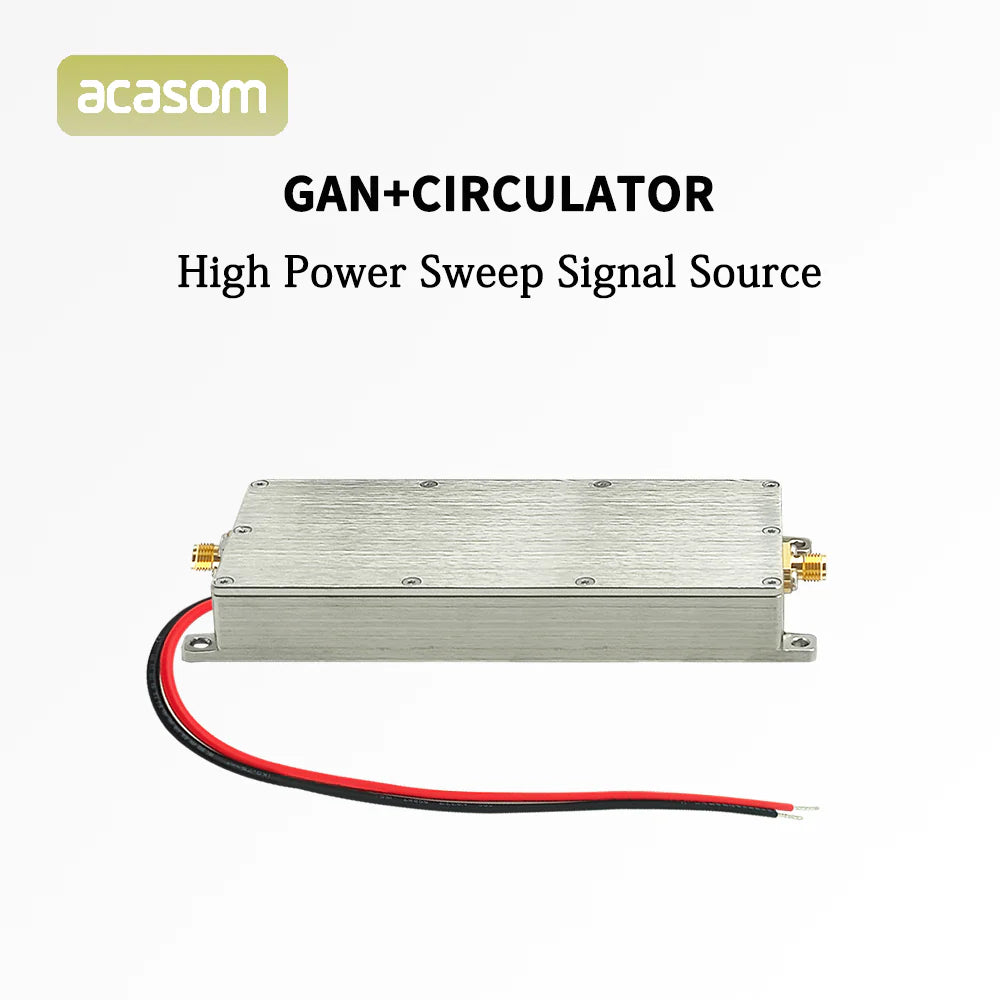

High-power sweep signal source with ACASOM GAN+ circulator for drone jamming.

The ACASOM GAN Drone Jammer is a high-power sweep signal source for drone jamming, offering effective solutions to protect against unauthorized aerial vehicles.

ACASOM GAN Circculator high power sweep signal source for drone jamming

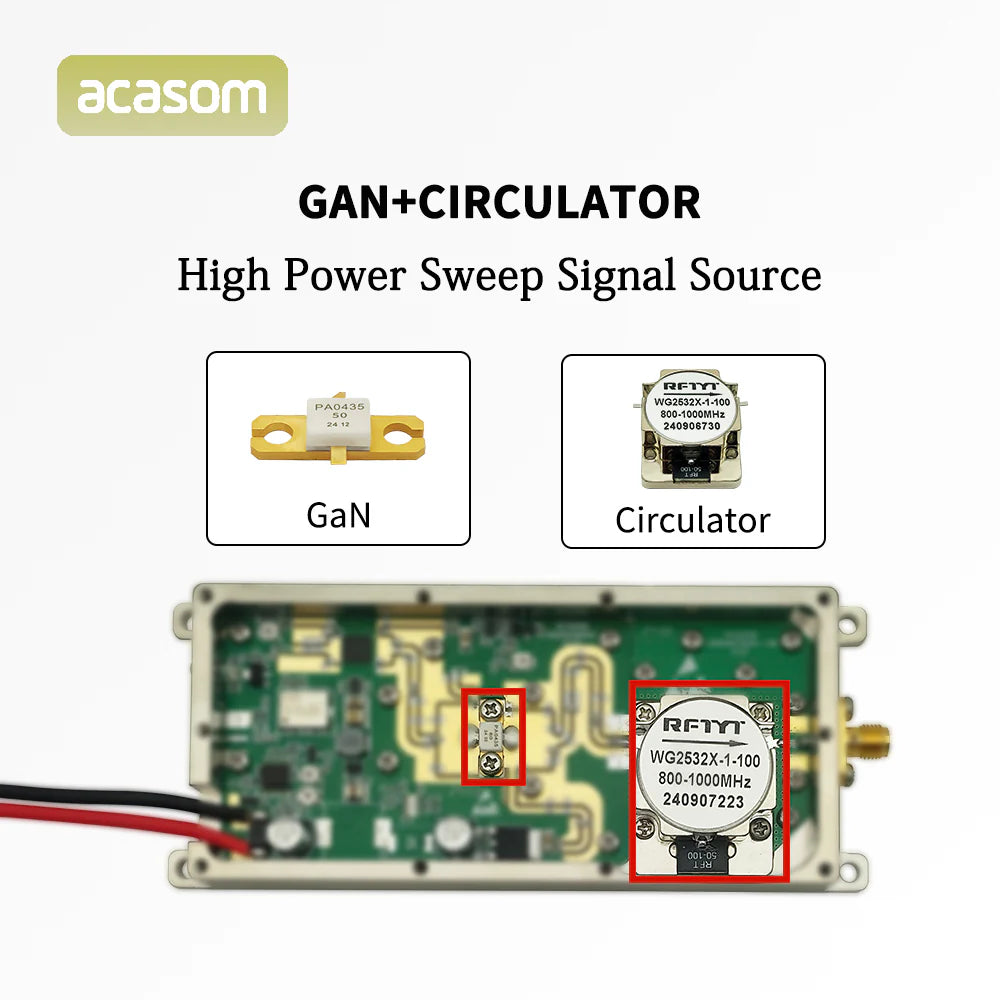

ACASOM GAN Drone Jammer: High power sweep signal source RF77n, WGR2532X-1-100, 80-100 MHz, IL 240906730, circulator PA0435, Gallium Nitride (GaN)
