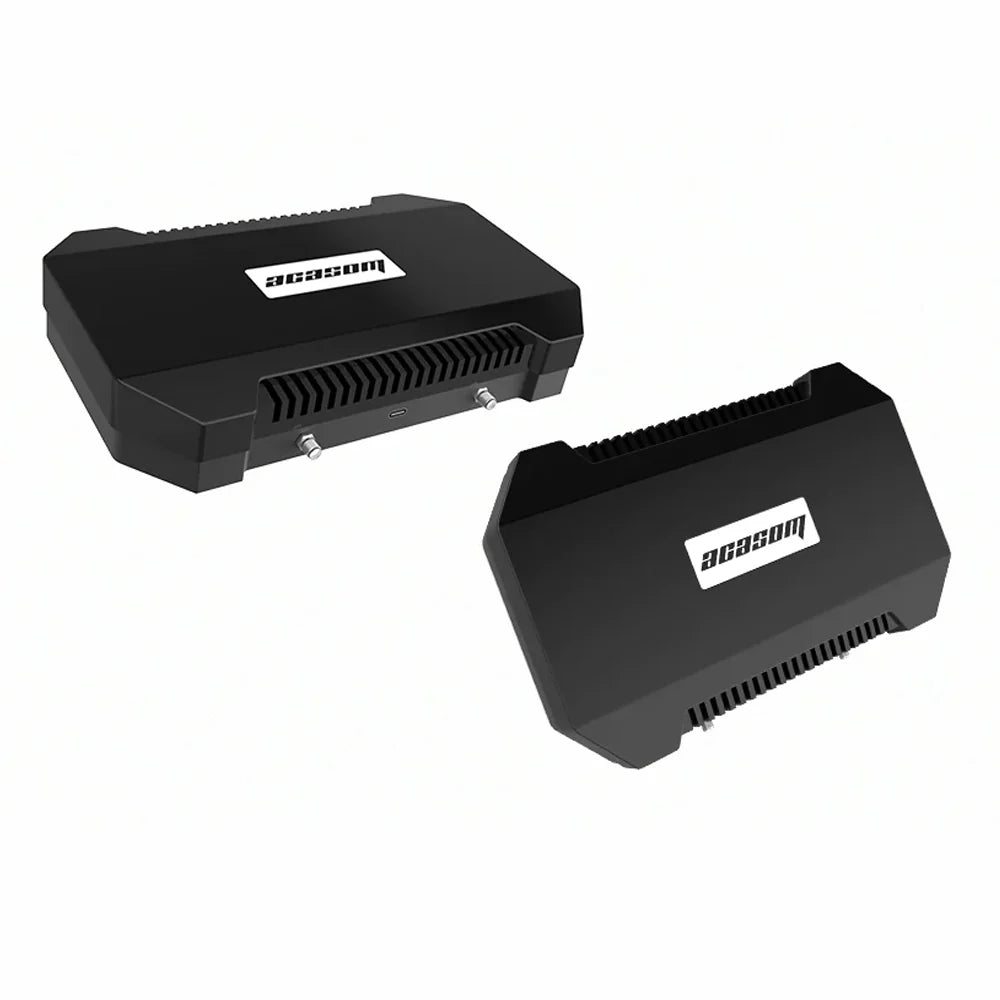

ACASOM ROC-4 Dual-Band Signal Booster Antenna Remote - 2.4G/5.8G, 10W Output, 8000mAh Battery
Take your drone performance to new heights with the ACASOM ROC-4, a dual-band signal booster designed for ultimate range extension and signal stability. The ROC-4 operates on both 2.4G and 5.8G frequency bands, providing a robust 10W output power per band and a powerful 8000mAh battery for prolonged usage. Engineered to push the limits of what drones can achieve, the ROC-4 delivers unmatched freedom and flexibility for both professional and recreational drone pilots.
Whether you’re a professional operator or an aerial photography enthusiast, the ROC-4 ensures your drone performs at its peak, offering a stable, long-distance connection for uninterrupted exploration. Experience enhanced control, improved signal quality, and greater range—making every flight more reliable and enjoyable.
Key Specifications
Items | Specifications |
---|---|
Frequency Range | 2400-2500MHz, 5150-5850MHz |
Max Output Power | 40dBm (10W) |
Antenna Gain | 15dB ± 1 (2.4G), 18dB ± 1 (5.8G) |
Battery Capacity | 8000mAh |
Receiving Gain | 16dB ± 1 |
Transmission Gain | 18dB ± 1 |
Input Trigger Power | Min: 3dBm, Max: 23dBm |
EVM | 3% @ 33dBm, 802.11g 54Mbps OFDM 64QAM BW 20MHz (2.4G) 3% @ 33dBm, 802.11a 54Mbps OFDM 64QAM BW 20MHz (5.8G) |
Noise Figure | < 2.5dB |
Current Supply | 2.2A @ Pout 40dBm, 12V |
TX/RX Switch Time Delay | < 1 µs |
Charging Voltage | 5V / 2A |
LED Indicator | 4 Blue LEDs |
Charging Port | Type-C |

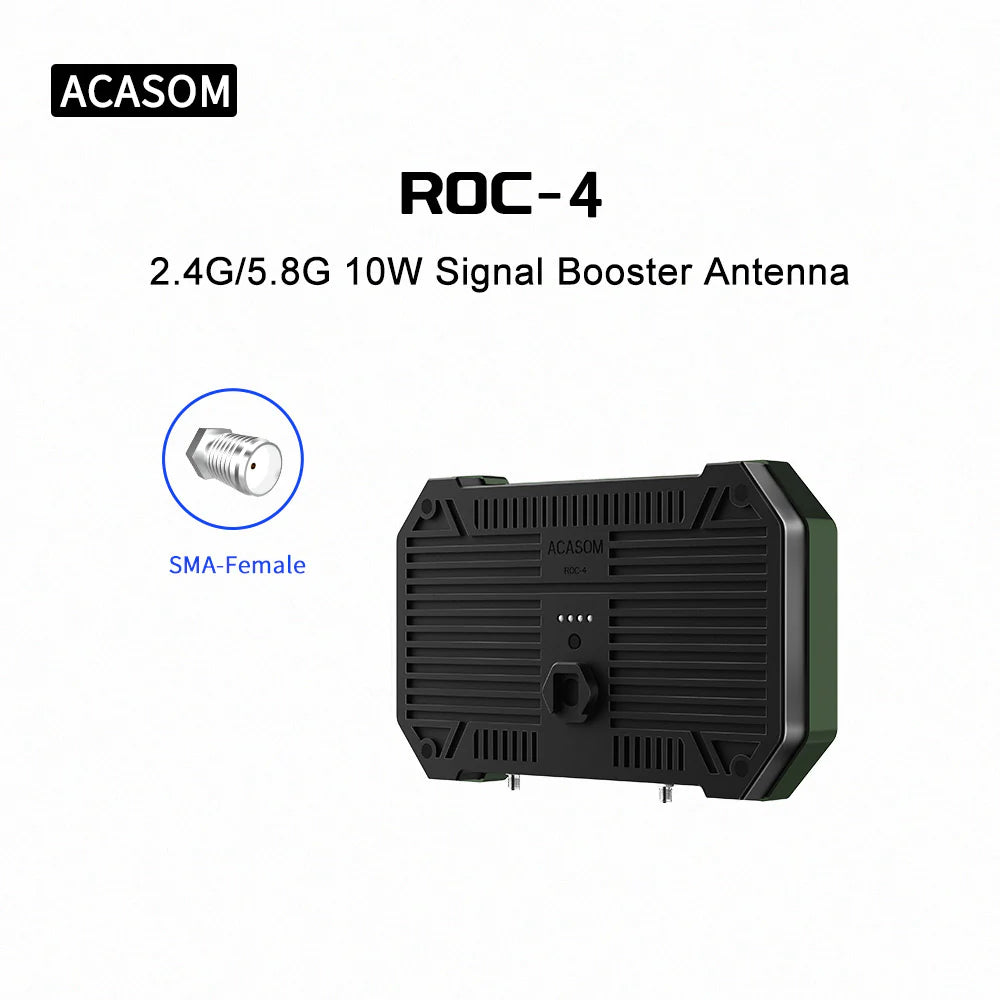

RF Connector | SMA-Female |
Operating Temperature | -40℃ to +70℃ |
Storage Temperature | -40℃ to +150℃ |
Operating Humidity | Up to 95% relative humidity |

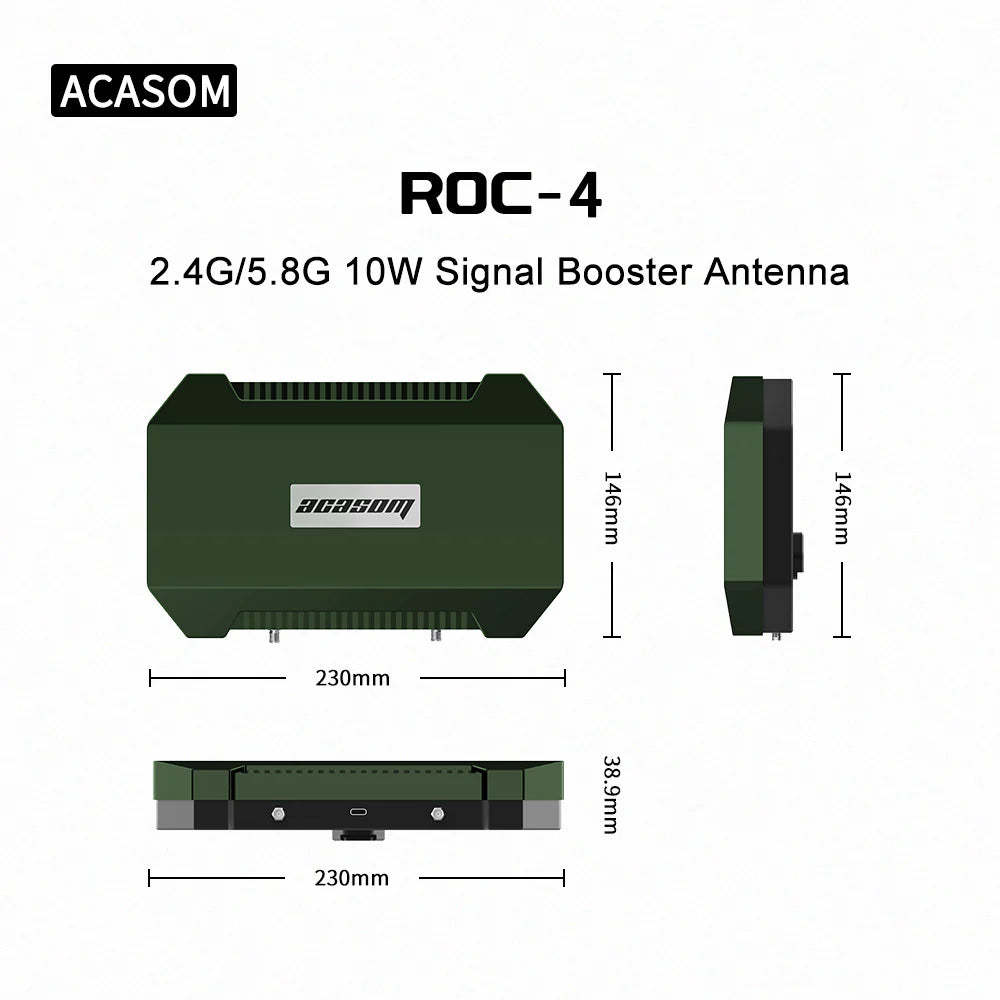

Shell Size | 230 x 146 x 39 mm |
Shell Material | Aluminum |
Features and Highlights
- Extended Dual-Band Range: The ROC-4 supports dual frequencies (2.4G and 5.8G) with high-gain antennas, delivering a significant increase in both distance and stability, ensuring optimal control over long distances.
- High Output Power: With a powerful 10W per band and an impressive 40dBm maximum output, the ROC-4 enhances signal strength, allowing for uninterrupted operation even in challenging environments.
- Long-lasting Battery Life: Equipped with an 8000mAh battery, the ROC-4 provides extended operational time, allowing users to maximize their flight duration and capture more without frequent recharges.
- Durable, Weather-Resistant Design: Constructed with an aluminum shell and operational in extreme temperatures (-40℃ to +70℃), the ROC-4 is built to withstand harsh environments, offering reliable performance under various conditions.
- User-Friendly Interface: The ROC-4 includes a Type-C charging port and a set of four blue LED indicators, allowing users to easily monitor battery status and connectivity.
Applications
Ideal for a variety of drone applications, including aerial photography, mapping, surveying, and security, the ROC-4 Signal Booster Antenna Remote provides the enhanced connectivity and control necessary for both professional and recreational drone use. This device is designed for operators who require reliable, high-quality performance in challenging and extended-range environments.
Package Includes:
- 1 x ROC-4 Signal Booster
- 1 x Type-C Charging Cable
- 1 x User Manual
Experience the freedom to explore new horizons with ACASOM ROC-4, the ultimate tool for boosting your drone's signal range and stability.
ACASOM ROC-4 green dual-band signal booster antenna remote control with 10W power and 8000mAh capacity for strong and stable signals.
The ACASOM ROC-4 is a green signal booster antenna that operates on 2.4GHz and 5.8GHz frequencies, providing up to 10W of power and featuring an 8000mAh battery with remote control capabilities for easy operation.
ACASOM ROC-4 Green dual-band signal booster antenna remote control device with power indicator light, power button and two input ports for both 2.4G and 5.8G frequencies.
ACASOM ROC-4 Green 2.4G/5.8G Signal Booster with 10W Power and 8000mAh Capacity
ACASOM ROC-4 Green is a dual-band signal booster antenna remote control device with 2.4G and 5.8G frequency support.
