AeroClean P2(A30) Aerial High-Pressure Cleaning System for DJI Drones / Heavy-duty Drones

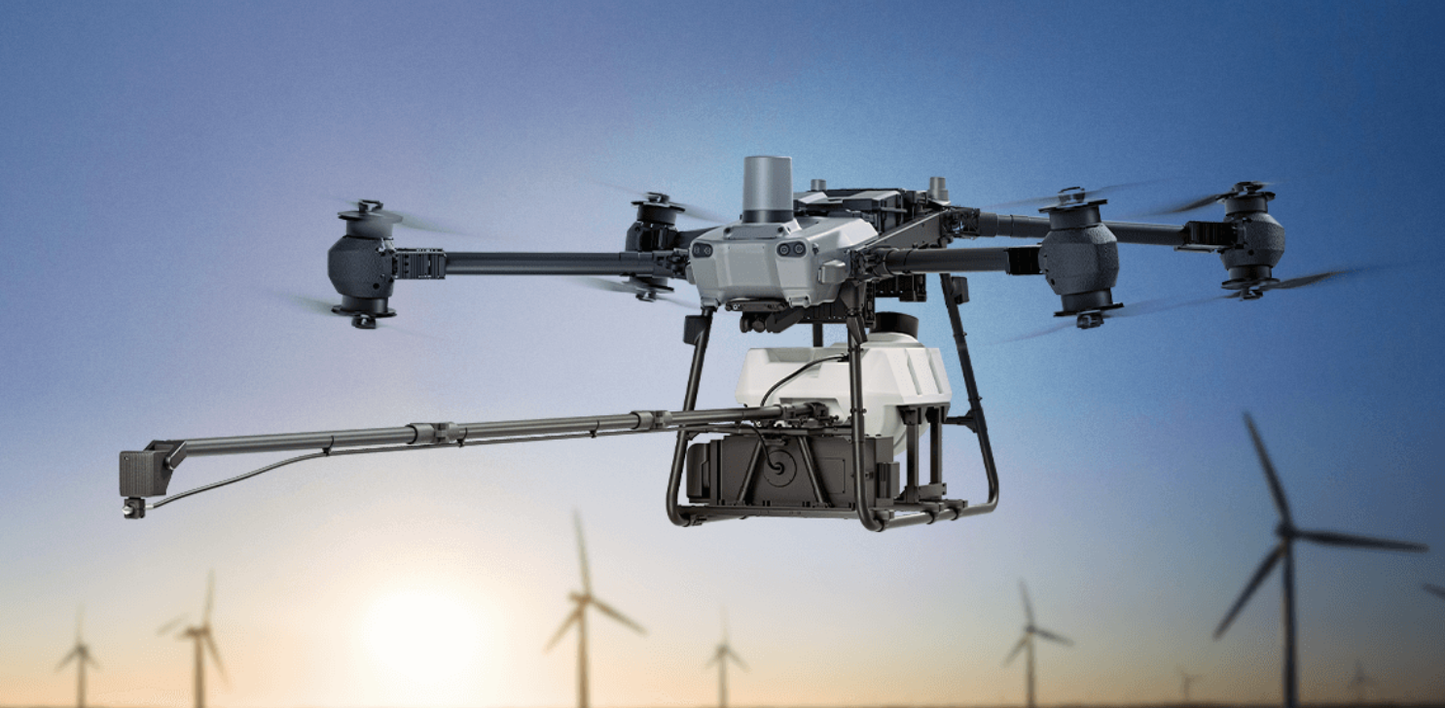

The AeroClean P2(A30), also referred to as the Wisson Orion AP30-P2, is a high-performance aerial high-pressure cleaning system designed for heavy-duty industry drones, including the DJI FC30. With a 900W power output, a maximum spray distance of 6 meters, and a 30L large-capacity water tank, this system delivers exceptional cleaning efficiency. It features multi-angle nozzle adjustments with vertical angles ranging from -60° to +35° and horizontal angles of ±45°, ensuring thorough cleaning for complex surfaces. Its IP55 protection rating guarantees durability in challenging environments, making it the ideal solution for high-altitude cleaning tasks like wind turbines, solar panels, and building exteriors.

Key Features:

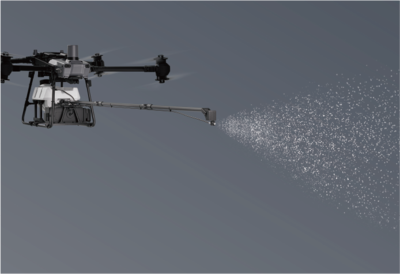

1. High-Pressure Multi-Angle Cleaning

• Adjustable nozzle angles provide vertical movement from -60° to +35° and horizontal swing of ±45°, ensuring comprehensive and precise cleaning coverage for complex surfaces such as wind turbine blades and solar panels.

2. Automation for Efficiency

• The system supports pre-planned spray paths, automating the cleaning process to improve operational efficiency. With full integration into flight control systems, it enables single-operator control of both the drone and cleaning module.

3. Large 30L Water Tank

• The built-in 30L tank allows extended operation without frequent refills. Side windows enable quick and easy liquid level monitoring and adjustments for uninterrupted cleaning.

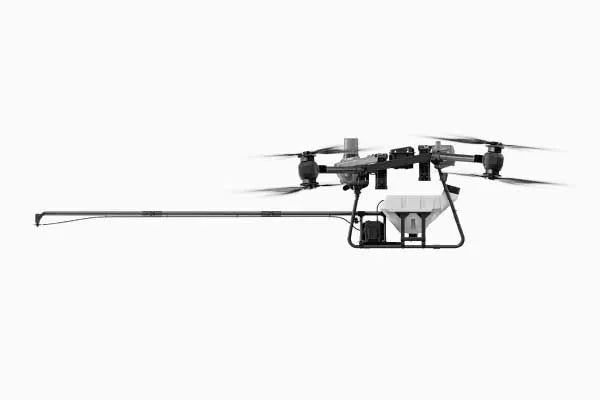

4. Portable and Foldable Design

• The cleaning module folds to just 1 meter for effortless transportation and storage, offering unparalleled portability for field operations.

5. Seamless Integration with DJI and Beyond

• Fully compatible with DJI FC30 and other heavy-duty drones, the system offers easy customization for integration with a range of flight platforms.

6. Real-Time Laser Rangefinder

• A laser distance measurement system ensures safe and effective cleaning within a 6-meter operational range, optimizing precision and safety.

7. Modular Nozzle System

• Versatile nozzles adapt to various cleaning tasks, ensuring high flexibility to handle diverse applications from narrow spaces to wide surfaces.

8. Safety-First Operations

• Operate remotely from the ground to eliminate high-altitude risks. The system is designed with enhanced safety measures, including collision-resistant components and real-time stability monitoring.

Technical Specifications:

Applications:

The AeroClean P2(A30) / Wisson Orion AP30-P2 is engineered for diverse high-altitude cleaning tasks across industries, including:

• Wind Turbine Cleaning: Achieve effective cleaning of turbine blades with precision and safety.
• Photovoltaic Panel Cleaning: Maximize solar energy efficiency by maintaining clean panels.
• Power Grid Cleaning: Safely clean high-voltage insulator strings and power grid components.
• Building and Wall Cleaning: Handle exterior cleaning of tall buildings and irregular surfaces.

Your Purchase Includes:

1. AeroClean P2(A30) / Wisson Orion AP30-P2 Cleaning System x 1

The AeroClean P2(A30) / Wisson Orion AP30-P2 offers unparalleled performance in aerial high-pressure cleaning. From industrial infrastructure to renewable energy equipment, this system ensures efficiency, safety, and seamless drone integration. Elevate your cleaning operations with the industry’s most advanced solution.

The Orion AP3O-P2 Aerial High-Pressure Cleaning System offers a convenient, efficient, safe, and stable high-capacity, multi-angle cleaning solution for high-altitude tasks such as wind turbine blades, solar panels, insulators, buildings, walls, and towers. It designed to be compatible with heavy-duty drones.

Efficiently clean with AeroClean P2 multi-angle, automatic design. Easily adjust vertical angle from -608 to +350 degrees and up to +450 for a thorough clean.

The AeroClean P2 Aerial Cleaner features a full process automation for rapid cleaning. The nozzle supports multi-angle routes and integrates spraying with flight route planning for automated sweeping. The adjustable nozzle angles allow for quick and efficient wide-area cleaning, operating vertically up to 35 degrees and horizontally up to 145 degrees. The foldable spray module can be stored compactly in a tank of 30L capacity, supporting continuous high-efficiency operations over large areas. The device fully integrates with flight systems for single-person control of both the drone and sprayer.

AeroClean P2 Aerial Cleaner features versatile and highly flexible nozzles. Modular nozzles provide multi-angle spraying that adapts to various tasks with the best-suited adjustable nozzle, making it easy to clean complex surfaces such as wind turbine blades.

Safety in Safe Aerial Operations - High-altitude operation. Remote control could significantly reduce risks of high-altitude operations. Real-time Laser Distance Detection displays operational distance for stable and optimal spraying, with an effective range of 6m for high-quality spraying at a safe distance.

AeroClean P2 Aerial Cleaner effectively cleans Applications such as Wind Turbines, Power Grids, and Photovoltaic Panels, making it an efficient solution for Building Maintenance.

AeroClean P2 Aerial Cleaner: Specifications - Weight, Power: 90OW, ISpray Gun, Extended Length: 2.5m, Maximum Spray Distance: 6m (Pump Pressure: 1-4 Mpa), Maximum Flow Rate: 5 L/min, Water Tank Capacity: 30L, Protection IPS5 End Horizontal Swing Angle: 45°-45', End Vertical Swing Angle: 60°-35°, DJI FC30 integrated control (supports integration with more platforms), Quick Nozzle Switching Supported, Liquid Level Indicator Supported, Surface Distance Measurement Supported. Product Packaging: 1*0.7*0.7m, Weight Rating: 3kg
