AeroEggTech AET-U7 STM32H753 Industrial Flight Controller with Triple IMU, Dual Barometer, IST-8310

Overview

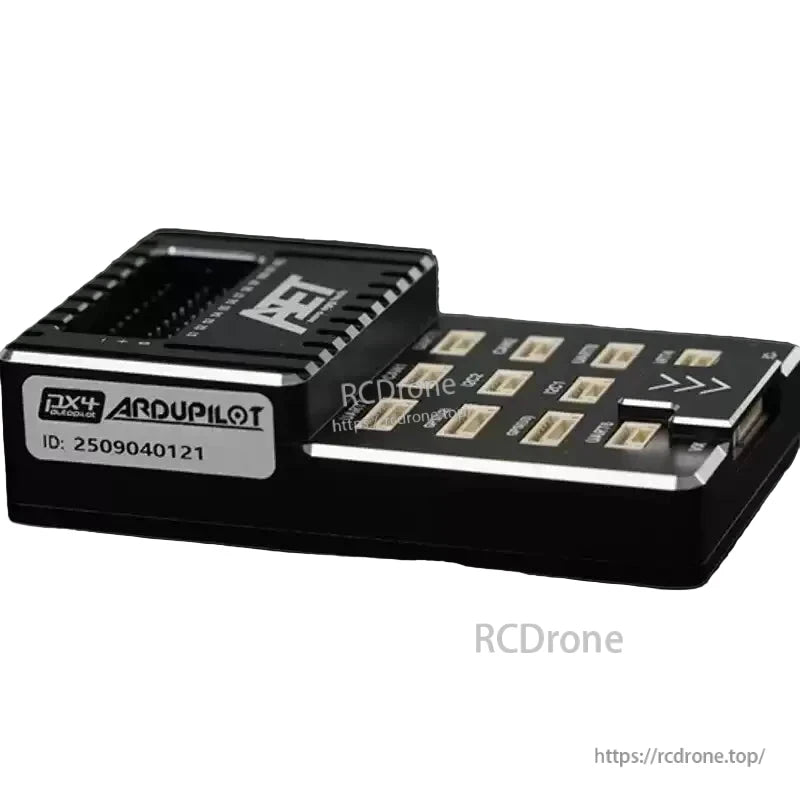

AeroEggTech AET-U7 is an industrial Flight Controller built around the STM32H753 processor, featuring redundant IMUs, dual barometers, and an onboard IST-8310 magnetometer in a compact module.

Key Features

• Processor: STM32H753
• IMUs: IMU1 ICM-45686; IMU2 ICM-42688; IMU3 ICM-42688 (IMU3 shown as onboard backup)
• Barometers: BARO1 ICP-20100; BARO2 SPL-06
• Magnetometer: IST-8310
• Temperature-controlled IMU: IMU1 and IMU2 regulated at 45°C (auto-enabled when 5V power is connected)
• Internal silicone vibration isolation structure (as stated)
• Automotive-grade electronic components; passive components stated to meet AEC-Q200
• Redundant main power supply design (two power inputs stated; operation continues if either path is interrupted)
• Sensor upgrade statement: noise coefficient reduced by 40% and temperature stability increased by 2x vs. traditional consumer IMU

For order and technical support, contact https://rcdrone.top/ or email support@rcdrone.top.

Specifications

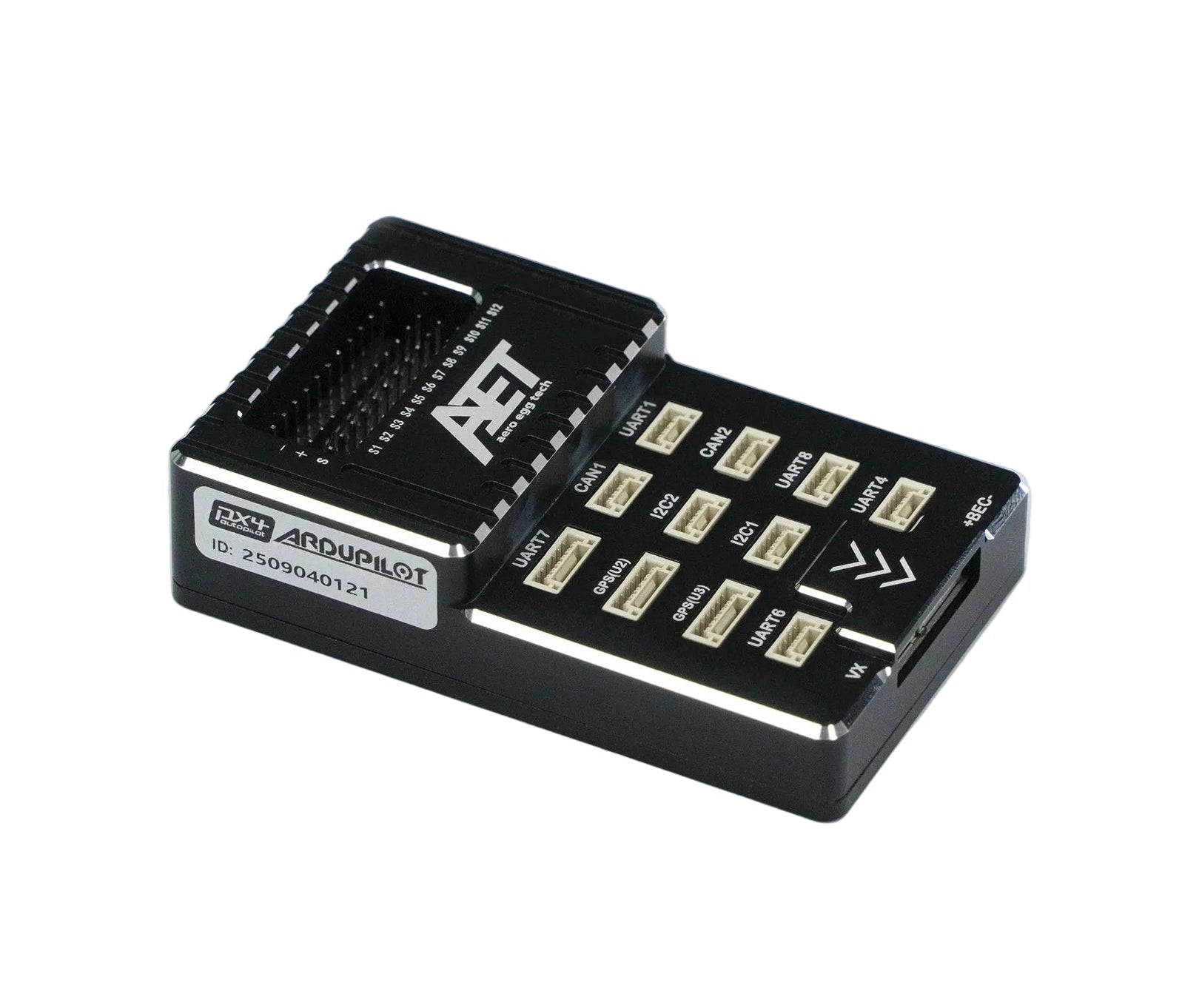

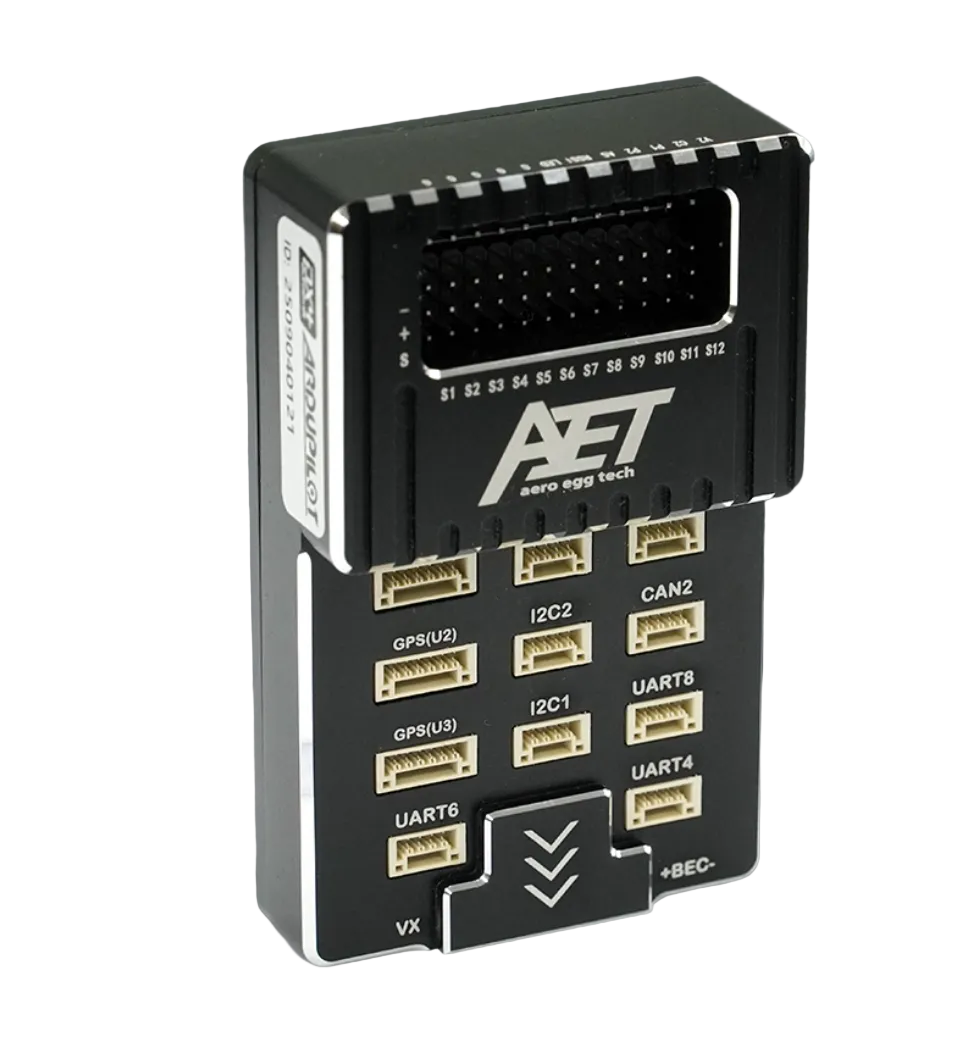

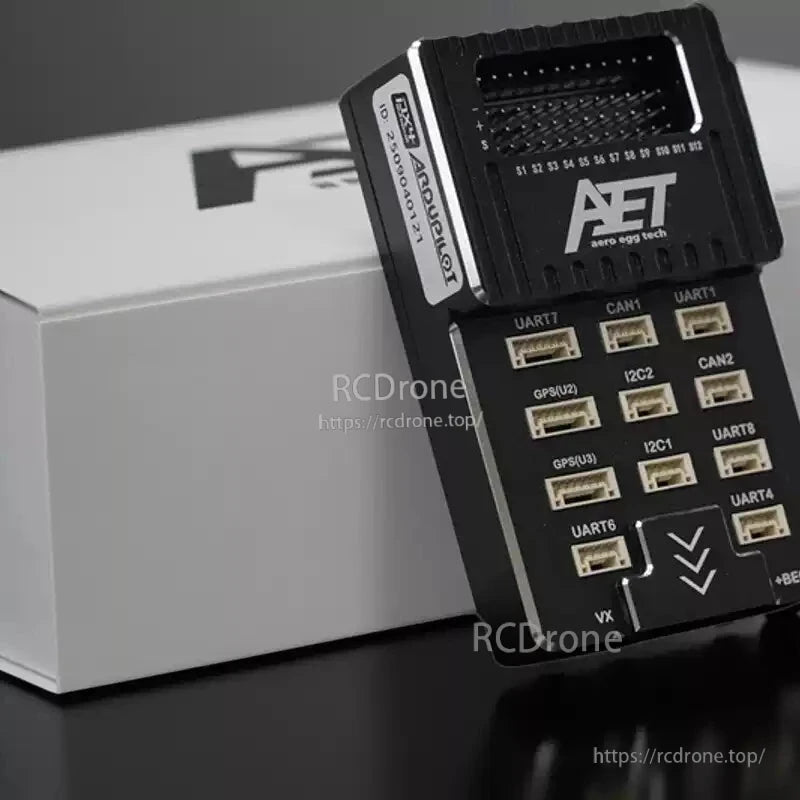

Connector Labels (as printed on the module)

• S1 to S12
• GPS(U2), GPS(U3)
• I2C1, I2C2
• CAN2
• UART4, UART6, UART8
• VX
• +BEC-

Connector Pinout (as shown in the diagram)

• (1) Header: GND, GND, GND, GND, GND, LED, RSSI, AIRSPD, PIO2, PIO1, CURR2, VBAT2; outputs S1-S12
• (2) GND, RTS, CTS, RX7, TX7, 5V
• (3) GND, L, H, 5V
• (4) GND, RX1, TX1, 5V
• (5) GND, SDA2, SCL2, RX2, TX2, 5V
• (6) GND, SDA2, SCL2, 5V
• (7) GND, L, H, 5V
• (8) GND, SDA1, SCL1, RX3, TX3, 5V
• (9) GND, SDA1, SCL1, 5V
• (10) GND, RX8, TX8, 5V
• (11) GND, RX6, TX6, 5V
• (12) GND, RX4, TX4, 5V
• (13) GND, VX, VX, GND
• (14) 5V, 5V, CU1, VB1, GND, GND
• (15) USB TYPE-C
• (16) TF CARD
• (17) BOOT PIN

What's Included

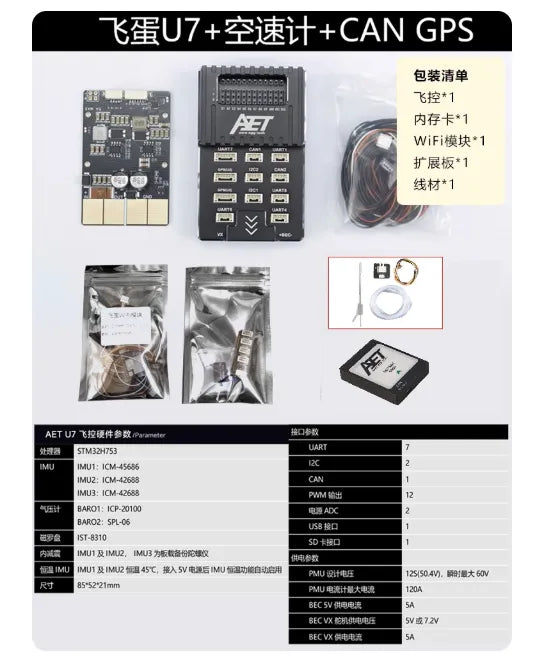

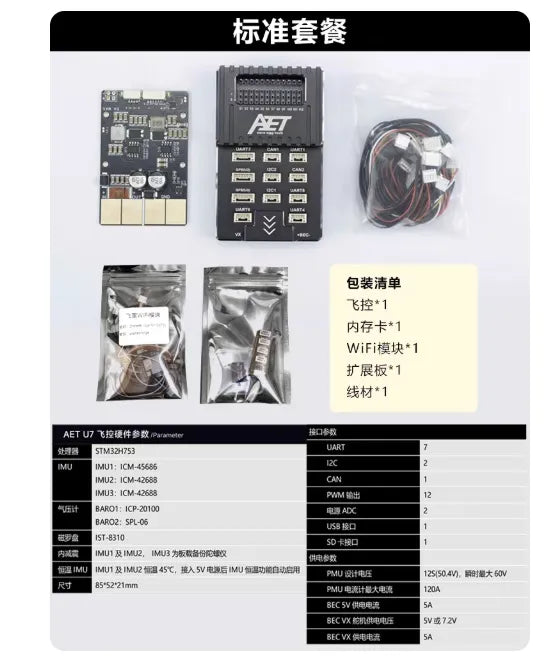

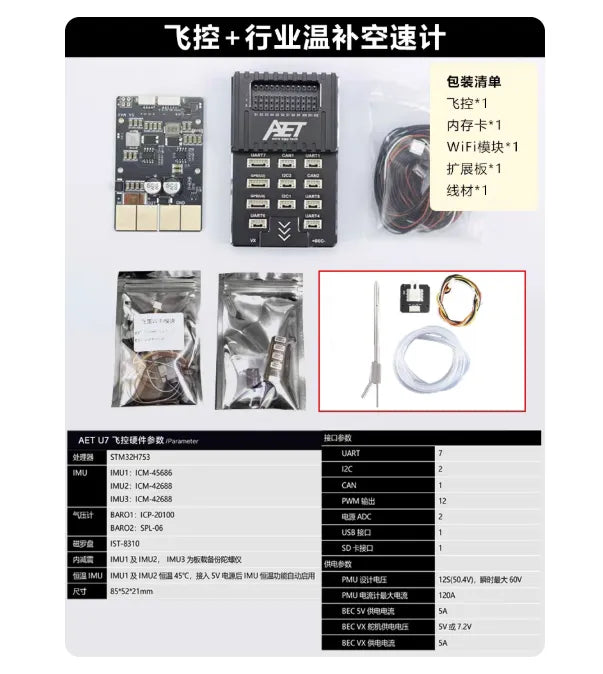

• AET-U7 flight controller module (as shown)
• Assorted cables (as shown)

Details

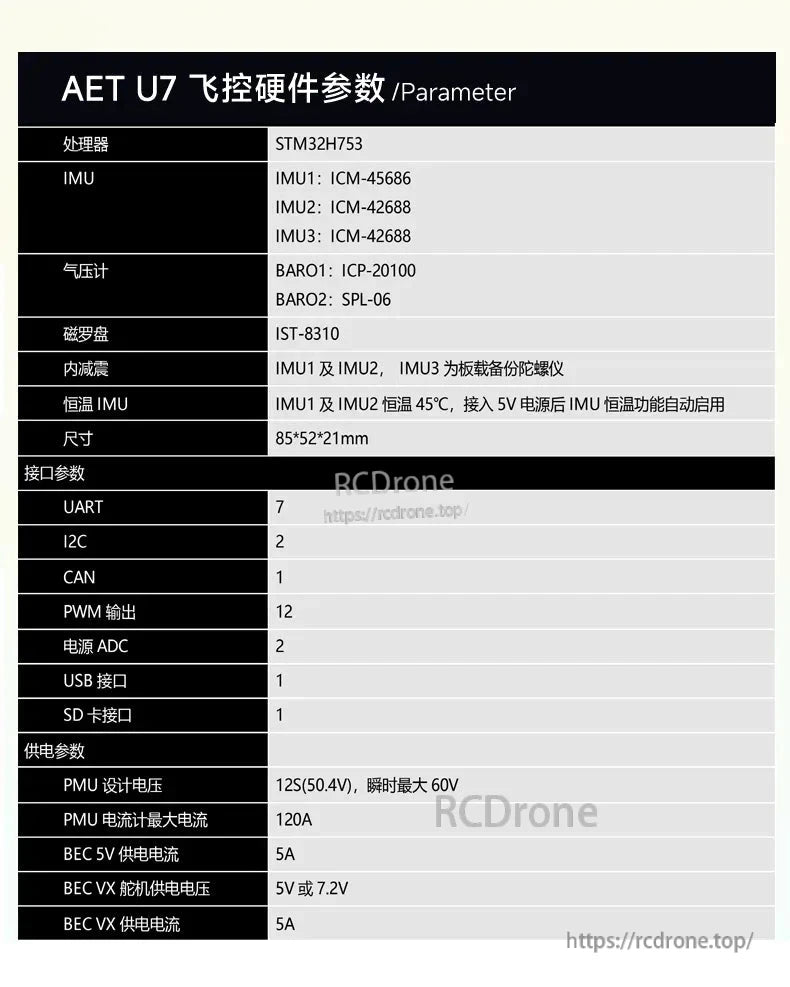

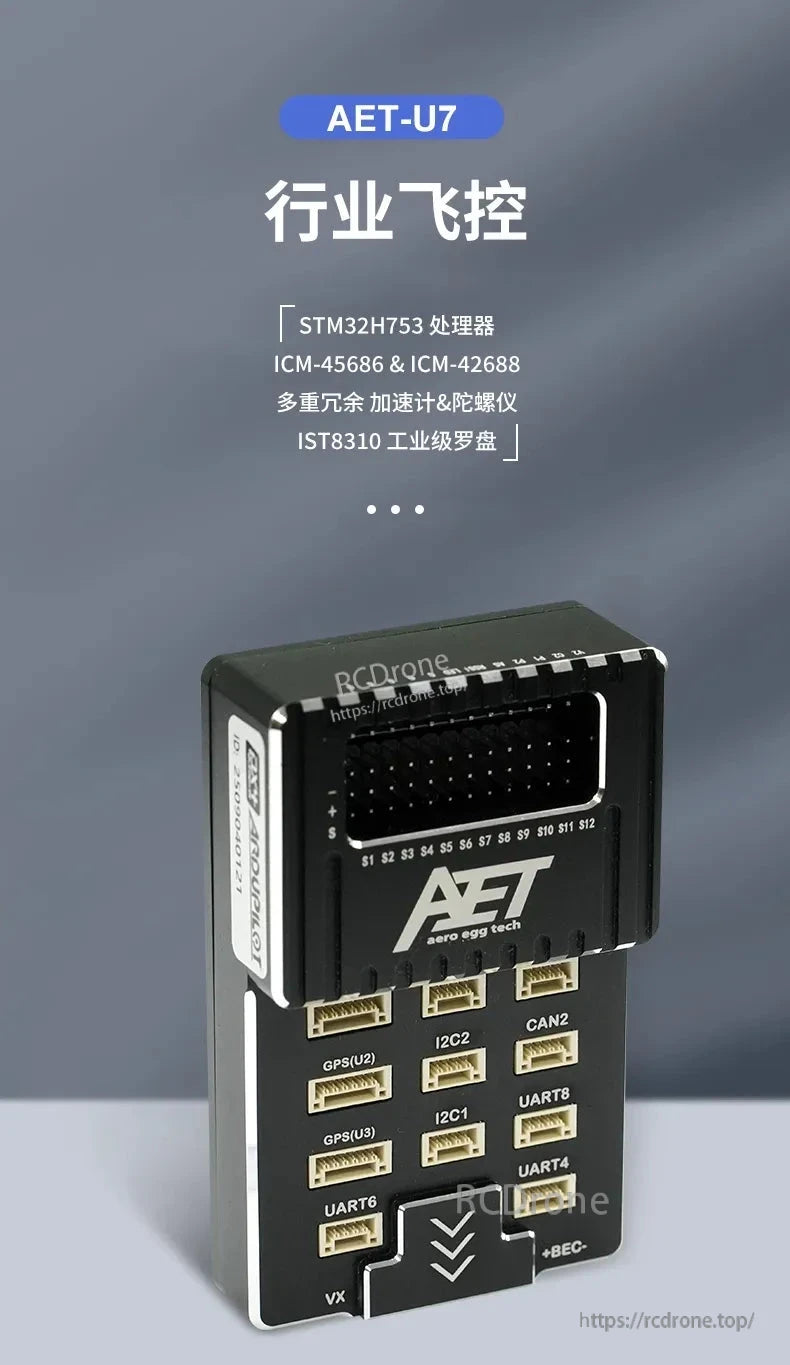

AET U7 flight controller specs: STM32H753 processor, multiple IMUs, barometers, magnetometer. Includes UART, I2C, CAN, PWM, ADC, USB, SD interfaces. Power: 12S (50.4V), max 60V, 120A current.

STM32H753 MCU Board AET-U7. Features ICM-42688 and ICM-45686 accelerometers. Includes UART8, UARTA, UARTG, CANZ, GPS(U2), GPS(U3) interfaces. Compatible with IST8310, 12C1, 12C2 protocols. Measures 59 x 511 mm, weighs 52 grams. Operates at 84-55V DC power. Ideal for IoT and robotics projects.

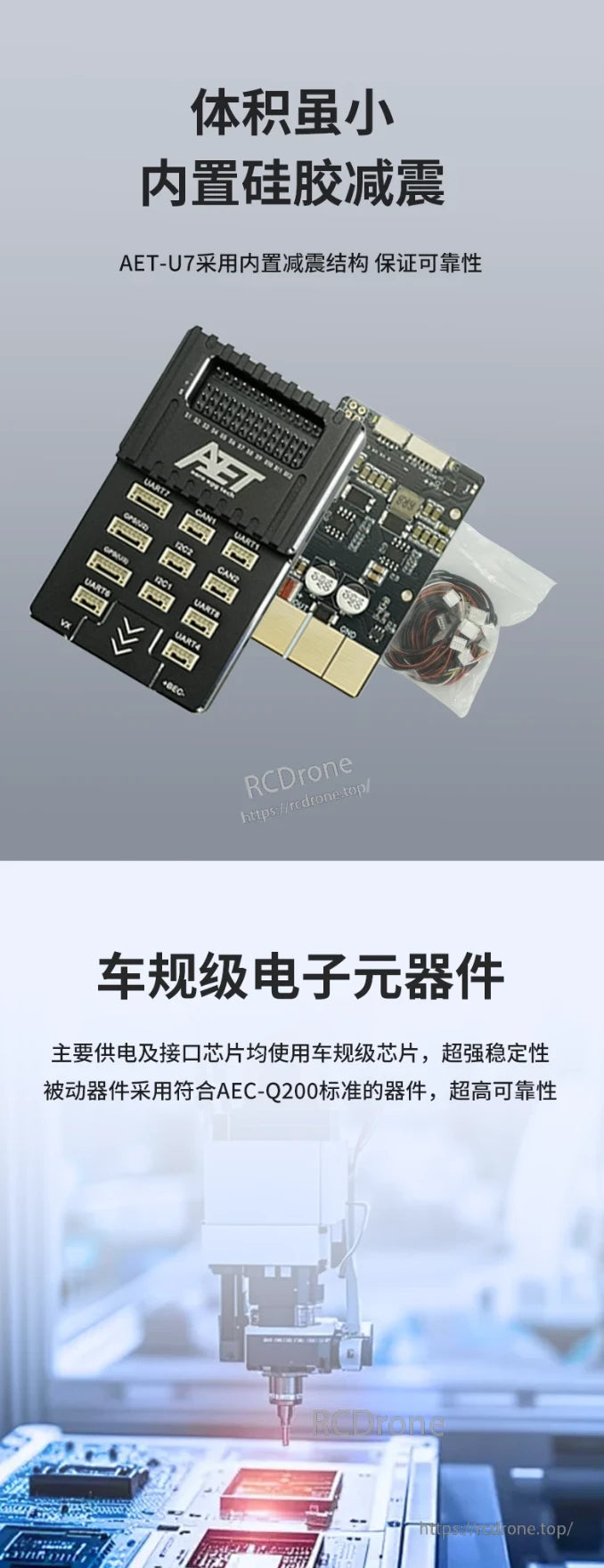

Compact AET-U7 flight controller features built-in silicone shock absorption, automotive-grade components, and meets AEC-Q200 standards for high stability and superior durability in demanding environments.

AET U7 flight controller offers dual-power backup, STM32H753 main control, enhanced protection, isolated interfaces, and uninterrupted operation if one power path fails.

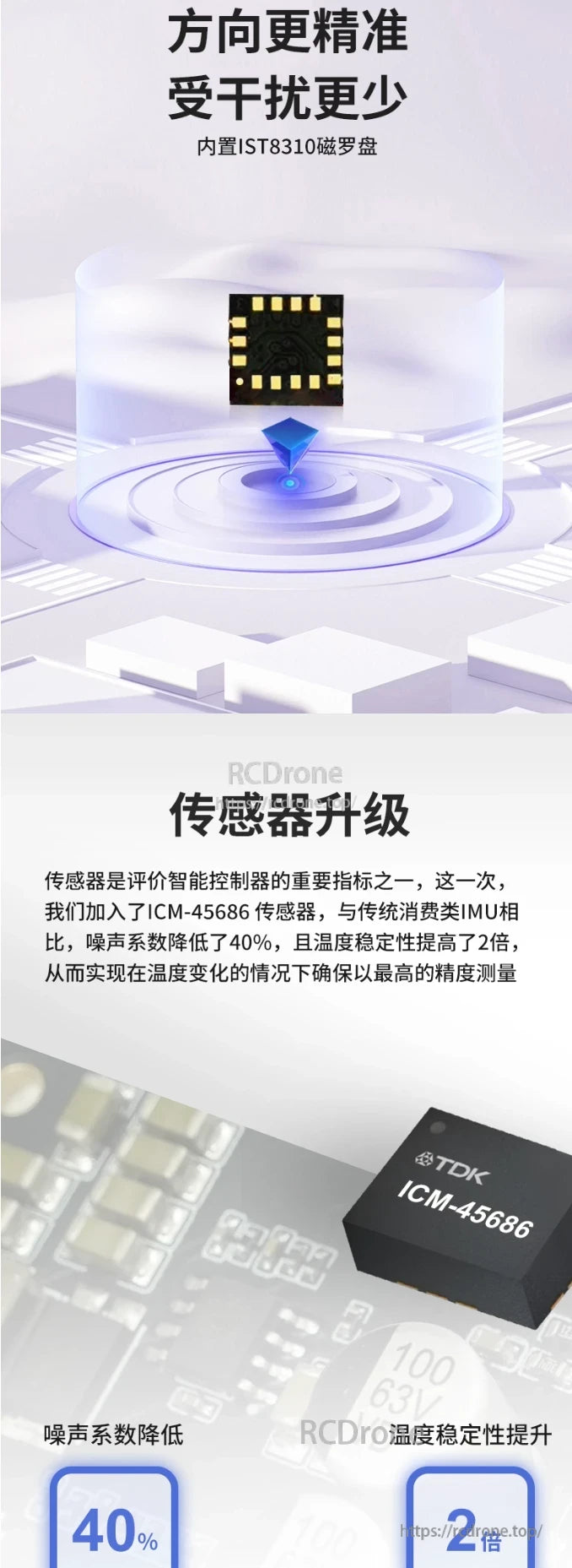

Upgraded sensors with ICM-45686 reduce noise by 40% and double thermal stability. Built-in IST8310 compass ensures precise direction with less interference for optimal flight control performance.

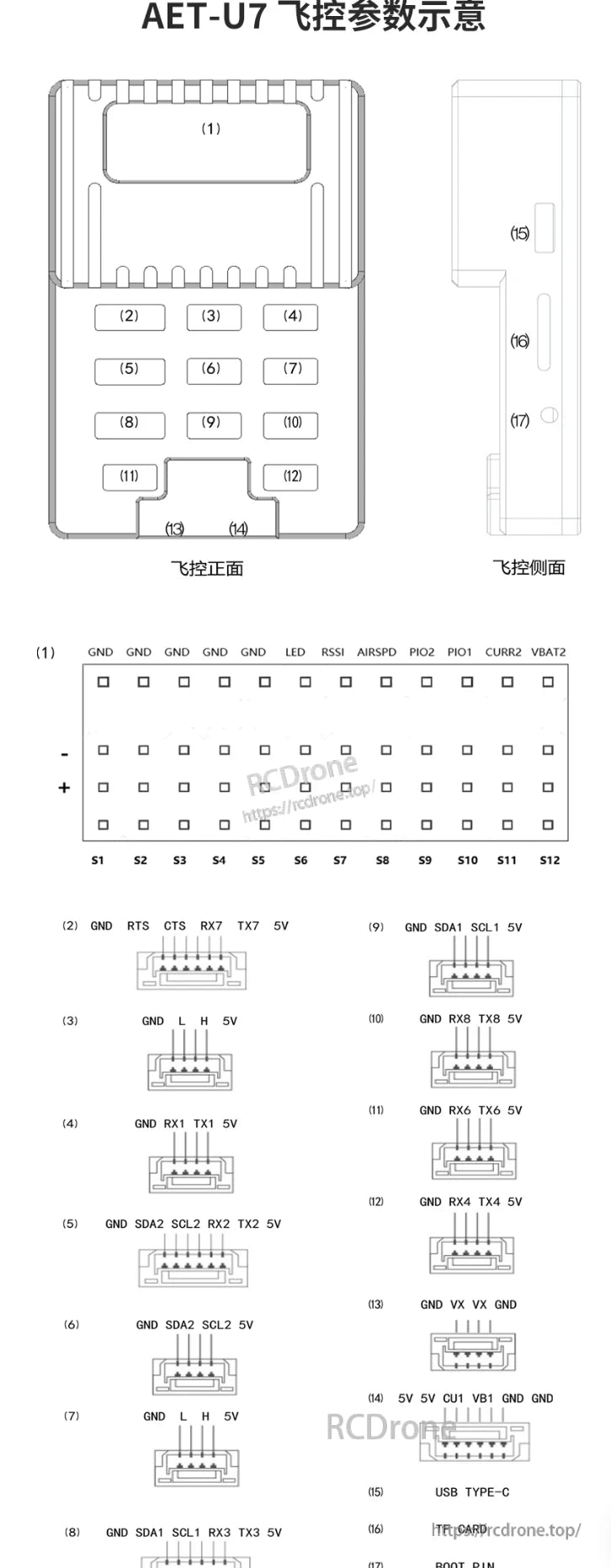

Front and side views show pinouts for UART, I2C, USB-C, TF card slot, and boot pin, detailing signal assignments for connectivity and power on the AET-U7 flight controller.
